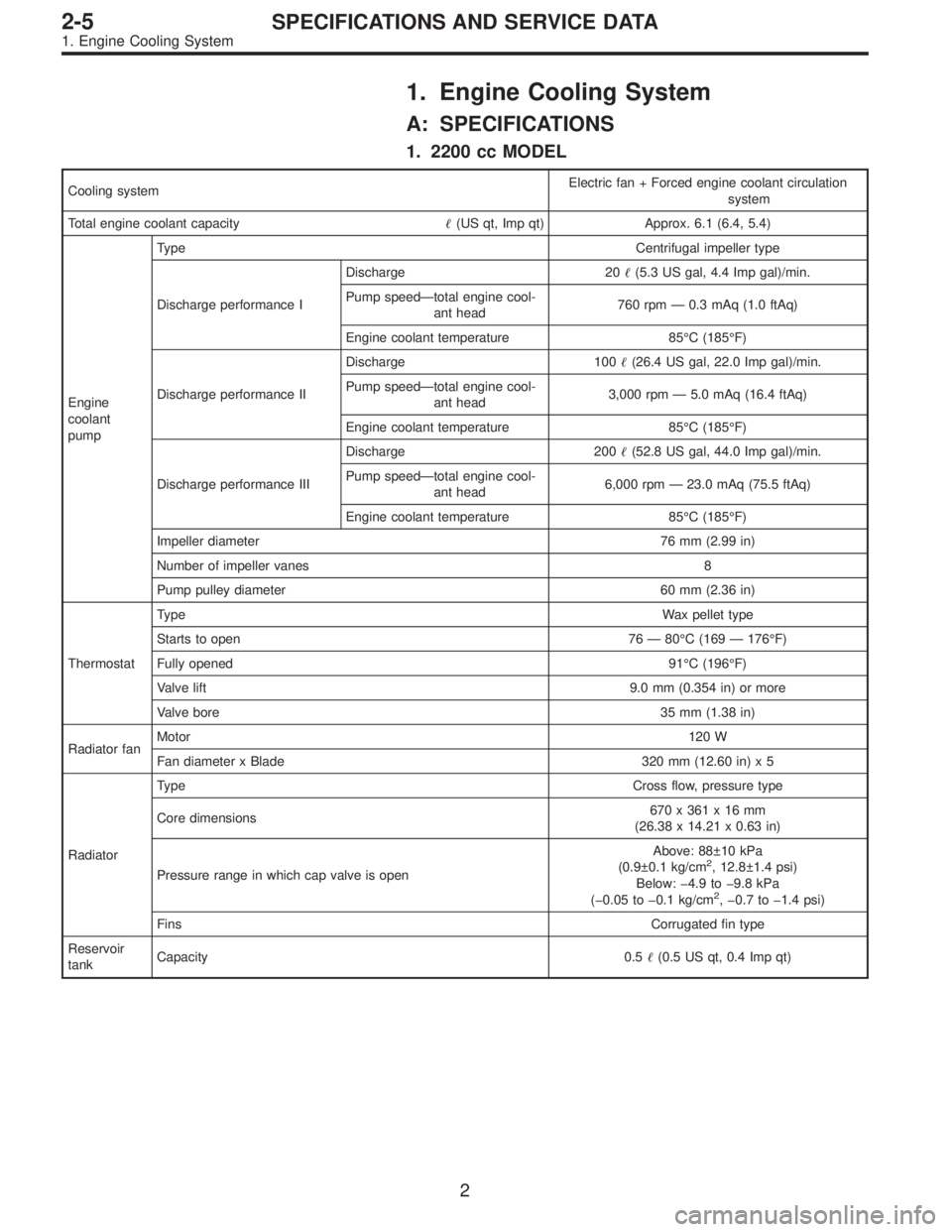

1. Engine Cooling System
A: SPECIFICATIONS
1. 2200 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity
(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Engine
coolant
pumpTypeCentrifugal impeller type
Discharge performance IDischarge 20
(5.3 US gal, 4.4 Imp gal)/min.
Pump speed—total engine cool-
ant head760 rpm — 0.3 mAq (1.0 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIDischarge 100
(26.4 US gal, 22.0 Imp gal)/min.
Pump speed—total engine cool-
ant head3,000 rpm — 5.0 mAq (16.4 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIIDischarge 200
(52.8 US gal, 44.0 Imp gal)/min.
Pump speed—total engine cool-
ant head6,000 rpm — 23.0 mAq (75.5 ftAq)
Engine coolant temperature 85°C (185°F)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76 — 80°C (169 — 176°F)
Fully opened91°C (196°F)
Valve lift9.0 mm (0.354 in) or more
Valve bore35 mm (1.38 in)
Radiator fanMotor120 W
Fan diameter x Blade 320 mm (12.60 in) x 5
RadiatorTypeCross flow, pressure type
Core dimensions670x361x16mm
(26.38 x 14.21 x 0.63 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below: 4.9 to 9.8 kPa
(0.05 to 0.1 kg/cm
2, 0.7 to 1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5
(0.5 US qt, 0.4 Imp qt)
2
2-5SPECIFICATIONS AND SERVICE DATA
1. Engine Cooling System

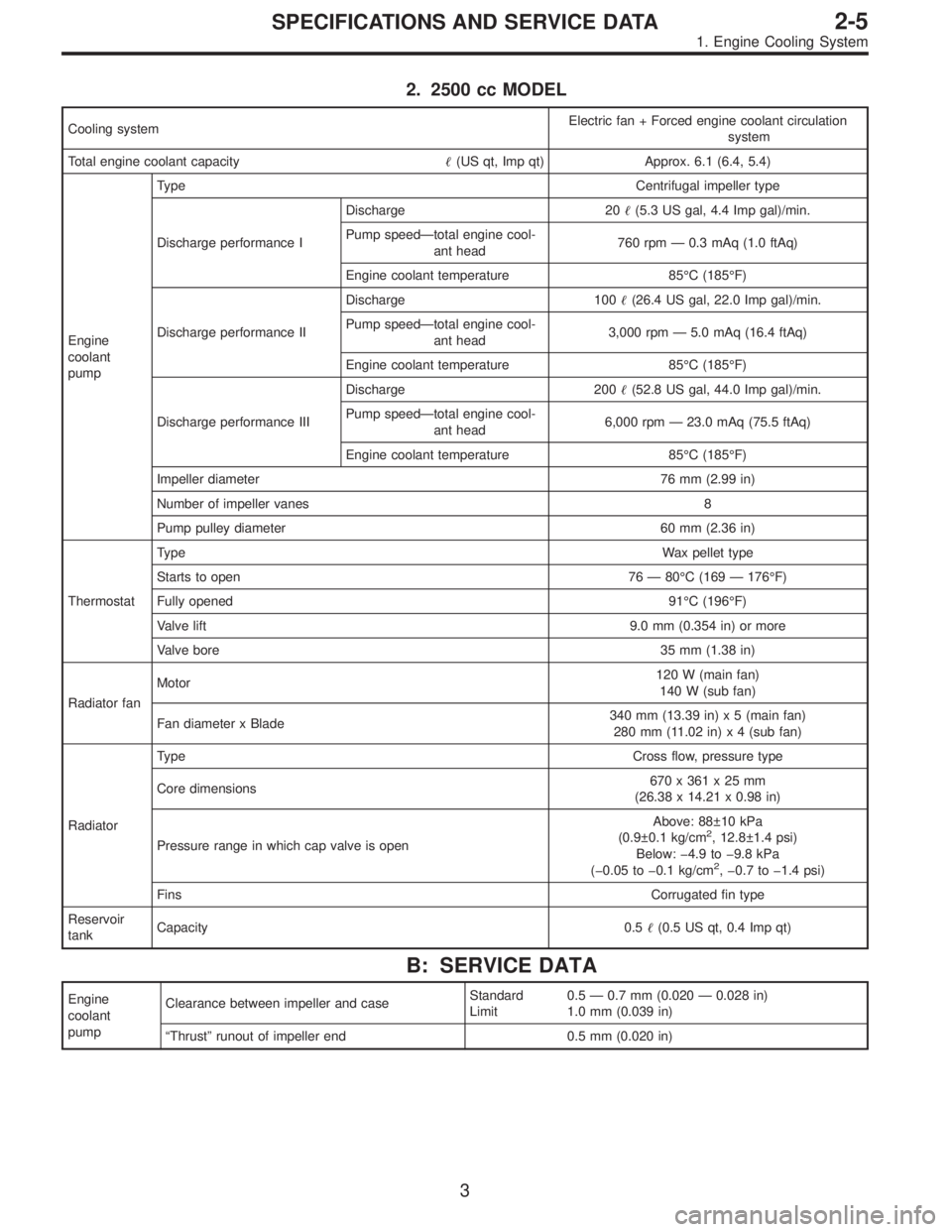

2. 2500 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity
(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Engine
coolant
pumpTypeCentrifugal impeller type
Discharge performance IDischarge 20
(5.3 US gal, 4.4 Imp gal)/min.
Pump speed—total engine cool-
ant head760 rpm—0.3 mAq (1.0 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIDischarge 100
(26.4 US gal, 22.0 Imp gal)/min.
Pump speed—total engine cool-
ant head3,000 rpm—5.0 mAq (16.4 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIIDischarge 200
(52.8 US gal, 44.0 Imp gal)/min.
Pump speed—total engine cool-
ant head6,000 rpm—23.0 mAq (75.5 ftAq)
Engine coolant temperature 85°C (185°F)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76—80°C (169—176°F)
Fully opened91°C (196°F)
Valve lift9.0 mm (0.354 in) or more
Valve bore35 mm (1.38 in)
Radiator fanMotor120 W (main fan)
140 W (sub fan)
Fan diameter x Blade340 mm (13.39 in) x 5 (main fan)
280 mm (11.02 in) x 4 (sub fan)
RadiatorTypeCross flow, pressure type
Core dimensions670x361x25mm
(26.38 x 14.21 x 0.98 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below:4.9 to9.8 kPa
(0.05 to0.1 kg/cm
2,0.7 to1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5
(0.5 US qt, 0.4 Imp qt)
B: SERVICE DATA
Engine
coolant
pumpClearance between impeller and caseStandard
Limit0.5—0.7 mm (0.020—0.028 in)
1.0 mm (0.039 in)
“Thrust”runout of impeller end 0.5 mm (0.020 in)
3
2-5SPECIFICATIONS AND SERVICE DATA
1. Engine Cooling System

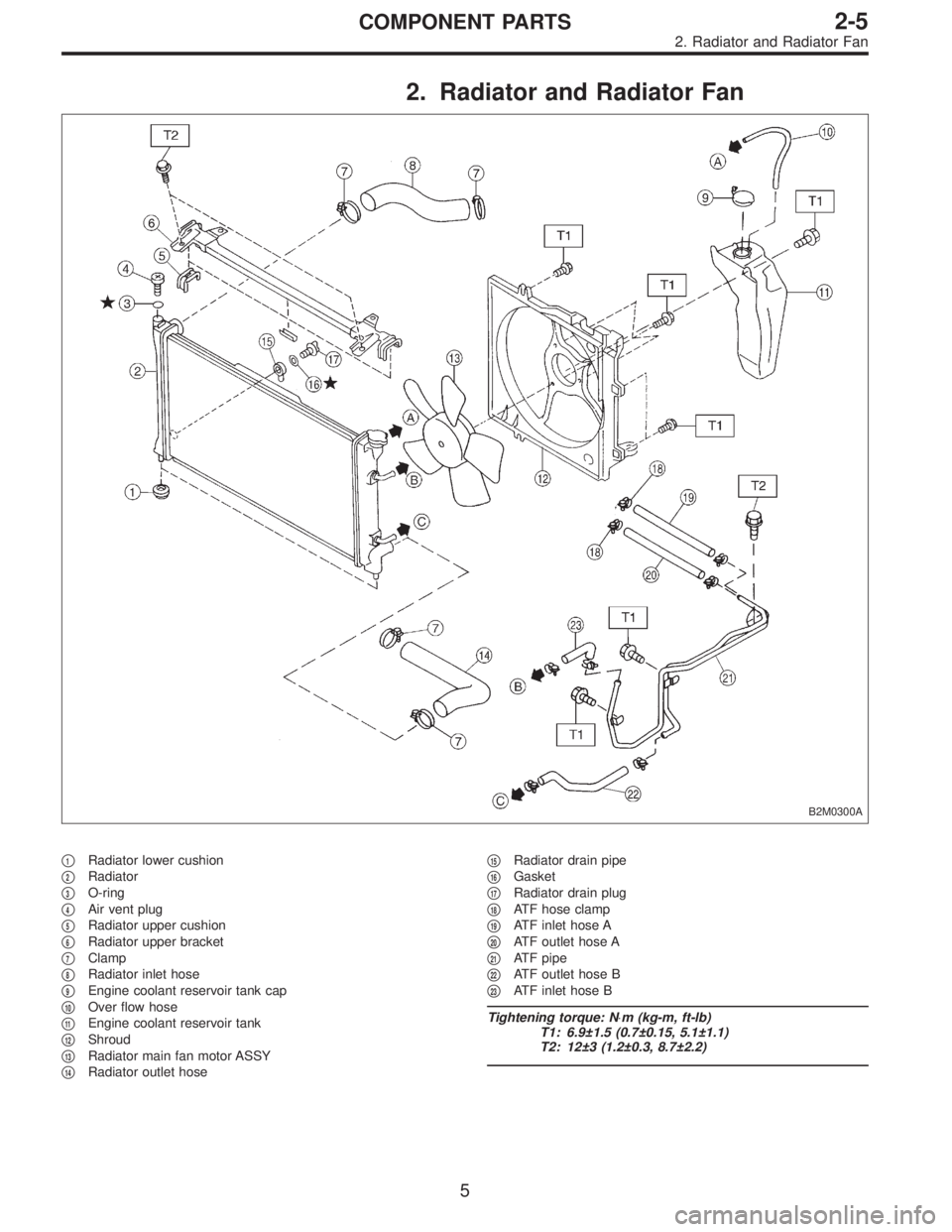

2. Radiator and Radiator Fan
B2M0300A

1Radiator lower cushion


2Radiator


3O-ring


4Air vent plug


5Radiator upper cushion


6Radiator upper bracket


7Clamp


8Radiator inlet hose


9Engine coolant reservoir tank cap


10Over flow hose


11Engine coolant reservoir tank


12Shroud


13Radiator main fan motor ASSY


14Radiator outlet hose

15Radiator drain pipe


16Gasket


17Radiator drain plug


18ATF hose clamp


19ATF inlet hose A


20ATF outlet hose A


21ATF pipe


22ATF outlet hose B


23ATF inlet hose B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 6.9±1.5 (0.7±0.15, 5.1±1.1)
T2: 12±3 (1.2±0.3, 8.7±2.2)
5
2-5COMPONENT PARTS
2. Radiator and Radiator Fan

B2M0140

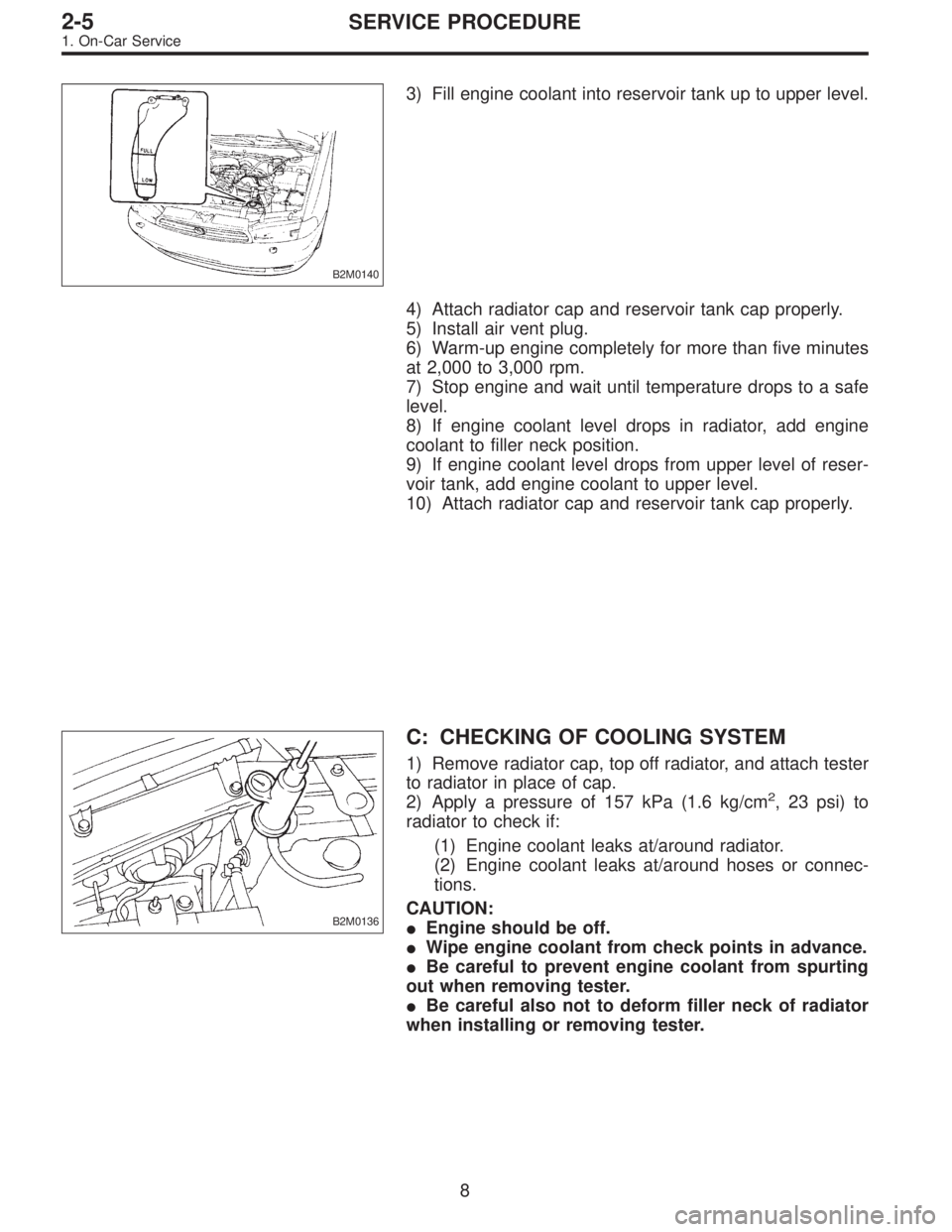

3) Fill engine coolant into reservoir tank up to upper level.
4) Attach radiator cap and reservoir tank cap properly.
5) Install air vent plug.
6) Warm-up engine completely for more than five minutes
at 2,000 to 3,000 rpm.
7) Stop engine and wait until temperature drops to a safe
level.
8) If engine coolant level drops in radiator, add engine
coolant to filler neck position.
9) If engine coolant level drops from upper level of reser-
voir tank, add engine coolant to upper level.
10) Attach radiator cap and reservoir tank cap properly.
B2M0136
C: CHECKING OF COOLING SYSTEM
1) Remove radiator cap, top off radiator, and attach tester
to radiator in place of cap.
2) Apply a pressure of 157 kPa (1.6 kg/cm
2, 23 psi) to
radiator to check if:
(1) Engine coolant leaks at/around radiator.
(2) Engine coolant leaks at/around hoses or connec-
tions.
CAUTION:
Engine should be off.
Wipe engine coolant from check points in advance.
Be careful to prevent engine coolant from spurting
out when removing tester.
Be careful also not to deform filler neck of radiator
when installing or removing tester.
8
2-5SERVICE PROCEDURE
1. On-Car Service
