SUBARU LEGACY 1999 Service Repair Manual

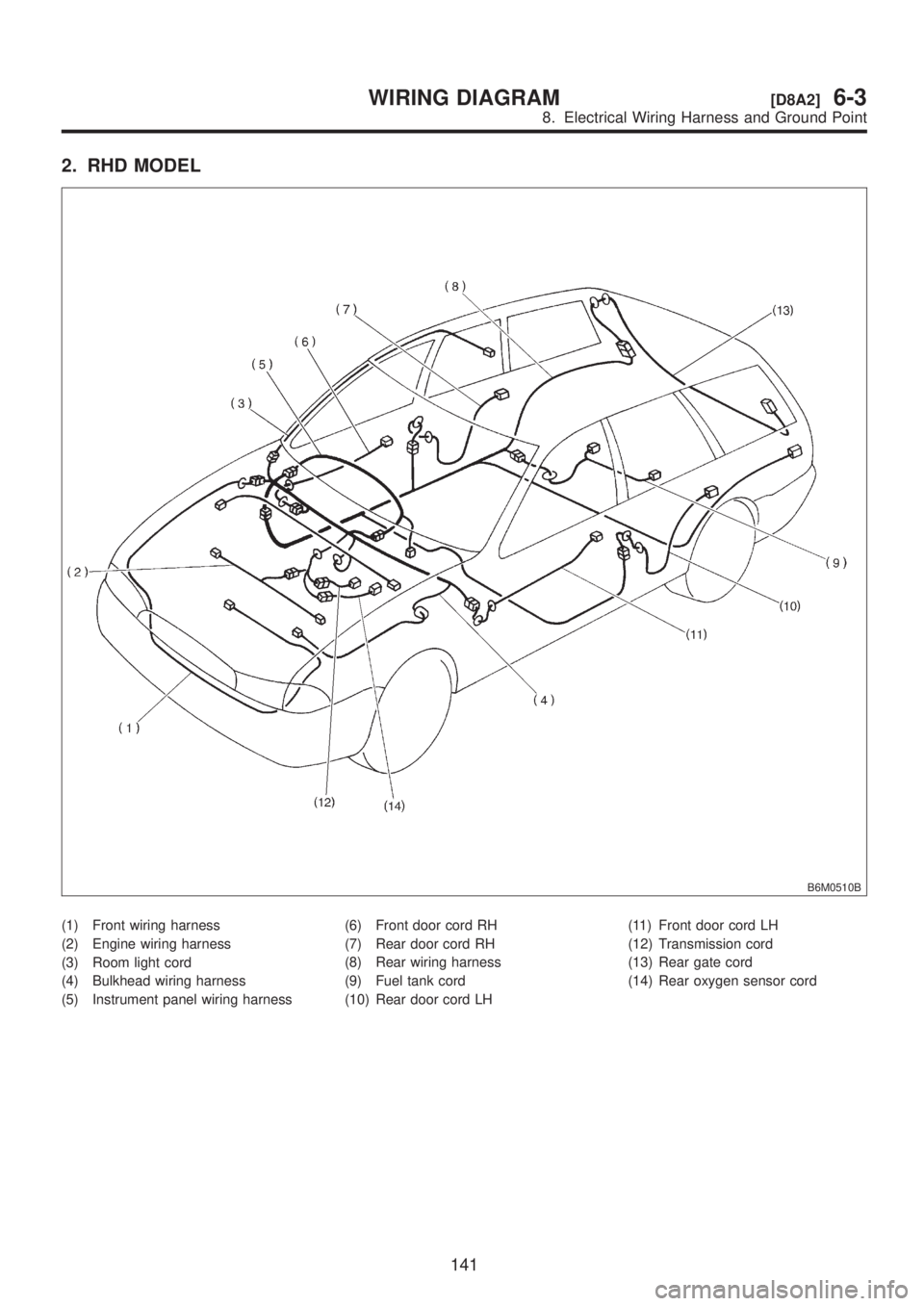

2. RHD MODEL
B6M0510B
(1) Front wiring harness
(2) Engine wiring harness
(3) Room light cord
(4) Bulkhead wiring harness
(5) Instrument panel wiring harness(6) Front door cord RH
(7) Rear door cord RH
(8) Rear wiring harness
(9) Fuel tank cord
(10) Rear door cord LH(11) Front door cord LH
(12) Transmission cord
(13) Rear gate cord
(14) Rear oxygen sensor cord
141
[D8A2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

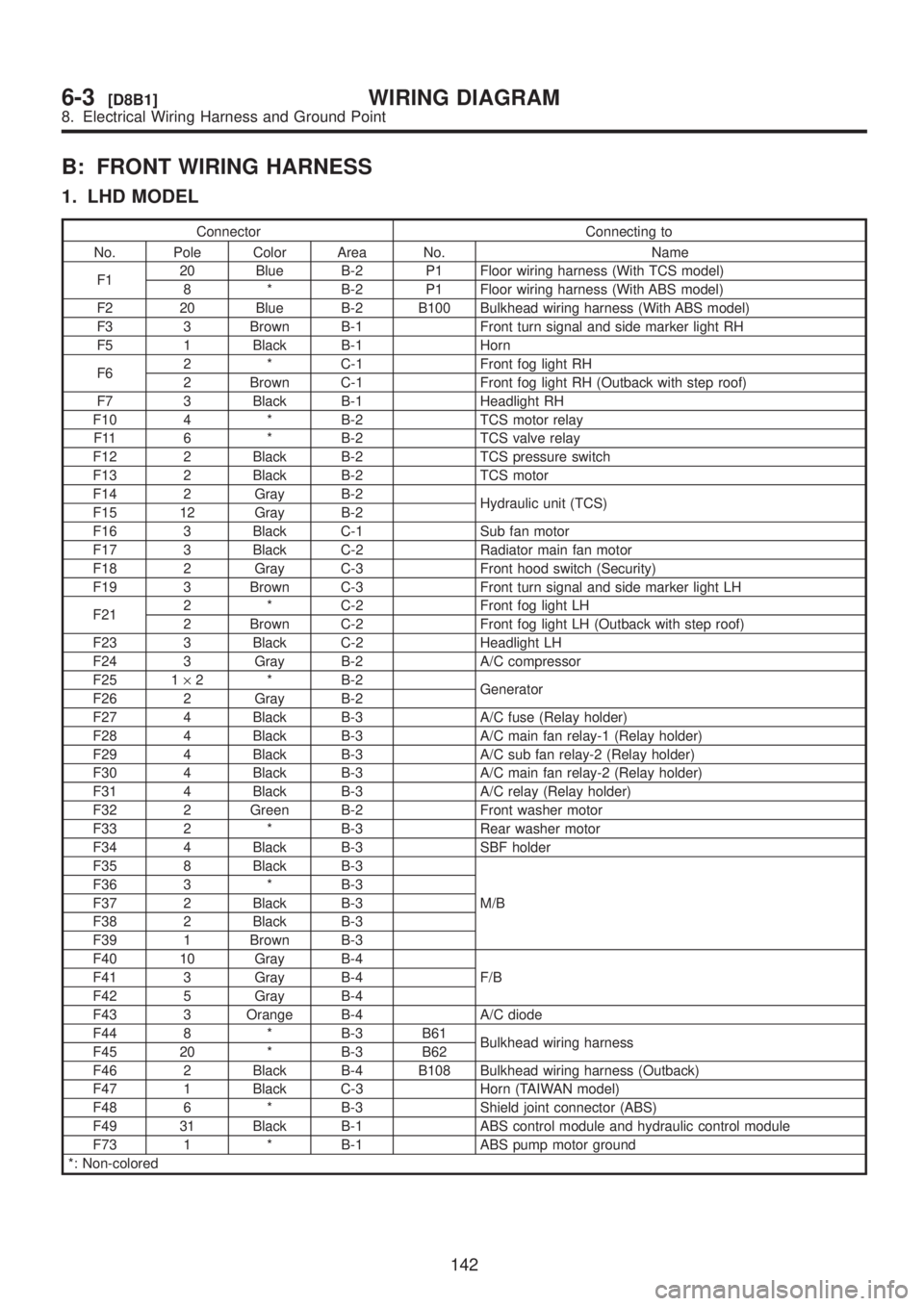

B: FRONT WIRING HARNESS
1. LHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
F120 Blue B-2 P1 Floor wiring harness (With TCS model)
8 * B-2 P1 Floor wiring harness (With ABS model)
F2 20 Blue B-2 B100 Bulkhead wiring harness (With ABS model)
F3 3 Brown B-1 Front turn signal and side marker light RH
F5 1 Black B-1 Horn
F62 * C-1 Front fog light RH
2 Brown C-1 Front fog light RH (Outback with step roof)
F7 3 Black B-1 Headlight RH
F10 4 * B-2 TCS motor relay
F11 6 * B-2 TCS valve relay
F12 2 Black B-2 TCS pressure switch
F13 2 Black B-2 TCS motor
F14 2 Gray B-2
Hydraulic unit (TCS)
F15 12 Gray B-2
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F18 2 Gray C-3 Front hood switch (Security)
F19 3 Brown C-3 Front turn signal and side marker light LH
F212 * C-2 Front fog light LH
2 Brown C-2 Front fog light LH (Outback with step roof)
F23 3 Black C-2 Headlight LH
F24 3 Gray B-2 A/C compressor
F25 1´2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F32 2 Green B-2 Front washer motor
F33 2 * B-3 Rear washer motor
F34 4 Black B-3 SBF holder
F35 8 Black B-3
M/B F36 3 * B-3
F37 2 Black B-3
F38 2 Black B-3
F39 1 Brown B-3
F40 10 Gray B-4
F/B F41 3 Gray B-4
F42 5 Gray B-4
F43 3 Orange B-4 A/C diode
F44 8 * B-3 B61
Bulkhead wiring harness
F45 20 * B-3 B62
F46 2 Black B-4 B108 Bulkhead wiring harness (Outback)
F47 1 Black C-3 Horn (TAIWAN model)
F48 6 * B-3 Shield joint connector (ABS)
F49 31 Black B-1 ABS control module and hydraulic control module
F73 1 * B-1 ABS pump motor ground
*: Non-colored
142
6-3[D8B1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

143
[D8B1]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

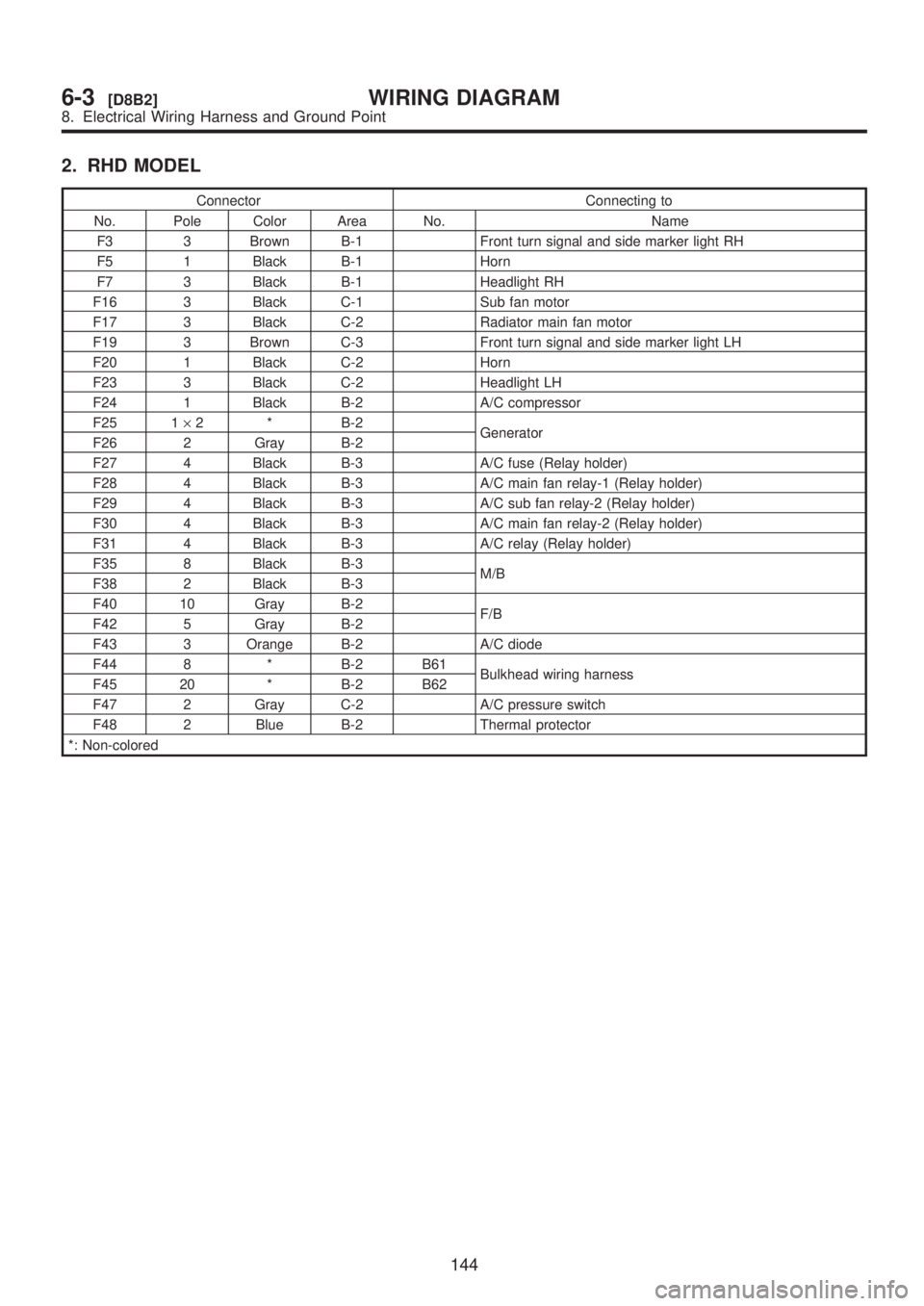

2. RHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
F3 3 Brown B-1 Front turn signal and side marker light RH
F5 1 Black B-1 Horn
F7 3 Black B-1 Headlight RH
F16 3 Black C-1 Sub fan motor
F17 3 Black C-2 Radiator main fan motor
F19 3 Brown C-3 Front turn signal and side marker light LH
F20 1 Black C-2 Horn
F23 3 Black C-2 Headlight LH
F24 1 Black B-2 A/C compressor
F25 1´2 * B-2
Generator
F26 2 Gray B-2
F27 4 Black B-3 A/C fuse (Relay holder)
F28 4 Black B-3 A/C main fan relay-1 (Relay holder)
F29 4 Black B-3 A/C sub fan relay-2 (Relay holder)
F30 4 Black B-3 A/C main fan relay-2 (Relay holder)
F31 4 Black B-3 A/C relay (Relay holder)
F35 8 Black B-3
M/B
F38 2 Black B-3
F40 10 Gray B-2
F/B
F42 5 Gray B-2
F43 3 Orange B-2 A/C diode
F44 8 * B-2 B61
Bulkhead wiring harness
F45 20 * B-2 B62
F47 2 Gray C-2 A/C pressure switch
F48 2 Blue B-2 Thermal protector
*: Non-colored
144
6-3[D8B2]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

145
[D8B2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

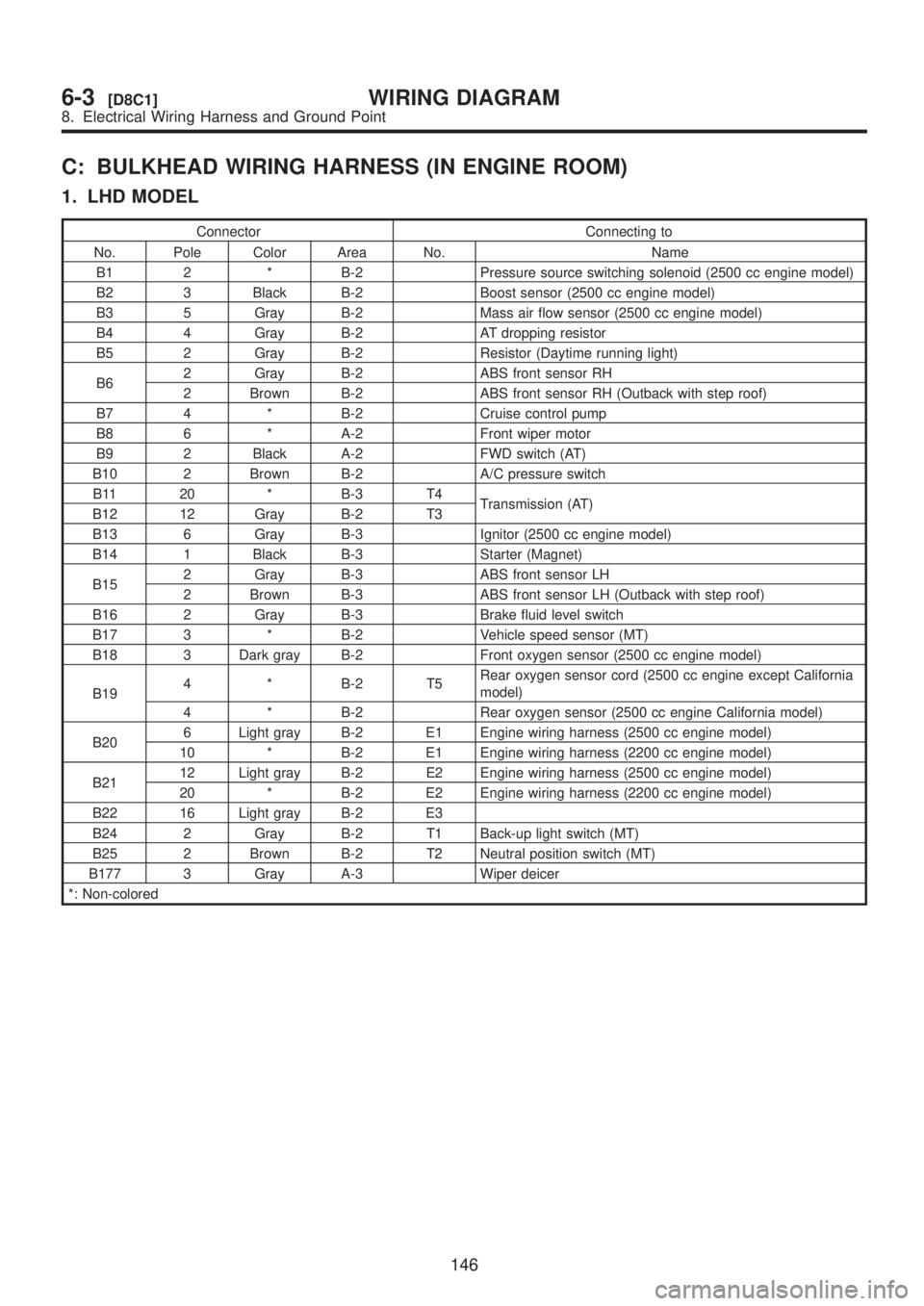

C: BULKHEAD WIRING HARNESS (IN ENGINE ROOM)
1. LHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
B1 2 * B-2 Pressure source switching solenoid (2500 cc engine model)
B2 3 Black B-2 Boost sensor (2500 cc engine model)
B3 5 Gray B-2 Mass air flow sensor (2500 cc engine model)
B4 4 Gray B-2 AT dropping resistor
B5 2 Gray B-2 Resistor (Daytime running light)
B62 Gray B-2 ABS front sensor RH
2 Brown B-2 ABS front sensor RH (Outback with step roof)
B7 4 * B-2 Cruise control pump
B8 6 * A-2 Front wiper motor
B9 2 Black A-2 FWD switch (AT)
B10 2 Brown B-2 A/C pressure switch
B11 20 * B-3 T4
Transmission (AT)
B12 12 Gray B-2 T3
B13 6 Gray B-3 Ignitor (2500 cc engine model)
B14 1 Black B-3 Starter (Magnet)
B152 Gray B-3 ABS front sensor LH
2 Brown B-3 ABS front sensor LH (Outback with step roof)
B16 2 Gray B-3 Brake fluid level switch
B17 3 * B-2 Vehicle speed sensor (MT)
B18 3 Dark gray B-2 Front oxygen sensor (2500 cc engine model)
B194 * B-2 T5Rear oxygen sensor cord (2500 cc engine except California
model)
4 * B-2 Rear oxygen sensor (2500 cc engine California model)
B206 Light gray B-2 E1 Engine wiring harness (2500 cc engine model)
10 * B-2 E1 Engine wiring harness (2200 cc engine model)
B2112 Light gray B-2 E2 Engine wiring harness (2500 cc engine model)
20 * B-2 E2 Engine wiring harness (2200 cc engine model)
B22 16 Light gray B-2 E3
B24 2 Gray B-2 T1 Back-up light switch (MT)
B25 2 Brown B-2 T2 Neutral position switch (MT)
B177 3 Gray A-3 Wiper deicer
*: Non-colored
146
6-3[D8C1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

147
[D8C1]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

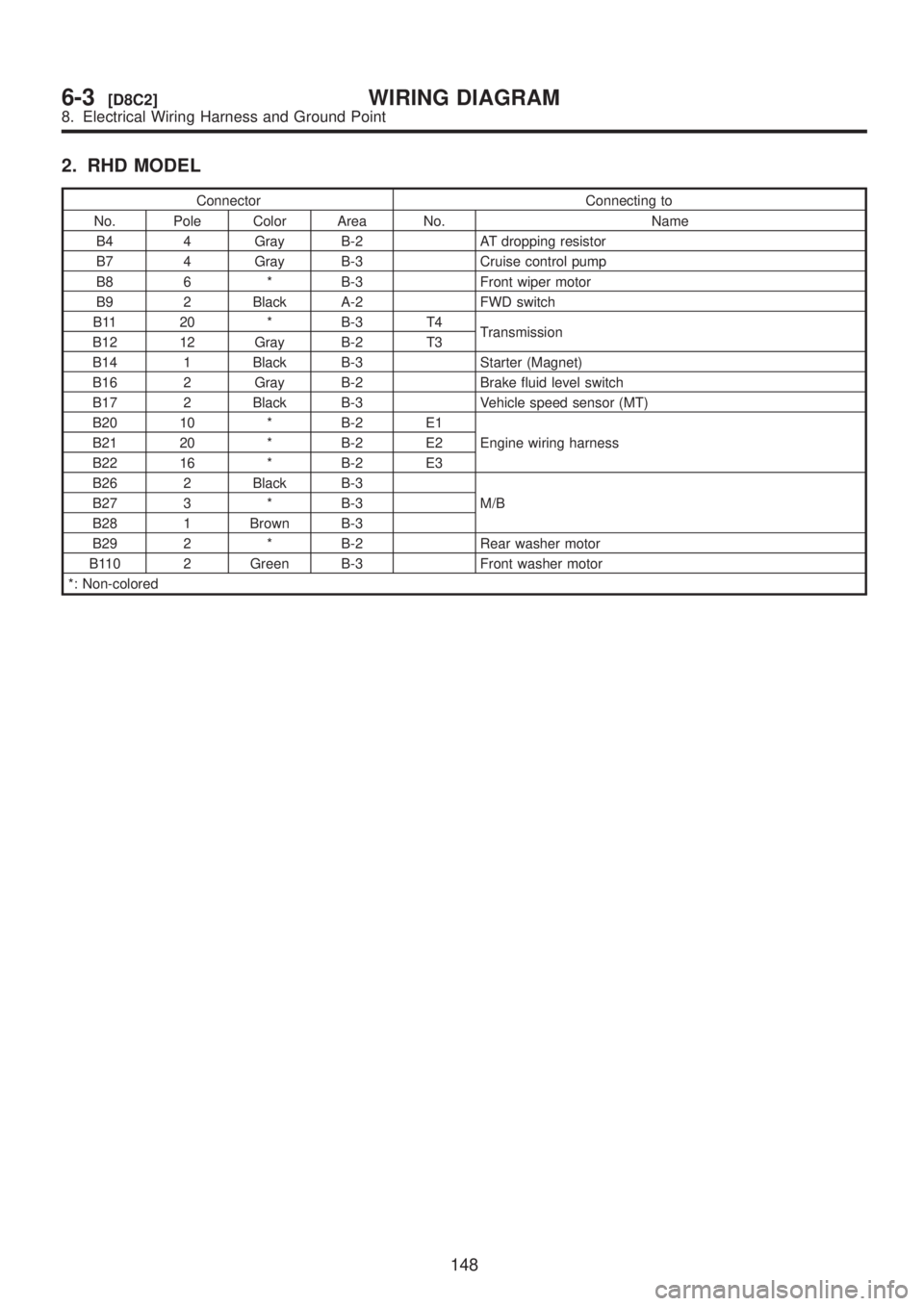

2. RHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
B4 4 Gray B-2 AT dropping resistor
B7 4 Gray B-3 Cruise control pump
B8 6 * B-3 Front wiper motor
B9 2 Black A-2 FWD switch
B11 20 * B-3 T4
Transmission
B12 12 Gray B-2 T3
B14 1 Black B-3 Starter (Magnet)
B16 2 Gray B-2 Brake fluid level switch
B17 2 Black B-3 Vehicle speed sensor (MT)
B20 10 * B-2 E1
Engine wiring harness B21 20 * B-2 E2
B22 16 * B-2 E3
B26 2 Black B-3
M/B B27 3 * B-3
B28 1 Brown B-3
B29 2 * B-2 Rear washer motor
B110 2 Green B-3 Front washer motor
*: Non-colored
148
6-3[D8C2]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

149
[D8C2]6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point

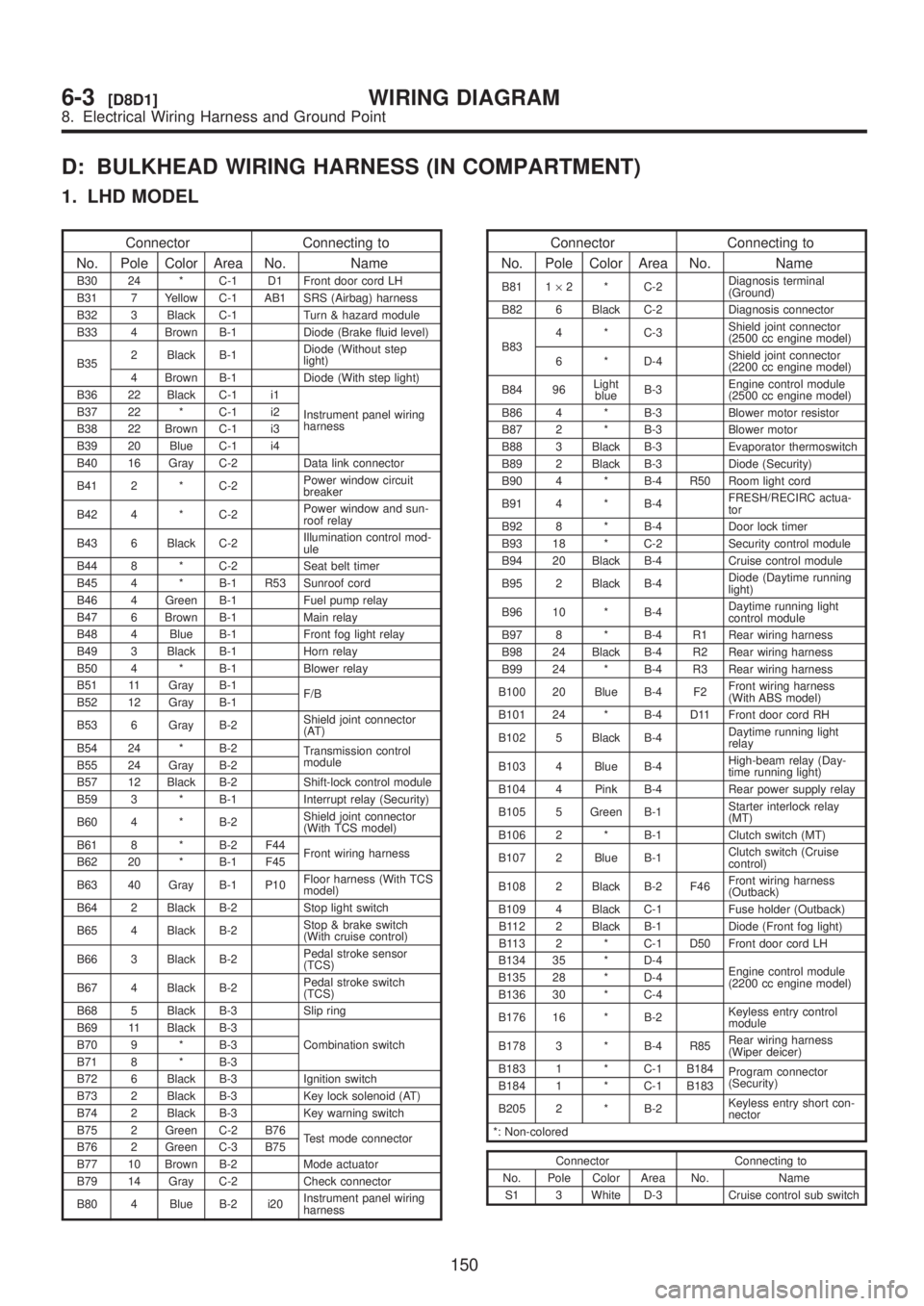

D: BULKHEAD WIRING HARNESS (IN COMPARTMENT)
1. LHD MODEL
Connector Connecting to
No. Pole Color Area No. Name
B30 24 * C-1 D1 Front door cord LH
B31 7 Yellow C-1 AB1 SRS (Airbag) harness
B32 3 Black C-1 Turn & hazard module
B33 4 Brown B-1 Diode (Brake fluid level)
B352 Black B-1Diode (Without step
light)
4 Brown B-1 Diode (With step light)
B36 22 Black C-1 i1
Instrument panel wiring
harness B37 22 * C-1 i2
B38 22 Brown C-1 i3
B39 20 Blue C-1 i4
B40 16 Gray C-2 Data link connector
B41 2 * C-2Power window circuit
breaker
B42 4 * C-2Power window and sun-
roof relay
B43 6 Black C-2Illumination control mod-
ule
B44 8 * C-2 Seat belt timer
B45 4 * B-1 R53 Sunroof cord
B46 4 Green B-1 Fuel pump relay
B47 6 Brown B-1 Main relay
B48 4 Blue B-1 Front fog light relay
B49 3 Black B-1 Horn relay
B50 4 * B-1 Blower relay
B51 11 Gray B-1
F/B
B52 12 Gray B-1
B53 6 Gray B-2Shield joint connector
(AT)
B54 24 * B-2
Transmission control
module
B55 24 Gray B-2
B57 12 Black B-2 Shift-lock control module
B59 3 * B-1 Interrupt relay (Security)
B60 4 * B-2Shield joint connector
(With TCS model)
B61 8 * B-2 F44
Front wiring harness
B62 20 * B-1 F45
B63 40 Gray B-1 P10Floor harness (With TCS
model)
B64 2 Black B-2 Stop light switch
B65 4 Black B-2Stop & brake switch
(With cruise control)
B66 3 Black B-2Pedal stroke sensor
(TCS)
B67 4 Black B-2Pedal stroke switch
(TCS)
B68 5 Black B-3 Slip ring
B69 11 Black B-3
Combination switch B70 9 * B-3
B71 8 * B-3
B72 6 Black B-3 Ignition switch
B73 2 Black B-3 Key lock solenoid (AT)
B74 2 Black B-3 Key warning switch
B75 2 Green C-2 B76
Test mode connector
B76 2 Green C-3 B75
B77 10 Brown B-2 Mode actuator
B79 14 Gray C-2 Check connector
B80 4 Blue B-2 i20Instrument panel wiring
harness
Connector Connecting to
No. Pole Color Area No. Name
B81 1´2 * C-2Diagnosis terminal
(Ground)
B82 6 Black C-2 Diagnosis connector
B834 * C-3Shield joint connector
(2500 cc engine model)
6 * D-4Shield joint connector
(2200 cc engine model)
B84 96Light
blueB-3Engine control module
(2500 cc engine model)
B86 4 * B-3 Blower motor resistor
B87 2 * B-3 Blower motor
B88 3 Black B-3 Evaporator thermoswitch
B89 2 Black B-3 Diode (Security)
B90 4 * B-4 R50 Room light cord
B91 4 * B-4FRESH/RECIRC actua-
tor
B92 8 * B-4 Door lock timer
B93 18 * C-2 Security control module
B94 20 Black B-4 Cruise control module
B95 2 Black B-4Diode (Daytime running
light)
B96 10 * B-4Daytime running light
control module
B97 8 * B-4 R1 Rear wiring harness
B98 24 Black B-4 R2 Rear wiring harness
B99 24 * B-4 R3 Rear wiring harness
B100 20 Blue B-4 F2Front wiring harness
(With ABS model)
B101 24 * B-4 D11 Front door cord RH
B102 5 Black B-4Daytime running light
relay
B103 4 Blue B-4High-beam relay (Day-
time running light)
B104 4 Pink B-4 Rear power supply relay
B105 5 Green B-1Starter interlock relay
(MT)
B106 2 * B-1 Clutch switch (MT)
B107 2 Blue B-1Clutch switch (Cruise
control)
B108 2 Black B-2 F46Front wiring harness
(Outback)
B109 4 Black C-1 Fuse holder (Outback)
B112 2 Black B-1 Diode (Front fog light)
B113 2 * C-1 D50 Front door cord LH
B134 35 * D-4
Engine control module
(2200 cc engine model) B135 28 * D-4
B136 30 * C-4
B176 16 * B-2Keyless entry control
module
B178 3 * B-4 R85Rear wiring harness
(Wiper deicer)
B183 1 * C-1 B184
Program connector
(Security)
B184 1 * C-1 B183
B205 2 * B-2Keyless entry short con-
nector
*: Non-colored
Connector Connecting to
No. Pole Color Area No. Name
S1 3 White D-3 Cruise control sub switch
150
6-3[D8D1]WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
