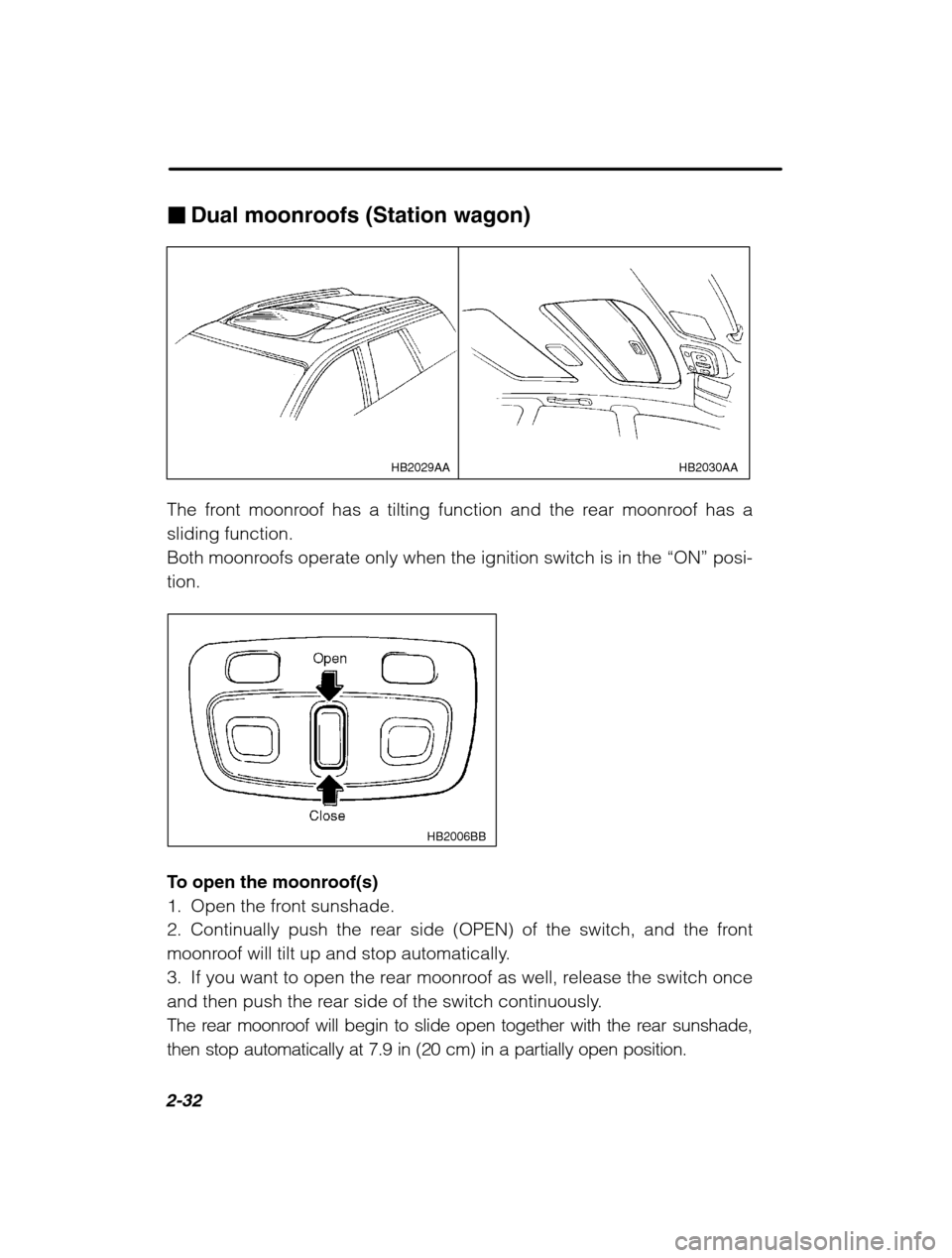

Dual moonroofs (Station wagon)
HB2030AA
HB2029AA
The front moonroof has a tilting function and the rear moonroof has a sliding function.
Both moonroofs operate only when the ignition switch is in the “ON” posi-
tion.
HB2006BB
To open the moonroof(s)
1. Open the front sunshade.
2. Continually push the rear side (OPEN) of the switch, and the front
moonroof will tilt up and stop automatically.
3. If you want to open the rear moonroof as well, release the switch once
and then push the rear side of the switch continuously.
The rear moonroof will begin to slide open together with the rear sunshade,
then stop automatically at 7.9 in (20 cm) in a partially open position.

Keys and doors2-33
–
CONTINUED –

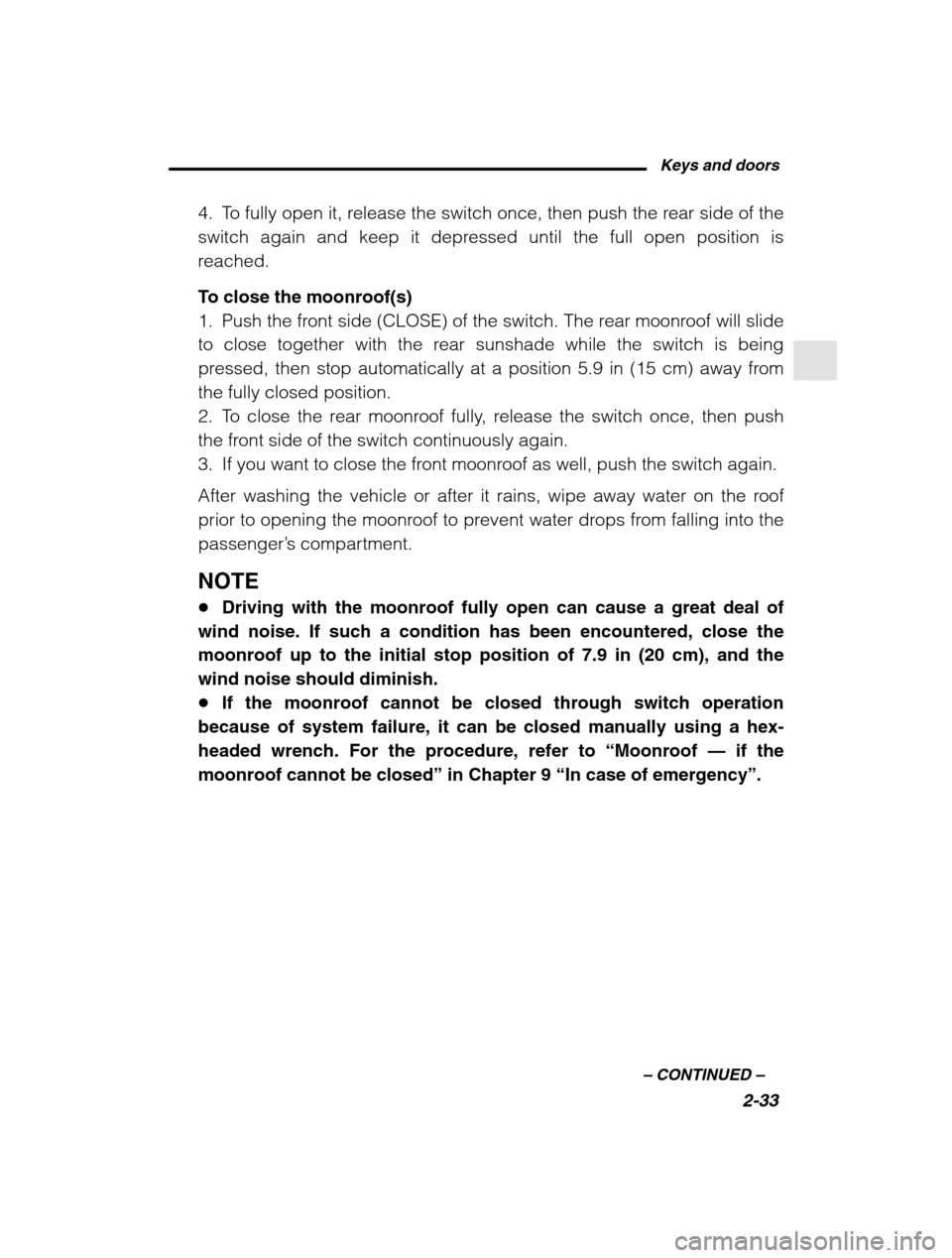

4. To fully open it, release the switch once, then push the rear side of the
switch again and keep it depressed until the full open position is
reached.
To close the moonroof(s)
1. Push the front side (CLOSE) of the switch. The rear moonroof will slide
to close together with the rear sunshade while the switch is being
pressed, then stop automatically at a position 5.9 in (15 cm) away fromthe fully closed position.
2. To close the rear moonroof fully, release the switch once, then push
the front side of the switch continuously again.
3. If you want to close the front moonroof as well, push the switch again.
After washing the vehicle or after it rains, wipe away water on the roof
prior to opening the moonroof to prevent water drops from falling into the
passenger’s compartment.
NOTE Driving with the moonroof fully open can cause a great deal of
wind noise. If such a condition has been encountered, close the
moonroof up to the initial stop position of 7.9 in (20 cm), and thewind noise should diminish. If the moonroof cannot be closed through switch operation
because of system failure, it can be closed manually using a hex-headed wrench. For the procedure, refer to “Moonroof — if the
moonroof cannot be closed ” in Chapter 9 “In case of emergency ”.

2-34

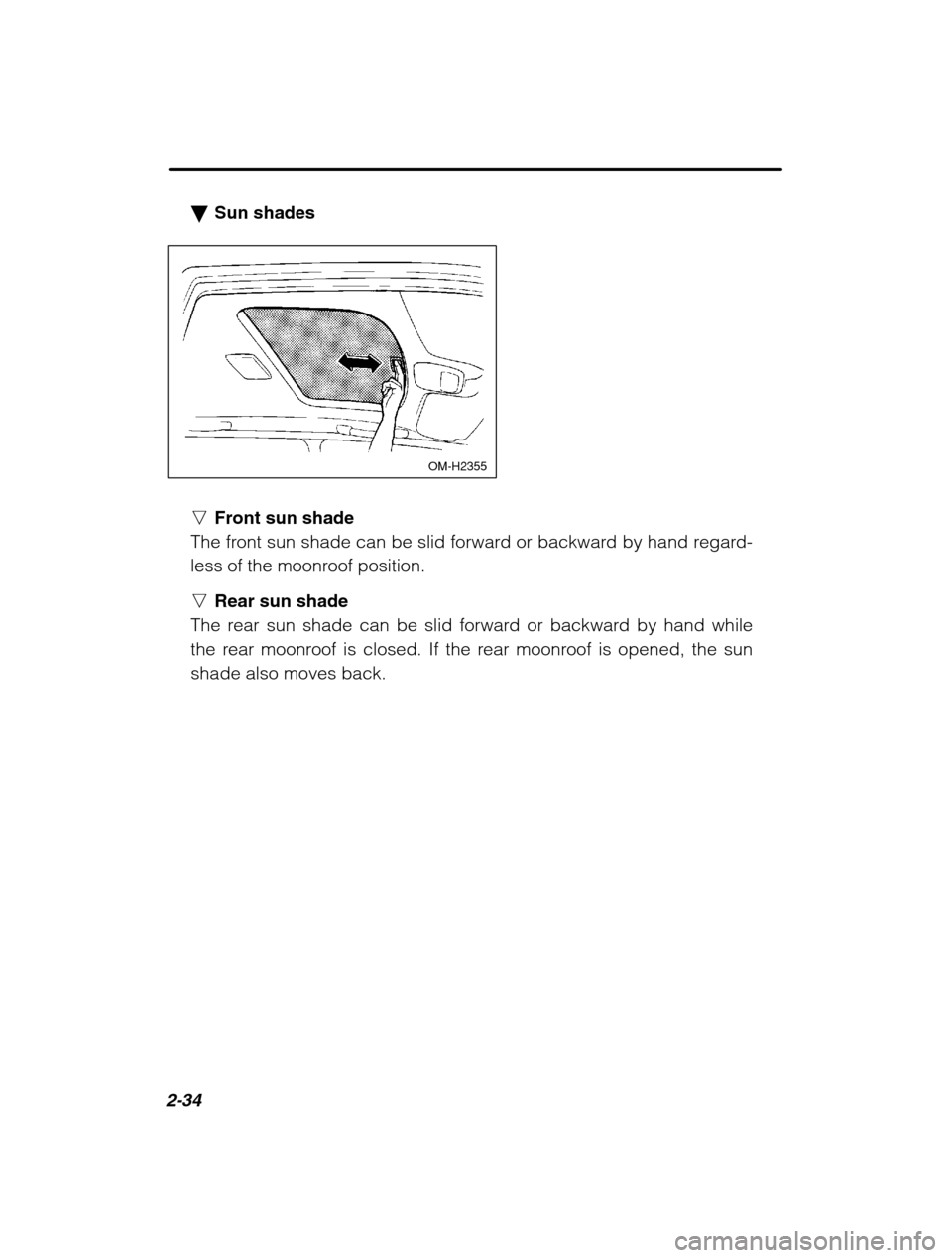

Sun shades
OM-H2355
nFront sun shade
The front sun shade can be slid forward or backward by hand regard-
less of the moonroof position. n Rear sun shade
The rear sun shade can be slid forward or backward by hand while
the rear moonroof is closed. If the rear moonroof is opened, the sunshade also moves back.

3
Instruments and controls Ignition switch3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning flasher 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meters and gauges 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Trip meter 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature indicator (if equipped) 3-9 . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature gauge 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning and indicator lights 3-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system warning light 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK ENGINE warning light/Malfunction indicator lamp 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AT OIL TEMPerature warning light (for AT vehicles) 3-14 . . . . . . . . . . . . . .
ABS warning light 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door open warning lights 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-wheel drive warning light (for AT vehicles) 3-17 . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system status indicator light (if equipped) 3-18 . . . . . . . . . . . . . .
Shift position indicator (for AT vehicles) 3-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime running light system 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking light switch 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2Fog light switch (if equipped) 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper and washer 3-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switches 3-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch (if equipped) 3-28 . . . . . . . . . . . . .
Rear window defogger switch 3-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper deicer (if equipped) 3-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mirrors 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside mirror 3-31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside mirrors 3-34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 3-36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 3-37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instruments and controls3-3
–
CONTINUED –

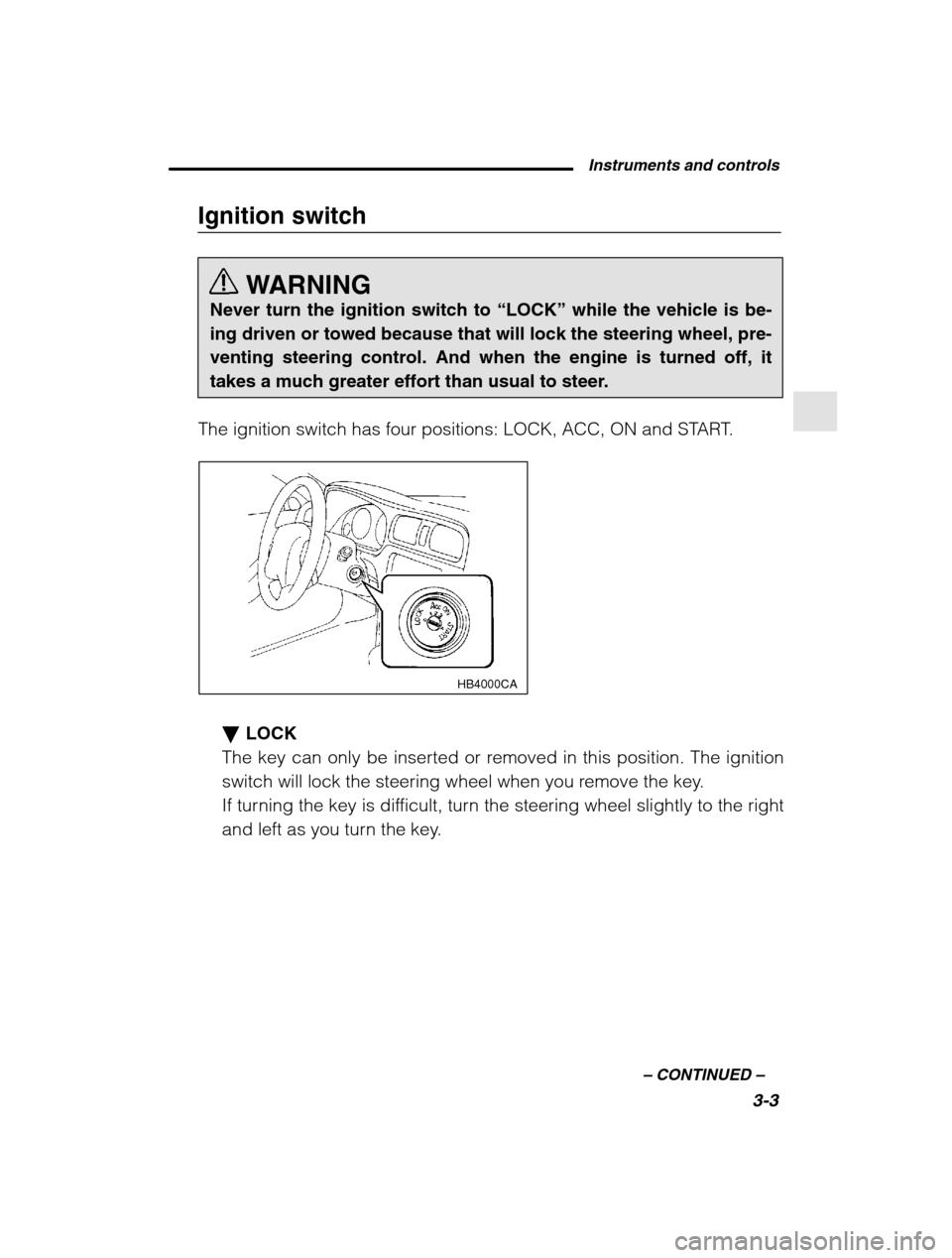

Ignition switch
WARNING
Never turn the ignition switch to “LOCK” while the vehicle is be-
ing driven or towed because that will lock the steering wheel, pre- venting steering control. And when the engine is turned off, it
takes a much greater effort than usual to steer.
The ignition switch has four positions: LOCK, ACC, ON and START.
HB4000CA
LOCK
The key can only be inserted or removed in this position. The ignition
switch will lock the steering wheel when you remove the key.
If turning the key is difficult, turn the steering wheel slightly to the right
and left as you turn the key.

3-4

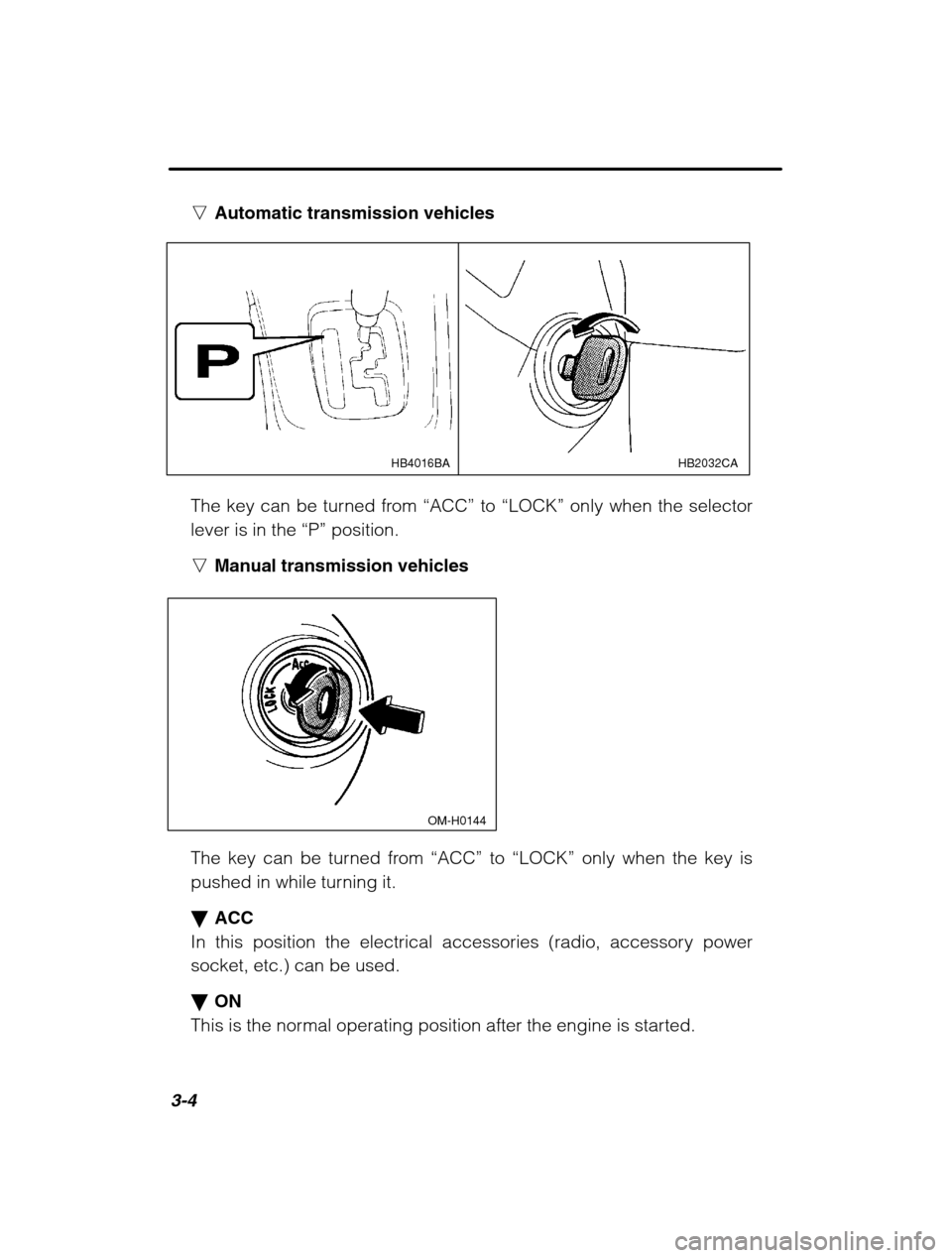

nAutomatic transmission vehicles
HB2032CA
HB4016BA
The key can be turned from “ACC” to “LOCK” only when the selector
lever is in the “P” position.
n Manual transmission vehicles
OM-H0144
The key can be turned from “ACC” to “LOCK” only when the key is
pushed in while turning it. ACC
In this position the electrical accessories (radio, accessory power socket, etc.) can be used. ON
This is the normal operating position after the engine is started.

Instruments and controls3-5
–
CONTINUED –
START CAUTION
Do not turn the ignition switch to the “START” position while the
engine is running.
The engine is started in this position. The starter cranks the engine to
start it. When the key is released (after the engine has started), the
key automatically returns to the “ON” position.

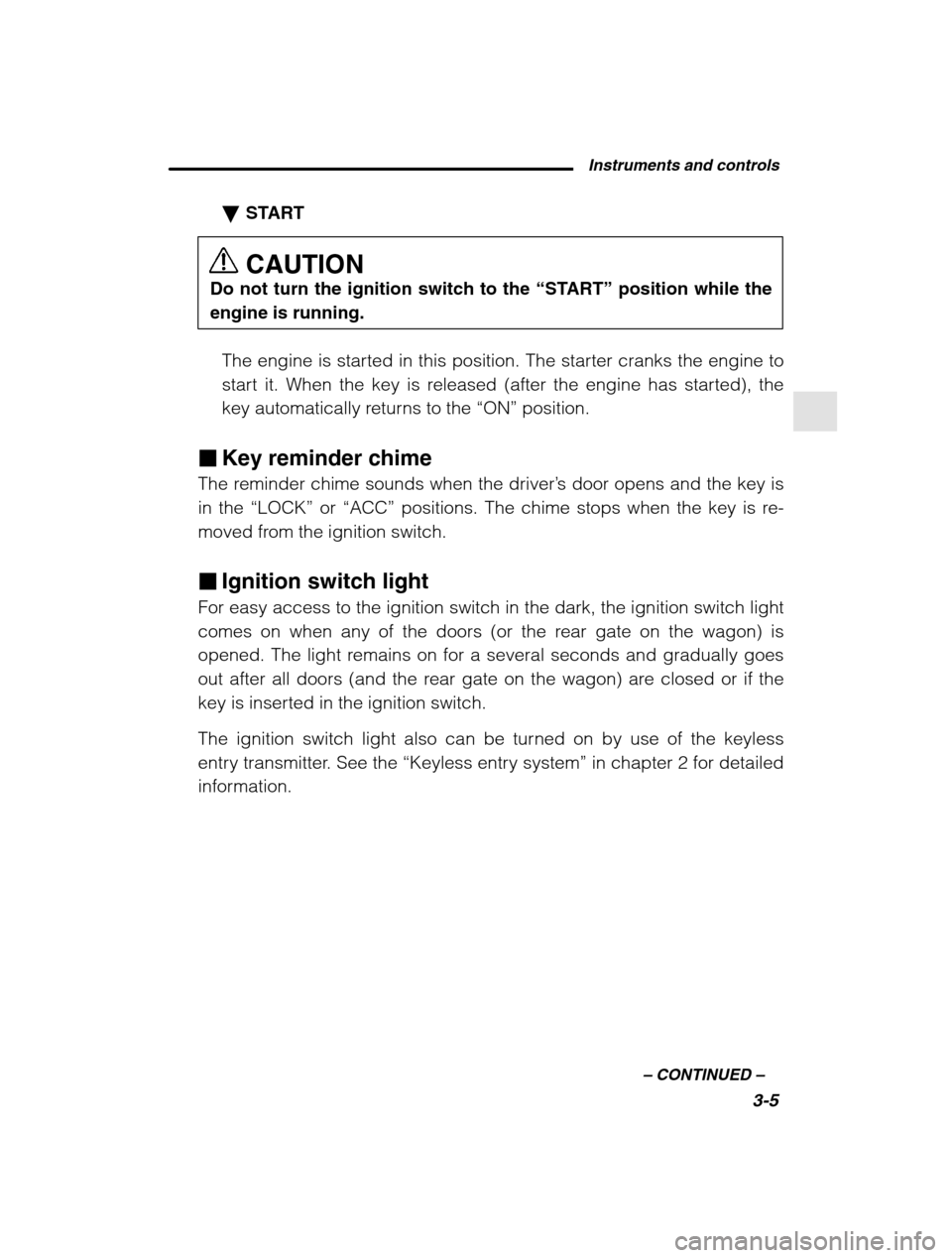

Key reminder chime
The reminder chime sounds when the driver ’s door opens and the key is
in the “LOCK” or “ACC” positions. The chime stops when the key is re-
moved from the ignition switch.
Ignition switch light
For easy access to the ignition switch in the dark, the ignition switch light
comes on when any of the doors (or the rear gate on the wagon) is
opened. The light remains on for a several seconds and gradually goes
out after all doors (and the rear gate on the wagon) are closed or if the
key is inserted in the ignition switch.
The ignition switch light also can be turned on by use of the keyless
entry transmitter. See the “Keyless entry system ” in chapter 2 for detailed
information.

3-6

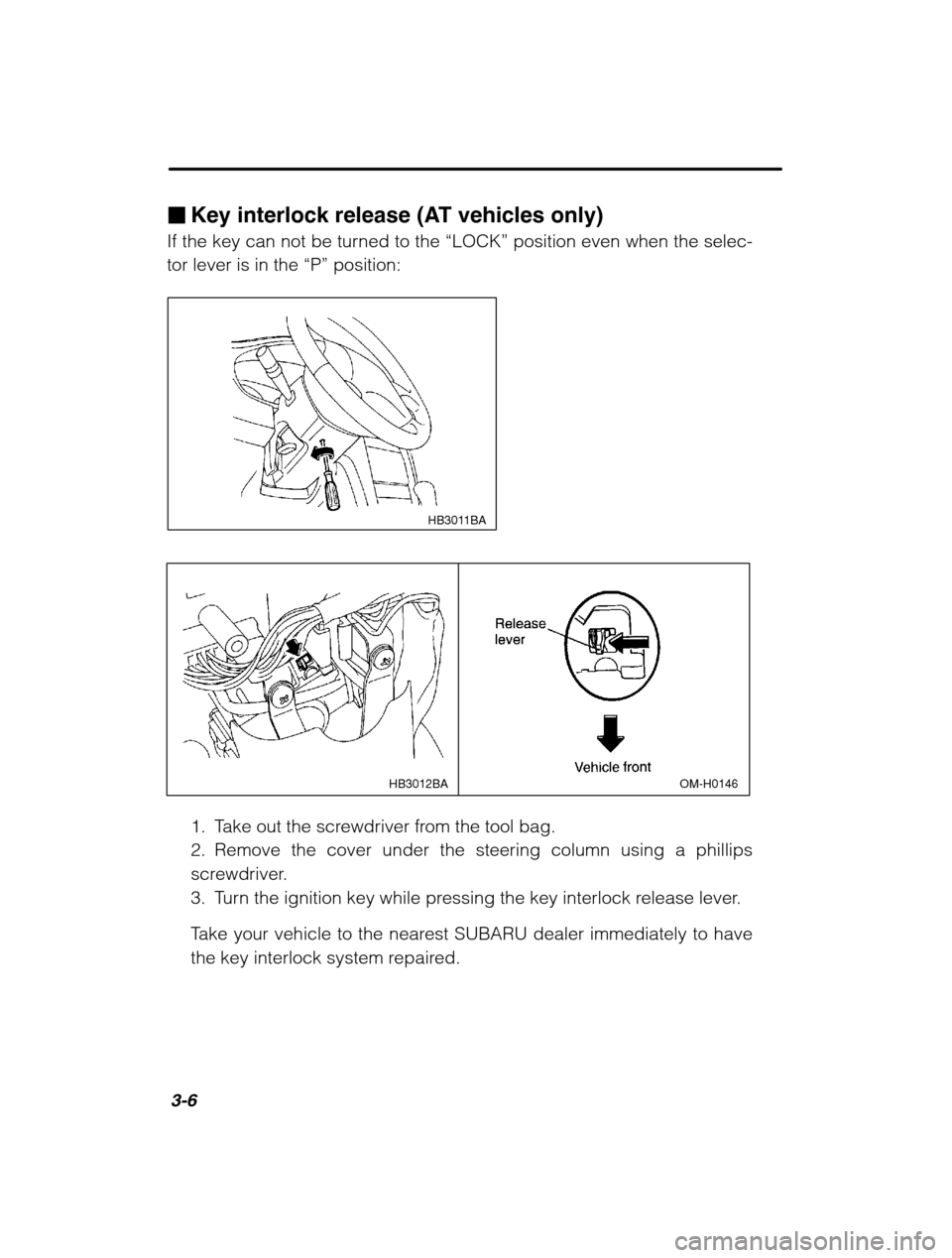

Key interlock release (AT vehicles only)
If the key can not be turned to the “LOCK” position even when the selec-
tor lever is in the “P” position:
HB3011BA
OM-H0146
HB3012BA
1. Take out the screwdriver from the tool bag.
2. Remove the cover under the steering column using a phillips
screwdriver.
3. Turn the ignition key while pressing the key interlock release lever.
Take your vehicle to the nearest SUBARU dealer immediately to have
the key interlock system repaired.

Instruments and controls3-7
–
CONTINUED –

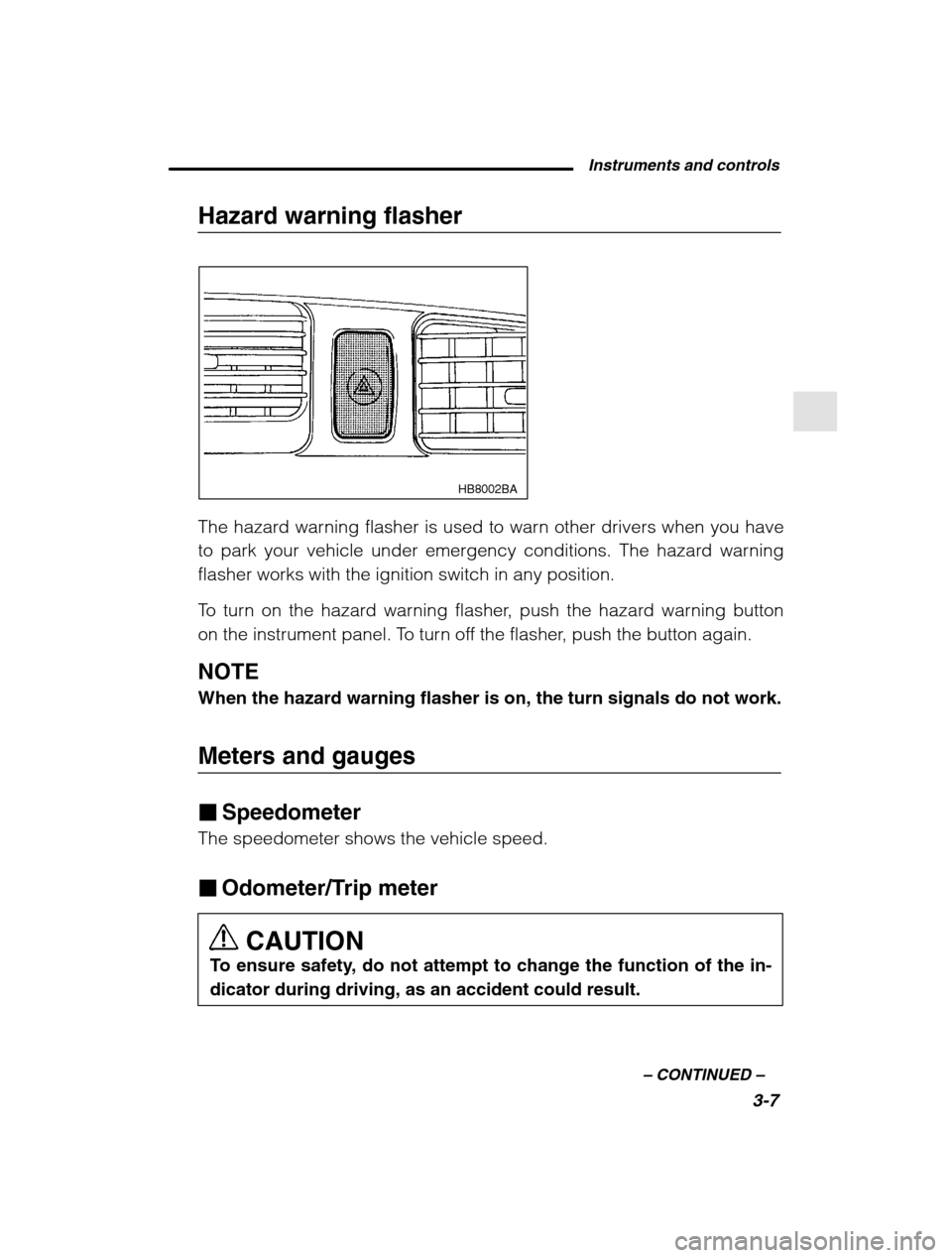

Hazard warning flasher
HB8002BA
The hazard warning flasher is used to warn other drivers when you have
to park your vehicle under emergency conditions. The hazard warningflasher works with the ignition switch in any position.
To turn on the hazard warning flasher, push the hazard warning button
on the instrument panel. To turn off the flasher, push the button again. NOTE When the hazard warning flasher is on, the turn signals do not work.
Meters and gauges Speedometer
The speedometer shows the vehicle speed. Odometer/Trip meter
CAUTION
To ensure safety, do not attempt to change the function of the in- dicator during driving, as an accident could result.
