Climate control
Ventilator4-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual heating and air conditioning system 4-4 . . . . . . . . . . . . . . . . . . . .
Heater operation 4-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioner operation 4-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic climate control system (if equipped) 4-12 . . . . . . . . . . . . . . .
Operating tips for heater and air conditioner 4-20 . . . . . . . . . . . . . . . . . . .
Air filtration system (if equipped) 4-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2

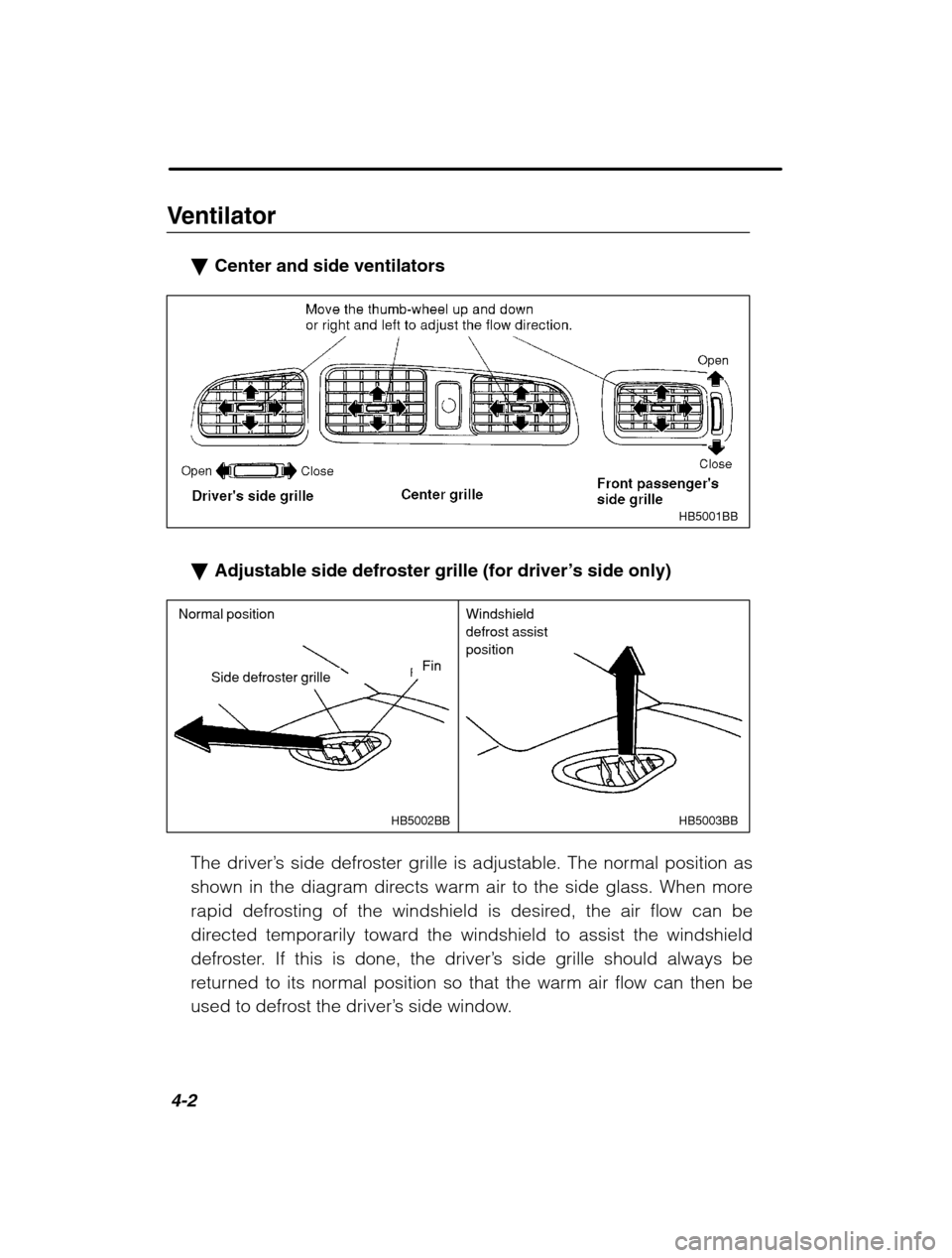

VentilatorCenter and side ventilators
HB5001BB
Adjustable side defroster grille (for driver ’s side only)
HB5003BB
HB5002BB
Normal position
Side defroster grilleFin
Windshield defrost assist position
The driver ’s side defroster grille is adjustable. The normal position as
shown in the diagram directs warm air to the side glass. When more
rapid defrosting of the windshield is desired, the air flow can be
directed temporarily toward the windshield to assist the windshield
defroster. If this is done, the driver ’s side grille should always be
returned to its normal position so that the warm air flow can then be
used to defrost the driver ’s side window.

Climate control4-3
–
CONTINUED –

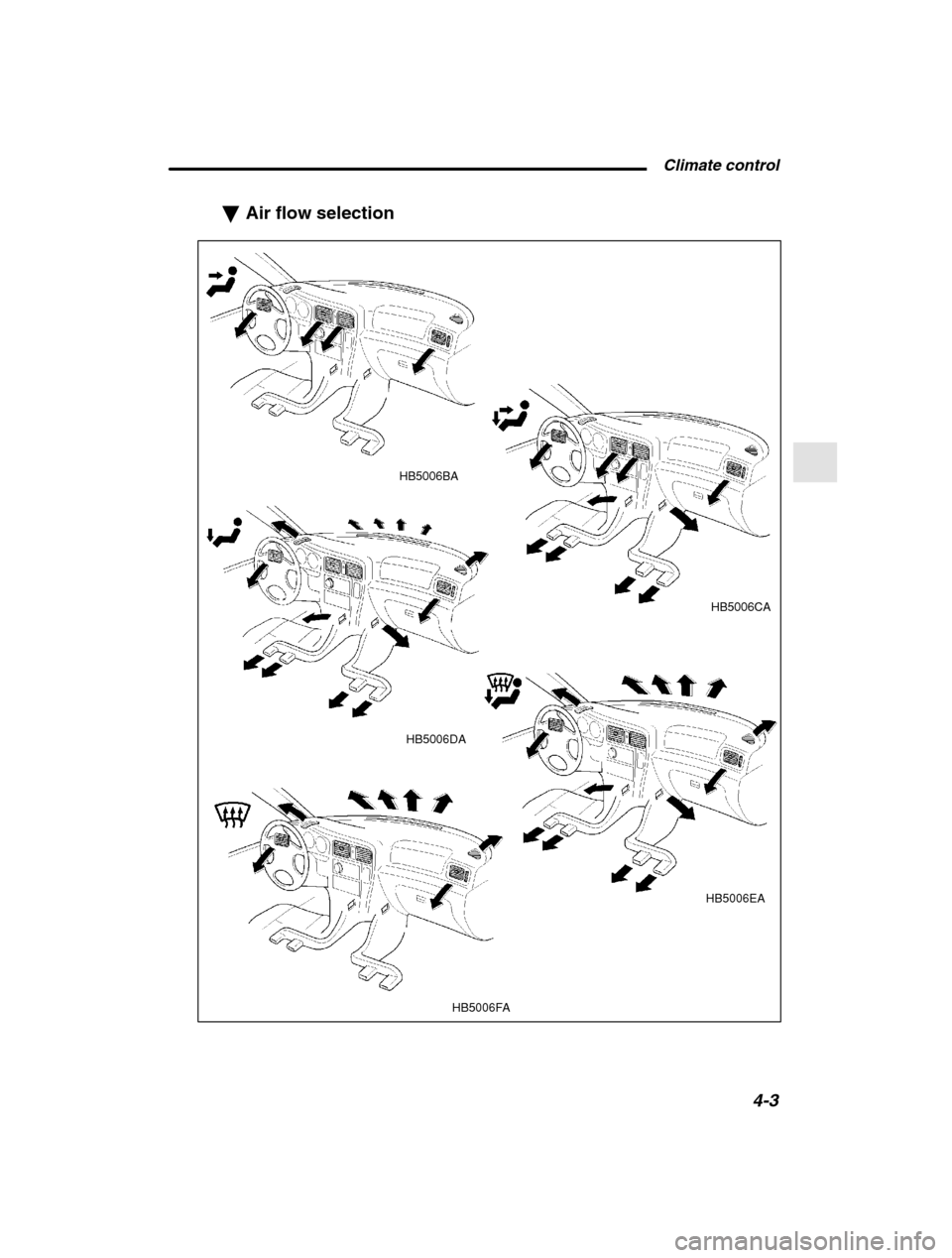

Air flow selection
HB5006CA
HB5006BA
HB5006EA
HB5006DA
HB5006FA

4-4

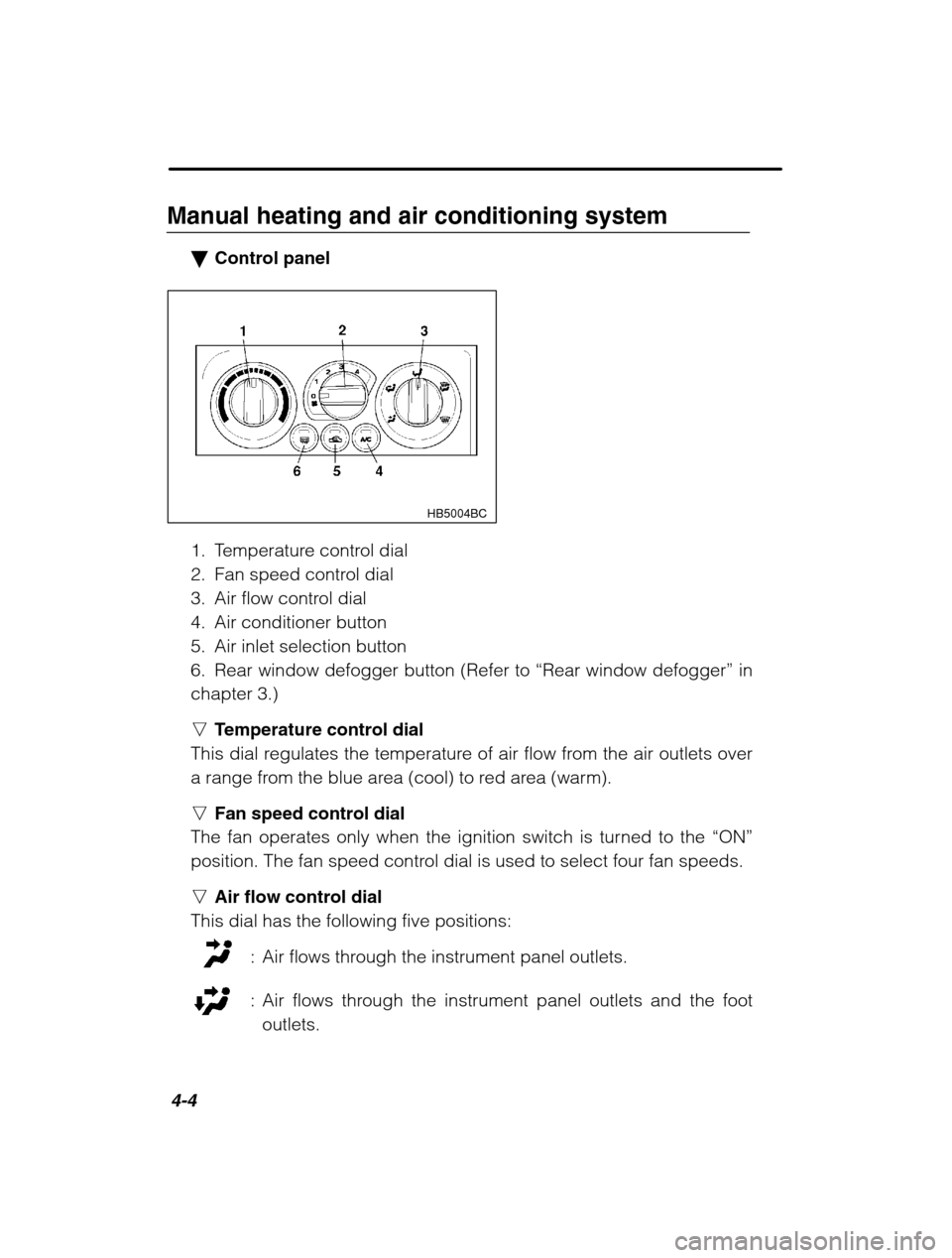

Manual heating and air conditioning systemControl panel
HB5004BC
1. Temperature control dial
2. Fan speed control dial
3. Air flow control dial
4. Air conditioner button
5. Air inlet selection button
6. Rear window defogger button (Refer to “Rear window defogger ” in
chapter 3.) n Temperature control dial
This dial regulates the temperature of air flow from the air outlets over
a range from the blue area (cool) to red area (warm). n Fan speed control dial
The fan operates only when the ignition switch is turned to the “ON”
position. The fan speed control dial is used to select four fan speeds. n Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the footoutlets.

Climate control4-5
–
CONTINUED –
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot outlets.
: Air flows through the windshield defroster outlets.
NOTE When the dial is placed in the “
” or “”position, the air
conditioner compressor operates automatically regardless of the position of the air conditioner button to defog the windshield
quickly. At the same time, the air inlet selection is automaticallyset to “fresh air ” mode.
In this state, you cannot select “recirculation” mode by manually

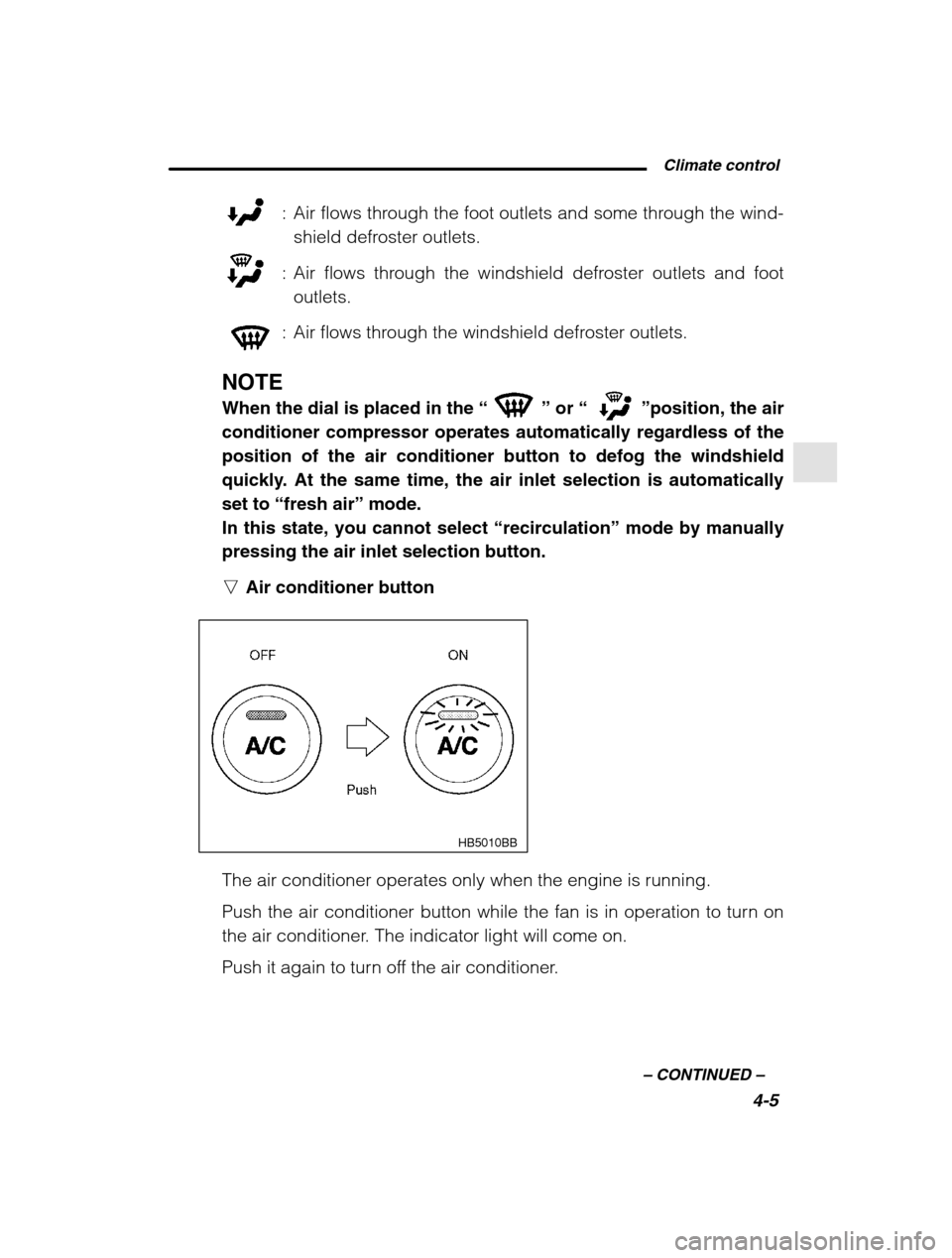

pressing the air inlet selection button. n Air conditioner button
HB5010BB
The air conditioner operates only when the engine is running.
Push the air conditioner button while the fan is in operation to turn on
the air conditioner. The indicator light will come on.
Push it again to turn off the air conditioner.

4-6

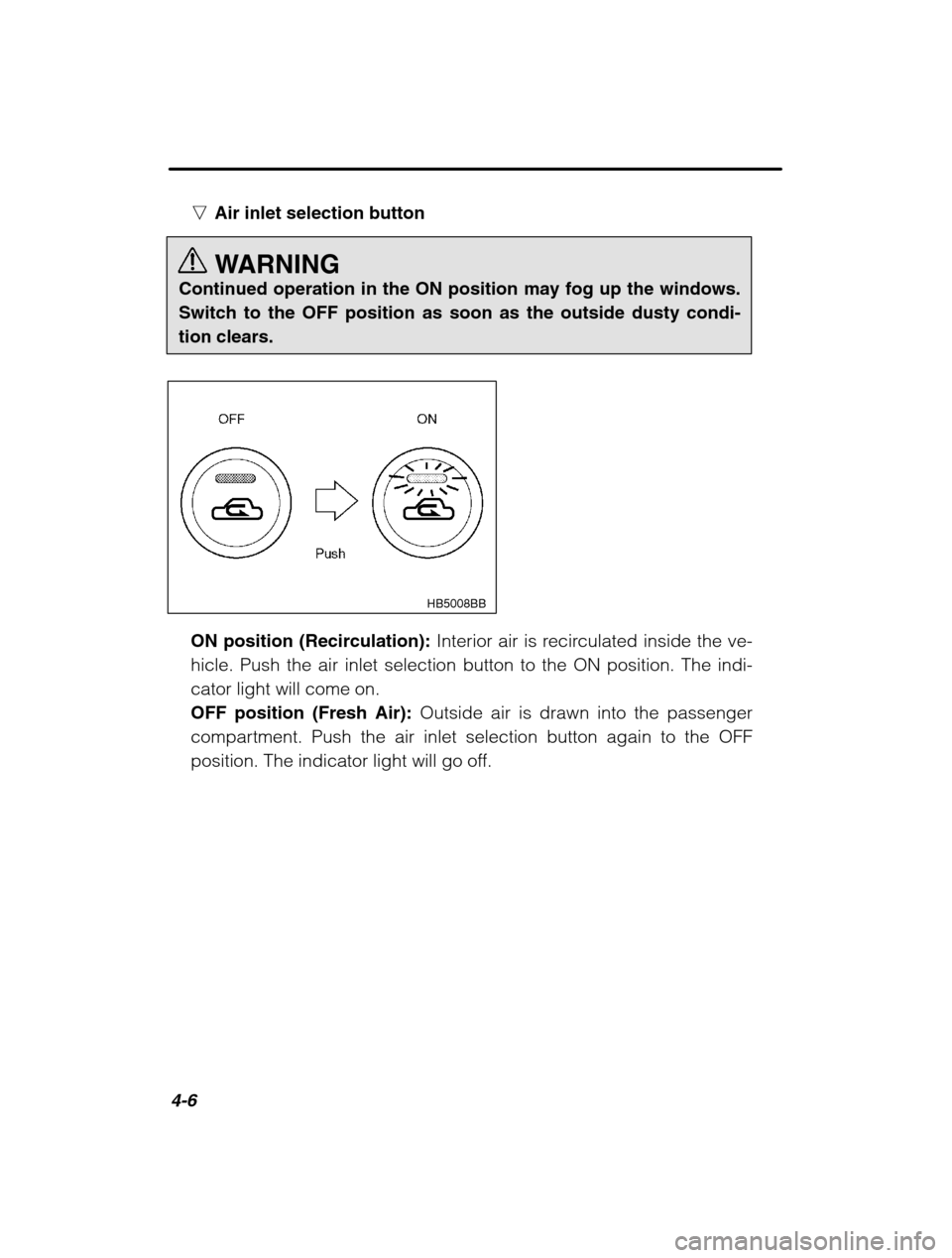

nAir inlet selection button
WARNING
Continued operation in the ON position may fog up the windows.
Switch to the OFF position as soon as the outside dusty condi-tion clears.
HB5008BB
ON position (Recirculation): Interior air is recirculated inside the ve-
hicle. Push the air inlet selection button to the ON position. The indi- cator light will come on.OFF position (Fresh Air): Outside air is drawn into the passenger
compartment. Push the air inlet selection button again to the OFF
position. The indicator light will go off.

Climate control4-7
–
CONTINUED –

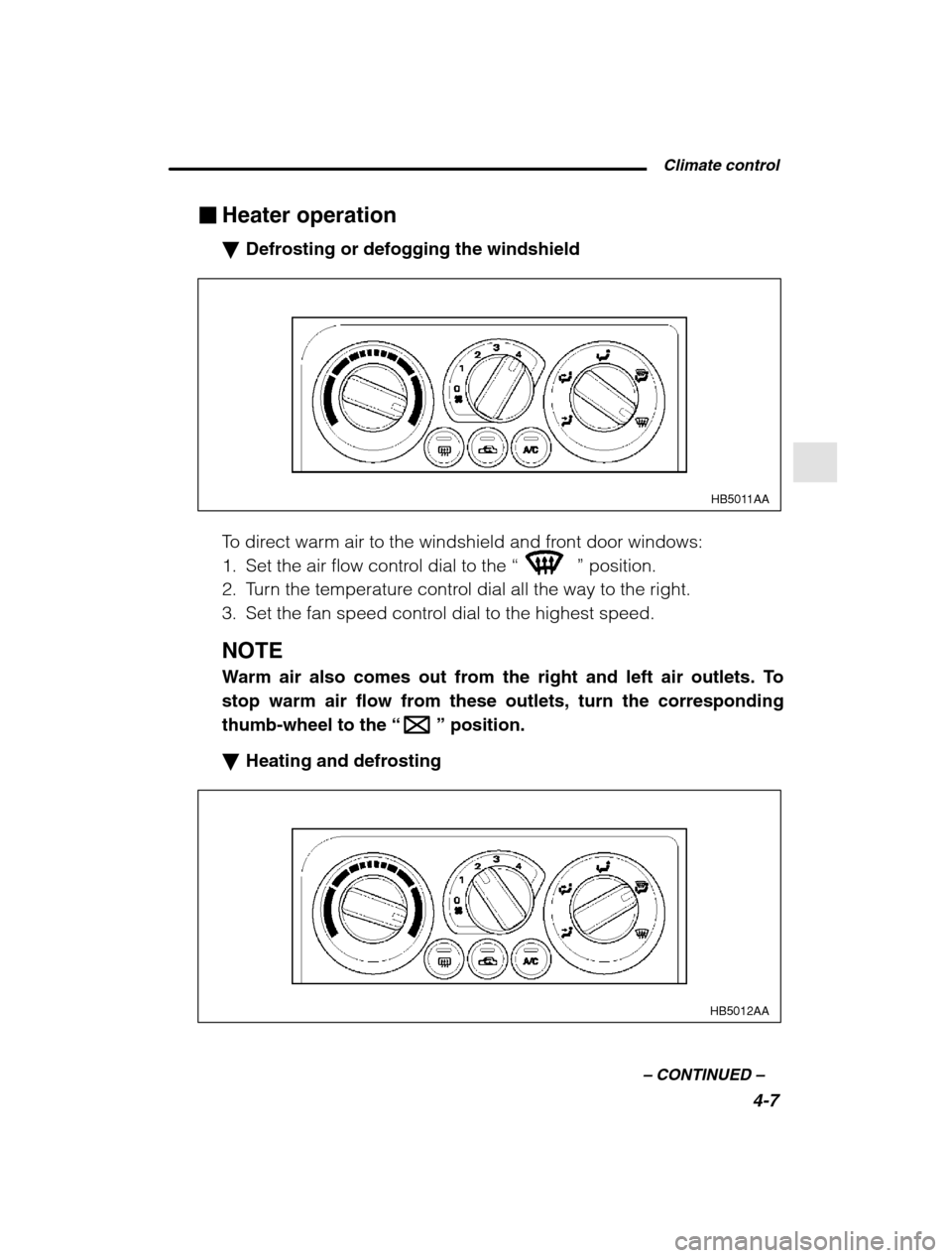

Heater operation Defrosting or defogging the windshield
HB5011AA
To direct warm air to the windshield and front door windows:
1. Set the air flow control dial to the “
” position.
2. Turn the temperature control dial all the way to the right.
3. Set the fan speed control dial to the highest speed. NOTE
Warm air also comes out from the right and left air outlets. To
stop warm air flow from these outlets, turn the correspondingthumb-wheel to the “
” position.
Heating and defrosting
HB5012AA

4-8
To direct warm air toward the floor and the windshield:
1. Set the air flow control dial to the “
” position.
2. Set the temperature control dial to the most comfortable level.
3. Set the fan speed control dial to the desired speed. NOTE
Warm air also comes out from the right and left air outlets. To
stop warm air flow from these outlets, turn the correspondingthumb-wheel to the “
” position.
Heating
HB5013AA

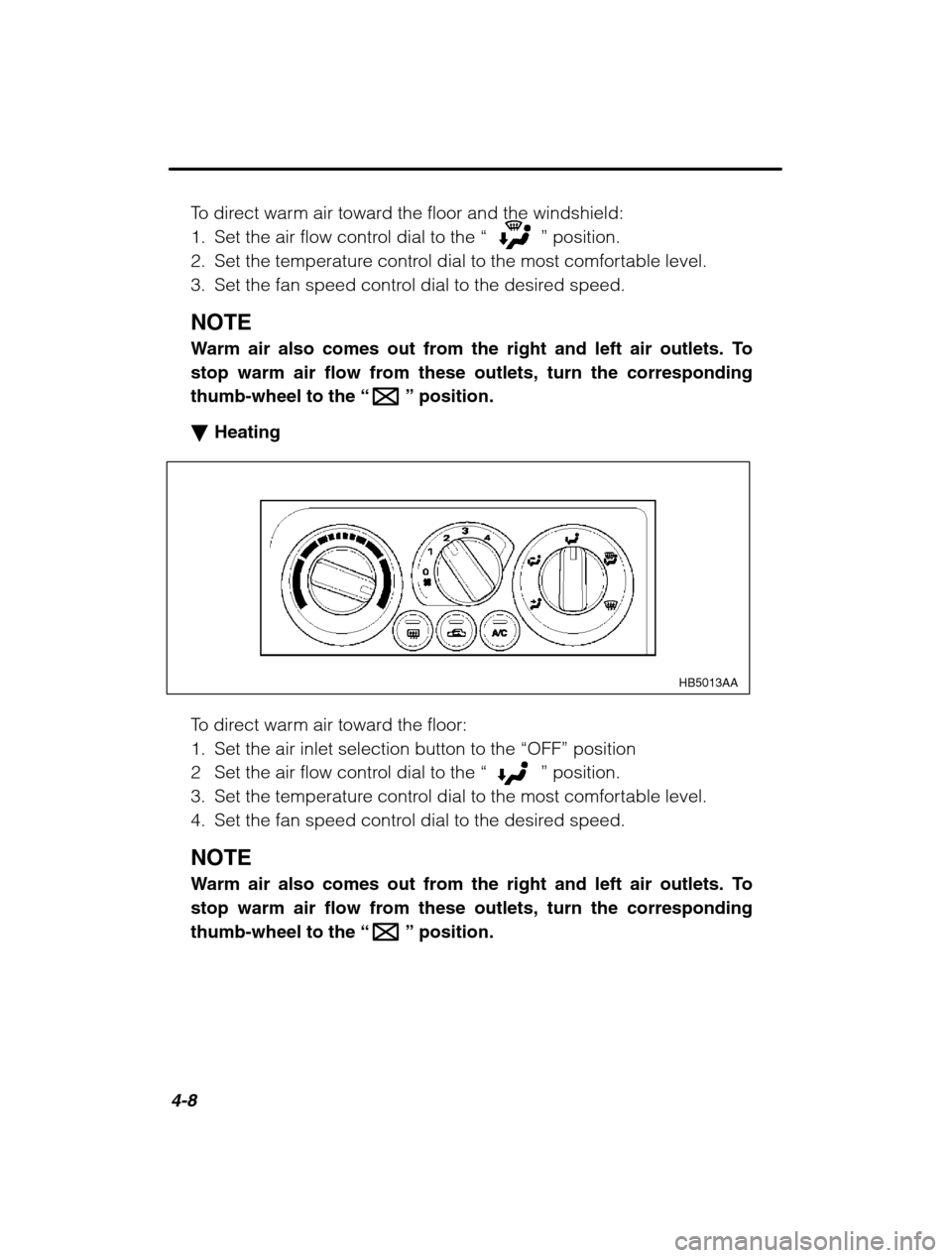

To direct warm air toward the floor:
1. Set the air inlet selection button to the “OFF” position
2 Set the air flow control dial to the “
” position.
3. Set the temperature control dial to the most comfortable level.
4. Set the fan speed control dial to the desired speed. NOTE
Warm air also comes out from the right and left air outlets. To
stop warm air flow from these outlets, turn the correspondingthumb-wheel to the “
” position.

Climate control4-9
–
CONTINUED –

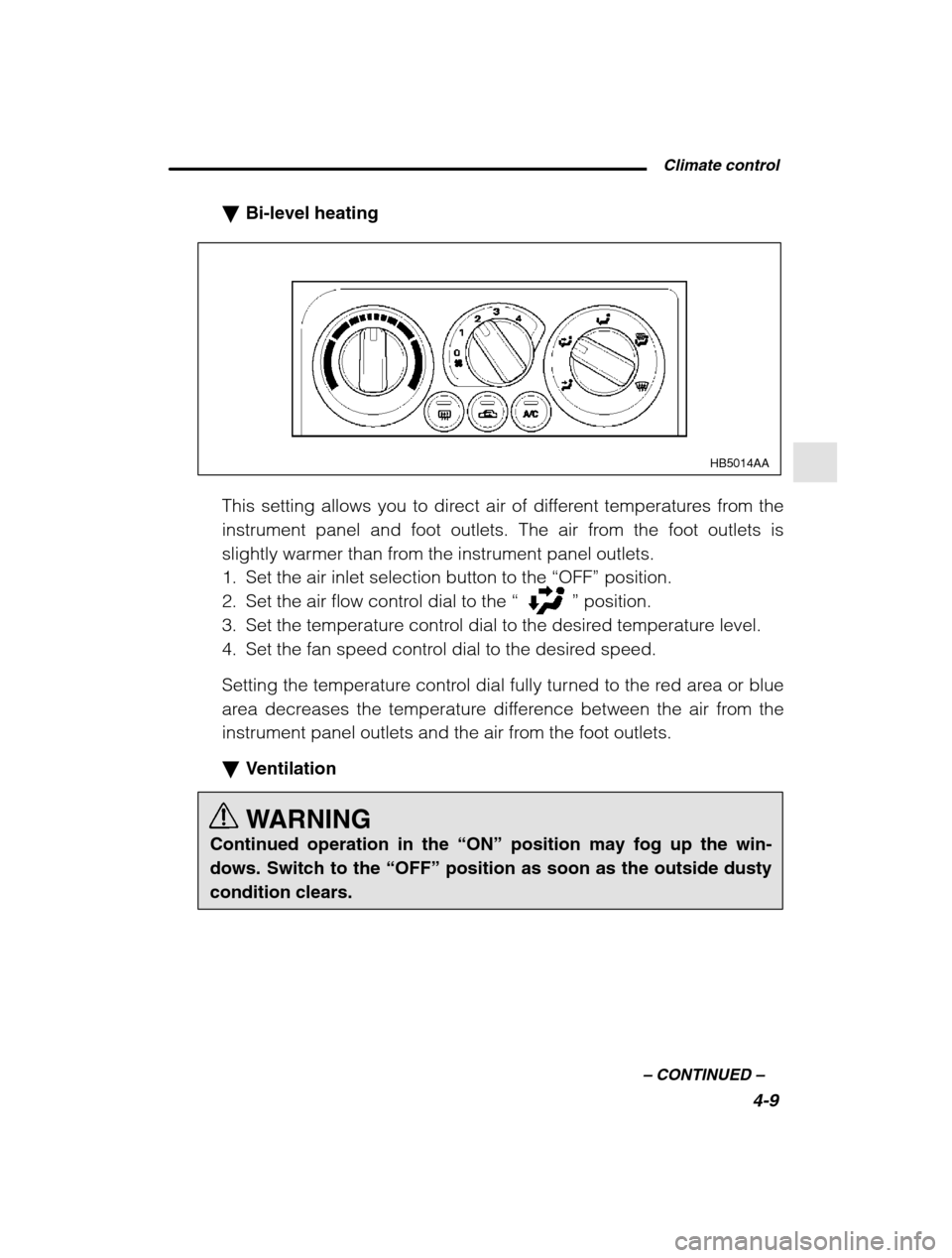

Bi-level heating
HB5014AA
This setting allows you to direct air of different temperatures from the
instrument panel and foot outlets. The air from the foot outlets is
slightly warmer than from the instrument panel outlets.
1. Set the air inlet selection button to the “OFF” position.
2. Set the air flow control dial to the “
” position.
3. Set the temperature control dial to the desired temperature level.
4. Set the fan speed control dial to the desired speed.
Setting the temperature control dial fully turned to the red area or blue
area decreases the temperature difference between the air from the
instrument panel outlets and the air from the foot outlets. Ventilation
WARNING
Continued operation in the “ON” position may fog up the win-
dows. Switch to the “OFF” position as soon as the outside dusty
condition clears.

4-10
HB5015AA
To force outside air through the instrument panel outlets:
1. Set the air inlet selection button to the “OFF” position.
2. Set the air flow control dial to the “
” position.
3. Set the temperature control dial all the way left.
4. Set the fan speed control dial to the desired speed.
When driving on a dusty road, set the air inlet control lever to the “ON”
position.

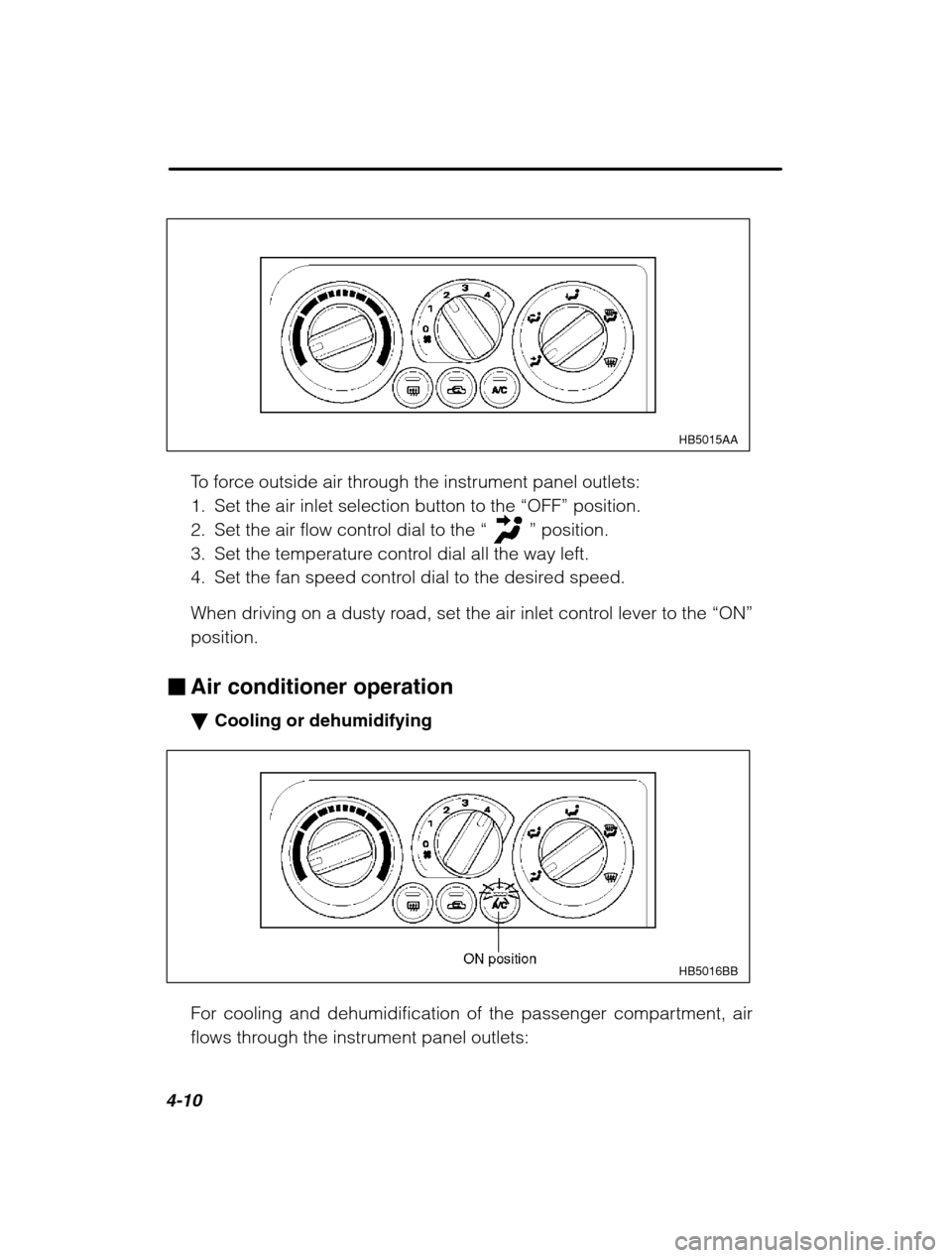

Air conditioner operation Cooling or dehumidifying
HB5016BB
For cooling and dehumidification of the passenger compartment, air
flows through the instrument panel outlets:
