SUBARU LEGACY 2004 4.G Owners Manual

9-22
In case of emergency
1) Towing hook cover
2) Towing hook
The front towing hook is located on the inside of the
towing hook cover below the right-hand headlight.
1) Tie-down hook
2) Towing and tie-down hook
1
2UB9051BB
1
11
2UB8013CB

9-23
In case of emergency
– CONTINUED –

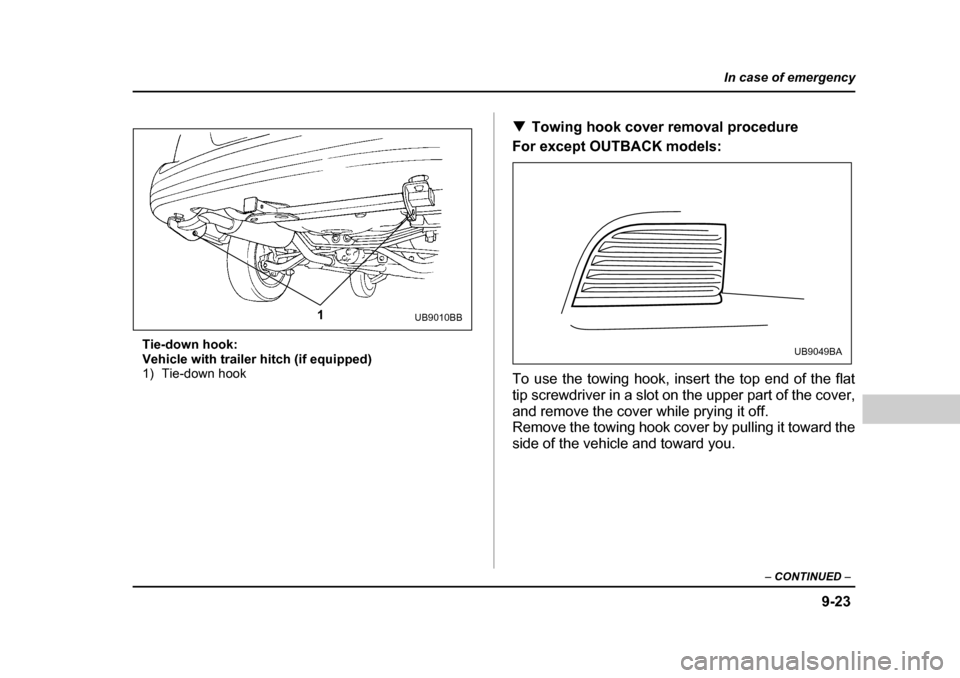

Tie-down hook:
Vehicle with trailer hitch (if equipped)
1) Tie-down hook T
Towing hook cover removal procedure
For except OUTBACK models:
To use the towing hook, insert the top end of the flat
tip screwdriver in a slot on the upper part of the cover,
and remove the cover while prying it off.
Remove the towing hook cover by pulling it toward the
side of the vehicle and toward you.
1UB9010BB
UB9049BA

9-24
In case of emergency

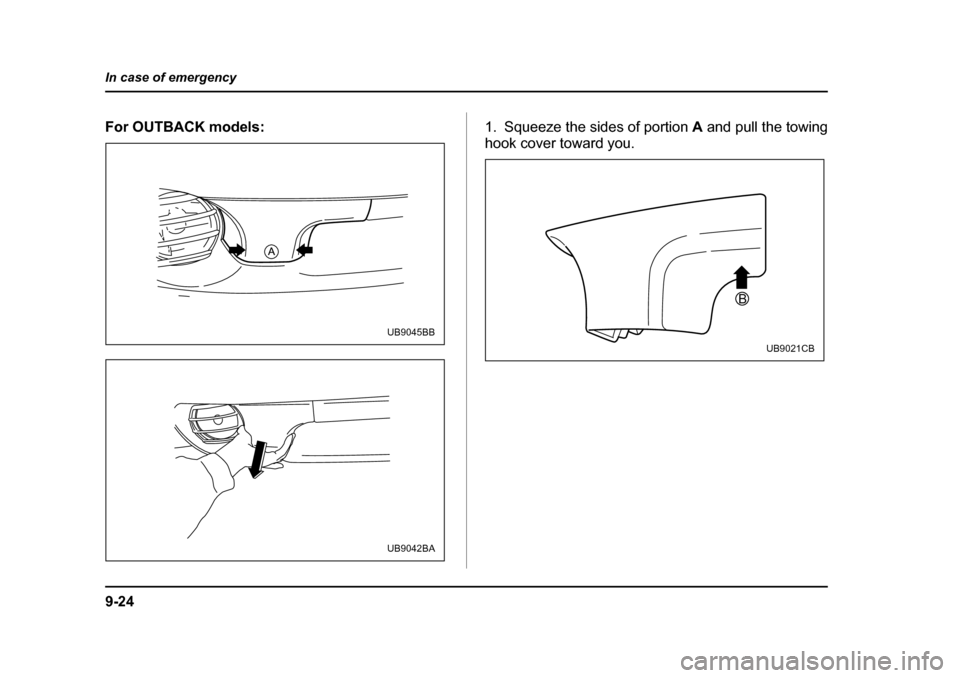

For OUTBACK models:
1. Squeeze the sides of portion A and pull the towing
hook cover toward you.
UB9045BB
UB9042BA
B
UB9021CB

9-25
In case of emergency
– CONTINUED –

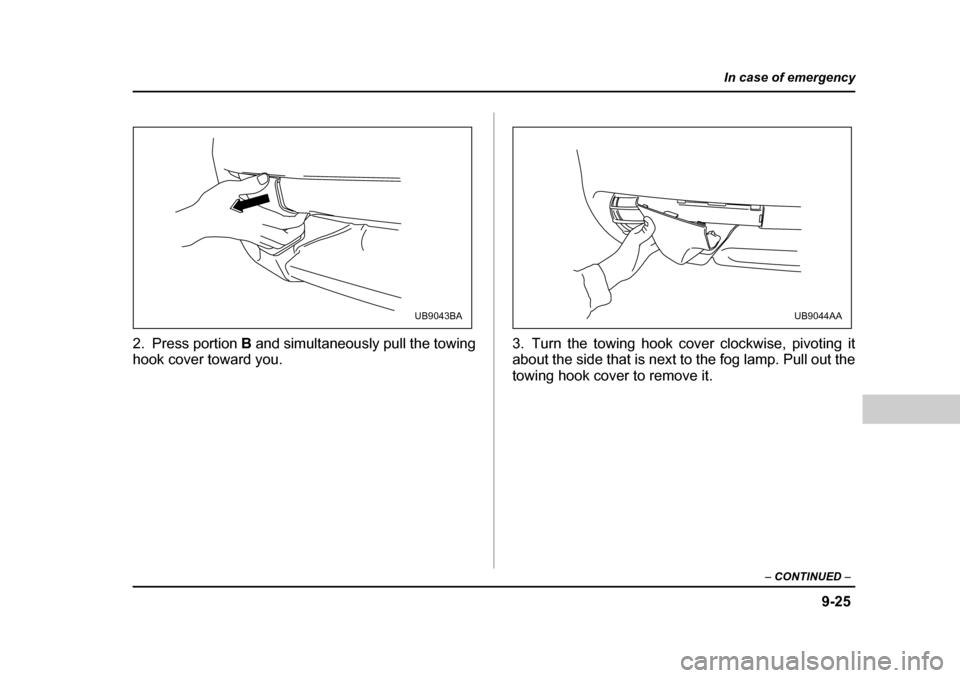

2. Press portion B and simultaneously pull the towing
hook cover toward you. 3. Turn the towing hook cover clockwise, pivoting it
about the side that is next to the fog lamp. Pull out the
towing hook cover to remove it.
UB9043BAUB9044AA

9-26
In case of emergency
T

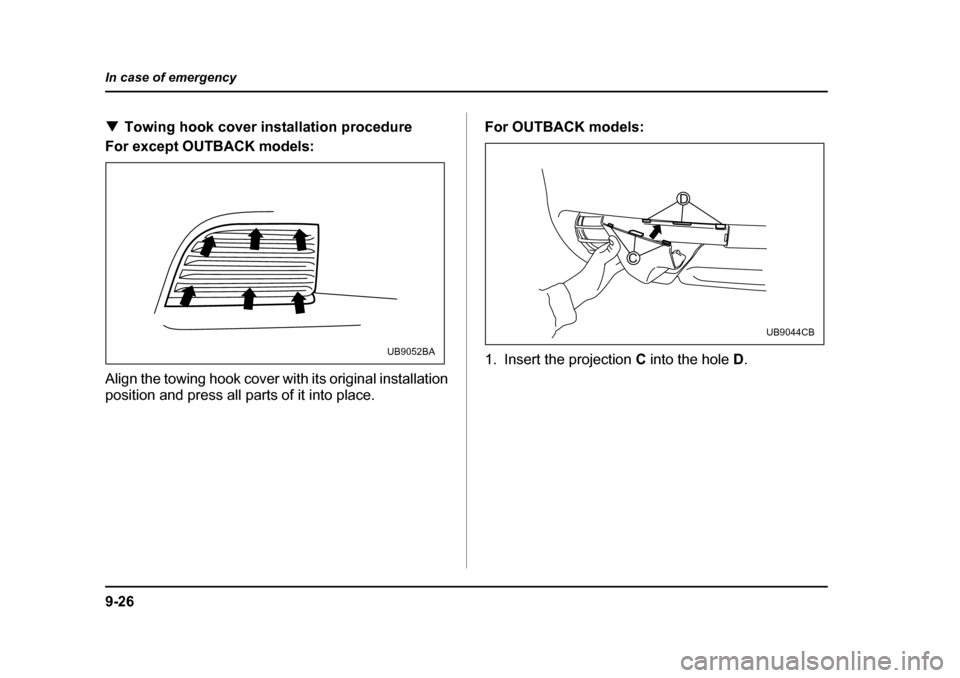

Towing hook cover installation procedure
For except OUTBACK models:
Align the towing hook cover with its original installation
position and press all parts of it into place. For OUTBACK models:
1. Insert the projection
C into the hole D.
UB9052BA
C D
UB9044CB

9-27
In case of emergency
– CONTINUED –

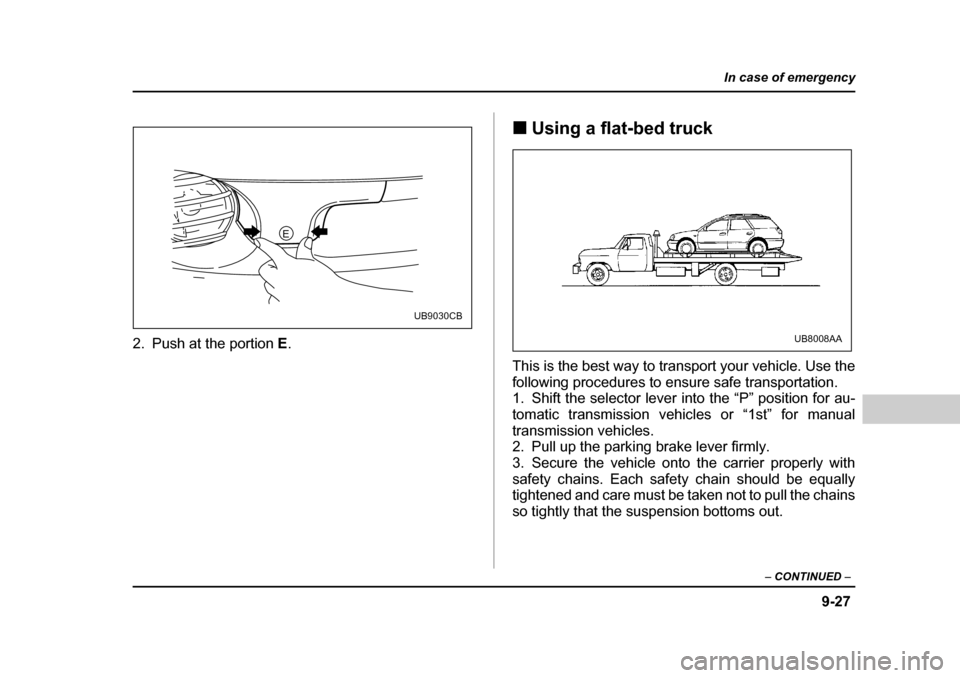

2. Push at the portion E. „
Using a flat-bed truck
This is the best way to transport your vehicle. Use the
following procedures to ensure safe transportation.
1. Shift the selector lever into the “P” position for au-
tomatic transmission vehicles or “1st” for manualtransmission vehicles.
2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier properly with
safety chains. Each safety chain should be equally
tightened and care must be taken not to pull the chains
so tightly that the suspension bottoms out.
E
UB9030CB
UB8008AA

9-28
In case of emergency
„
Towing with all wheels on the ground
yNever turn the ignition switch to the “LOCK”
position while the vehicle is being towed be-
cause the steering wheel and the direction of
the wheels will be locked.y Remember that the brake booster and power
steering do not function when the engine is not
running. Because the engine is turned off, it will
take greater effort to operate the brake pedal
and steering wheel.
y If transmission failure occurs, transport your
vehicle on a flat-bed truck. y Do not run the engine while being towed us-
ing this method. Transmission damage could
result if the vehicle is towed with the engine
running. y For vehicles with automatic transmission,
the traveling speed must be limited to less than
20 mph (30 km/h) and the traveling distance to
less than 31 miles (50 km). For greater speeds
and distances, transport your vehicle on a flat-
bed truck.
1. Check the transmission and differential oil levels
and add oil to bring it to the upper level if necessary.
2. Release the parking brake and put the transmis-
sion in neutral.
3. The ignition switch should be in the “ACC” position
while the vehicle is being towed.
4. Take up slack in the towline slowly to prevent dam-
age to the vehicle.UB8010AA

9-29
In case of emergency
– CONTINUED –
Moonroof – if the moonroof cannot be
closed
If the moonroof cannot be closed with the moonroof
switch, you can close the moonroof manually. TSedan

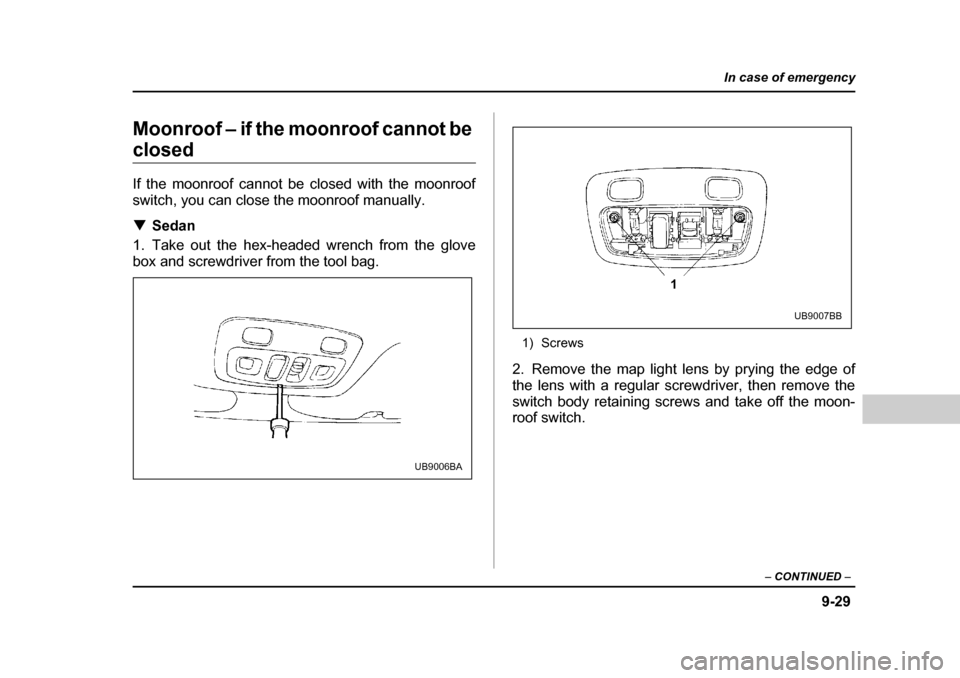

1. Take out the hex-headed wrench from the glove
box and screwdriver from the tool bag.
1) Screws
2. Remove the map light lens by prying the edge of
the lens with a regular screwdriver, then remove the
switch body retaining screws and take off the moon-
roof switch.
UB9006BA
1
UB9007BB

9-30
In case of emergency

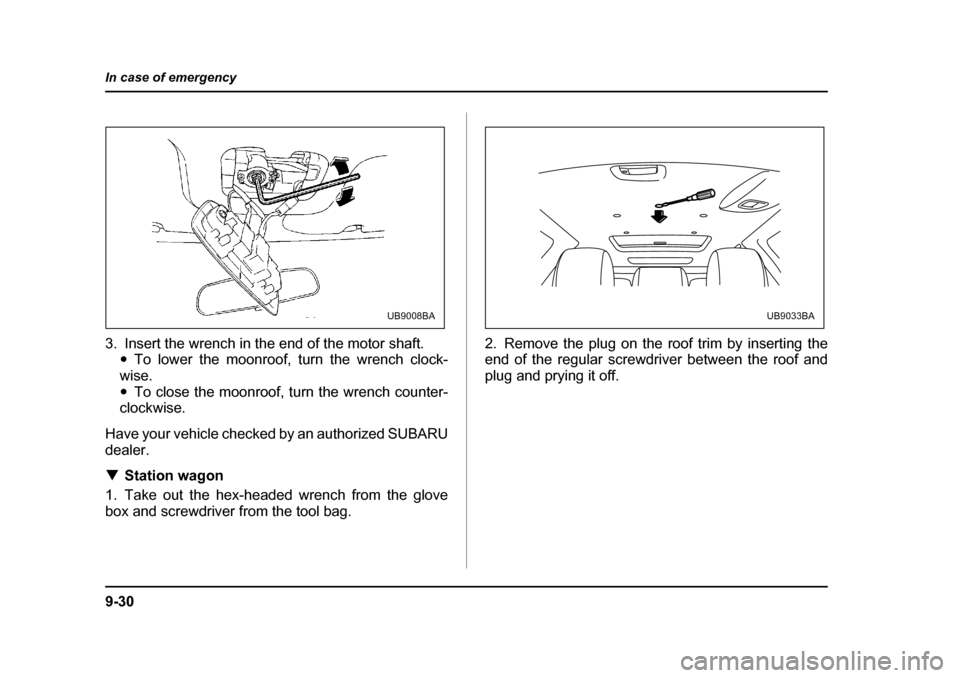

3. Insert the wrench in the end of the motor shaft.
yTo lower the moonroof, turn the wrench clock-
wise. y To close the moonroof, turn the wrench counter-
clockwise.
Have your vehicle checked by an authorized SUBARU
dealer. T Station wagon
1. Take out the hex-headed wrench from the glove
box and screwdriver from the tool bag. 2. Remove the plug on the roof trim by inserting the
end of the regular screwdriver between the roof and
plug and prying it off.
UB9008BAUB9033BA

9-31
In case of emergency
– CONTINUED –
3. Insert the wrench in the end of the motor shaft.
To close the moonroof, turn the wrench clockwise.
Have your vehicle checked or repaired by an autho-
rized SUBARU dealer.
Maintenance tools
Your vehicle is equipped with the following mainte- nance tools:
Screwdriver
Wheel nut wrench
Hex-headed wrench (for vehicles with moonroof)
UB9034BA
UB9011AA
