SUBARU LEGACY 2006 4.G User Guide

8

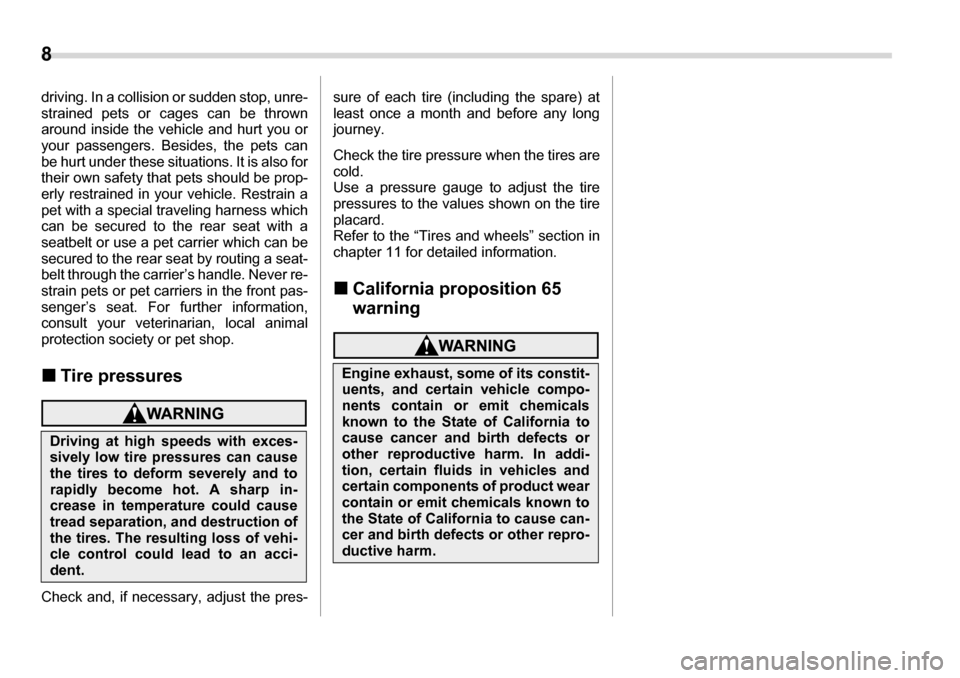

driving. In a collision or sudden stop, unre-
strained pets or cages can be thrown
around inside the vehicle and hurt you or
your passengers. Besides, the pets can
be hurt under these situations. It is also for
their own safety that pets should be prop-
erly restrained in your vehicle. Restrain a
pet with a special traveling harness which
can be secured to the rear seat with a
seatbelt or use a pet carrier which can be
secured to the rear seat by routing a seat-
belt through the carrier’s handle. Never re-
strain pets or pet ca rriers in the front pas-
senger’s seat. For further information,
consult your veterinarian, local animal
protection society or pet shop. „ Tire pressures
Check and, if necessa ry, adjust the pres- sure of each tire (including the spare) at
least once a month and before any long
journey.
Check the tire pressure when the tires are cold.
Use a pressure gauge to adjust the tire
pressures to the values shown on the tire
placard.
Refer to the “Tires and wheels” section in
chapter 11 for detailed information. „
California proposition 65 warning
Driving at high speeds with exces-
sively low tire pressures can cause
the tires to deform severely and to
rapidly become hot. A sharp in-
crease in temperature could cause
tread separation, and destruction of
the tires. The resulting loss of vehi-
cle control could lead to an acci-
dent.
Engine exhaust, some of its constit-
uents, and certain vehicle compo-
nents contain or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm. In addi-
tion, certain fluids in vehicles and
certain components of product wear
contain or emit chemicals known to
the State of California to cause can-
cer and birth defects or other repro-
ductive harm.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

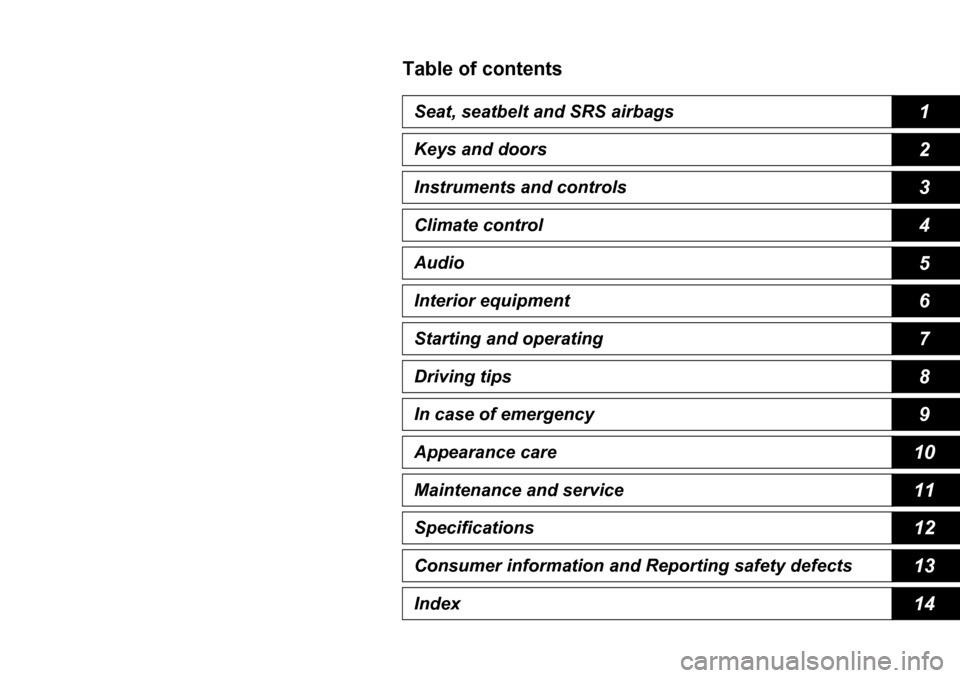

Table of contentsSeat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
Index

10

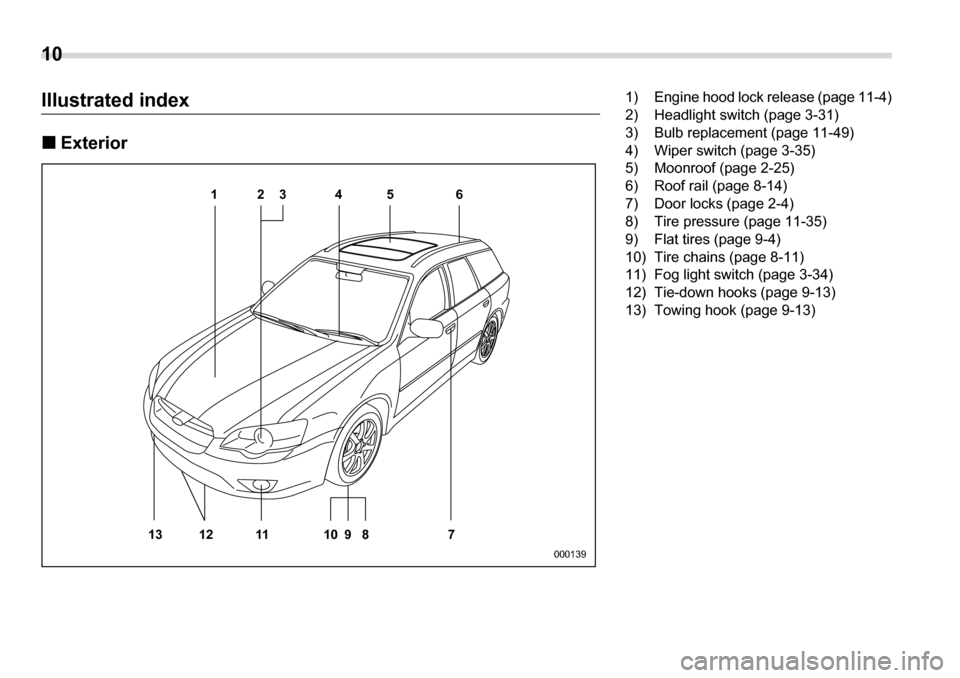

Illustrated index „Exterior
123 5 6 4
13 11 12 89 10 7
000139
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-31)
3) Bulb replacement (page 11-49)
4) Wiper switch (page 3-35)
5) Moonroof (page 2-25)
6) Roof rail (page 8-14)
7) Door locks (page 2-4)
8) Tire pressure (page 11-35)
9) Flat tires (page 9-4)
10) Tire chains (page 8-11)
11) Fog light switch (page 3-34)
12) Tie-down hooks (page 9-13)
13) Towing hook (page 9-13)

11
– CONTINUED –
68
5 4
123
7
5
98 4
12
3
000140

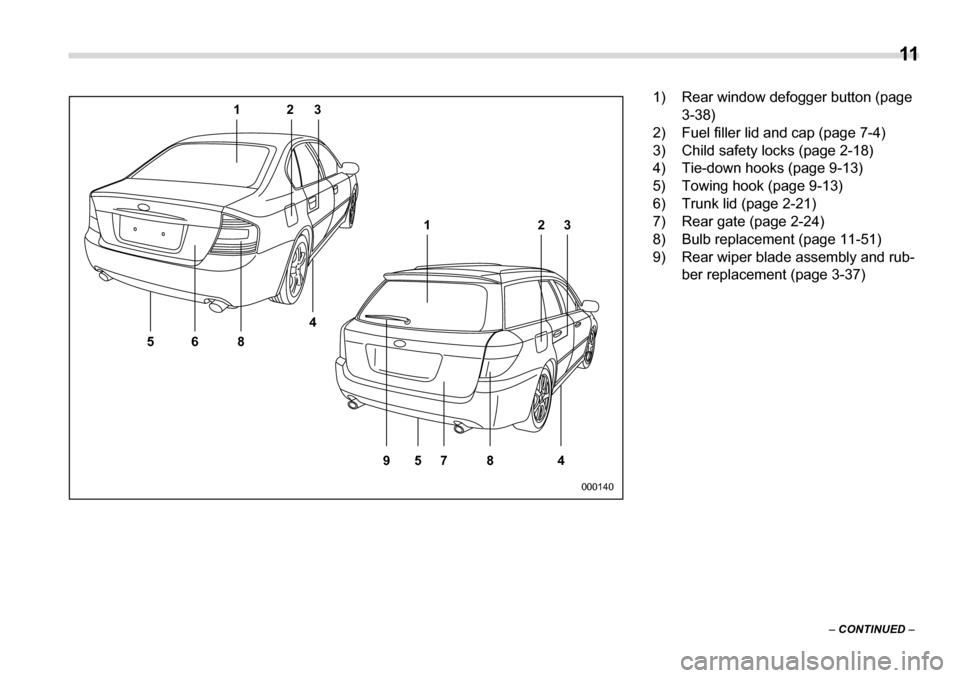

1) Rear window defogger button (page
3-38)
2) Fuel filler lid and cap (page 7-4)
3) Child safety locks (page 2-18)
4) Tie-down hooks (page 9-13)
5) Towing hook (page 9-13)
6) Trunk lid (page 2-21)
7) Rear gate (page 2-24)
8) Bulb replacement (page 11-51)
9) Rear wiper blade assembly and rub- ber replacement (page 3-37)

12

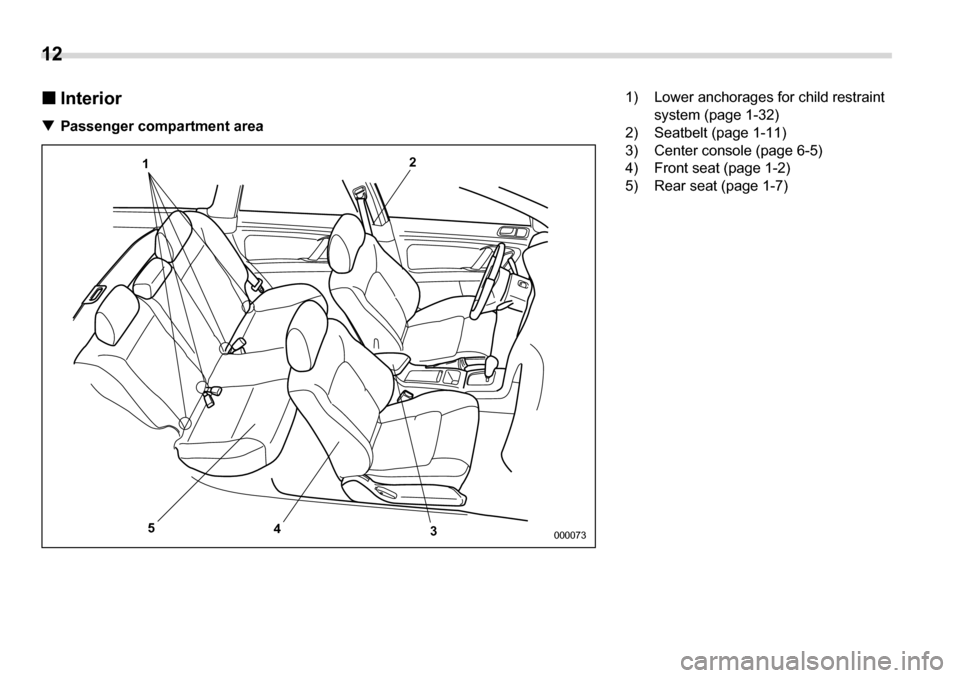

„ Interior
T Passenger compartment area
1 2
3
4
5
000073
1) Lower anchorages for child restraint
system (page 1-32)
2) Seatbelt (page 1-11)
3) Center console (page 6-5)
4) Front seat (page 1-2)
5) Rear seat (page 1-7)

13
– CONTINUED –
000177
12 4
6
315
1

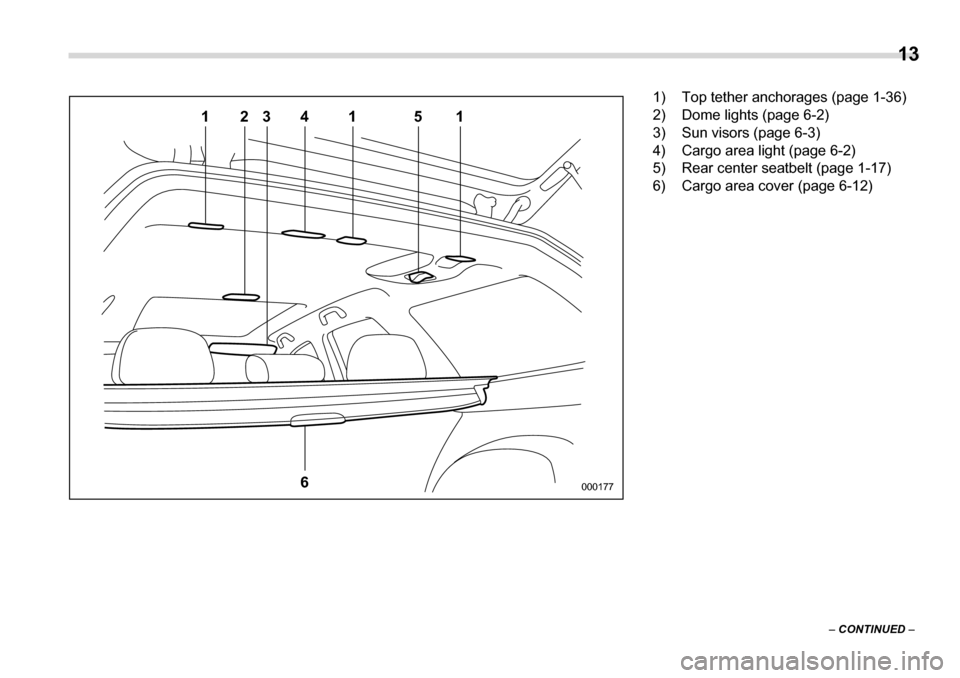

1) Top tether anchorages (page 1-36)
2) Dome lights (page 6-2)
3) Sun visors (page 6-3)
4) Cargo area light (page 6-2)
5) Rear center seatbelt (page 1-17)
6) Cargo area cover (page 6-12)

14
1
15 14 13 12 11 10 9 8 23 4567
000047

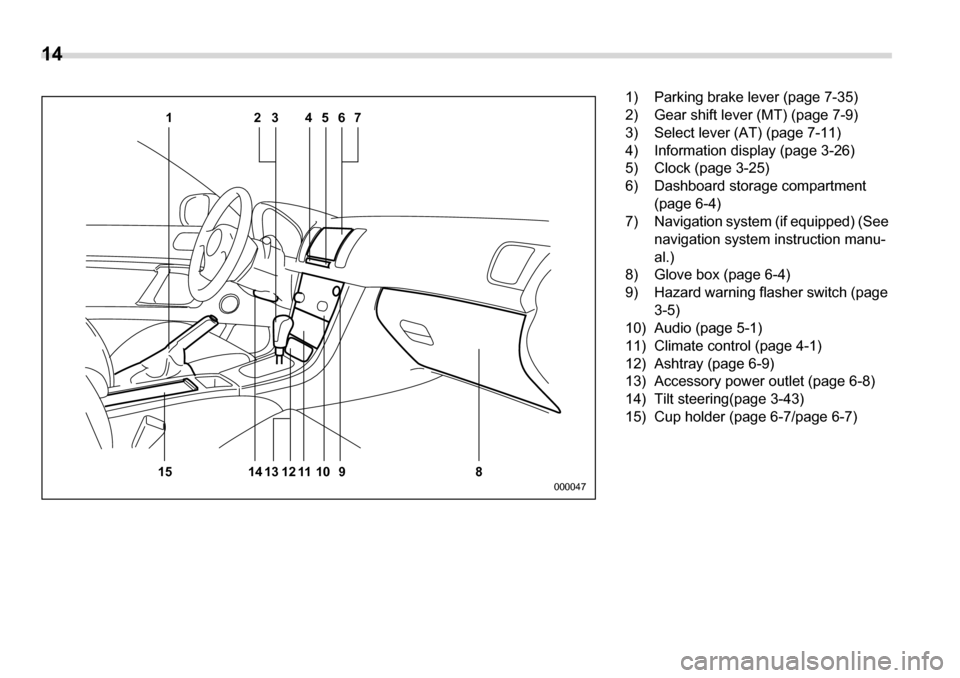

1) Parking brake lever (page 7-35)
2) Gear shift lever (MT) (page 7-9)
3) Select lever (AT) (page 7-11)
4) Information display (page 3-26)
5) Clock (page 3-25)
6) Dashboard storage compartment
(page 6-4)
7) Navigation system (if equipped) (See navigation system instruction manu-
al.)
8) Glove box (page 6-4)
9) Hazard warning flasher switch (page
3-5)
10) Audio (page 5-1)
11) Climate control (page 4-1)
12) Ashtray (page 6-9)
13) Accessory power outlet (page 6-8)
14) Tilt steering(page 3-43)
15) Cup holder (page 6-7/page 6-7)

15
– CONTINUED –
„

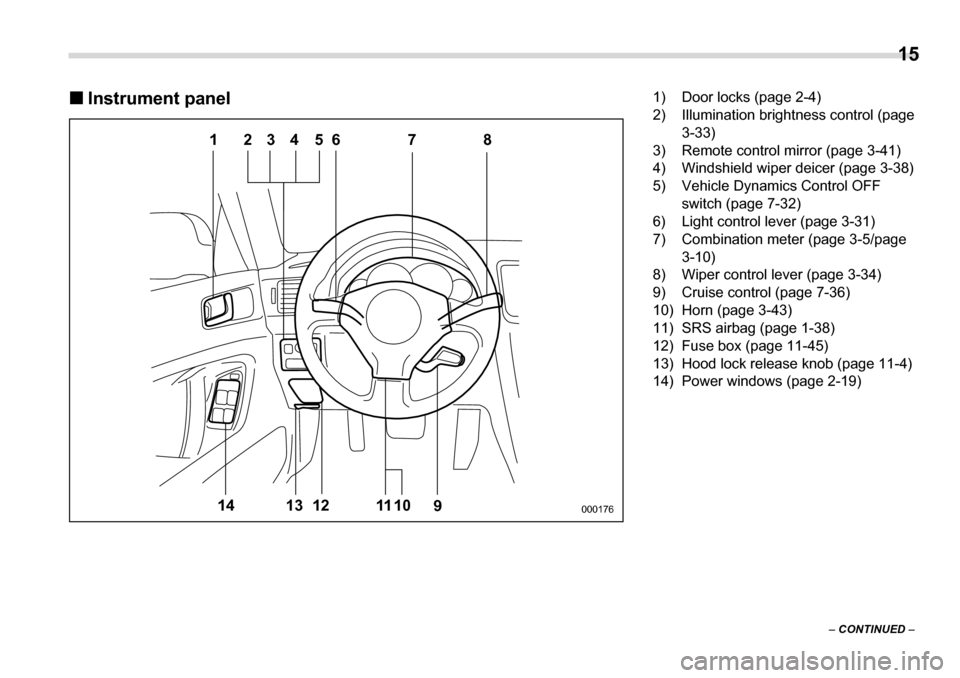

Instrument panel
000176
123456 7 8
9
10
11
12
13
14
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-33)
3) Remote control mirror (page 3-41)
4) Windshield wiper deicer (page 3-38)
5) Vehicle Dynamics Control OFF switch (page 7-32)
6) Light control lever (page 3-31)
7) Combination meter (page 3-5/page
3-10)
8) Wiper control lever (page 3-34)
9) Cruise control (page 7-36)
10) Horn (page 3-43)
11) SRS airbag (page 1-38)
12) Fuse box (page 11-45)
13) Hood lock release knob (page 11-4)
14) Power windows (page 2-19)

16

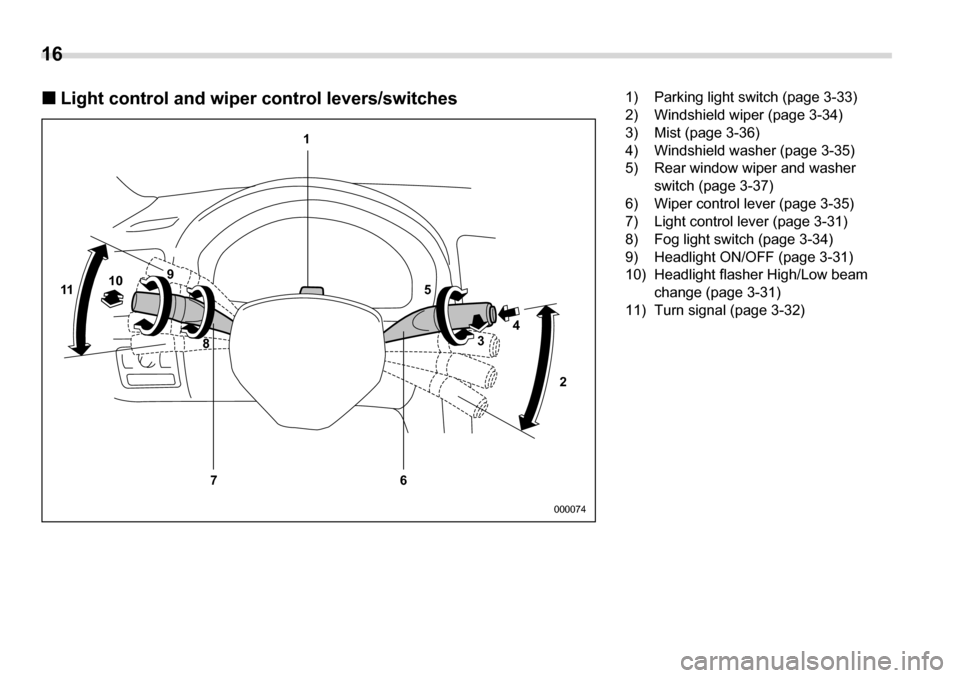

„ Light control and wiper control levers/switches
1
6
7
11
10
9
8 2
3
4
5
000074
1) Parking light switch (page 3-33)
2) Windshield wiper (page 3-34)
3) Mist (page 3-36)
4) Windshield washer (page 3-35)
5) Rear window wiper and washer
switch (page 3-37)
6) Wiper control lever (page 3-35)
7) Light control lever (page 3-31)
8) Fog light switch (page 3-34)
9) Headlight ON/OFF (page 3-31)
10) Headlight flasher High/Low beam change (page 3-31)
11) Turn signal (page 3-32)

17
– CONTINUED –
„

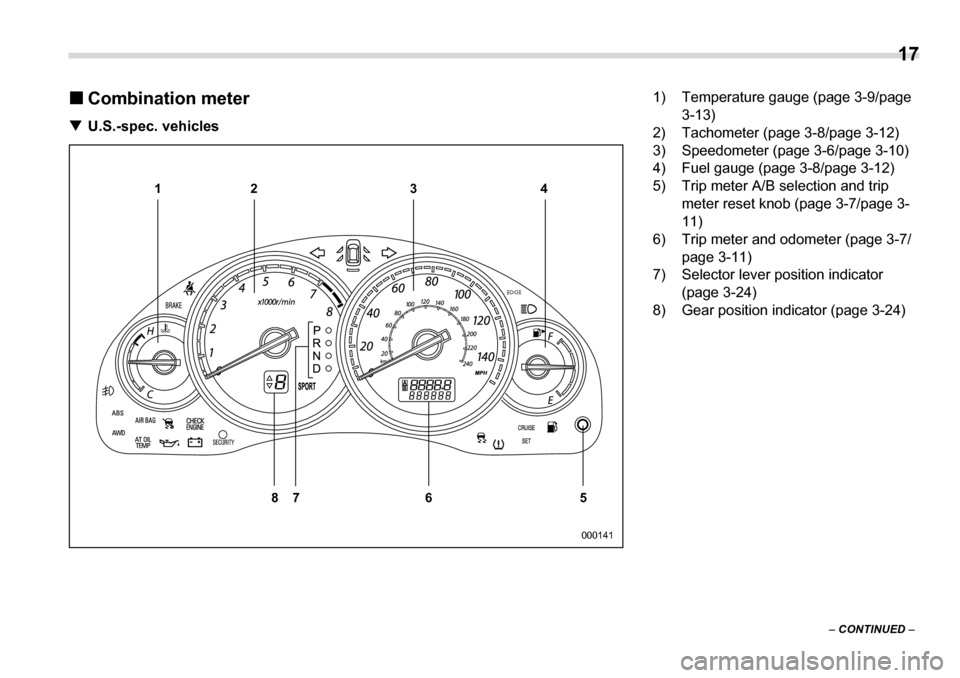

Combination meter
T U.S.-spec. vehicles
000141
12 3
5
6 4
87
1) Temperature gauge (page 3-9/page 3-13)
2) Tachometer (page 3-8/page 3-12)
3) Speedometer (page 3-6/page 3-10)
4) Fuel gauge (page 3-8/page 3-12)
5) Trip meter A/B selection and trip
meter reset knob (page 3-7/page 3-11)
6) Trip meter and odometer (page 3-7/
page 3-11)
7) Selector lever position indicator (page 3-24)
8) Gear position indicator (page 3-24)
