SUBARU LEGACY 2006 4.G Owner's Guide

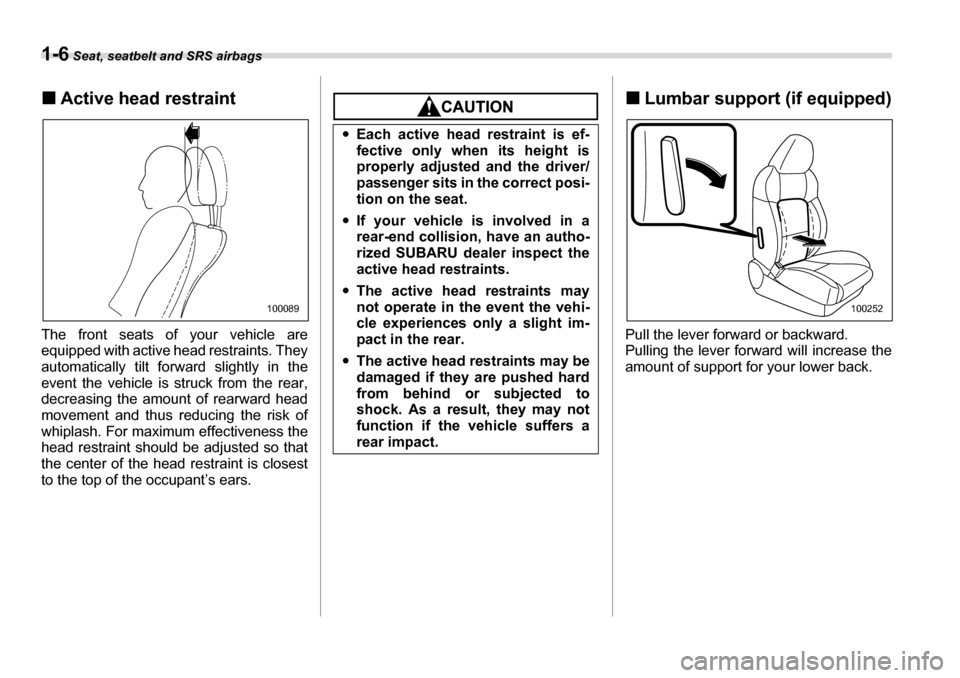

1-6 Seat, seatbelt and SRS airbags
„Active head restraint
The front seats of your vehicle are
equipped with active head restraints. They
automatically tilt forward slightly in the
event the vehicle is struck from the rear,
decreasing the amount of rearward head
movement and thus reducing the risk of whiplash. For maximu m effectiveness the
head restraint should be adjusted so that
the center of the head restraint is closest
to the top of the occupant’s ears.„ Lumbar support (if equipped)
Pull the lever forward or backward.
Pulling the lever forward will increase the
amount of support for your lower back.
100089
y Each active head restraint is ef-
fective only when its height is
properly adjusted and the driver/
passenger sits in the correct posi-
tion on the seat.
y If your vehicle is involved in a
rear-end collision, have an autho-
rized SUBARU dealer inspect the
active head restraints.
y The active head restraints may
not operate in the event the vehi-
cle experiences only a slight im-
pact in the rear.
y The active head restraints may be
damaged if they are pushed hard
from behind or subjected to
shock. As a result, they may not
function if the vehicle suffers a
rear impact.
100252

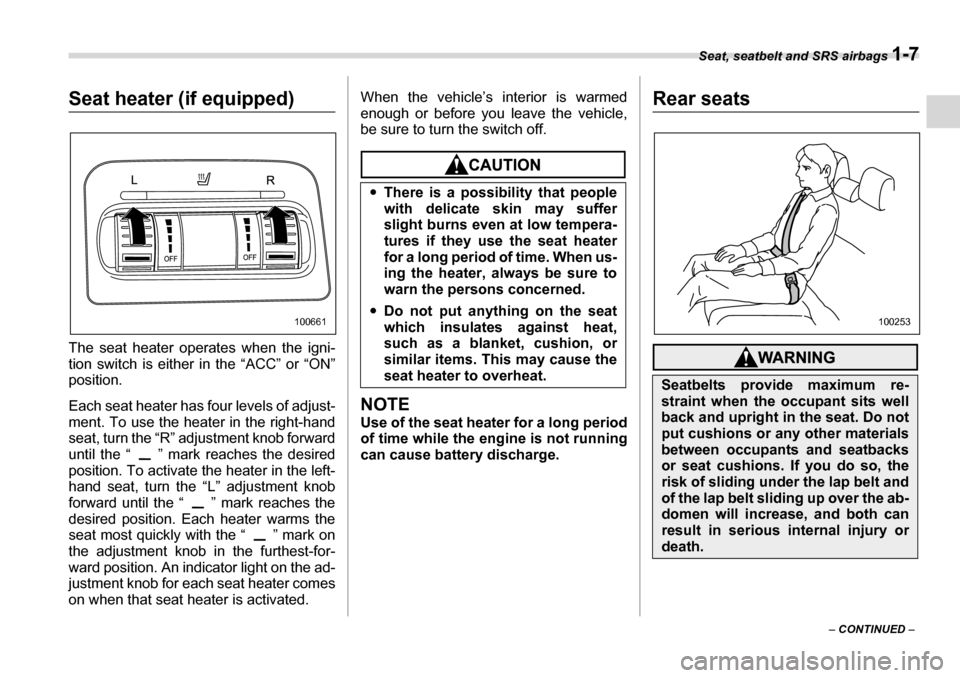

Seat, seatbelt and SRS airbags 1-7
– CONTINUED –
Seat heater (if equipped)
The seat heater operates when the igni-
tion switch is either in the “ACC” or “ON” position.
Each seat heater has four levels of adjust-
ment. To use the heater in the right-hand
seat, turn the “R” adjustment knob forward
until the “ ” mark reaches the desired
position. To activate the heater in the left-
hand seat, turn the “L” adjustment knob
forward until the “ ” mark reaches the
desired position. Each heater warms the
seat most quickly with the “ ” mark on
the adjustment knob in the furthest-for-
ward position. An indicator light on the ad-
justment knob for each seat heater comes
on when that seat heater is activated. When the vehicle’s interior is warmed
enough or before you leave the vehicle,
be sure to turn the switch off.
NOTE
Use of the seat heater for a long period
of time while the en
gine is not running
can cause battery discharge.
Rear seats
100661
y There is a possibility that people
with delicate skin may suffer
slight burns even at low tempera-
tures if they use the seat heater
for a long period of time. When us-
ing the heater, always be sure to
warn the persons concerned.
y Do not put anything on the seat
which insulates against heat,
such as a blanket, cushion, or
similar items. This may cause the
seat heater to overheat.
Seatbelts provide maximum re-
straint when the occupant sits well
back and upright in the seat. Do not
put cushions or any other materials
between occupants and seatbacks
or seat cushions. If you do so, the
risk of sliding under the lap belt and
of the lap belt sliding up over the ab-
domen will increase, and both can
result in serious internal injury or
death.
100253

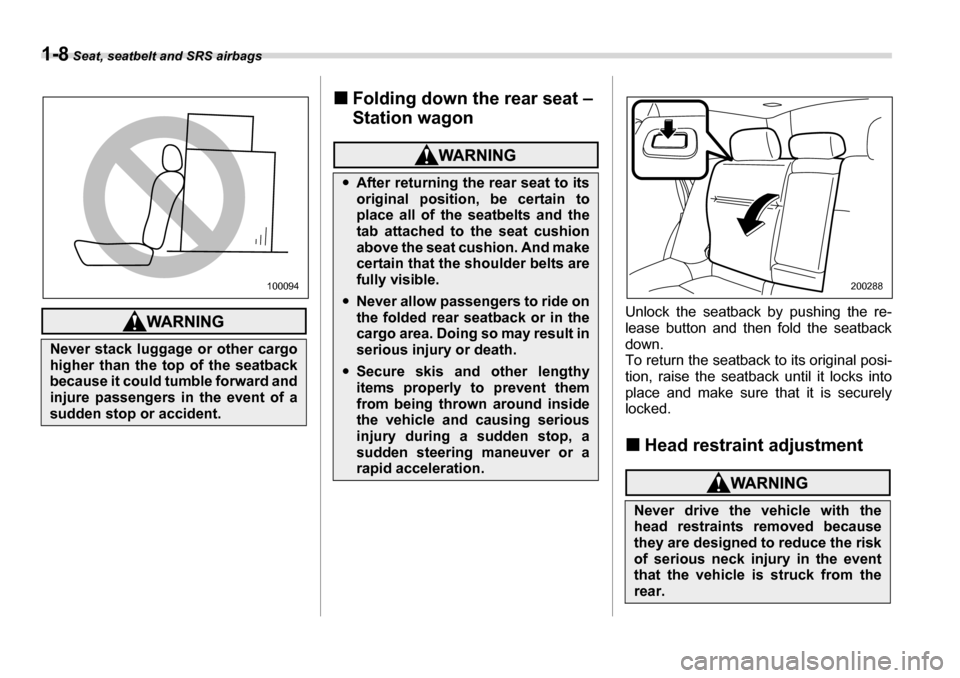

1-8 Seat, seatbelt and SRS airbags
„Folding down the rear seat –
Station wagon
Unlock the seatback by pushing the re-
lease button and then fold the seatback
down.
To return the seatback to its original posi-
tion, raise the seatback until it locks into
place and make sure that it is securelylocked. „Head restraint adjustment
Never stack luggage or other cargo
higher than the top of the seatback
because it could tumble forward and
injure passengers in the event of a
sudden stop or accident.
100094
yAfter returning the rear seat to its
original position, be certain to
place all of the seatbelts and the
tab attached to the seat cushion
above the seat cushion. And make
certain that the shoulder belts are
fully visible.
yNever allow passengers to ride on
the folded rear seatback or in the
cargo area. Doing so may result in
serious injury or death.
ySecure skis and other lengthy
items properly to prevent them
from being thrown around inside
the vehicle and causing serious
injury during a sudden stop, a
sudden steering maneuver or a
rapid acceleration.
Never drive the vehicle with the
head restraints removed because
they are designed to reduce the risk
of serious neck injury in the event
that the vehicle is struck from the
rear.
200288

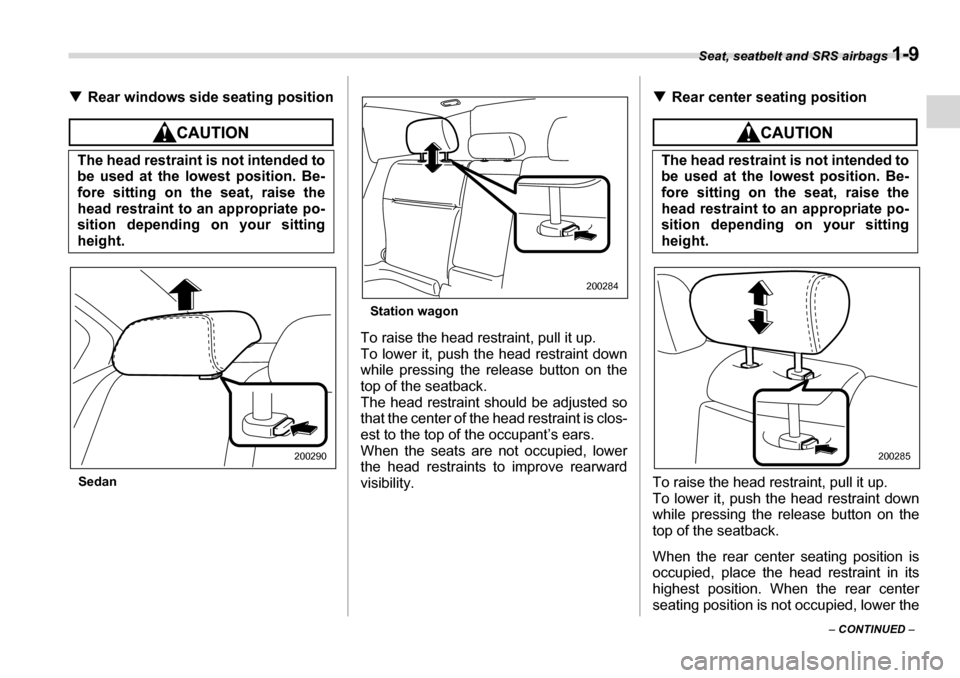

Seat, seatbelt and SRS airbags 1-9
– CONTINUED –
T
Rear windows side seating position
Sedan Station wagon
To raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
The head restraint should be adjusted so
that the center of the head restraint is clos-
est to the top of the occupant’s ears.
When the seats are not occupied, lower
the head restraints to improve rearward visibility. T
Rear center seating positionTo raise the head restraint, pull it up.
To lower it, push the head restraint down
while pressing the release button on the
top of the seatback.
When the rear center seating position is
occupied, place the head restraint in its
highest position. When the rear center
seating position is not occupied, lower the
The head restraint is not intended to
be used at the lowest position. Be-
fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
200290
200284
The head restraint is not intended to
be used at the lowest position. Be-
fore sitting on the seat, raise the
head restraint to an appropriate po-
sition depending on your sitting
height.
200285

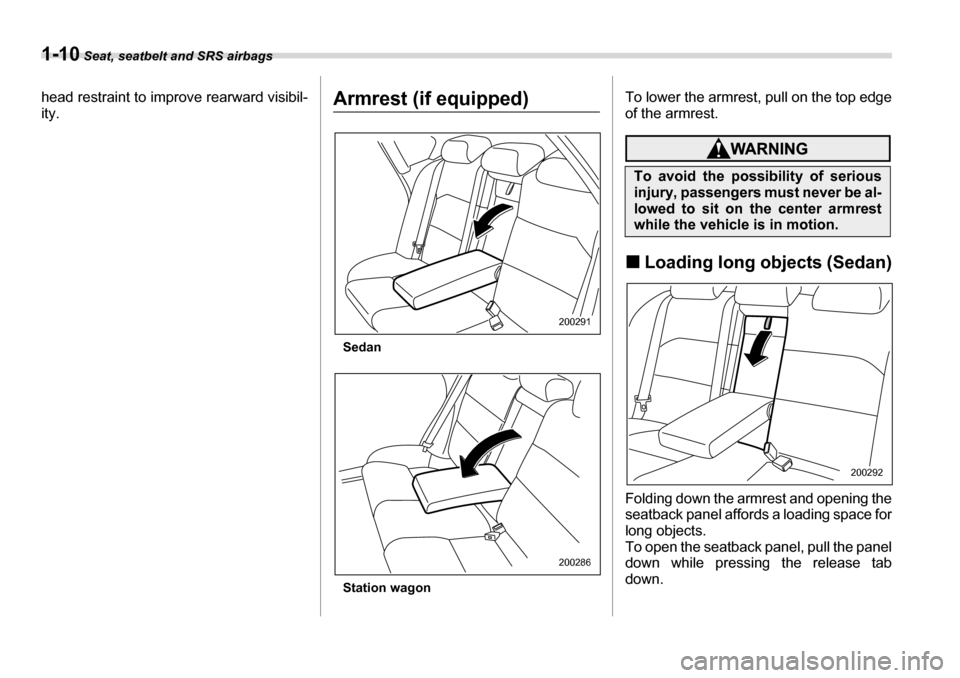

1-10 Seat, seatbelt and SRS airbags
head restraint to improve rearward visibil- ity.Armrest (if equipped)
Sedan
Station wagon To lower the armrest, pull on the top edge
of the armrest.
„
Loading long objects (Sedan)
Folding down the a rmrest and opening the
seatback panel affords a loading space for
long objects.
To open the seatback panel, pull the panel
down while pressing the release tab
down.
200291
200286
To avoid the possibility of serious
injury, passengers must never be al-
lowed to sit on the center armrest
while the vehicle is in motion.
200292

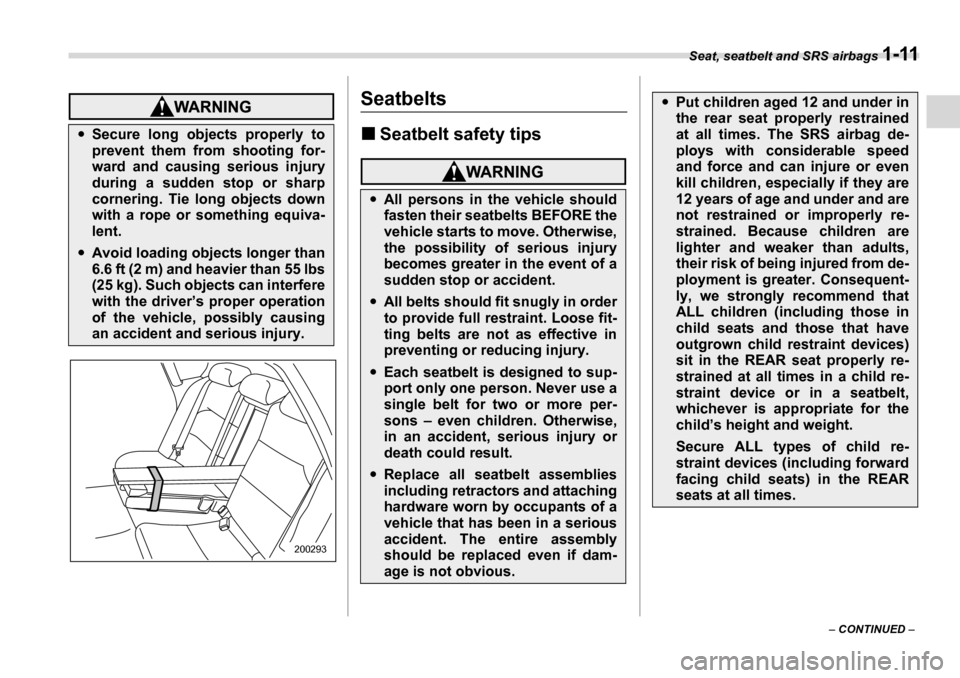

Seat, seatbelt and SRS airbags 1-11
– CONTINUED –
Seatbelts „Seatbelt safety tips
ySecure long objects properly to
prevent them from shooting for-
ward and causing serious injury
during a sudden stop or sharp
cornering. Tie long objects down
with a rope or something equiva-
lent.
yAvoid loading objects longer than
6.6 ft (2 m) and heavier than 55 lbs
(25 kg). Such objects can interfere
with the driver’s proper operation
of the vehicle, possibly causing
an accident and serious injury.
200293
yAll persons in the vehicle should
fasten their seatbelts BEFORE the
vehicle starts to move. Otherwise,
the possibility of serious injury
becomes greater in the event of a
sudden stop or accident.
yAll belts should fit snugly in order to provide full re straint. Loose fit-
ting belts are not as effective in
preventing or reducing injury.
y Each seatbelt is designed to sup-
port only one person. Never use a
single belt for two or more per-
sons – even children. Otherwise,
in an accident, serious injury or
death could result.
yReplace all seatbelt assemblies
including retractors and attaching
hardware worn by occupants of a
vehicle that has been in a serious
accident. The entire assembly
should be replaced even if dam-
age is not obvious.
yPut children aged 12 and under in
the rear seat properly restrained
at all times. The SRS airbag de-
ploys with considerable speed
and force and can injure or even
kill children, especially if they are
12 years of age and under and are
not restrained or improperly re-
strained. Because children are
lighter and weaker than adults,
their risk of being injured from de-
ployment is greater. Consequent-
ly, we strongly recommend that
ALL children (including those in
child seats and those that have
outgrown child restraint devices)
sit in the REAR seat properly re-
strained at all times in a child re-
straint device or in a seatbelt,
whichever is appropriate for the
child’s height and weight.
Secure ALL types of child re-
straint devices (including forward
facing child seats) in the REAR
seats at all times.

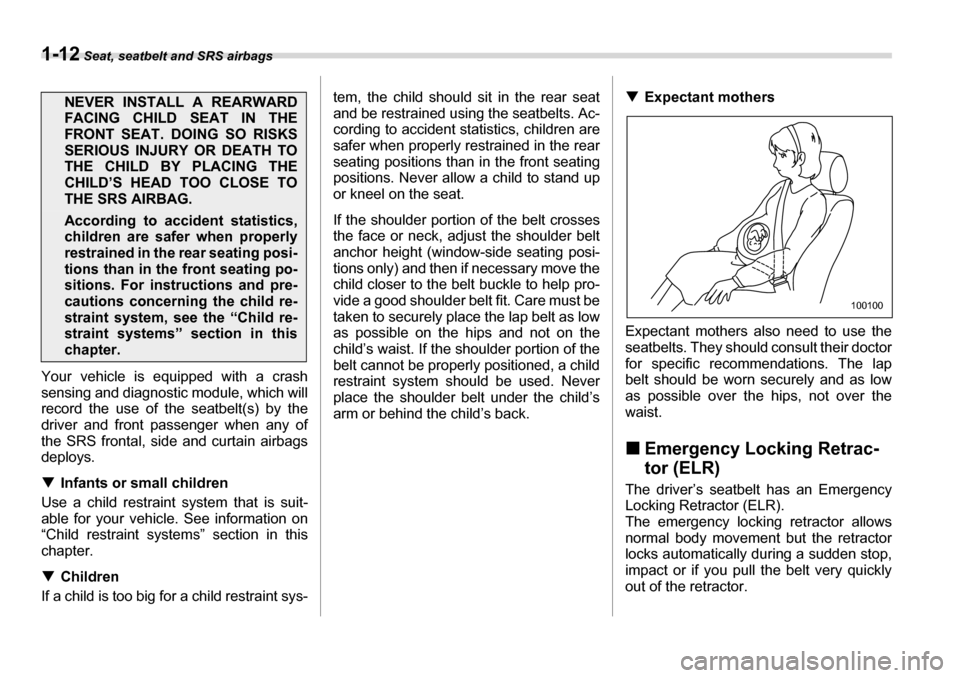

1-12 Seat, seatbelt and SRS airbags
Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seatbelt(s) by the
driver and front passenger when any of
the SRS frontal, side and curtain airbags
deploys. TInfants or small children
Use a child restraint system that is suit-
able for your vehicle. See information on
“Child restraint systems” section in this
chapter. T Children
If a child is too big for a child restraint sys- tem, the child should sit in the rear seat
and be restrained using the seatbelts. Ac- cording to accident st
atistics, children are
safer when properly restrained in the rear
seating positions than in the front seating
positions. Never allow a child to stand up
or kneel on the seat.
If the shoulder portion of the belt crosses
the face or neck, adjust the shoulder belt
anchor height (window-side seating posi-
tions only) and then if necessary move the
child closer to the belt buckle to help pro-
vide a good shoulder belt fit. Care must be
taken to securely place the lap belt as low
as possible on the hips and not on the
child’s waist. If the shoulder portion of the
belt cannot be properly positioned, a child
restraint system shou ld be used. Never
place the shoulder belt under the child’s
arm or behind the child’s back. T
Expectant mothers
Expectant mothers also need to use the
seatbelts. They should consult their doctor
for specific recommendations. The lap
belt should be worn securely and as low
as possible over the hips, not over the waist.
„ Emergency Locking Retrac- tor (ELR)
The driver’s seatbelt has an Emergency
Locking Retractor (ELR).
The emergency locking retractor allows
normal body movement but the retractor
locks automatically during a sudden stop,
impact or if you pull the belt very quickly out of the retractor.
NEVER INSTALL A REARWARD
FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO
THE CHILD BY PLACING THE
CHILD’S HEAD TOO CLOSE TO
THE SRS AIRBAG.
According to accident statistics,
children are safer when properly
restrained in the rear seating posi-
tions than in the front seating po-
sitions. For instructions and pre-
cautions concerning the child re-
straint system, see the “Child re-
straint systems” section in this
chapter.
100100

Seat, seatbelt and SRS airbags 1-13
– CONTINUED –
„

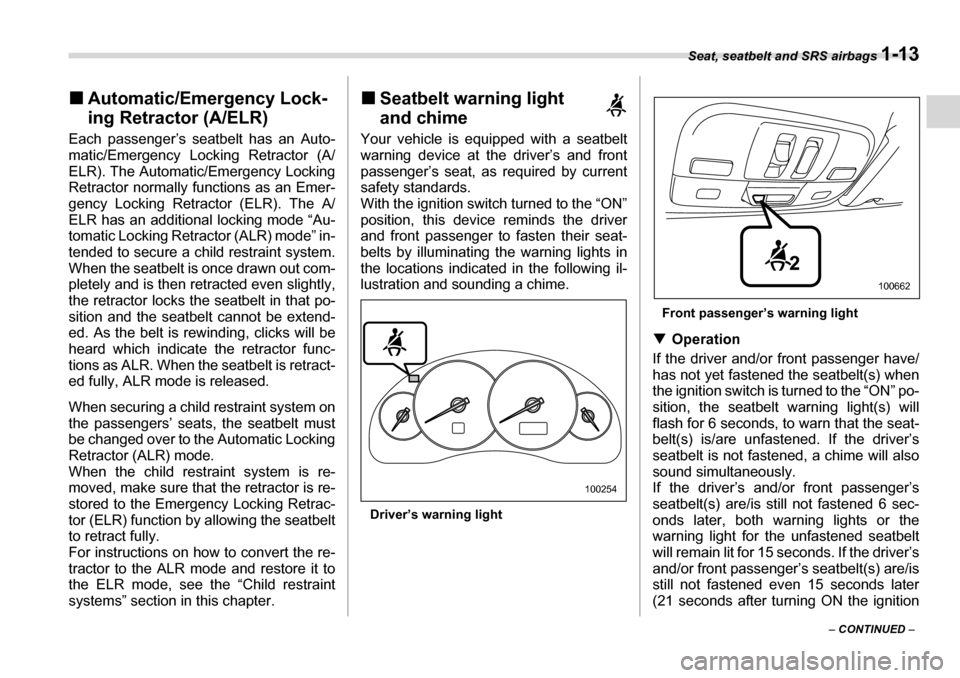

Automatic/Emergency Lock- ing Retractor (A/ELR)
Each passenger’s seatbelt has an Auto-
matic/Emergency Locking Retractor (A/
ELR). The Automatic/Emergency Locking
Retractor normally functions as an Emer-
gency Locking Retractor (ELR). The A/
ELR has an additional locking mode “Au-
tomatic Locking Retractor (ALR) mode” in-
tended to secure a child restraint system.
When the seatbelt is once drawn out com-
pletely and is then retracted even slightly,
the retractor locks the se atbelt in that po-
sition and the seatbelt cannot be extend-
ed. As the belt is rewinding, clicks will be
heard which indicate the retractor func-
tions as ALR. When the seatbelt is retract-
ed fully, ALR mode is released.
When securing a child restraint system on
the passengers’ seats, the seatbelt must
be changed over to the Automatic Locking
Retractor (ALR) mode.
When the child rest raint system is re-
moved, make sure that the retractor is re-
stored to the Emergency Locking Retrac-
tor (ELR) function by allowing the seatbelt
to retract fully.
For instructions on how to convert the re-
tractor to the ALR mode and restore it to
the ELR mode, see the “Child restraint systems” section in this chapter. „
Seatbelt warning light
and chime
Your vehicle is equipped with a seatbelt
warning device at the driver’s and front
passenger’s seat, as required by current
safety standards.
With the ignition switch turned to the “ON”
position, this device reminds the driver
and front passenger to fasten their seat-
belts by illuminating the warning lights in
the locations indicated in the following il-
lustration and sounding a chime.
Driver’s warning light Front passenger’s warning light
T Operation
If the driver and/or front passenger have/
has not yet fastened the seatbelt(s) when
the ignition switch is turned to the “ON” po-
sition, the seatbelt warning light(s) will
flash for 6 seconds, to warn that the seat-
belt(s) is/are unfastened. If the driver’s
seatbelt is not fastened, a chime will also
sound simultaneously.
If the driver’s and/or front passenger’s
seatbelt(s) are/is still not fastened 6 sec-
onds later, both warning lights or the
warning light for t he unfastened seatbelt
will remain lit for 15 seconds. If the driver’s
and/or front passenger’s seatbelt(s) are/is
still not fastened even 15 seconds later
(21 seconds after turning ON the ignition
100254
100662

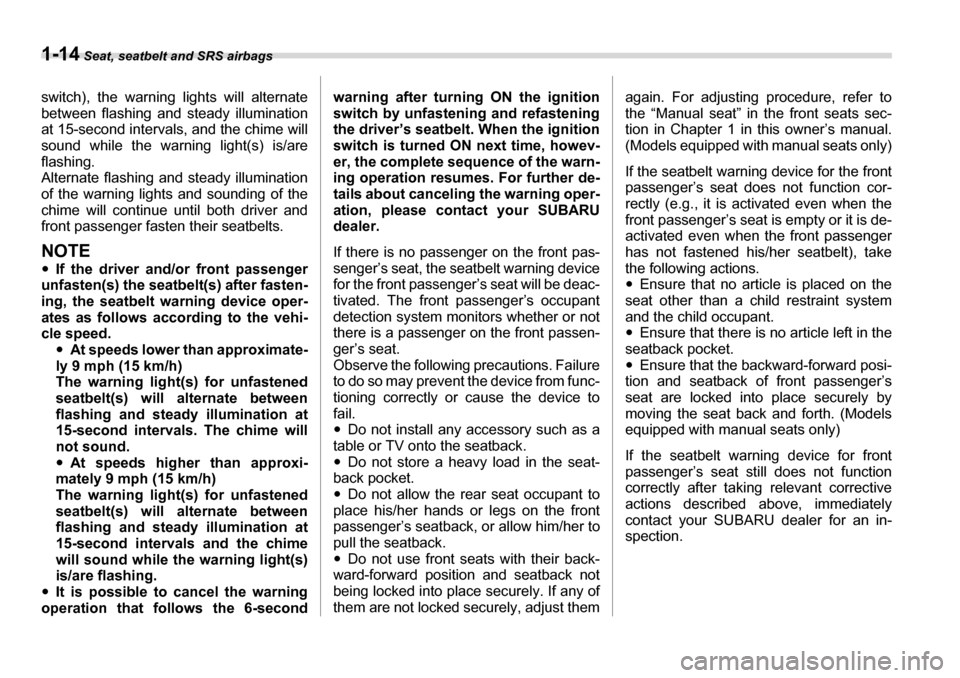

1-14 Seat, seatbelt and SRS airbags
switch), the warning lights will alternate
between flashing and steady illumination
at 15-second intervals, and the chime will
sound while the warning light(s) is/are
flashing.
Alternate flashing and steady illumination
of the warning lights and sounding of the
chime will continue until both driver and
front passenger fasten their seatbelts.
NOTE yIf the driver and/or front passenger
unfasten(s) the seatbelt(s) after fasten-
ing, the seatbelt warning device oper-
ates as follows according to the vehi-
cle speed.
yAt speeds lower than approximate-
ly 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals. The chime will
not sound. y At speeds higher than approxi-
mately 9 mph (15 km/h)
The warning light(s) for unfastened
seatbelt(s) will alternate between
flashing and steady illumination at
15-second intervals and the chime
will sound while the warning light(s)
is/are flashing.
y It is possible to cancel the warning
operation that follows the 6-second warning after turning ON the ignition
switch by unfastening and refastening
the driver’s seatbelt. When the ignition
switch is turned ON next time, howev-
er, the complete sequence of the warn-
ing operation resumes. For further de-
tails about canceling the warning oper-
ation, please contact your SUBARU
dealer.
If there is no passenger on the front pas-
senger’s seat, the seatbelt warning device
for the front passenger’s seat will be deac-
tivated. The front passenger’s occupant
detection system monitors whether or not
there is a passenger on the front passen-
ger’s seat.
Observe the following precautions. Failure
to do so may prevent the device from func-
tioning correctly or cause the device to
fail. y
Do not install any accessory such as a
table or TV onto the seatback. y Do not store a heavy load in the seat-
back pocket.y Do not allow the rear seat occupant to
place his/her hands or legs on the front
passenger’s seatback, or allow him/her to
pull the seatback.y Do not use front seats with their back-
ward-forward position and seatback not
being locked into place securely. If any of
them are not locked securely, adjust them again. For adjusting procedure, refer to
the “Manual seat” in the front seats sec-
tion in Chapter 1 in this owner’s manual.
(Models equipped with manual seats only)
If the seatbelt warning device for the front
passenger’s seat does not function cor-
rectly (e.g., it is ac
tivated even when the
front passenger’s seat is empty or it is de-
activated even when the front passenger
has not fastened his/ her seatbelt), take
the following actions.y Ensure that no article is placed on the
seat other than a ch ild restraint system
and the child occupant.y Ensure that there is no article left in the
seatback pocket.y Ensure that the backward-forward posi-
tion and seatback of front passenger’s
seat are locked into place securely by
moving the seat back and forth. (Models
equipped with manual seats only)
If the seatbelt warning device for front
passenger’s seat still does not function correctly after taking relevant corrective
actions described above, immediately
contact your SUBARU dealer for an in-
spection.

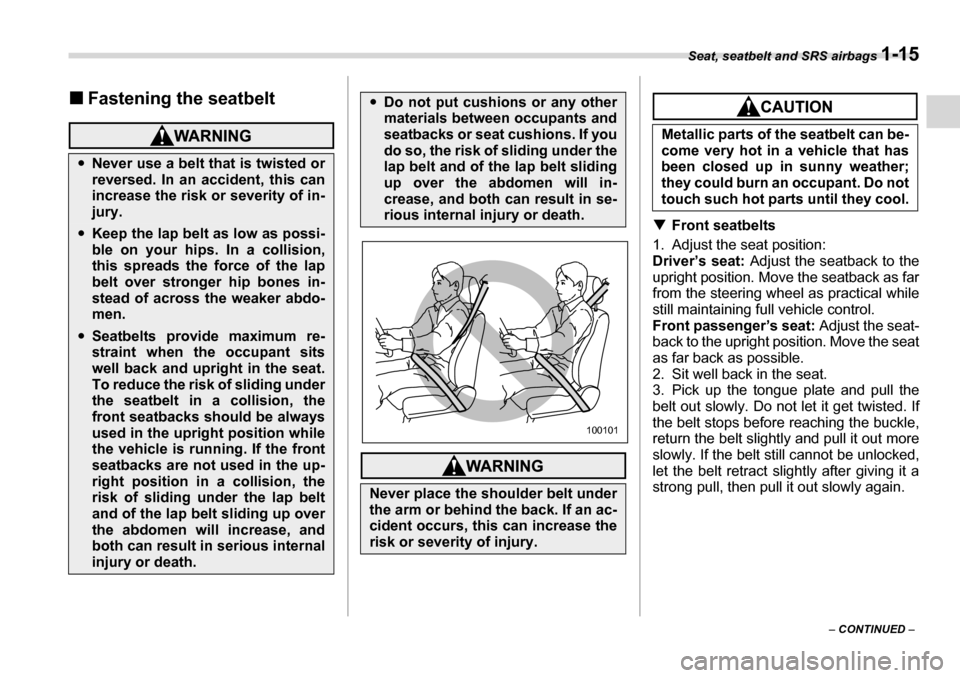

Seat, seatbelt and SRS airbags 1-15
– CONTINUED –
„
Fastening the seatbelt
TFront seatbelts
1. Adjust the seat position:
Driver’s seat: Adjust the seatback to the
upright position. Move the seatback as far
from the steering wheel as practical while
still maintaining full vehicle control.
Front passenger’s seat: Adjust the seat-
back to the upright position. Move the seat
as far back as possible.
2. Sit well back in the seat.
3. Pick up the tongue plate and pull the
belt out slowly. Do not let it get twisted. If
the belt stops before reaching the buckle,
return the belt slightly and pull it out more
slowly. If the belt still cannot be unlocked,
let the belt retract slightly after giving it a
strong pull, then pull it out slowly again.
y Never use a belt that is twisted or
reversed. In an accident, this can
increase the risk or severity of in-
jury.
yKeep the lap belt as low as possi-
ble on your hips. In a collision,
this spreads the force of the lap
belt over stronger hip bones in-
stead of across the weaker abdo- men.
ySeatbelts provide maximum re-
straint when the occupant sits
well back and upright in the seat.
To reduce the risk of sliding under
the seatbelt in a collision, the
front seatbacks should be always
used in the uprigh t position while
the vehicle is running. If the front
seatbacks are not used in the up-
right position in a collision, the
risk of sliding under the lap belt
and of the lap belt sliding up over
the abdomen will increase, and
both can result in serious internal
injury or death.
y Do not put cushions or any other
materials between occupants and
seatbacks or seat cushions. If you
do so, the risk of sliding under the
lap belt and of the lap belt sliding
up over the abdomen will in-
crease, and both can result in se-
rious internal in jury or death.
Never place the shoulder belt under
the arm or behind the back. If an ac-
cident occurs, this can increase the
risk or severity of injury.
100101
Metallic parts of the seatbelt can be-
come very hot in a vehicle that has
been closed up in sunny weather;
they could burn an occupant. Do not
touch such hot part s until they cool.
