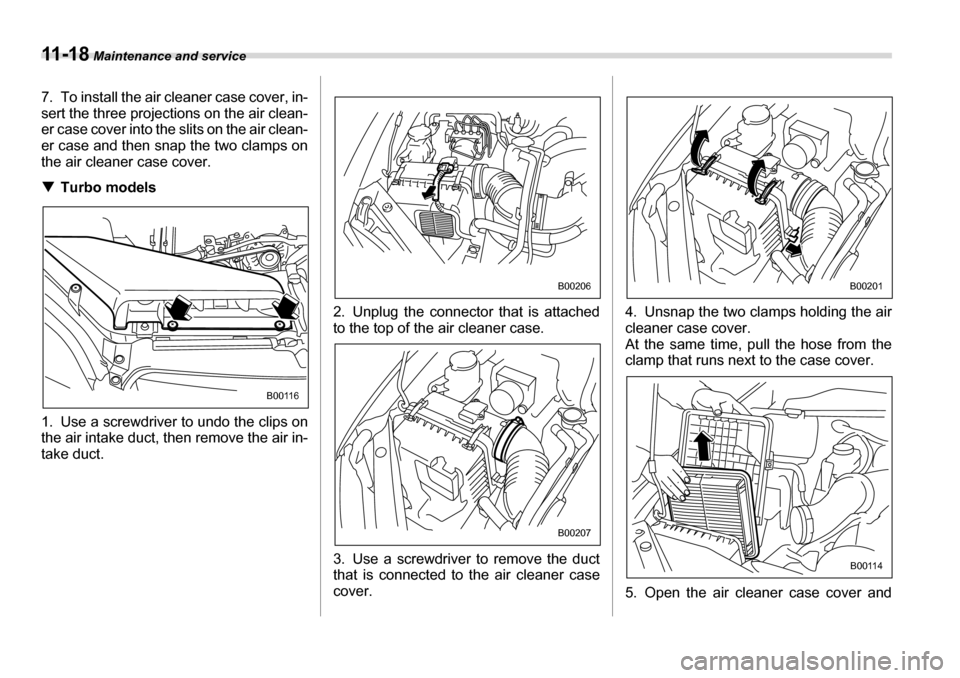

11 - 1 8 Maintenance and service
7. To install the air cleaner case cover, in-
sert the three projections on the air clean-
er case cover into the slits on the air clean-
er case and then snap the two clamps on
the air cleaner case cover. T Turbo models
0
1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air in- take duct. 2. Unplug the connector that is attached
to the top of the air cleaner case.
3. Use a screwdriver to remove the duct
that is connected to the air cleaner case cover. 4. Unsnap the two clamps holding the air
cleaner case cover.
At the same time, pu
ll the hose from the
clamp that runs next to the case cover.
5. Open the air cleaner case cover and
B00116
B00206
B00207
B00201
B00114

Maintenance and service 11 - 1 9

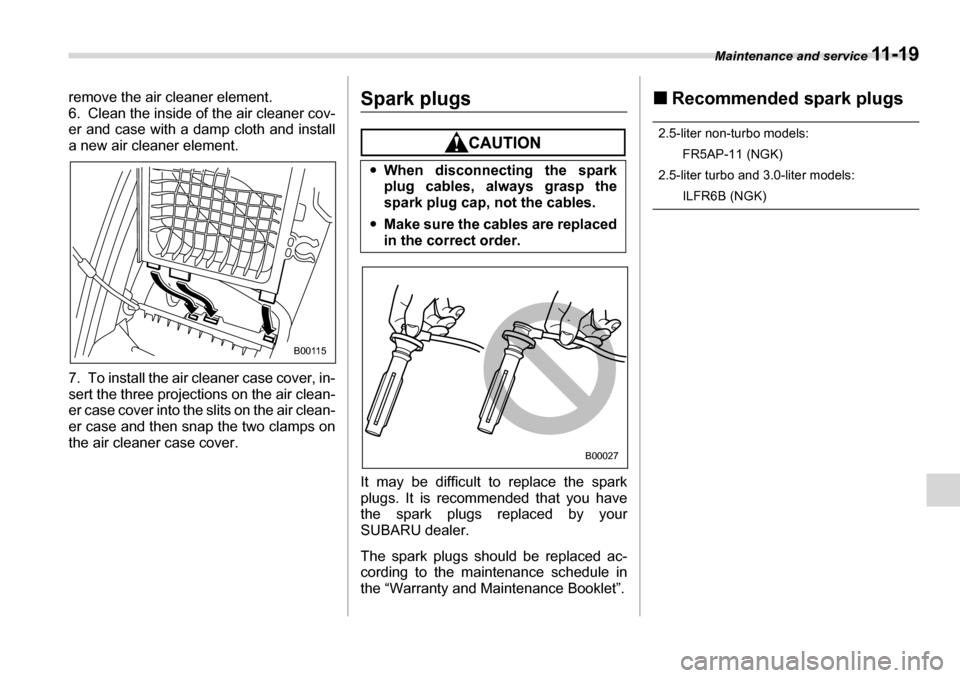

remove the air cleaner element.
6. Clean the inside of the air cleaner cov-
er and case with a damp cloth and install
a new air cleaner element.
7. To install the air cleaner case cover, in-
sert the three projections on the air clean-
er case cover into the slits on the air clean-
er case and then snap the two clamps on
the air cleaner case cover.Spark plugs
It may be difficult to replace the spark
plugs. It is recommended that you have
the spark plugs replaced by your
SUBARU dealer.
The spark plugs should be replaced ac-
cording to the maintenance schedule in
the “Warranty and Maintenance Booklet”. „
Recommended spark plugs
2.5-liter non-turbo models:
FR5AP-11 (NGK)
2.5-liter turbo and 3.0-liter models:
ILFR6B (NGK)
B00115
y When disconnecting the spark
plug cables, always grasp the
spark plug cap, not the cables.
y Make sure the cables are replaced
in the correct order.
B00027

11 - 2 0 Maintenance and service

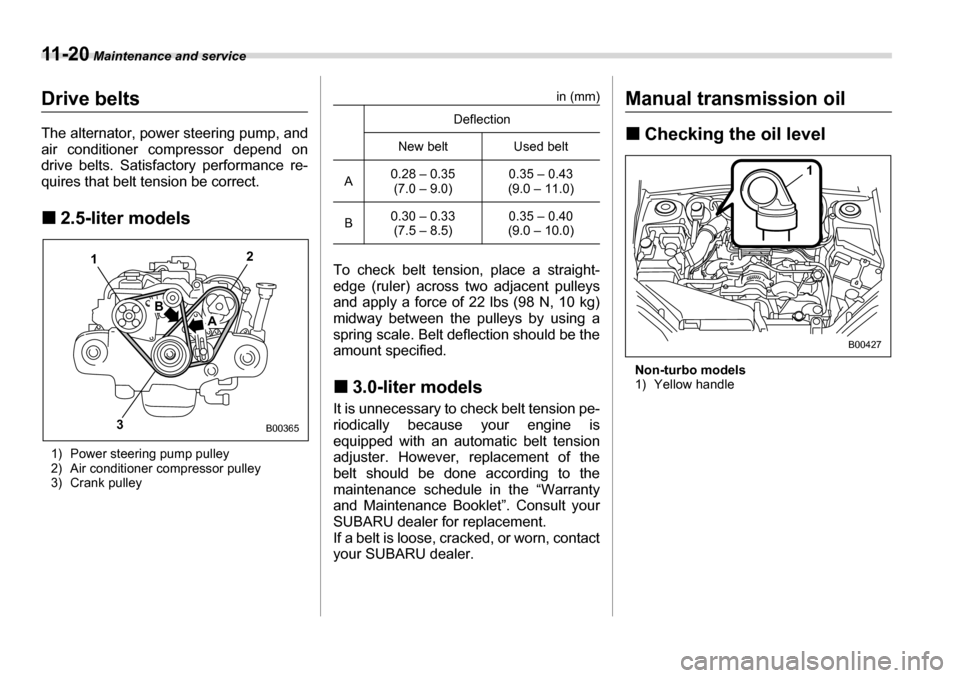

Drive belts
The alternator, power steering pump, and
air conditioner compressor depend on
drive belts. Satisfactory performance re-
quires that belt tension be correct. „2.5-liter models
1) Power steering pump pulley
2) Air conditioner compressor pulley
3) Crank pulley in (mm)
To check belt tensi on, place a straight-
edge (ruler) across two adjacent pulleys
and apply a force of 22 lbs (98 N, 10 kg)
midway between the pulleys by using a
spring scale. Belt deflection should be the
amount specified. „ 3.0-liter models
It is unnecessary to check belt tension pe-
riodically because your engine is
equipped with an autom atic belt tension
adjuster. However, replacement of the
belt should be done according to the
maintenance schedule in the “Warranty
and Maintenance Booklet”. Consult your
SUBARU dealer for replacement.
If a belt is loose, cr acked, or worn, contact
your SUBARU dealer.Manual transmission oil „ Checking the oil level
Non-turbo models
1) Yellow handle
A
B
2
3
1
B00365
Deflection
New belt Used belt
A 0.28 – 0.35
(7.0 – 9.0) 0.35 – 0.43
(9.0 – 11.0)
B 0.30 – 0.33
(7.5 – 8.5) 0.35 – 0.40
(9.0 – 10.0)
1
B00427

Maintenance and service 11 - 2 1

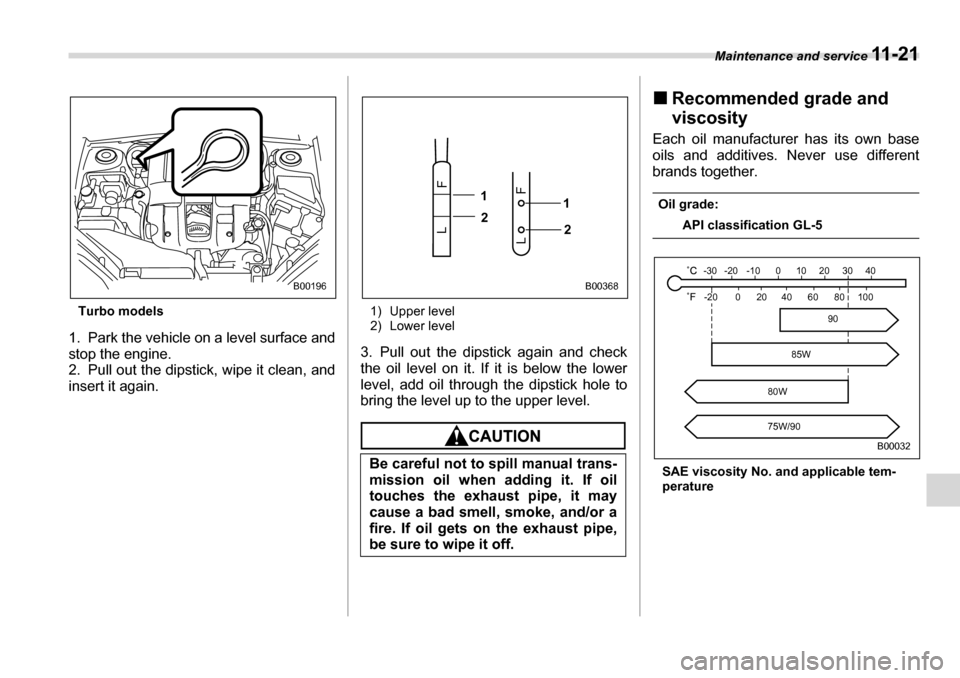

Turbo models
1. Park the vehicle on a level surface and
stop the engine.
2. Pull out the dipstick, wipe it clean, and
insert it again. 1) Upper level
2) Lower level
3. Pull out the dipstick again and check
the oil level on it. If it is below the lower
level, add oil through the dipstick hole to
bring the level up to the upper level.
„ Recommended grade and
viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together.
Oil grade:
API classification GL-5
SAE viscosity No. and applicable tem- perature
B00196
Be careful not to spill manual trans-
mission oil when adding it. If oil
touches the exhaus t pipe, it may
cause a bad smell, smoke, and/or a
fire. If oil gets on the exhaust pipe,
be sure to wipe it off.
L F
F
L1
2 1
2
B00368-30 -20 -10 0 10 20 30 40-20 0 60 20
80W 75W/90 80 100
40
85W 90
B00032

11 - 2 2 Maintenance and service

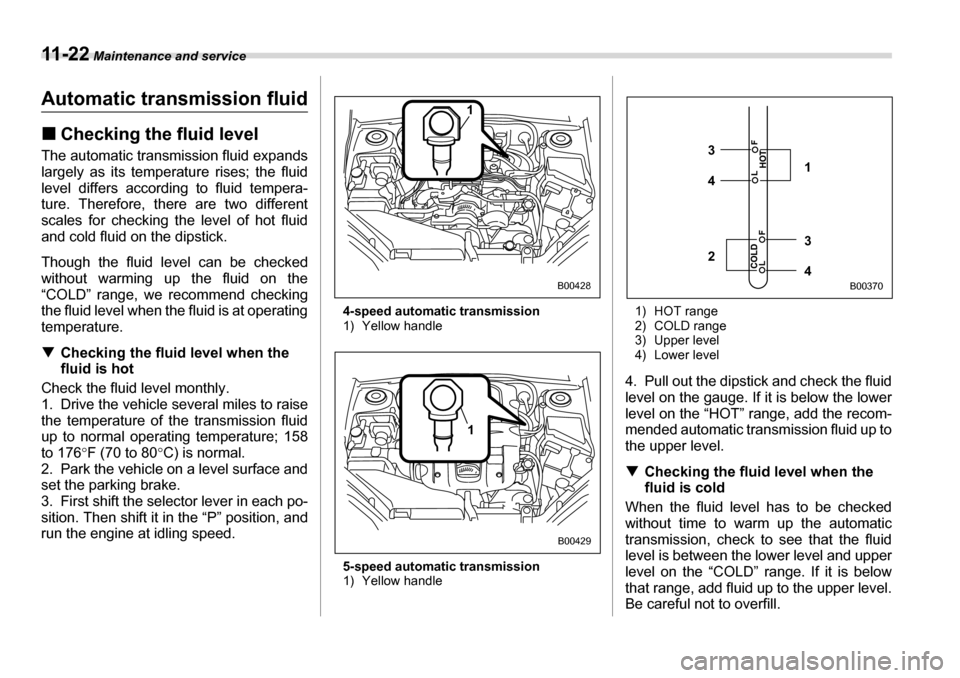

Automatic transmission fluid „Checking the fluid level
The automatic transmission fluid expands
largely as its temperature rises; the fluid
level differs according to fluid tempera-
ture. Therefore, there are two different
scales for checking the level of hot fluid
and cold fluid on the dipstick.
Though the fluid level can be checked
without warming up the fluid on the
“COLD” range, we recommend checking
the fluid level when the fluid is at operating
temperature. T Checking the fluid level when the
fluid is hot
Check the fluid level monthly.
1. Drive the vehicle se veral miles to raise
the temperature of the transmission fluid
up to normal operating temperature; 158 to 176 °F (70 to 80 °C) is normal.
2. Park the vehicle on a level surface and
set the parking brake.
3. First shift the selector lever in each po-
sition. Then shift it in the “P” position, and
run the engine at idling speed. 4-speed automatic transmission
1) Yellow handle
5-speed automatic transmission
1) Yellow handle1) HOT range
2) COLD range
3) Upper level
4) Lower level
4. Pull out the dipstick and check the fluid
level on the gauge. If it is below the lower
level on the “HOT” range, add the recom-
mended automatic transmission fluid up to
the upper level. T Checking the fluid level when the
fluid is cold
When the fluid level has to be checked
without time to warm up the automatic
transmission, check to see that the fluid
level is between the lower level and upper
level on the “COLD” range. If it is below
that range, add fluid up to the upper level.
Be careful not to overfill.1
B00428
1
B00429
3 4
3 4 2
1
B00370

Maintenance and service 11 - 2 3
– CONTINUED –

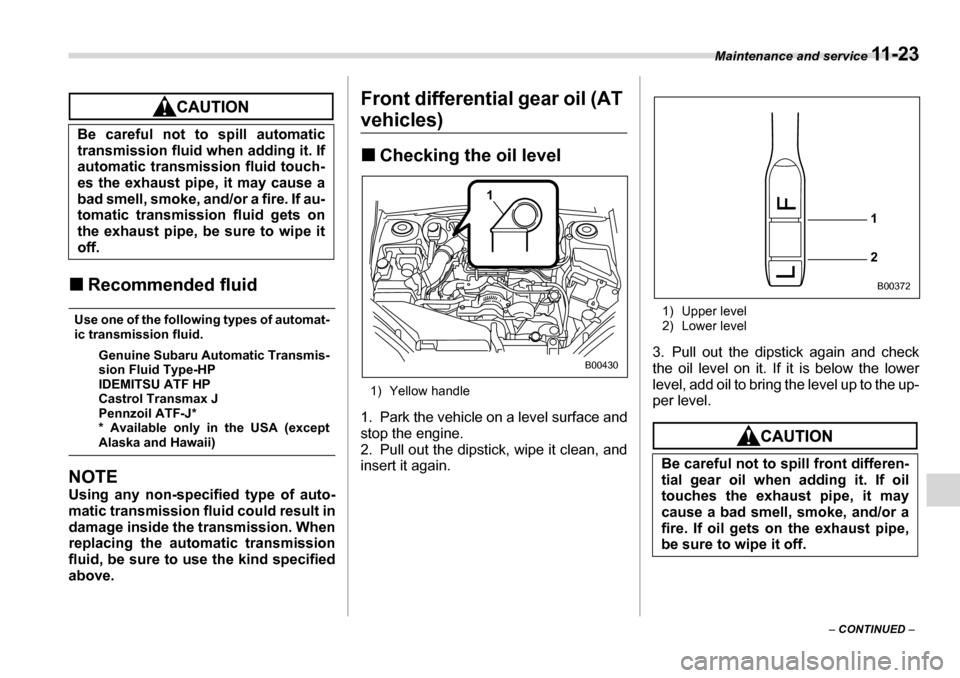

„Recommended fluid
Use one of the following types of automat-
ic transmission fluid.
Genuine Subaru Automatic Transmis-
sion Fluid Type-HP
IDEMITSU ATF HP
Castrol Transmax J
Pennzoil ATF-J*
* Available only in the USA (except
Alaska and Hawaii)
NOTE
Using any non-specified type of auto-
matic transmission fluid could result in
damage inside the transmission. When
replacing the automatic transmission
fluid, be sure to use the kind specified
above. Front differential gear oil (AT
vehicles) „
Checking the oil level
1) Yellow handle
1. Park the vehicle on a level surface and
stop the engine.
2. Pull out the dipstick, wipe it clean, and
insert it again. 1) Upper level
2) Lower level
3. Pull out the dipstick again and check
the oil level on it. If it is below the lower
level, add oil to bring the level up to the up-
per level.Be careful not to spill automatic
transmission fluid when adding it. If
automatic transmission fluid touch-
es the exhaust pipe, it may cause a
bad smell, smoke, and/or a fire. If au- tomatic transmissi on fluid gets on
the exhaust pipe, be sure to wipe it
off.
1
B00430
Be careful not to spill front differen-
tial gear oil when adding it. If oil
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or a
fire. If oil gets on the exhaust pipe,
be sure to wipe it off.
1 2
B00372

11 - 2 4 Maintenance and service

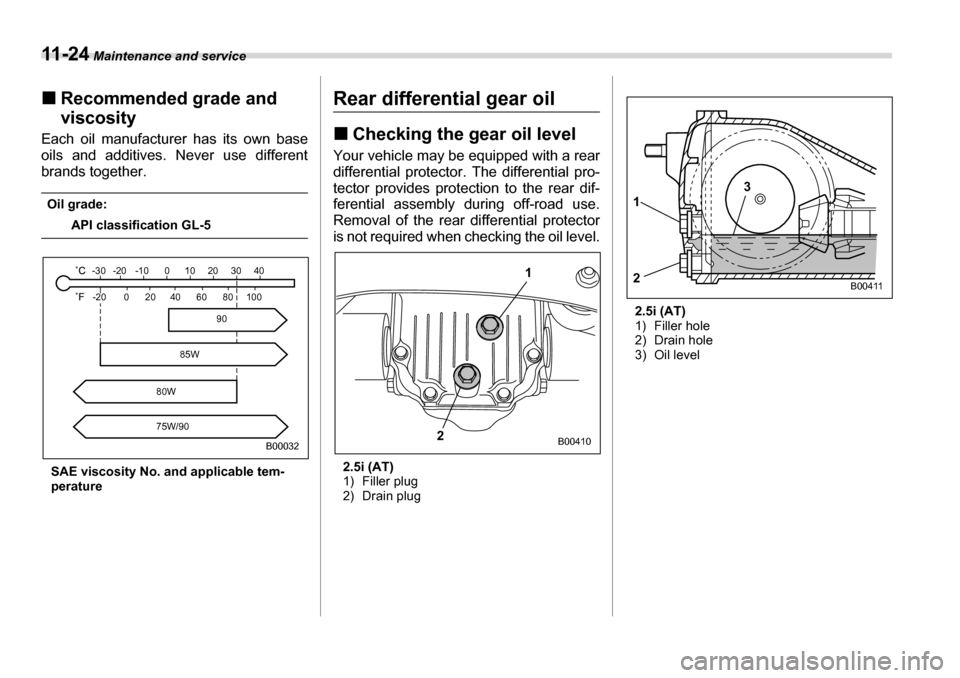

„Recommended grade and
viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together.
Oil grade:
API classification GL-5
SAE viscosity No. and applicable tem- perature
Rear differential gear oil „ Checking the gear oil level
Your vehicle may be equipped with a rear
differential protector. The differential pro-
tector provides protection to the rear dif-
ferential assembly during off-road use.
Removal of the rear di fferential protector
is not required when checking the oil level.
2.5i (AT)
1) Filler plug
2) Drain plug 2.5i (AT)
1) Filler hole
2) Drain hole
3) Oil level
-30 -20 -10 0 10 20 30 40
-20 0 60 20
80W 75W/90 80 100
40
85W 90
B00032
1
2
B00410
1 2 3
B00411

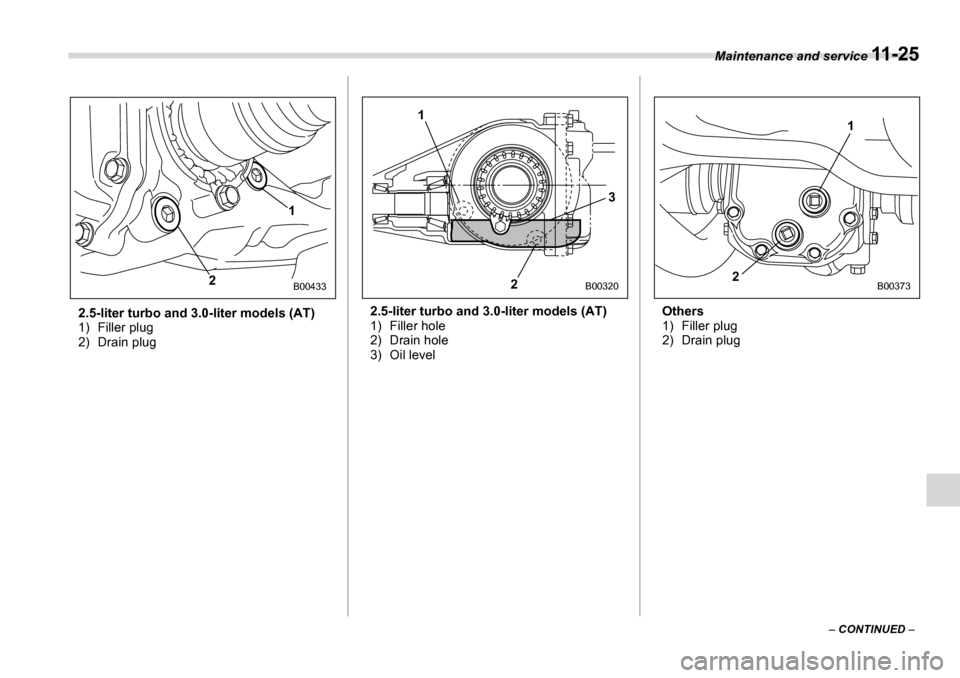

Maintenance and service 11 - 2 5
– CONTINUED –
2.5-liter turbo and 3.0-liter models (AT)
1) Filler plug
2) Drain plug
2.5-liter turbo and 3.0-liter models (AT)
1) Filler hole
2) Drain hole
3) Oil levelOthers
1) Filler plug
2) Drain plug
1
2
B00433
1
2 3
B003202 1B00373

11 - 2 6 Maintenance and service

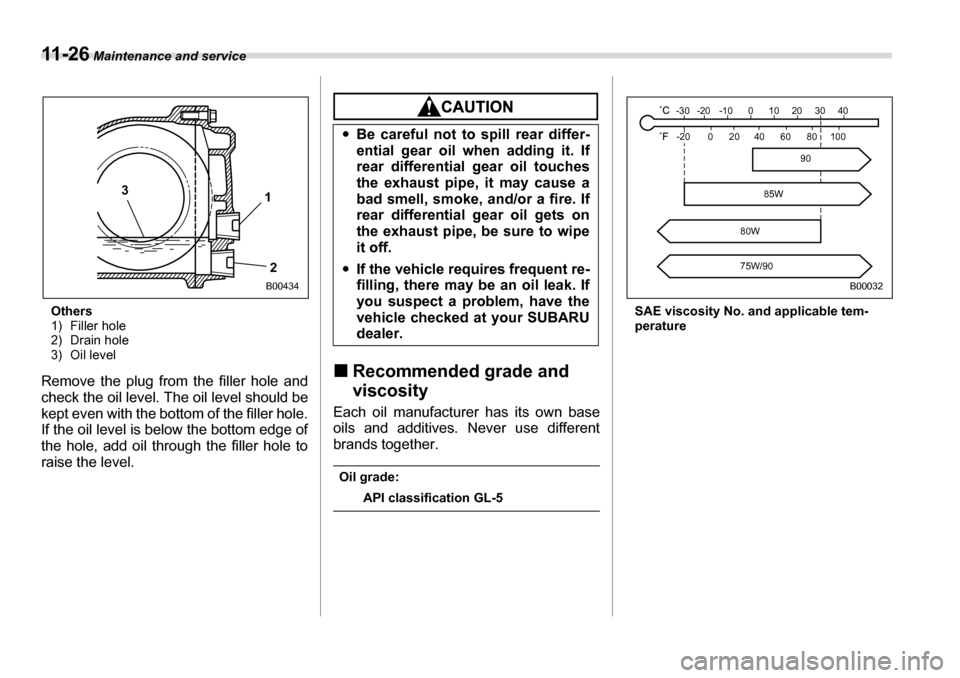

Others
1) Filler hole
2) Drain hole
3) Oil level
Remove the plug from the filler hole and
check the oil level. The oil level should be
kept even with the bottom of the filler hole.
If the oil level is below the bottom edge of
the hole, add oil through the filler hole to
raise the level.
„ Recommended grade and
viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together.
Oil grade:
API classification GL-5 SAE viscosity No. and applicable tem- perature
3
1
2
B00434
y Be careful not to spill rear differ-
ential gear oil when adding it. If
rear differential gear oil touches
the exhaust pipe, it may cause a
bad smell, smoke, and/or a fire. If
rear differential gear oil gets on
the exhaust pipe, be sure to wipe
it off.
y If the vehicle requires frequent re-
filling, there may be an oil leak. If
you suspect a problem, have the
vehicle checked at your SUBARU
dealer.
-30 -20 -10 0 10 20 30 40
-20 0 60 20
80W 75W/90 80 100
40
85W 90
B00032

Maintenance and service 11 - 2 7

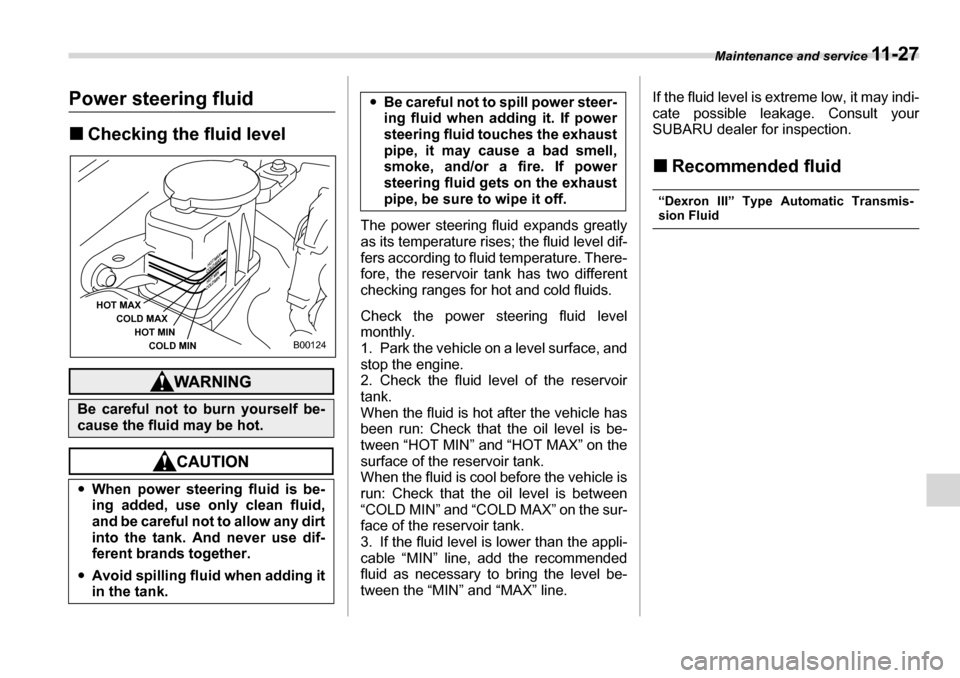

Power steering fluid „Checking the fluid level
The power steering fluid expands greatly
as its temperature rises; the fluid level dif-
fers according to fluid temperature. There-
fore, the reservoir tank has two different
checking ranges for hot and cold fluids.
Check the power steering fluid level
monthly.
1. Park the vehicle on a level surface, and
stop the engine.
2. Check the fluid level of the reservoir
tank.
When the fluid is hot after the vehicle has
been run: Check that the oil level is be-
tween “HOT MIN” and “HOT MAX” on the
surface of the reservoir tank.
When the fluid is cool before the vehicle is
run: Check that the oil level is between
“COLD MIN” and “COLD MAX” on the sur-
face of the reservoir tank.
3. If the fluid level is lower than the appli-
cable “MIN” line, add the recommended
fluid as necessary to bring the level be-
tween the “MIN” and “MAX” line. If the fluid level is extreme low, it may indi-
cate possible leakage. Consult your
SUBARU dealer for inspection. „
Recommended fluid
“Dexron III” Type Automatic Transmis-sion Fluid
Be careful not to burn yourself be-
cause the fluid may be hot. yWhen power steering fluid is be-
ing added, use only clean fluid,
and be careful not to allow any dirt
into the tank. And never use dif-ferent brands together.
y Avoid spilling fluid when adding it
in the tank.
HOT MAX
COLD MAXHOT MIN
COLD MIN
B00124
y Be careful not to spill power steer-
ing fluid when adding it. If power
steering fluid touches the exhaust
pipe, it may cause a bad smell,
smoke, and/or a fire. If power
steering fluid gets on the exhaust
pipe, be sure to wipe it off.
