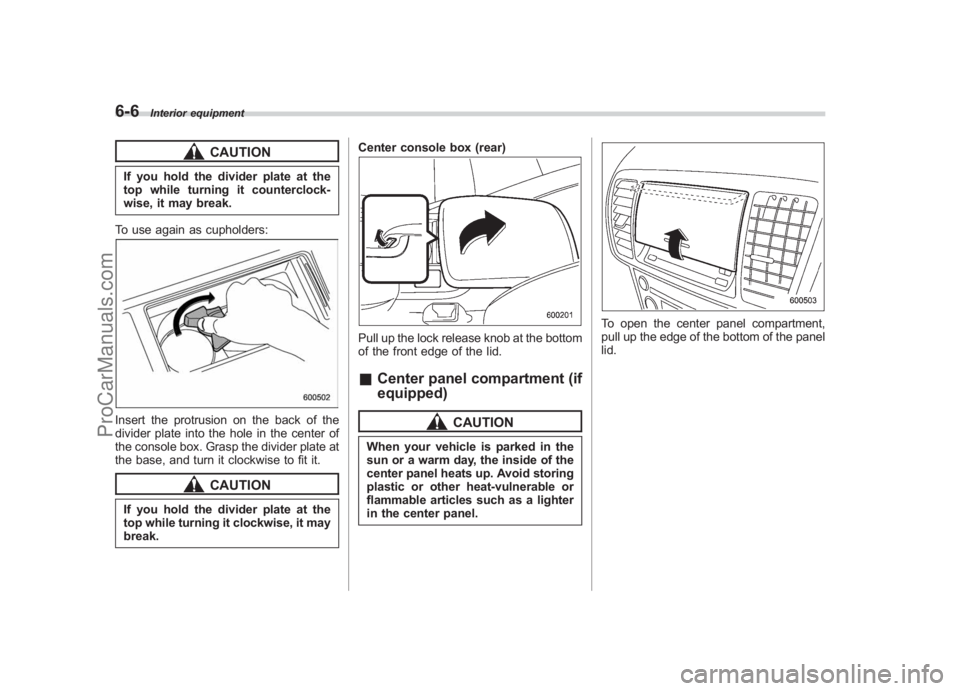

6-6
Interior equipment
CAUTION
If you hold the divider plate at the
top while turning it counterclock-
wise, it may break.
To use again as cupholders:Insert the protrusion on the back of the
divider plate into the hole in the center of
the console box. Grasp the divider plate at
the base, and turn it clockwise to fit it.
CAUTION
If you hold the divider plate at the
top while turning it clockwise, it may
break. Center console box (rear)
Pull up the lock release knob at the bottom
of the front edge of the lid.&
Center panel compartment (if
equipped)
CAUTION
When your vehicle is parked in the
sun or a warm day, the inside of the
center panel heats up. Avoid storing
plastic or other heat-vulnerable or
flammable articles such as a lighter
in the center panel.
To open the center panel compartment,
pull up the edge of the bottom of the panel
lid.
ProCarManuals.com

Black plate (227,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

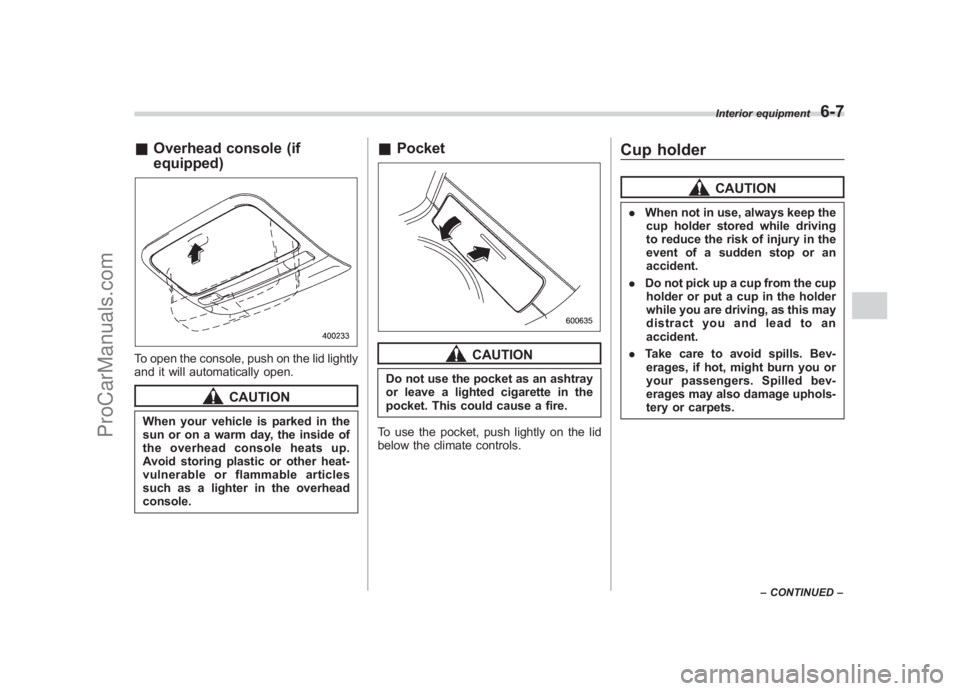

& Overhead console (if
equipped)To open the console, push on the lid lightly
and it will automatically open.
CAUTION
When your vehicle is parked in the
sun or on a warm day, the inside of
the overhead console heats up.
Avoid storing plastic or other heat-
vulnerable or flammable articles
such as a lighter in the overhead
console.
&Pocket
CAUTION
Do not use the pocket as an ashtray
or leave a lighted cigarette in the
pocket. This could cause a fire.
To use the pocket, push lightly on the lid
below the climate controls.
Cup holder
CAUTION
. When not in use, always keep the
cup holder stored while driving
to reduce the risk of injury in the
event of a sudden stop or an
accident.
. Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an
accident.
. Take care to avoid spills. Bev-
erages, if hot, might burn you or
your passengers. Spilled bev-
erages may also damage uphols-
tery or carpets.
Interior equipment
6-7
– CONTINUED –
6
ProCarManuals.com

Black plate (228,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
6-8
Interior equipment

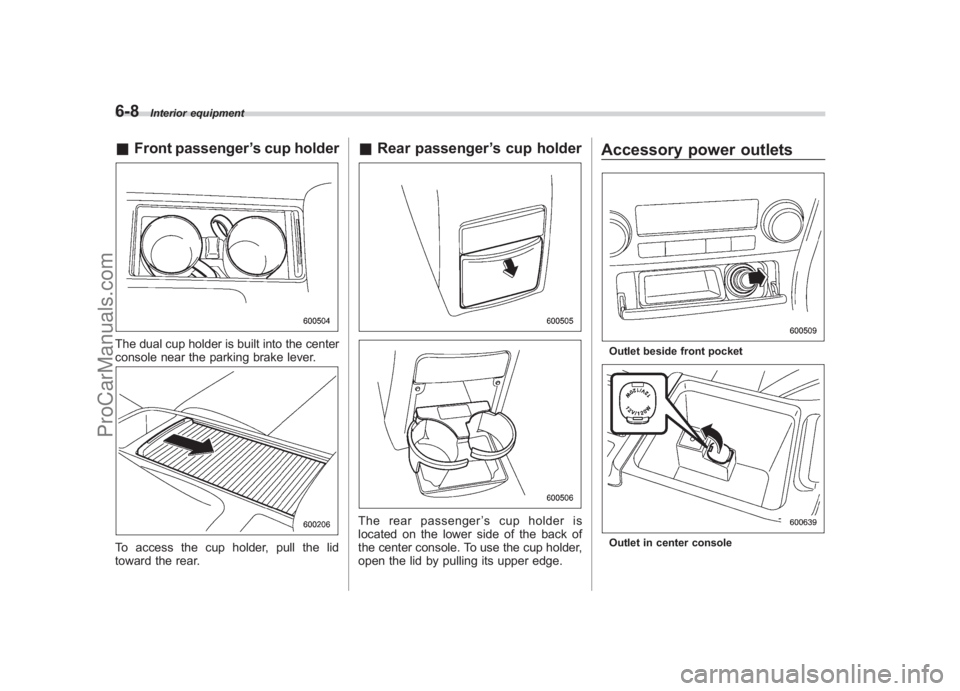

& Front passenger ’s cup holderThe dual cup holder is built into the center
console near the parking brake lever.To access the cup holder, pull the lid
toward the rear.
& Rear passenger ’s cup holderThe rear passenger ’s cup holder is
located on the lower side of the back of
the center console. To use the cup holder,
open the lid by pulling its upper edge.
Accessory power outletsOutlet beside front pocketOutlet in center console
ProCarManuals.com

Black plate (229,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

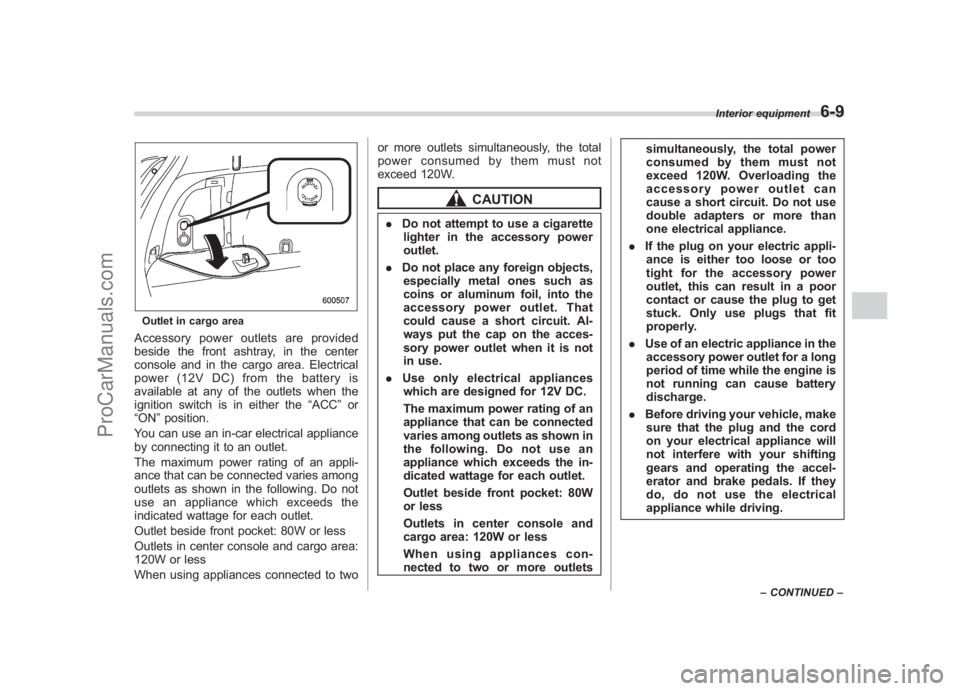

Outlet in cargo areaAccessory power outlets are provided
beside the front ashtray, in the center
console and in the cargo area. Electrical
power (12V DC) from the battery is
available at any of the outlets when the
ignition switch is in either the “ACC”or
“ON ”position.
You can use an in-car electrical appliance
by connecting it to an outlet.
The maximum power rating of an appli-
ance that can be connected varies among
outlets as shown in the following. Do not
use an appliance which exceeds the
indicated wattage for each outlet.
Outlet beside front pocket: 80W or less
Outlets in center console and cargo area:
120W or less
When using appliances connected to two or more outlets simultaneously, the total
power consumed by them must not
exceed 120W.
CAUTION
.
Do not attempt to use a cigarette
lighter in the accessory power
outlet.
. Do not place any foreign objects,
especially metal ones such as
coins or aluminum foil, into the
accessory power outlet. That
could cause a short circuit. Al-
ways put the cap on the acces-
sory power outlet when it is not
in use.
. Use only electrical appliances
which are designed for 12V DC.
The maximum power rating of an
appliance that can be connected
varies among outlets as shown in
the following. Do not use an
appliance which exceeds the in-
dicated wattage for each outlet.
Outlet beside front pocket: 80W
or less
Outlets in center console and
cargo area: 120W or less
When using appliances con-
nected to two or more outlets simultaneously, the total power
consumed by them must not
exceed 120W. Overloading the
accessory power outlet can
cause a short circuit. Do not use
double adapters or more than
one electrical appliance.
. If the plug on your electric appli-
ance is either too loose or too
tight for the accessory power
outlet, this can result in a poor
contact or cause the plug to get
stuck. Only use plugs that fit
properly.
. Use of an electric appliance in the
accessory power outlet for a long
period of time while the engine is
not running can cause battery
discharge.
. Before driving your vehicle, make
sure that the plug and the cord
on your electrical appliance will
not interfere with your shifting
gears and operating the accel-
erator and brake pedals. If they
do, do not use the electrical
appliance while driving.
Interior equipment
6-9
– CONTINUED –
6
ProCarManuals.com

Black plate (230,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
6-10
Interior equipment

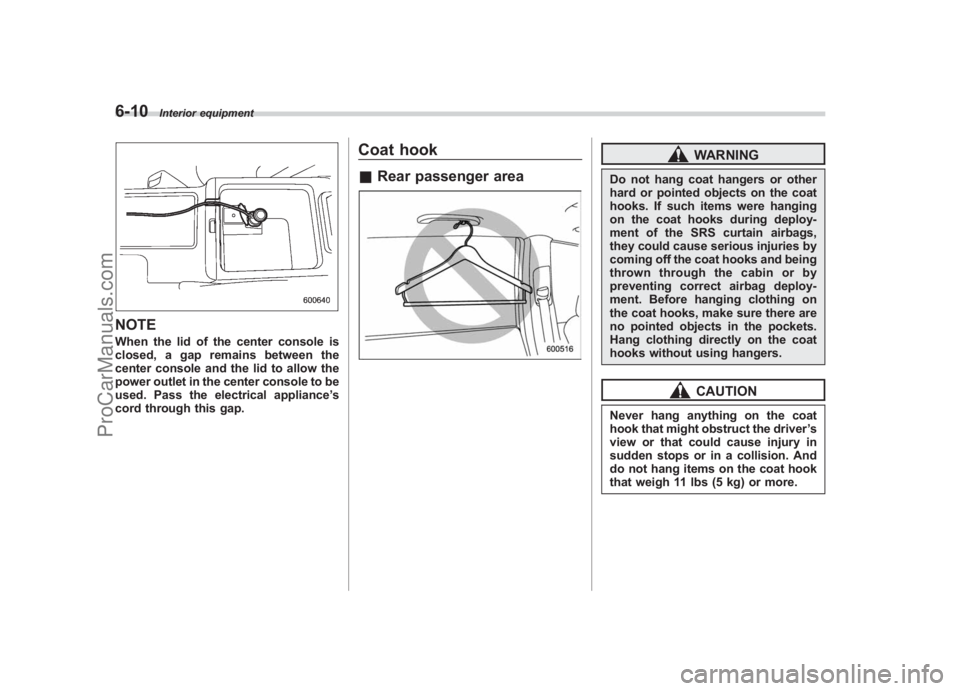

NOTEWhen the lid of the center console is
closed, a gap remains between the
center console and the lid to allow the
power outlet in the center console to be
used. Pass the electrical appliance ’s
cord through this gap.
Coat hook& Rear passenger area
WARNING
Do not hang coat hangers or other
hard or pointed objects on the coat
hooks. If such items were hanging
on the coat hooks during deploy-
ment of the SRS curtain airbags,
they could cause serious injuries by
coming off the coat hooks and being
thrown through the cabin or by
preventing correct airbag deploy-
ment. Before hanging clothing on
the coat hooks, make sure there are
no pointed objects in the pockets.
Hang clothing directly on the coat
hooks without using hangers.
CAUTION
Never hang anything on the coat
hook that might obstruct the driver ’s
view or that could cause injury in
sudden stops or in a collision. And
do not hang items on the coat hook
that weigh 11 lbs (5 kg) or more.
ProCarManuals.com

Black plate (231,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

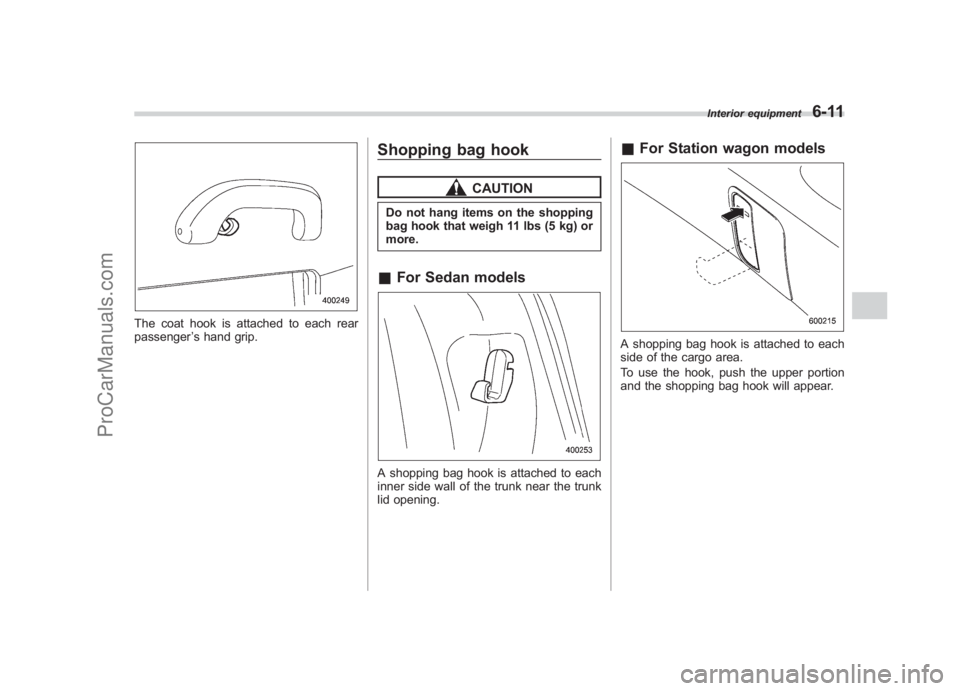

The coat hook is attached to each rear
passenger ’s hand grip.
Shopping bag hook
CAUTION
Do not hang items on the shopping
bag hook that weigh 11 lbs (5 kg) or
more.& For Sedan modelsA shopping bag hook is attached to each
inner side wall of the trunk near the trunk
lid opening.
&For Station wagon modelsA shopping bag hook is attached to each
side of the cargo area.
To use the hook, push the upper portion
and the shopping bag hook will appear.
Interior equipment
6-11
6
ProCarManuals.com

Black plate (232,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
6-12
Interior equipment

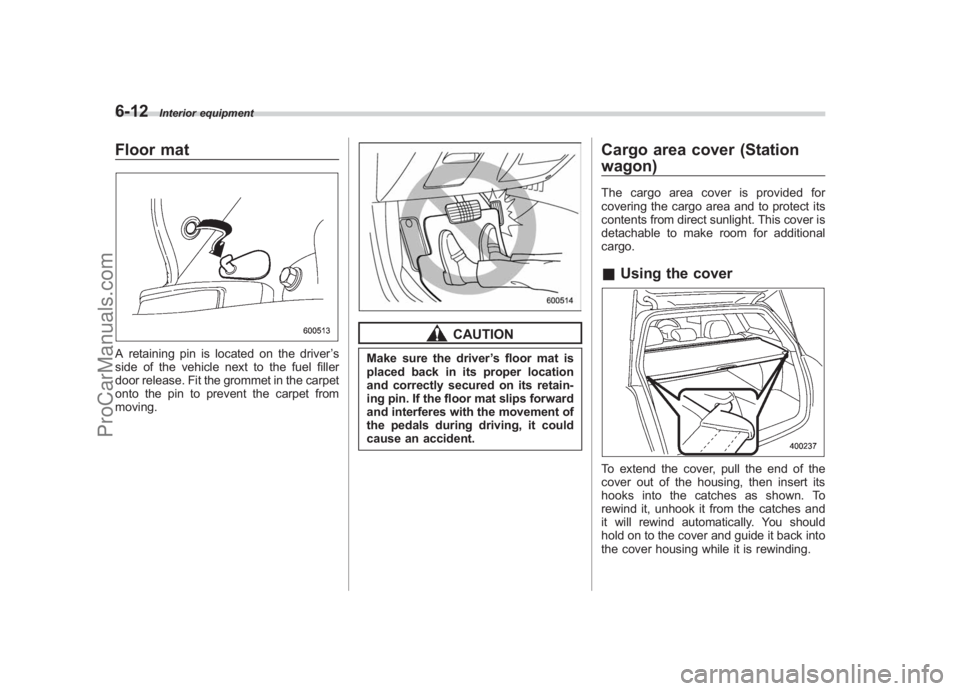

Floor matA retaining pin is located on the driver ’s
side of the vehicle next to the fuel filler
door release. Fit the grommet in the carpet
onto the pin to prevent the carpet from
moving.
CAUTION
Make sure the driver ’s floor mat is
placed back in its proper location
and correctly secured on its retain-
ing pin. If the floor mat slips forward
and interferes with the movement of
the pedals during driving, it could
cause an accident.
Cargo area cover (Station
wagon)The cargo area cover is provided for
covering the cargo area and to protect its
contents from direct sunlight. This cover is
detachable to make room for additional
cargo.& Using the coverTo extend the cover, pull the end of the
cover out of the housing, then insert its
hooks into the catches as shown. To
rewind it, unhook it from the catches and
it will rewind automatically. You should
hold on to the cover and guide it back into
the cover housing while it is rewinding.
ProCarManuals.com

Black plate (233,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

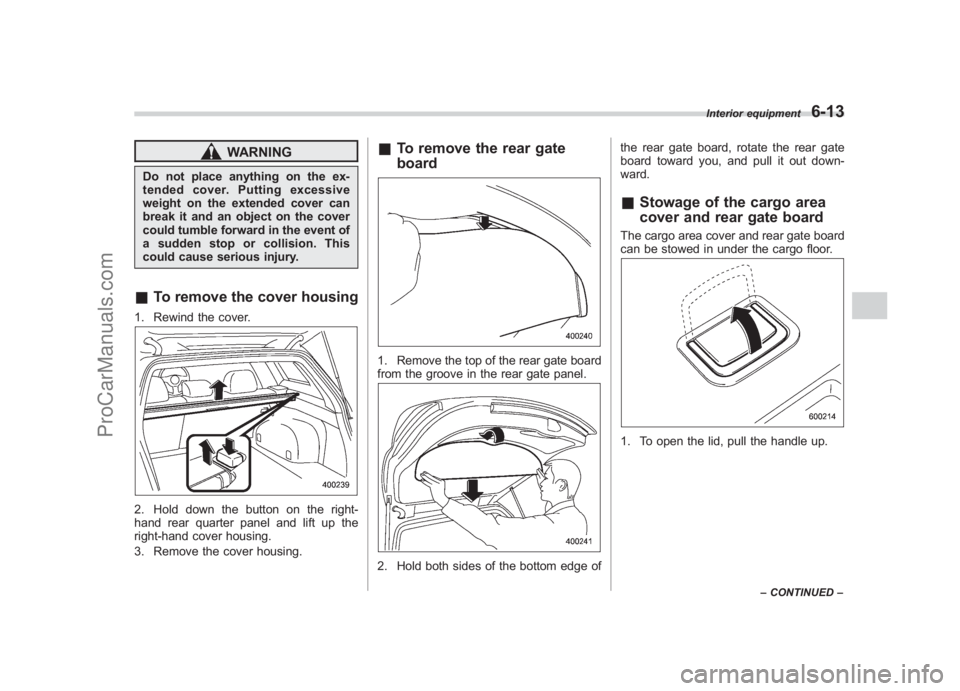

WARNING
Do not place anything on the ex-
tended cover. Putting excessive
weight on the extended cover can
break it and an object on the cover
could tumble forward in the event of
a sudden stop or collision. This
could cause serious injury.& To remove the cover housing1. Rewind the cover.2. Hold down the button on the right-
hand rear quarter panel and lift up the
right-hand cover housing.
3. Remove the cover housing.
&To remove the rear gate
board1. Remove the top of the rear gate board
from the groove in the rear gate panel.2. Hold both sides of the bottom edge of the rear gate board, rotate the rear gate
board toward you, and pull it out down-
ward.
&
Stowage of the cargo area
cover and rear gate boardThe cargo area cover and rear gate board
can be stowed in under the cargo floor.1. To open the lid, pull the handle up.
Interior equipment
6-13
–CONTINUED –
6
ProCarManuals.com

Black plate (234,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
6-14
Interior equipment

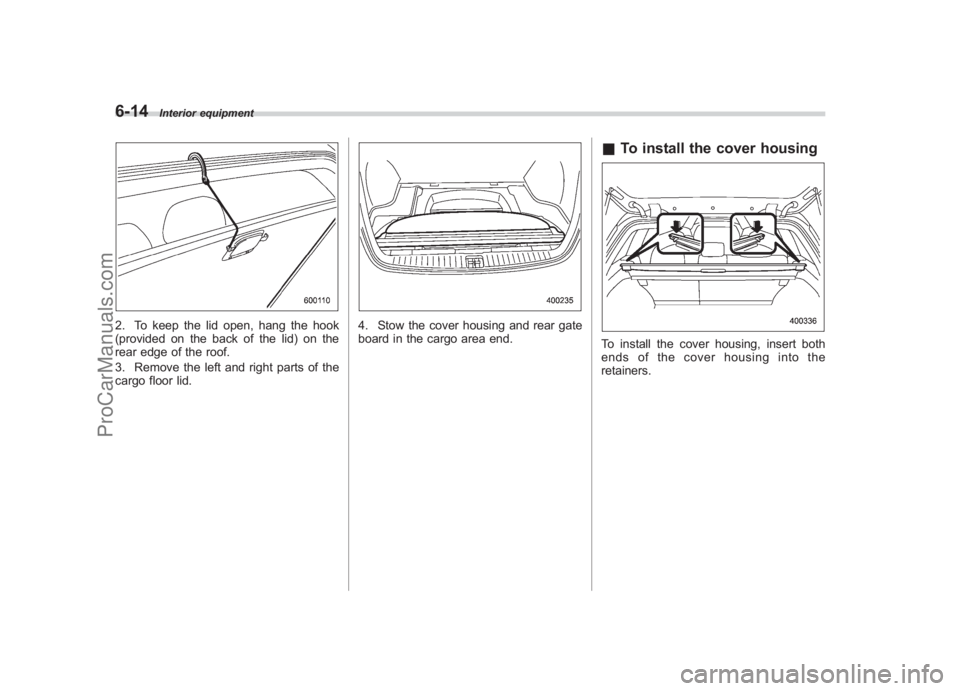

2. To keep the lid open, hang the hook
(provided on the back of the lid) on the
rear edge of the roof.
3. Remove the left and right parts of the
cargo floor lid.
4. Stow the cover housing and rear gate
board in the cargo area end.
& To install the cover housingTo install the cover housing, insert both
ends of the cover housing into the
retainers.
ProCarManuals.com

Black plate (235,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26

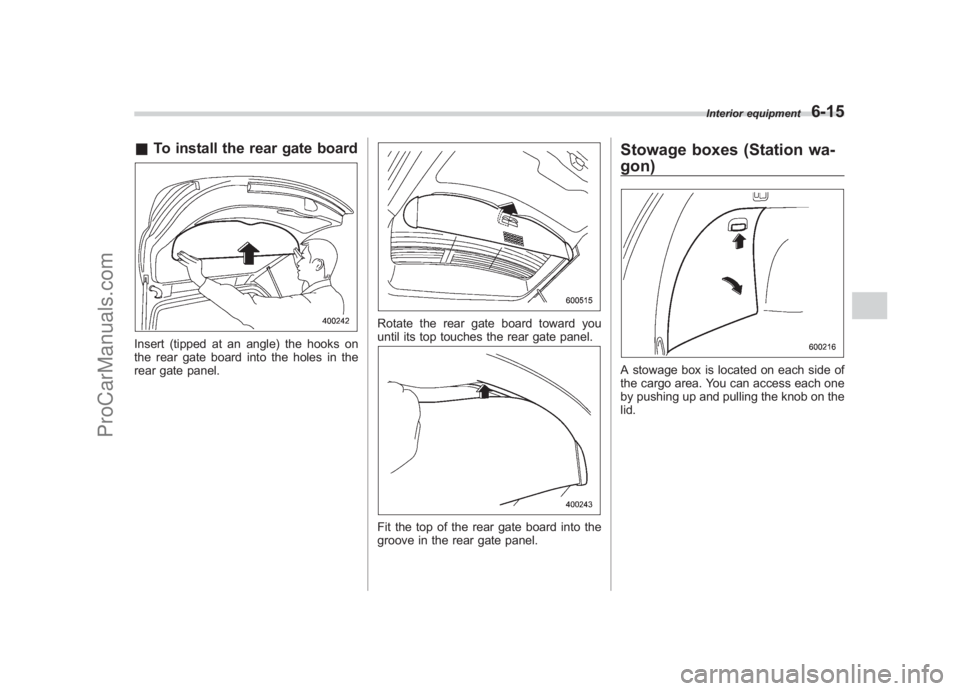

& To install the rear gate boardInsert (tipped at an angle) the hooks on
the rear gate board into the holes in the
rear gate panel.
Rotate the rear gate board toward you
until its top touches the rear gate panel.Fit the top of the rear gate board into the
groove in the rear gate panel.
Stowage boxes (Station wa-
gon)A stowage box is located on each side of
the cargo area. You can access each one
by pushing up and pulling the knob on the
lid.
Interior equipment
6-15
6
