SUBARU LEGACY 2010 5.G Owners Manual

&Tires
Tire size P205/60R16
91V P215/70R16
99S P225/60R17
98T P215/50R17
90V P225/50R17
93V 225/45R18
91W
Wheel size 1666 1/2JJ
16 66 1/2J 16
66 1/2JJ 17 67J 17 67 1/2J 18 67 1/2J
Pressure Front 33 psi (230 kPa) 32 psi (220 kPa) 33 psi (230 kPa)
Rear 32 psi (220 kPa) 30 psi (210 kPa) 32 psi (220 kPa)
Temporary spare tire Size T135/80R16 T145/80R17 T135/70R17 Pressure
60 psi (420 kPa)
& Wheel alignment
Item Legacy
Outback
2.5 L non-turbo models Except 2.5 L non-turbo models
Toe Front Toe in 0 in (0 mm)
Total toe 0 8 Toe in 0.1 in (2 mm)
Total toe 0 810 ’
Rear Toe in 0 in (0 mm)
Total toe 0 8 Toe in 0.1 in (2 mm)
Total toe 0 810 ’
Camber Front 0830 ’ 0815 ’ 0800 ’
Rear 1800 ’ 1810 ’
0800 ’
Specifications
12-5

12-6Specifications

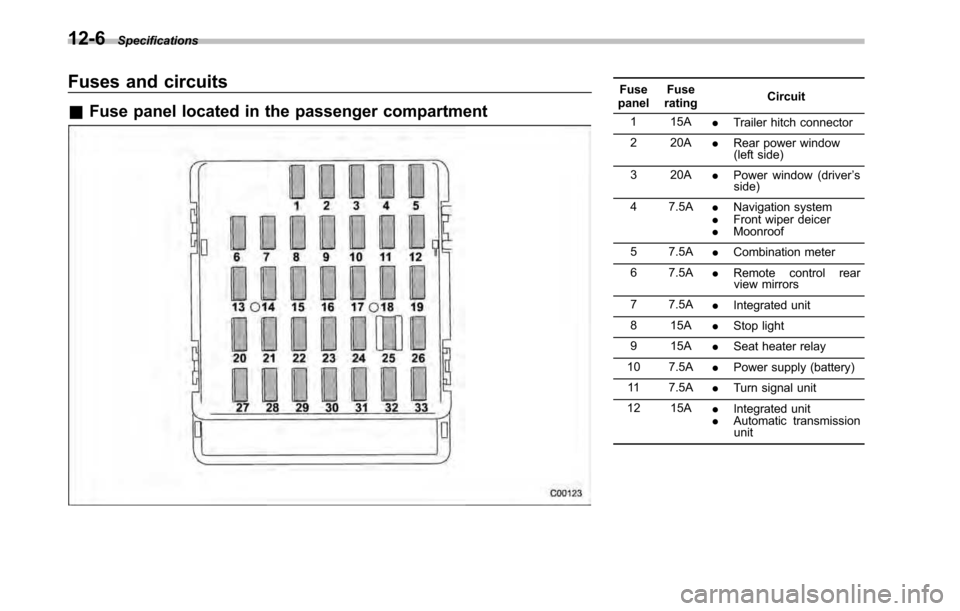

Fuses and circuits &Fuse panel located in the passenger compartmentFuse
panel Fuse
rating Circuit
1 15A .Trailer hitch connector
2 20A .Rear power window
(left side)
3 20A .Power window (driver ’s
side)
4 7.5A .Navigation system
. Front wiper deicer
. Moonroof
5 7.5A .Combination meter
6 7.5A .Remote control rear
view mirrors
7 7.5A .Integrated unit
8 15A .Stop light
9 15A .Seat heater relay
10 7.5A .Power supply (battery)
11 7.5A .Turn signal unit
12 15A .Integrated unit
. Automatic transmission
unit

Fuse
panel Fuse
rating Circuit
13 20A .Socket
14 Empty
15 20A .Rear power window
(right side)
16 Empty
17 15A .Front wiper deicer
18 7.5A .Back-up light
19 7.5A .Electronic parking
brake unit
. Hill Holder system unit
20 10A .Accessory power outlet
21 7.5A .Starter relay
22 15A .Air conditioner
23 Empty
24 15A .Audio
. Navigation system
25 15A .SRS airbag system
26 7.5A .Main fan
27 30A .Power window relay Fuse
panel Fuse
rating Circuit
28 Empty
29 20A .Power window
(passenger ’s side)
30 Empty
31 7.5A .Automatic air condi-
tioner unit
32 Empty
33 7.5A .ABS/Vehicle dynamics
control unit
. Power steering Specifications
12-7
– CONTINUED –

12-8Specifications
&Fuse panel located in the engine compartment
A) Main fuse Fuse
panel Fuse
rating Circuit
1 7.5A .CVT control unit
2 7.5A .
Horn LO
3 7.5A .
Horn HI
4 15A .Low beam headlight
(right side)
5 15A .Low beam headlight
(left side)
6 20A .Fuel pump
7 10A .High beam headlight
(left side)
8 10A .High beam headlight
(right side)
9 20A .Continuously variable
transmission control unit
10 7.5A .Alternator
11 20A .Moonroof
12 7.5A .Engine control unit

Fuse
panel Fuse
rating Circuit
13 15A .Engine control unit
14 15A .Ignition coil
15 15A .Engine control unit
16 15A .Engine control unit
17 15A .Automatic transmission
control unit
18 10A .Illumination
19 10A .Rear combination light
20 15A .Turn and hazard warn-
ing flasher (body control unit)
21 20A .Door lock (body control
unit)
22 15A .Rear wiper
. Rear washer
23 10A .Front washer
24 30A .Front wiper
25 25A .Rear window defogger
. Mirror heater
. Front wiper deicer
26 15A .Blower fan
27 15A .Blower fan Fuse
panel Fuse
rating Circuit
28 25A .Audio unit
29 25A .Sub fan
30 25A .Main fan
31 30A .ABS/Vehicle dynamics
control unit
32 10A .Fog light (right side)
33 10A .Fog light (left side)
34 10A .Back-up (body control
unit) Specifications
12-9

12-10Specifications

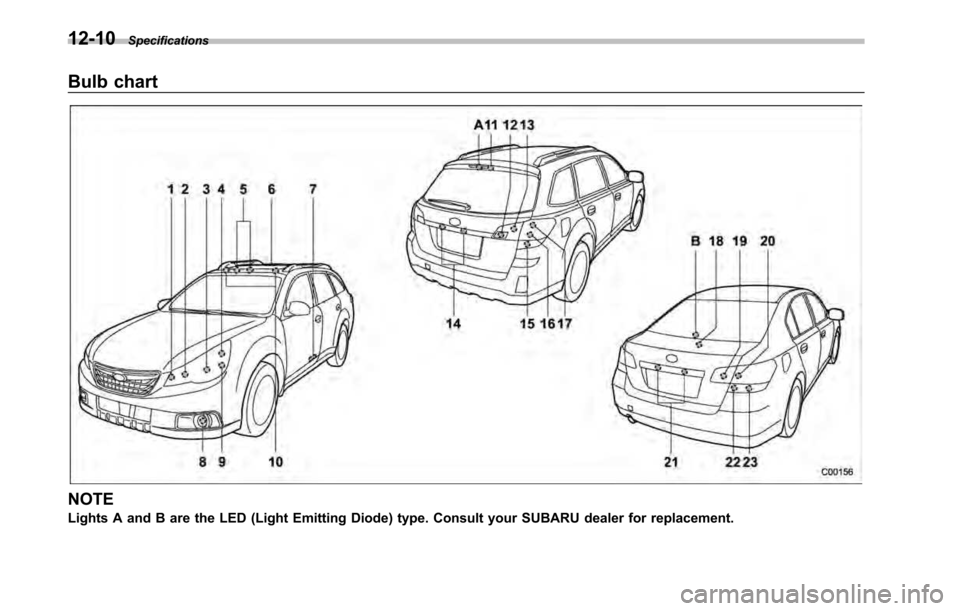

Bulb chart
NOTE
Lights A and B are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

Wattage Bulb No.
1) High beam headlight 12V-60W HB3 (9005)
2) Front position light 12V-5W W5H
3) Low beam headlight 12V-55W H7
4) Front turn signal light 12V-21W W21W
5) Map light 12V-8W
6) Dome light 12V-8W
7) Door step light 12V-5W W5W
8) Front fog light 12V-55W H11
9) Front side marker light 12V-5W W5W
10) Vanity mirror light 14V-1.4W HTU
11) Cargo area light 12V-13W
12) Back-up light (Outback) 12V-16W W16W (921)
13) Tail light (Outback) 12V-5W W5W
14) Licence plate light (Outback) 12V-5W W5W
15) Rear turn signal light (Outback) 12V-21W WY21W Specifications
12-11
– CONTINUED –

12-12Specifications
Wattage Bulb No.
16) Brake light (Outback) 12V-21W W21W
17) Tail and rear side marker light (Outback) 12V-5W W5W
18) Trunk light (Legacy) 12V-5W W5W
19) Tail light (Legacy) 12V-5W W21/5W 20) Brake/Tail and rear side marker light (Legacy) 12V-21/5W W21/5W
21) License plate light (Legacy) 12V-5W W5W
22) Back-up light (Legacy) 12V-16W 921
23) Rear turn signal light (Legacy) 12V-21W WY21W
A) High mount stop light (Outback) ––
B) High mount stop light (Legacy) ––WARNING
Bulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
the risk of sustaining a burn injury.
CAUTION
Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire.

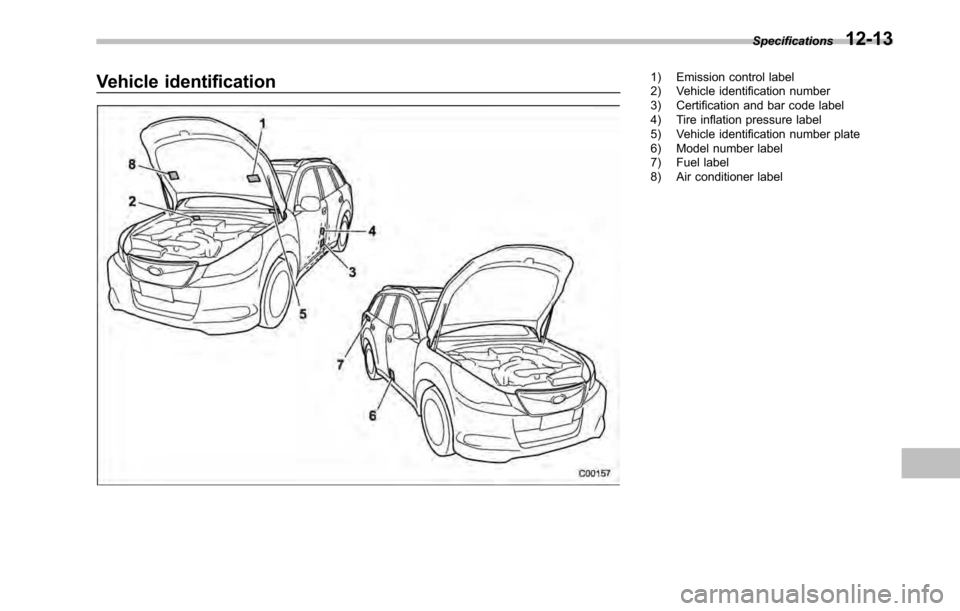

Vehicle identification1) Emission control label
2) Vehicle identification number
3) Certification and bar code label
4) Tire inflation pressure label
5) Vehicle identification number plate
6) Model number label
7) Fuel label
8) Air conditioner labelSpecifications
12-13

————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
