Page 213 of 308
DESTINATION SEARCH
211
NAVIGATION SYSTEM
8
SETTING HOME AS DESTINATION
To use this function, it is necessary to register a home
D G G U H V V : 3
1.Display the “Destination (Destination)” screen.
: 3
2.SelectGo Home (Go Home).
3.SelectNext (Next) (when a route has been set) or
Go! (Go!) (when no route has been set).
” The navigation system performs a search for
the route and the entire route map is displayed.
: 3
SEARCHING BY FIND ADDRESS
There are 4 methods to search for a destination by address.
1.Display the “Destination (Destination)” screen.
: 3
2.SelectFind Address (Find Address).
3.SelectCountry or State/Province (Country or State/
Province).
” By default, the country and district for your current
position are displayed.
4.Select the desired country or state (province).
5.Select the desired search method.
No. Function Page
Select to search by city. 212
Select to search by street.212
Select to search by intersection.213
Select to search by city/town center. 212
Page 215 of 308
DESTINATION SEARCH
213
NAVIGATION SYSTEM
8
SEARCHING BY INTERSECTION
1.SelectIntersecting Street (Intersecting Street).
2.Select from the list.
”
If there are only a few roads at the intersection, the
list is displayed immediately.
” If the road is a long way off, the keyboard screen is
displayed. Use the keyboard to enter the start of the
intersection name. A list is automatically displayed
when the entered road name matches and can be
displayed on one screen.
” Refer to “HINTS FOR QUICK ADDRESS ENTRY” for
L Q I R U P D W L R Q R Q T X L F N H U V H D U F K L Q J : 3
HINTS FOR QUICK ADDRESS ENTRY
”When entering a city/town name or a street name:
‡ Only characters that can be displayed in the
search results are shown on the keyboard. Other
characters are grayed out.
‡ While entering text, the most likely search result is
D O Z D \ V G L V S O D \ H G L Q W K H W H [ W H Q W U \
Page 217 of 308
DESTINATION SEARCH
215
NAVIGATION SYSTEM
8
SEARCHING BY NAME
1.SelectQuick Search Along Route (Quick Search
Along Route).
” When no route has been set, select
Quick Search Around Last Known Position (Quick Search
Around Last Known Position) (no GPS signal) or
Quick Search Around Here (Quick Search Around Here)
(on GPS signal).
2.Enter a spot name.
” Select
Results 5 H V X O W V D I W H U H Q W H U L Q J W K H
Page 219 of 308
DESTINATION SEARCH
217
NAVIGATION SYSTEM
8
SEARCHING BY PRESET CATEGORY
1.Select the desired search category.
No.Function
Select to search for gas stations along the set route.
Select to search for parking lots at the destination.
Select to search for restaurant along the set route.
Select to search for accommodation at the destination.
”Searches around the current position if navigation is
not being performed (if no destination is set).
Page 221 of 308
DESTINATION SEARCH
219
NAVIGATION SYSTEM
8
SEARCHING FROM A FREQUENTLY USED
DESTINATION (SMART HISTORY)
1.Display the “Destination (Destination)” screen.
: 3
2.Select the destination or .
SEARCHING FROM HISTORY
1.Display the “Destination (Destination)” screen.
: 3
2.SelectHistory (History).
3.Select the desired destination.
”Filter (Filter): Select to narrow down the list.
”
: Select to delete the previous destination.
”
More (More): Select to delete all destinations on the
list.
SEARCHING BY COORDINATES
1.Display the “Destination (Destination)” screen.
: 3
2.SelectMore (More).
3.SelectCoordinate (Coordinate).
4.Select.
”
Select to enable the numeric keypad input. Since
the second time to erase one character at the cursor
position.
” Select
More (More) to set the UTM coordinates.
5.Enter the latitude and longitude and then select Next
(Next).

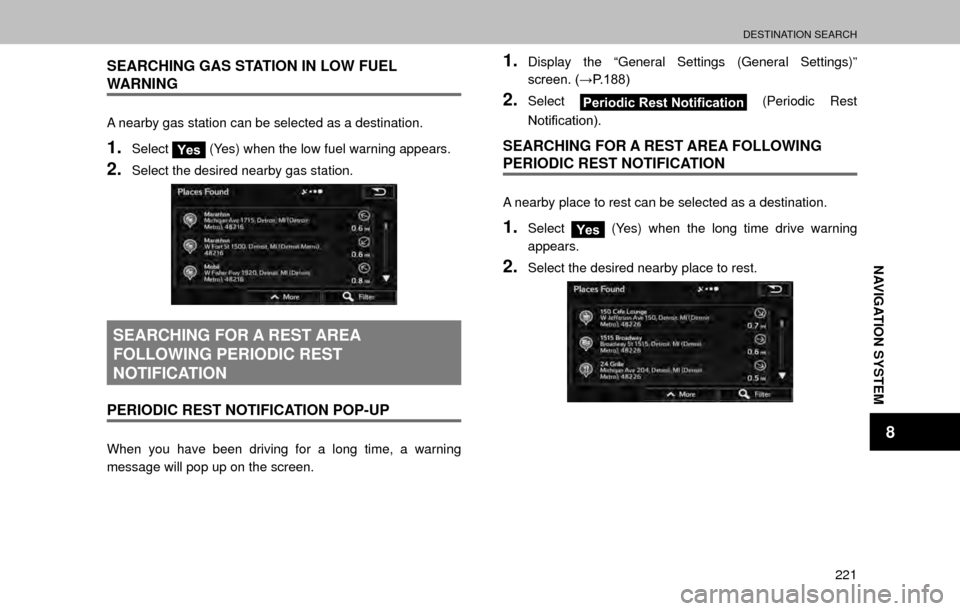

Page 223 of 308
DESTINATION SEARCH
221
NAVIGATION SYSTEM
8
SEARCHING GAS STATION IN LOW FUEL
WARNING
A nearby gas station can be selected as a destination.
1.SelectYes (Yes) when the low fuel warning appears.
2.Select the desired nearby gas station.
SEARCHING FOR A REST AREA
FOLLOWING PERIODIC REST
NOTIFICATION
PERIODIC REST NOTIFICATION POP-UP
When you have been driving for a long time, a warning
message will pop up on the screen.
1.Display the “General Settings (General Settings)”
V F U H H Q : 3
2.SelectPeriodic Rest Notification (Periodic Rest
1 R W L ¿ F D W L R Q
SEARCHING FOR A REST AREA FOLLOWING
PERIODIC REST NOTIFICATION
A nearby place to rest can be selected as a destination.
1.SelectYes (Yes) when the long time drive warning
appears.
2.Select the desired nearby place to rest.
Page 225 of 308
DESTINATION SEARCH
223
NAVIGATION SYSTEM
8
2.SelectMore (More).
3.SelectSimulate Navigation (Simulate Navigation).
4.Check that the route simulation is displayed.
”
The simulation begins from the start point and works
through the entire route at the recommended speed.
” You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No.Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1.SelectMenu (Menu) on the map screen.
2.SelectCancel Route (Cancel Route).
” You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5 R X W H & K D Q J H 5 R X W H

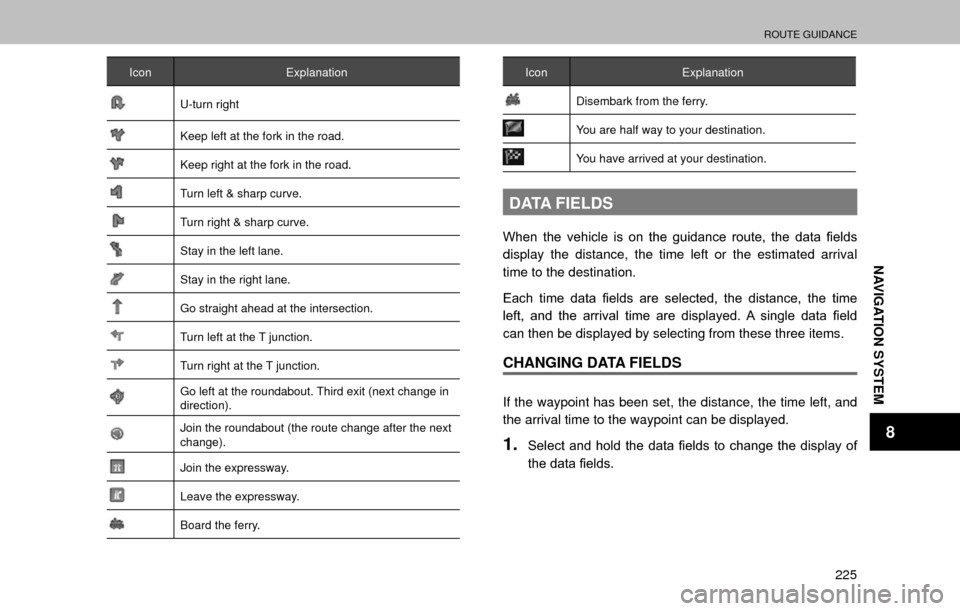

Page 227 of 308
ROUTE GUIDANCE
225
NAVIGATION SYSTEM
8
IconExplanation
U-turn right
Keep left at the fork in the road.
Keep right at the fork in the road.
Turn left & sharp curve.
Turn right & sharp curve.
Stay in the left lane.
Stay in the right lane.
Go straight ahead at the intersection.
Turn left at the T junction.
Turn right at the T junction.
Go left at the roundabout. Third exit (next change in
direction).
Join the roundabout (the route change after the next
change).
Join the expressway.
Leave the expressway.
Board the ferry.
IconExplanation
Disembark from the ferry.
You are half way to your destination.
You have arrived at your destination.
DATA FIELDS
: K H Q W K H Y H K L F O H L V R Q W K H J X L G D Q F H U R X W H W K H G D W D

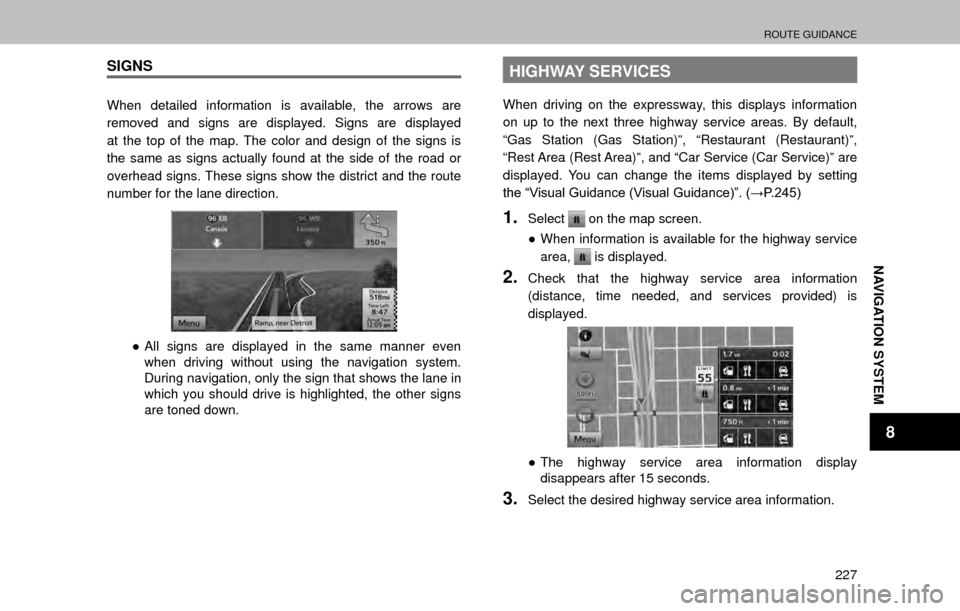

Page 229 of 308
ROUTE GUIDANCE
227
NAVIGATION SYSTEM
8
SIGNS
When detailed information is available, the arrows are
removed and signs are displayed. Signs are displayed
at the top of the map. The color and design of the signs is
the same as signs actually found at the side of the road or
overhead signs. These signs show the district and the route
number for the lane direction.
”All signs are displayed in the same manner even
when driving without using the navigation system.
During navigation, only the sign that shows the lane in
which you should drive is highlighted, the other signs
are toned down.
HIGHWAY SERVICES
When driving on the expressway, this displays information
on up to the next three highway service areas. By default,
“Gas Station (Gas Station)”, “Restaurant (Restaurant)”, \
“Rest Area (Rest Area)”, and “Car Service (Car Service)” are
displayed. You can change the items displayed by setting
W K H

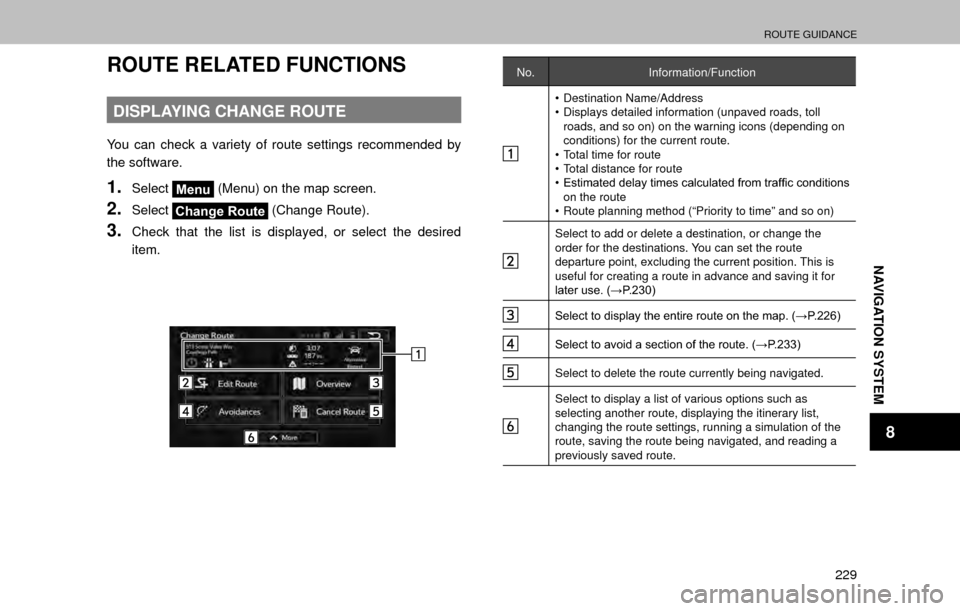

Page 231 of 308
ROUTE GUIDANCE
229
NAVIGATION SYSTEM
8
ROUTE RELATED FUNCTIONS
DISPLAYING CHANGE ROUTE
You can check a variety of route settings recommended by
the software.
1.SelectMenu (Menu) on the map screen.
2.SelectChange Route (Change Route).
3.Check that the list is displayed, or select the desired
item.
No.
Information/Function
‡ Destination Name/Address
‡ Displays detailed information (unpaved roads, toll
roads, and so on) on the warning icons (depending on
conditions) for the current route.
‡ Total time for route
‡ Total distance for route
‡ ( V W L P D W H G G H O D \ W L P H V F D O F X O D W H G I U R P W U D I ¿ F F R Q G L W L R Q V on the route
‡ Route planning method (“Priority to time” and so on)
Select to add or delete a destination, or change the
order for the destinations. You can set the route
departure point, excluding the current position. This is
useful for creating a route in advance and saving it for
O D W H U X V H : 3
6 H O H F W W R G L V S O D \ W K H H Q W L U H U R X W H R Q W K H P D S : 3
6 H O H F W W R D Y R L G D V H F W L R Q R I W K H U R X W H : 3
Select to delete the route currently being navigated.
Select to display a list of various options such as
selecting another route, displaying the itinerary list,
changing the route settings, running a simulation of the
route, saving the route being navigated, and reading a
previously saved route.
