Page 233 of 308
ROUTE GUIDANCE
231
NAVIGATION SYSTEM
8

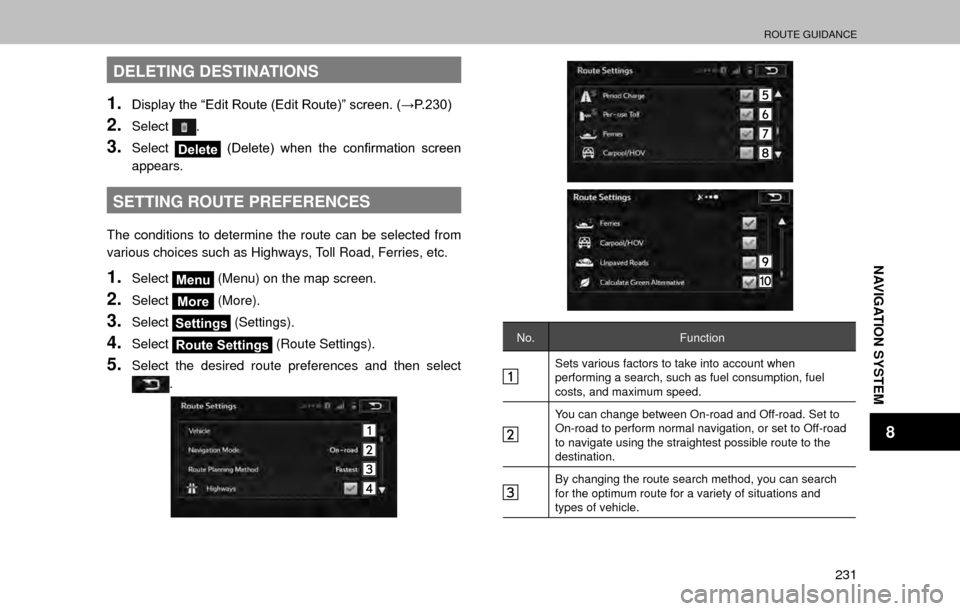

DELETING DESTINATIONS
1. ' L V S O D \ W K H
Page 235 of 308
ROUTE GUIDANCE
233
NAVIGATION SYSTEM
8

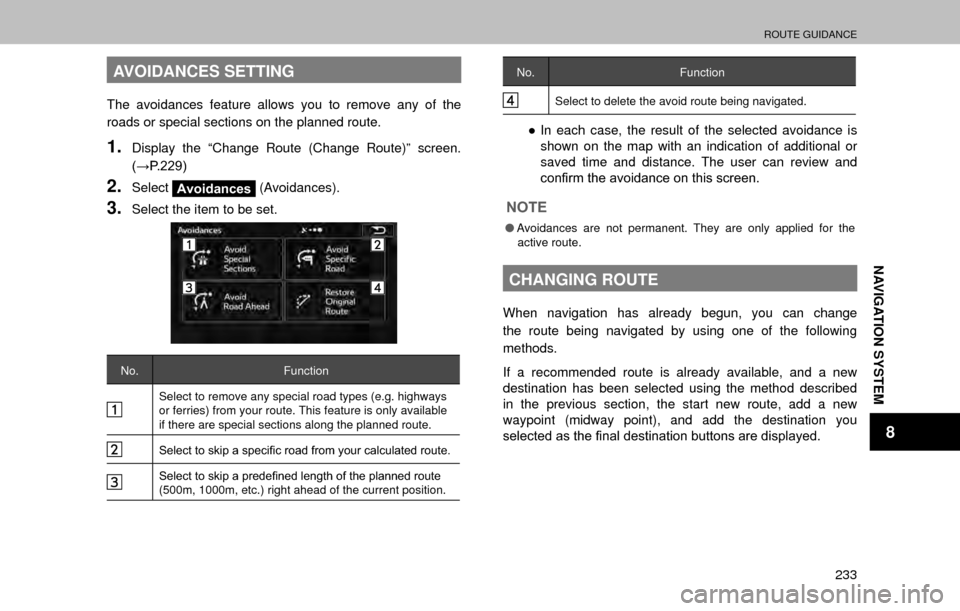

AVOIDANCES SETTING
The avoidances feature allows you to remove any of the
roads or special sections on the planned route.
1.Display the “Change Route (Change Route)” screen.
: 3
2.SelectAvoidances (Avoidances).
3.Select the item to be set.
No.
Function
Select to remove any special road types (e.g. highways
or ferries) from your route. This feature is only available
if there are special sections along the planned route.
6 H O H F W W R V N L S D V S H F L ¿ F U R D G I U R P \ R X U F D O F X O D W H G U R X W H
6 H O H F W W R V N L S D S U H G H ¿ Q H G O H Q J W K R I W K H S O D Q Q H G U R X W H
(500m, 1000m, etc.) right ahead of the current position.
No.Function
Select to delete the avoid route being navigated.
”In each case, the result of the selected avoidance is
shown on the map with an indication of additional or
saved time and distance. The user can review and
F R Q ¿ U P W K H D Y R L G D Q F H R Q W K L V V F U H H Q
NOTE
O Avoidances are not permanent. They are only applied for the
active route.
CHANGING ROUTE
When navigation has already begun, you can change
the route being navigated by using one of the following
methods.
If a recommended route is already available, and a new
destination has been selected using the method described
in the previous section, the start new route, add a new
waypoint (midway point), and add the destination you
V H O H F W H G D V W K H ¿ Q D O G H V W L Q D W L R Q E X W W R Q V D U H G L V S O D \ H G
Page 237 of 308
ROUTE GUIDANCE
235
NAVIGATION SYSTEM
8
Page 239 of 308
MEMORY POINTS
237
NAVIGATION SYSTEM
8

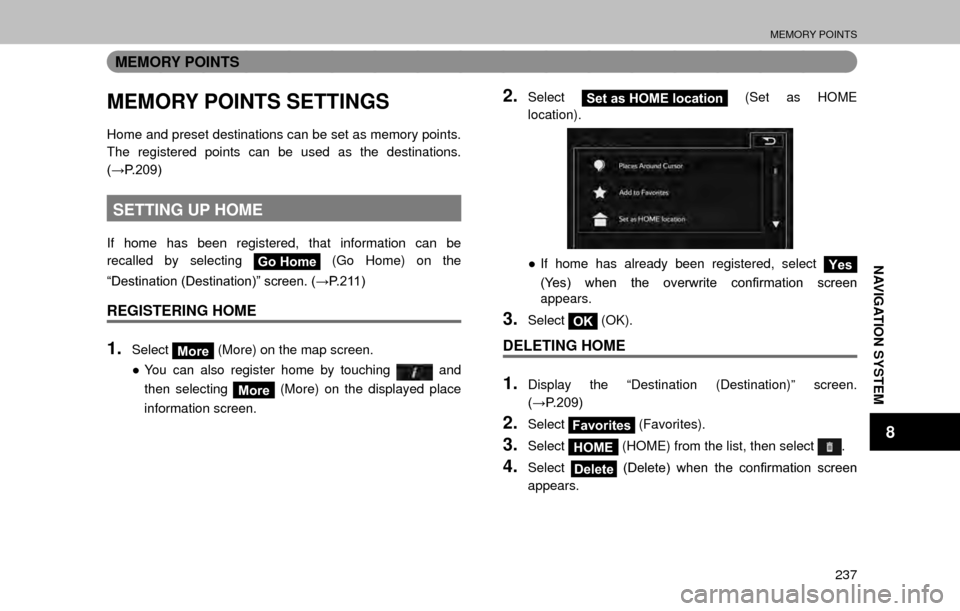

MEMORY POINTS
MEMORY POINTS SETTINGS
Home and preset destinations can be set as memory points.
The registered points can be used as the destinations.
: 3
SETTING UP HOME
If home has been registered, that information can be
recalled by selecting
Go Home (Go Home) on the
Page 241 of 308
SETUP
239
NAVIGATION SYSTEM
8
SETUP
NAVIGATION SETTINGS
OPTIONAL FUNCTIONS
Various options are available from the “More (More)” menu.
1.SelectMenu (Menu) on the map screen.
2.SelectMore (More).
3.Select the items to be set.
No.
Function
6 H O H F W W R F R Q ¿ J X U H S U R J U D P V D Q G F K D Q J H R S H U D W L R Q D O
patterns for the software. Performs functions such as
¿ Q H W X Q L Q J U R X W H V H D U F K R S W L R Q V F K D Q J L Q J W K H P D S
screen design, turning warnings on or off, and launching
W K H ³ & R Q ¿ J X U D W L R Q : L ] D U G & R Q ¿ J X U D W L R Q : L ] D U G ´
No.Function
Select to check global sunrise and sunset times. Places
a mark on the map to show the user’s current position
and route points. Select Details button to check accurate
sunrise and sunset times for all points along the route
F X U U H Q W S R V L W L R Q D O O Z D \ S R L Q W V ¿ Q D O G H V W L Q D W L R Q
Select to display a list of all trip logs, whether they are
saved by the user upon reaching the destination or
whether they are saved automatically. Select an item
from the trip that is displayed, you can check trip data,
speeds, and more detailed contents. When a path log
has been saved, you can display it on the map in the
color selected.
Select to display a tutorial allowing for a quick grasp
of the software’s functions, and starts a demonstration
showing a sample route simulation to check the
navigation functions. The about section displays
product information. Here you can view the software
and database user license agreements, search for the
contents license, and check the software ID. You can
check statistical data for program use.
Page 243 of 308
SETUP
241
NAVIGATION SYSTEM
8
SOUND AND WARNINGS
WARNING
OBe sure to set the volume of the audio at an appropriate level.
Improper volume setting may result in hearing damage or a
W U D I ¿ F D F F L G H Q W
1. ' L V S O D \ W K H
Page 245 of 308
SETUP
243
NAVIGATION SYSTEM
8
QEVENT TYPES SETTINGS
1. ' L V S O D \ W K H
Page 247 of 308
SETUP
245
NAVIGATION SYSTEM
8
TRIP MONITOR
Contains useful information on the user’s distance moved
in the trip logs and path logs. You can save trip logs
automatically by turning this setting on, or save them
manually when arriving at a destination. You can view all
logs on the trip monitor.
1. ' L V S O D \ W K H
Page 249 of 308
TIPS FOR THE NAVIGATION SYSTEM
247
NAVIGATION SYSTEM
8
TIPS FOR THE NAVIGATION SYSTEM
GPS (GLOBAL POSITIONING
SYSTEM)
REGARDING ERRORS IN CURRENT
POSITION DISPLAY
The system displays the vehicle current position based on
GPS information and data from various sensors and road
maps. However, when the radiowave signals from GPS
satellites are weak or when signals are received from only
two satellites or less, errors may occur in the position.
Modifying or adjusting the system will not prevent these
errors.
LIMITATIONS OF THE NAVIGATION SYSTEM
This navigation system calculates the current position using
satellite signals, various vehicle signals, map data, etc.
However, an accurate position may not be shown depending
R Q V D W H O O L W H F R Q G L W L R Q V U R D G F R Q
Page 250 of 308
TIPS FOR THE NAVIGATION SYSTEM
248
CAUTION
OThe installation of window tinting may obstruct the GPS
signals. Most window tinting contains some metallic content
that will interfere with GPS signal reception of the antenna in
the instrument panel. We advise against the use of window
tinting on vehicles equipped with navigation systems.
” Accurate current position may not be shown in the
following cases:
‡ When driving on a small angled Y-shaped road.
‡ When driving on a winding road.
‡ When driving on a slippery road such as in sand,
gravel, snow, etc.
‡ When driving on a long straight road.
‡ When freeway and surface streets run in parallel.
‡ After moving by ferry or vehicle carrier.
‡ When a long route is searched during high speed
driving.
‡ After repeating a change of direction by going
forward and backward, or turning on a turntable in
a parking lot.
‡ When leaving a covered parking lot or parking
garage.
‡ When a roof carrier is installed.
‡ When driving with tire chains installed. ‡
When the tires are worn.
‡ After replacing a tire or tires.
‡ When using tires that are smaller or larger than the
I D F W R U \ V S H F L ¿ F D W L R Q V
‡ When the tire pressure in any of the 4 tires is not
correct.
” Inappropriate route guidance may occur in the
following cases:
‡ When turning at an intersection off the designated
route guidance.
‡ If you set more than 1 destination but skip any of
them, auto reroute will display a route returning to
the destination on the previous route.
‡ When turning at an intersection for which there is
no route guidance.
‡ When passing through an intersection for which
there is no route guidance.
‡ During auto reroute, the route guidance may not be
available for the next turn to the right or left.
‡ During high speed driving, it may take a long time
for auto reroute to operate. In auto reroute, a detour
route may be shown.
‡ After auto reroute, the route may not be changed.
‡ If an unnecessary U-turn is shown or announced.
