Page 221 of 610

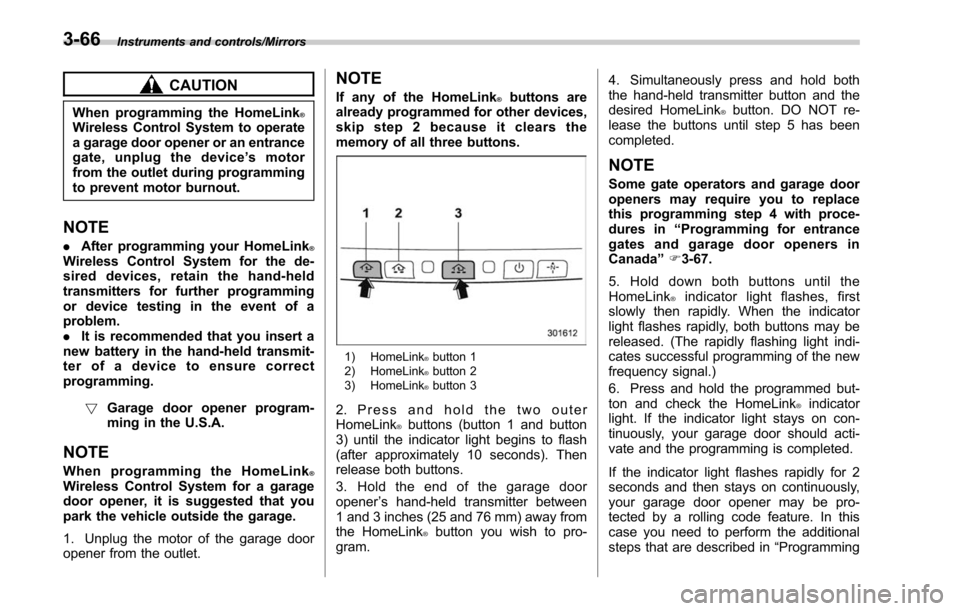

SUBARU LEGACY 2017 6.G Owners Manual Instruments and controls/Mirrors
CAUTION
When programming the HomeLink®Wireless Control System to operate
a garage door opener or an entrance
gate, unplug the device’s motor
from the outlet during

Page 222 of 610

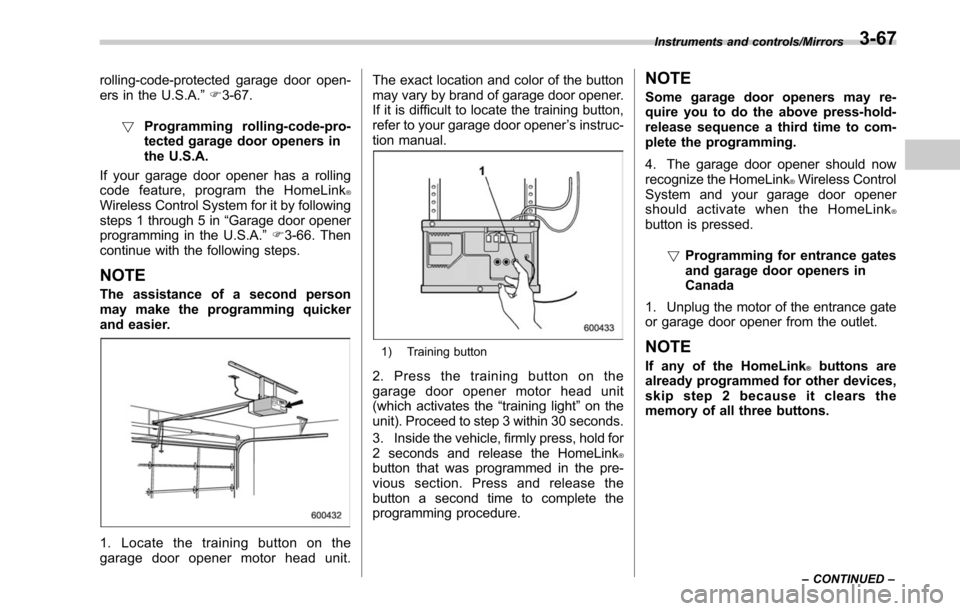

SUBARU LEGACY 2017 6.G Owners Manual rolling-code-protected garage door open-
ers in the U.S.A.”F 3-67.
! Programming rolling-code-pro-
tected garage door openers in
the U.S.A.
If your garage door opener has a rolling
code feature, pro

Page 223 of 610

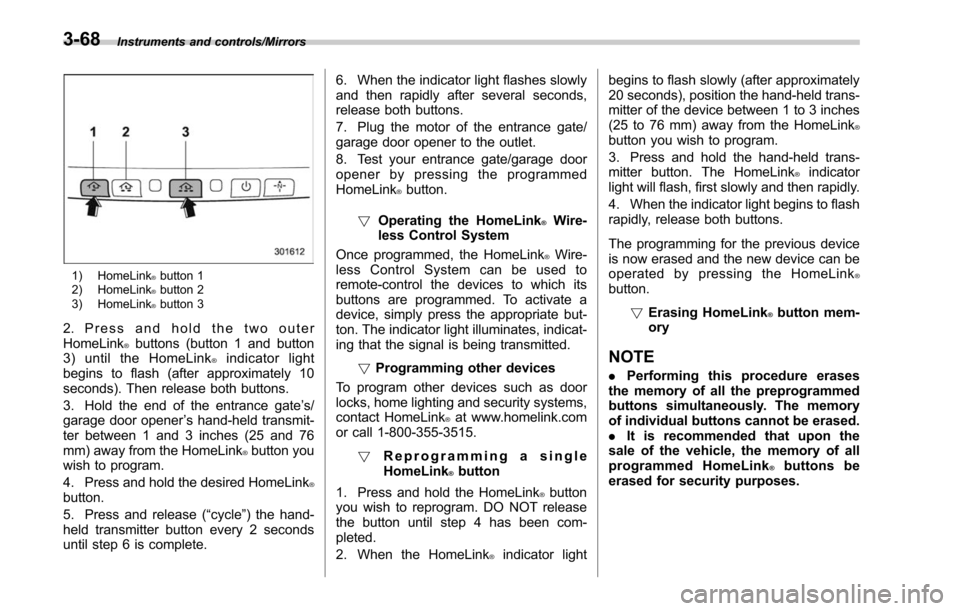

SUBARU LEGACY 2017 6.G Owners Manual Instruments and controls/Mirrors
1) HomeLink®button 1
2) HomeLink®button 2
3) HomeLink®button 3
2. Press and hold the two outer
HomeLink®buttons (button 1 and button
3) until the HomeLink®indicat

Page 224 of 610

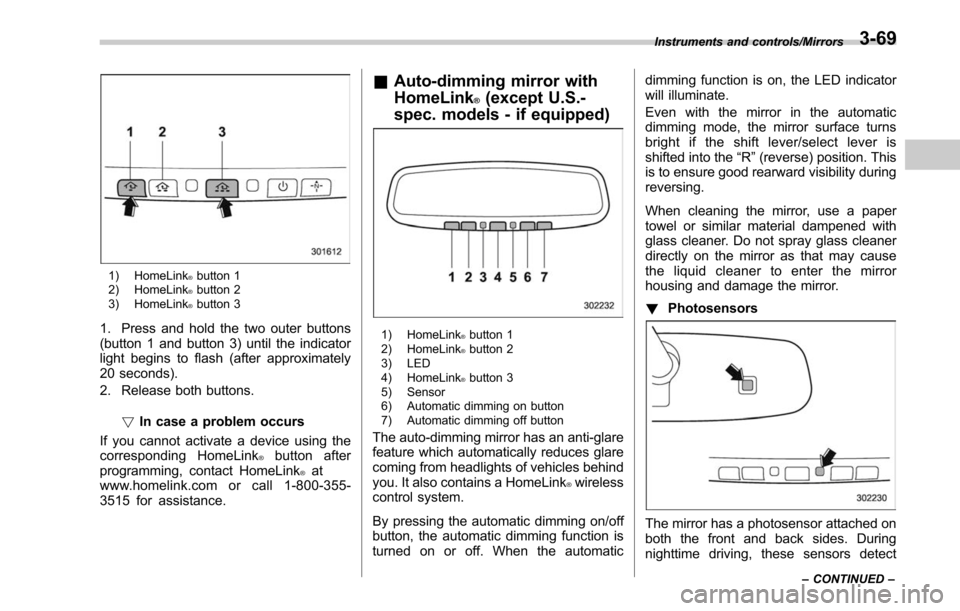

SUBARU LEGACY 2017 6.G Owners Manual 1) HomeLink®button 1
2) HomeLink®button 2
3) HomeLink®button 3
1. Press and hold the two outer buttons
(button 1 and button 3) until the indicator
light begins to flash (after approximately
20 seco

Page 225 of 610

SUBARU LEGACY 2017 6.G Owners Manual Instruments and controls/Mirrors
distracting glare from vehicle headlights
behind you and automatically dim the
mirror to eliminate glare and preserve
your vision. For this reason, use care not
to cov

Page 226 of 610

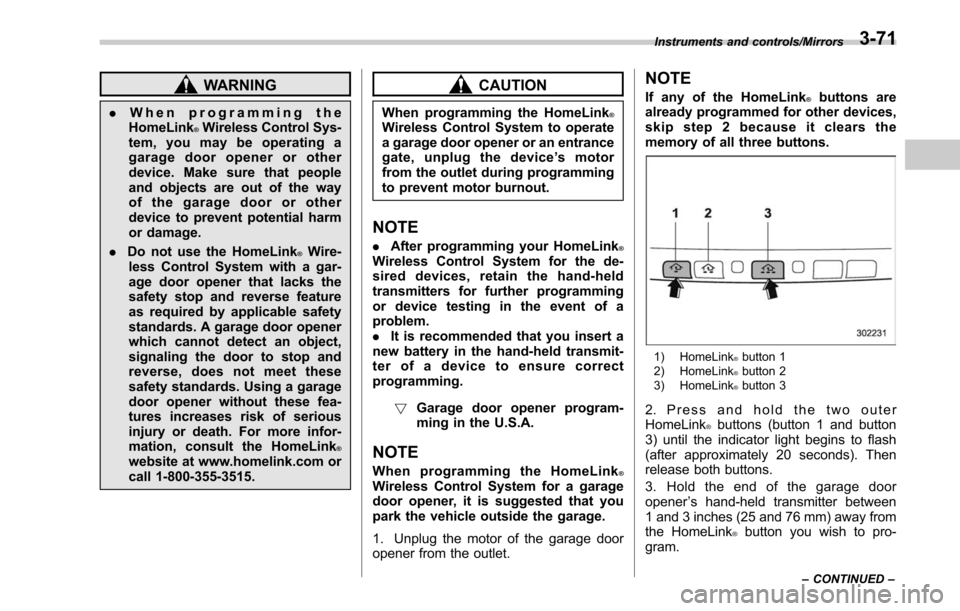

SUBARU LEGACY 2017 6.G Owners Manual WARNING
.When programming the
HomeLink®Wireless Control Sys-
tem, you may be operating a
garage door opener or other
device. Make sure that people
and objects are out of the way
of the garage door or

Page 227 of 610

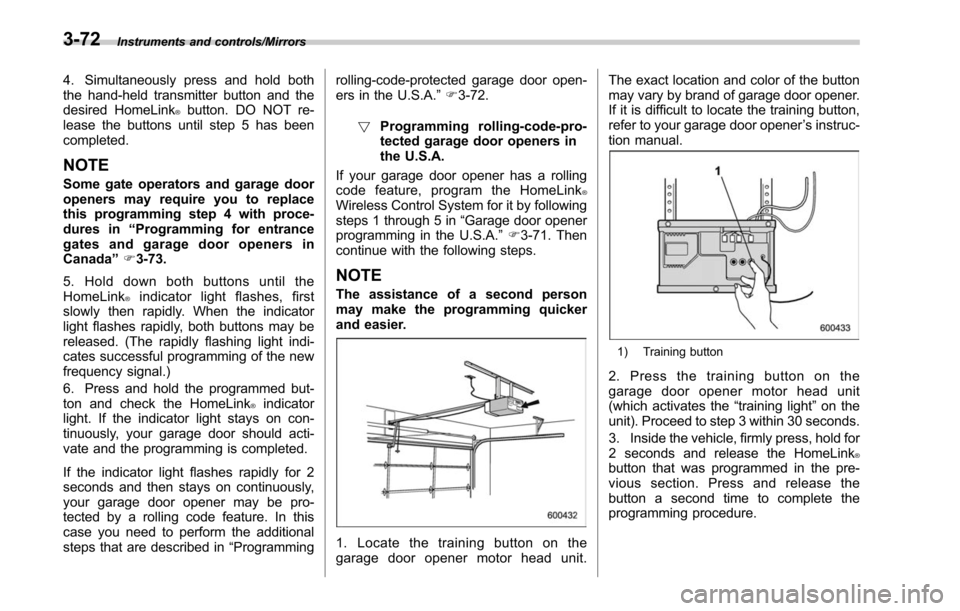

SUBARU LEGACY 2017 6.G Owners Manual Instruments and controls/Mirrors
4. Simultaneously press and hold both
the hand-held transmitter button and the
desired HomeLink
®button. DO NOT re-
lease the buttons until step 5 has been
completed.

Page 228 of 610

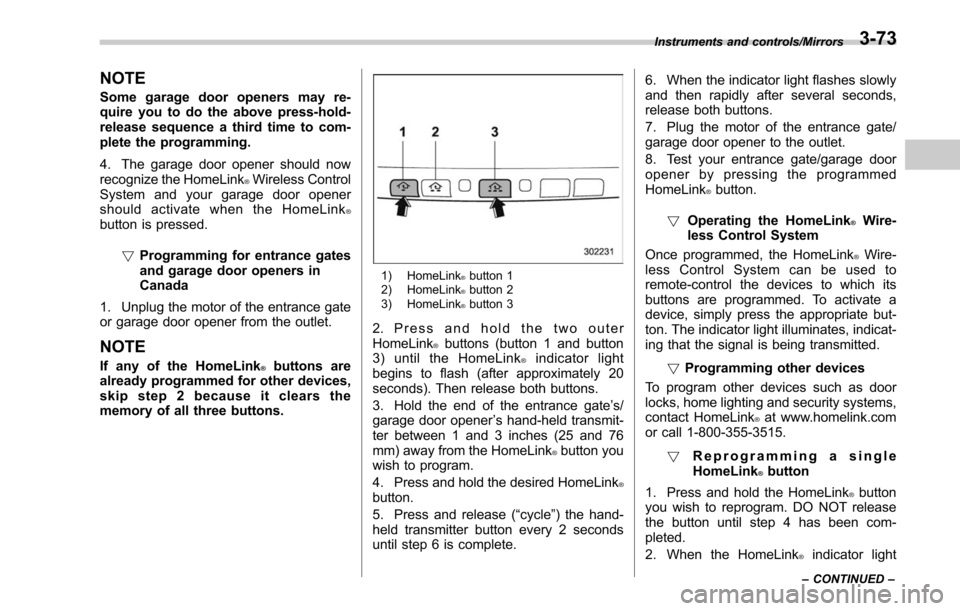

SUBARU LEGACY 2017 6.G Owners Manual NOTE
Some garage door openers may re-
quire you to do the above press-hold-
release sequence a third time to com-
plete the programming.
4. The garage door opener should now
recognize the HomeLink
®W

Page 229 of 610

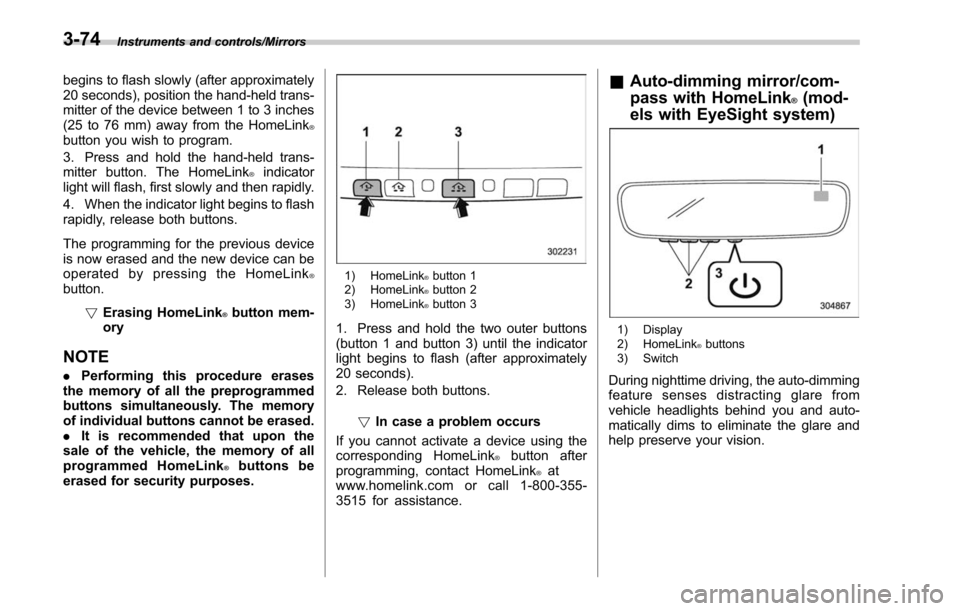

SUBARU LEGACY 2017 6.G Owners Manual Instruments and controls/Mirrors
begins to flash slowly (after approximately
20 seconds), position the hand-held trans-
mitter of the device between 1 to 3 inches
(25 to 76 mm) away from the HomeLink

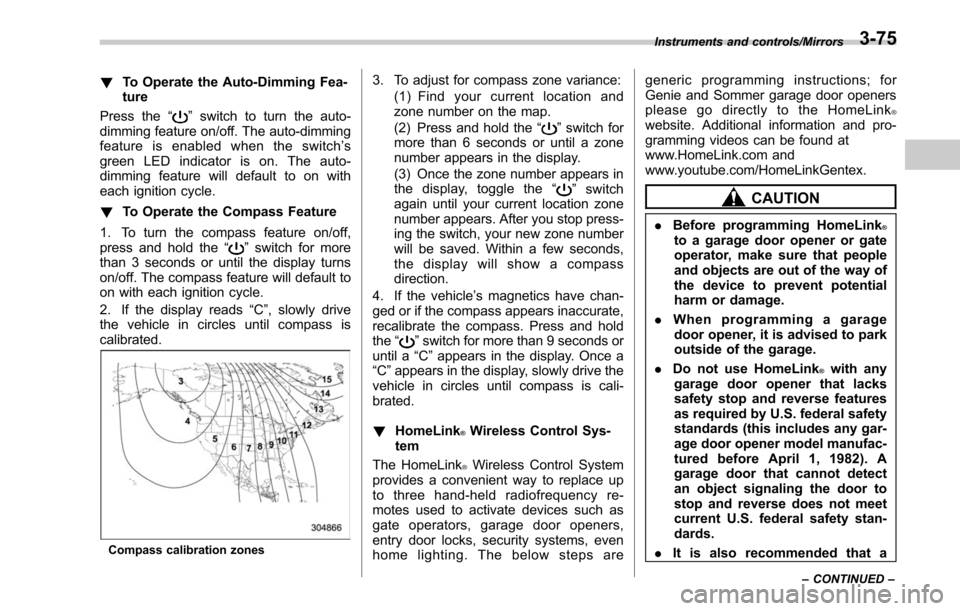

Page 230 of 610

SUBARU LEGACY 2017 6.G Owners Manual !To Operate the Auto-Dimming Fea-
ture
Press the “
”switch to turn the auto-
dimming feature on/off. The auto-dimming
feature is enabled when the switch ’s
green LED indicator is on. The auto-
d
