SUBARU LEGACY 2018 Quick Guide

19
Controls

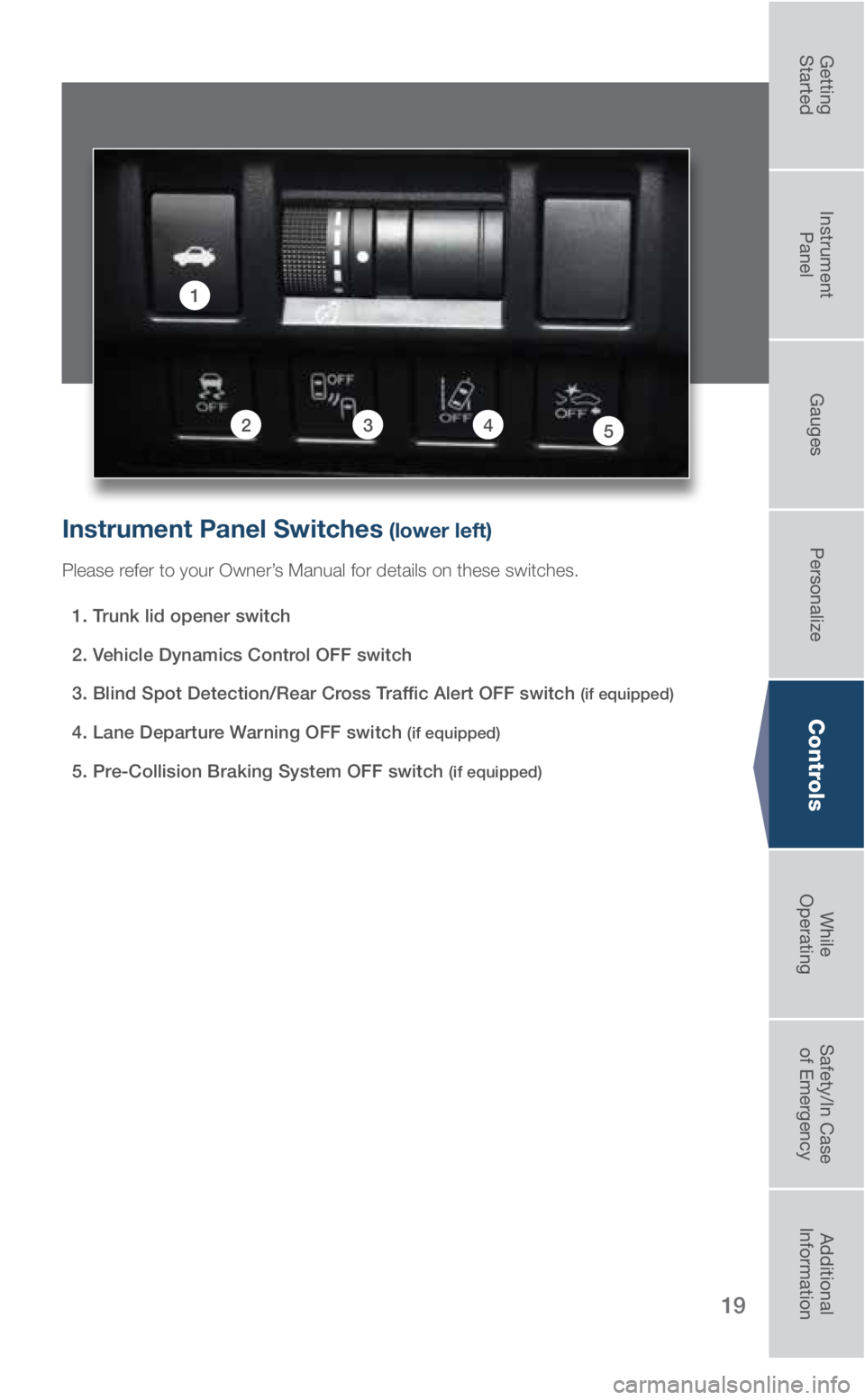

Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1. Trunk lid opener switch
2. Vehicle Dynamics Control OFF switch
3. Blind Spot Detection/Rear Cross Traffic Alert OFF switch
(if equipped)
4. Lane Departure Warning OFF switch (if equipped)
5. Pre-Collision Braking System OFF switch (if equipped)
1
5342
2926965_18a_Subaru_Legacy_QRG_050417.indd 195/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20

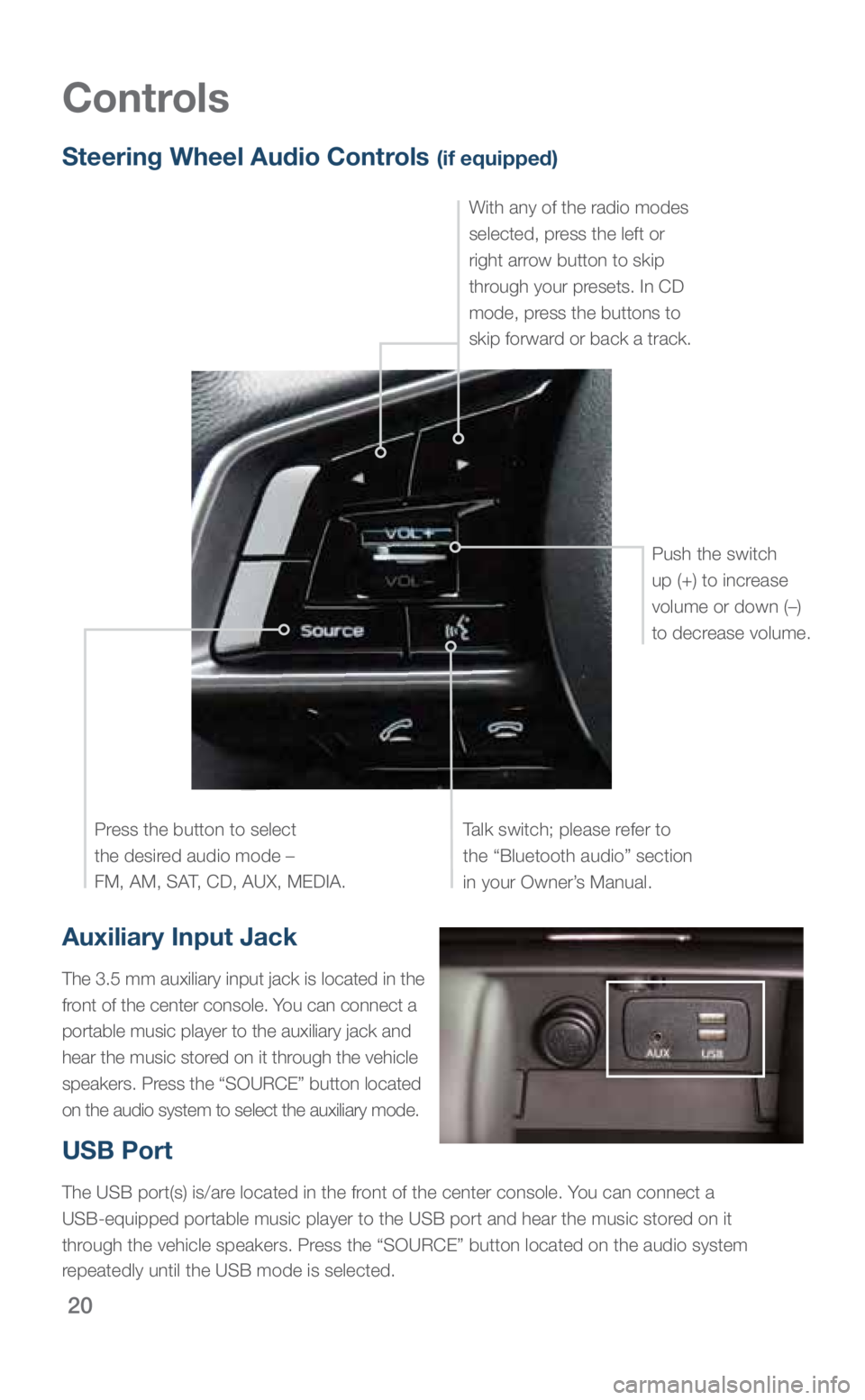

Auxiliary Input Jack
The 3.5 mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located
on the audio system to select the auxiliary mode.
USB Port
The USB port(s) is/are located in the front of the center console. You can connect a
USB-equipped portable music player to the USB port and hear the music st\
ored on it
through the vehicle speakers. Press the “SOURCE” button located on the audio system
repeatedly until the USB mode is selected.
Controls
Steering Wheel Audio Controls (if equipped)
Talk switch; please refer to
the “Bluetooth audio” section
in your Owner’s Manual.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to skip
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
2926965_18a_Subaru_Legacy_QRG_050417.indd 205/4/17 3:14 PM

21
Controls

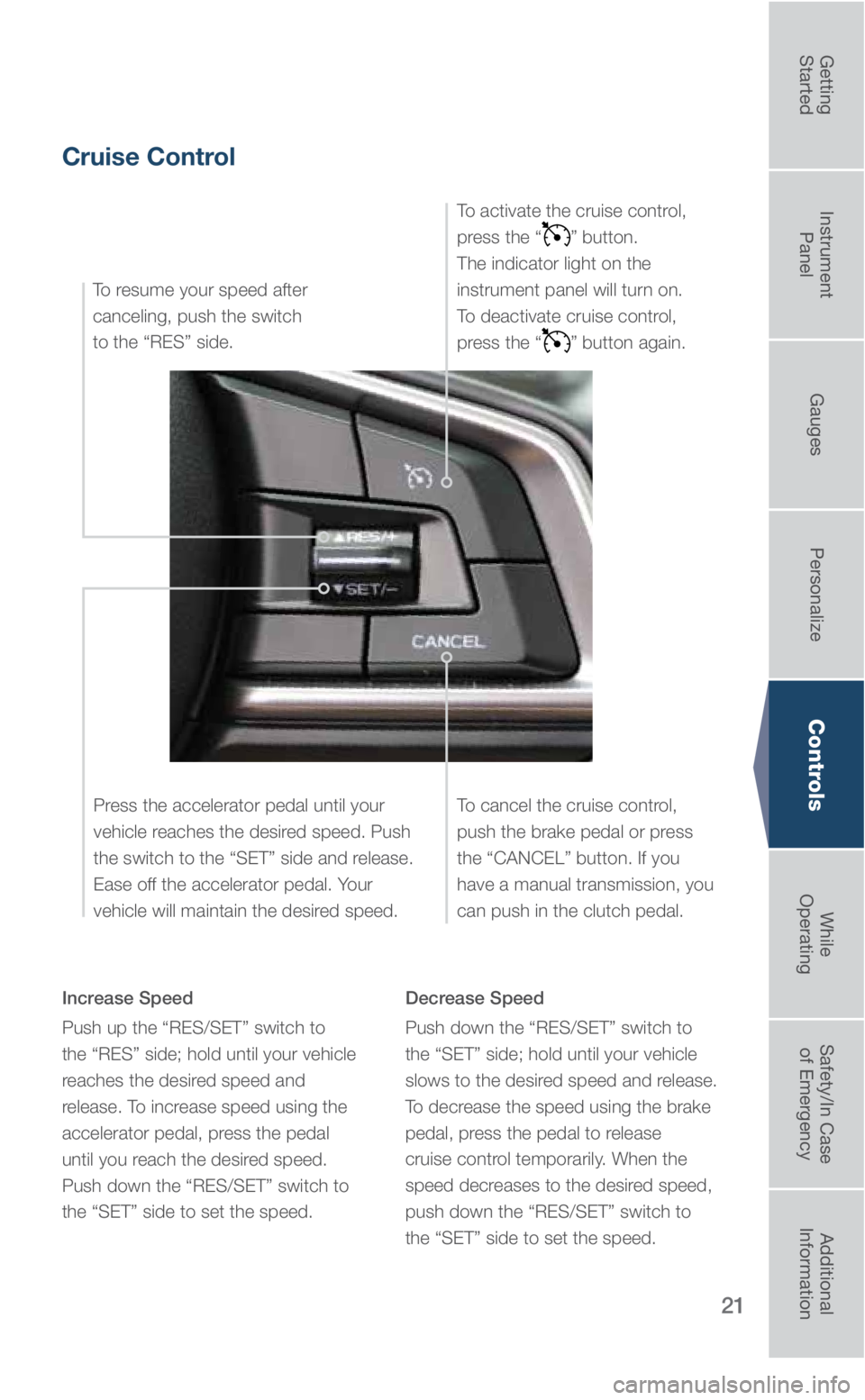

Cruise Control
Increase Speed
Push up the “RES/SET” switch to
the “RES” side; hold until your vehicle
reaches the desired speed and
release. To increase speed using the
accelerator pedal, press the pedal
until you reach the desired speed.
Push down the “RES/SET” switch to
the “SET” side to set the speed.Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed.To activate the cruise control,
press the “
” button.
The indicator light on the
instrument panel will turn on.
To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal until your
vehicle reaches the desired speed. Push
the switch to the “SET” side and release.
Ease off the accelerator pedal. Your
vehicle will maintain the desired speed. To cancel the cruise control,
push the brake pedal or press
the “CANCEL” button. If you
have a manual transmission, you
can push in the clutch pedal.
To resume your speed after
canceling, push the switch
to the “RES” side.
2926965_18a_Subaru_Legacy_QRG_050417.indd 215/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22

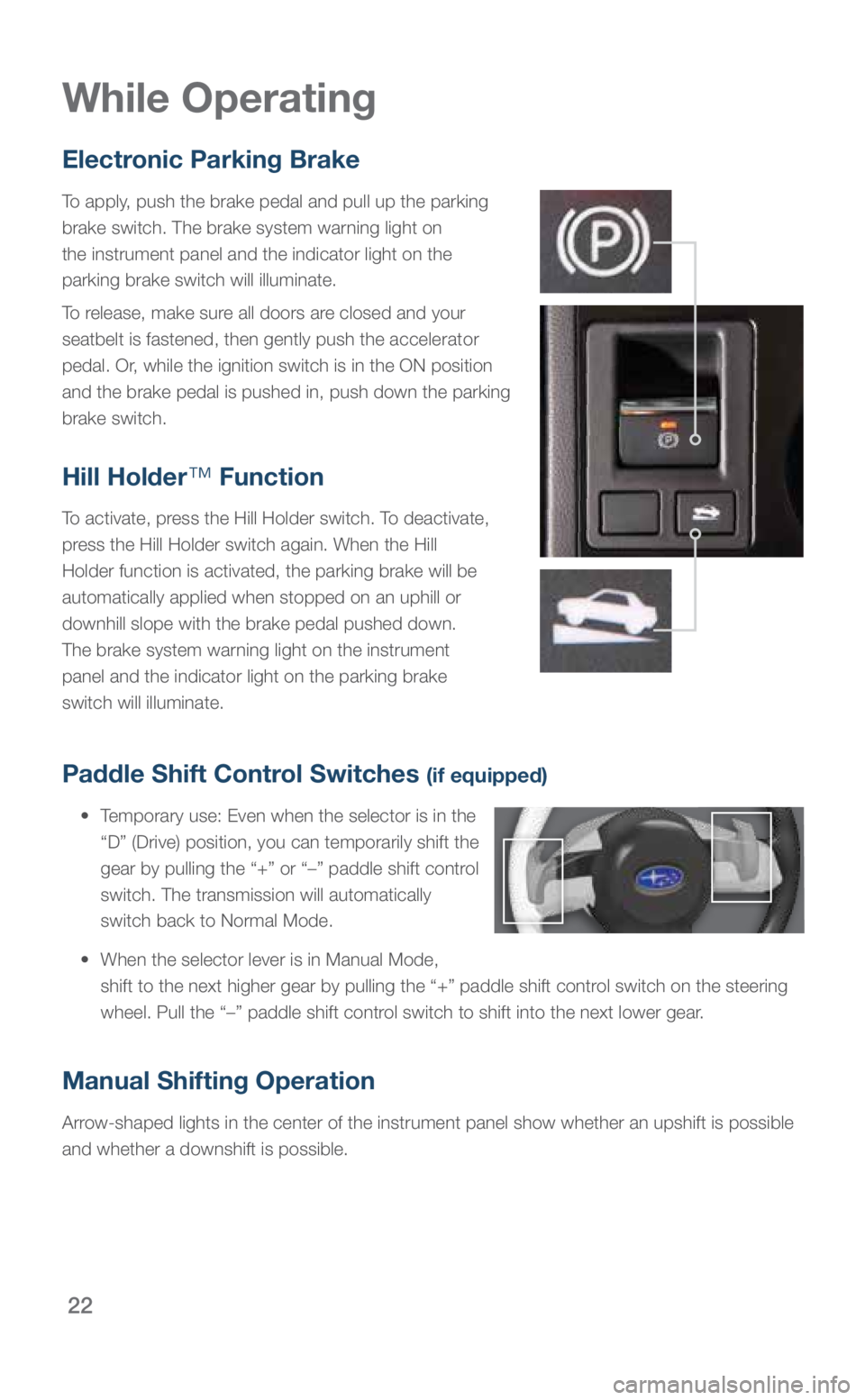

Electronic Parking Brake
To apply, push the brake pedal and pull up the parking
brake switch. The brake system warning light on
the instrument panel and the indicator light on the
parking brake switch will illuminate.
To release, make sure all doors are closed and your
seatbelt is fastened, then gently push the accelerator
pedal. Or, while the ignition switch is in the ON position
and the brake pedal is pushed in, push down the parking
brake switch.
Hill Holder™ Function
To activate, press the Hill Holder switch. To deactivate,
press the Hill Holder switch again. When the Hill
Holder function is activated, the parking brake will be
automatically applied when stopped on an uphill or
downhill slope with the brake pedal pushed down.
The brake system warning light on the instrument
panel and the indicator light on the parking brake
switch will illuminate.
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
2926965_18a_Subaru_Legacy_QRG_050417.indd 225/4/17 3:14 PM

23
1
Automatic Transmission Shift Mode
The 5-speed automatic transmission or the Continuously Variable Transmission
(CVT) gives you ultimate control with two different driving modes: Normal Mode
and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in Normal
shift mode. The shift position indicator on the instrument panel shows “\
D” and the
transmission automatically shifts into a suitable forward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual gate
1 from the “D” (Drive) position causes the transmission to change in\
to Manual
Mode. To shift, use the paddle shift control switches. The shift position indicator
shows the selected gear position.
While
Operating
2926965_18a_Subaru_Legacy_QRG_050417.indd 235/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

24

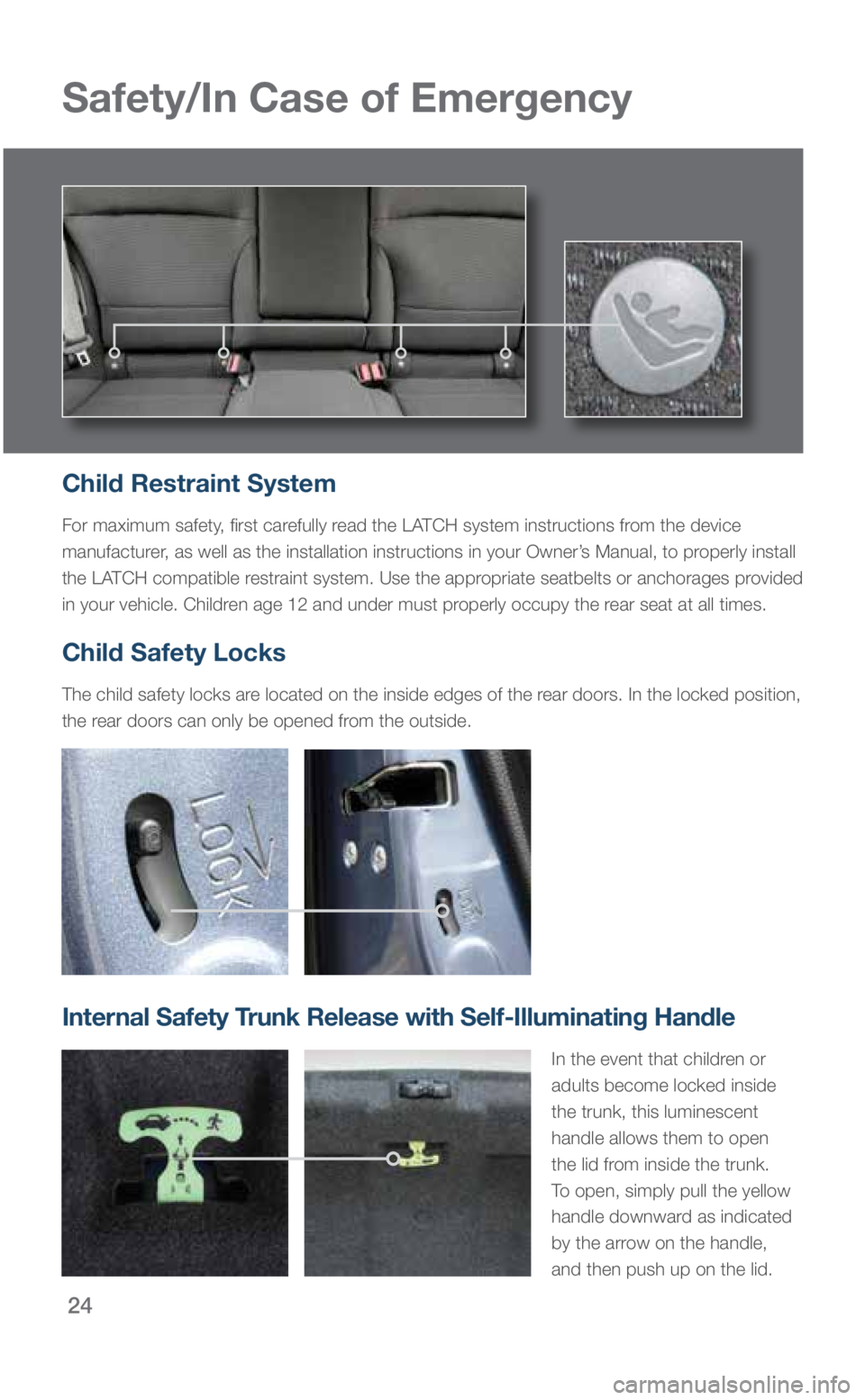

Safety/In Case of Emergency
Child Restraint System
For maximum safety, first carefully read the LATCH system instructions from the device
manufacturer, as well as the installation instructions in your Owner’s Manual, to properly install
the LATCH compatible restraint system. Use the appropriate seatbelts or anchorages provided
in your vehicle. Children age 12 and under must properly occupy the rear seat at all times.
Child Safety Locks
The child safety locks are located on the inside edges of the rear doors. In the locked position,
the rear doors can only be opened from the outside.
Internal Safety Trunk Release with Self-Illuminating Handle
In the event that children or
adults become locked inside
the trunk, this luminescent
handle allows them to open
the lid from inside the trunk.
To open, simply pull the yellow
handle downward as indicated
by the arrow on the handle,
and then push up on the lid.
2926965_18a_Subaru_Legacy_QRG_050417.indd 245/4/17 3:14 PM

25
Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area. Raise the center lid and remove the
bucket from the center of the spare tire. Take the jack out of the bucket. The jack
handle is stowed on the back of the floor cover of the trunk.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on every 2018 Subaru vehicle.
Coverage is automatic; there are no forms to complete. Subaru Roadside
Assistance is available anytime during the 3-year/36,000-mile Subaru Lim\
ited
Warranty, whichever comes first.* A Subaru Roadside Assistance decal has been \
affixed to the driver’s door window.
Subaru Roadside Assistance:
1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation of
any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
Safety/In Case of Emergency
2926965_18a_Subaru_Legacy_QRG_050417.indd 255/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

26
Fuel
For both the 2.5 liter 4-cyl. engine and the 3.6 liter 6-cyl. engine, us\
e regular unleaded
gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s Manual for more
detailed information.
Fuel Capacity
• 18.5 US gal (70 liters, 15.4 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2.6 US gal (10.0 liters, 2.2 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the Check Engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until a
click is heard).
Fuel Filler Lid Release
The fuel fill lid release is located on the floor to the left of the
driver’s seat. To open the fuel filler lid, pull the fuel filler lever
up and release.
Additional Information
2926965_18a_Subaru_Legacy_QRG_050417.indd 265/4/17 3:14 PM

27
Engine Oil
Use only the following oils:
• API classification SN with the words “RESOURCE CONSERVING.”
• Or ILSAC GF-5, which can be identified with the ILSAC certification \
mark
(Starburst mark).
- 2.5 liter 4-cyl. DOHC models use 0W-20 synthetic, replacement interval
6,000 miles under normal driving conditions. No requirement at the
first 3,000 miles.
- 3.6 liter 6-cyl. models use 5W-30, replacement interval 6,000 miles under
normal driving conditions. No requirement at the first 3,000 miles.
Engine Oil Capacity
• 2.5 liter 4-cyl. models: 5.1 US qt (4.8 liters, 4.2 Imp qt)
• 3.6 liter 6-cyl. models: 6.9 US qt (6.5 liters, 5.7 Imp qt)
Additional
Information
2926965_18a_Subaru_Legacy_QRG_050417.indd 275/4/17 3:14 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

28
2
3
7
1
85
49
6
Engine Compartment
Please refer to your Owner’s Manual for more information.
2.5 L Engine

Note: Callouts apply to both engines.
1. Brake Fluid Reservoir
2. Main Fuse Box
3. Windshield Washer Tank
4. Battery
5. Engine Oil Filler Cap 6.
Engine Coolant Reservoir
7. Radiator Cap
8. Engine Oil Dipstick
9. Air Cleaner Element
3.6 L Engine
2
7
3
5
4
6
1
98
