SUBARU LEGACY 2018 Quick Guide

Quick Guide
Legacy
Love. It’s what makes a Subaru, a Subaru.
2926965_18a_Subaru_Legacy_QRG_050417.indd 25/4/17 3:12 PM
2018

© 2017 Subaru of America, Inc. All rights reserved.
Contents may not be reproduced in whole or in part without prior written
permission of publisher. Specifications in this Guide are based on the latest
product information available at the time of publication. Some images show\
n
are for illustration purposes only. Some equipment shown in photography within
this Guide is optional at extra cost. Specific options may be availabl\
e only in
combination with other options. Specific combinations of equipment or \
features
may vary from time to time, and by geographic area. Subaru of America, Inc.
reserves the right to change or discontinue at any time, without notice: \
Prices,
colors, materials, equipment, accessories, specifications, models and \
packages,
without incurring any obligation to make the same or similar changes on \
vehicles
previously sold. Colors shown may vary due to reproduction and printing
processes. Subaru of America, Inc. is not responsible for typographical errors.
Aha™ is a trademark of Harman International Industries, Inc. Alcantara
® is a
registered trademark of Alcantara S.p.A., and Alcantara is produced by the
Toray Group. App Store
® is a registered trademark of Apple, Inc. Apple® is a
registered trademark of Apple, Inc. BBS® is a registered trademark of BBS
Kraftahrzeugtechnik, AG. Bluetooth® is a registered trademark of Bluetooth SIG,
Inc. Brembo® is a registered trademark of Freni Brembo, S.p.A. GreenEdge® is
a registered trademark of Harman International Industries, Inc. Harman Kardon®
is a registered trademark of Harman International Industries, Inc. HD Radio® is
a registered trademark of iBiquity Digital Corporation. HomeLink® is a registered
trademark of Prince Corporation, a wholly owned subsidiary of Johnson Co\
ntrols.
iHeart
® Radio is a registered trademark of iHeartMedia, Inc. iPod® is a registered
trademark of Apple, Inc. iTunes® is a registered trademark of Apple, Inc.
Metal-Matrix Diaphragm (MMD®) is a registered trademark of Harman International
Industries, Inc. MirrorLink™ is a trademark of Car Connectivity Consortium,
LLC. Pandora
® is a registered trademark of Pandora Media, Inc. Siri® is a
registered trademark of Apple, Inc. Smart Way® is a registered trademark
of the U.S. Environmental Protection Agency. Stitcher™ is a trademark of
Stitcher™, Inc. TORSEN LSD
® is a registered trademark of JTEKT TORSEN
North America, Inc. SiriusXM® All Access Radio is a registered trademark of
SiriusXM Radio, Inc. SiriusXM Traffic® and SiriusXM Travel Link® are registered
trademarks of SiriusXM Radio, Inc. Added Security, Crosstrek, Forester and
Outback are registered trademarks of Subaru of America, Inc. BRZ, EyeSight,
Impreza, Lineartronic, Legacy, Subaru, SUBARU BOXER, WRX, STI and
X-MODE are registered trademarks of Subaru Corporation. Confidence in
Motion and SUBARU STARLINK are trademarks of Subaru Corporation.
2926965_18a_Subaru_Legacy_QRG_050417.indd 35/4/17 3:12 PM

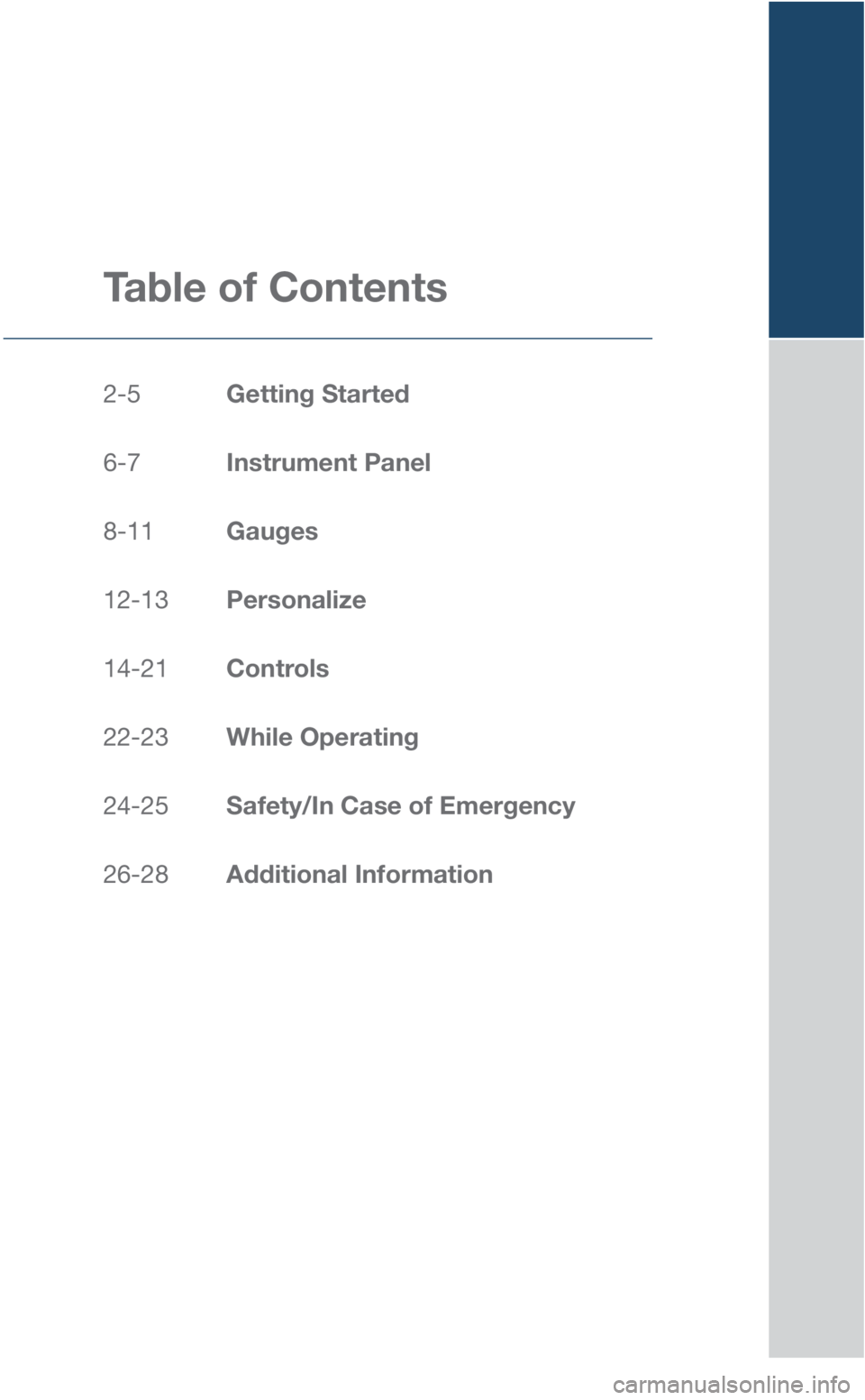

Table of Contents
2-5 Getting Started

6-7 Instrument Panel

8-11 Gauges

12-13 Personalize

14-21 Controls

22-23 While Operating

24-25 Safety/In Case of Emergency

26-28 Additional Information
2926965_18a_Subaru_Legacy_QRG_050417.indd 55/4/17 3:12 PM

2
1. Lock/Arm
• Press to lock all doors and trunk and
activate the security alarm.
• If any of the doors or the trunk are
not fully closed, an electronic chirp
will sound and the hazard lights will
flash to alert you that the doors or
the trunk are not properly closed.
• To activate the vehicle finder function,
press three times (within five seconds).
If you are within 30 feet of the vehicle,
the horn will sound one time and the
hazard lights will flash three times.
2. Unlock/Disarm
• Press once to unlock the driver’s door.
• Press twice (within five seconds) to
unlock all doors.
• When the “Unlock/Disarm” button is
pressed, the dome and map lights will
illuminate if the dome light switch is in
the middle position.
3. Opening the Trunk Lid
• Press and hold to unlock the trunk lid.
An electronic chirp will sound twice
and the hazard lights will flash twice.
4. Panic Alarm
• Press once and the horn will sound
and the hazard lights will flash.
• Press any button on the remote
to deactivate.
Remote Keyless Entry
Keyless Access and
Push Button Start
(if equipped)
By simply carrying the access key in your pocket, you can
lock and unlock doors, open the trunk and start your car
without having to take the key fob out of your pocket.
1
2
3
4
1
23
4
2926965_18a_Subaru_Legacy_QRG_050417.indd 25/4/17 3:12 PM

3
Seating
Getting
Started
10-Way Power Driver’s Seat (if equipped)
1. Forward/Backward,
Angle and Height

Move the switch toward the front
or rear to move the seat forward
or backward. Pull the switch up
or push down on the front of the
switch to adjust the angle of the
seat cushion. Pulling the switch
straight up or pushing the switch
straight down will adjust the height
of the entire seat cushion. 2. Seatback

Move the switch in the
corresponding direction to adjust
the angle of the seatback.
3. Lumbar Support
Press the front part of the switch
to increase lumbar support;
press the rear part of the switch
to decrease lumbar support.
3
2
1
Memory Driver’s Seat (if equipped)
While pressing the “SET” button, press and hold the desired button “1” or “2”.
A beep sounds when the seat position is registered. Press button “1” or “2” to
retrieve the seat positions.
2926965_18a_Subaru_Legacy_QRG_050417.indd 35/4/17 3:12 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

4

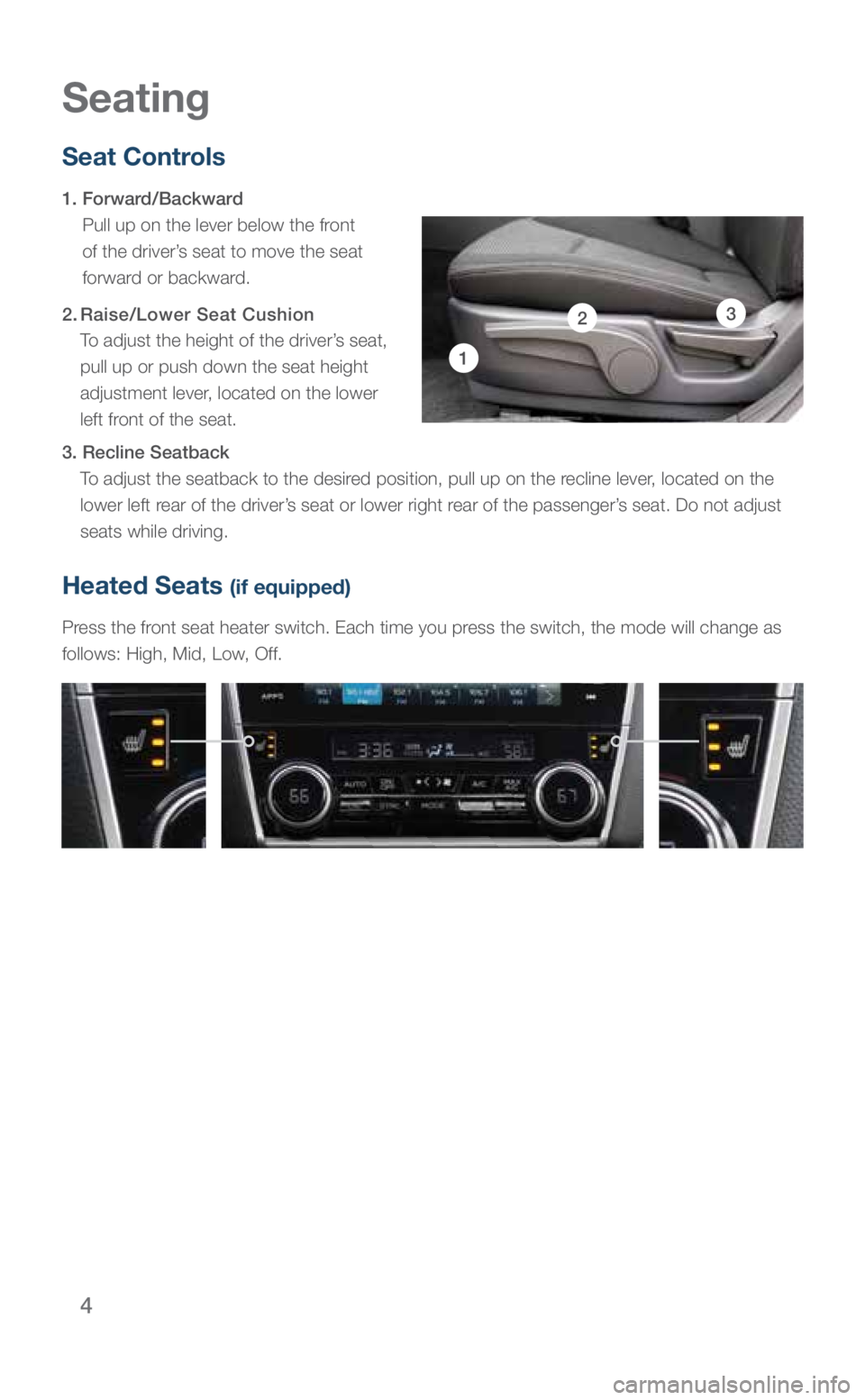

Heated Seats (if equipped)
Press the front seat heater switch. Each time you press the switch, the mode will change as
follows: High, Mid, Low, Off.
Seat Controls
1. Forward/Backward
Pull up on the lever below the front
of the driver’s seat to move the seat
forward or backward.
2. Raise/Lower Seat Cushion
To adjust the height of the driver’s seat,
pull up or push down the seat height
adjustment lever, located on the lower
left front of the seat.
3. Recline Seatback To adjust the seatback to the desired position, pull up on the recline lever, located on the
lower left rear of the driver’s seat or lower right rear of the passenger’s seat. Do not adjust
seats while driving.
Seating
1
23
2926965_18a_Subaru_Legacy_QRG_050417.indd 45/4/17 3:12 PM

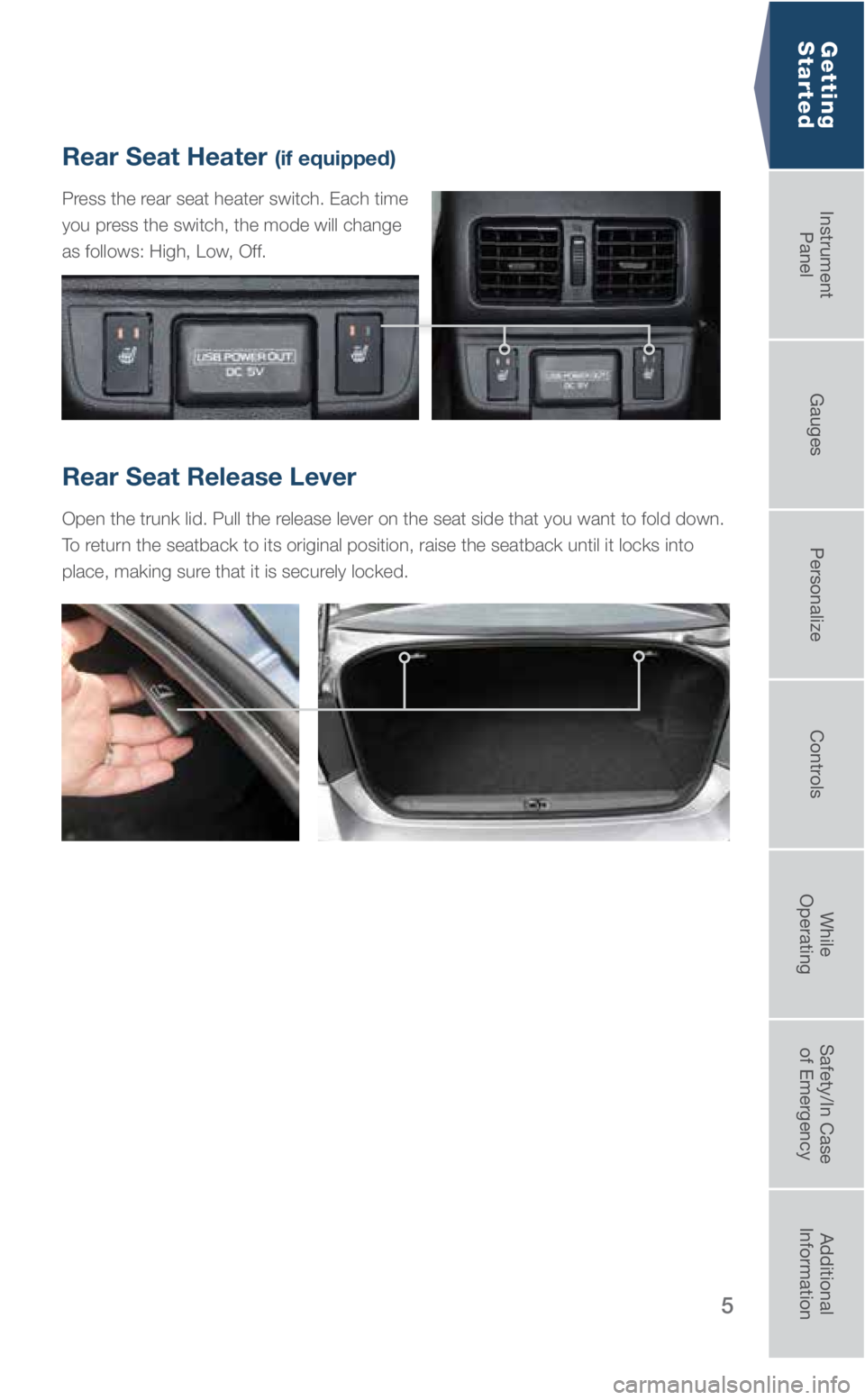

5
Rear Seat Release Lever
Open the trunk lid. Pull the release lever on the seat side that you want to fold down.
To return the seatback to its original position, raise the seatback until it loc\
ks into
place, making sure that it is securely locked.
Getting
Started
Rear Seat Heater (if equipped)
Press the rear seat heater switch. Each time
you press the switch, the mode will change
as follows: High, Low, Off.
2926965_18a_Subaru_Legacy_QRG_050417.indd 55/4/17 3:12 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

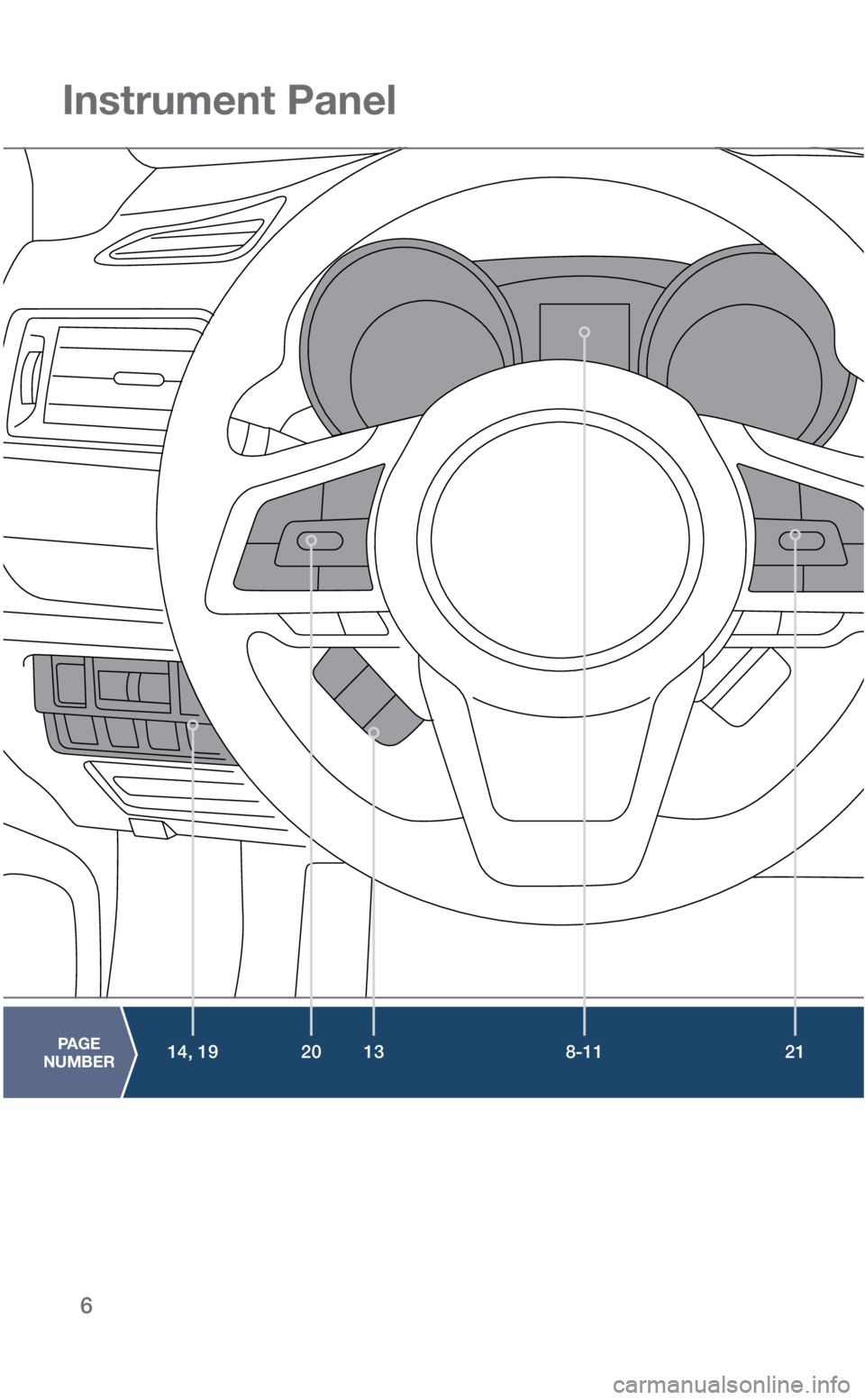

6
Instrument Panel
8-1121
20 1314, 19PAGE
NUMBER
2926965_18a_Subaru_Legacy_QRG_050417.indd 65/4/17 3:13 PM

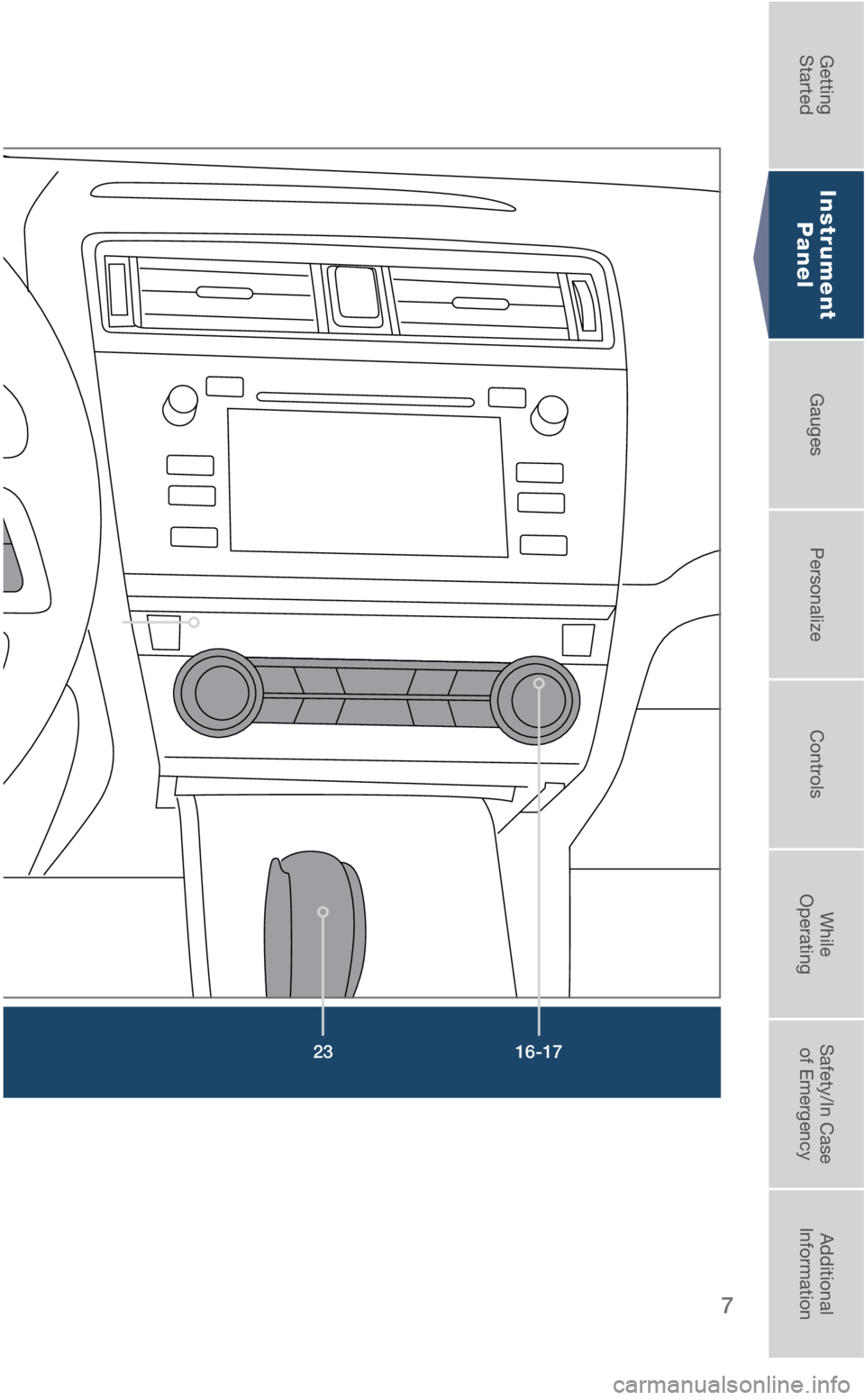

7
Instrument Panel
Instrument
Panel
16-17
23
2926965_18a_Subaru_Legacy_QRG_050417.indd 75/4/17 3:13 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

8
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security indicator light
Charge warning
Oil pressure warning
Brake system
Power steering warning
High beam indicator light
Engine oil level warning
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
All-Wheel Drive
(Automatic Transmission)
Immediate Attention
Caution
Informational
Legacy 2.5i
Gauges
TachometerECO gauge
Temperature gaugeTrip meter and odometerTrip meter reset button
