SUBARU LEGACY 2021 Getting Started Guide

Reverse Tilt Mirror(if equipped)
The passenger side mirror can be set to
automatically tilt down when you move the
select lever to the "R" position, giving better
visibility when backing up. The mirror returns
to its normal position a few seconds after you
move the select lever out of the "R" position.
This setting can also be turned on or off in
“Door Mirror Setting” in the Center Information
Display.
REAR VIEW MIRROR
Auto-dimming Mirror(if equipped)
The auto-dimming function senses distracting glare during
nighttime driving and automatically dims to eliminate the
glare and preserve your vision. Press the switch to turn
auto-dimming on or off. A green LED indicator on the
switch illuminates when the function is on.
GETTING COMFORTABLE
19

HomeLink®5 Accessory Mirror(if equipped)
The HomeLink®5 accessory mirror provides three
buttons to replace devices such as garage door
openers, gate openers, entry door locks, security
systems, and home lighting. The Owner’s Manual
provides programming instructions, and
www.subaru.com/homelinkhas a helpful “how to”
video.
NOTE: HomeLink
®5 may not be compatible with some older door
openers or additional equipment may be required.
POWER WINDOWS
To open or close a window,
partially press down or pull up
and hold the corresponding
switch. The front windows have a
one-touch auto up/down
function, and the rear windows
may also have auto up/down
function, if equipped. Fully press
down or pull up and release to
automatically open or close a
one-touch window.
Power Window Switches
GETTING COMFORTABLE
20

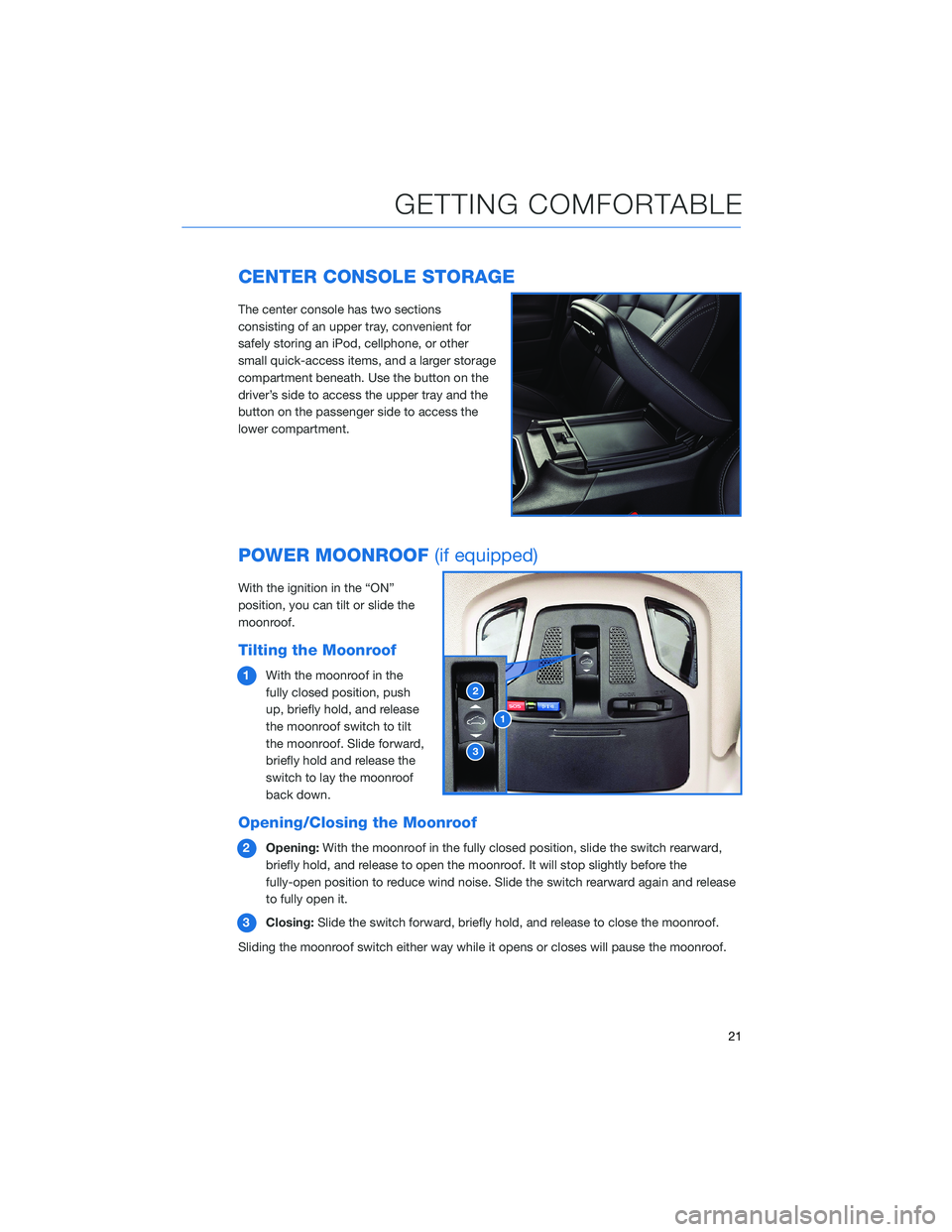

CENTER CONSOLE STORAGE
The center console has two sections
consisting of an upper tray, convenient for
safely storing an iPod, cellphone, or other
small quick-access items, and a larger storage
compartment beneath. Use the button on the
driver’s side to access the upper tray and the
button on the passenger side to access the
lower compartment.
POWER MOONROOF(if equipped)
With the ignition in the “ON”
position, you can tilt or slide the
moonroof.
Tilting the Moonroof
1With the moonroof in the
fully closed position, push
up, briefly hold, and release
the moonroof switch to tilt
the moonroof. Slide forward,
briefly hold and release the
switch to lay the moonroof
back down.
Opening/Closing the Moonroof
2Opening:With the moonroof in the fully closed position, slide the switch rearward,
briefly hold, and release to open the moonroof. It will stop slightly before the
fully-open position to reduce wind noise. Slide the switch rearward again and release
to fully open it.
3Closing:Slide the switch forward, briefly hold, and release to close the moonroof.
Sliding the moonroof switch either way while it opens or closes will pause the moonroof.
1
2
3
GETTING COMFORTABLE
21

CLIMATE CONTROL
Dual 7–Inch Automatic Climate Control
The climate control buttons appear on the lower portion of the bottom display and are
similar to the 11.6 inch display.
1Climate Control On/Off Button
2Climate Control Mode Indicator
3Set Temperature Indicator4Customizable Icon
5Fan Speed Indicator
Select the Climate Control Mode Indicator to see the climate control screen. On this
screen you can adjust the climate control mode, airflow mode, and fan speed.
1
23
54
GETTING COMFORTABLE
22

Select the Set Temperature Indicator to adjust the temperature using the red and blue
arrow buttons or the slider bar. The temperature displays at the top of the screen.
11.6–Inch Automatic Climate Control
You can set separate temperatures for the driver
and front passenger. Set your desired
temperature and let the system automatically
make the adjustments for you. At any time, you
can manually take control of the climate settings.
Operation in Automatic Mode
1On/Off Button:This button turns the
climate control on and off.
2Temperature Control Buttons:
Push the
red arrow up button to increase the
temperature or blue arrow down button to
decrease the temperature. The temperature
will appear on the screen. You can adjust
separate temperature settings for the
driver’s side and passenger’s side. You can
also select the temperature on the screen to
adjust via touch screen using the arrows or by sliding the setting bars.
3Rear Window Defogger Button:Press this button to turn on the rear window defogger.
If equipped, the outside mirror defogger and windshield wiper deicer will also activate. It
will automatically turn off after about 15 minutes. If the window clears before then, press
the button again to turn it off. You can customize this function for continuous operation
through the STARLINK
®touchscreen by selecting “Settings”, then “Car”.
4Defroster Button:This button turns on the front defroster. It also turns on the climate
control system if it is off.
GETTING COMFORTABLE
23

5Customizable Button:This button can be customized to be one of four different
modes: A/C, Max A/C, Auto or Recirculation. On the Home Screen, select "Settings",
"General", and then "Climate Control".
6Climate Control Button:Select the Climate Control Button to control fan speed, air
flow, Max A/C, auto and recirculation modes.
7Fan Speed Button:
Push the “Fan Up”
button to increase fan speed or “Fan Down”
button to decrease fan speed on the main
screen. You can also select the Climate
Control Button to open the climate control
window to adjust fan speed. The fan speed
can be adjusted from 1 to 7.
8MAX A/C Button:Press this button for
quickest cooling.
9Automatic Control Button:
This system
automatically controls all of the climate
system except defogging. Press “AUTO” to
activate automatic control of everything
except the fan speed. Press a second time
for “Full Auto” mode to allow the system to
control the fan speed as well.
10Recirculated/Outside Air Button:Press
this button to prevent outside air from
entering your Subaru. Press the button
again to allow outside air into your
Subaru.
NOTE: To prevent windshield fogging, do not remain in the recirculated mode for an
extended period of time.
11Airflow Mode Selection Buttons:Press the button to select the desired airflow
mode. The selected mode air flow mode is shown on the display.
ICON MODE FUNCTION
Ventilation
Instrument panel outlets
Ventilation 2Instrument panel outlets and less foot outlets than
bi-level
GETTING COMFORTABLE
24

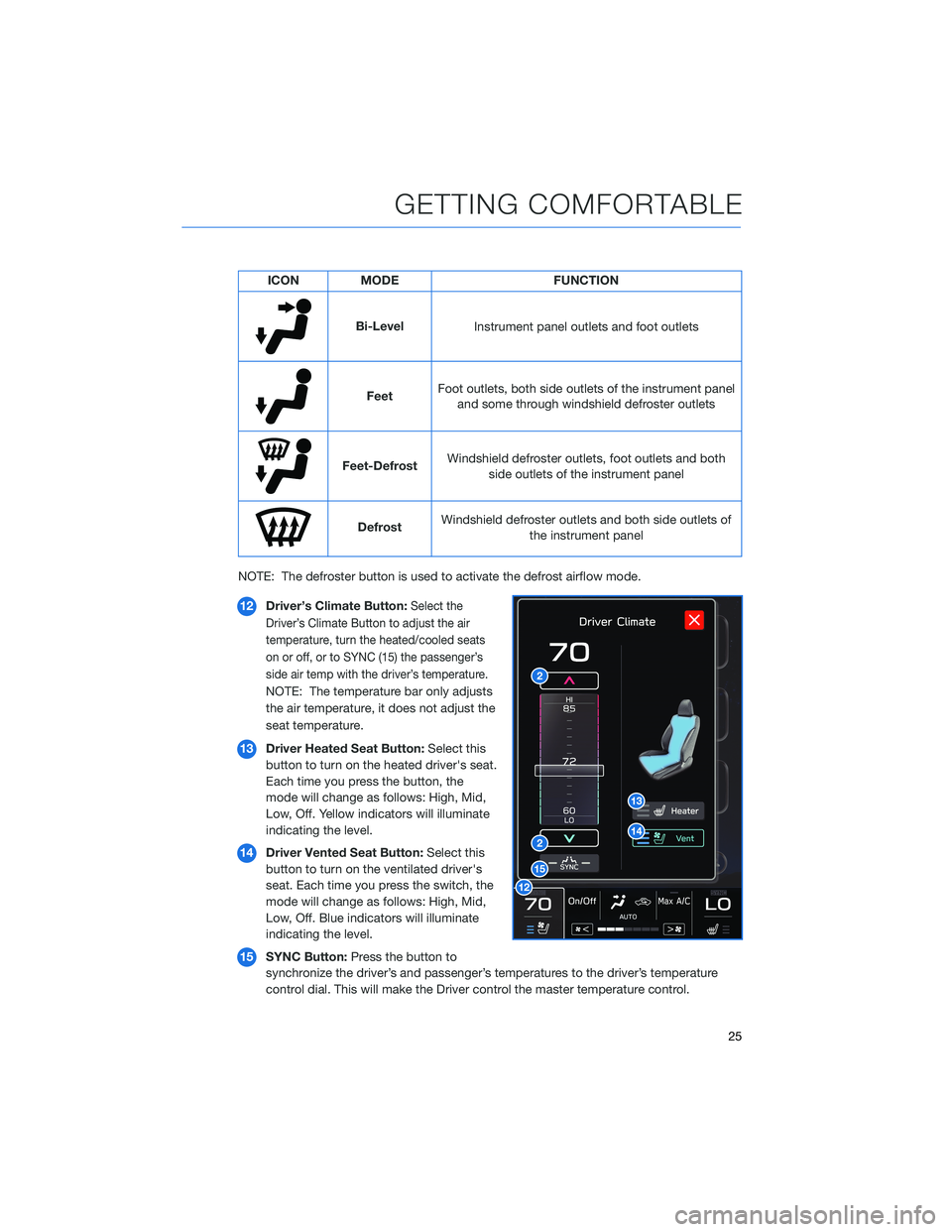

ICON MODE FUNCTION
Bi-Level
Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both
side outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
NOTE: The defroster button is used to activate the defrost airflow mode.
12Driver’s Climate Button:
Select the
Driver’s Climate Button to adjust the air
temperature, turn the heated/cooled seats
on or off, or to SYNC (15) the passenger’s
side air temp with the driver’s temperature.
NOTE: The temperature bar only adjusts
the air temperature, it does not adjust the
seat temperature.
13Driver Heated Seat Button:Select this
button to turn on the heated driver's seat.
Each time you press the button, the
mode will change as follows: High, Mid,
Low, Off. Yellow indicators will illuminate
indicating the level.
14Driver Vented Seat Button:Select this
button to turn on the ventilated driver's
seat. Each time you press the switch, the
mode will change as follows: High, Mid,
Low, Off. Blue indicators will illuminate
indicating the level.
15SYNC Button:Press the button to
synchronize the driver’s and passenger’s temperatures to the driver’s temperature
control dial. This will make the Driver control the master temperature control.
GETTING COMFORTABLE
25

16Passengers’s Climate Button:Select
the Passenger’s Climate Button to adjust
the air temperature, turn the
heated/cooled seats on or off, or to
SYNC (15) the passenger’s side air temp
with the driver’s temperature.
17Passenger Heated Seat Button:Select
this button to turn on the heated
passenger's seat. Each time you press
the button, the mode will change as
follows: High, Mid, Low, Off. Yellow
indicators will illuminate indicating the
level.
18Passenger Vented Seat Button:Select
this button to turn on the ventilated
passenger's seat. Each time you press
the switch, the mode will change as
follows: High, Mid, Low, Off. Blue
indicators will illuminate indicating the
level.
Auto Mode
When using automatic mode, the fan speed, airflow distribution, air-inlet control and air
conditioning compressor are controlled automatically. To activate:
1. Press the “AUTO” button. The “FULL AUTO” indicator light illuminates on the climate
control display.
2. Set the preferred temperature using the temperature control arrows, or select the
climate control button and use the touch buttons or slide bar to adjust the temperature.
If you operate any of the buttons other than “ON/OFF”, rear window defogger, front
defroster, “SYNC”, or the temperature buttons, the “FULL” indicator light will turn off, the
"Auto" will display in the screen button. You can then manually control the system as
desired. Press the “AUTO” button to change back to “FULL AUTO” mode.
GETTING COMFORTABLE
26

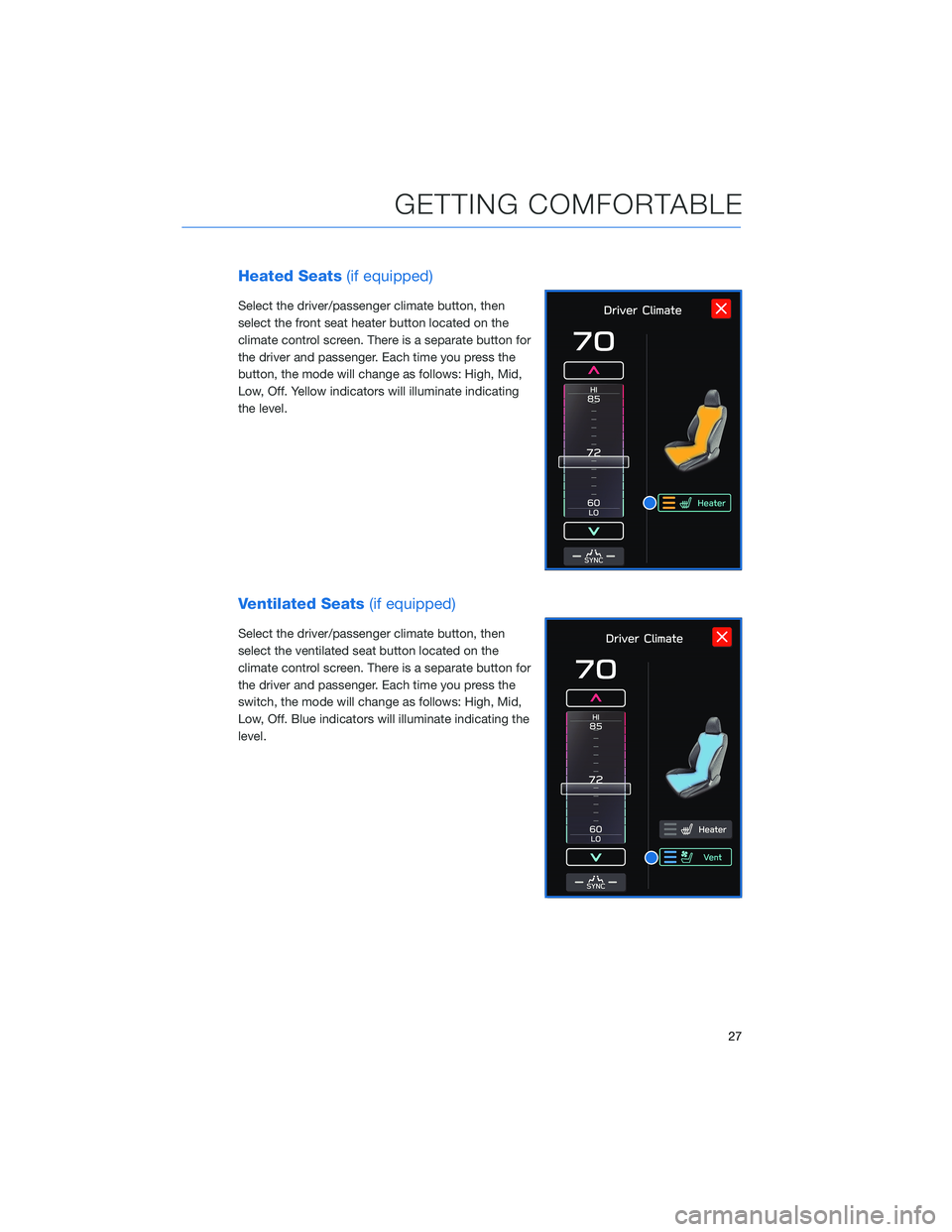

Heated Seats(if equipped)
Select the driver/passenger climate button, then
select the front seat heater button located on the
climate control screen. There is a separate button for
the driver and passenger. Each time you press the
button, the mode will change as follows: High, Mid,
Low, Off. Yellow indicators will illuminate indicating
the level.
Ventilated Seats(if equipped)
Select the driver/passenger climate button, then
select the ventilated seat button located on the
climate control screen. There is a separate button for
the driver and passenger. Each time you press the
switch, the mode will change as follows: High, Mid,
Low, Off. Blue indicators will illuminate indicating the
level.
GETTING COMFORTABLE
27

Rear Heated Seats(if equipped)
There are separate heated seat
switches for each side on the rear
center console. Press the switch
to activate the heated seat. The
heating mode changes to High,
Low, and Off each time you press
the switch, and yellow indictors
illuminate indicating the level.
Heated Steering Wheel(if equipped)
To activate, pull the heated steering wheel switch with
the ignition in “ON” or “ACC”. The indicator light on
the switch will illuminate. To deactivate, pull the switch
again. The heater will stay on for approximately 30
minutes.
Remote Engine Start with Climate Control
You can remotely start your Subaru and adjust the temperature using the STARLINK®
Safety and Security features through theMySubaruApp (subscription required). Please
refer to your SUBARU STARLINK®Owner's Manual for a list of required vehicle conditions
for this feature.
