SUBARU OUTBACK 2005 4.G Owners Manual

1-90
Seat, seatbelt and SRS airbags
position.
The following components are monitored by the indi- cator: "
Front sub sensor (Right hand side)
" Front sub sensor (Left hand side)
" Airbag control module (including impact sensors)
" Frontal airbag module (Driver’s side)
" Frontal airbag module (Front passenger’s side)
" Side airbag sensor (Center pillar right hand side)
" Side airbag sensor (Center pillar left hand side)
" Side airbag module (Driver’s side)
" Side airbag module (Front passenger’s side)
" Side airbag sensor (Rear wheel house right hand
side) " Side airbag sensor (Rear wheel house left hand
side)" Curtain airbag module (Right side)
" Curtain airbag module (Left side)
" Seatbelt pretensioner (Driver’s side)
" Seatbelt pretensioner (Front passenger’s side)
" Seatbelt buckle switch (Driver’s side)
" Seatbelt buckle switch (Front passenger’s side)
" Driver’s seat position sensor
" Front passenger’s occupant detection system
weight sensor" Front passenger’s occupant detection control mod-
ule "
Front passenger’s frontal airbag ON and OFF indi-
cator" All related wiring
If the warning light exhibits any of the following
conditions, there may be a malfunction in the
seatbelt pretensioners and/or SRS airbag sys-
tem. Immediately take your vehicle to your
nearest SUBARU dealer to have the system
checked. Unless checked and properly re-
paired, the seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g. SRS air-
bags may inflate in a very minor collision or not
inflate in a severe collision), which may in-
crease the risk of injury. "Flashing or flickering of the indicator light
" No illumination of the warning light when the
ignition switch is first turned to the “ON” posi- tion " Continuous illumination of the warning light
"Illumination of the warning light while driving

1-91
Seat, seatbelt and SRS airbags
– CONTINUED –
!SRS airbag system servicing
"When discarding an airbag module or scrap-
ping the entire vehicle damaged by a collision,
consult your SUBARU dealer. " The SRS airbag has no user-serviceable
parts. Do not use electrical test equipment on
any circuit related to the SRS airbag system.
For required servicing of the SRS airbag, see
your nearest SUBARU dealer. Tampering with
or disconnecting the system’s wiring could re-
sult in accidental inflation of the SRS airbag or
could make the system inoperative, which may
result in serious injury. The wiring harnesses of
the SRS airbag system are covered with yellow
insulation and system connectors are yellow
for easy identification.
If you need service or repair in areas listed be-
low, have an authorized SUBARU dealer per-
form the work. The SRS airbag control module,
impact sensors and airbag modules are stored
in these areas. "
Under the center console
" Inside each front fender
" Steering wheel and column and nearby areas
" Top of the dashboard on front passenger’s
side and nearby areas" Each front seat and nearby area
" Inside each center pillar
" In each roof side (from the front pillar to a
point over the rear seat) " Between the rear seat cushion and rear wheel
house on each side
In the event that the SRS airbag is deployed, re-
placement of the system should be performed
only by an authorized SUBARU dealer. When the
components of the SRS airbag system are re-
placed, use only genuine SUBARU parts.
NOTE
In the following cases, contact your SUBARU deal-
er as soon as possible. " The front part of the vehicle was involved in an
accident in which the only the driver’s SRS frontal
airbag or both driver’s and front passenger’s SRS
frontal airbags did not deploy." The pad of the steering wheel, the cover over the
front passenger’s SRS frontal airbag, or either

1-92
Seat, seatbelt and SRS airbags
roof side (from the front pillar to a point over the
rear seat) is scratched, cracked, or otherwise dam-
aged. "
Either center pillar and rear wheel house or a
nearby area of the vehicle was involved in an acci-
dent in which the SRS side airbag and SRS curtain
airbag did not deploy. " The fabric or leather of either front seatback is
cut, frayed, or otherwise damaged. ! Precautions against vehicle modifica- tion
"To avoid accidental activation of the system
or rendering the system inoperative, which may
result in serious injury, no modifications
should be made to any components or wiring of
the SRS airbag system.
This includes following modifications: "Installation of custom steering wheels
" Attachment of additional trim materials to
the dashboard " Installation of custom seats
" Replacement of seat fabric or leather
" Installation of additional fabric or leather on the front seat "
Attachment of a hands-free microphone or
any other accessory to a front pillar, a center
pillar, a rear pillar, the windshield, a side win-
dow, an assist grip, or any other cabin sur-
face that would be near a deploying SRS cur-
tain airbag.
" Installation of additional electrical/electronic
equipment such as a mobile two-way radio on
or near the SRS airbag system components
and/or wiring is not advisable. This could inter-
fere with proper operation of the SRS airbag
system.
Do not perform any of the following modifica-
tions. Such modifications can interfere with
proper operation of the SRS airbag system. " Attachment of any equipment (bush bar,
winches, snow plow, skid plate, etc.) other than
genuine SUBARU accessory parts. " Modification of the suspension system or
front end structure. " Installation of a tire of different size and con-
struction from the tires specified on the vehicle

1-93
Seat, seatbelt and SRS airbags
– CONTINUED –
placard attached to the driver’s door pillar or
specified for individual vehicle models in this
Owner’s Manual. "Attachment of any equipment (side steps or
side sill protectors, etc.) other than genuine
SUBARU accessory parts to the side body.
Always consult your SUBARU dealer if you want to in-
stall any accessory parts to your vehicle.

2-1
2
Keys and doors
Keys ............................................................... 2-2 Key number ....................................................... 2-3
Immobilizer (if equipped) ............................. 2-4 Security ID plate ................................................ 2-5
Security indicator light ..................................... 2-5
Key replacement ............................................... 2-6
Door locks ..................................................... 2-6 Locking and unlocking from the outside ........ 2-6
Locking and unlocking from the inside .......... 2-8
Battery drainage prevention function ............. 2-9
Power door locking switches ...................... 2-10 Key lock-in prevention function ...................... 2-11
Remote keyless entry system (if equipped) .............................................. 2-12Locking the doors ............................................. 2-13
Unlocking the doors ......................................... 2-14
Unlocking the trunk lid/rear gate ..................... 2-14
Illuminated entry ............................................... 2-15
Vehicle finder function ..................................... 2-15
Sounding a panic alarm ................................... 2-15
Selecting audible signal operation .................. 2-15
Replacing the battery ....................................... 2-16
Replacing lost transmitters .............................. 2-17
Alarm system ................................................ 2-23 System alarm operation ................................... 2-23
Activating and deactivating the alarm system ............................................................. 2-23
If you have accidentally triggered the alarm
system ............................................................. 2-24
Arming the system ............................................ 2-24
Disarming the system ....................................... 2-26 Valet mode ......................................................... 2-27
Passive arming ................................................. 2-27
Tripped sensor identification .......................... 2-29
Shock sensors (dealer option) ........................ 2-29
Child safety locks ......................................... 2-30
Windows ........................................................ 2-31 Power windows ................................................. 2-31
Trunk lid (Sedan) ........................................... 2-35 To open and close the trunk lid from outside ............................................................ 2-35
To open the trunk lid from inside .................... 2-36
To lock and unlock the trunk lid release lever ................................................................. 2-36
Internal trunk lid release handle ...................... 2-37
Rear gate (Station wagon) ............................ 2-39
Moonroof (if equipped) ................................. 2-41 Tilting/sliding moonroof (Sedan) .................... 2-42
Moonroof (Station wagon) ............................... 2-44

2-2
Keys and doors
Keys and doorsKeys

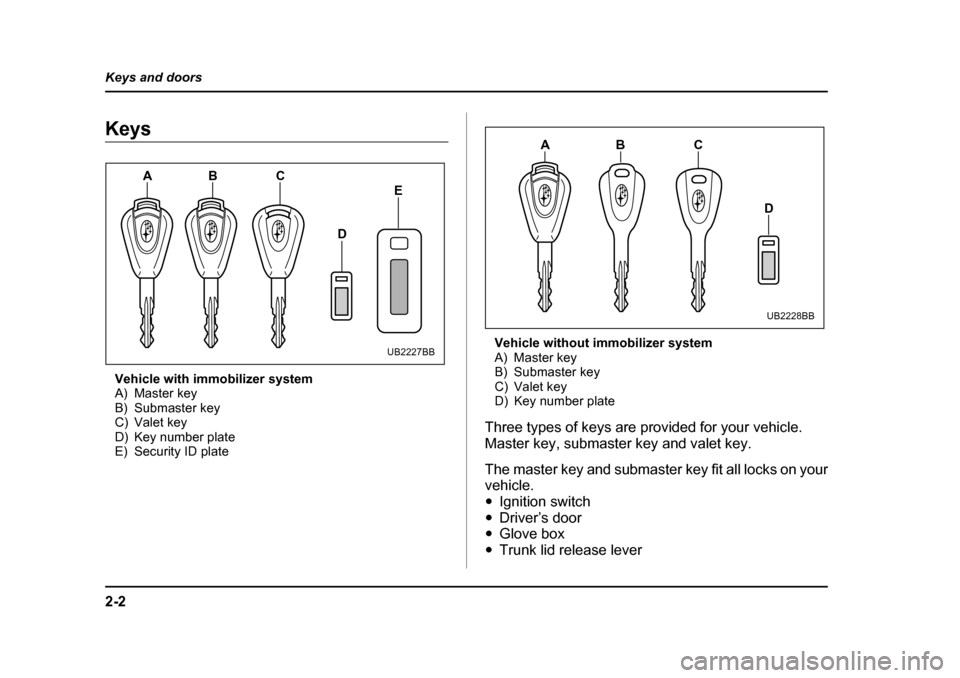

Vehicle with immobilizer system
A) Master key
B) Submaster key
C) Valet key
D) Key number plate
E) Security ID plate Vehicle without immobilizer system
A) Master key
B) Submaster key
C) Valet key
D) Key number plate
Three types of keys are provided for your vehicle.
Master key, submaster key and valet key.
The master key and submaster key fit all locks on your vehicle. " Ignition switch
" Driver’s door
" Glove box
" Trunk lid release lever
D E
C
B
A
UB2227BB
AB C
D
UB2228BB

2-3
Keys and doors
– CONTINUED –
The valet key fits only the ignition switch and door
locks. You can keep the trunk and glove box locked
when you leave your vehicle and valet key at a parking facility.
NOTE
If the key is attached to a keyholder or to a large
bunch of other keys, centrifugal force may act on
it as the vehicle moves, resulting in unwanted
turning of the ignition switch. Also, if a large key-
holder is attached to the key, your knees or hands
may accidentally touch it in a way that turns the ig-
nition switch. !

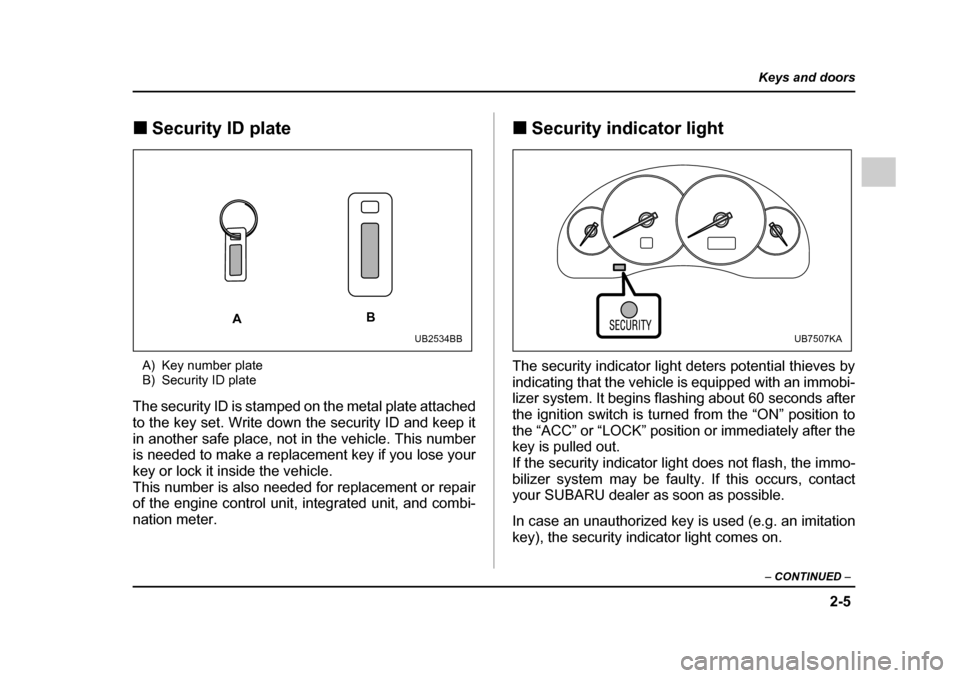

Key number
A) Key number plate
B) Security ID plate
The key number is stamped on the metal plate at-
tached to the key set. Write down the key number and
keep it in another safe place, not in the vehicle. This
number is needed to make a replacement key if you
lose your key or lock it inside the vehicle.
For information on making replacement keys for vehi-
cle with immobilizer system, refer to the “Immobilizer
(if equipped)” in this chapter.
A B
UB2534BB

2-4
Keys and doors
Immobilizer (if equipped)
The immobilizer system is designed to prevent an un-
authorized person from starting the engine. Only keys
registered with your vehicle’s immobilizer system can
be used to operate your vehicle. Even if an unregis-
tered key fits into the ignition switch and can be turned
to the “START” position, the engine will automatically
stop after several seconds.
Each immobilizer key contains a transponder in which
the key’s ID code is stored. When a key is inserted into
the ignition switch and turned to the “ON” position, the
transponder transmits the key’s ID code to the immo-
bilizer system’s receiver. If the transmitted ID code
matches the ID code registered in the immobilizer sys-
tem, the system allows the engine to be started. Since
the ID code is transmitted and acted upon almost in-
stantly, the immobilizer system does not impede nor-
mal starting of the engine.
If the engine fails to start, pull out the key once before
trying again. (Refer to the “Ignition switch” section [chapter 3].)
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada. Oper-
ation is subject to the following two conditions: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE
To protect your vehicle from theft, please pay
close attention to the following security precau- tions: "
Never leave your vehicle unattended with its
keys inside. " Before leaving your vehicle, close all windows
and lock the doors and rear gate. " Do not leave spare keys or any record of your
key number in the vehicle.
Do not get the key wet. If the key gets wet, wipeit dry with a cloth immediately.

2-5
Keys and doors
– CONTINUED –
!Security ID plate
A) Key number plate
B) Security ID plate
The security ID is stamped on the metal plate attached
to the key set. Write down the security ID and keep it
in another safe place, not in the vehicle. This number
is needed to make a replacement key if you lose your
key or lock it inside the vehicle.
This number is also needed for replacement or repair
of the engine control unit, integrated unit, and combi- nation meter. !
Security indicator light
The security indicator light deters potential thieves by
indicating that the vehicle is equipped with an immobi-
lizer system. It begins flashing about 60 seconds after
the ignition switch is turned from the “ON” position to
the “ACC” or “LOCK” position or immediately after the
key is pulled out.
If the security indicator light does not flash, the immo-
bilizer system may be faulty. If this occurs, contact
your SUBARU dealer as soon as possible.
In case an unauthorized key is used (e.g. an imitation
key), the security indicator light comes on.
A B
UB2534BBUB7507KA
