1-50
Seat, seatbelt and SRS airbags

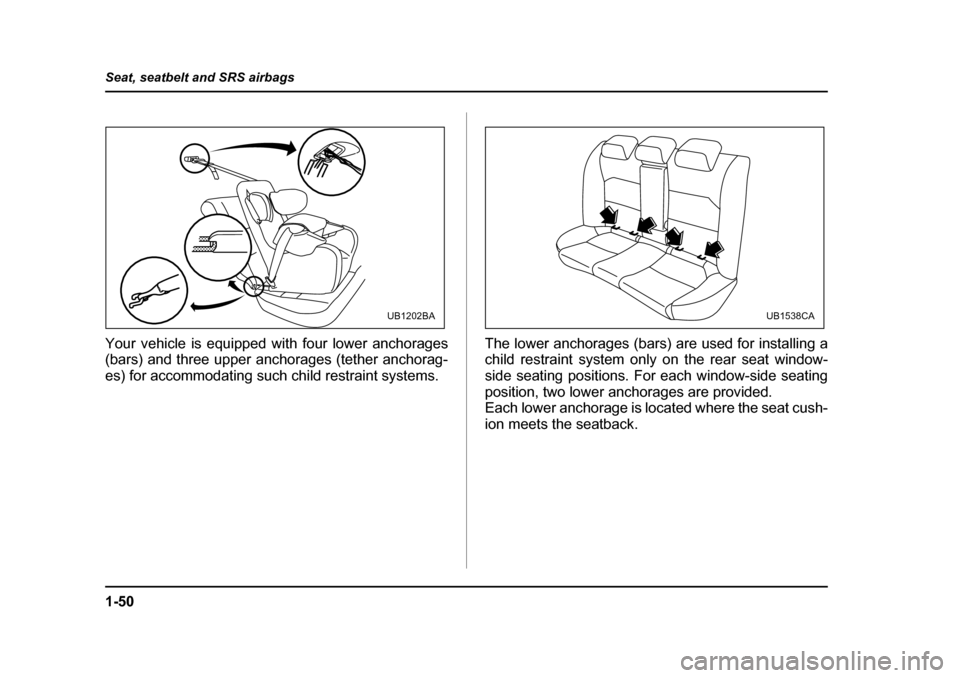

Your vehicle is equipped with four lower anchorages
(bars) and three upper anchorages (tether anchorag-
es) for accommodating such child restraint systems.
The lower anchorages (bars) are used for installing a
child restraint system only on the rear seat window-
side seating positions. For each window-side seating
position, two lower anchorages are provided.
Each lower anchorage is located where the seat cush-
ion meets the seatback.
UB1202BAUB1538CA

1-51
Seat, seatbelt and SRS airbags
– CONTINUED –
Sedan
Station wagon

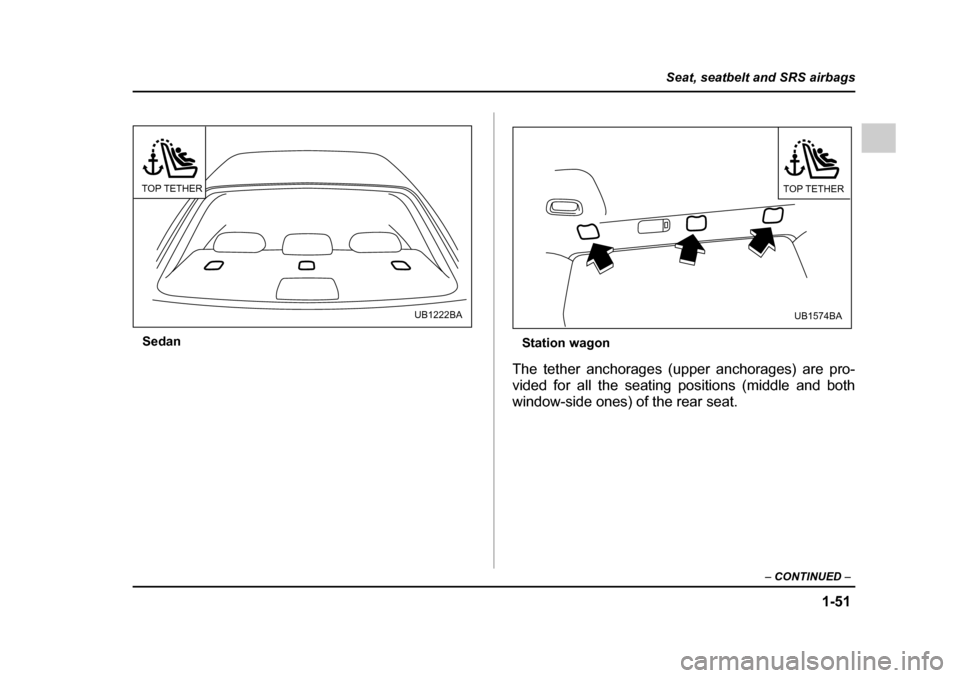

The tether anchorages (upper anchorages) are pro-
vided for all the seating positions (middle and both
window-side ones) of the rear seat.
TOP TETHER
UB1222BA
TOP TETHER
UB1574BA

1-52
Seat, seatbelt and SRS airbags
Sedan
Station wagon

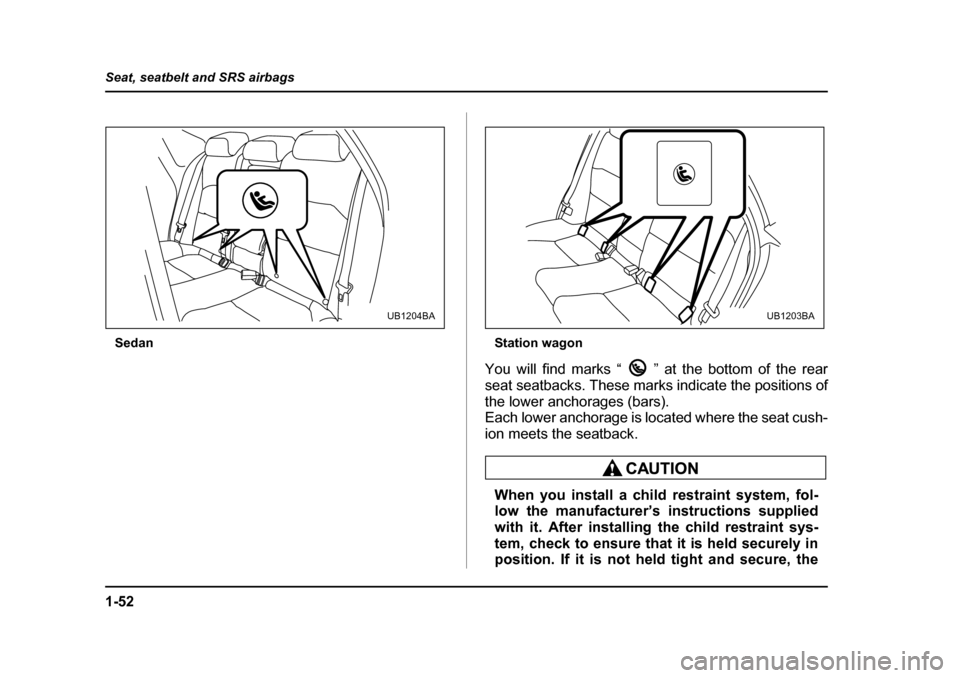

You will find marks “ ” at the bottom of the rear
seat seatbacks. These marks indicate the positions of
the lower anchorages (bars).
Each lower anchorage is located where the seat cush-
ion meets the seatback.
When you install a child restraint system, fol-
low the manufacturer’s instructions supplied
with it. After installing the child restraint sys-
tem, check to ensure that it is held securely in
position. If it is not held tight and secure, the
UB1204BAUB1203BA

1-53
Seat, seatbelt and SRS airbags
– CONTINUED –
danger of your child suffering personal injury in
the event of an accident may be increased.
0

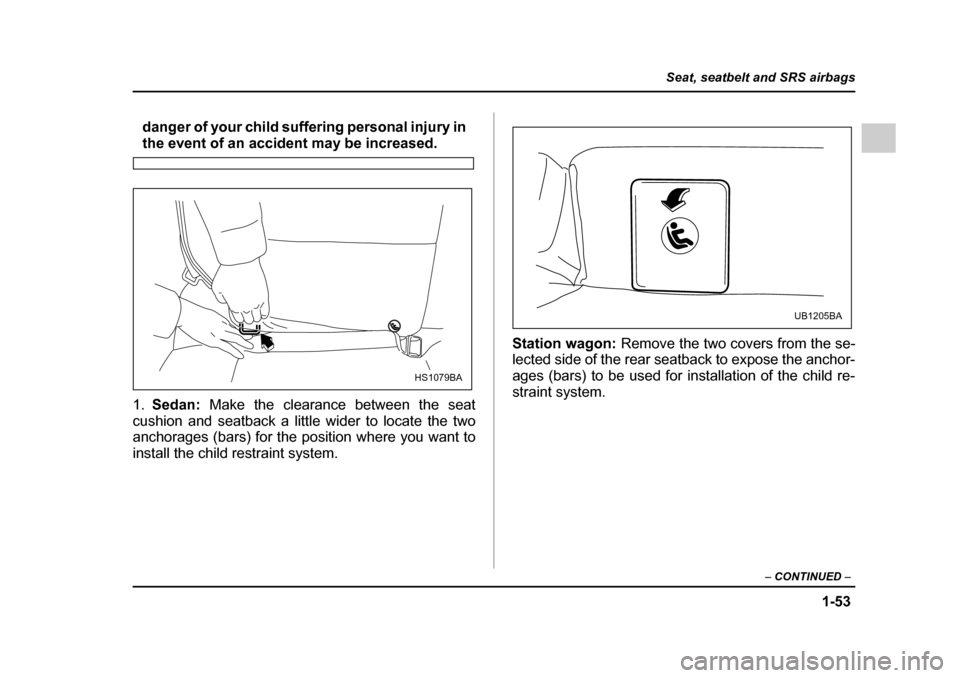

1.Sedan: Make the clearance between the seat
cushion and seatback a little wider to locate the two
anchorages (bars) for the position where you want to
install the child restraint system. Station wagon:
Remove the two covers from the se-
lected side of the rear seatback to expose the anchor-
ages (bars) to be used for installation of the child re-straint system.
HS1079BA
UB1205BA

1-54
Seat, seatbelt and SRS airbags

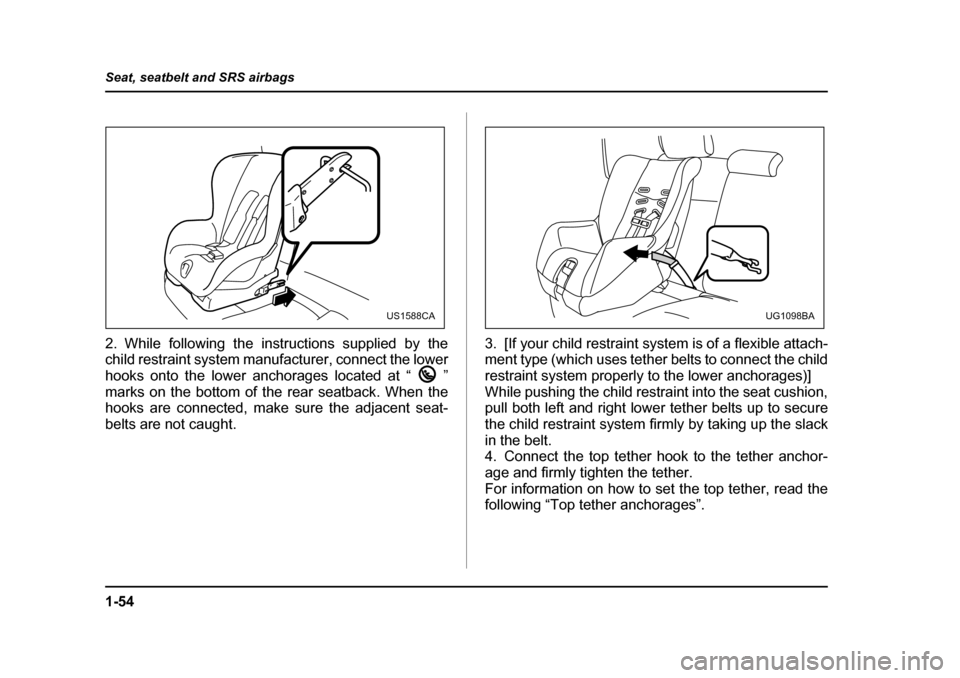

2. While following the instructions supplied by the
child restraint system manufacturer, connect the lower
hooks onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback. When the
hooks are connected, make sure the adjacent seat-
belts are not caught.
3. [If your child restraint system is of a flexible attach-
ment type (which uses tether belts to connect the child
restraint system properly to the lower anchorages)]
While pushing the child restraint into the seat cushion,
pull both left and right lower tether belts up to secure
the child restraint system firmly by taking up the slack
in the belt.
4. Connect the top tether hook to the tether anchor-
age and firmly tighten the tether.
For information on how to set the top tether, read the
following “Top tether anchorages”.
US1588CAUG1098BA

1-55
Seat, seatbelt and SRS airbags
– CONTINUED –

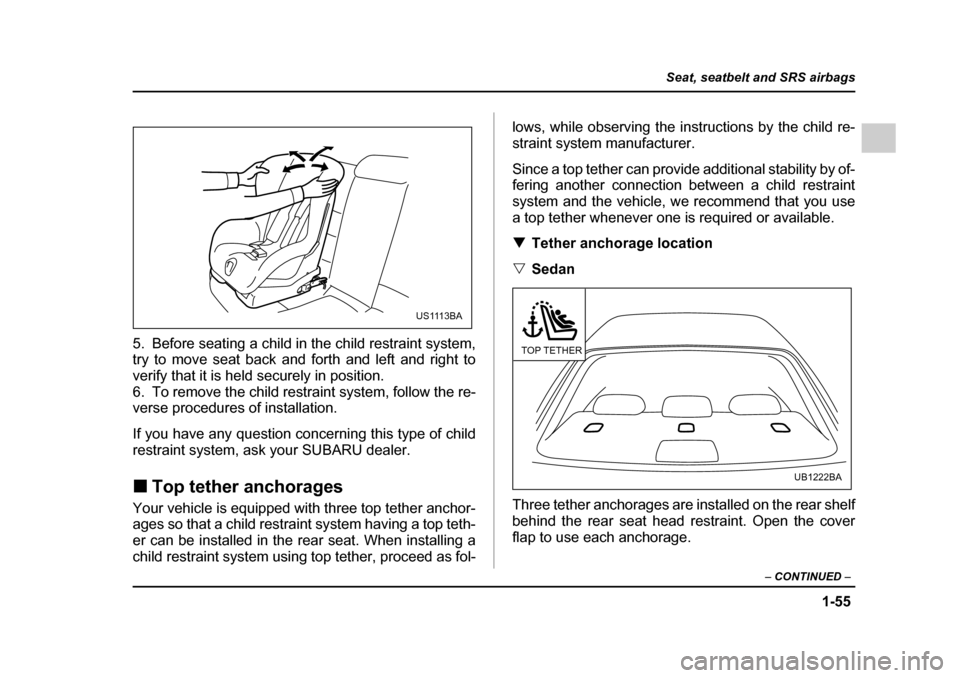

5. Before seating a child in the child restraint system,
try to move seat back and forth and left and right to
verify that it is held securely in position.
6. To remove the child restraint system, follow the re-
verse procedures of installation.
If you have any question concerning this type of child
restraint system, ask your SUBARU dealer. !Top tether anchorages
Your vehicle is equipped with three top tether anchor-
ages so that a child restraint system having a top teth-
er can be installed in the rear seat. When installing a
child restraint system using top tether, proceed as fol- lows, while observing the instructions by the child re-straint system manufacturer.
Since a top tether can provide additional stability by of-
fering another connection between a child restraint
system and the vehicle, we recommend that you use
a top tether whenever one is required or available. !
Tether anchorage location
" Sedan
Three tether anchorages are installed on the rear shelf
behind the rear seat head restraint. Open the cover
flap to use each anchorage.
US1113BA
TOP TETHER
UB1222BA

1-56
Seat, seatbelt and SRS airbags
"

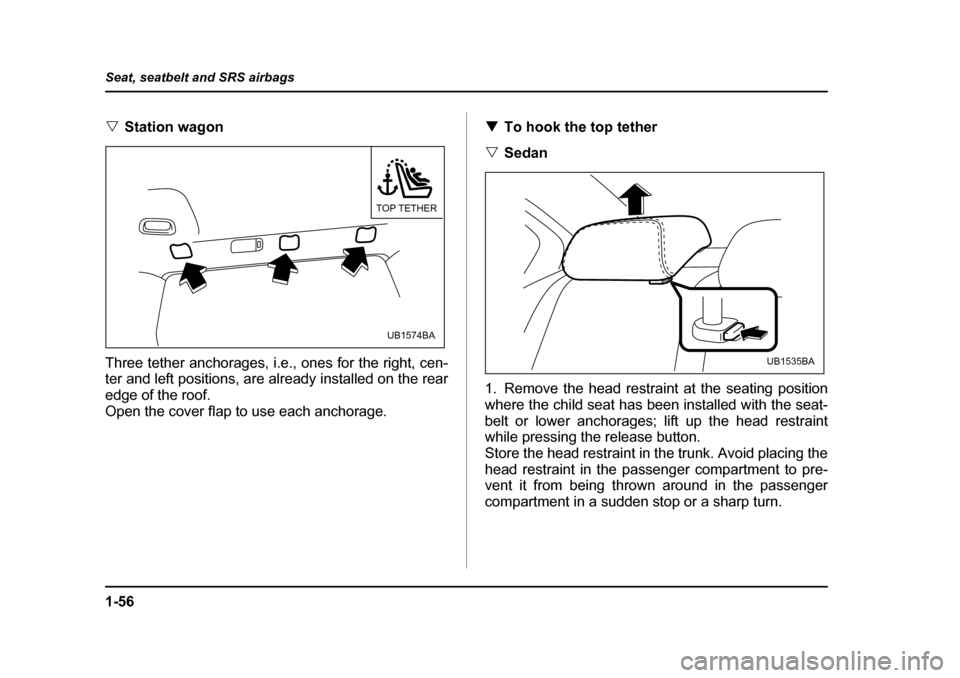

Station wagon
Three tether anchorages, i.e., ones for the right, cen-
ter and left positions, are already installed on the rear
edge of the roof.
Open the cover flap to use each anchorage. !
To hook the top tether
" Sedan
1. Remove the head restraint at the seating position
where the child seat has been installed with the seat-
belt or lower anchorages; lift up the head restraint
while pressing the release button.
Store the head restraint in the trunk. Avoid placing the
head restraint in the passenger compartment to pre-
vent it from being thrown around in the passenger
compartment in a sudden stop or a sharp turn.
TOP TETHER
UB1574BA
UB1535BA

1-57
Seat, seatbelt and SRS airbags
– CONTINUED –

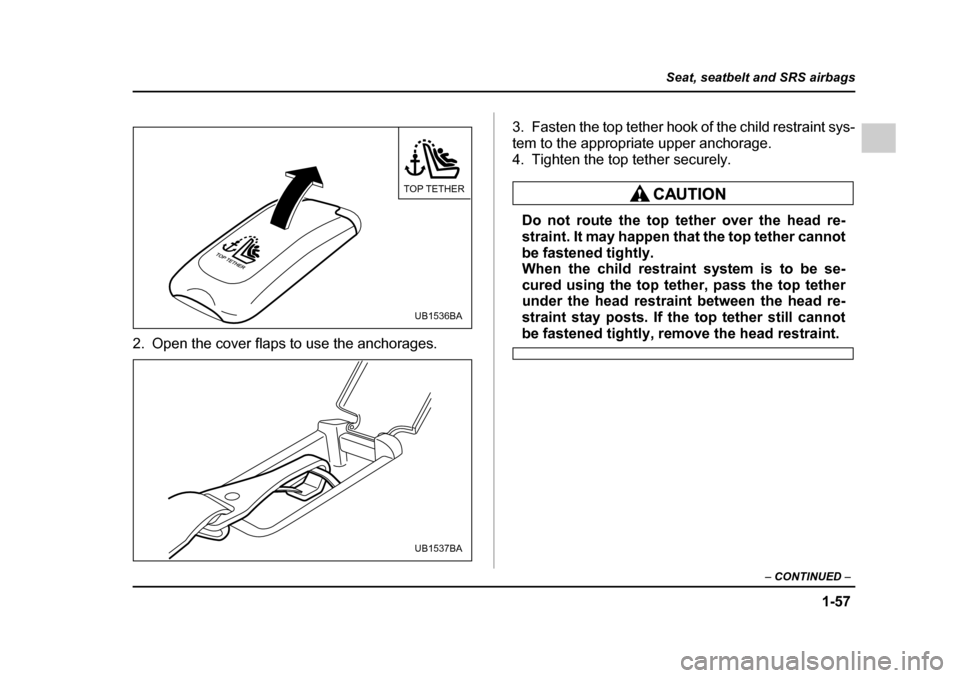

2. Open the cover flaps to use the anchorages. 3. Fasten the top tether hook of the child restraint sys-
tem to the appropriate upper anchorage.
4. Tighten the top tether securely.
Do not route the top tether over the head re-
straint. It may happen that the top tether cannot
be fastened tightly.
When the child restraint system is to be se-
cured using the top tether, pass the top tether
under the head restraint between the head re-
straint stay posts. If the top tether still cannot
be fastened tightly, remove the head restraint.
TOP TETHER
UB1536BA
UB1537BA

1-58
Seat, seatbelt and SRS airbags
"
Station wagon0

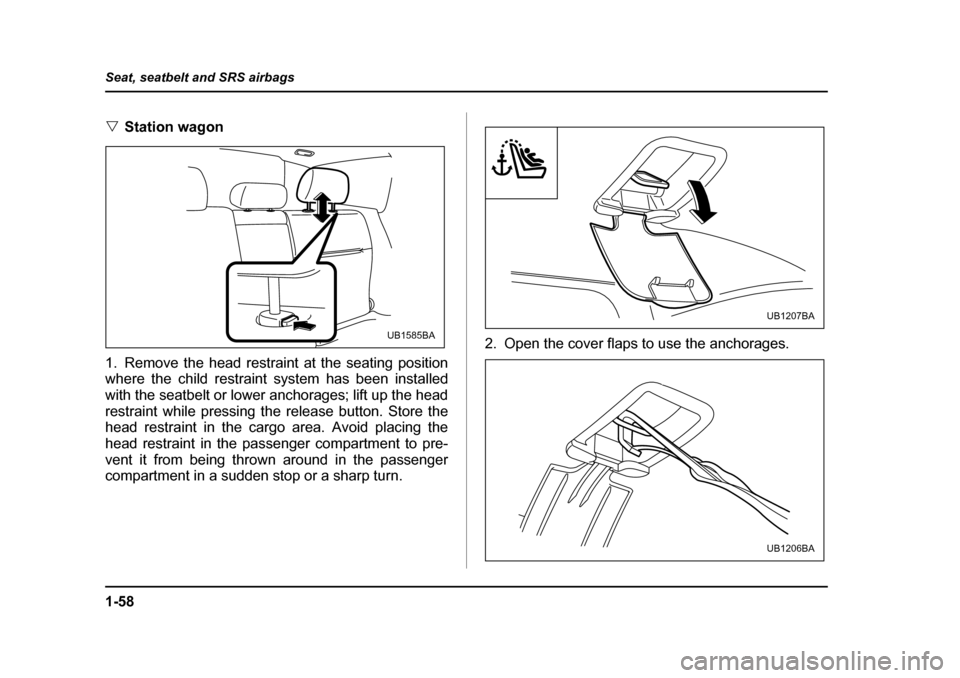

1. Remove the head restraint at the seating position
where the child restraint system has been installed
with the seatbelt or lower anchorages; lift up the head
restraint while pressing the release button. Store the
head restraint in the cargo area. Avoid placing the
head restraint in the passenger compartment to pre-
vent it from being thrown around in the passenger
compartment in a sudden stop or a sharp turn. 2. Open the cover flaps to use the anchorages.
UB1585BA
UB1207BA
UB1206BA

1-59
Seat, seatbelt and SRS airbags
– CONTINUED –
3. Fasten the top tether hook of the child restraint sys-
tem to the appropriate upper anchorage.
4. Tighten the top tether securely.
Always remove the head restraint when mount-
ing a child restraint system with a top tether.
Otherwise, it may happen that the top tether
cannot be fastened tightly. *SRS airbag (Supplemental Restraint
System airbag) *SRS: This stands for supplemental restraint system.
This name is used because the airbag system supple- ments the vehicle’s seatbelts.
Your vehicle is equipped with a crash sensing and di-
agnostic module, which will record the use of the seat-
belt(s) by the driver and/or front passenger when any
of the SRS frontal, side and curtain airbags deploys. !
Vehicle with SRS airbags and lap/
shoulder restraints for driver, front
passenger, and window-side rear pas-
sengers
Your vehicle is equipped with a supplemental restraint
system in addition to a lap/shoulder belt at each front
seating position and each rear window-side seating
positions. The supplemental restraint system (SRS)
consists of six airbags.
The configurations are as follows: " Driver’s and front passenger’s frontal airbags
" Driver’s and front passenger’s side airbags
" Curtain airbags (for driver, front passenger, and
window-side rear passengers)
