12-8Specifications

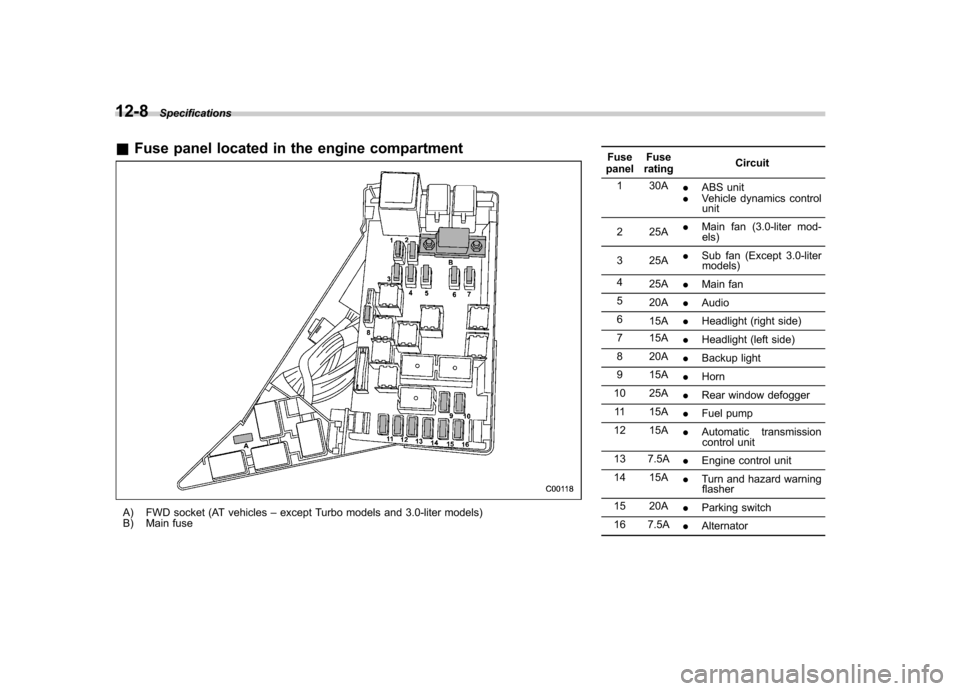

&Fuse panel located in the engine compartment
A) FWD socket (AT vehicles –except Turbo models and 3.0-liter models)
B) Main fuse Fuse
panel Fuse
rating Circuit
1 30A .ABS unit
. Vehicle dynamics control
unit
2 25A .
Main fan (3.0-liter mod-
els)
3 25A .
Sub fan (Except 3.0-liter
models)
4 25A .Main fan
5 20A .Audio
6 15A .Headlight (right side)
7 15A .Headlight (left side)
8 20A .Backup light
9 15A .Horn
10 25A .Rear window defogger
11 15A .Fuel pump
12 15A .Automatic transmission
control unit
13 7.5A .Engine control unit
14 15A .Turn and hazard warning
flasher
15 20A .Parking switch
16 7.5A .Alternator

Bulb chartDescription Wattage Bulb No. Headlight Low beam 12V-55W H7
High beam 12V-60W 9005 (HB3)
Front fog light Except OUTBACK 12V-55W H3
OUTBACK 12V-51W 9006 (HB4)
Front turn signal/parking and
front side marker 12V-27/8W 3157A
Rear combination light Rear turn signal light (Se- dan) 12V-21W (W21W)
Brake/tail and rear side
marker (Sedan) 12V-21/5W (W21/5W)
Brake/tail (Station wagon) 12V-21/5W (W21/5W)
Rear side marker (Station wagon) 12V-5W 168
Rear turn signal light (Stationwagon) 12V-21W (W21W)
Backup light 12V-16W 921
High mount stop light (Sedan) 12V-21W (W21W)
License plate light 12V-5W 168 Specifications
12-9
– CONTINUED –

12-10Specifications
Description Wattage Bulb No.
Trunk room light 12V-5W W5W
Cargo area light 12V-13W
–
Dome light 12V-8W
–
Map light 12V-8W
–
Door step light 12V-3.5W
–

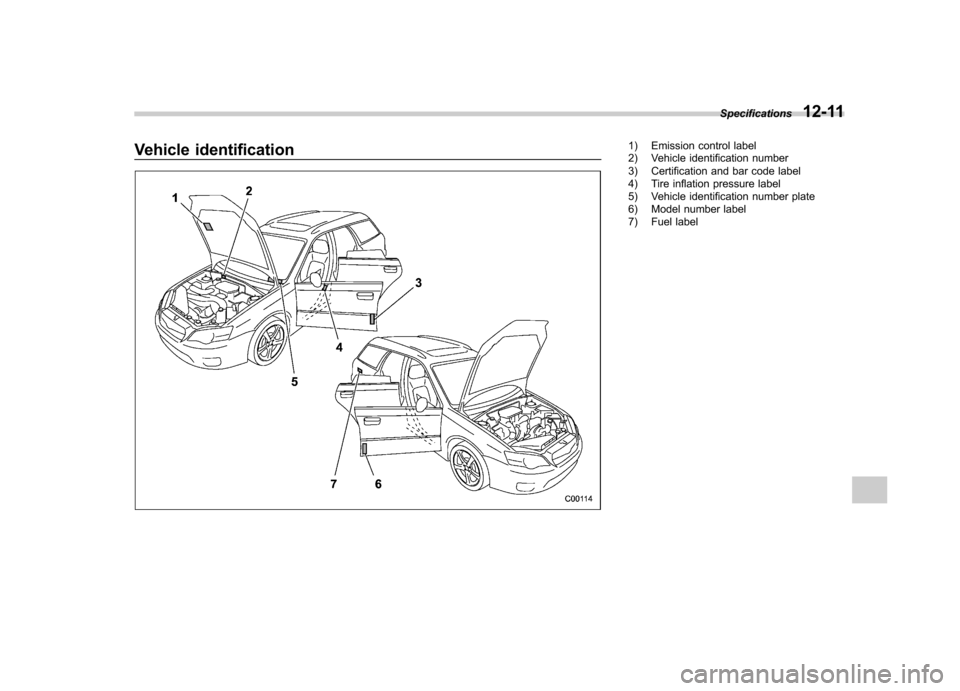

Vehicle identification1) Emission control label
2) Vehicle identification number
3) Certification and bar code label
4) Tire inflation pressure label
5) Vehicle identification number plate
6) Model number label
7) Fuel labelSpecifications
12-11

————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————

For U.S.A............................................................ 13-2
Tire information .................................................. 13-2
Tire labeling ....................................................... 13-2
Recommended tire inflation pressure .................. 13-5
Glossary of tire terminology ............................... 13-6
Tire care –maintenance and safety
practices .......................................................... 13-7
Vehicle load limit –how to determine .................. 13-8 Determining compatibility of tire and vehicle load
capacities ...................................................... 13-10
Adverse safety consequences of overloading on handling and stopping and on tires ................ 13-11
Steps for Determining Correct Load Limit ......... 13-11
Uniform tire quality grading standards .......... 13-12
Treadwear ....................................................... 13-12
Traction AA, A, B, C ......................................... 13-12
Temperature A, B, C ......................................... 13-12
Reporting safety defects (USA) ...................... 13-13
Consumer information and Reporting safety defects
13

13-2Consumer information and Reporting safety defects
For U.S.A.
The following information has been
compiled according to Code of Fed-
eral Regulations “Title 49, Part 575 ”. Tire information &
Tire labeling
Many markings (e.g. Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by tire
manufacturers. These marking can
provide you with useful information
on the tire. ! Tire size
Your vehicle comes equipped with P-
Metric tire size. It is important to
understand the sizing system in se-
lecting the proper tire for your vehi-
cles. Here is a brief review of the tire
sizing system with a breakdown of its
individual elements. ! P Metric
With the P-Metric system, Section
Width is measured in millimeters. To
convert millimeters into inches, divide
by 25.4. The Aspect Ratio (Section
Height divided by Section Width)
helps provide more dimensional in-
formation about the tire size. Example:
(1) P = Certain tire type used on
light duty vehicles such as passenger
cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height
7
section width).
(4) R = Radial Construction
(5) Rim diameter in inches
(6) ZR = Speed category above 149
mph (240 km/h) ! Load and Speed Rating Descrip- tions
The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index. Second,
the letter designation indicates the tire ’s speed rating.

Example:
(6) Load Index: A numerical code
which specifies the maximum load a
tire can carry at the speed indicated
by its speed symbol, at maximum
inflation pressure.
For example,“88 ”means 1,234 lbs
(560 kg), “87 ”means 1,201 lbs (545
kg), “86 ”means 1,168 lbs (530 kg)

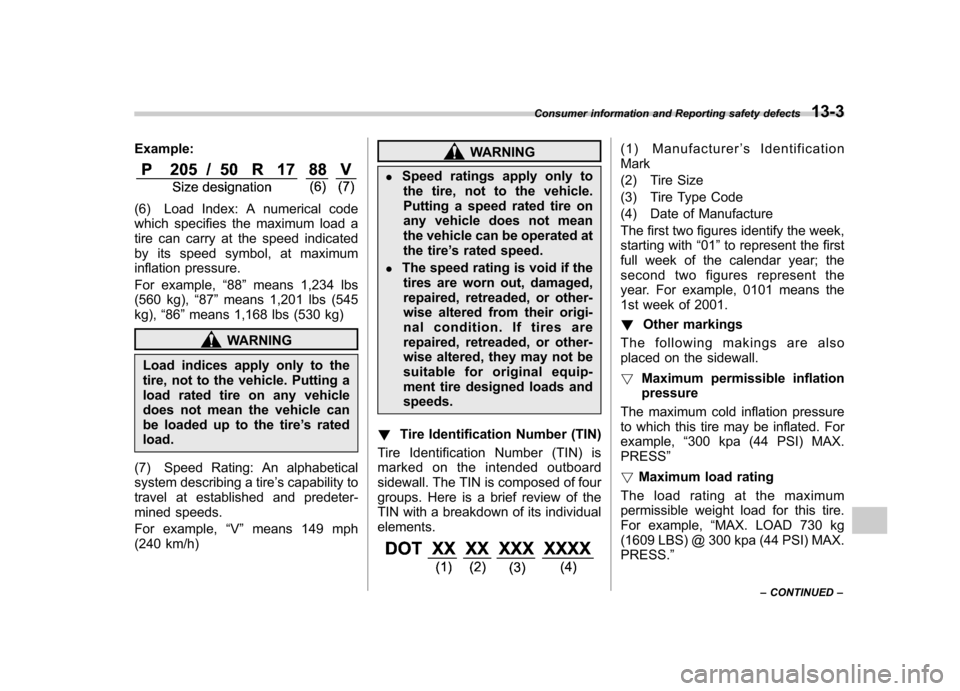

WARNING
Load indices apply only to the
tire, not to the vehicle. Putting a
load rated tire on any vehicle
does not mean the vehicle can
be loaded up to the tire ’s rated
load.
(7) Speed Rating: An alphabetical
system describing a tire ’s capability to
travel at established and predeter-
mined speeds.
For example, “V ” means 149 mph
(240 km/h)
WARNING
. Speed ratings apply only to
the tire, not to the vehicle.
Putting a speed rated tire on
any vehicle does not mean
the vehicle can be operated at
the tire ’s rated speed.
. The speed rating is void if the
tires are worn out, damaged,
repaired, retreaded, or other-
wise altered from their origi-
nal condition. If tires are
repaired, retreaded, or other-
wise altered, they may not be
suitable for original equip-
ment tire designed loads and speeds.
! Tire Identification Number (TIN)
Tire Identification Number (TIN) is
marked on the intended outboard
sidewall. The TIN is composed of four
groups. Here is a brief review of the
TIN with a breakdown of its individual
elements.(1) Manufacturer ’s Identification
Mark
(2) Tire Size
(3) Tire Type Code
(4) Date of Manufacture
The first two figures identify the week,
starting with “01 ”to represent the first
full week of the calendar year; the
second two figures represent the
year. For example, 0101 means the
1st week of 2001. ! Other markings
The following makings are also
placed on the sidewall. ! Maximum permissible inflation
pressure
The maximum cold inflation pressure
to which this tire may be inflated. For
example, “300 kpa (44 PSI) MAX.
PRESS ”
! Maximum load rating
Theloadratingatthemaximum
permissible weight load for this tire.
For example, “MAX. LOAD 730 kg
(1609 LBS) @ 300 kpa (44 PSI) MAX.
PRESS. ”
Consumer information and Reporting safety defects
13-3
– CONTINUED –

13-4Consumer information and Reporting safety defects

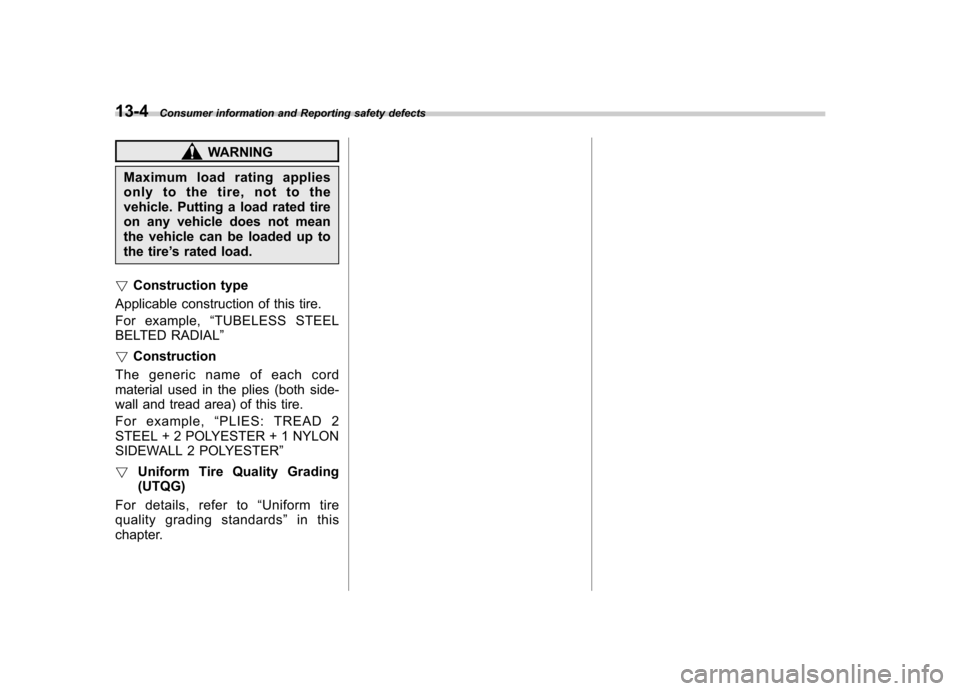

WARNING
Maximum load rating applies
only to the tire, not to the
vehicle. Putting a load rated tire
on any vehicle does not mean
the vehicle can be loaded up to
the tire ’s rated load.
! Construction type
Applicable construction of this tire.
For example, “TUBELESS STEEL
BELTED RADIAL ”
! Construction
The generic name of each cord
material used in the plies (both side-
wall and tread area) of this tire.
For example, “PLIES: TREAD 2
STEEL + 2 POLYESTER + 1 NYLON
SIDEWALL 2 POLYESTER ”
! Uniform Tire Quality Grading
(UTQG)
For details, refer to “Uniform tire
quality grading standards ”in this
chapter.

&Recommended tire inflation pressure
! Recommended cold tire inflation pressure
Recommended cold tire inflation pressure for your vehicle ’s tires is as follows,
Tire size P205/55R16
89H P225/60R16
97H P205/50R17
88V 215/45ZR17 P225/55R17
95V 215/45R18
89Y
Wheel size 16 66.5JJ 17 67JJ 18 67JJ
Pressure Front 32 psi
(220 kPa,
2.2 kgf/cm
2) 32 psi
(220 kPa,
2.2 kgf/cm2) 33 psi
(230 kPa,
2.3 kgf/cm2) 35 psi
(240 kPa,
2.4 kgf/cm2) 32 psi
(220 kPa,
2.2 kgf/cm2) 33 psi
(230 kPa,
2.3 kgf/cm2)
Rear 30 psi
(210 kPa,
2.1 kgf/cm
2) 30 psi
(210 kPa,
2.1 kgf/cm2) 32 psi
(220 kPa,
2.2 kgf/cm2) 33 psi
(230 kPa,
2.3 kgf/cm2) 30 psi
(210 kPa,
2.1 kgf/cm2) 32 psi
(220 kPa,
2.2 kgf/cm2)
Rear at trailertowing –
32 psi
(220 kPa,
2.2 kgf/cm
2) –
32 psi
(220 kPa,
2.2 kgf/cm2) –
Temporary
spare tire Size T135/80R16 T155/70D17 T135/80R16 T135/70D17 T155/70D17 T155/70D17
Pressure
60 psi (420 kPa, 4.2 kgf/cm
2)
Consumer information and Reporting safety defects
