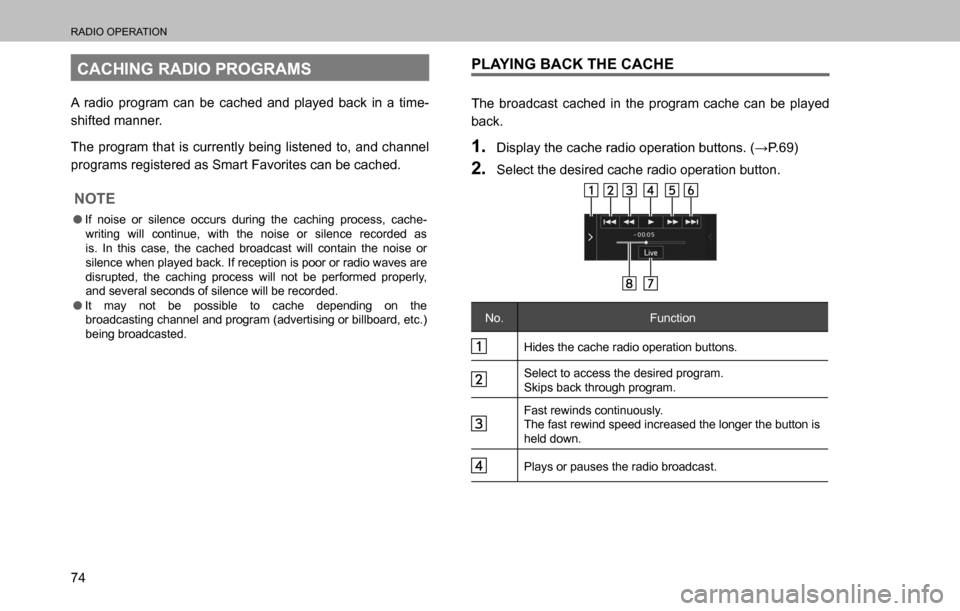

Page 76 of 308
RADIO OPERATION
74
CACHING RADIO PROGRAMS
A radio program can be cached and played back in a time-
shifted manner.
The program that is currently being listened to, and channel
programs registered as Smart Favorites can be cached.
NOTE
OIf noise or silence occurs during the caching process, cache-
writing will continue, with the noise or silence recorded as
is. In this case, the cached broadcast will contain the noise or
silence when played back. If reception is poor or radio waves are
disrupted, the caching process will not be performed properly,
and several seconds of silence will be recorded.
OIt may not be possible to cache depending on the
broadcasting channel and program (advertising or billboard, etc.)
being broadcasted.
PLAYING BACK THE CACHE
The broadcast cached in the program cache can be played
back.
1. ' L V S O D \ W K H F D F K H U D G L R R S H U D W L R Q E X W W R Q V : 3
2. Select the desired cache radio operation button.
No. Function
Hides the cache radio operation buttons.
Select to access the desired program.
Skips back through program.
Fast rewinds continuously.
The fast rewind speed increased the longer the button is
held down.
Plays or pauses the radio broadcast.

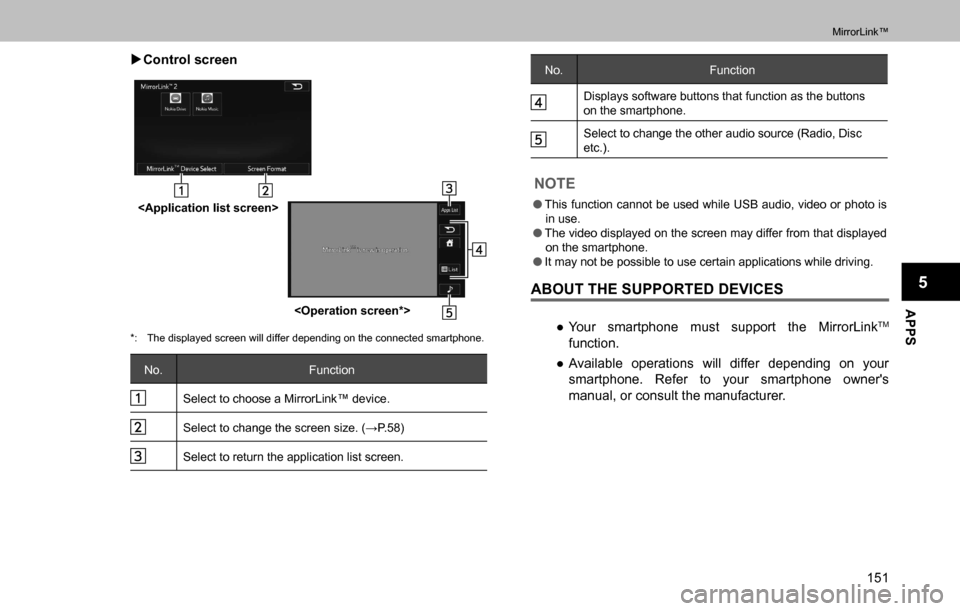

Page 153 of 308
MirrorLink™
151
APPS
5
XControl screen
*: The displayed screen will differ depending on the connected smartphone.
No. Function
Select to choose a MirrorLink™ device.
6 H O H F W W R F K D Q J H W K H V F U H H Q V L ] H : 3
Select to return the application list screen.
No. Function
Displays software buttons that function as the buttons
on the smartphone.
Select to change the other audio source (Radio, Disc
etc.).
NOTE
OThis function cannot be used while USB audio, video or photo is
in use.
OThe video displayed on the screen may differ from that displayed
on the smartphone.
OIt may not be possible to use certain applications while driving.
ABOUT THE SUPPORTED DEVICES
”Your smartphone must support the MirrorLinkTM
function.
”Available operations will differ depending on your
smartphone. Refer to your smartphone owner's
manual, or consult the manufacturer.

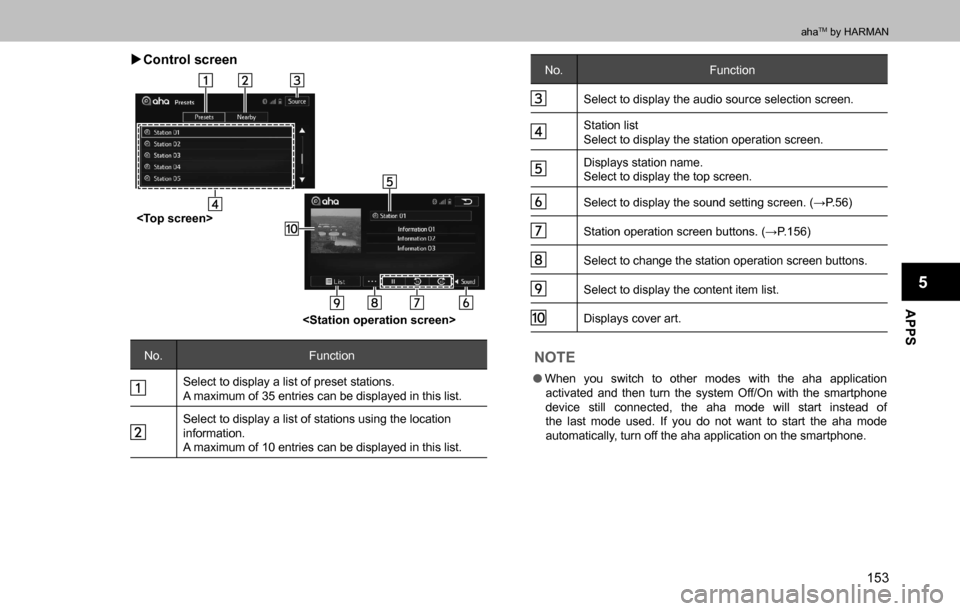

Page 155 of 308
APPS
5
ahaTM by HARMAN
153 XControl screen
No. Function
Select to display a list of preset stations.
A maximum of 35 entries can be displayed in this list.
Select to display a list of stations using the location
information.
A maximum of 10 entries can be displayed in this list.
No. Function
Select to display the audio source selection screen.
Station list
Select to display the station operation screen.
Displays station name.
Select to display the top screen.
6 H O H F W W R G L V S O D \ W K H V R X Q G V H W W L Q J V F U H H Q : 3
6 W D W L R Q R S H U D W L R Q V F U H H Q E X W W R Q V : 3
Select to change the station operation screen buttons.
Select to display the content item list.
Displays cover art.
NOTE
OWhen you switch to other modes with the aha application
activated and then turn the system Off/On with the smartphone
device still connected, the aha mode will start instead of
the last mode used. If you do not want to start the aha mode
automatically, turn off the aha application on the smartphone.
Page 158 of 308
ahaTM by HARMAN
156
STATION OPERATION SCREEN BUTTONS
Button Function
Select to start playback.
Select to pause playback.
Select to stop playback.
Select to upload “Like” information to the
application server. To cancel “Like” information
that is being uploaded to the server, select this
button again.
Select to upload “Dislike” information to the
application server. To cancel “Dislike” information
that is being uploaded to the server, select this
button again.
*Select to display the POI information on the map
V F U H H Q D Q G V H W L W D V D G H V W L Q D W L R Q : 3
Select to call the registered number.
Select to upload your current location to your
social network.
Select to send your voice to the application
V H U Y H U : 3
Button Function
Select to refresh the content item information in
the current station.
Select to rewind the current content item for 15
seconds.
Select to fast forward the current content item for
30 seconds.
*: With navigation function
NOTE
OThe button display will vary depending on each station or content
item.
SHOUT FUNCTION
Your voice can be sent to the application server.
1. Select .

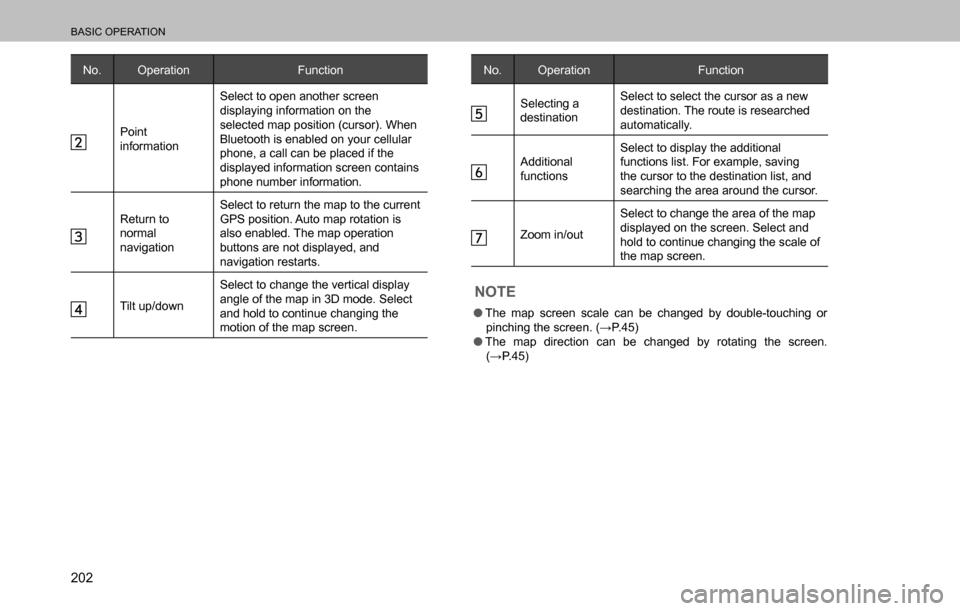

Page 204 of 308
BASIC OPERATION
202
No. Operation Function
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigationSelect to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/downSelect to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/outSelect to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
OThe map screen scale can be changed by double-touching or
S L Q F K L Q J W K H V F U H H Q : 3
OThe map direction can be changed by rotating the screen.
: 3
Page 225 of 308
DESTINATION SEARCH
223
NAVIGATION SYSTEM
8
2. Select More (More).
3. Select Simulate Navigation (Simulate Navigation).
4. Check that the route simulation is displayed.
”The simulation begins from the start point and works
through the entire route at the recommended speed.
”You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No. Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1. Select Menu (Menu) on the map screen.
2. Select Cancel Route (Cancel Route).
”You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5 R X W H & K D Q J H 5 R X W H

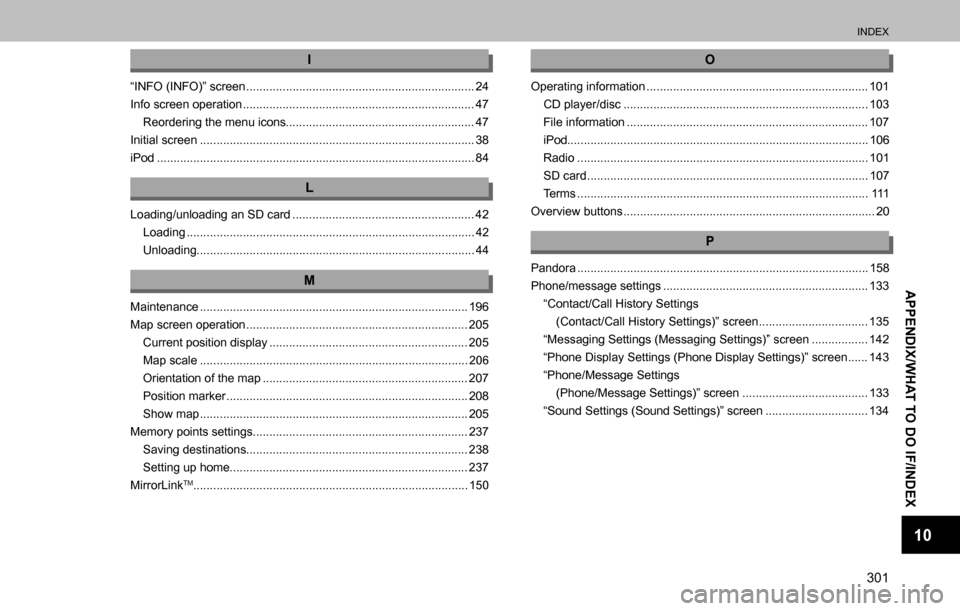

Page 303 of 308
INDEX
301
APPENDIX/WHAT TO DO IF/INDEX
10
I
“INFO (INFO)” screen ..................................................................... 24
Info screen operation ...................................................................... 47
Reordering the menu icons......................................................... 47
Initial screen ................................................................................... 38
iPod ................................................................................................ 84
L
Loading/unloading an SD card ....................................................... 42
Loading ....................................................................................... 42
Unloading.................................................................................... 44
M
Maintenance ................................................................................. 196
Map screen operation ................................................................... 205
Current position display ............................................................ 205
Map scale ................................................................................. 206
Orientation of the map .............................................................. 207
Position marker ......................................................................... 208
Show map ................................................................................. 205
Memory points settings................................................................. 237
Saving destinations................................................................... 238
Setting up home........................................................................ 237
MirrorLink
TM................................................................................... 150
O
Operating information ................................................................... 101
CD player/disc .......................................................................... 103
File information ......................................................................... 107
iPod........................................................................................... 106
Radio ........................................................................................ 101
SD card ..................................................................................... 107
Terms ........................................................................................ 111
Overview buttons ............................................................................ 20
P
Pandora ........................................................................................ 158
Phone/message settings .............................................................. 133
“Contact/Call History Settings
(Contact/Call History Settings)” screen ................................. 135
“Messaging Settings (Messaging Settings)” screen ................. 142
“Phone Display Settings (Phone Display Settings)” screen ...... 143
“Phone/Message Settings
(Phone/Message Settings)” screen ...................................... 133
“Sound Settings (Sound Settings)” screen ............................... 134
