2016 Quick Reference Guide
Page 2 of 18
2
Remote keyless entry system
Remote transmitter key (if equipped)
Access key(if equipped)
Lock/ Unlock doors
PANIC
B A S I C O PE R AT I O N
*
Grip the driver’s door handle to unlock the
driver’s door. Grip the front passenger’s door
handle to unlock all doors.
All doors will be locked/unlocked by the following procedures carrying the access key on
your person. (The driver should always carry the access key.)
For detailed operating and safety information, please refer to
your Owner’s Manual.
Keyless access function (if equipped)
Side door (front door handles only):
1 All doors will be locked.
2 The driver’s door will be unlocked.
(To unlock all doors, briefly press the button
a second time within 5 seconds.)
3 Press and hold to open the trunk.
4 The horn will sound and the hazard warning
flashes will flash.
Opening rear gate:
Press
23
4
1
1
2
3
4
Locking
Unlocking*
Door lock sensor
Grip
To u c h
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
er’s Manual.
Page 3 of 18
3
Ignition switch must be in ACC or ON position.
1 Select side to adjust
2 To adjust the mirror, move the switch in the
direction of your desired position.
Adjustable components
1 Forward and backward adjustment
2 Seat cushion angle adjustment
3 Seat height adjustment
4 Seatback angle (reclining) adjustment
5 Lumber support adjustment
1 Forward and backward adjustment
2 Seat cushion height adjustment (Driver's seat only)
3 Seatback reclining adjustment
Power seat (Driver’s seat-if equipped):
Manual seat (if equipped):
Front seat
Tilt/ telescopic steering wheel
Remote control mirror switch
1 Adjust the seat position and pull the tilt/
telescopic lock lever down.
2 Move the steering wheel to the desired level.
3 Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
2
1
2
3
2
12
1
2
4
3
5
Page 4 of 18
4
Start/ Stop engine
The key can be turned from ACC to LOCK
only when the key is pushed in while turning
it (all models) and the select lever is in the
P position (CVT models).
Push-button ignition switch (if equipped)
Electronic parking brake switch Ignition switch (if equipped)
*The design may be slightly different from the illustration depending on the models.
Starting engine:
1. Carry the access key, and sit in the driver’s seat.
2. Apply the parking brake.
3. Shift the select lever in the P position (CVT models) or shift lever in neutral (MT models).
4. Depress the brake pedal (CVT models) or brake pedal and clutch pedal (MT models) until the indicator on the push-button ignition switch turns green.
5. While depressing the brake pedal (CVT models) or clutch pedal (MT models), press the push-button ignition switch.To stop engine:
1. Stop the vehicle completely.
2. Move the select lever to the P position (CVT models) or shift lever in neutral (MT models).
3. Press the push-button ignition switch.
Every time the button is pressed without depressing the brake pedal, the\
power is switched
in the sequence of OFF➞ACC➞ON➞OFF.
OFF ( Tu r n e d o f f )ACC (Orange)ON (Orange)
Operation indicator
Apply
Release
X Some functions are available on certain models. X For detailed operating and safety information, please refer to your Own\
er’s Manual.
Page 5 of 18
5
You must raise the slider and hold it in that position
before you can move the shift lever to the R position.
To change gears, fully depress the clutch pedal, move
the shift lever, and gradually let up on the clutch pedal.
Shift paddle:
Gearshifts can be performed using the shift paddle
behind the steering wheel.
Operate Select lever/ Shift lever
M = Manual mode:
With the vehicle either moving or stationary, move the
select lever from the D position to the M position to
select the manual mode.
Continuously variable transmission (if equipped)
Manual transmission (if equipped)
With the brake pedal depressed, shift while pressing the button in
Shift while pressing the button in
Shift without pressing the button
Select lever button
DownshiftUpshift
Page 6 of 18
6
DRIVER’S AREA
1 Headlights
2 Headlight flasher, High/Low beam change
3 Turn signal
Headlight switch/ Turn signal lever/ Front fog light switch (if equipped)A
4 Front fog lights (if equipped)
To turn on the front fog lights, rotate dial to .
Front fog lights operate only when headlight switch
is in:
- position.
- AUTO position and the headlights are on.
Models without EyeSight system Models with EyeSight system
ACL
HI
FD
K
G
E
JB
FD
4
3
3
1
2
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
er’s Manual.
Page 7 of 18
7
1 Windshield wiper
To operate the wiper, rotate knob to;
: Mist (for a single wipe) : Off : Intermittent : Low speed : High speed
2 Wiper intermittent time control
3 Windshield washer
Wiper and washer switchB
To turn on, press the button.
Use in emergency conditions.
Hazard warning flasher switchC
Turn the dial to adjust the illumination brightness of the
instrument panel.
When the control dial is turned fully upward to
position, the illumination brightness becomes the
maximum and the automatic dimming function does not
work at all.
Illumination brightness control dialD
*The design may be slightly different from the illustration depending on the models.
1
2
3
Page 8 of 18
8
1 Defroster button:
Press the button to defrost the windshield.
2 Rear window defogger button:
Press the button to turn on rear window defogger,
outside mirror defogger and windshield wiper deicer
(if equipped). The function will automatically shut off
after approximately 15 minutes.*The illustration of the print is Type A.
Defroster button/ Rear window defogger buttonE
1 Lock switch
2 For driver’s window
3 For front passenger’s window
4 For rear left passenger’s window
5 For rear right passenger’s window
Power window switchesH
Power rear gate switchF
Hood release knobG
Press and hold the switch.
12
124
53
Pull
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.
Page 9 of 18
9
To unlock all doors and the rear gate
To lock all doors and the rear gate

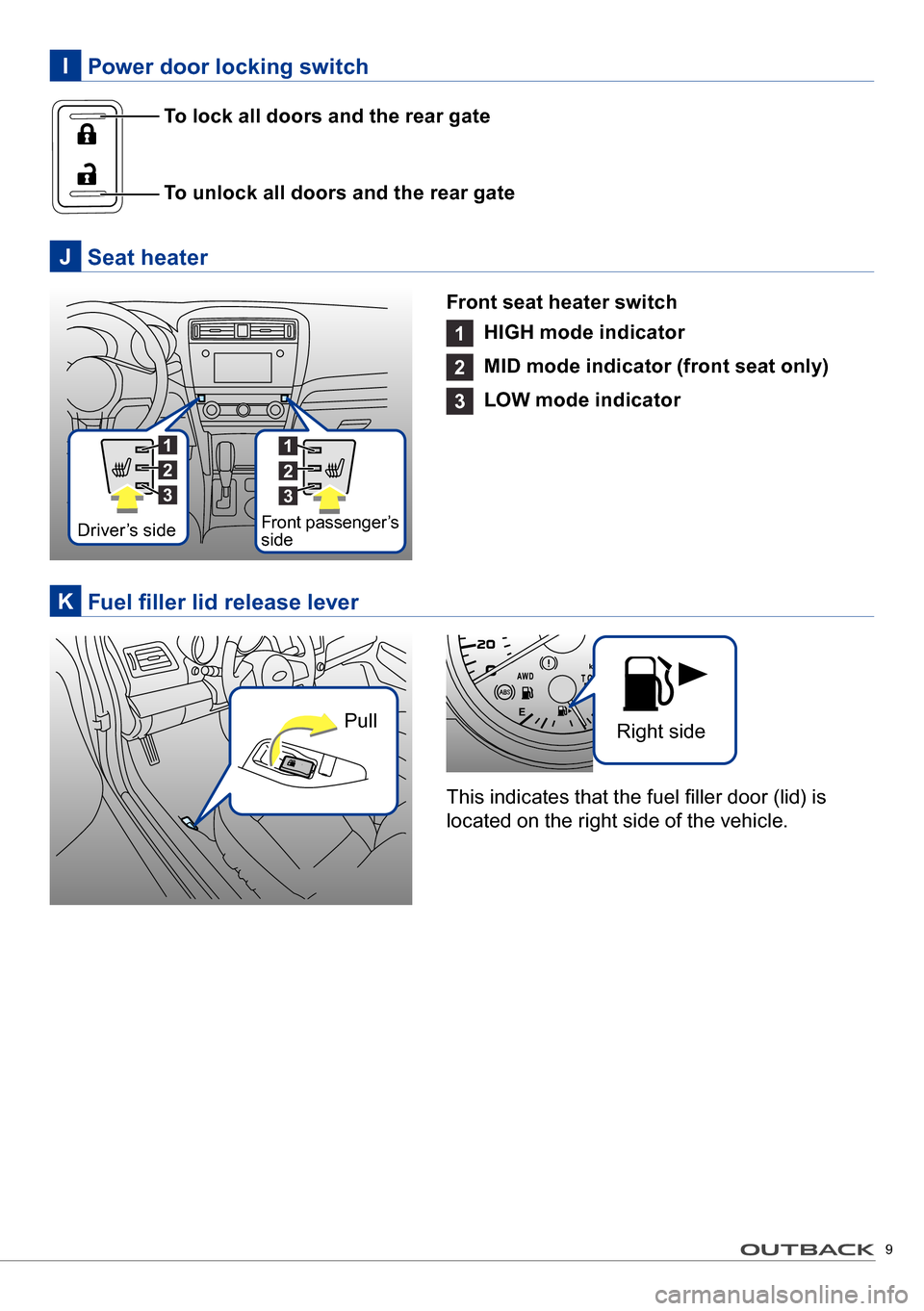

Power door locking switchI
Fuel filler lid release leverK
Seat heaterJ
Front seat heater switch
1 HIGH mode indicator
2 MID mode indicator (front seat only)
3 LOW mode indicator
This indicates that the fuel filler door (lid) is
located on the right side of the vehicle.
11
22
33
PullRight side
Driver’s sideFront passenger’s side
Page 10 of 18
10
Deactivate the Hill Holder function when:
• Towing a trailer
• Carrying a heavy load
• When you do not frequently stop your vehicle on an
uphill slope using the parking brake.
Tilting Sliding
Moonroof switch (if equipped)
1 Raise
2 Lower
1 Open
2 Close
Hill Holder switch
*The design may be slightly different from the illustration depending on the models.
Audio control buttonsL
These buttons allow the driver to control audio functions
without taking his/her hands off the steering wheel.
2
1
2
1
Activate / Deactivate
Press
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.
