SUBARU OUTBACK 2016 6.G Navigation Manual
Manufacturer: SUBARU, Model Year: 2016, Model line: OUTBACK, Model: SUBARU OUTBACK 2016 6.GPages: 308, PDF Size: 11.2 MB
Page 61 of 308
BASIC OPERATION
59
AUDIO
3
XMirrorLinkTM
1. Select Screen Format (Screen Format) on the
application list screen.
2. Select the desired item to be adjusted.
No. Function
Select to display a screen surrounded by black on all
four sides.
Select to enlarge the image horizontally and vertically to
full screen.
Select to enlarge the image horizontally or vertically.
NOTE
OThe brightness, contrast, tone and color of the audio screen can
E H F K D Q J H G : 3
VOICE RECOGNITION SYSTEM
1. Press this switch to operate the voice recognition
system.
”The voice recognition system and its list of
F R P P D Q G V F D Q E H R S H U D W H G : 3
Page 62 of 308
RADIO OPERATION
60
RADIO OPERATION
AM/FM RADIO
OVERVIEW
Select AM (AM) or FM (FM) on the “Select Audio Source
6 H O H F W $ X G L R 6 R X U F H
Page 63 of 308
![SUBARU OUTBACK 2016 6.G Navigation Manual
RADIO OPERATION
61
AUDIO
3
No. Function
Select to display the audio source selection screen.
Select to display the cache radio operation buttons.
: 3
6 H O H F W W R G L V S O D \](/img/17/7312/w960_7312-62.png "SUBARU OUTBACK 2016 6.G Navigation Manual
RADIO OPERATION
61
AUDIO
3
No. Function
Select to display the audio source selection screen.
Select to display the cache radio operation buttons.
: 3
6 H O H F W W R G L V S O D \")
RADIO OPERATION
61
AUDIO
3
No. Function
Select to display the audio source selection screen.
Select to display the cache radio operation buttons.
: 3
6 H O H F W W R G L V S O D \ W K H V R X Q G V H W W L Q J V F U H H Q : 3
Select to display a list of receivable stations/channels.
Select to scan for receivable stations/channels.
HD Radio only: Select to store information of the audio
F X U U H Q W O \ E H L Q J E U R D G F D V W R Q W K H U D G L R : 3
Select to tune to a preset station/channel.
Select to turn HD Radio mode on/off. When the HD
Radio indicator is off, the station list shows only analog
broadcasts.
Select to display the additional text information.
Analog FM only: Select to display RBDS text messages.
NOTE
OThe radio automatically changes to stereo reception when a
stereo broadcast is received.
OThe radio automatically blends to an HD Radio signal in AM or
FM where available.
PRESETTING A STATION
Radio mode has a mix preset function, which can store up
to 36 stations from any of the AM, FM or SiriusXM Satellite
Radio bands.
1. Tune in the desired station.
2. Select (add new) ((add new)).
”To change the preset station to a different one, select
and hold the preset station.
3. Select Yes < H V R Q W K H F R Q

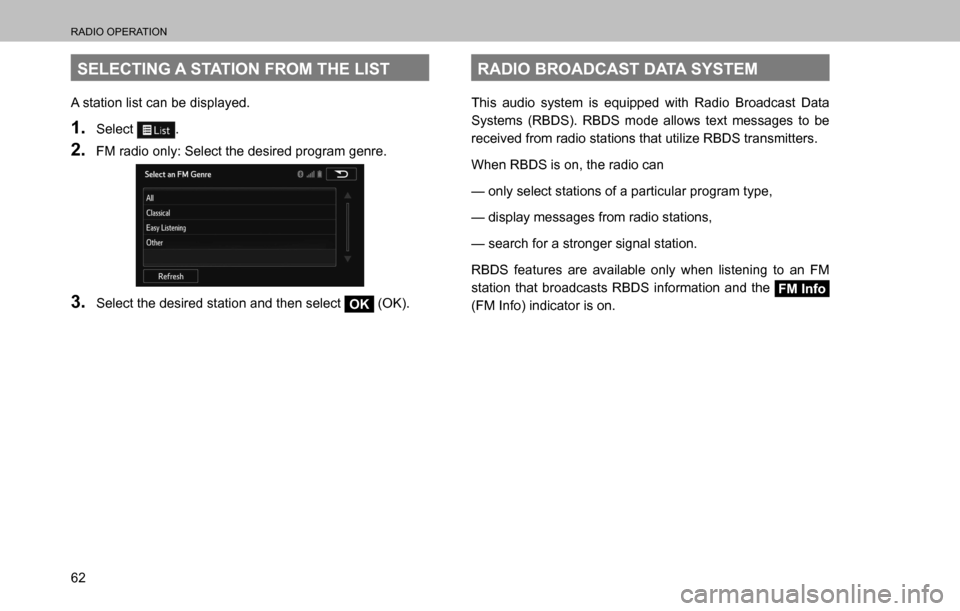

Page 64 of 308
RADIO OPERATION
62
SELECTING A STATION FROM THE LIST
A station list can be displayed.
1. Select .
2. FM radio only: Select the desired program genre.
3. Select the desired station and then select OK (OK).
RADIO BROADCAST DATA SYSTEM
This audio system is equipped with Radio Broadcast Data
Systems (RBDS). RBDS mode allows text messages to be
received from radio stations that utilize RBDS transmitters.
When RBDS is on, the radio can
— only select stations of a particular program type,
— display messages from radio stations,
— search for a stronger signal station.
RBDS features are available only when listening to an FM
station that broadcasts RBDS information and the
FM Info
(FM Info) indicator is on.

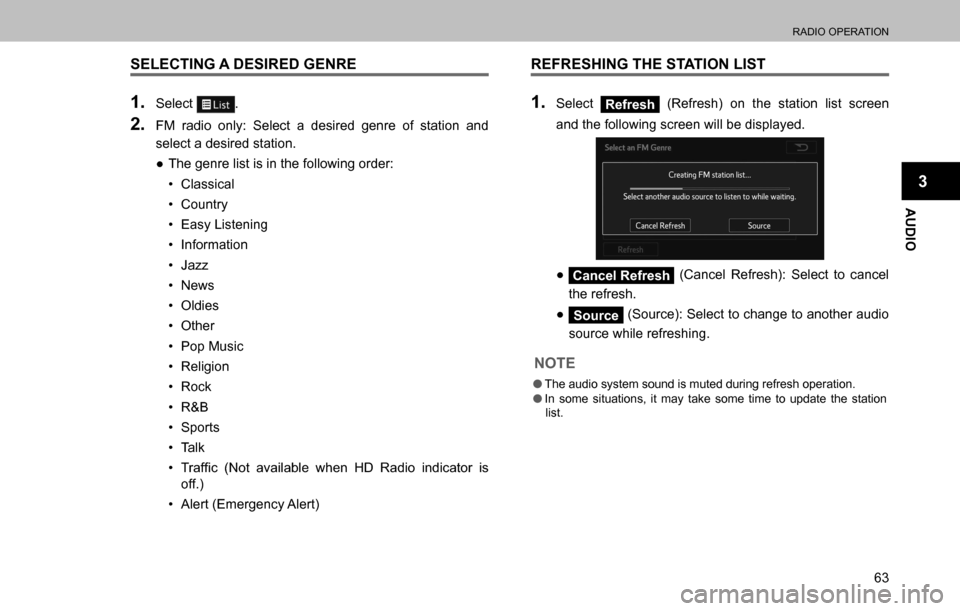

Page 65 of 308
RADIO OPERATION
63
AUDIO
3
SELECTING A DESIRED GENRE
1. Select .
2. FM radio only: Select a desired genre of station and
select a desired station.
”The genre list is in the following order:
‡ Classical
‡ Country
‡ Easy Listening
‡ Information
‡ Jazz
‡ News
‡ Oldies
‡ Other
‡ Pop Music
‡ Religion
‡ Rock
‡ R&B
‡ Sports
‡ Talk

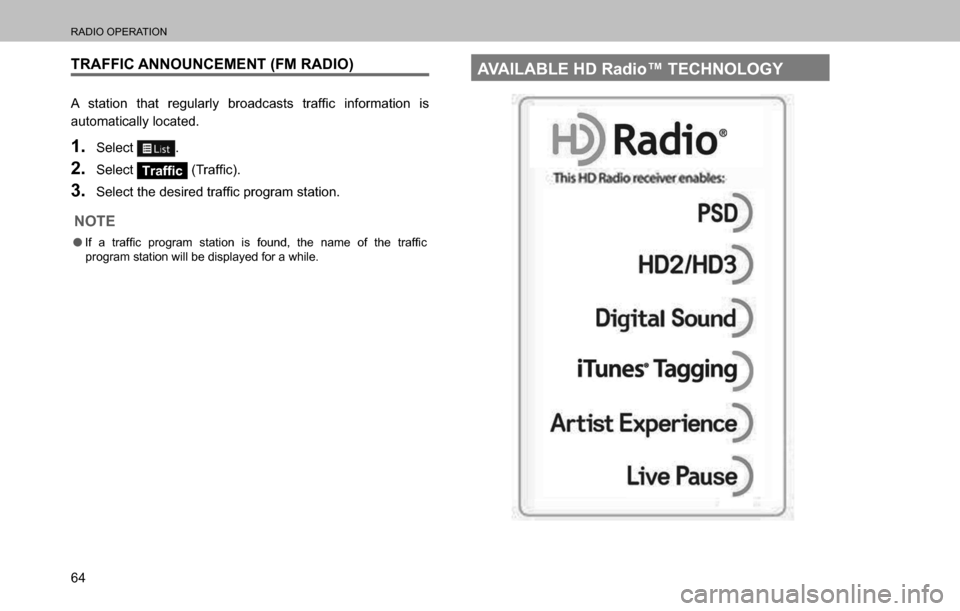

Page 66 of 308
RADIO OPERATION
64
TRAFFIC ANNOUNCEMENT (FM RADIO)
$ V W D W L R Q W K D W U H J X O D U O \ E U R D G F D V W V W U D I

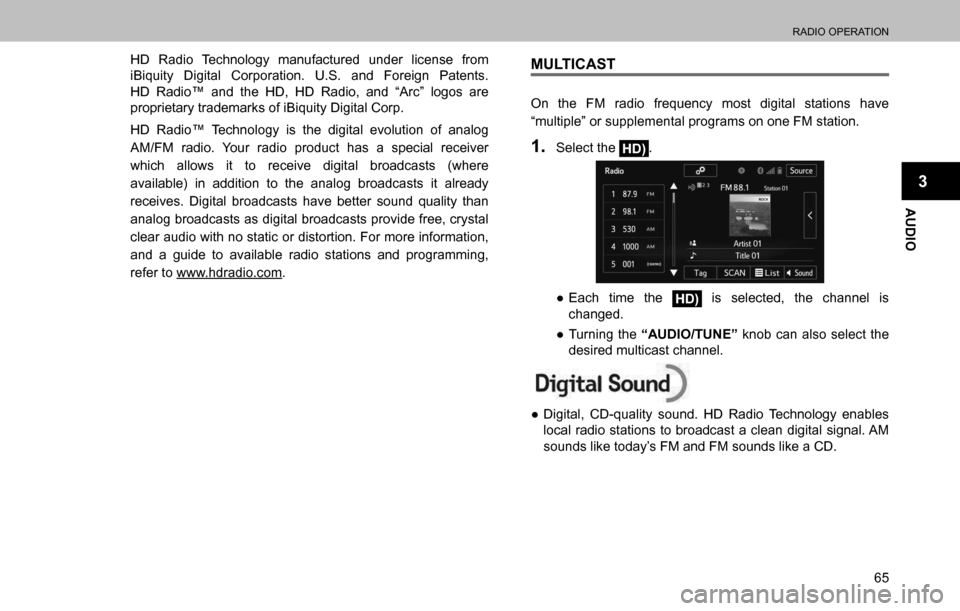

Page 67 of 308
RADIO OPERATION
65
AUDIO
3
HD Radio Technology manufactured under license from
iBiquity Digital Corporation. U.S. and Foreign Patents.
HD Radio™ and the HD, HD Radio, and “Arc” logos are
proprietary trademarks of iBiquity Digital Corp.
HD Radio™ Technology is the digital evolution of analog
AM/FM radio. Your radio product has a special receiver
which allows it to receive digital broadcasts (where
available) in addition to the analog broadcasts it already
receives. Digital broadcasts have better sound quality than
analog broadcasts as digital broadcasts provide free, crystal
clear audio with no static or distortion. For more information,
and a guide to available radio stations and programming,
refer to www.hdradio.com.MULTICAST
On the FM radio frequency most digital stations have
“multiple” or supplemental programs on one FM station.
1. Select the HD).
”Each time the HD) is selected, the channel is
changed.
”Turning the “AUDIO/TUNE” knob can also select the
desired multicast channel.
”Digital, CD-quality sound. HD Radio Technology enables
local radio stations to broadcast a clean digital signal. AM
sounds like today’s FM and FM sounds like a CD.

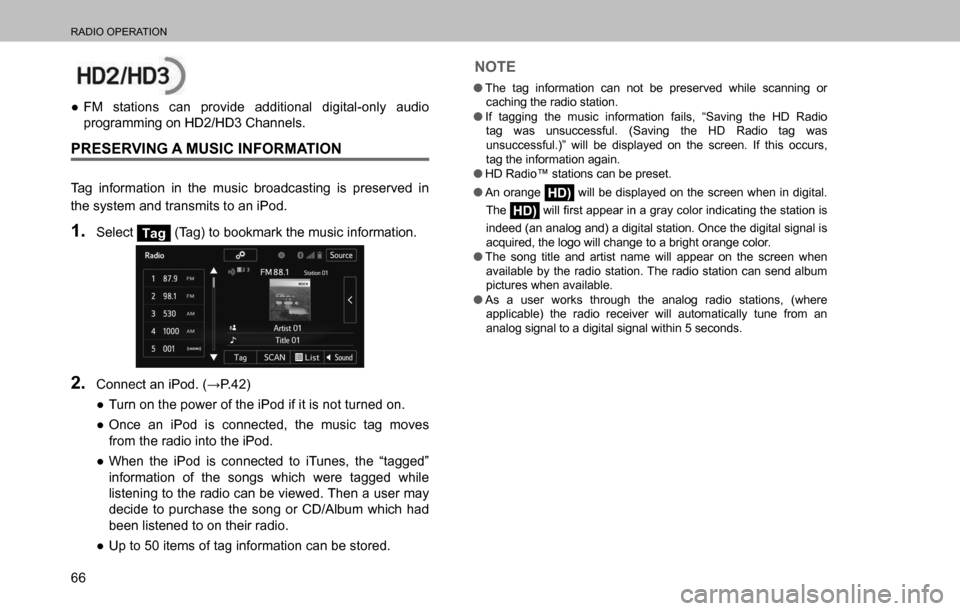

Page 68 of 308
RADIO OPERATION
66
”FM stations can provide additional digital-only audio
programming on HD2/HD3 Channels.
PRESERVING A MUSIC INFORMATION
Tag information in the music broadcasting is preserved in
the system and transmits to an iPod.
1. Select Tag (Tag) to bookmark the music information.
2. & R Q Q H F W D Q L 3 R G : 3
”Turn on the power of the iPod if it is not turned on.
”Once an iPod is connected, the music tag moves
from the radio into the iPod.
”When the iPod is connected to iTunes, the “tagged”
information of the songs which were tagged while
listening to the radio can be viewed. Then a user may
decide to purchase the song or CD/Album which had
been listened to on their radio.
”Up to 50 items of tag information can be stored.
NOTE
OThe tag information can not be preserved while scanning or
caching the radio station.
OIf tagging the music information fails, “Saving the HD Radio
tag was unsuccessful. (Saving the HD Radio tag was
unsuccessful.)” will be displayed on the screen. If this occurs,
tag the information again.
OHD Radio™ stations can be preset.
OAn orange
HD) will be displayed on the screen when in digital.
The
HD) Z L O O
Page 69 of 308
RADIO OPERATION
67
AUDIO
3
”Program Service Data: Presents song name, artist, station
IDs, and other relevant data streams.
”Visual information related to content being played on
your HD Radio receiver, such as Album Art, historical
photographs, still art from live broadcasts, among other
related content.
”iTunes® Tagging provides you the opportunity to discover
a wide range of content and the means to “tag” that
content for later review and purchase from the iTunes
®
6 W R U H $ O V R U H I H U W R W K H $ S S O H $ X W R P R W L Y H V S H F L
Page 70 of 308
RADIO OPERATION
68
PLAYING BACK THE CACHE MANUALLY
The broadcast cached in the program cache can be played
back manually.
1. ' L V S O D \ W K H F D F K H U D G L R R S H U D W L R Q E X W W R Q V : 3
2. Select the desired cache radio operation button.
No. Function
Hides the cache operation buttons.
Skips backward 2 minutes.
Fast rewinds continuously.
Plays or pauses the radio broadcast.
Fast forwards continuously.
Skips forward 2 minutes.
No. Function
Returns to the live radio broadcast.
Shows the current playback location relative to the
cached broadcast recording time with a bar scale.
”Allows HD Radio receivers to store content (songs/
programs and data) in a buffer. Playback shall start at
any point in the buffer and shall continue until the end of
the buffer or until the user has selected to stop playback.
Live Pause has the ability to store both analog and digital
content in the buffer.
