INTRODUCTION
INTRODUCTION

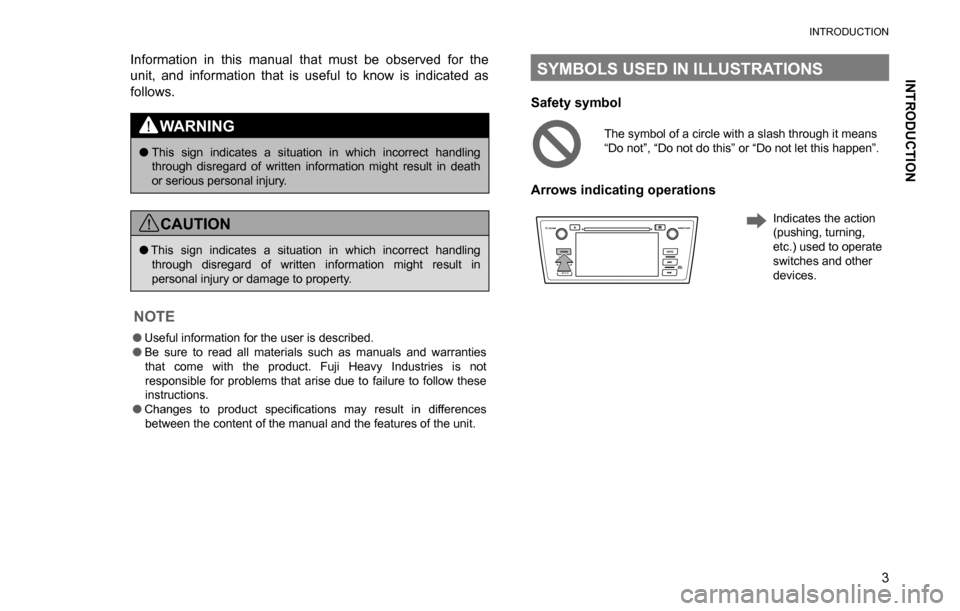

3 Information in this manual that must be observed for the
unit, and information that is useful to know is indicated as
follows.
WARNING
OThis sign indicates a situation in which incorrect handling
through disregard of written information might result in death
or serious personal injury.
CAUTION
OThis sign indicates a situation in which incorrect handling
through disregard of written information might result in
personal injury or damage to property.
NOTE
OUseful information for the user is described.
OBe sure to read all materials such as manuals and warranties
that come with the product. Fuji Heavy Industries is not
responsible for problems that arise due to failure to follow these
instructions.
O & K D Q J H V W R S U R G X F W V S H F L
Page 28 of 308
BASIC FUNCTION
26
STATUS DISPLAY
The status of the Bluetooth connection and so on is
displayed on the screen.
No. Indicators Conditions
This icon is displayed when a disc has been
inserted.
This icon is displayed when audio is off or the steering switch is pressed.
No. Indicators Conditions
This icon is displayed when the Bluetooth
connection is established.
An antenna for the Bluetooth connection is
built into the instrument panel. The condition
of the Bluetooth connection may deteriorate
and the system may not function when a
Bluetooth device is used in the following
conditions and/or places:
The Bluetooth device is obstructed by certain
objects (such as when it is behind the seat or
in the glove box or console box).
The Bluetooth device is touching or is
covered with metal materials.
Leave the Bluetooth device in a place where
the condition of the Bluetooth connection is
good.
The
level of
receptionPoor
Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may not
be displayed depending on the phone you
have.
“Rm” is displayed when receiving in a
roaming area. While roaming, display “Rm”
top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.
Page 29 of 308
BASIC FUNCTION
27
1
QUICK GUIDE
No. Indicators Conditions
The
amount
of battery
charge leftLow
Full
The amount displayed does not always
correspond with the amount displayed on the
Bluetooth device.
The amount of battery charge left may not
be displayed depending on the type of the
Bluetooth device connected.
Page 60 of 308
BASIC OPERATION
58

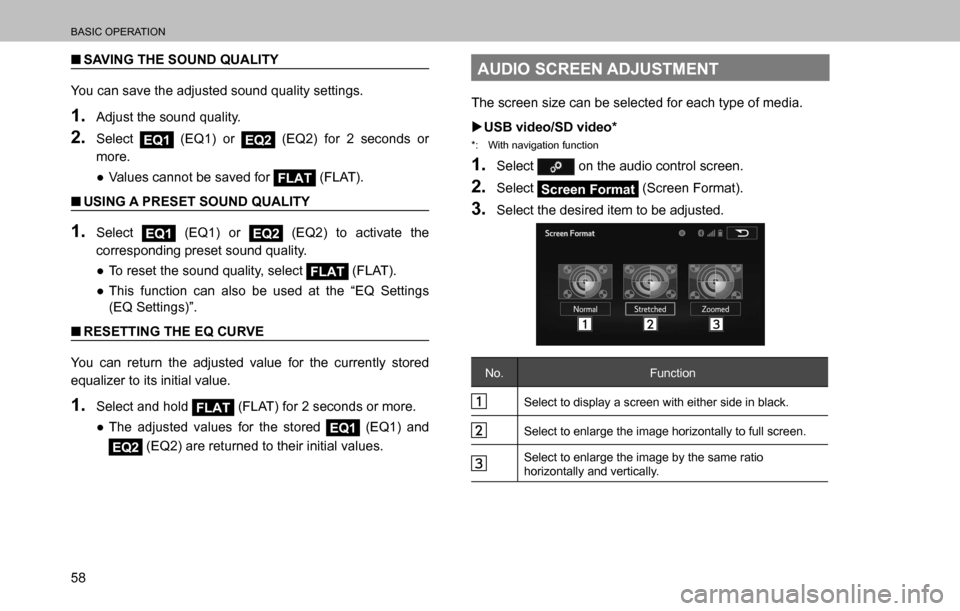

QSAVING THE SOUND QUALITY
You can save the adjusted sound quality settings.
1. Adjust the sound quality.
2. Select EQ1 (EQ1) or EQ2 (EQ2) for 2 seconds or
more.
”Values cannot be saved for
FLAT (FLAT).
QUSING A PRESET SOUND QUALITY
1. Select EQ1 (EQ1) or EQ2 (EQ2) to activate the
corresponding preset sound quality.
”To reset the sound quality, select
FLAT (FLAT).
”This function can also be used at the “EQ Settings
(EQ Settings)”.
QRESETTING THE EQ CURVE
You can return the adjusted value for the currently stored
equalizer to its initial value.
1. Select and hold FLAT (FLAT) for 2 seconds or more.
”The adjusted values for the stored
EQ1 (EQ1) and
EQ2 (EQ2) are returned to their initial values.
AUDIO SCREEN ADJUSTMENT
The screen size can be selected for each type of media.
XUSB video/SD video*
*: With navigation function
1. Select on the audio control screen.
2. Select Screen Format (Screen Format).
3. Select the desired item to be adjusted.
No. Function
Select to display a screen with either side in black.
Select to enlarge the image horizontally to full screen.
Select to enlarge the image by the same ratio
horizontally and vertically.
Page 74 of 308
RADIO OPERATION
72
CAUTION
OIt is prohibited to copy, decompile, disassemble, reverse
engineer, hack, manipulate, or otherwise make available any
technology or software incorporated in receivers compatible
with the SiriusXM
® Satellite Radio Services or that support
the SiriusXM website, the Online Service or any of its content.
Furthermore, the AMBE
® voice compression software included
in this product is protected by intellectual property rights
including patent rights, copyrights, and trade secrets of Digital
Voice Systems, Inc.
ONote: this applies to SiriusXM
® Satellite Radio receivers only
and not SiriusXM Ready devices.
NOTE
OSiriusXM® Satellite Radio Services--Descriptions
‡ Only SiriusXM® Satellite Radio brings you more of what
you love, all in one place. Get over 175 channels, including
commercial-free music, plus the best sports, news, talk,
comedy and entertainment. Welcome to the world of satellite
radio. More information about SiriusXM
® Satellite Radio is
available online at www.siriusxm.com (U.S.A.) or
www.siriusxm.ca (Canada).
NOTE
OSiriusXM® Satellite Radio Services — Subscription Instructions
‡ For SiriusXM Services requiring a subscription (such as
SiriusXM
® Satellite Radio Services, and some Infotainment &
data services), the following paragraph shall be included.
Required SiriusXM
® Satellite Radio Services and some
Infotainment & data services monthly subscriptions sold
separately after trial period. Subscription fee is consumer only.
All fees and programming subject to change. Subscriptions
are subject to the Customer Agreement available at
www.siriusxm.com. SiriusXM U.S. satellite and data services
are available only in the 48 contiguous USA and DC.
SiriusXM satellite service is also available in Canada; see
www.siriusxm.ca. © 2013 SiriusXM Radio Inc. Sirius, XM
and all related marks and logos are trademarks of SiriusXM
Radio Inc. All other marks, channel names and logos are the
property of their respective owners.
For more information, program schedules, and to subscribe
or extend subscription after complimentary trial period; more
information is available at:
USA Customers:
Visit www.siriusxm.com or call
1-877-447-0011
Page 75 of 308
RADIO OPERATION
73
AUDIO
3
NOTE
OSiriusXM® Satellite Radio Service is solely responsible for the
quality, availability and content of the satellite radio services
provided, which are subject to the terms and conditions of the
SiriusXM Satellite Radio customer service agreement.
OCustomers should have their radio ID ready; the radio ID can
be found by tuning to “Ch 000” on the radio. For details, see
“DISPLAYING THE RADIO ID” below.
OAll fees and programming are the responsibility of SiriusXM
®
Satellite Radio Services and are subject to change.
DISPLAYING THE RADIO ID
( D F K 6 L U L X V ; 0 W X Q H U L V L G H Q W L
Page 106 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM

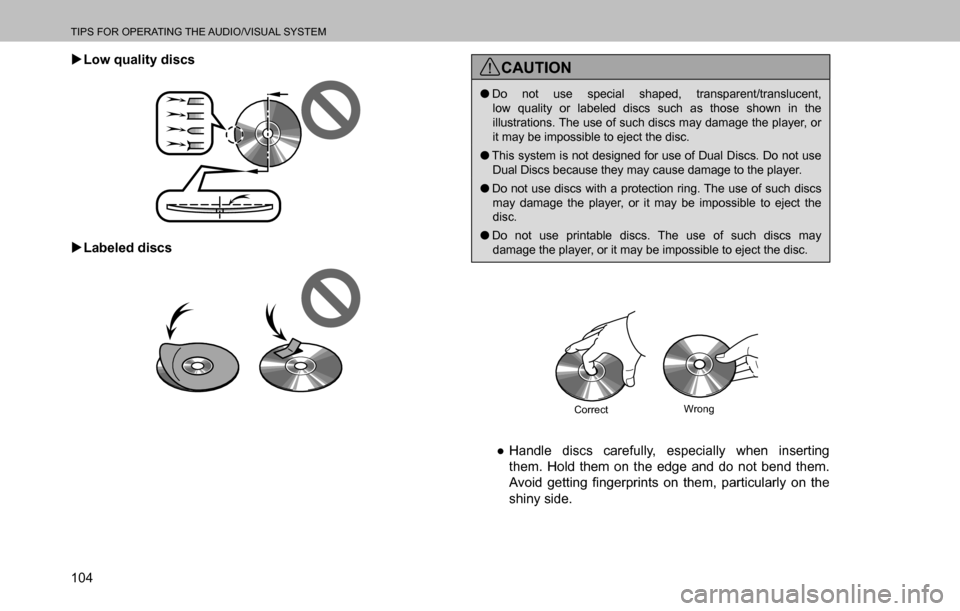

104 XLow quality discs
XLabeled discs
CAUTION
ODo not use special shaped, transparent/translucent,
low quality or labeled discs such as those shown in the
illustrations. The use of such discs may damage the player, or
it may be impossible to eject the disc.
OThis system is not designed for use of Dual Discs. Do not use
Dual Discs because they may cause damage to the player.
ODo not use discs with a protection ring. The use of such discs
may damage the player, or it may be impossible to eject the
disc.
ODo not use printable discs. The use of such discs may
damage the player, or it may be impossible to eject the disc.
CorrectWrong
”Handle discs carefully, especially when inserting
them. Hold them on the edge and do not bend them.
$ Y R L G J H W W L Q J
Page 108 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
106
USB MEMORY
”USB communication formats: USB 2.0 HS (480
Mbps) and FS (12 Mbps)
”File formats: FAT 16/32
”Correspondence class: Mass storage class

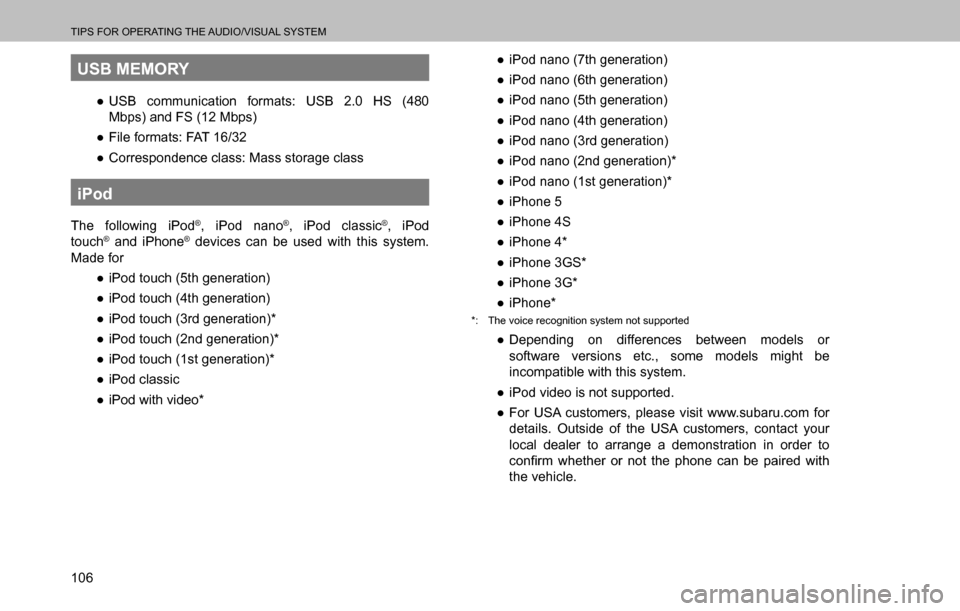

iPod
The following iPod®, iPod nano®, iPod classic®, iPod
touch® and iPhone® devices can be used with this system.
Made for
”iPod touch (5th generation)
”iPod touch (4th generation)
”iPod touch (3rd generation)*
”iPod touch (2nd generation)*
”iPod touch (1st generation)*
”iPod classic
”iPod with video* ”iPod nano (7th generation)
”iPod nano (6th generation)
”iPod nano (5th generation)
”iPod nano (4th generation)
”iPod nano (3rd generation)
”iPod nano (2nd generation)*
”iPod nano (1st generation)*
”iPhone 5
”iPhone 4S
”iPhone 4*
”iPhone 3GS*
”iPhone 3G*
”iPhone*
*: The voice recognition system not supported
”Depending on differences between models or
software versions etc., some models might be
incompatible with this system.
”iPod video is not supported.
”For USA customers, please visit www.subaru.com for
details. Outside of the USA customers, contact your
local dealer to arrange a demonstration in order to
F R Q
Page 112 of 308
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
11 0

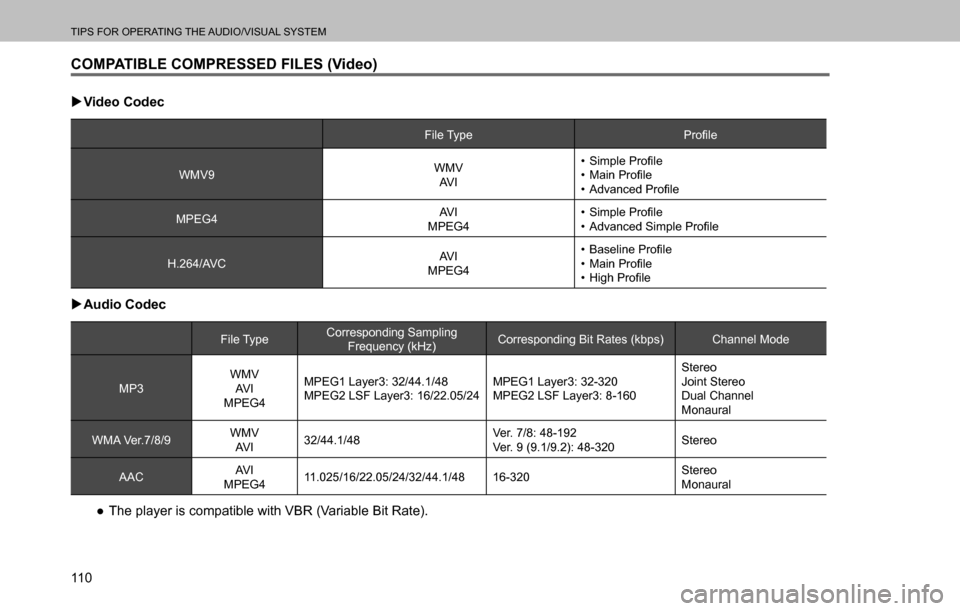

COMPATIBLE COMPRESSED FILES (Video)
XVideo Codec
File Type 3 U R ¿ O H
WMV9WMV
AV I ‡ 6 L P S O H 3 U R ¿ O H
‡ 0 D L Q 3 U R ¿ O H
‡ $ G Y D Q F H G 3 U R ¿ O H
MPEG4AV I
MPEG4 ‡ 6 L P S O H 3 U R ¿ O H
‡ $ G Y D Q F H G 6 L P S O H 3 U R ¿ O H
H.264/AVCAV I
MPEG4 ‡ % D V H O L Q H 3 U R ¿ O H
‡ 0 D L Q 3 U R ¿ O H
‡ + L J K 3 U R ¿ O H
XAudio Codec
File TypeCorresponding Sampling
Frequency (kHz)Corresponding Bit Rates (kbps) Channel Mode
MP3WMV
AV I
MPEG4MPEG1 Layer3: 32/44.1/48
MPEG2 LSF Layer3: 16/22.05/24MPEG1 Layer3: 32-320
MPEG2 LSF Layer3: 8-160Stereo
Joint Stereo
Dual Channel
Monaural
W M A Ve r. 7 / 8 / 9WMV
AV I32/44.1/48Ve r. 7 / 8 : 4 8 - 1 9 2
Ver. 9 (9.1/9.2): 48-320Stereo
AACAV I
MPEG411.025/16/22.05/24/32/44.1/48 16-320Stereo
Monaural
”The player is compatible with VBR (Variable Bit Rate).
Page 123 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
121
PHONE
4
XWhen is selected
3. Check that the “Call (Call)” screen is displayed.
XWhen the desired contact is selected
3. Select corresponding to the desired number to call.
4. Check that the “Call (Call)” screen is displayed.
NOTE
OWhen making a call to the same number continuously, only the
most recent call is listed in call history.
OWhen a phone number registered in the contact list is received,
the name is displayed.
OInternational phone calls may not be made depending on the
type of cellular phone you have.
OThe list should group together consecutive entries with the same
phone number and same call type. For example, two calls from
Kay Rowles’s mobile would be displayed as follows: Kay Rowles
(2)
BY CONTACTS LIST
Calls can be made by using contact data which is
W U D Q V I H U U H G I U R P D U H J L V W H U H G F H O O X O D U S K R Q H : 3
Up to 2500 contacts (maximum of 4 phone numbers and
e-mail addresses per contact) can be registered in the
contact list.
1. ' L V S O D \ W K H S K R Q H W R S V F U H H Q : 3
2. Select the Contacts (Contacts) tab and then select the
desired contact.
3. Select the desired number.
4. Check that the “Call (Call)” screen is displayed.
