OTHER SETTINGS
197
SETTINGS
7
No. Function
When set to on, the indicator will illuminate. The
system is set to give maintenance information with the
“Maintenance Reminder (Maintenance Reminder)”
VFUHHQ
:3
NOTE
OWhen the vehicle needs to be serviced, the screen button color
will change to orange.

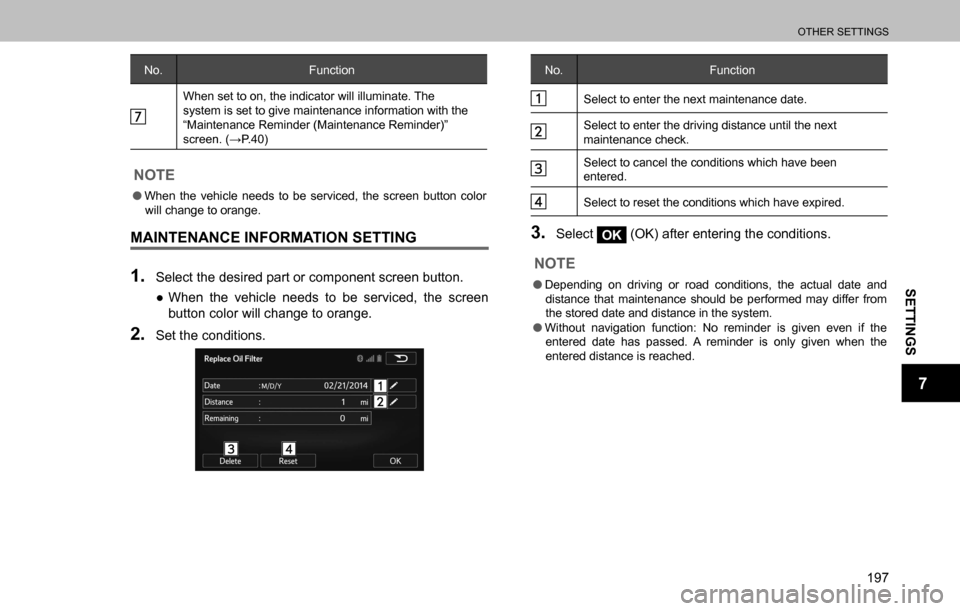

MAINTENANCE INFORMATION SETTING
1. Select the desired part or component screen button.

”When the vehicle needs to be serviced, the screen
button color will change to orange.
2. Set the conditions.
No. Function
Select to enter the next maintenance date.
Select to enter the driving distance until the next
maintenance check.
Select to cancel the conditions which have been
entered.
Select to reset the conditions which have expired.
3. Select OK (OK) after entering the conditions.
NOTE
ODepending on driving or road conditions, the actual date and
distance that maintenance should be performed may differ from
the stored date and distance in the system.
OWithout navigation function: No reminder is given even if the
entered date has passed. A reminder is only given when the
entered distance is reached.

WHAT TO DO IF
287
APPENDIX/WHAT TO DO IF/INDEX
10

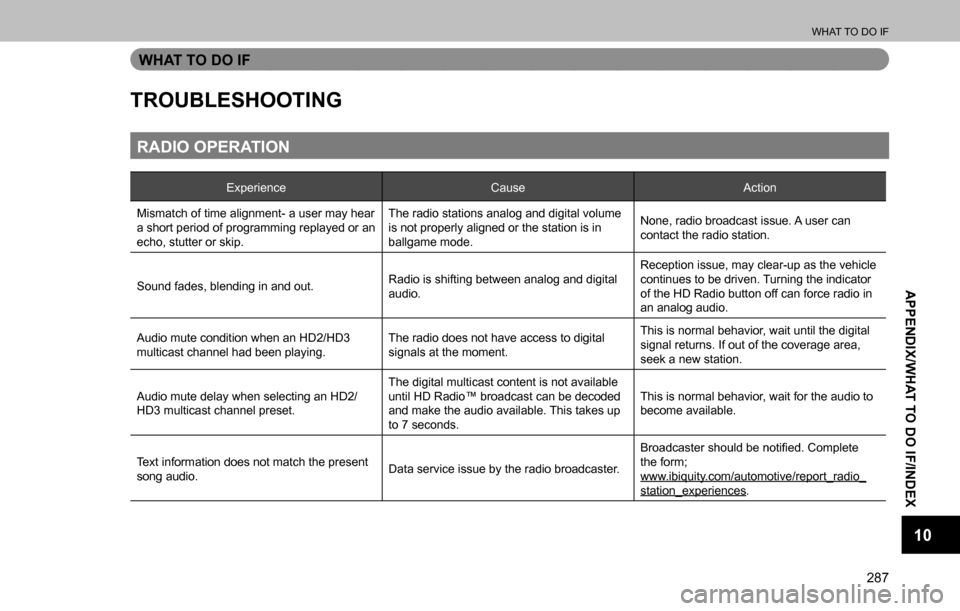

WHAT TO DO IF
TROUBLESHOOTING
RADIO OPERATION
Experience Cause Action
Mismatch of time alignment- a user may hear
a short period of programming replayed or an
echo, stutter or skip.The radio stations analog and digital volume
is not properly aligned or the station is in
ballgame mode.None, radio broadcast issue. A user can
contact the radio station.
Sound fades, blending in and out.Radio is shifting between analog and digital
audio.Reception issue, may clear-up as the vehicle
continues to be driven. Turning the indicator
of the HD Radio button off can force radio in
an analog audio.
Audio mute condition when an HD2/HD3
multicast channel had been playing.The radio does not have access to digital
signals at the moment.This is normal behavior, wait until the digital
signal returns. If out of the coverage area,
seek a new station.
Audio mute delay when selecting an HD2/
HD3 multicast channel preset.The digital multicast content is not available
until HD Radio™ broadcast can be decoded
and make the audio available. This takes up
to 7 seconds.This is normal behavior, wait for the audio to
become available.
Text information does not match the present
song audio.Data service issue by the radio broadcaster.
%URDGFDVWHUVKRXOGEHQRWL¿HG&RPSOHWH
the form;
www.ibiquity.com/automotive/report_radio_
station_experiences.
