Page 70 of 308
RADIO OPERATION
68
PLAYING BACK THE CACHE MANUALLY
The broadcast cached in the program cache can be played
back manually.
1. ' L V S O D \ W K H F D F K H U D G L R R S H U D W L R Q E X W W R Q V : 3
2. Select the desired cache radio operation button.
No. Function
Hides the cache operation buttons.
Skips backward 2 minutes.
Fast rewinds continuously.
Plays or pauses the radio broadcast.
Fast forwards continuously.
Skips forward 2 minutes.
No. Function
Returns to the live radio broadcast.
Shows the current playback location relative to the
cached broadcast recording time with a bar scale.
”Allows HD Radio receivers to store content (songs/
programs and data) in a buffer. Playback shall start at
any point in the buffer and shall continue until the end of
the buffer or until the user has selected to stop playback.
Live Pause has the ability to store both analog and digital
content in the buffer.
Page 158 of 308
ahaTM by HARMAN
156
STATION OPERATION SCREEN BUTTONS
Button Function
Select to start playback.
Select to pause playback.
Select to stop playback.
Select to upload “Like” information to the
application server. To cancel “Like” information
that is being uploaded to the server, select this
button again.
Select to upload “Dislike” information to the
application server. To cancel “Dislike” information
that is being uploaded to the server, select this
button again.
*Select to display the POI information on the map
V F U H H Q D Q G V H W L W D V D G H V W L Q D W L R Q : 3
Select to call the registered number.
Select to upload your current location to your
social network.
Select to send your voice to the application
V H U Y H U : 3
Button Function
Select to refresh the content item information in
the current station.
Select to rewind the current content item for 15
seconds.
Select to fast forward the current content item for
30 seconds.
*: With navigation function
NOTE
OThe button display will vary depending on each station or content
item.
SHOUT FUNCTION
Your voice can be sent to the application server.
1. Select .
Page 225 of 308
DESTINATION SEARCH
223
NAVIGATION SYSTEM
8
2. Select More (More).
3. Select Simulate Navigation (Simulate Navigation).
4. Check that the route simulation is displayed.
”The simulation begins from the start point and works
through the entire route at the recommended speed.
”You can use the following buttons during the
simulation (although the control buttons disappear
after a few seconds, you can touch the map to show
them again).
No. Function
Select to return to the previous route event (the previous
change in the route).
Select to pause the simulation.
Select to go to the next route event (the next change in
the route).
No. Function
Select to change the speed of the simulation. You can
select from speeds of 4x, 8x, or 16x. Select again to
return to normal speed.
Select to stop the simulation.
CANCELING ROUTE
The route being navigated is deleted, including all
waypoints.
1. Select Menu (Menu) on the map screen.
2. Select Cancel Route (Cancel Route).
”You can also cancel the route guidance by selecting
Cancel Route (Cancel Route) on the “Change
5 R X W H & K D Q J H 5 R X W H

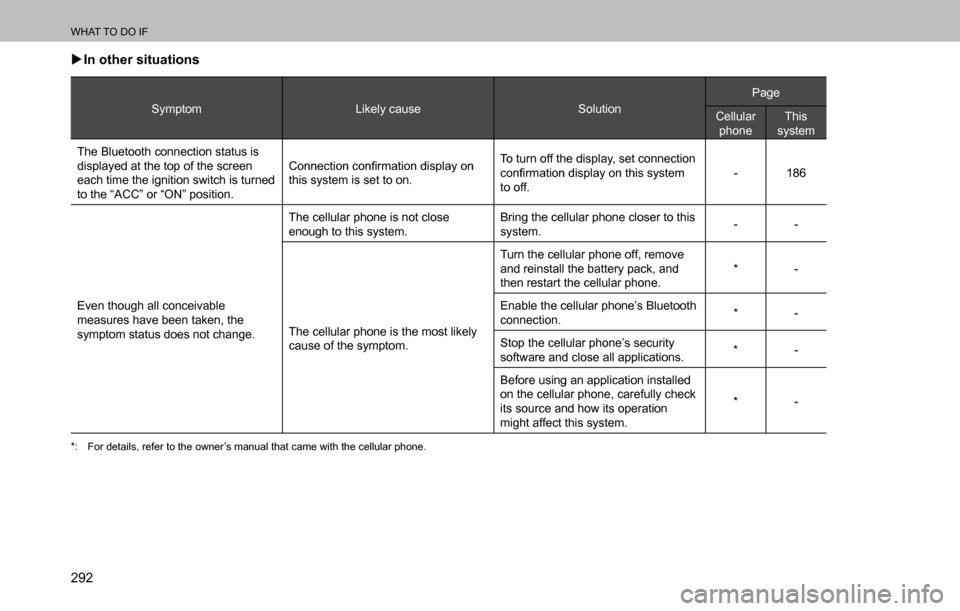

Page 294 of 308
WHAT TO DO IF
292 XIn other situations
Symptom Likely cause SolutionPage
Cellular
phoneThis
system
The Bluetooth connection status is
displayed at the top of the screen
each time the ignition switch is turned
to the “ACC” or “ON” position. & R Q Q H F W L R Q F R Q ¿ U P D W L R Q G L V S O D \ R Q
this system is set to on.To turn off the display, set connection
F R Q ¿ U P D W L R Q G L V S O D \ R Q W K L V V \ V W H P
to off.-186
Even though all conceivable
measures have been taken, the
symptom status does not change.The cellular phone is not close
enough to this system.Bring the cellular phone closer to this
system.--
The cellular phone is the most likely
cause of the symptom.Turn the cellular phone off, remove
and reinstall the battery pack, and
then restart the cellular phone.*-
Enable the cellular phone’s Bluetooth
connection.*-
Stop the cellular phone’s security
software and close all applications.*-
Before using an application installed
on the cellular phone, carefully check
its source and how its operation
might affect this system.*-
*: For details, refer to the owner’s manual that came with the cellular phone.
