SUBARU OUTBACK 2016 6.G Owner's Manual

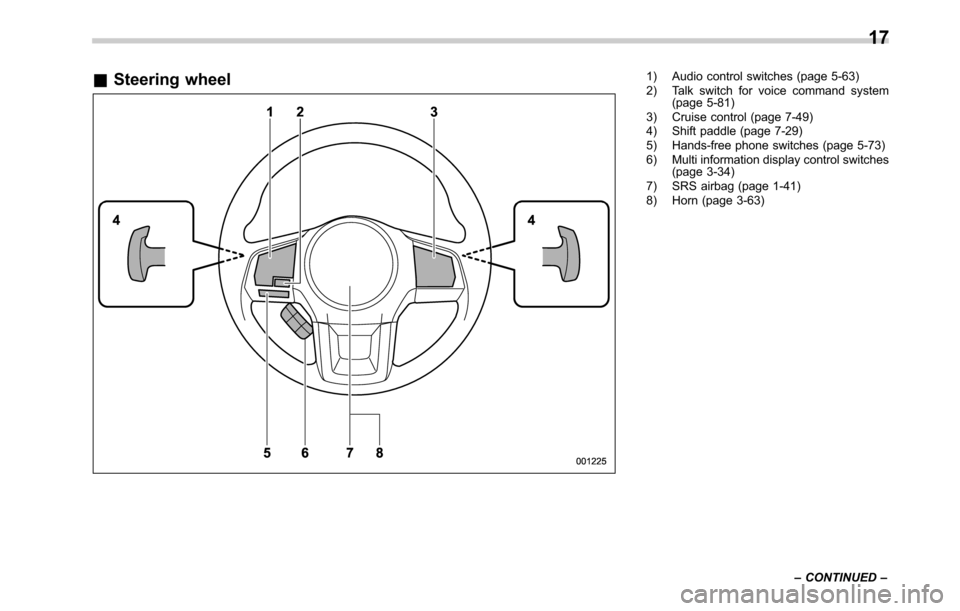

&Steering wheel1) Audio control switches (page 5-63)
2) Talk switch for voice command system
(page 5-81)
3) Cruise control (page 7-49)
4) Shift paddle (page 7-29)
5) Hands-free phone switches (page 5-73)
6) Multi information display control switches
(page 3-34)
7) SRS airbag (page 1-41)
8) Horn (page 3-63)
–CONTINUED–
17

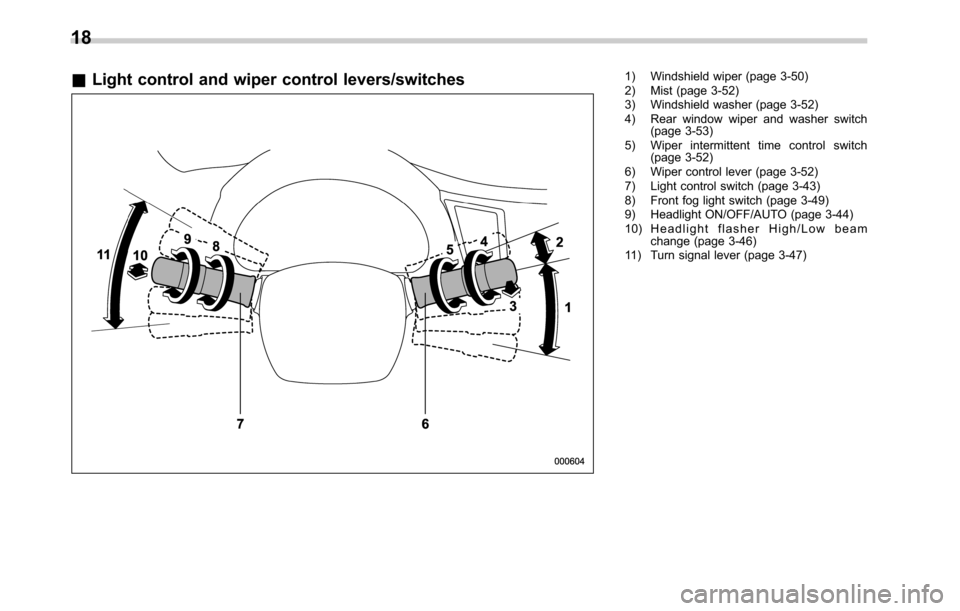

&Light control and wiper control levers/switches1) Windshield wiper (page 3-50)
2) Mist (page 3-52)
3) Windshield washer (page 3-52)
4) Rear window wiper and washer switch
(page 3-53)
5) Wiper intermittent time control switch
(page 3-52)
6) Wiper control lever (page 3-52)
7) Light control switch (page 3-43)
8) Front fog light switch (page 3-49)
9) Headlight ON/OFF/AUTO (page 3-44)
10) Headlight flasher High/Low beam
change (page 3-46)
11) Turn signal lever (page 3-47)
18

&Combination meter
!U.S. spec. models (type A)
1) Tachometer (page 3-9)
2) ECO gauge (page 3-11)
3) Speedometer (page 3-8)
4) Temperature gauge (page 3-11)
5) Select lever/gear position indicator
(page 3-30)
6) Trip meter and odometer (page 3-8)
7) Fuel gauge (page 3-10)
–CONTINUED–
19

!U.S. spec. models (type B)1) Tachometer (page 3-9)
2) ECO gauge (page 3-11)
3) Speedometer (page 3-8)
4) Temperature gauge (page 3-11)
5) Select lever/gear position indicator
(page 3-30)
6) Trip meter and odometer (page 3-8)
7) Fuel gauge (page 3-10)
20

!Except U.S. spec. models (type A)1) Tachometer (page 3-9)
2) ECO gauge (page 3-11)
3) Speedometer (page 3-8)
4) Temperature gauge (page 3-11)
5) Select lever/gear position indicator
(page 3-30)
6) Trip meter and odometer (page 3-8)
7) Fuel gauge (page 3-10)
–CONTINUED–
21

!Except U.S. spec. models (type B)1) Tachometer (page 3-9)
2) ECO gauge (page 3-11)
3) Speedometer (page 3-8)
4) Temperature gauge (page 3-11)
5) Select lever/gear position indicator
(page 3-30)
6) Trip meter and odometer (page 3-8)
7) Fuel gauge (page 3-10)
22

&Warning and indicator lights
Mark Name Page
Seatbelt warning light 3-12
Front passenger’s
seatbelt warning light3-12
SRS airbag system
warning light3-14
CHECK ENGINE warn-
ing light/Malfunction in-
dicator light3-15
Charge warning light 3-15
Oil pressure warning
light3-15
Engine low oil level
warning indicator3-16
AT OIL TEMP warning
light (CVT models)3-16
/ABS warning light 3-18
/Brake system warning
light3-18Mark Name Page
/Electronic parking
brake indicator light3-20
Hill Holder indicator
light3-21
Door open indicator 3-22
Low fuel warning light 3-21
All-Wheel Drive warn-
ing light (CVT models)3-22
Power steering warning
light3-22
Vehicle Dynamics Con-
trol warning light/Vehi-
cle Dynamics Control
operation indicator light3-23
Vehicle Dynamics Con-
trol OFF indicator light3-24
Access key warning in-
dicator (if equipped)3-24
Security indicator light 3-29
Turn signal indicator
lights3-30Mark Name Page
High beam indicator
light3-30
Automatic headlight
beam leveler warning
light (if equipped)3-30
Front fog light indicator
light (if equipped)3-31
Cruise control indicator 3-30
Cruise control set indi-
cator3-30
X-mode indicator (if
equipped)3-31
Hill descent control in-
dicator (if equipped)3-31
Headlight indicator light 3-31
Low tire pressure
warning light (U.S.
spec. models)3-16
/Front passenger’s fron-
tal airbag ON indicator
light3-14
/Front passenger’s fron-
tal airbag OFF indicator
light3-14
–CONTINUED–
23

Mark Name Page
Windshield washer fluid
warning indicator3-22
Steering responsive fog
lights OFF indicator (if
equipped)3-31
BSD/RCTA warning in-
dicator (if equipped)3-31
BSD/RCTA OFF indi-
cator (if equipped)3-31
Icy road surface warn-
ing screen3-31
24

Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact
the nearest SUBARU dealer for details. Furthermore, some useful function settings are available using the multi information display.
For details, refer to“Menu screens”F3-38.
Item Function Possible settings Default setting Page
Alarm system Alarm system Operation/Non-operation Operation 2-28
Monitoring start delay time
(after closing doors)0 seconds/30 seconds 30 seconds 2-29
Impact sensor operation (only
models with shock sensors
(dealer option))Operation/Non-operation Non-operation 2-32
Map light/Dome light/Cargo
area light illuminationON/OFF OFF 2-28
Keyless access with push-
button start system
*1Audible signal*2ON/OFF ON 2-18, 2-47, 3-42
Audible signal volume*3Level 1 to 7 Level 5 2-18, 3-24, 3-42
Hazard warning flasher ON/OFF ON 2-18, 3-42
Door unlock selection (driver’s
door unlock)Driver’s door only/All doors Driver’s door only 2-17, 3-42
Door unlock selection (rear
gate unlock)Rear gate only, All doors Rear gate only
Remote keyless entry system Audible signal
*2ON/OFF ON 2-25, 2-26,
2-47, 3-42
Audible signal volume
*3Level 1 to 7 Level 5 2-25, 2-26, 3-42
Hazard warning flasher ON/OFF ON 2-25, 2-26, 3-42
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation 2-9
–CONTINUED–
25

Item Function Possible settings Default setting Page
Defogger and deicer system Rear window defogger, out-
side mirror defogger and
windshield wiper deicerOperation for 15 minutes/
Continuous operationOperation for 15 minutes 3-54, 3-42
Map light/Dome light/Cargo
area lightOperation of map light/dome
light/cargo area light OFF de-
lay timerOFF/Short/Normal/Long Long 6-4, 3-42
Battery drainage prevention
functionBattery drainage prevention
functionOperation/Non-operation Operation 2-8
Auto on/off headlights Sensitivity of the operation of
the auto on/off headlightsMin/Low/Mid/Max Mid 3-44, 3-42
Windshield wiper Automatic headlight turn on
function that is linked with
wiper operationOperation/Non-operation Operation 3-44, 3-42
Auto dimmer cancel Sensitivity of the operation of
the auto dimmer cancelOFF/Min/Low/Mid/Hi/Max Mid 3-48
Welcome lighting function Welcome lighting function
(when approaching)OFF/30 seconds/60 seconds/
90 seconds30 seconds 3-42, 3-44
Welcome lighting function
(when exiting)OFF/30 seconds/60 seconds/
90 seconds30 seconds
Reverse gear interlocked rear
wiperReverse gear interlocked rear
wiper operationOperation/Non-operation U.S.-spec. models: Non-operation
Other models: Operation3-53
One-touch lane changer Operation of the one-touch
lane changerOperation/Non-operation Operation 3-48
*1: If equipped
*2: This setting also works as the ON/OFF setting of the power rear gate buzzer for starting operation. However, you cannot change the warning buzzer
setting for a detecting jam, etc.
*3: The audible signal volume cannot be set under level 5 for the warning chime.
