set clock SUBARU OUTBACK 2016 6.G Quick Reference Guide

13

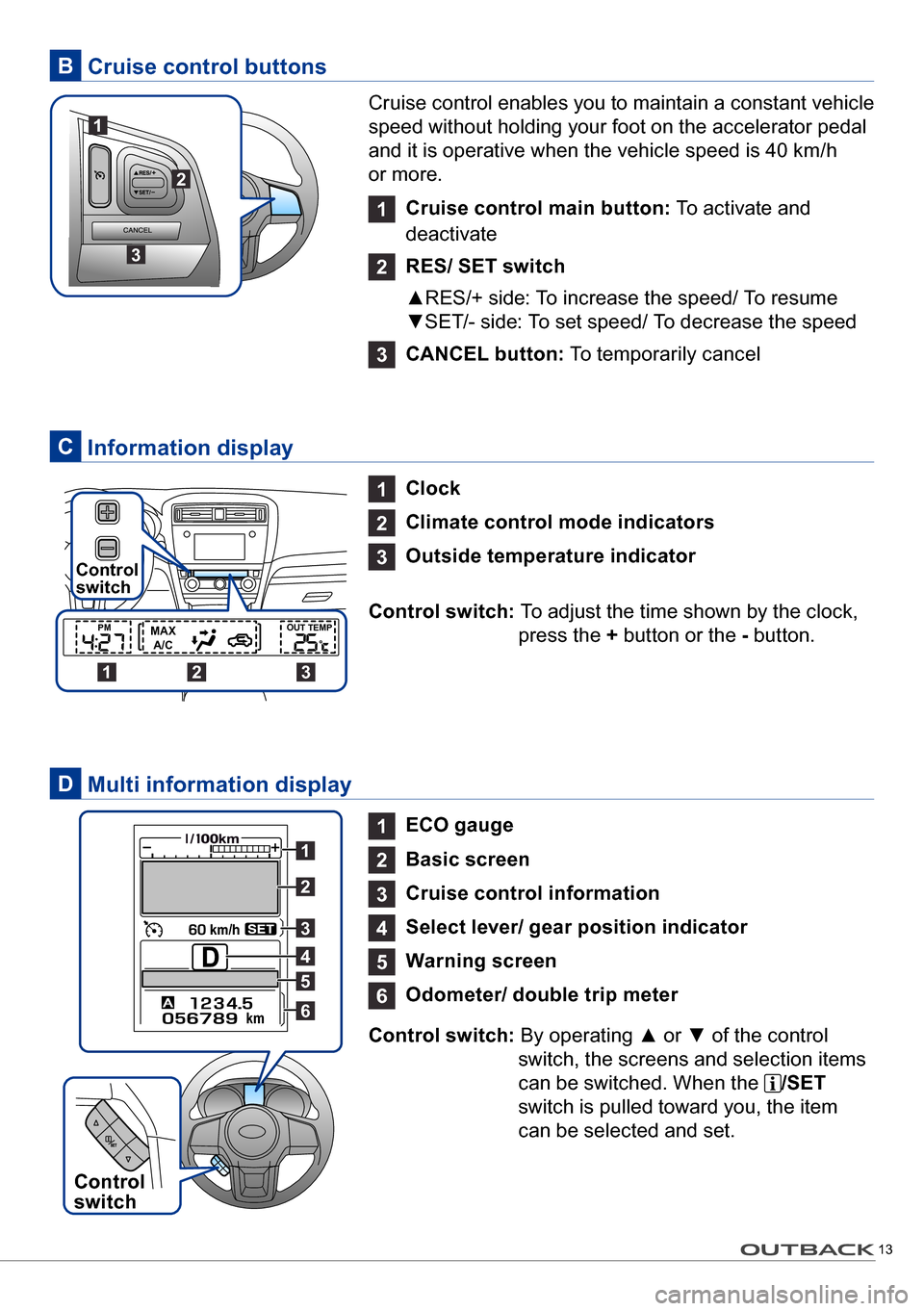

1 Cruise control main button: To activate and
deactivate
2 RES/ SET switch
▲RES/+ side: To increase the speed/ To resume
▼SET/- side: To set speed/ To decrease the speed
3 CANCEL button: To temporarily cancel
Cruise control enables you to maintain a constant vehicle
speed without holding your foot on the accelerator pedal
and it is operative when the vehicle speed is 40 km/h
or more.
Cruise control buttonsB
Information displayC
1 Clock
2 Climate control mode indicators
3 Outside temperature indicator
Control switch: To adjust the time shown by the clock,
press the + button or the - button.OUT TEMP
PMMAX
A/C
1 ECO gauge
2 Basic screen
3 Cruise control information
4 Select lever/ gear position indicator
5 Warning screen
6 Odometer/ double trip meter
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection items
can be switched. When the /SET
switch is pulled toward you, the item
can be selected and set.
km/h
km
Multi information displayD
1
2
3
123
Control switch
Control switch
1
2
3
4
6
5
