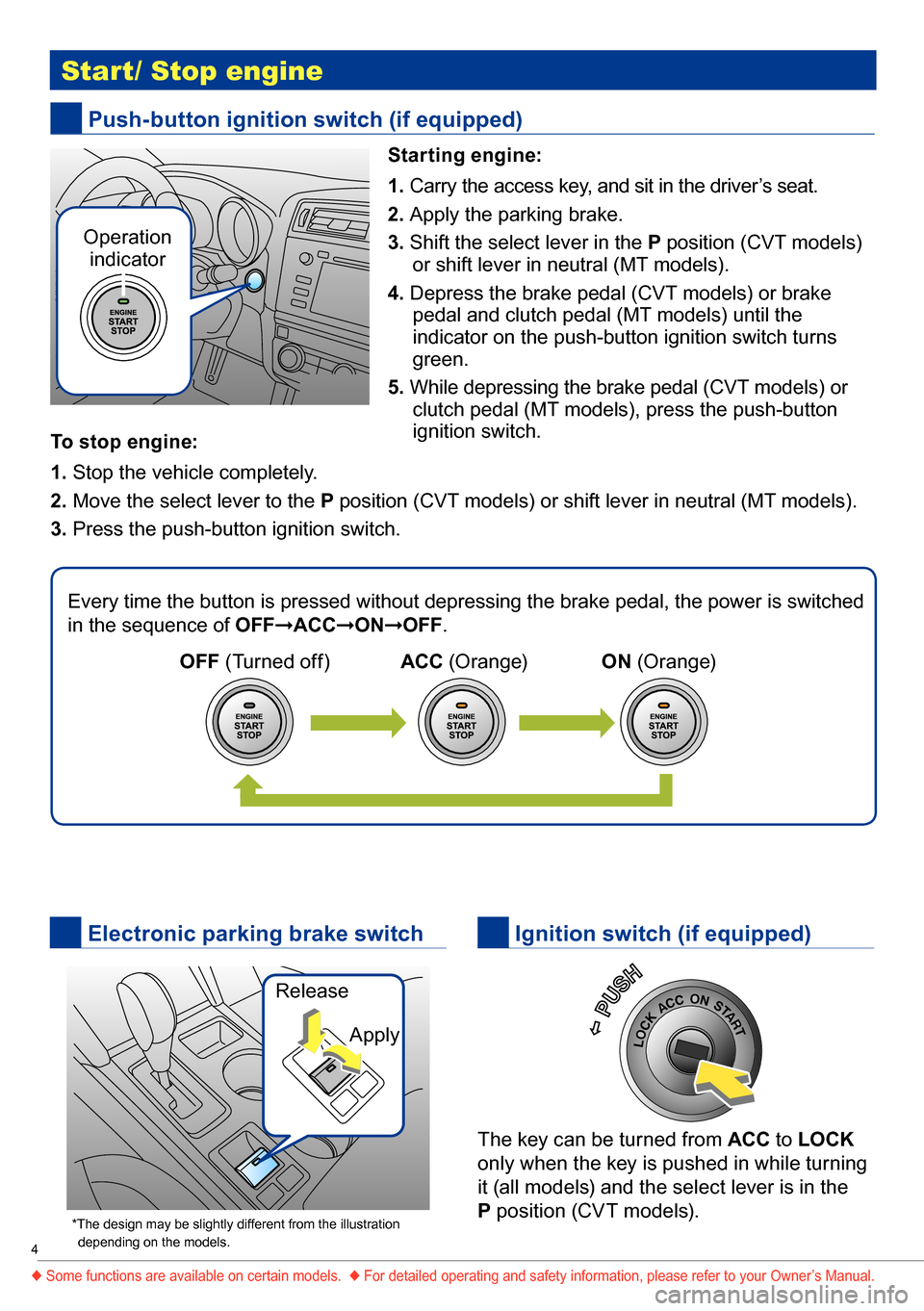

start stop button SUBARU OUTBACK 2016 6.G Quick Reference Guide

4
Start/ Stop engine
The key can be turned from ACC to LOCK
only when the key is pushed in while turning
it (all models) and the select lever is in the
P position (CVT models).
Push-button ignition switch (if equipped)
Electronic parking brake switch Ignition switch (if equipped)
*The design may be slightly different from the illustration depending on the models.
Starting engine:
1. Carry the access key, and sit in the driver’s seat.
2. Apply the parking brake.
3. Shift the select lever in the P position (CVT models) or shift lever in neutral (MT models).
4. Depress the brake pedal (CVT models) or brake pedal and clutch pedal (MT models) until the indicator on the push-button ignition switch turns green.
5. While depressing the brake pedal (CVT models) or clutch pedal (MT models), press the push-button ignition switch.To stop engine:
1. Stop the vehicle completely.
2. Move the select lever to the P position (CVT models) or shift lever in neutral (MT models).
3. Press the push-button ignition switch.
Every time the button is pressed without depressing the brake pedal, the\
power is switched
in the sequence of OFF➞ACC➞ON➞OFF.
OFF ( Tu r n e d o f f )ACC (Orange)ON (Orange)
Operation indicator
Apply
Release
X Some functions are available on certain models. X For detailed operating and safety information, please refer to your Own\
er’s Manual.
