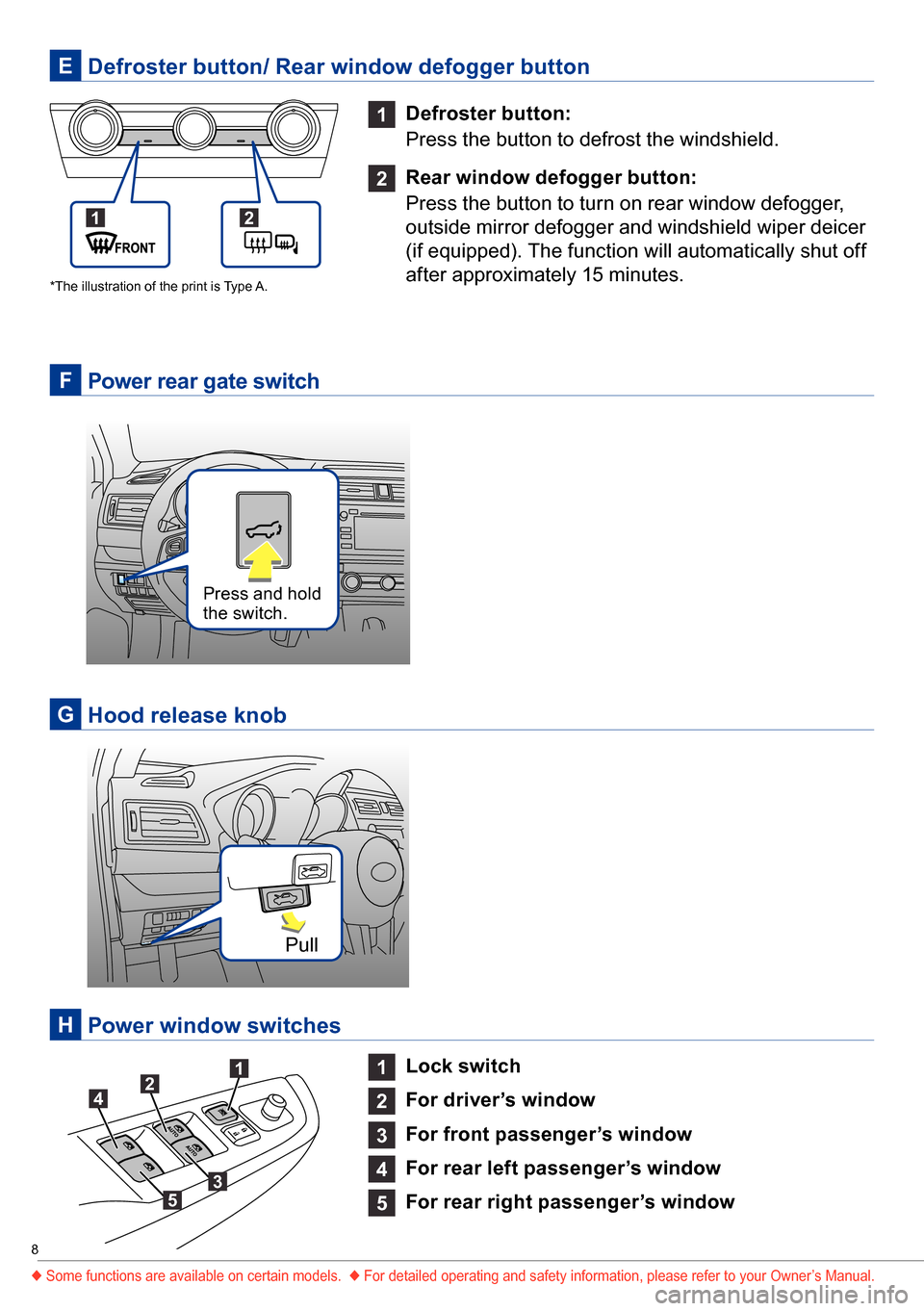

window SUBARU OUTBACK 2016 6.G Quick Reference Guide

8
1 Defroster button:
Press the button to defrost the windshield.
2 Rear window defogger button:
Press the button to turn on rear window defogger,
outside mirror defogger and windshield wiper deicer
(if equipped). The function will automatically shut off
after approximately 15 minutes.*The illustration of the print is Type A.
Defroster button/ Rear window defogger buttonE
1 Lock switch
2 For driver’s window
3 For front passenger’s window
4 For rear left passenger’s window
5 For rear right passenger’s window
Power window switchesH
Power rear gate switchF
Hood release knobG
Press and hold the switch.
12
124
53
Pull
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.
