Controls
Instrument Panel Switches (lower left)
Please refer to your Owner’s Manual for details on these switches.
1. Power rear gate switch
(if equipped)
2. Vehicle Dynamics Control OFF switch
3. Blind Spot Detection/Rear Cross Traffic Alert OFF switch
(if equipped)
4. Lane Departure Warning OFF switch (if equipped)
5. Power rear gate memory switch (if equipped)
6. Pre-Collision Braking System OFF switch (if equipped)
1
6
5
342
2926966_18a_Subaru_Outback_QRG_050417.indd 195/4/17 3:36 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 22 of 33
20
Controls
Auxiliary Input Jack
The 3.5 mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located
on the audio system to select the auxiliary mode.
USB Port
The USB port(s) is/are located in the front of the center console. You can connect a
USB-equipped portable music player to the USB port and hear the music st\
ored on it
through the vehicle speakers. Press the “SOURCE” button located on the audio system
repeatedly until the USB mode is selected.

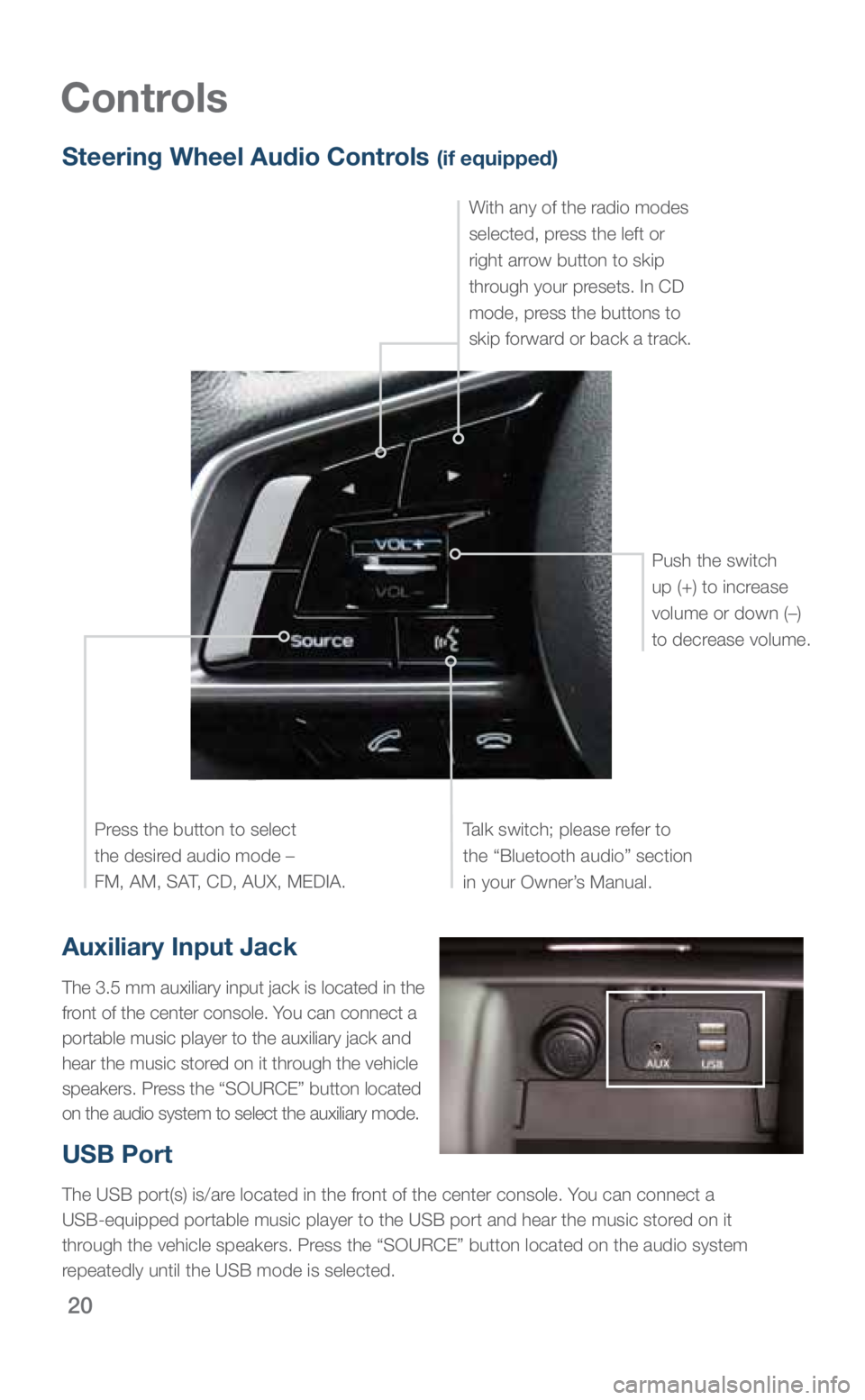

Steering Wheel Audio Controls (if equipped)
Talk switch; please refer to
the “Bluetooth audio” section
in your Owner’s Manual.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to skip
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
2926966_18a_Subaru_Outback_QRG_050417.indd 205/4/17 3:36 PM
Page 23 of 33
21
Controls

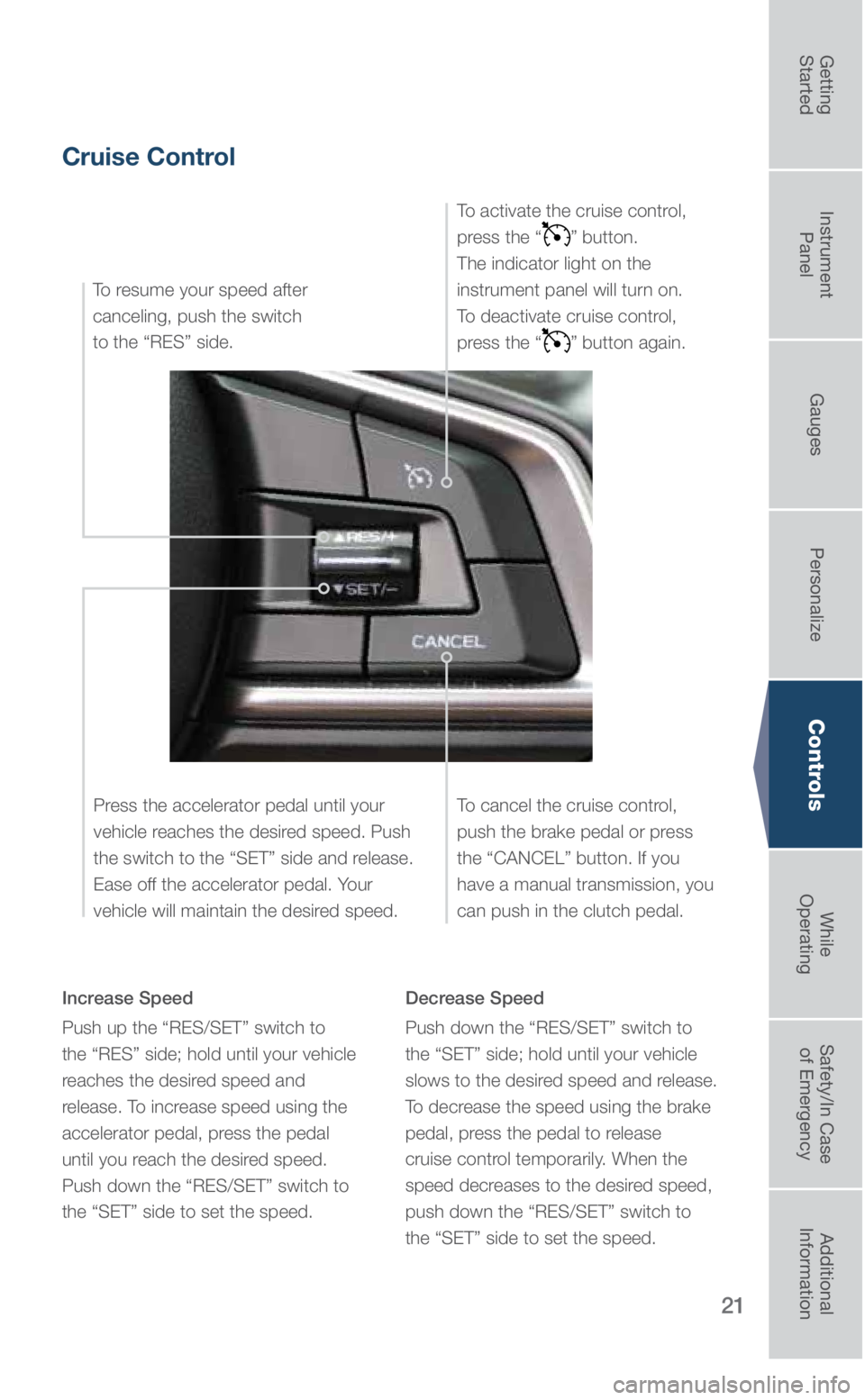

Cruise Control
Increase Speed
Push up the “RES/SET” switch to
the “RES” side; hold until your vehicle
reaches the desired speed and
release. To increase speed using the
accelerator pedal, press the pedal
until you reach the desired speed.
Push down the “RES/SET” switch to
the “SET” side to set the speed.Decrease Speed
Push down the “RES/SET” switch to
the “SET” side; hold until your vehicle
slows to the desired speed and release.
To decrease the speed using the brake
pedal, press the pedal to release
cruise control temporarily. When the
speed decreases to the desired speed,
push down the “RES/SET” switch to
the “SET” side to set the speed.To activate the cruise control,
press the “
” button.
The indicator light on the
instrument panel will turn on.
To deactivate cruise control,
press the “
” button again.
Press the accelerator pedal until your
vehicle reaches the desired speed. Push
the switch to the “SET” side and release.
Ease off the accelerator pedal. Your
vehicle will maintain the desired speed. To cancel the cruise control,
push the brake pedal or press
the “CANCEL” button. If you
have a manual transmission, you
can push in the clutch pedal.
To resume your speed after
canceling, push the switch
to the “RES” side.
2926966_18a_Subaru_Outback_QRG_050417.indd 215/4/17 3:37 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 24 of 33
22
Electronic Parking Brake
To apply, push the brake pedal and pull up the parking
brake switch. The brake system warning light on
the instrument panel and the indicator light on the
parking brake switch will illuminate.
To release, make sure all doors are closed and your
seatbelt is fastened, then gently push the accelerator
pedal. Or, while the ignition switch is in the ON position
and the brake pedal is pushed in, push down the
parking brake switch.
X-MODE® (if equipped)
X-MODE® is the integrated control system of the engine,
AWD and Vehicle Dynamics Control system. Press the
X-MODE button to activate. Press it again to deactivate.
Please refer to your Owner’s Manual for operational
parameters and details about this feature.
While Operating
Paddle Shift Control Switches (if equipped)
• Temporary use: Even when the selector is in the
“D” (Drive) position, you can temporarily shift the
gear by pulling the “+” or “–” paddle shift control
switch. The transmission will automatically
switch back to Normal Mode.
• When the selector lever is in Manual Mode,
shift to the next higher gear by pulling the “+” paddle shift cont\
rol switch on the steering
wheel. Pull the “–” paddle shift control switch to shift into the next lower gear.
Manual Shifting Operation
Arrow-shaped lights in the center of the instrument panel show whether an u\
pshift is possible
and whether a downshift is possible.
Hill Holder™ Function
To activate, press the Hill Holder switch. To deactivate, press the Hill Holder switch again.
When the Hill Holder function is activated, the parking brake will be au\
tomatically applied when
stopped on an uphill or downhill slope with the brake pedal pushed down.\
The brake system
warning light on the instrument panel and the indicator light on the parkin\
g brake
switch will illuminate.
2926966_18a_Subaru_Outback_QRG_050417.indd 225/4/17 3:37 PM
Page 25 of 33
23
While
Operating
1
Automatic Transmission Shift Mode
The Continuously Variable Transmission (CVT) gives you ultimate control with two
different driving modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in Normal
shift mode. The shift position indicator on the instrument panel shows “\
D” and the
transmission automatically shifts into a suitable forward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual gate
1 from the “D” (Drive) position causes the transmission to change in\
to Manual
Mode. To shift, use the paddle shift control switches. The shift position indicator
shows the selected gear position.
2926966_18a_Subaru_Outback_QRG_050417.indd 235/4/17 3:37 PM
Getting
StartedInstrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 26 of 33
24
Safety/In Case of Emergency

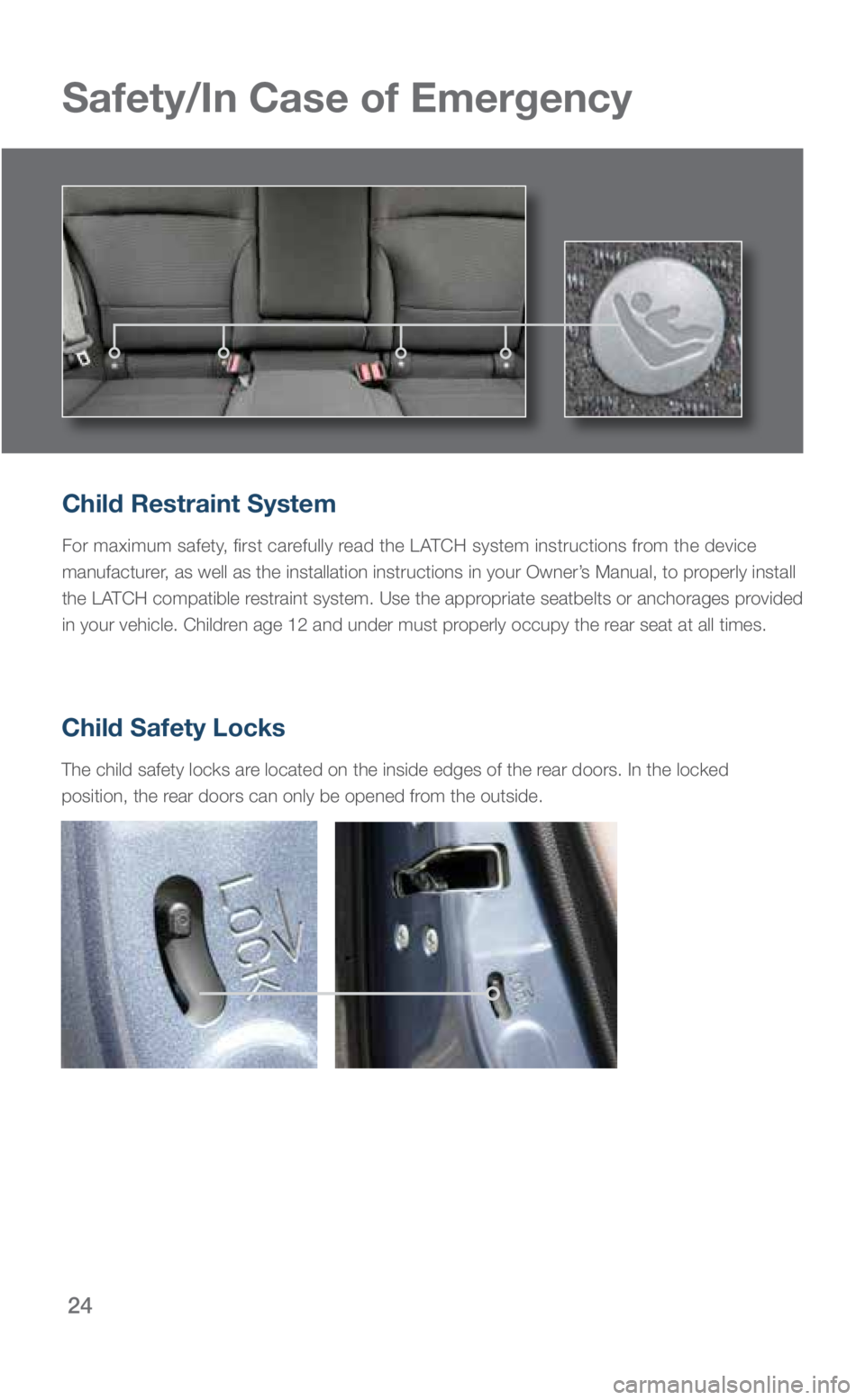

Child Restraint System
