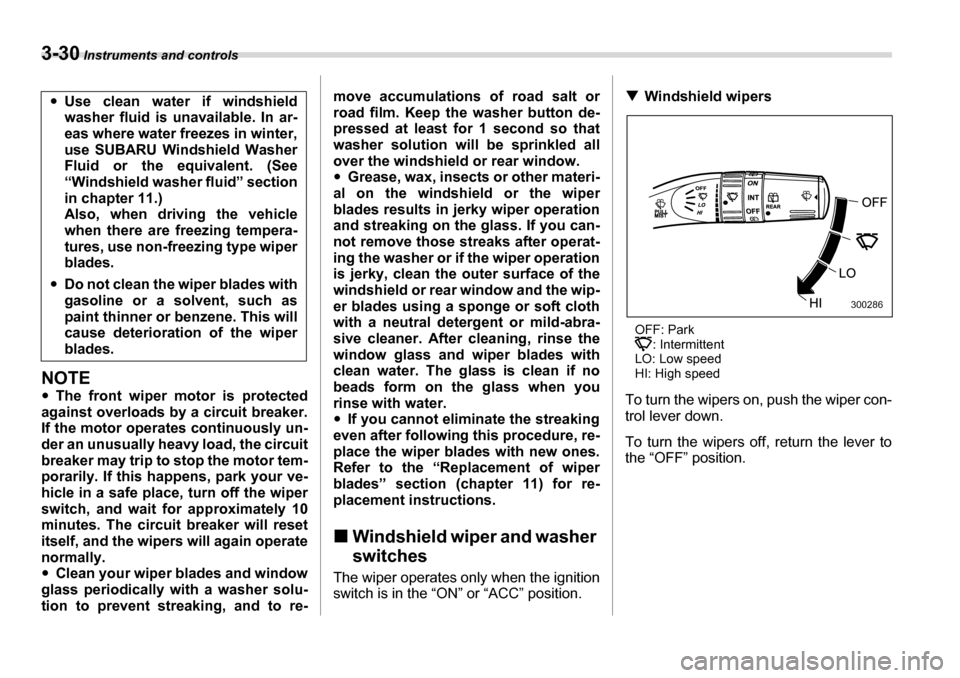

NOTE yThe front wiper motor is protected
against overloads by a circuit breaker.
If the motor operates continuously un-
der an unusually heavy load, the circuit
breaker may trip to stop the motor tem-
porarily. If this happens, park your ve-
hicle in a safe place, turn off the wiper
switch, and wait for approximately 10
minutes. The circuit breaker will reset
itself, and the wipers will again operate
normally. y Clean your wiper blades and window
glass periodically with a washer solu-
tion to prevent streaking, and to re- move accumulations of road salt or
road film. Keep the washer button de-
pressed at least for 1 second so that
washer solution will be sprinkled all
over the windshield or rear window. y
Grease, wax, insects or other materi-
al on the windshield or the wiper
blades results in jerky wiper operation
and streaking on the glass. If you can-
not remove those streaks after operat-
ing the washer or if the wiper operation
is jerky, clean the outer surface of the
windshield or rear window and the wip-
er blades using a sponge or soft cloth
with a neutral detergent or mild-abra-
sive cleaner. After cleaning, rinse the
window glass and wiper blades with
clean water. The glass is clean if no
beads form on the glass when you
rinse with water. y If you cannot eliminate the streaking
even after following this procedure, re-
place the wiper blades with new ones.
Refer to the “Replacement of wiper
blades” section (chapter 11) for re-
placement instructions. „ Windshield wiper and washer
switches
The wiper operates only when the ignition
switch is in the “ON” or “ACC” position. T
Windshield wipers
OFF: Park : Intermittent
LO: Low speed HI: High speed
To turn the wipers on, push the wiper con-
trol lever down.
To turn the wipers off, return the lever to
the “OFF” position.
y
Use clean water if windshield
washer fluid is unavailable. In ar-
eas where water freezes in winter,
use SUBARU Windshield Washer
Fluid or the equivalent. (See
“Windshield washer fluid” section
in chapter 11.)
Also, when driving the vehicle
when there are freezing tempera-
tures, use non-freezing type wiper
blades.
y Do not clean the wiper blades with
gasoline or a solvent, such as
paint thinner or benzene. This will
cause deterioration of the wiper
blades.
300286

Instruments and controls 3-31
– CONTINUED –
T

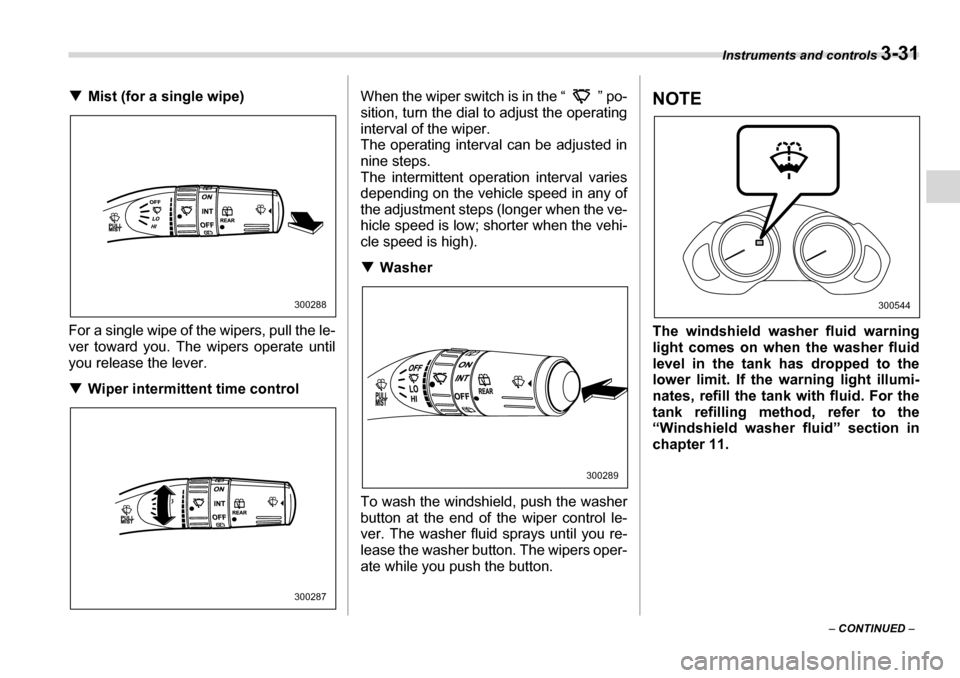

Mist (for a single wipe)
For a single wipe of the wipers, pull the le-
ver toward you. The wipers operate until
you release the lever. T Wiper intermittent time control When the wiper switch is in the “ ” po-
sition, turn the dial to adjust the operating
interval of the wiper.
The operating interval can be adjusted in
nine steps.
The intermittent operation interval varies
depending on the vehicle speed in any of
the adjustment steps (longer when the ve-
hicle speed is low; shorter when the vehi-
cle speed is high). T
Washer
To wash the windshield, push the washer
button at the end of the wiper control le-
ver. The washer fluid sprays until you re-
lease the washer button. The wipers oper-
ate while you push the button.
NOTE
The windshield washer fluid warning
light comes on when the washer fluid
level in the tank has dropped to the
lower limit. If the warning light illumi-
nates, refill the tank with fluid. For the
tank refilling method, refer to the
“Windshield washer fluid” section in
chapter 11.
300288
300287
300289
300544

3-32 Instruments and controls

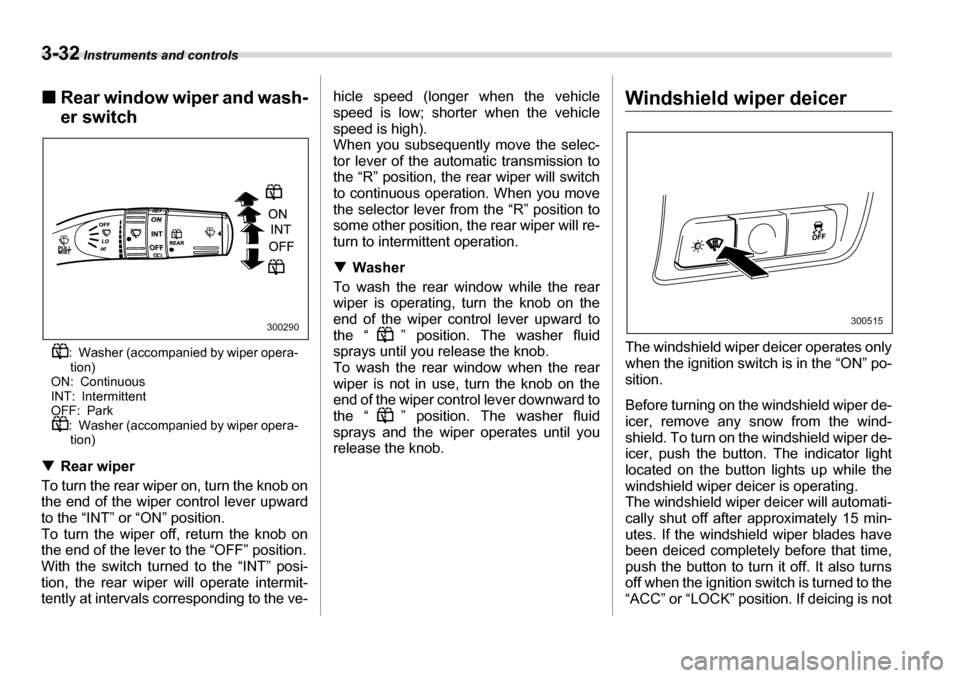

„Rear window wiper and wash- er switch
: Washer (accompanied by wiper opera-tion)
ON: Continuous
INT: Intermittent
OFF: Park : Washer (accompanied by wiper opera-tion)
T Rear wiper
To turn the rear wiper on, turn the knob on
the end of the wiper control lever upward
to the “INT” or “ON” position.
To turn the wiper off, return the knob on
the end of the lever to the “OFF” position.
With the switch turned to the “INT” posi-
tion, the rear wiper will operate intermit-
tently at intervals corresponding to the ve- hicle speed (longer when the vehicle
speed is low; shorter when the vehicle
speed is high).
When you subsequently move the selec-
tor lever of the automatic transmission to
the “R” position, the rear wiper will switch
to continuous operation. When you move
the selector lever from the “R” position to
some other position, the rear wiper will re-
turn to intermittent operation. T
Washer
To wash the rear window while the rear
wiper is operating, turn the knob on the
end of the wiper control lever upward to
the “ ” position. The washer fluid
sprays until you release the knob.
To wash the rear window when the rear
wiper is not in use, turn the knob on the
end of the wiper control lever downward to
the “ ” position. The washer fluid
sprays and the wiper operates until you
release the knob.Windshield wiper deicer
The windshield wiper deicer operates only
when the ignition switch is in the “ON” po-
sition.
Before turning on the windshield wiper de-
icer, remove any snow from the wind-
shield. To turn on the windshield wiper de-
icer, push the button. The indicator light
located on the button lights up while the
windshield wiper deicer is operating.
The windshield wiper deicer will automati-
cally shut off after approximately 15 min-
utes. If the windshield wiper blades have
been deiced completely before that time,
push the button to turn it off. It also turns
off when the ignition switch is turned to the
“ACC” or “LOCK” position. If deicing is not
300290300515

Instruments and controls 3-33
– CONTINUED –

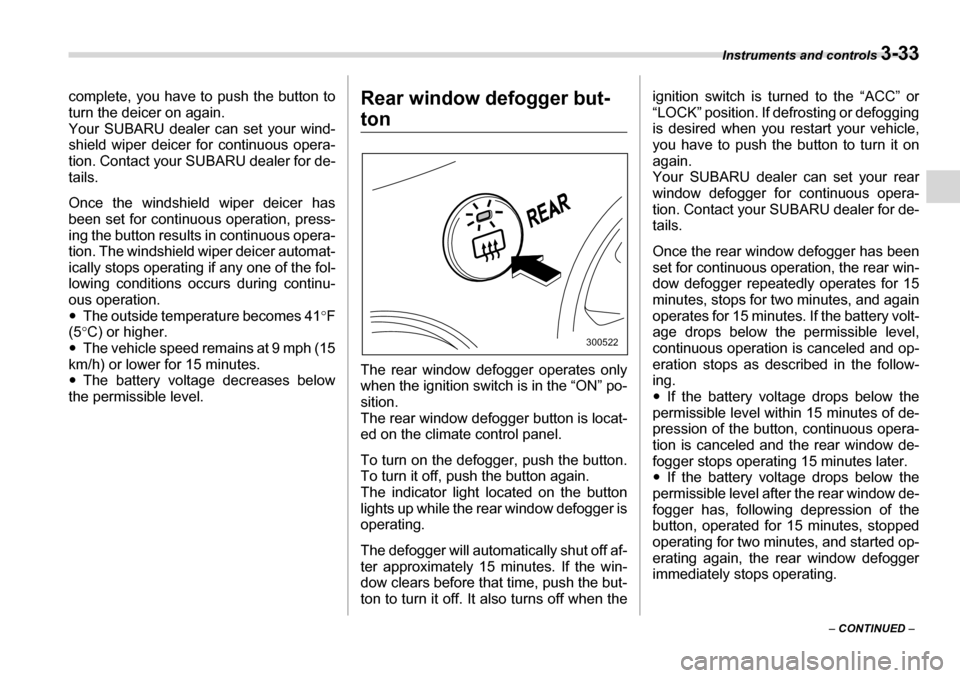

complete, you have to push the button to
turn the deicer on again.
Your SUBARU dealer can set your wind-
shield wiper deicer for continuous opera-
tion. Contact your SUBARU dealer for de- tails.
Once the windshield wiper deicer has
been set for continuous operation, press-
ing the button results in continuous opera-
tion. The windshield wiper deicer automat-
ically stops operating if any one of the fol-
lowing conditions occurs during continu-
ous operation. y
The outside temperature becomes 41 °F
(5 °C) or higher.
y The vehicle speed remains at 9 mph (15
km/h) or lower for 15 minutes.y The battery voltage decreases below
the permissible level. Rear window defogger but-
ton
The rear window defogger operates only
when the ignition switch is in the “ON” po- sition.
The rear window defogger button is locat-
ed on the climate control panel.
To turn on the defogger, push the button.
To turn it off, push the button again.
The indicator light located on the button
lights up while the rear window defogger is
operating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the win-
dow clears before that time, push the but-
ton to turn it off. It also turns off when theignition switch is turned to the “ACC” or
“LOCK” position. If defrosting or defogging
is desired when you restart your vehicle,
you have to push the button to turn it on
again.
Your SUBARU dealer can set your rear
window defogger for continuous opera-
tion. Contact your SUBARU dealer for de- tails.
Once the rear window defogger has been
set for continuous operation, the rear win-
dow defogger repeatedly operates for 15
minutes, stops for two minutes, and again
operates for 15 minutes. If the battery volt-
age drops below the permissible level,
continuous operation is canceled and op-
eration stops as described in the follow-
ing. y
If the battery voltage drops below the
permissible level within 15 minutes of de-
pression of the button, continuous opera-
tion is canceled and the rear window de-
fogger stops operating 15 minutes later. y If the battery voltage drops below the
permissible level after the rear window de-
fogger has, following depression of the
button, operated for 15 minutes, stopped
operating for two minutes, and started op-
erating again, the rear window defogger
immediately stops operating.
300522

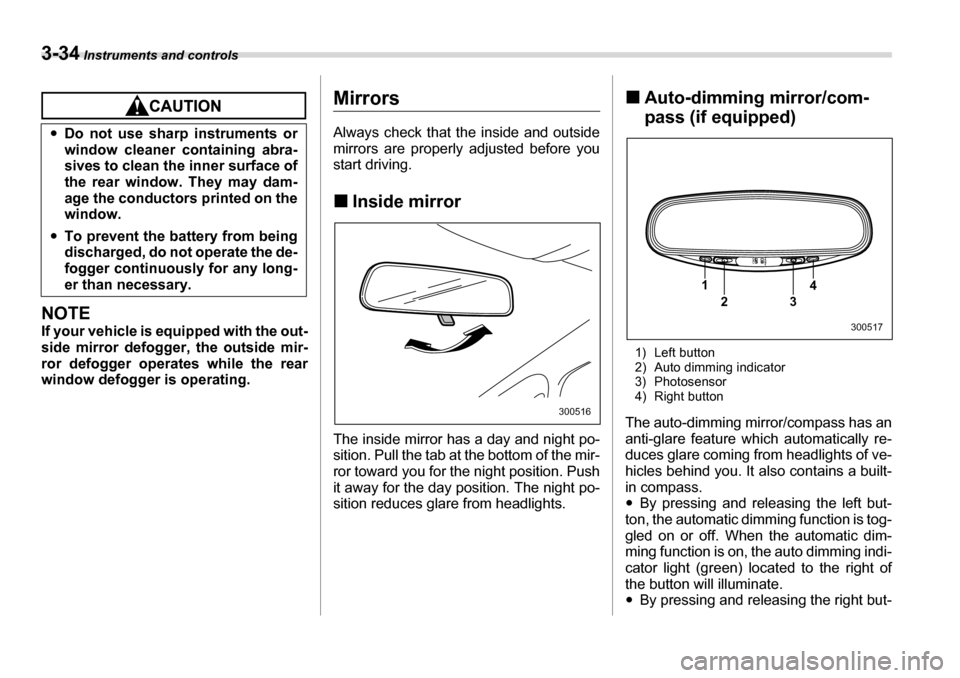

3-34 Instruments and controls
NOTE
If your vehicle is equipped with the out-
side mirror defogger, the outside mir-
ror defogger operates while the rear
window defogger is operating.
Mirrors
Always check that the inside and outside
mirrors are properly adjusted before you
start driving. „Inside mirror
The inside mirror has a day and night po-
sition. Pull the tab at the bottom of the mir-
ror toward you for the night position. Push
it away for the day position. The night po-
sition reduces glare from headlights. „
Auto-dimming mirror/com-
pass (if equipped)
1) Left button
2) Auto dimming indicator
3) Photosensor
4) Right button
The auto-dimming mirror/compass has an
anti-glare feature which automatically re-
duces glare coming from headlights of ve-
hicles behind you. It also contains a built- in compass. y By pressing and releasing the left but-
ton, the automatic dimming function is tog-
gled on or off. When the automatic dim-
ming function is on, the auto dimming indi-
cator light (green) located to the right of
the button will illuminate. y By pressing and releasing the right but-
y
Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may dam-
age the conductors printed on the
window.
y To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any long-
er than necessary.
300516
1
23 4
300517

Instruments and controls 3-35
– CONTINUED –

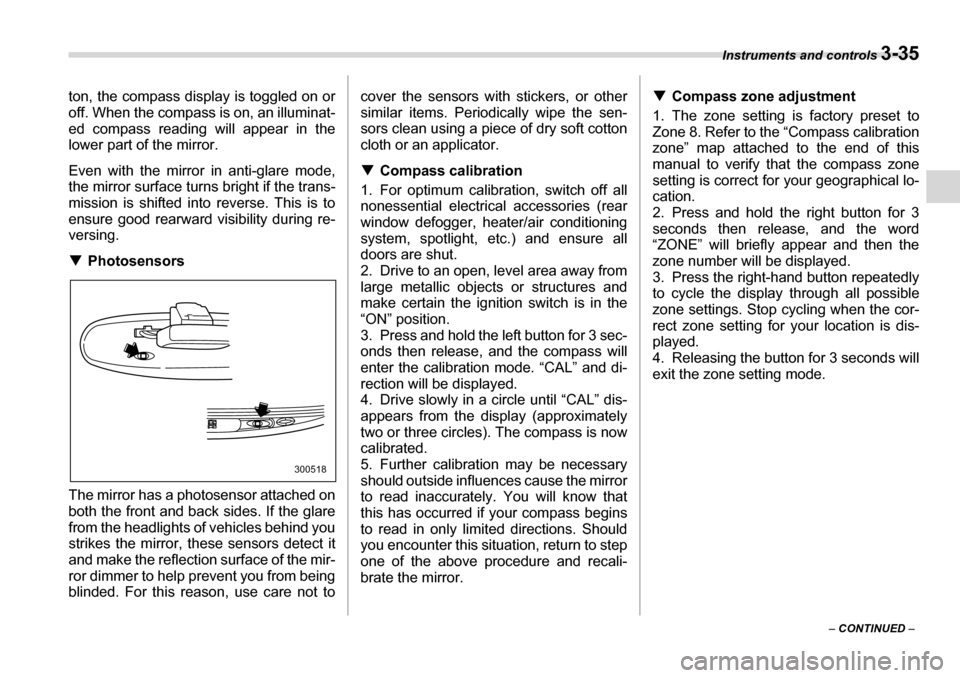

ton, the compass display is toggled on or
off. When the compass is on, an illuminat-
ed compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode,
the mirror surface turns bright if the trans-
mission is shifted into reverse. This is to
ensure good rearward visibility during re-
versing. T
Photosensors
The mirror has a photosensor attached on
both the front and back sides. If the glare
from the headlights of vehicles behind you
strikes the mirror, these sensors detect it
and make the reflection surface of the mir-
ror dimmer to help prevent you from being
blinded. For this reason, use care not to cover the sensors with stickers, or other
similar items. Periodically wipe the sen-
sors clean using a piece of dry soft cotton
cloth or an applicator. T
Compass calibration
1. For optimum calibration, switch off all
nonessential electrical accessories (rear
window defogger, heater/air conditioning
system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from
large metallic objects or structures and
make certain the ignition switch is in the“ON” position.
3. Press and hold the left button for 3 sec-
onds then release, and the compass will
enter the calibration mode. “CAL” and di-
rection will be displayed.
4. Drive slowly in a circle until “CAL” dis-
appears from the display (approximately
two or three circles). The compass is now
calibrated.
5. Further calibration may be necessary
should outside influences cause the mirror
to read inaccurately. You will know that
this has occurred if your compass begins
to read in only limited directions. Should
you encounter this situation, return to step
one of the above procedure and recali-
brate the mirror. T
Compass zone adjustment
1. The zone setting is factory preset to
Zone 8. Refer to the “Compass calibration
zone” map attached to the end of this
manual to verify that the compass zone
setting is correct for your geographical lo- cation.
2. Press and hold the right button for 3
seconds then release, and the word
“ZONE” will briefly appear and then the
zone number will be displayed.
3. Press the right-hand button repeatedly to cycle the display through all possible
zone settings. Stop cycling when the cor-
rect zone setting for your location is dis-
played.
4. Releasing the button for 3 seconds will
exit the zone setting mode.
300518

3-36 Instruments and controls

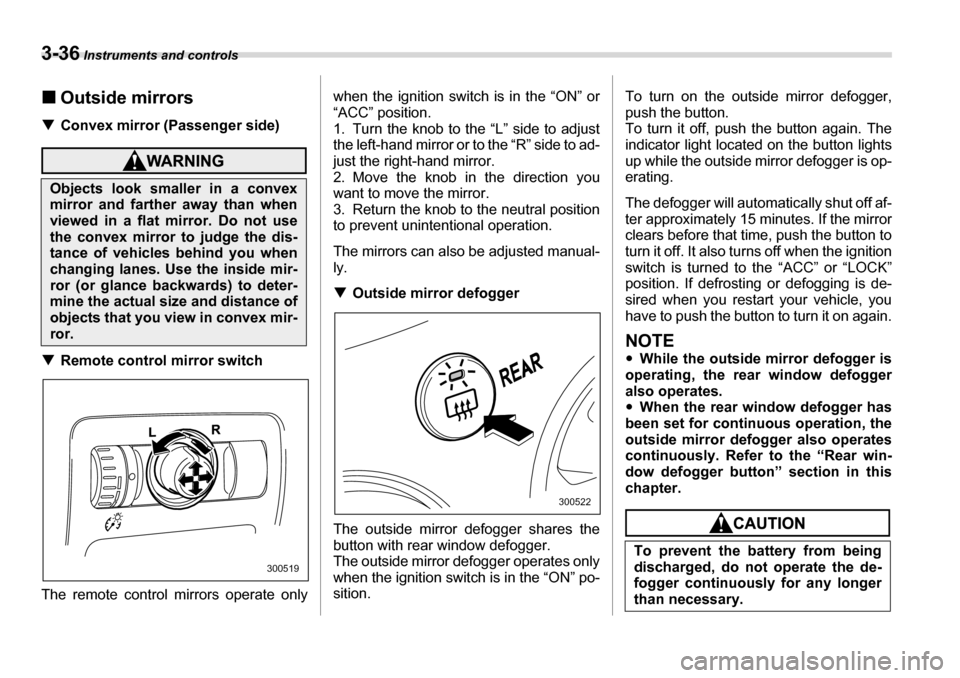

„Outside mirrors
T Convex mirror (Passenger side)
TRemote control mirror switch
The remote control mirrors operate only when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the knob to the “L” side to adjust
the left-hand mirror or to the “R” side to ad-
just the right-hand mirror.
2. Move the knob in the direction you
want to move the mirror.
3. Return the knob to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manual- ly. T
Outside mirror defogger
The outside mirror defogger shares the
button with rear window defogger.
The outside mirror defogger operates only
when the ignition switch is in the “ON” po- sition. To turn on the outside mirror defogger,
push the button.
To turn it off, push the button again. The
indicator light located on the button lights
up while the outside mirror defogger is op-
erating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the mirror
clears before that time, push the button to
turn it off. It also turns off when the ignition
switch is turned to the “ACC” or “LOCK”
position. If defrosting or defogging is de-
sired when you restart your vehicle, you
have to push the button to turn it on again.
NOTE y
While the outside mirror defogger is
operating, the rear window defogger
also operates.y When the rear window defogger has
been set for continuous operation, the
outside mirror defogger also operates
continuously. Refer to the “Rear win-
dow defogger button” section in this
chapter.
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the dis-
tance of vehicles behind you when
changing lanes. Use the inside mir-ror (or glance backwards) to deter-
mine the actual size and distance of
objects that you view in convex mir-
ror.
300519
300522
To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any longer
than necessary.

Instruments and controls 3-37

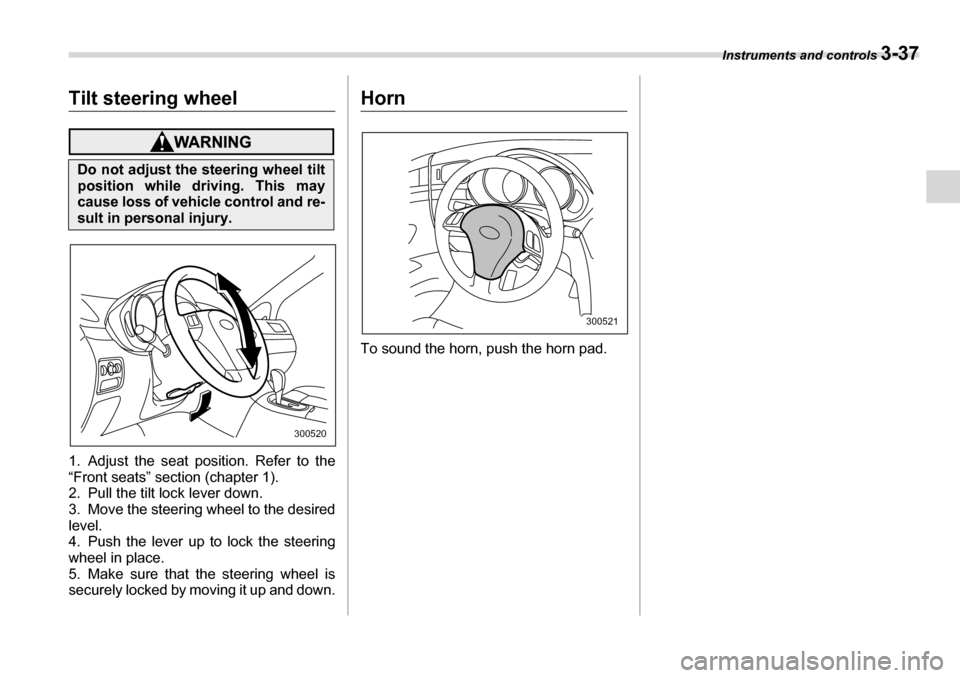

Tilt steering wheel
1. Adjust the seat position. Refer to the
“Front seats” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired
level.
4. Push the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down.
Horn
To sound the horn, push the horn pad.
Do not adjust the steering wheel tilt
position while driving. This may
cause loss of vehicle control and re-
sult in personal injury.
300520
300521

4
Climate control
Ventilator ............................................................. 4-2 Air flow ..................................................................... 4-2
Ventilator ................................................................. 4-4
Automatic climate control system .................... 4-5 Control panel ........................................................... 4-5
Rear air conditioner (if equipped) ......................... 4-9
Temperature sensors ............................................. 4-9
Operating tips for heater and air conditioner .. 4-10 Cleaning ventilator grille ........................................ 4-10
Efficient cooling after parking in direct sunlight ................................................................. 4-10
Lubrication oil circulation in the refrigerant circuit ..................................................................... 4-10
Checking air conditioning system before
summer season .................................................... 4-10
Cooling and dehumidifying in high humidity and low temperature weather condition .................... 4-10
Air conditioner compressor shut-off when
engine is heavily loaded ...................................... 4-10
Refrigerant for your climate control system ........ 4-10
Air filtration system ............................................ 4-11 Replacing the air filter ............................................ 4-11
