SUBARU TRIBECA 2007 1.G Owners Manual

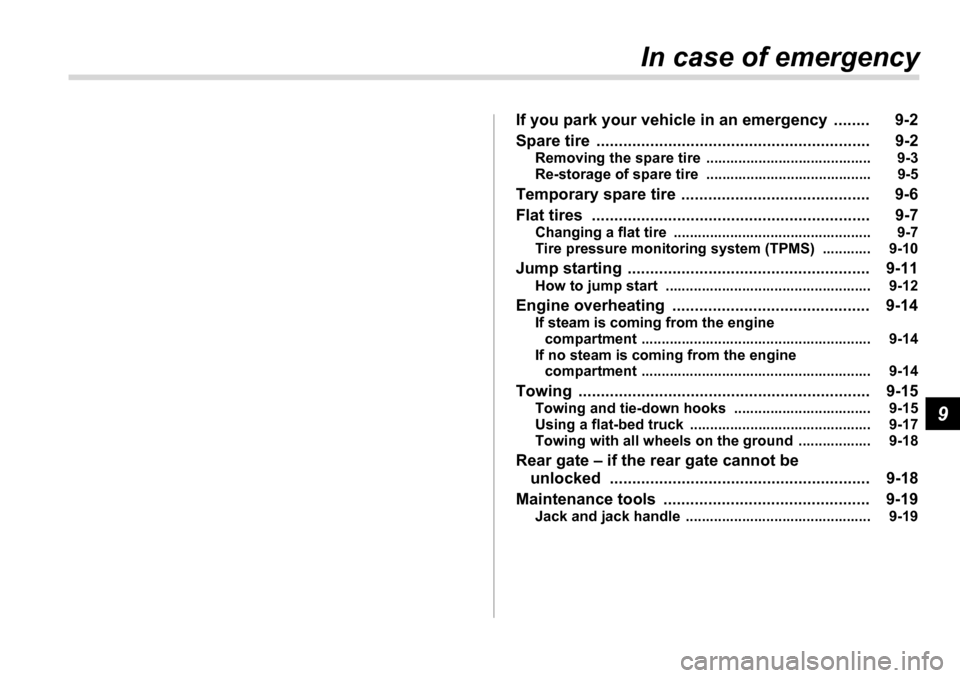

9
In case of emergency
If you park your vehicle in an emergency ........ 9-2
Spare tire ............................................................. 9-2 Removing the spare tire ......................................... 9-3
Re-storage of spare tire ......................................... 9-5
Temporary spare tire .......................................... 9-6
Flat tires .............................................................. 9-7 Changing a flat tire ................................................. 9-7
Tire pressure monitoring system (TPMS) ............ 9-10
Jump starting ...................................................... 9-11 How to jump start ................................................... 9-12
Engine overheating ............................................ 9-14 If steam is coming from the engine compartment ......................................................... 9-14
If no steam is coming from the engine
compartment ......................................................... 9-14
Towing ................................................................. 9-15 Towing and tie-down hooks .................................. 9-15
Using a flat-bed truck ............................................. 9-17
Towing with all wheels on the ground .................. 9-18
Rear gate – if the rear gate cannot be unlocked .......................................................... 9-18
Maintenance tools .............................................. 9-19 Jack and jack handle .............................................. 9-19

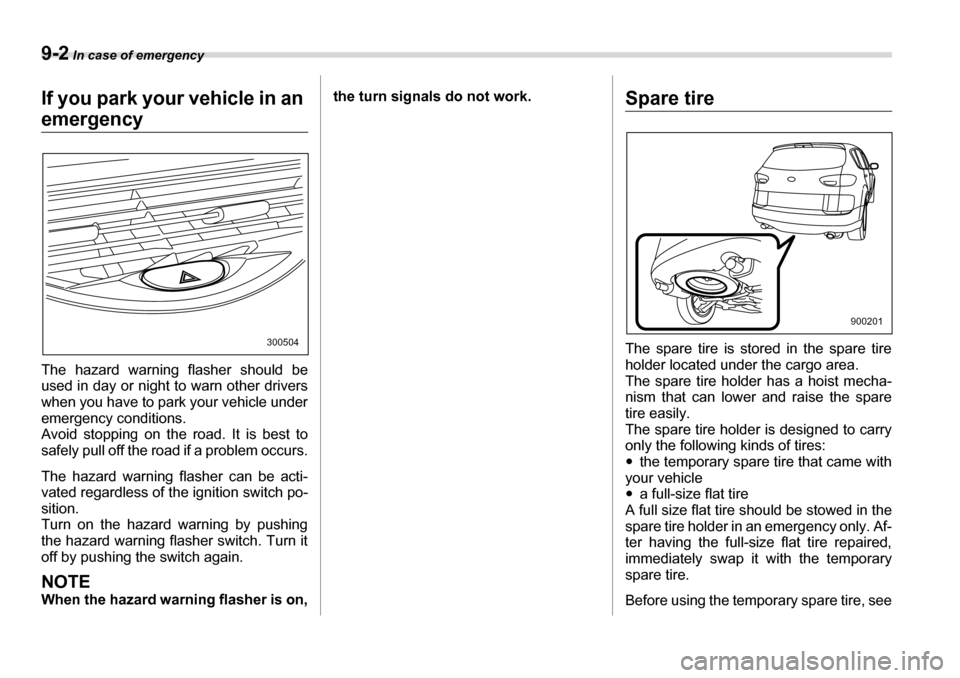

9-2 In case of emergency
In case of emergencyIf you park your vehicle in an
emergency
The hazard warning flasher should be
used in day or night to warn other drivers
when you have to park your vehicle under
emergency conditions.
Avoid stopping on the road. It is best to
safely pull off the road if a problem occurs.
The hazard warning flasher can be acti-
vated regardless of the ignition switch po- sition.
Turn on the hazard warning by pushing
the hazard warning flasher switch. Turn it
off by pushing the switch again.
NOTE
When the hazard warning flasher is on, the turn signals do not work.
Spare tire
The spare tire is stored in the spare tire
holder located under the cargo area.
The spare tire holder has a hoist mecha-
nism that can lower and raise the spare
tire easily.
The spare tire holder is designed to carry
only the following kinds of tires: y
the temporary spare tire that came with
your vehicle y a full-size flat tire
A full size flat tire should be stowed in the
spare tire holder in an emergency only. Af-
ter having the full-size flat tire repaired,
immediately swap it with the temporaryspare tire.
Before using the temporary spare tire, see
300504
900201

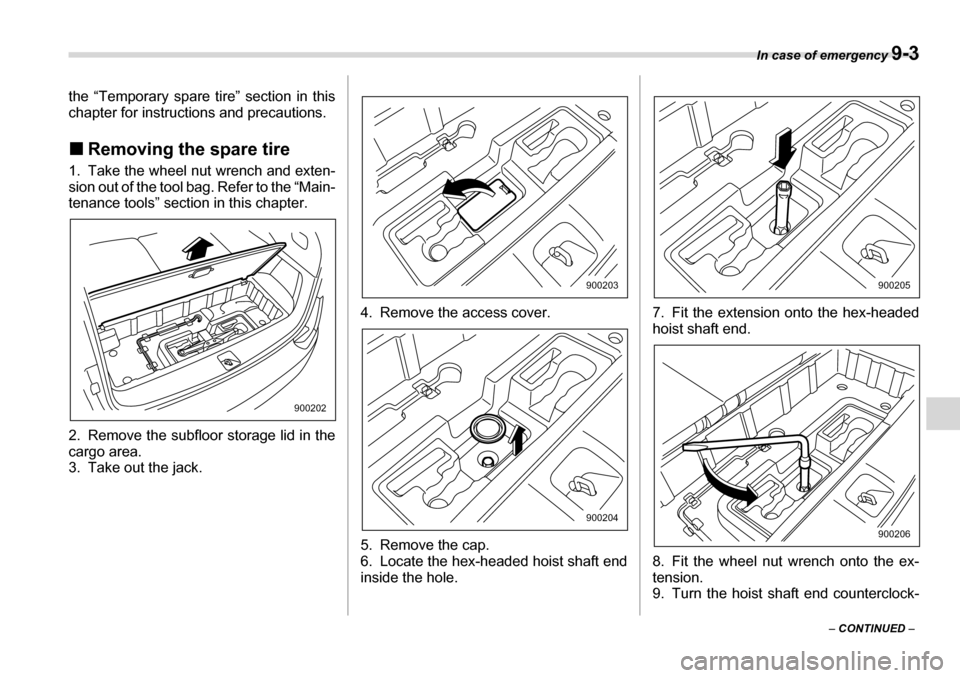

In case of emergency 9-3
– CONTINUED –
the “Temporary spare tire” section in this
chapter for instructions and precautions. „
Removing the spare tire
1. Take the wheel nut wrench and exten-
sion out of the tool bag. Refer to the “Main-
tenance tools” section in this chapter.
2. Remove the subfloor storage lid in the
cargo area.
3. Take out the jack. 4. Remove the access cover.
5. Remove the cap.
6. Locate the hex-headed hoist shaft end
inside the hole. 7. Fit the extension onto the hex-headed
hoist shaft end.
8. Fit the wheel nut wrench onto the ex-
tension.
9. Turn the hoist shaft end counterclock-
900202
900203
900204
900205
900206

9-4 In case of emergency
wise with the wheel nut wrench until the
temporary spare tire is on the ground with
enough cable slack to allow you to pull it
out from under the vehicle.10.Tilt the retainer at the end of the cable
and pull it through the center of the tempo-
rary spare tire.
11.After the temporary spare tire is re-
moved from the cable, the cable must be
wound up completely by turning the hoist
nut shaft clockwise until you hear a click-
ing sound. Also visually inspect the cable
to make certain that there is no longer any
slack present.
yBe sure to remove (not simply
keep it open) the subfloor storage
lid before turning the wheel nut
wrench, otherwise the lid may be
damaged.
y Do not put your fingers into the
center hole of the temporary
spare tire while you pulling it out,
because they might be pinched in
between the wheel and the retain-er.
900207
900208
yDo not use the extension when
turning the wheel nuts. If you did,
you would not be able to achieve sufficient tightening torque. The
wheel nuts could then come
loose, resulting in a serious acci-
dent.
yWhen using the spare tire hoist:
After the temporary spare tire is
removed from the cable, wind the
cable up completely until the re-
tainer at end of the cable sits
against the underside of the vehi-
cle. Driving with the cable not re-
tracted fully could result in dam-
age to the adjacent under floor
parts and lead to a serious acci-
dent.
yThe spare tire holder is designed to carry only the following kinds
of tires:
ythe temporary spare tire that
came with your vehicle
ya full-size flat tire

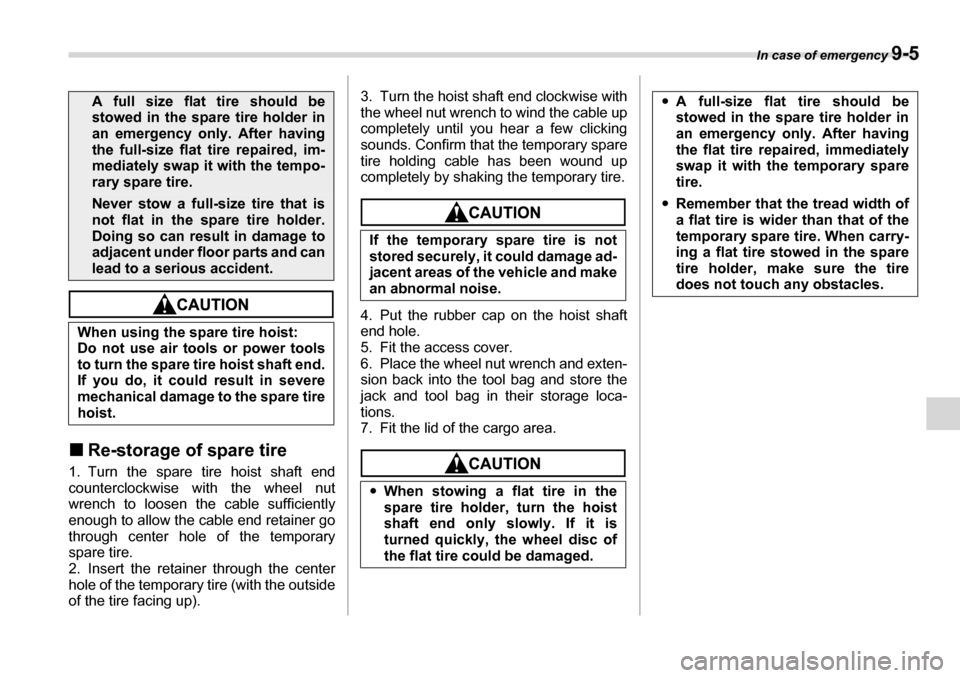

In case of emergency 9-5
„Re-storage of spare tire
1. Turn the spare tire hoist shaft end
counterclockwise with the wheel nut
wrench to loosen the cable sufficiently
enough to allow the cable end retainer go
through center hole of the temporary
spare tire.
2. Insert the retainer through the center
hole of the temporary tire (with the outside
of the tire facing up). 3. Turn the hoist shaft end clockwise with
the wheel nut wrench to wind the cable up
completely until you hear a few clicking
sounds. Confirm that the temporary spare
tire holding cable has been wound up
completely by shaking the temporary tire.
4. Put the rubber cap on the hoist shaft
end hole.
5. Fit the access cover.
6. Place the wheel nut wrench and exten-
sion back into the tool bag and store the
jack and tool bag in their storage loca- tions.
7. Fit the lid of the cargo area.
A full size flat tire should be
stowed in the spare tire holder in
an emergency only. After having
the full-size flat tire repaired, im-
mediately swap it with the tempo-
rary spare tire.
Never stow a full-size tire that is
not flat in the spare tire holder.
Doing so can result in damage to
adjacent under floor parts and can
lead to a serious accident.
When using the spare tire hoist:
Do not use air tools or power toolsto turn the spare tire hoist shaft end.
If you do, it could result in severe
mechanical damage to the spare tire
hoist.
If the temporary spare tire is not
stored securely, it could damage ad-
jacent areas of the vehicle and make
an abnormal noise. y When stowing a flat tire in the
spare tire holder, turn the hoist
shaft end only slowly. If it is
turned quickly, the wheel disc of
the flat tire could be damaged.
yA full-size flat tire should be
stowed in the spare tire holder in
an emergency only. After having
the flat tire repaired, immediately
swap it with the temporary spare tire.
y Remember that the tread width of
a flat tire is wider than that of the
temporary spare tire. When carry-
ing a flat tire stowed in the spare
tire holder, make sure the tire
does not touch any obstacles.

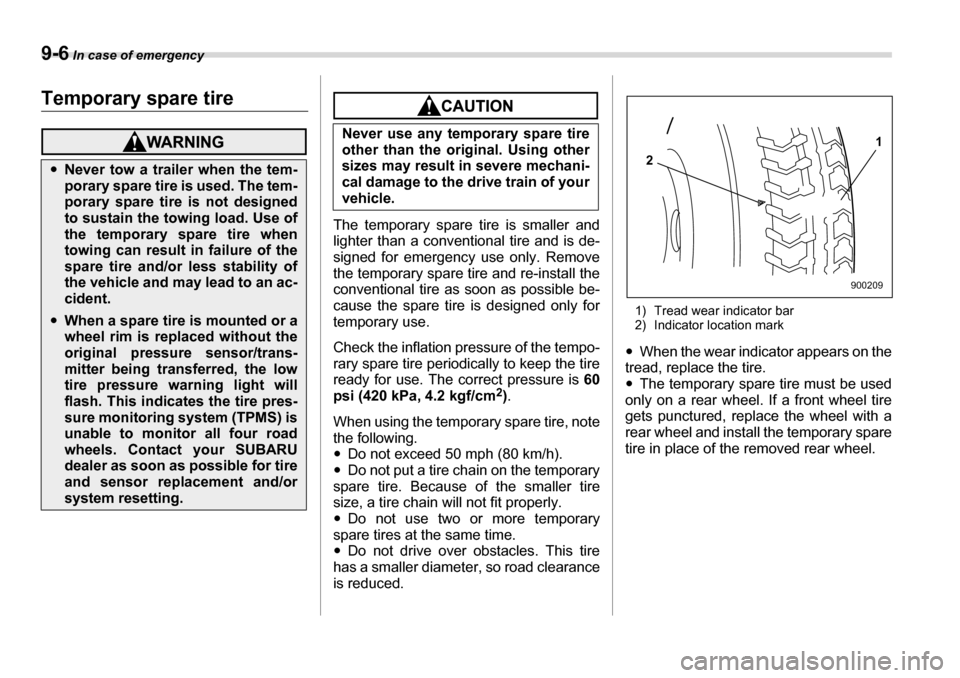

9-6 In case of emergency
Temporary spare tire
The temporary spare tire is smaller and
lighter than a conventional tire and is de-
signed for emergency use only. Remove
the temporary spare tire and re-install the
conventional tire as soon as possible be-
cause the spare tire is designed only for
temporary use.
Check the inflation pressure of the tempo-
rary spare tire periodically to keep the tire
ready for use. The correct pressure is 60
psi (420 kPa, 4.2 kgf/cm 2
).
When using the temporary spare tire, note
the following.y Do not exceed 50 mph (80 km/h).
y Do not put a tire chain on the temporary
spare tire. Because of the smaller tire
size, a tire chain will not fit properly. y Do not use two or more temporary
spare tires at the same time. y Do not drive over obstacles. This tire
has a smaller diameter, so road clearance
is reduced. 1) Tread wear indicator bar
2) Indicator location mark
y When the wear indicator appears on the
tread, replace the tire. y The temporary spare tire must be used
only on a rear wheel. If a front wheel tire
gets punctured, replace the wheel with a
rear wheel and install the temporary spare
tire in place of the removed rear wheel.
y Never tow a trailer when the tem-
porary spare tire is used. The tem-
porary spare tire is not designed
to sustain the towing load. Use of
the temporary spare tire when
towing can result in failure of the
spare tire and/or less stability of
the vehicle and may lead to an ac-
cident.
yWhen a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/trans-
mitter being transferred, the low
tire pressure warning light will
flash. This indicates the tire pres-
sure monitoring system (TPMS) is
unable to monitor all four road
wheels. Contact your SUBARU
dealer as soon as possible for tire
and sensor replacement and/or
system resetting.
Never use any temporary spare tire
other than the original. Using other
sizes may result in severe mechani-
cal damage to the drive train of your
vehicle.1
2
900209

In case of emergency 9-7
– CONTINUED –
Flat tires
If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place. „Changing a flat tire
1. Park on a hard, level surface, whenev-
er possible, then stop the engine.
2. Set the parking brake securely and
shift in the “P” (Park) position.
3. Turn on the hazard warning flasher and
have everyone get out of the vehicle.
4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire. 7 seater models
1) Jack handle
2) Jack
3) Spare tire
y
Do not jack up the vehicle on an
incline or a loose road surface.
The jack can come out of the jack-
ing point or sink into the ground
and this can result in a severe ac-
cident.
yUse only the jack provided with
your vehicle. The jack supplied
with the vehicle is designed only for changing a tire. Never get un-
der the vehicle while supporting
the vehicle with this jack.
yAlways turn off the engine before
raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a severe acci-
dent.
600122
1 3
2900261

9-8 In case of emergency
5 seater models
1) Jack handle
2) Jack
3) Spare tire
5. Take out the jack and jack handle.
The jack and jack handle are stored under
the floor of the cargo area.
6. Remove the spare tire.
Refer to the sections “Spare tire” in this
chapter for its location, instructions and
precautions.
Carefully read the section “Temporary
spare tire” in this chapter and strictly fol-
low the instructions.
NOTE
Make sure the jack is well lubricated
before using it. 7. Insert the tip (wrapped in vinyl tape or
a cloth) of a flat-head screwdriver into the
slot between the wheel and cap. Use it to remove the cap.
8. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts.
9. Place the jack under the side sill at the
front or rear jack-up point closest to the flat
tire.
Turn the jackscrew by hand until the jack
1
3
2
900262900211
900212
900213
900214

In case of emergency 9-9
– CONTINUED –
head engages firmly into the jack-up point.
10.Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
11.Remove the wheel nuts and the flattire.
12.Before putting the spare tire on, clean
the mounting surface of the wheel and
hub with a cloth.
13.Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.
14.Turn the jack handle counterclockwise
to lower the vehicle.
15.Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in
the illustration.
The torque for tightening the nuts is 74 to
89 lbf·ft (100 to 120 N·m, 10 to 12 kgf·m).
This torque is equivalent to applying ap-
proximately 88 to 110 lbs (40 to 50 kg) at
the top of the wheel nut wrench. Never
900215
900009
600162
Do not use oil or grease on the
wheel studs or nuts when the spare
tire is installed. This could cause the
nuts to become loose and lead to an
accident.
1
42
53
600192
