CD changer SUBARU TRIBECA 2007 1.G Owners Manual

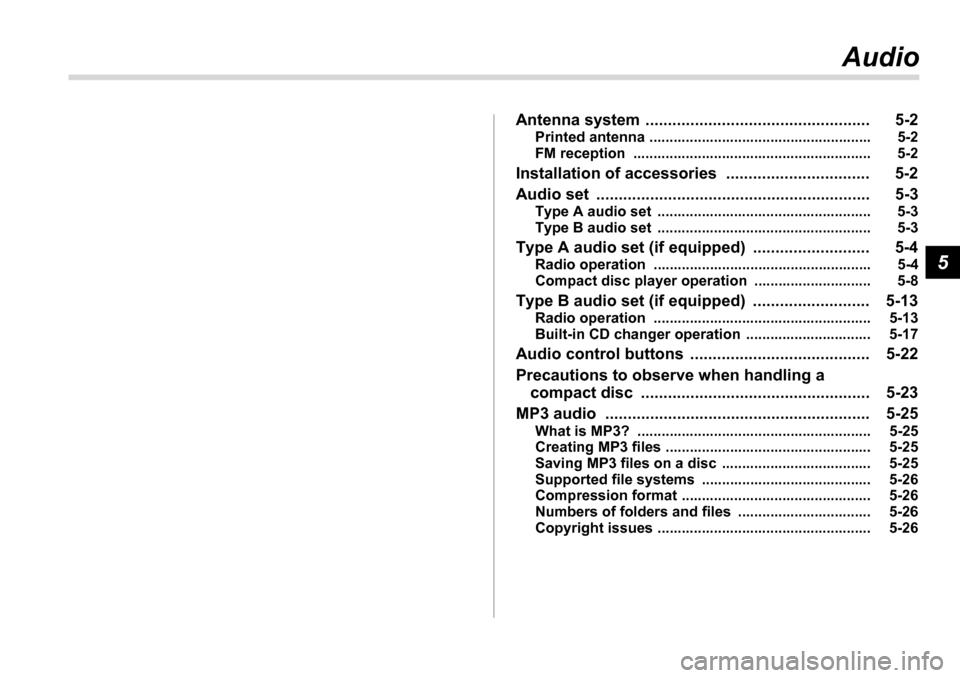

5
Audio
Antenna system .................................................. 5-2 Printed antenna ....................................................... 5-2
FM reception ........................................................... 5-2
Installation of accessories ................................ 5-2
Audio set ............................................................. 5-3 Type A audio set ..................................................... 5-3
Type B audio set ..................................................... 5-3
Type A audio set (if equipped) .......................... 5-4 Radio operation ...................................................... 5-4
Compact disc player operation ............................. 5-8
Type B audio set (if equipped) .......................... 5-13 Radio operation ...................................................... 5-13
Built-in CD changer operation ............................... 5-17
Audio control buttons ........................................ 5-22
Precautions to observe when handling a compact disc ................................................... 5-23
MP3 audio ........................................................... 5-25 What is MP3? .......................................................... 5-25
Creating MP3 files ................................................... 5-25
Saving MP3 files on a disc ..................................... 5-25
Supported file systems .......................................... 5-26
Compression format ............................................... 5-26
Numbers of folders and files ................................. 5-26
Copyright issues ..................................................... 5-26

Audio 5-3

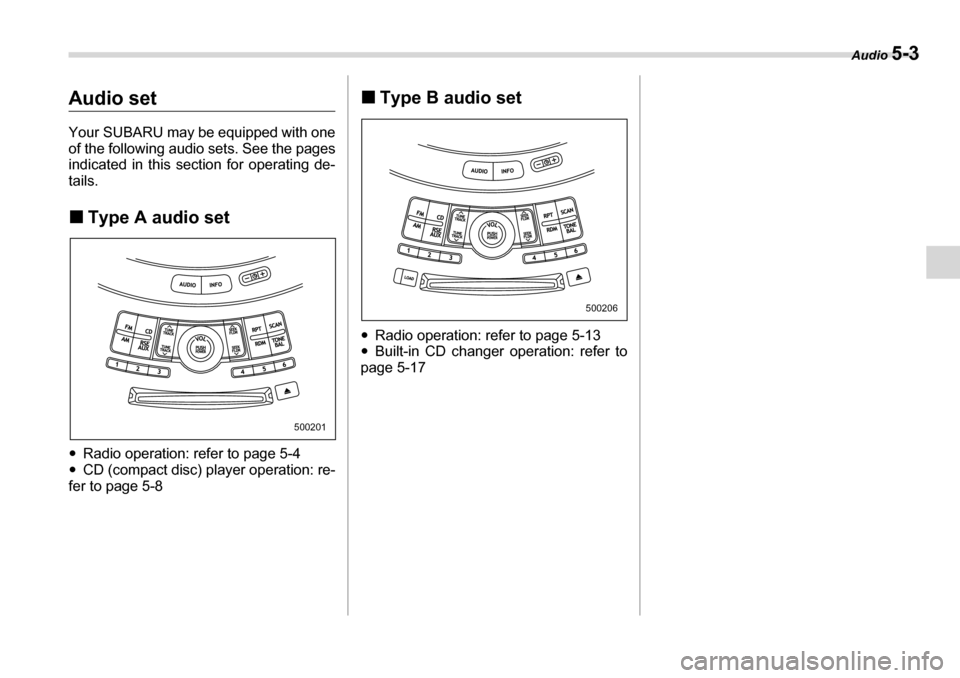

Audio set
Your SUBARU may be equipped with one
of the following audio sets. See the pages
indicated in this section for operating de- tails. „Type A audio set
y Radio operation: refer to page 5-4
y CD (compact disc) player operation: re-
fer to page 5-8 „
Type B audio set
y Radio operation: refer to page 5-13
y Built-in CD changer operation: refer to
page 5-17
500201
500206

Audio 5-17
– CONTINUED –

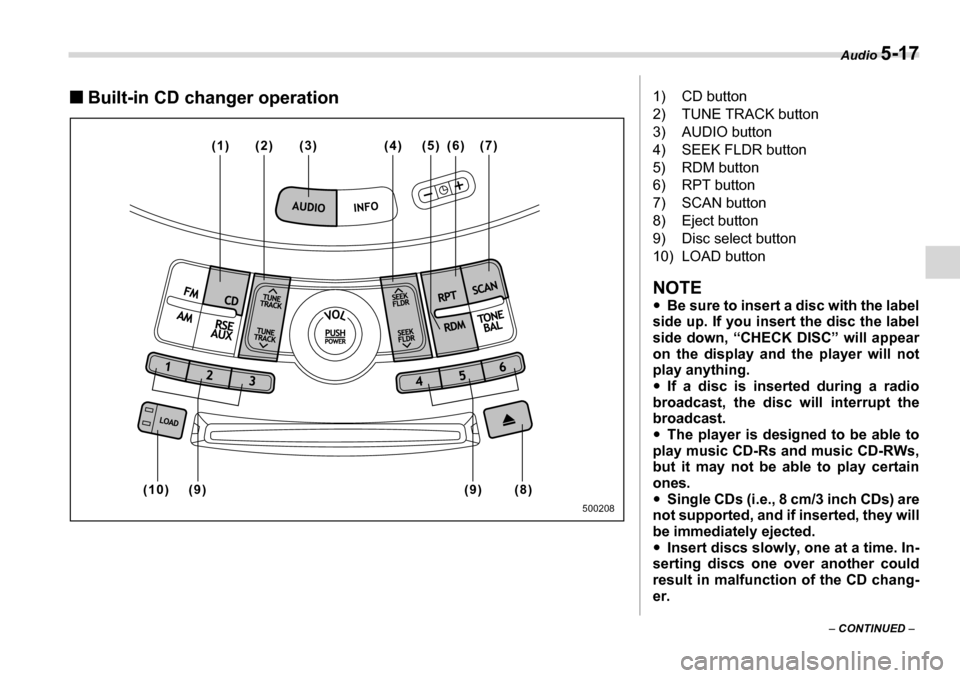

„Built-in CD changer operation
(1) (2) (5) (6) (7) (3) (4)
(9) (8)
(9)
(10)
500208
1) CD button
2) TUNE TRACK button
3) AUDIO button
4) SEEK FLDR button
5) RDM button
6) RPT button
7) SCAN button
8) Eject button
9) Disc select button
10) LOAD button
NOTE y Be sure to insert a disc with the label
side up. If you insert the disc the label
side down, “CHECK DISC” will appear
on the display and the player will not
play anything. y If a disc is inserted during a radio
broadcast, the disc will interrupt the
broadcast. y The player is designed to be able to
play music CD-Rs and music CD-RWs,
but it may not be able to play certain
ones.y Single CDs (i.e., 8 cm/3 inch CDs) are
not supported, and if inserted, they will
be immediately ejected.y Insert discs slowly, one at a time. In-
serting discs one over another could
result in malfunction of the CD chang-er.
