SUBARU WRX 2016 Owners Manual

Instruments and controls/Multi function display

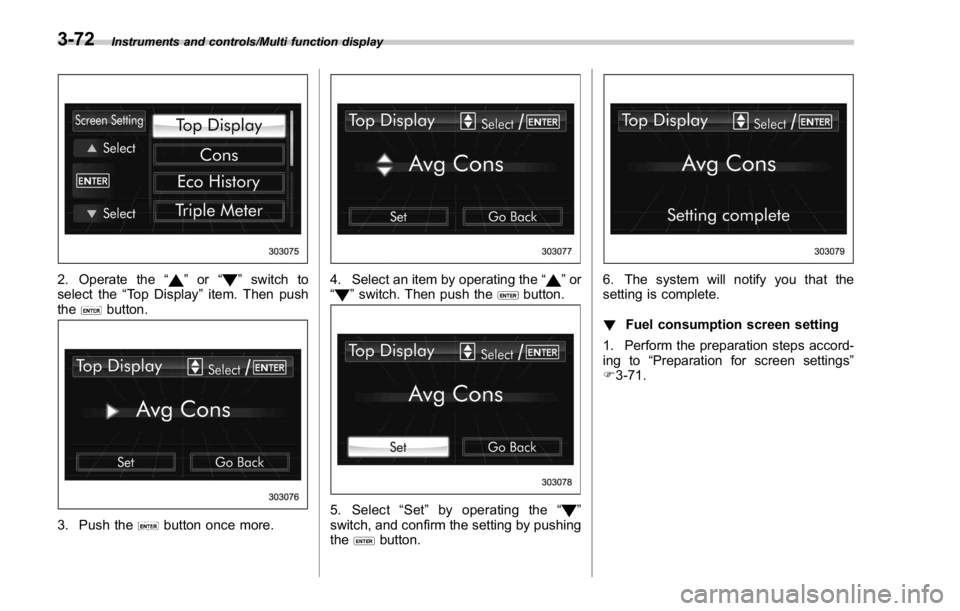

2. Operate the “ ” or “ ” switch to
select the “ Top Display ” item. Then push
the
button.
3. Push the button once more. 4. Select an item by operating the “ ” or
“
” switch. Then push the button.
5. Select “ Set ” by operating the “ ”
switch, and confirm the setting by pushing
the
button. 6. The system will notify you that the
setting is complete.

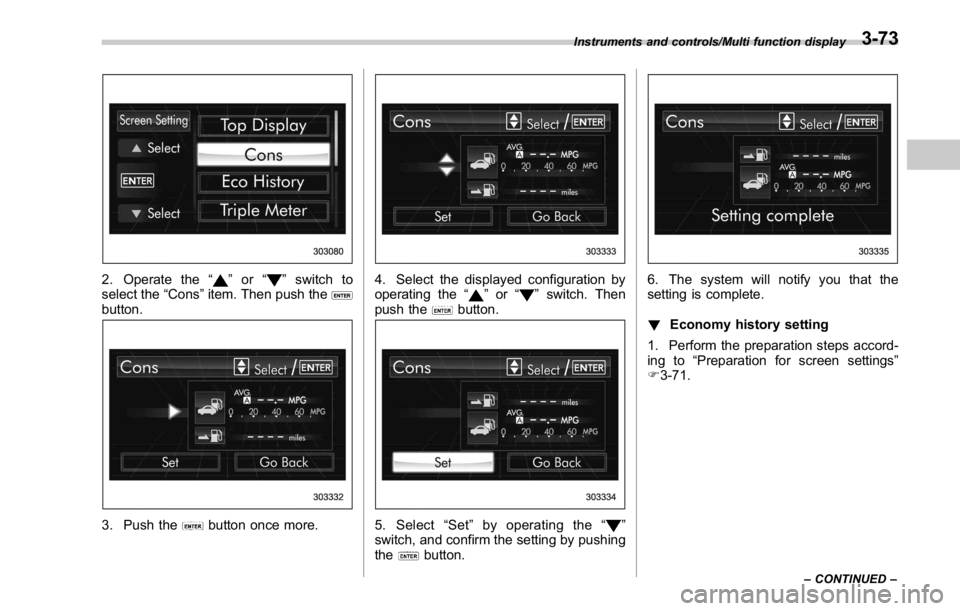

! Fuel consumption screen setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71.3-72

2. Operate the “ ” or “ ” switch to
select the “ Cons ” item. Then push the
button.
3. Push the button once more. 4. Select the displayed configuration by
operating the “
” or “ ” switch. Then
push the
button.
5. Select “ Set ” by operating the “ ”
switch, and confirm the setting by pushing
the
button. 6. The system will notify you that the
setting is complete.
! Economy history setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71.Instruments and controls/Multi function display
– CONTINUED –3-73

Instruments and controls/Multi function display

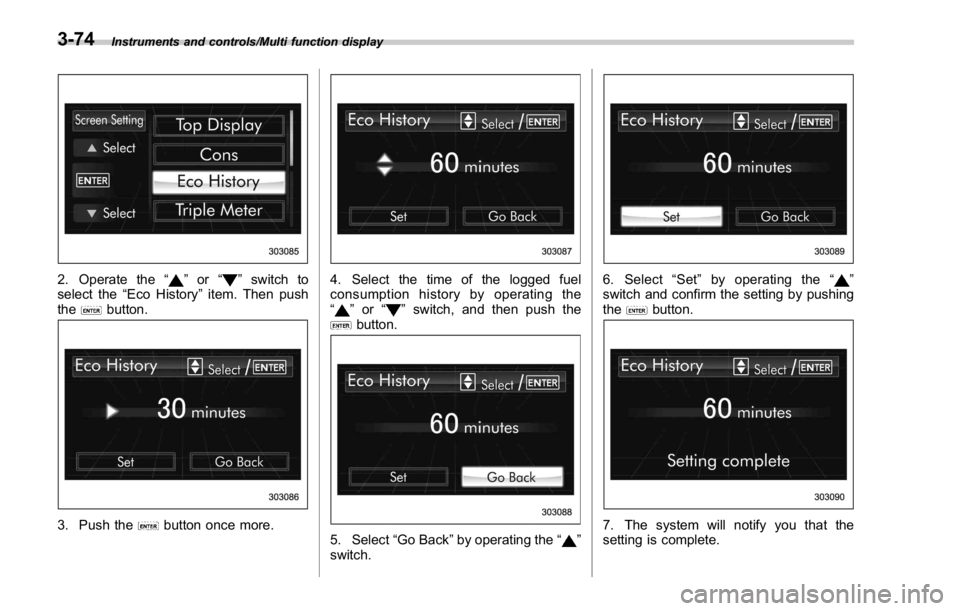

2. Operate the “ ” or “ ” switch to
select the “ Eco History ” item. Then push
the
button.
3. Push the button once more. 4. Select the time of the logged fuel
consumption history by operating the
“
” or “ ” switch, and then push the
button.
5. Select “ Go Back ” by operating the “ ”
switch. 6. Select “ Set ” by operating the “ ”
switch and confirm the setting by pushing
the
button.
7. The system will notify you that the
setting is complete.3-74

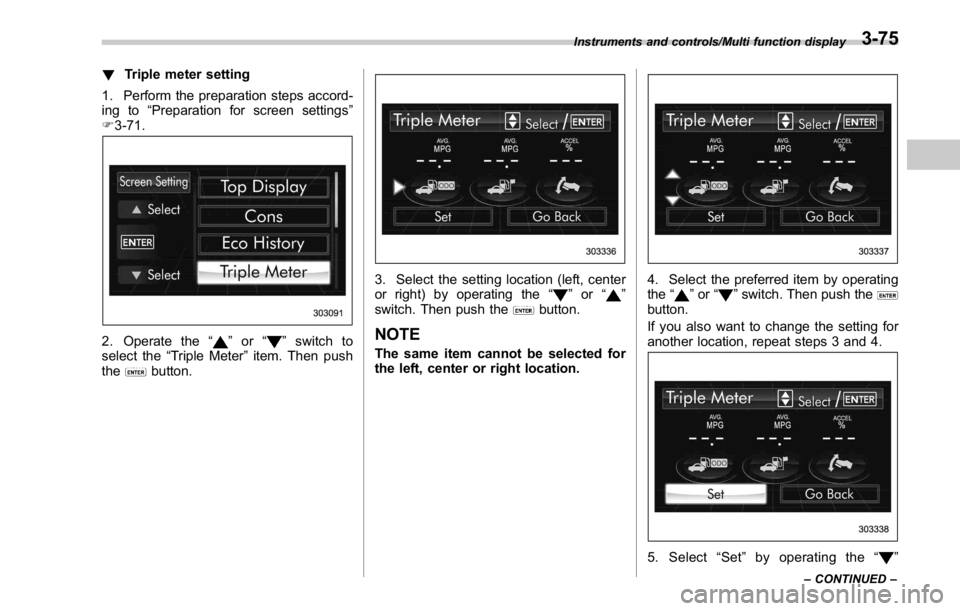

! Triple meter setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71.
2. Operate the “ ” or “ ” switch to
select the “ Triple Meter ” item. Then push
the
button. 3. Select the setting location (left, center
or right) by operating the “
” or “ ”
switch. Then push the
button.
NOTE The same item cannot be selected for
the left, center or right location. 4. Select the preferred item by operating
the “
” or “ ” switch. Then push the
button.
If you also want to change the setting for
another location, repeat steps 3 and 4.
5. Select “ Set ” by operating the “ ”Instruments and controls/Multi function display
– CONTINUED –3-75

Instruments and controls/Multi function display
switch, and confirm the setting by pushing
the
button.
6. The system will notify you that the
setting is complete.

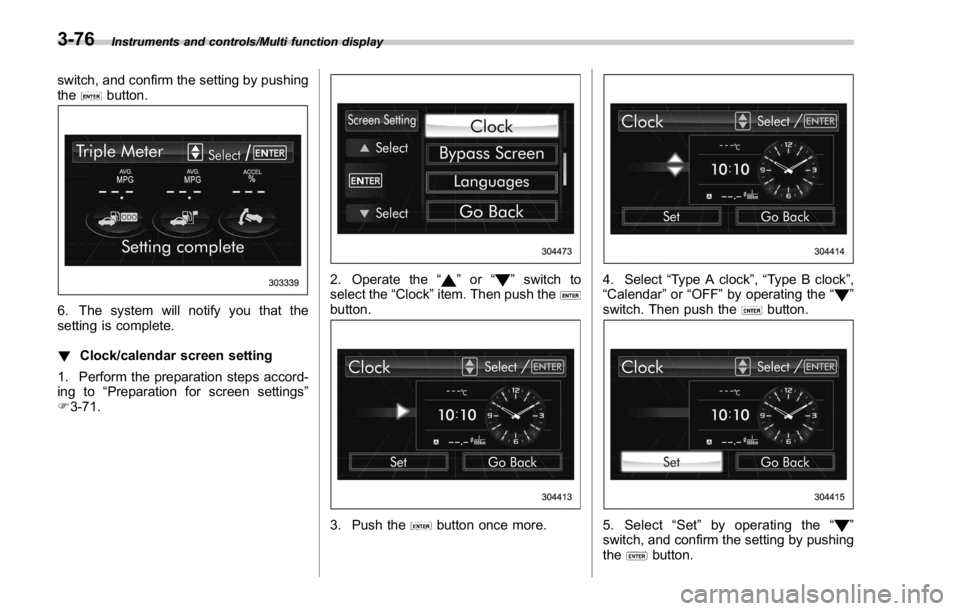

! Clock/calendar screen setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71. 2. Operate the “ ” or “ ” switch to
select the “ Clock ” item. Then push the
button.
3. Push the button once more. 4. Select “ Type A clock ” , “ Type B clock ” ,
“ Calendar ” or “ OFF ” by operating the “
”
switch. Then push the
button.
5. Select “ Set ” by operating the “ ”
switch, and confirm the setting by pushing
the
button.3-76

6. The system will notify you that the
setting is complete.

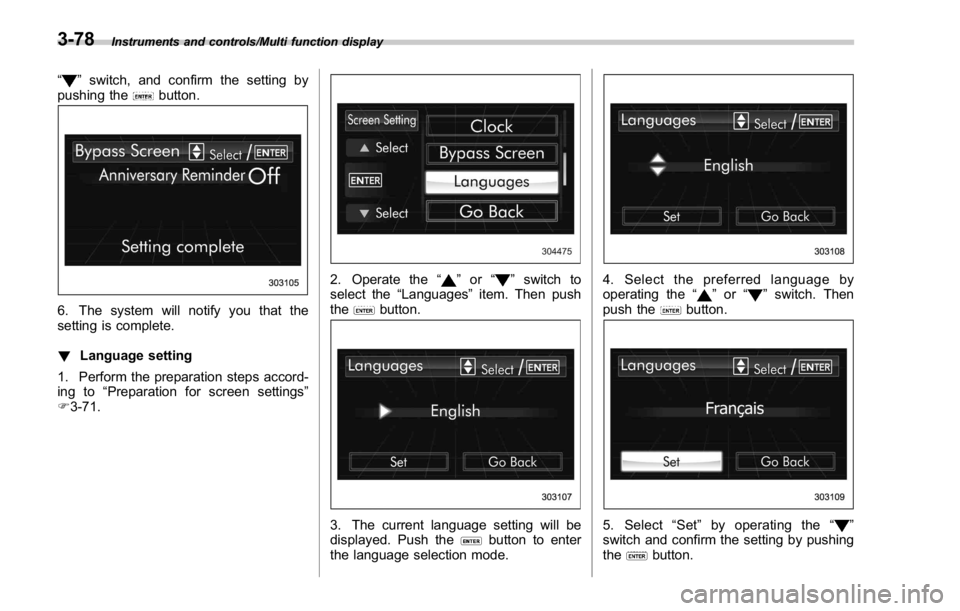

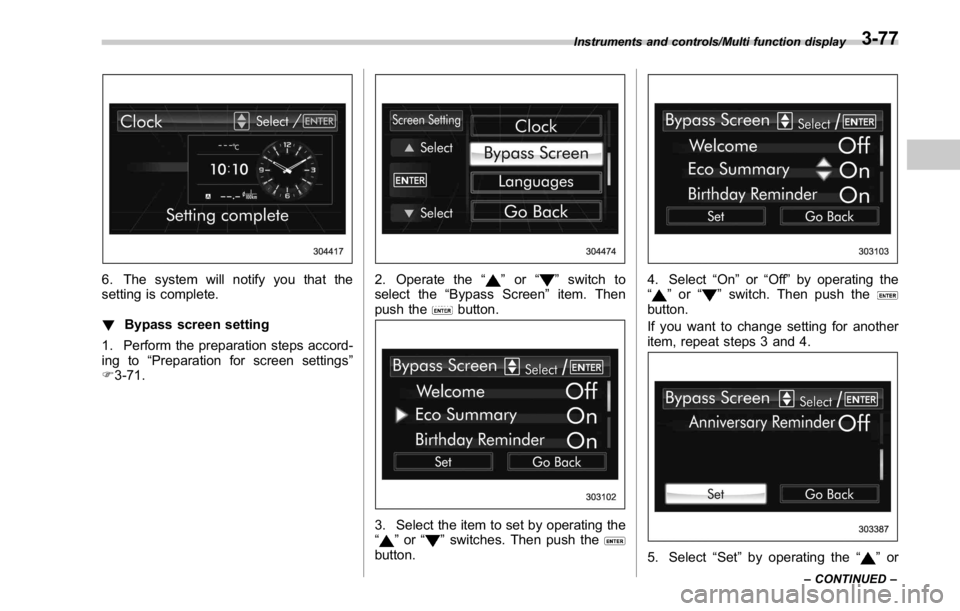

! Bypass screen setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71. 2. Operate the “ ” or “ ” switch to
select the “ Bypass Screen ” item. Then
push the
button.
3. Select the item to set by operating the
“
” or “ ” switches. Then push the
button. 4. Select “ On ” or “ Off ” by operating the
“
” or “ ” switch. Then push the
button.
If you want to change setting for another
item, repeat steps 3 and 4.
5. Select “ Set ” by operating the “ ” orInstruments and controls/Multi function display
– CONTINUED –3-77

Instruments and controls/Multi function display
“ ” switch, and confirm the setting by
pushing the
button.
6. The system will notify you that the
setting is complete.

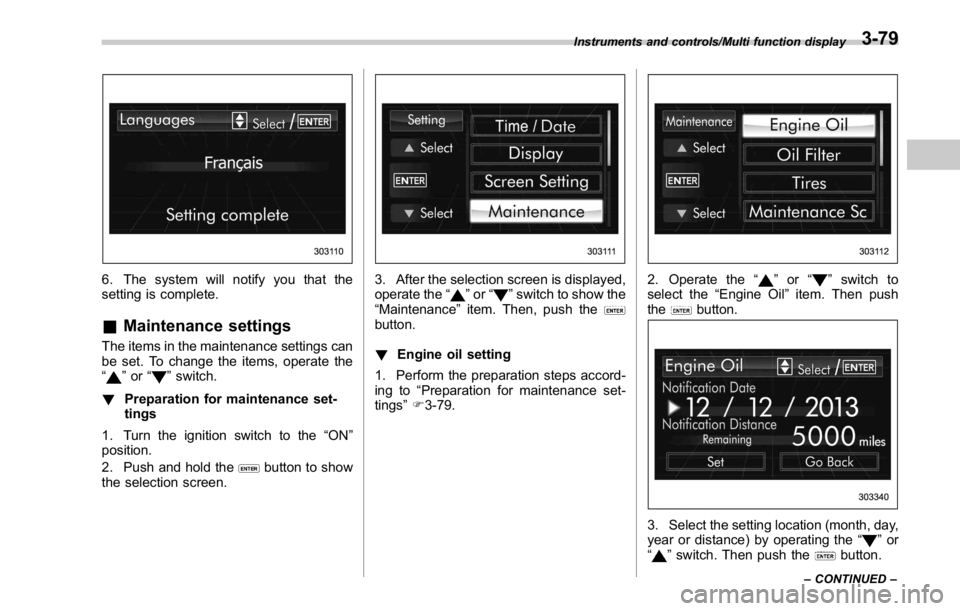

! Language setting
1. Perform the preparation steps accord-
ing to “ Preparation for screen settings ”
F 3-71. 2. Operate the “ ” or “ ” switch to
select the “ Languages ” item. Then push
the
button.
3. The current language setting will be
displayed. Push the
button to enter
the language selection mode. 4. Select the preferred language by
operating the “
” or “ ” switch. Then
push the
button.
5. Select “ Set ” by operating the “ ”
switch and confirm the setting by pushing
the
button.3-78

6. The system will notify you that the
setting is complete.
& Maintenance settings The items in the maintenance settings can
be set. To change the items, operate the
“
” or “ ” switch.
! Preparation for maintenance set-
tings
1. Turn the ignition switch to the “ ON ”
position.
2. Push and hold the
button to show
the selection screen. 3. After the selection screen is displayed,
operate the “
” or “ ” switch to show the
“ Maintenance ” item. Then, push the
button.

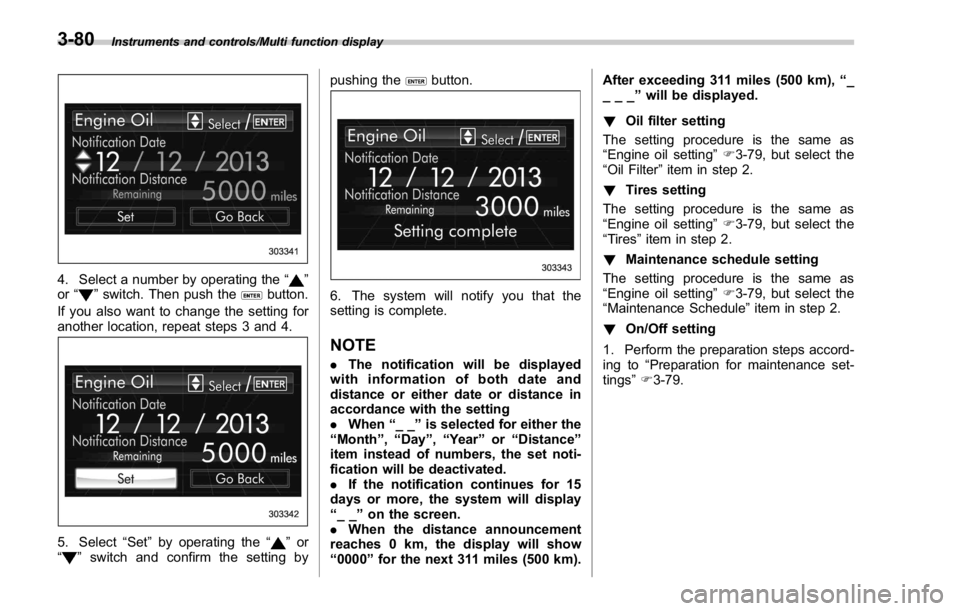

! Engine oil setting
1. Perform the preparation steps accord-
ing to “ Preparation for maintenance set-
tings ” F 3-79. 2. Operate the “ ” or “ ” switch to
select the “ Engine Oil ” item. Then push
the
button.
3. Select the setting location (month, day,
year or distance) by operating the “
” or
“
” switch. Then push the button.Instruments and controls/Multi function display
– CONTINUED –3-79

Instruments and controls/Multi function display
4. Select a number by operating the “ ”
or “
” switch. Then push the button.
If you also want to change the setting for
another location, repeat steps 3 and 4.
5. Select “ Set ” by operating the “ ” or
“
” switch and confirm the setting by pushing the button.
6. The system will notify you that the
setting is complete.
NOTE . The notification will be displayed
with information of both date and
distance or either date or distance in
accordance with the setting
. When “ __ ” is selected for either the
“ Month ” , “ Day ” , “ Year ” or “ Distance ”
item instead of numbers, the set noti-
fication will be deactivated.
. If the notification continues for 15
days or more, the system will display
“ __ ” on the screen.
. When the distance announcement
reaches 0 km, the display will show
“ 0000 ” for the next 311 miles (500 km). After exceeding 311 miles (500 km), “ _
___ ” will be displayed.
! Oil filter setting
The setting procedure is the same as
“ Engine oil setting ” F 3-79, but select the
“ Oil Filter ” item in step 2.
! Tires setting
The setting procedure is the same as
“ Engine oil setting ” F 3-79, but select the
“ Tires ” item in step 2.
! Maintenance schedule setting
The setting procedure is the same as
“ Engine oil setting ” F 3-79, but select the
“ Maintenance Schedule ” item in step 2.

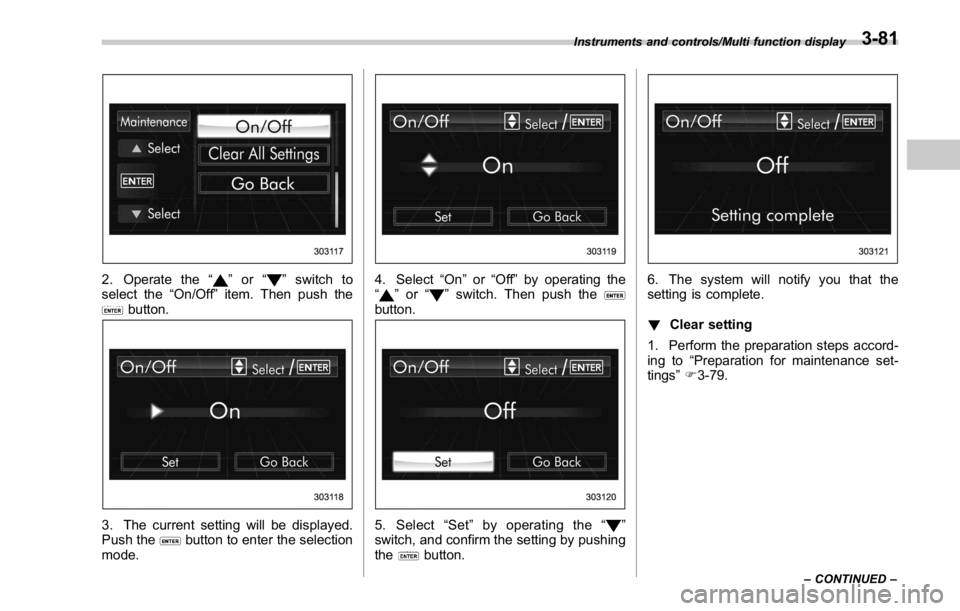

! On/Off setting
1. Perform the preparation steps accord-
ing to “ Preparation for maintenance set-
tings ” F 3-79.3-80

2. Operate the “ ” or “ ” switch to
select the “ On/Off ” item. Then push the
button.
3. The current setting will be displayed.
Push the
button to enter the selection
mode. 4. Select “ On ” or “ Off ” by operating the
“
” or “ ” switch. Then push the
button.
5. Select “ Set ” by operating the “ ”
switch, and confirm the setting by pushing
the
button. 6. The system will notify you that the
setting is complete.
! Clear setting
1. Perform the preparation steps accord-
ing to “ Preparation for maintenance set-
tings ” F 3-79.Instruments and controls/Multi function display
– CONTINUED –3-81
