Function settings A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. If your
vehicle is equipped with a multi function display, the settings for some of these functions can be changed using the display. Contact the
nearest SUBARU dealer for details. For details, refer to “ Multi function display ” F 3-48.Item Function Possible settings Default setting
Alarm system Alarm system Operation/Non-operation Operation
Monitoring start delay time (after closure of doors) 0 seconds/30 seconds 30 seconds
Impact sensor operation (only models with shock
sensors (dealer option)) Operation/Non-operation Non-operation
Passive arming (models without “ keyless access with
push-button start system ” ) Operation/Non-operation Non-operation
Dome light and map lights (models with moonroof)
illumination ON/OFF OFF
Keyless access (if equipped) Hazard warning flasher* Operation/Non-operation Operation
Audible signal Operation/Non-operation Operation
Audible signal volume* Level 1 - 7 Level 5
Door unlock selection function (driver ’ s door unlock) Driver ’ s door only/All doors Driver ’ s door only
Remote keyless entry system Hazard warning flasher* Operation/Non-operation Operation
Audible signal Operation/Non-operation Operation
Audible signal volume* Level 1 - 7 Level 5
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation
Defogger and deicer system for models
with the automatic climate control sys-
tem* Rear window defogger, outside mirror defogger and
windshield wiper deicer Operation for 15 minutes/
Continuous operation Operation for 15
minutes
Dome light Operation of dome light/map light OFF delay timer OFF/10 seconds/20 sec-
onds/30 seconds 30 seconds
Map light (models with moonroof)
– CONTINUED –23

Seat, seatbelt and SRS airbags/Child restraint systems
10. Latch the top tether hook onto the
tether anchorage that is located behind
the rear seat and tighten the top tether
firmly. For additional instructions, refer to
“ Top tether anchorages ” F 1-32.
11. To remove the child restraint system,
press the release button on the seatbelt
buckle and allow the belt to retract
completely. The belt will return to the
ELR mode.
NOTE When the child restraint system is no
longer in use, remove it and restore the
ELR function of the retractor. That
function is restored by allowing the
seatbelt to retract fully. & Installing a booster seat WARNING. Child restraint systems and seat-
belts can become hot in a vehicle
that has been closed up in sunny
weather; they could burn a small
child. Check the child restraint
system before you place a child
in it.
. Do not leave an unsecured child
restraint system in your vehicle.
Unsecured child restraint sys-
tems can be thrown around in-
side of the vehicle in a sudden
stop, turn or accident; they can
strike and injure vehicle occu-
pants as well as result in serious
injuries or death to the child.
CAUTION
When you install a child restraint
system, follow the manufacturer ’ s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held
securely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in the
event of an accident may be in- creased.

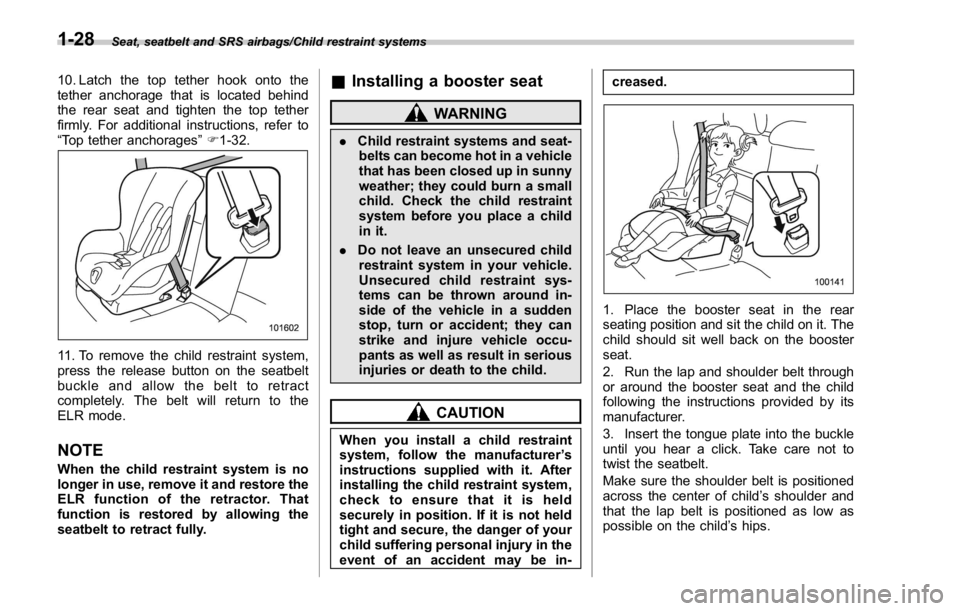

1. Place the booster seat in the rear
seating position and sit the child on it. The
child should sit well back on the booster
seat.
2. Run the lap and shoulder belt through
or around the booster seat and the child
following the instructions provided by its
manufacturer.
3. Insert the tongue plate into the buckle
until you hear a click. Take care not to
twist the seatbelt.
Make sure the shoulder belt is positioned
across the center of child ’ s shoulder and
that the lap belt is positioned as low as
possible on the child ’ s hips.1-28

Seat, seatbelt and SRS airbags/*SRS airbag (Supplemental Restraint System airbag)
! Examples of the types of acci-
dents in which the driver ’ s/dri-
ver ’ s and front passenger ’ s SRS
frontal airbag(s) will basically
not deploy
The driver ’ s and front passenger ’ s SRS frontal airbags are designed not to deploy
in most cases if the vehicle is struck from
the side or from behind, or if it rolls onto its
side or roof, or if it is involved in a low-
speed frontal collision.

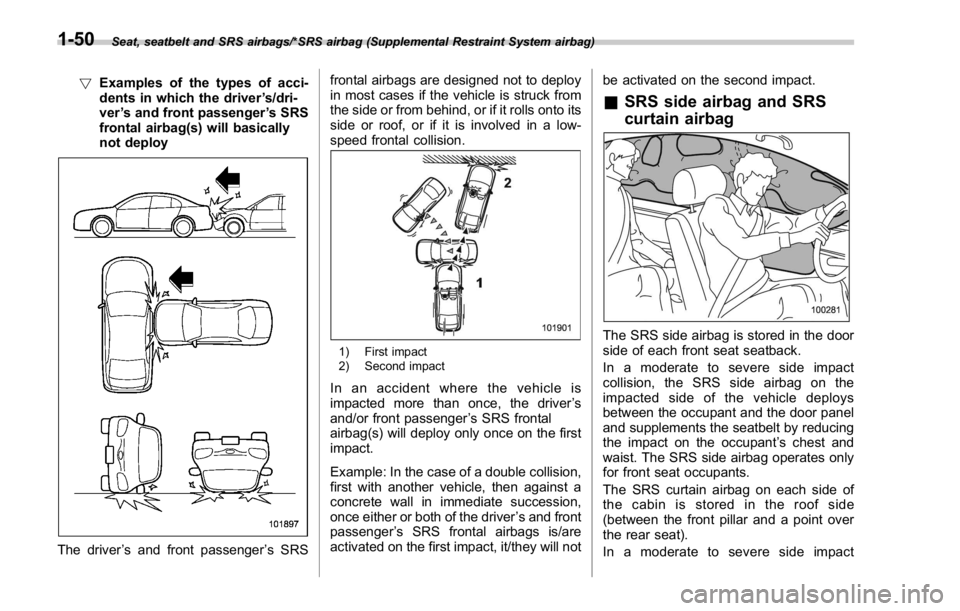

1) First impact
2) Second impact
In an accident where the vehicle is
impacted more than once, the driver ’ s
and/or front passenger ’ s SRS frontal
airbag(s) will deploy only once on the first
impact.
Example: In the case of a double collision,
first with another vehicle, then against a
concrete wall in immediate succession,
once either or both of the driver ’ s and front
passenger ’ s SRS frontal airbags is/are
activated on the first impact, it/they will not be activated on the second impact.
& SRS side airbag and SRS
curtain airbag
The SRS side airbag is stored in the door
side of each front seat seatback.
Inamoderatetoseveresideimpact
collision, the SRS side airbag on the
impacted side of the vehicle deploys
between the occupant and the door panel
and supplements the seatbelt by reducing
the impact on the occupant ’ s chest and
waist. The SRS side airbag operates only
for front seat occupants.
The SRS curtain airbag on each side of
the cabin is stored in the roof side
(between the front pillar and a point over
the rear seat).
Inamoderatetoseveresideimpact1-50

Keys NOTE For models with “ keyless access with
push-button start system ” , refer to
“ Keyless access with push-button start
system ” F 2-9.

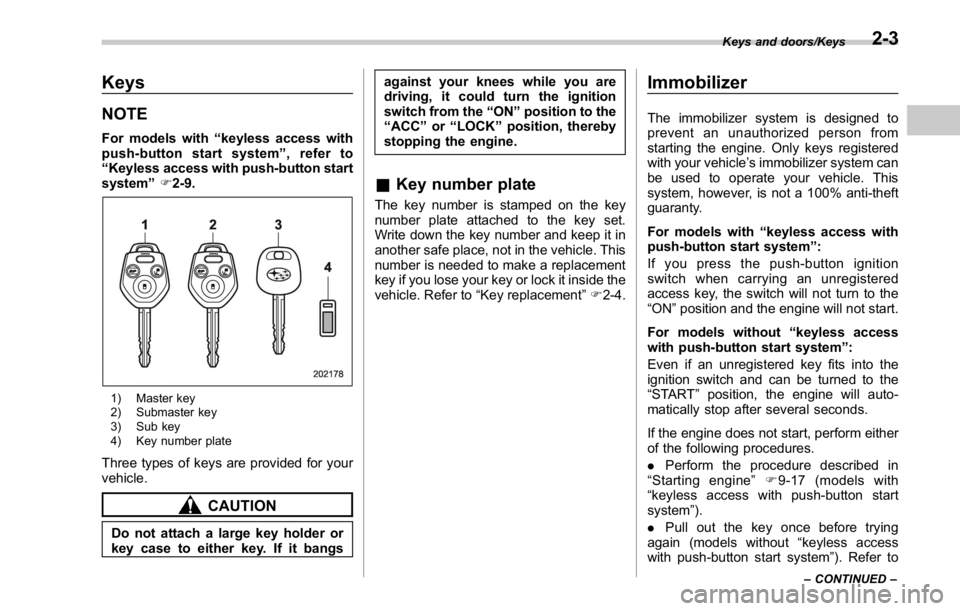

1) Master key
2) Submaster key
3) Sub key
4) Key number plate
Three types of keys are provided for your
vehicle.
CAUTION
Do not attach a large key holder or
key case to either key. If it bangs against your knees while you are
driving, it could turn the ignition
switch from the “ ON ” position to the
“ ACC ” or “ LOCK ” position, thereby
stopping the engine.
& Key number plate The key number is stamped on the key
number plate attached to the key set.
Write down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside the
vehicle. Refer to “ Key replacement ” F 2-4.Immobilizer The immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered
with your vehicle ’ s immobilizer system can
be used to operate your vehicle. This
system, however, is not a 100% anti-theft
guaranty.
For models with “ keyless access with
push-button start system ” :
If you press the push-button ignition
switch when carrying an unregistered
access key, the switch will not turn to the
“ ON ” position and the engine will not start.
For models without “ keyless access
with push-button start system ” :
Even if an unregistered key fits into the
ignition switch and can be turned to the
“ START ” position, the engine will auto-
matically stop after several seconds.
If the engine does not start, perform either
of the following procedures.
. Perform the procedure described in
“ Starting engine ” F 9-17 (models with
“ keyless access with push-button start
system ” ).
. Pull out the key once before trying
again (models without “ keyless access
with push-button start system ” ). Refer toKeys and doors/Keys
– CONTINUED –2-3

Keys and doors/Immobilizer
“ Ignition switch (models without push-
button start system) ” F 3-4.
CAUTION. Do not place the key under direct
sunlight or anywhere it may
become hot.
. Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.
. Donotmodifyorremovethe
system. If modified or removed,
the proper operation of the sys-
tem cannot be guaranteed.
NOTE . To protect your vehicle from theft,
please pay close attention to the fol-
lowing security precautions:
– Never leave your vehicle unat-
tended with its keys inside.
– Before leaving your vehicle,
close all windows and the moon-
roof, and lock the doors.
– Do not leave spare keys or any
record of your key number in the
vehicle.
. The vehicle has a maintenance-free
type immobilizer system. & Security indicator light Refer to “ Security indicator light ” F 3-33.
& Key replacement Your key number plate will be required if
you ever need a replacement key made.
Any new key must be registered for use
with your vehicle ’ s immobilizer system
before it can be used. The maximum
number of keys that can be registered
for use with one vehicle is as follows.
. Four (models without “ keyless access
with push-button start system ” )
. Seven (models with “ keyless access
with push-button start system ” )
One key that has already been registered
is required in order to register a new key.
If you lose a key, the lost key ’ s ID code still
remains in the memory of the vehicle ’ s
immobilizer system. For security reasons,
the lost key ’ s ID code should be erased
from the memory. To erase the lost key ’ s
ID code, all keys that will be used are
required.
For details about new key registration and
erasing the lost key ’ s ID code, contact
your SUBARU dealer. & Certification for immobilizer
system For models with “ keyless access with
push-button start system ” :
Refer to “ Certification for keyless access
with push-button start system ” F 2-18.
For models without “ keyless access
with push-button start system ” :
! U.S.-spec. models
FCC ID: MOZRI-38BFH
CAUTIONFCC WARNING
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user ’ s authority to operate the
equipment.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.2-4

Keys and doors/Keyless access with push – button start system
of the access key from being
pressed.
NOTE . The operational/non-operational
setting for the keyless access function
can be changed. For the setting proce-
dure, refer to “ Disabling keyless ac-
cess function ” F 2-16. The setting can
also be changed by a SUBARU dealer.
For more details, contact a SUBARU
dealer.
. For detailed information about the
operation method for the push-button
ignition switch while the keyless ac-
cess function is switched to the non-
operational mode, refer to “ Access key
– if access key does not operate
properly ” F 9-16.
. The keyless access with push-but-
ton start system uses weak radio
waves. The status of the access key
and environmental conditions may in-
terfere with the communication be-
tween the access key and the vehicle
under the following conditions, and it
may not be possible to lock or unlock
the doors or start the engine.
– When operating near a facility
where strong radio waves are trans-
mitted, such as a broadcast station and power transmission lines
– When products that transmit
radio waves are used, such as an
access key or a remote transmitter
key of another vehicle
– When the access key is placed
near wireless communication
equipment such as a cell phone
– When the access key is placed
near a metallic object
– When metallic accessories are
attached to the access key
– When carrying the access key
with electronic appliances such as
a laptop computer
– When the battery of the access
key is discharged
. The access key is always commu-
nicating with the vehicle and is con-
tinuously using the battery. Although
the life of the battery varies depending
on the operating conditions, it is ap-
proximately 1 to 2 years. If the battery
becomes fully discharged, replace it
with a new one.
. If an access key is lost, it is
recommended that the remaining ac-
cess key be reregistered. For reregis-
tration of an access key, contact a
SUBARU dealer.
. For a spare access key, contact a
SUBARU dealer. . Up to 7 access keys can be regis-
tered for one vehicle.
. Carefully store the key number plate
supplied with the access key. It is
necessary for vehicle repair.
. Do not leave the access key in the
storage spaces inside the vehicle, such
as the door pocket, dashboard and the
rear shelf. Vibrations may damage the
key or turn on the switch, possibly
resulting in a lockout.
. After the vehicle battery is dis-
charged or replaced, initialization of
the steering lock system may be re-
quired to start the engine. In this case,
perform the following procedure to
initialize the steering lock.
(1) Turn the push-button ignition
switch to the “ OFF ” position. For
details, refer to “ Switching power ”
F 3-7.
(2) Open and close the driver ’ s
door.
(3) Wait for approximately 10 sec-
onds.
When the steering is locked, the initi-
alization is completed.2-12

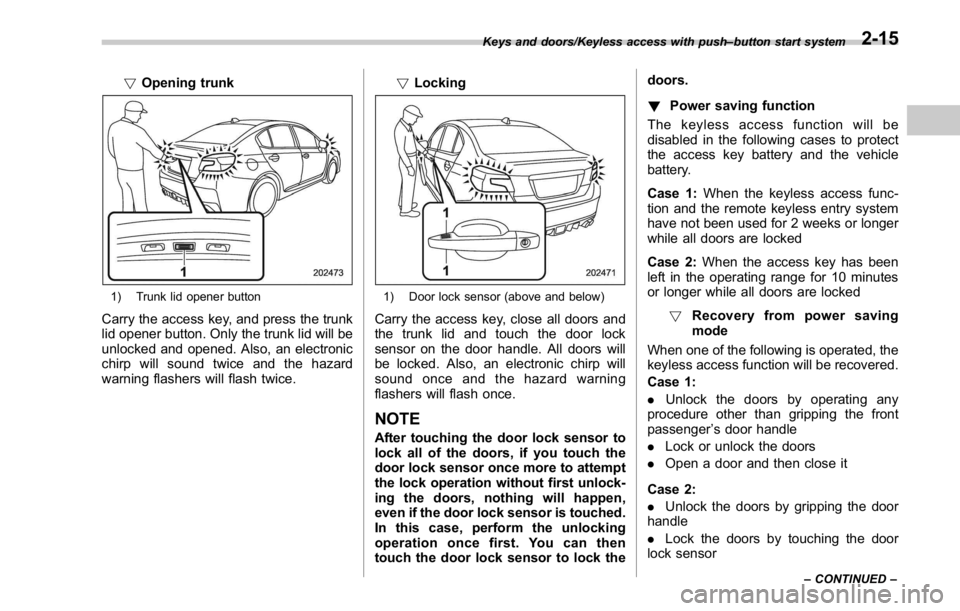

! Opening trunk
1) Trunk lid opener button
Carry the access key, and press the trunk
lid opener button. Only the trunk lid will be
unlocked and opened. Also, an electronic
chirp will sound twice and the hazard
warning flashers will flash twice. ! Locking
1) Door lock sensor (above and below)
Carry the access key, close all doors and
the trunk lid and touch the door lock
sensor on the door handle. All doors will
be locked. Also, an electronic chirp will
sound once and the hazard warning
flashers will flash once.
NOTE After touching the door lock sensor to
lock all of the doors, if you touch the
door lock sensor once more to attempt
the lock operation without first unlock-
ing the doors, nothing will happen,
even if the door lock sensor is touched.
In this case, perform the unlocking
operation once first. You can then
touch the door lock sensor to lock the doors.
! Power saving function
The keyless access function will be
disabled in the following cases to protect
the access key battery and the vehicle
battery.
Case 1: When the keyless access func-
tion and the remote keyless entry system
have not been used for 2 weeks or longer
while all doors are locked
Case 2: When the access key has been
left in the operating range for 10 minutes
or longer while all doors are locked
! Recovery from power saving
mode
When one of the following is operated, the
keyless access function will be recovered.
Case 1:
. Unlock the doors by operating any
procedure other than gripping the front
passenger ’ s door handle
. Lock or unlock the doors
. Open a door and then close it
Case 2:
. Unlock the doors by gripping the door
handle
. Lock the doors by touching the door
lock sensorKeys and doors/Keyless access with push – button start system
– CONTINUED –2-15

Keys and doors/Keyless access with push – button start system
. Lock or unlock the doors by using the
remote keyless entry system
. Lock or unlock the doors by using the
power door locking switch
. Open either of the front doors
! Door unlock selection function
The door unlock selection function makes
it possible to unlock the driver ’ s door
without unlocking any other doors. You
can change the setting for the driver ’ s
door.
Operational: Only the driver ’ s door will be
unlocked.
Non-operational: All doors will be un-
locked.
For the factory setting (default setting),
refer to “ Function settings ” F 23.
NOTE The setting can be changed by your
SUBARU dealer. Contact your SUBARU
dealer for details. Also, the setting can
be changed by operating the multi
function display. For details, refer to
“ Keyless access setting (models with
“ keyless access with push-button start
system ” ) ” F 3-89. & Selecting audible signal op-
eration Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may
change the volume of the audible signal
or turn it off. For details, refer to “ Keyless
buzzer volume setting ” F 3-84.
& Warning chimes and warning
indicator The keyless access with push-button start
system sounds a warning chime and
flashes the access key warning indicator
on the combination meter in order to
minimize improper operations and help
protect your vehicle from theft.
For details, refer to “ Warning chimes and
warning indicator of the keyless access
with push-button start system ” F 3-28.
& Disabling keyless access
function
WARNING
If you wear an implanted pacemaker
or an implanted defibrillator, operate
the driver ’ s door to disable the
keyless access function. Otherwise,
the operation of an implanted pace- maker or implanted defibrillator may
be affected by the radio waves from
the transmitter antenna.
When the vehicle is not going to be used
for a long time, or when you choose not to
use the keyless access function, the
keyless access function can be disabled.
NOTE . The locking and unlocking function
by the remote keyless entry system is
not disabled.
. The setting can also be changed at
SUBARU dealers. For more details,
contact a SUBARU dealer.
. To start the engine while the func-
tions are disabled, perform the proce-
dure described in “ Starting engine ”
F 9-17.
. We recommend that you disable the
keyless access functions under the
following conditions.
– When the vehicle is not going to
be used for an extended period of
time
– When the keyless access func-
tions are not going to be used2-16

Keys and doors/Keyless access with push – button start system
7. Within 10 seconds after step 6 is
performed, close and open the driver ’ s
door once.
8. Within 5 seconds after step 7 is
performed, close the door. A chirp sound
will be heard, and the functions will be
disabled.
NOTE In steps 4 and 6, press the power door
locking switch slowly. If the switch is
pressed quickly, the functions may not
be disabled.
! Enabling functions
When the procedure to disable the func-
tions is performed again, the functions are
enabled.
A chirp sound will be heard once.
NOTE . The keyless access function will be
enabled only if you perform the proce-
dure in the same manner you disabled
the function (for example, when dis-
abling by operating the driver ’ s door,
the function will not be enabled even if
you operate the access key).
. Press the push-button ignition
switch if you do not know the proce-
dure in which the keyless access
function was disabled. – When disabling by operating the
driver ’ s door: a chirp will not be
heard
– When disabling by operating the
access key: a chirp will be heard
& When access key does not
operate properly Refer to “ Access key – if access key does
not operate properly ” F 9-16.
& Replacing battery of access
key Refer to “ Replacing battery of access key ”
F 11-50.
& Replacing access key Access keys can be replaced at SUBARU
dealers. For more details, contact a
SUBARU dealer. & Certification for keyless ac-
cess with push-button start
system ! U.S.-spec. models
FCC ID: HYQ13CZZ
FCC ID: HYQ14AHC
FCC ID: Y8PSSPIMB02
FCC ID: Y8PSSPLF02
CAUTIONFCC WARNING
Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user ’ s authority to operate the
equipment.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.2-18

! Canada-spec. models
This device complies with Industry
Canada licence-exempt RSS standard
(s). Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux
CNR d ’ Industrie Canada applicables aux
appareils radio exempts de licence. L ’ ex-
ploitation est autorisée aux deux condi-
tions suivantes: (1) l ’ appareil ne doit pas
produire de brouillage, et (2) l ’ utilisateur
de l ’ appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage
est susceptible d ’ en compromettre le
fonctionnement. ! Mexico-spec. models
IFT
RLVDE1413-2269
14AHC
DENSO PIN Code Access (models
with “ keyless access with
push-button start system ” )

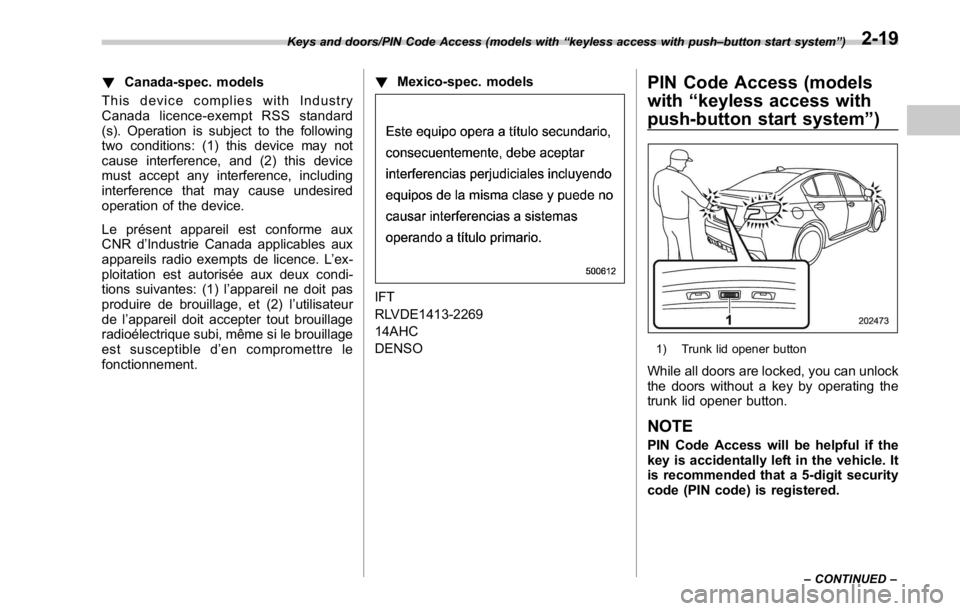

1) Trunk lid opener button
While all doors are locked, you can unlock
the doors without a key by operating the
trunk lid opener button.
NOTE PIN Code Access will be helpful if the
key is accidentally left in the vehicle. It
is recommended that a 5-digit security
code (PIN code) is registered.Keys and doors/PIN Code Access (models with “ keyless access with push – button start system ” )
– CONTINUED –2-19
