北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
(Except STI) (models without the EyeSight system)

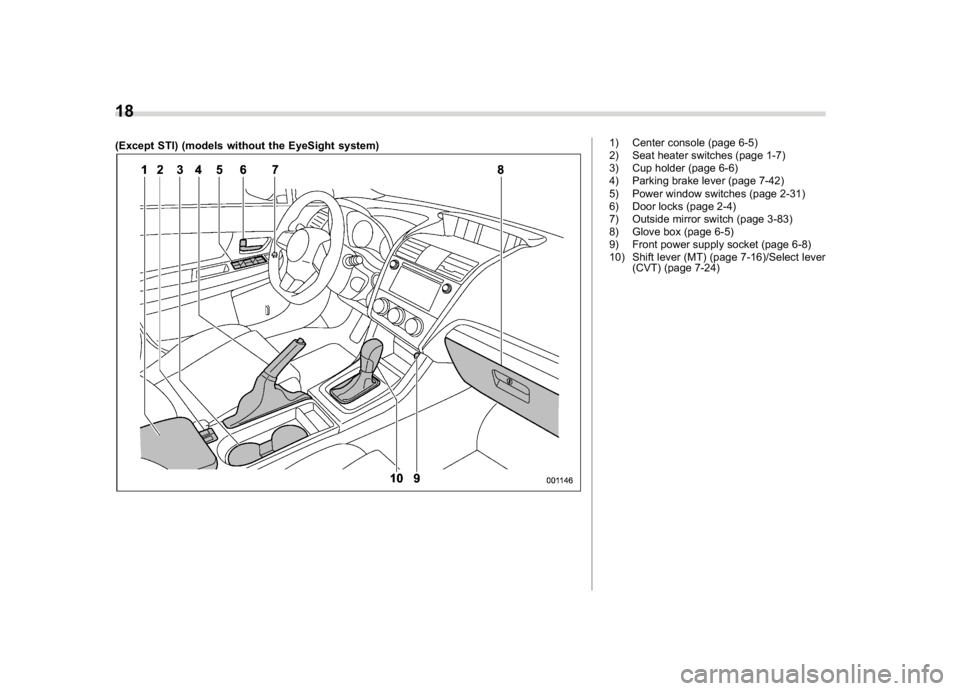

1) Center console (page 6-5)
2) Seat heater switches (page 1-7)
3) Cup holder (page 6-6)
4) Parking brake lever (page 7-42)
5) Power window switches (page 2-31)
6) Door locks (page 2-4)
7) Outside mirror switch (page 3-83)
8) Glove box (page 6-5)
9) Front power supply socket (page 6-8)
10) Shift lever (MT) (page 7-16)/Select lever
(CVT) (page 7-24)
18

(21,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
(Except STI) (models with the EyeSight system)

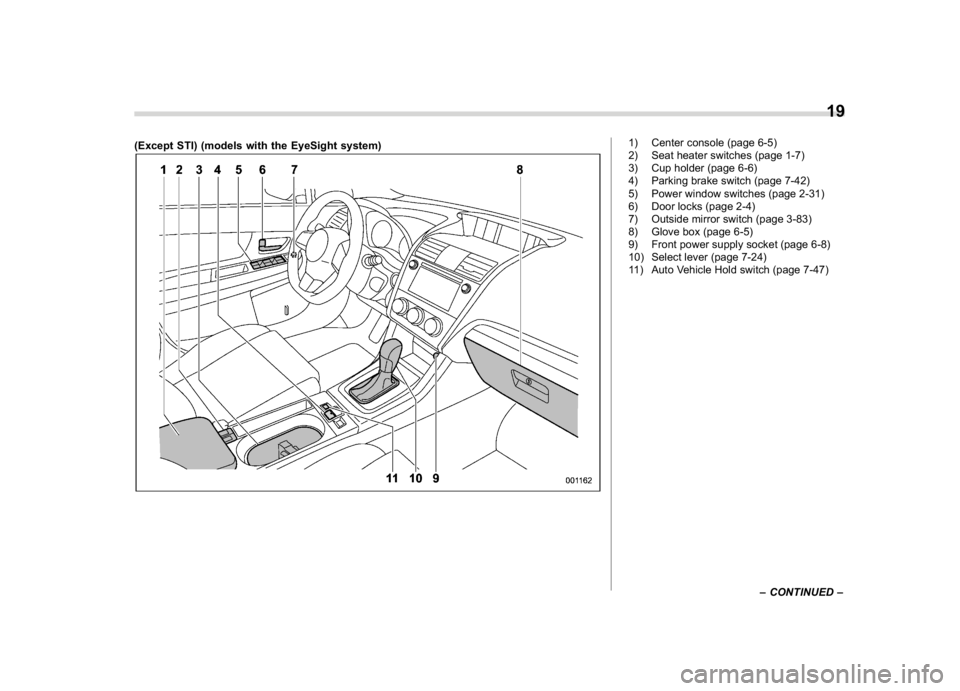

1) Center console (page 6-5)
2) Seat heater switches (page 1-7)
3) Cup holder (page 6-6)
4) Parking brake switch (page 7-42)
5) Power window switches (page 2-31)
6) Door locks (page 2-4)
7) Outside mirror switch (page 3-83)
8) Glove box (page 6-5)
9) Front power supply socket (page 6-8)
10) Select lever (page 7-24)
11) Auto Vehicle Hold switch (page 7-47)
–CONTINUED–
19
0

(22,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Instrument panel
1) Illumination brightness control dial
(page 3-71)
2) Trunk opener switch (page 2-35)
3) Combination meter (page 3-8)
4) Multi-function display (color LCD)
(page 3-44)
5) Hazard warning flasher switch (page 3-8)
6) Multi-function display (color LCD) control
switches (page 3-44)
7) Audio (page 5-1)
8) Climate control (page 4-1)
9) Tilt/telescopic steering (page 3-85)
10) Horn (page 3-86)
11) SRS airbag (page 1-33)
12) Vehicle Dynamics Control OFF switch
(page 7-39)
13) Fuse box (page 11-42)
14) Hood lock release knob (page 11-9)
15) BSD/RCTA OFF switch (if equipped)
(page 7-57)NOTEFor models with the EyeSight system:
Refer to the Owner’s Manual supple-
ment for the EyeSight system.
20

(23,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Steering wheel

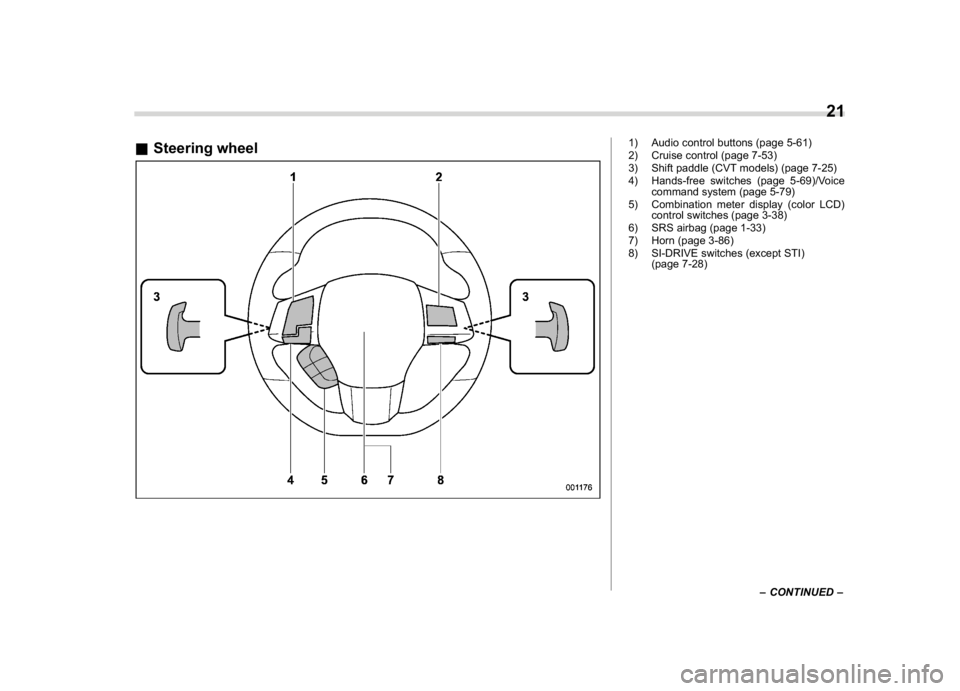

1) Audio control buttons (page 5-61)
2) Cruise control (page 7-53)
3) Shift paddle (CVT models) (page 7-25)
4) Hands-free switches (page 5-69)/Voice
command system (page 5-79)
5) Combination meter display (color LCD)
control switches (page 3-38)
6) SRS airbag (page 1-33)
7) Horn (page 3-86)
8) SI-DRIVE switches (except STI)
(page 7-28)
–CONTINUED–
21
0

(24,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Light control and wiper control levers/switches

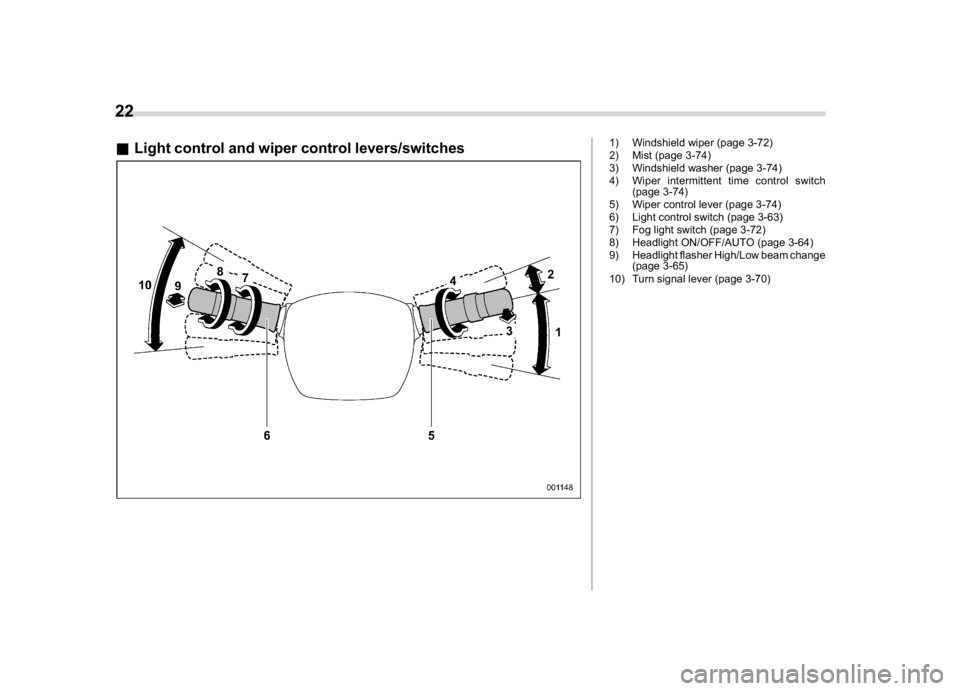

1) Windshield wiper (page 3-72)
2) Mist (page 3-74)
3) Windshield washer (page 3-74)
4) Wiper intermittent time control switch
(page 3-74)
5) Wiper control lever (page 3-74)
6) Light control switch (page 3-63)
7) Fog light switch (page 3-72)
8) Headlight ON/OFF/AUTO (page 3-64)
9) Headlight flasher High/Low beam change
(page 3-65)
10) Turn signal lever (page 3-70)
22

(25,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Combination meter!U.S.-spec. modelsThe illustration above is a typical example. For some models, the combination meter may
be slightly different than that shown in the illustration.
1) Tachometer (page 3-10)
2) Combination meter display (color LCD)
(page 3-38)
3) Select lever/gear position indicator
(page 3-34)
4) Speedometer (page 3-9)
5) Trip knob (page 3-9)
6) Fuel gauge (page 3-10)
7) Trip meter and odometer (page 3-9)
8) Temperature gauge (page 3-11)
–CONTINUED–
23
0

(26,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
!Except U.S.-spec. modelsThe illustration above is a typical example. For some models, the combination meter may
be slightly different than that shown in the illustration.
1) Tachometer (page 3-10)
2) Combination meter display (color LCD)
(page 3-38)
3) Select lever/gear position indicator
(page 3-34)
4) Speedometer (page 3-9)
5) Trip knob (page 3-9)
6) Fuel gauge (page 3-10)
7) Trip meter and odometer (page 3-9)
8) Temperature gauge (page 3-11)
24

(27,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
&Warning and indicator lights
Mark Name Page
Seatbelt warning light 3-14Front passenger’s
seatbelt warning light3-14SRS airbag system
warning light3-15
/
Front passenger’s
frontal airbag ON in-
dicator3-16
/
Front passenger’s
frontal airbag OFF in-
dicator3-16CHECK ENGINE
warning light/Mal-
function indicator light3-16Charge warning light 3-17Oil pressure warning
light3-17Engine oil level warn-
ing indicator (except
STI)3-17AT OIL TEMP warning
light (CVT models)3-18Mark Name Page
Rear differential oil
temperature warning
light (STI)3-18ABS warning light 3-20Brake system warning
light3-21Electronic parking
brake indicator light
(models with electro-
nic parking brake
system)3-23
/
Door open warning
light3-25AWD warning light
(if equipped)3-25Power steering warn-
ing light (except STI)3-25Hill start assist warn-
ing light/Hill start as-
sist OFF indicator light
(models without elec-
tronic parking brake
system)3-24Auto Vehicle Hold ON
indicator light (models
with electronic park-
ing brake system)3-24Mark Name Page
Auto Vehicle Hold op-
eration indicator light
(models with electro-
nic parking brake
system)3-24Vehicle Dynamics
Control warning light/
Vehicle Dynamics
Control operation in-
dicator light3-26Vehicle Dynamics
Control OFF indicator
light3-27Turn signal indicator
lights3-35LED headlight warn-
ing light (if equipped)3-25High beam indicator
light3-35High beam assist in-
dicator (green)3-35High beam assist
warning indicator
(yellow)3-35Automatic headlight
beam leveler warning
light (if equipped)3-35Front fog light indica-
tor light (if equipped)3-35
–CONTINUED–
25
0

(28,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Mark Name Page
Access key warning
light (if equipped)3-28Security indicator light 3-33Headlight indicator
light3-35Cruise control indica-
tor3-35Cruise control set in-
dicator3-35Traction mode indica-
tor3-27Low fuel warning light 3-24Low tire pressure
warning light
(U.S.-spec. models)3-19Windshield washer
fluid warning indicator3-18Sport (S) mode indi-
cator (if equipped)3-34Intelligent (I) mode in-
dicator (if equipped)3-34Mark Name Page
Sport Sharp (S#)
mode indicator (if
equipped)3-34Shift-up indicator
(STI)3-34Driver’s control center
differential auto indi-
cator (STI)3-36Auto [+] mode indica-
tor (STI)3-36Auto [] mode indica-
tor (STI)3-36Driver’s control center
differential indicator
and warning (STI)3-36REV indicator light
(STI)3-37Steering Responsive
Headlight warning in-
dicator/Steering Re-
sponsive Headlight
OFF indicator (if
equipped)3-37BSD/RCTA warning
indicator (if equipped)3-37BSD/RCTA OFF indi-
cator (if equipped)3-37Mark Name Page
RAB warning indica-
tor (if equipped)3-37RAB OFF indicator (if
equipped)3-37
26

(29,1)
北米Model "A1700BE-B" EDITED: 2017/ 10/ 11
Function settingsA SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact
your nearest SUBARU dealer for details. In addition, you can change the settings for some of these functions using the multi-function
display (color LCD). For more information, refer to“Multi-function display (color LCD)”F3-44.Item Function Possible settings Default setting Page
Alarm system Alarm system Operation/Non-operation Operation 2-24
Monitoring start delay time (after closure of doors) 0 seconds/30 seconds 30 seconds 2-25
Impact sensor operation (only models with shock
sensors (dealer option))Operation/Non-operation Non-operation 2-30
Passive arming (models without“keyless access
with push-button start system”)Operation/Non-operation Non-operation 2-29
Dome light and map lights (models with moonroof)
illuminationON/OFF OFF 2-24
Keyless access (if equipped) Hazard warning flasher Operation/Non-operation Operation 2-11
Audible signal Operation/Non-operation Operation 2-14
Audible signal volume Level 1 - 7 Level 5 2-14
Door unlock selection function (driver’s door
unlock)Driver’s door only/All
doorsDriver’s door
only2-12
Remote keyless entry system Hazard warning flasher Operation/Non-operation Operation 2-18
Audible signal Operation/Non-operation Operation 2-20
Audible signal volume Level 1 - 7 Level 5 2-20
Remote trunk open function Activation of trunk opening by remote transmitter/
access key fobOperation/Non-operation Operation 2-20
Key lock-in prevention Key lock-in prevention Operation/Non-operation Operation 2-7
Defogger and deicer system for
models with the automatic climate
control systemRear window defogger, outside mirror defogger
and windshield wiper deicerOperation for 15 minutes/
Continuous operationOperation for
15 minutes3-84
–CONTINUED–
27
