SUBARU WRX 2019 Quick Guide

19
1
Automatic Transmission Shift Modes (if equipped)
The automatic transmission gives you vehicle control with two different driving
modes: Normal Mode and Manual Mode.
Normal Mode
When the selector lever is in the “D” (Drive) position, the tran\
smission is in
Normal shift mode. The shift position indicator on the instrument panel \
shows
“D”, and the transmission automatically shifts into a suitable for\
ward gear.
Manual Mode
In Manual Mode, you select the desired gear position to obtain necessary
acceleration and engine braking. Moving the selector lever left into the\
manual
gate
1 from the “D” (Drive) position causes the transmission to change in\
to
Manual Mode. To shift, use the paddle shift control switches. The shift position
indicator shows the selected gear position.
While
Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 196/11/18 5:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

20

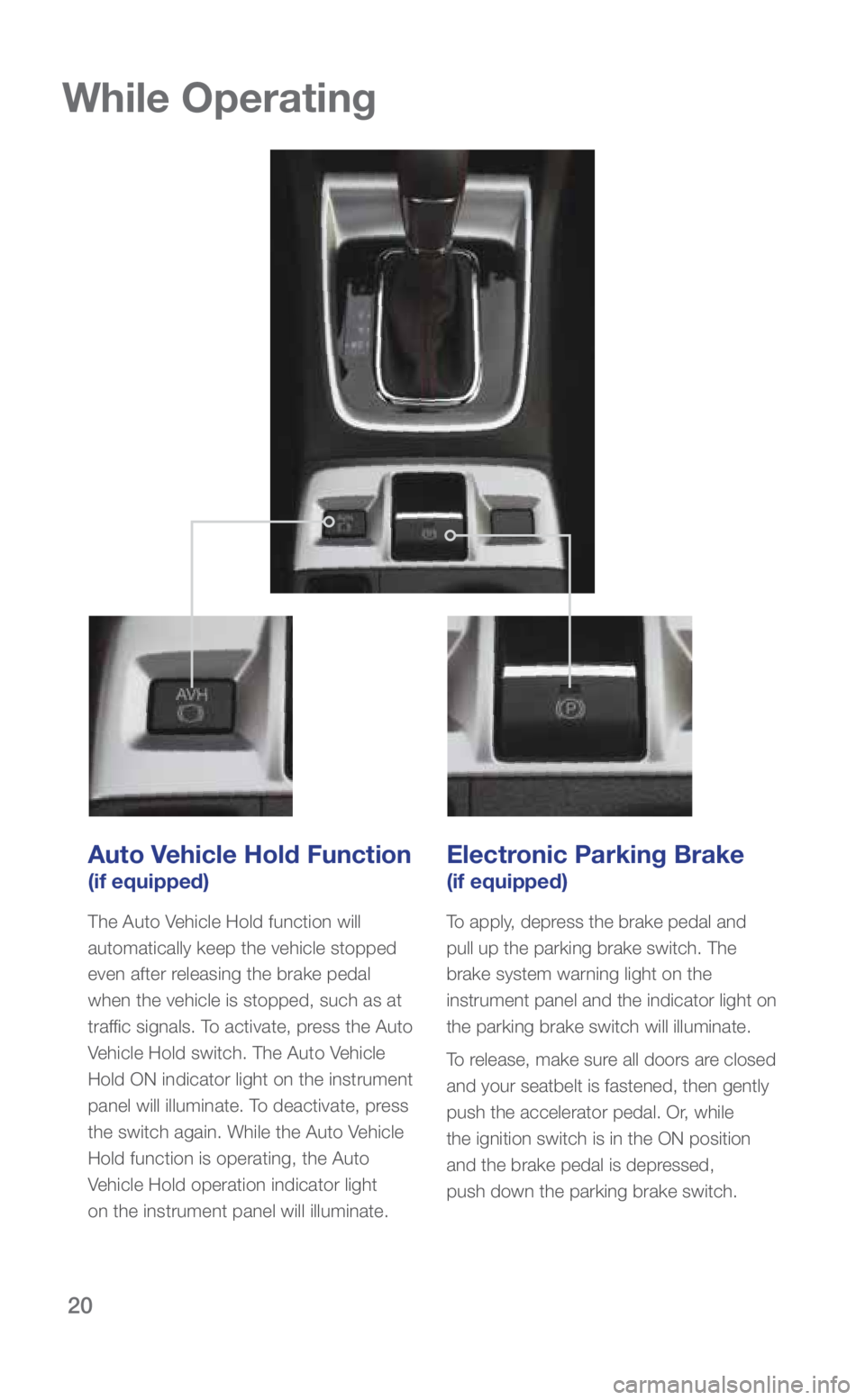

Auto Vehicle Hold Function
(if equipped)
The Auto Vehicle Hold function will
automatically keep the vehicle stopped
even after releasing the brake pedal
when the vehicle is stopped, such as at
traffic signals. To activate, press the Auto
Vehicle Hold switch. The Auto Vehicle
Hold ON indicator light on the instrument
panel will illuminate. To deactivate, press
the switch again. While the Auto Vehicle
Hold function is operating, the Auto
Vehicle Hold operation indicator light
on the instrument panel will illuminate.
Electronic Parking Brake
(if equipped)
To apply, depress the brake pedal and
pull up the parking brake switch. The
brake system warning light on the
instrument panel and the indicator light on
the parking brake switch will illuminate.
To release, make sure all doors are closed
and your seatbelt is fastened, then gently
push the accelerator pedal. Or, while
the ignition switch is in the ON position
and the brake pedal is depressed,
push down the parking brake switch.
While Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 206/11/18 5:07 PM

21
6-Speed Manual Transmission
This manual transmission is a fully
synchromeshed 6-forward and 1-reverse
speed transmission. Before you can shift into
reverse gear, you must raise the slider ring
and hold it in that position. Only pull the slider
ring up when shifting into reverse gear.
REV Alarm System (WRX STI only)
The REV alarm system automatically issues a
warning using the REV indicator light whenever
the tachometer needle enters the red zone. This
feature can be turned on or off using the multi-
information display. The REV alarm level can be
set manually to an engine speed of your choosing
between 2,000 and 6,700 rpm using the multi-
information display. The multi-information display
is also used to select a warning alarm buzzer in
addition to the light. Please refer to your Owner’s
Manual for more detailed instructions on setting
the engine speed alarm level and selecting the
warning buzzer.
While
Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 216/11/18 5:07 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

22
Front Hood and Hood Scoop
Due to the lightweight material, a
slight vibration is normal at higher
speeds and will not affect the
durability of the hood. To avoid
deforming the front hood when
closing, do not press down on the
hood with your hands. You can
release your hold on the front hood
approximately 12 inches above
the closing position and its weight
should cause it to close securely.
Limited Slip Rear Differential (WRX STI only)
The Limited Slip Rear Differential provides optimum distribution of power according to the
difference in revolution between the right and left rear wheels that may be caused by certain
driving conditions, thereby improving driving stability on snow-covered, muddy or other
slippery roads or during high-speed driving. Due to the nature of this mechanical Limited
Slip Rear Differential, the differential gears may emit a vibration and/or noise when making
turns. When servicing, use only specified gear oil.
While Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 226/11/18 5:08 PM

23
Driver Control Center Differential (DCCD)
(WRX STI only)
This electronically controlled system
adjusts the power-distribution ratio
between the front and rear wheels.
The system is designed to provide
optimum differential control for
improved vehicle cornering, stability,
and handling control to suit driving and
road surface conditions. The DCCD
can be operated automatically or
manually. When the system is in the
automatic mode, the “AUTO” indicator
light in the combination meter comes
on. The DCCD can be taken out of
“AUTO” mode and used manually by
pressing the “AUTO MANU” switch
located on the center console. Use the
DCCD control switch located on the
center console for manual operation. Pressing the “AUTO MANU” switch
again will return the system to “AUTO”
mode. When using the system
manually, if the control switch is set
closer to or at the “Lock” position,
the powertrain may make a vibration
or noise when the vehicle is in tight
turns at slow speeds (system binding).
In addition, if the rear differential
oil exceeds a certain temperature,
the DCCD will automatically cancel
the current torque-distribution ratio
setting and adopt its minimum ratio.
SI-Drive (WRX STI only)
Turn the selector toward S for Sport mode or toward S# for Sport Sharp mode.
Press down on the selector for Intelligent mode.
While
Operating
3572136_19b_WRX_WRX_STI_QG_061118.indd 236/11/18 5:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

24
Safety/In Case of Emergency
Child Restraint System
Your vehicle is equipped with Lower Anchors and Tethers for CHildren (LATCH). For
maximum safety, first carefully read the LATCH system instructions from the device
manufacturer, as well as the installation instructions in your Owner’s Manual, to properly
install the LATCH compatible restraint system. Use the appropriate seatbelts or
anchorages provided in your vehicle. Children age 12 and under must properly occupy
the rear seat at all times.
Internal Safety Trunk Release with
Self-Illuminating Handle
In the event that children or adults become locked
inside the trunk, this luminescent handle allows them
to open the lid from inside the trunk. To open, simply
pull the yellow handle downward as indicated by the
arrow on the handle, and then push up on the lid.
Child Safety Locks
The child safety locks are located on the inside edges of the rear doors. In the locked position,
the rear doors can only be opened from the outside.
3572136_19b_WRX_WRX_STI_QG_061118.indd 246/11/18 5:08 PM

25
Location of Spare Tire and Jack
A jack and other maintenance tools are stored in the tool bucket in the center of the
spare tire, located in the trunk or cargo area.
Emergency Towing Your All-Wheel Drive Vehicle
Since Subaru Symmetrical All-Wheel Drive distributes engine power to all\
four
wheels, improper towing will severely damage your AWD system. A flatbed truck
is the only recommended way to properly transport your AWD vehicle. If towing is
necessary, it is best done by your Subaru Retailer or a commercial towing service.
Subaru Roadside Assistance
Subaru Roadside Assistance is free and standard on your vehicle. Coverage
is automatic; there are no forms to complete. Subaru Roadside Assistance
is available anytime during the 3-year/36,000-mile Subaru Limited Warranty,
whichever comes first.* A Subaru Roadside Assistance decal has been af\
fixed
to the driver’s door window.
Subaru Roadside Assistance: 1-800-261-2155
Exclusions
Specifically excluded from Subaru Roadside Assistance coverage are service
requests or claims resulting from: accidents, vandalism, acts of God, violation
of any laws, misuse and abuse, or vehicle modifications not recommended by
the manufacturer.
*See your Retailer for details.
Safety/In Case of Emergency
3572136_19b_WRX_WRX_STI_QG_061118.indd 256/11/18 5:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

26
Additional Information
Fuel
• For WRX, use premium unleaded gasoline with an octane rating of 91 AKI or higher. If
91 AKI fuel is not readily available, regular unleaded gasoline with an octane rating of 87
AKI or higher may be temporarily used. However, depending on your driving habits and
conditions, you may notice a decrease in engine performance, fuel economy and slight
engine vibration or knocking. Consult the Owner’s Manual for more detailed information.
• For WRX STI, use premium unleaded gasoline with an octane rating of 93 AKI or higher.
If 93 AKI fuel is not readily available in your area, premium unleaded gasoline with an
octane rating of 91 AKI may be used with no detriment to engine durabili\
ty or driveability.
However, you may notice a slight decrease in maximum engine performance while using
91 AKI fuel. Consult the Owner’s Manual for more detailed information.
Fuel Capacity
• 15.9 US gal (60 liters, 13.2 Imp gal)
• When the low fuel indicator light is displayed on the instrument panel, \
approximately
2.6 US gallons (10.0 liters, or 2.2 Imp gal) of fuel remain.
• If you have recently fueled your vehicle, the check engine light on the instrument pa\
nel
may stay on due to a missing or loose fuel filler cap (the cap should\
be tightened until a
click is heard).
Fuel Filler Lid Release
The fuel filler lid release is located on the floor to the left of
the driver’s seat. To open the fuel filler lid, pull the fuel filler
lever up and release.
3572136_19b_WRX_WRX_STI_QG_061118.indd 266/11/18 5:08 PM

27
Engine Oil
Use only the following oils:
• 5W-30 synthetic, replacement interval 6,000 miles under normal driving
conditions. No requirement at the first 3,000 miles.
• ILSAC GF-5, which can be identified with the ILSAC certification
mark (Starburst mark).
• Or API classification SN with the words “RESOURCE CONSERVING”.
Engine Oil Capacity
• For WRX: 5.4 US qt (5.1 liters, 4.5 Imp qt)
• For WRX STI: 4.5 US qt (4.3 liters, 3.8 Imp qt)
Additional
Information
3572136_19b_WRX_WRX_STI_QG_061118.indd 276/11/18 5:08 PM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

28
102
3
7
1
8
5
4
9
6
Engine Compartment
Additional
Information
Please refer to your Owner’s Manual for more information.
WRX Engine

Note: Callouts apply to both engines.
1 Brake Fluid Reservoir
2 Main Fuse Box
3 Battery
4 Windshield Washer Tank
5 Engine Oil Filler Cap
6 Engine Coolant Reservoir
7 Radiator Cap
8 Engine Oil Dipstick
9 Air Cleaner Element
10 Power Steering Fluid Reservoir
(WRX STI only)
WRX STI Engine
1
2
2
7
3
5
4
6
1
9
8
