SUBARU WRX 2020 Quick Guide

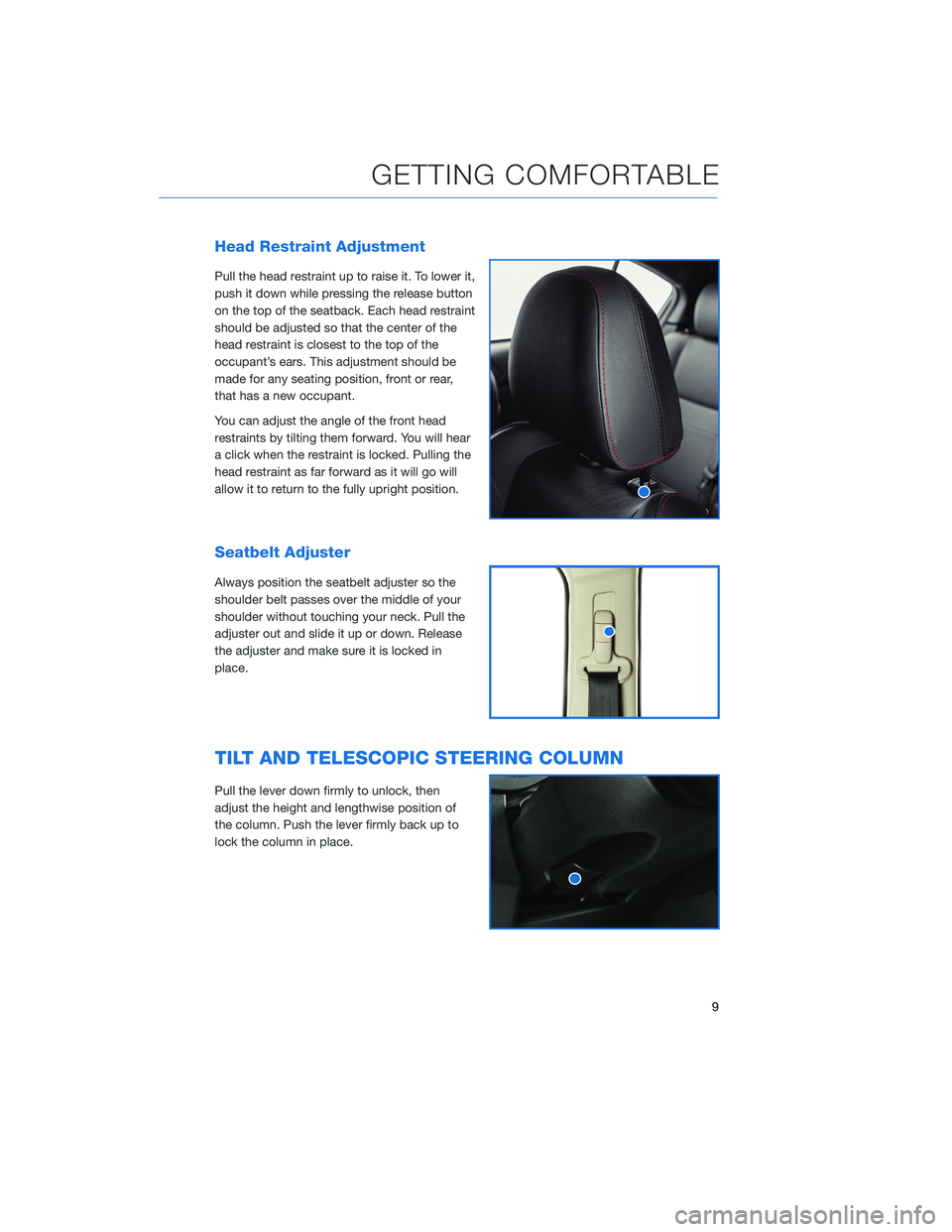

Head Restraint Adjustment
Pull the head restraint up to raise it. To lower it,
push it down while pressing the release button
on the top of the seatback. Each head restraint
should be adjusted so that the center of the
head restraint is closest to the top of the
occupant’s ears. This adjustment should be
made for any seating position, front or rear,
that has a new occupant.
You can adjust the angle of the front head
restraints by tilting them forward. You will hear
a click when the restraint is locked. Pulling the
head restraint as far forward as it will go will
allow it to return to the fully upright position.
Seatbelt Adjuster
Always position the seatbelt adjuster so the
shoulder belt passes over the middle of your
shoulder without touching your neck. Pull the
adjuster out and slide it up or down. Release
the adjuster and make sure it is locked in
place.
TILT AND TELESCOPIC STEERING COLUMN
Pull the lever down firmly to unlock, then
adjust the height and lengthwise position of
the column. Push the lever firmly back up to
lock the column in place.
GETTING COMFORTABLE
9

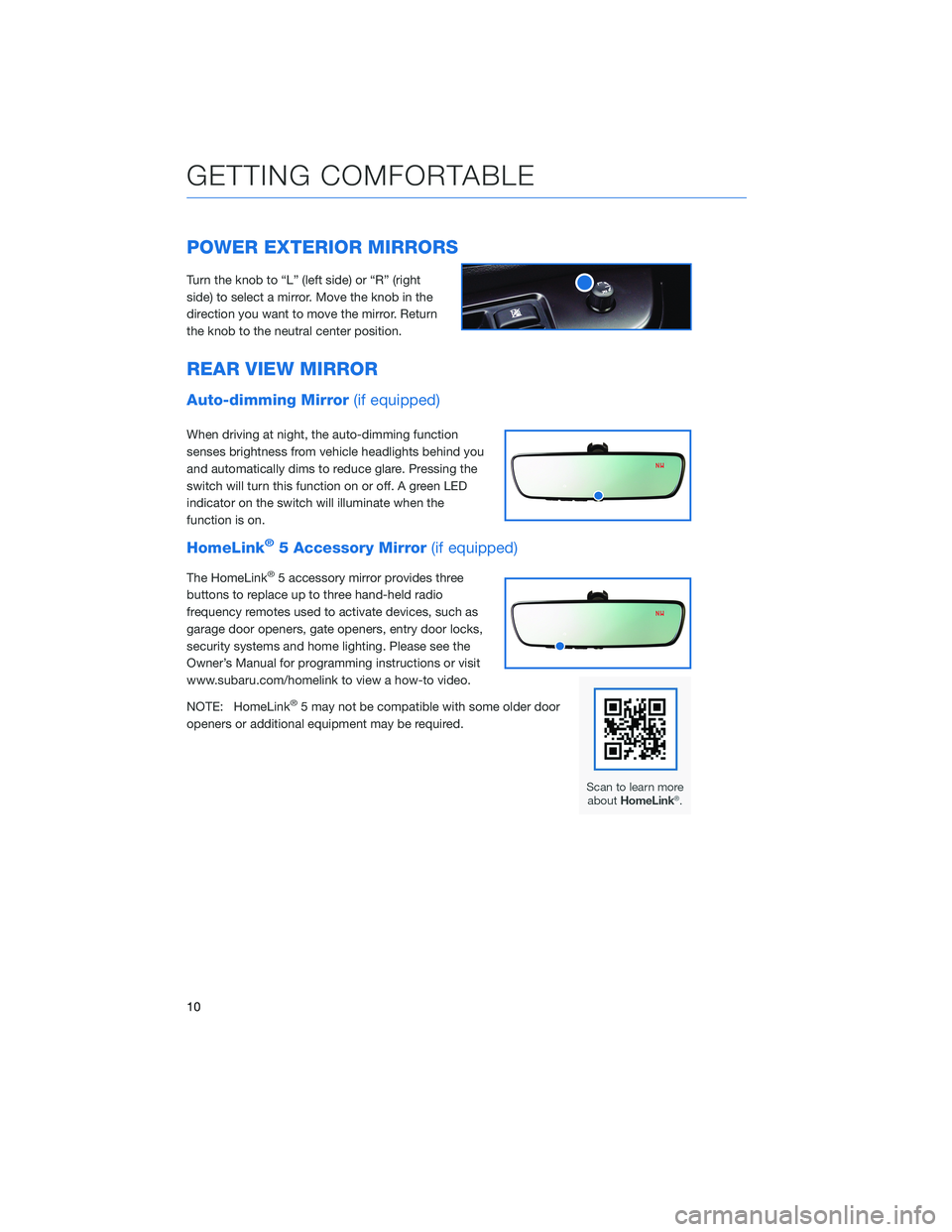

POWER EXTERIOR MIRRORS
Turn the knob to “L” (left side) or “R” (right
side) to select a mirror. Move the knob in the
direction you want to move the mirror. Return
the knob to the neutral center position.
REAR VIEW MIRROR
Auto-dimming Mirror(if equipped)
When driving at night, the auto-dimming function
senses brightness from vehicle headlights behind you
and automatically dims to reduce glare. Pressing the
switch will turn this function on or off. A green LED
indicator on the switch will illuminate when the
function is on.
HomeLink®5 Accessory Mirror(if equipped)
The HomeLink®5 accessory mirror provides three
buttons to replace up to three hand-held radio
frequency remotes used to activate devices, such as
garage door openers, gate openers, entry door locks,
security systems and home lighting. Please see the
Owner’s Manual for programming instructions or visit
www.subaru.com/homelink to view a how-to video.
NOTE: HomeLink
®5 may not be compatible with some older door
openers or additional equipment may be required.
GETTING COMFORTABLE
10

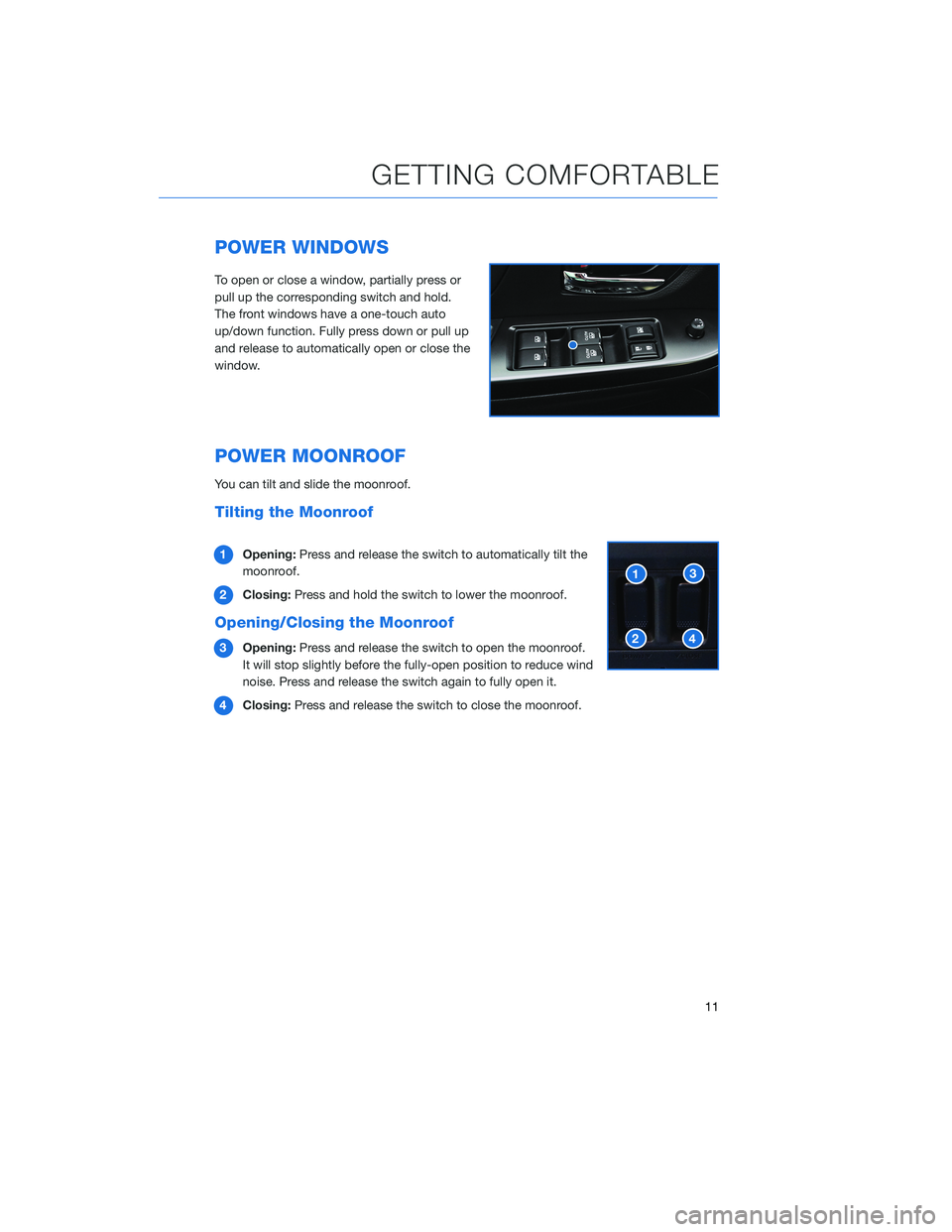

POWER WINDOWS
To open or close a window, partially press or
pull up the corresponding switch and hold.
The front windows have a one-touch auto
up/down function. Fully press down or pull up
and release to automatically open or close the
window.
POWER MOONROOF
You can tilt and slide the moonroof.
Tilting the Moonroof
1Opening:Press and release the switch to automatically tilt the
moonroof.
2Closing:Press and hold the switch to lower the moonroof.
Opening/Closing the Moonroof
3Opening:Press and release the switch to open the moonroof.
It will stop slightly before the fully-open position to reduce wind
noise. Press and release the switch again to fully open it.
4Closing:Press and release the switch to close the moonroof.
GETTING COMFORTABLE
11

CLIMATE CONTROL SYSTEM
Automatic Climate Control (WRX Only)
Set your desired temperature and let the system automatically make the adjustments for
you. At any time, you can manually take control of the climate settings.
Operation in Automatic Mode
1Automatic Control Button:This system automatically controls all of the climate
system except defogging. Press “AUTO” to activate. Press “OFF” to turn off the
system.
2Temperature Control Dial:Turn the dial clockwise to increase the temperature or
counterclockwise to decrease the temperature. The temperature will appear on the
screen.
When using “Full Auto” mode, the fan speed, airflow distribution, air-inlet control and air
conditioning compressor are controlled automatically. In “Auto” mode the system allows
you to choose the fan speed and airflow distribution while it controls the output
temperature. To activate “FULL AUTO” mode:
• Press the “AUTO” button. The “FULL AUTO” will be indicated on the Multi-Function
Display (MFD).
• Set the preferred temperature using the temperature control dial.
If you operate any of the buttons other than “OFF”, rear window defogger, or the
temperature control dial, the “FULL” indicator will turn off. The “AUTO” indicator will
remain. You can then manually control the system as desired. Press the “AUTO” button to
change back to “FULL AUTO” mode.
GETTING COMFORTABLE
12

Operation in Manual Mode
3Recirculated/Outside Air Button:Press this button to prevent outside air from
entering your Subaru. Press the button again to allow outside air into your Subaru.
NOTE: To prevent windshield fogging, do not remain in the recirculated mode for an
extended period of time.
4Fan Speed Control Dial:Turn the fan speed control dial to increase or decrease fan
speed.
5Airflow Mode Selection Dial:Turn the dial to select the desired airflow mode. The
selected air flow mode – ventilation, bi-level, feet or feet-defrost – is shown on the
display.
ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
6Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
7Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
8Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before then, press
the button again to turn it off. The outside mirror defogger and windshield wiper
deicer will also activate, you can customize this function for continual operation
through the Multi-Function Display (MFD).
GETTING COMFORTABLE
13

Dual-zone Automatic Climate Control (WRX STI only)
You can set separate temperatures for the driver and passenger seats. Set your desired
temperature and let the system automatically make the adjustments for you. At any time,
you can manually take control of the climate settings.
Operation in Automatic Mode
1Automatic Control Button:This system automatically controls all of the climate
systems except defogging. Press “AUTO” to activate. Press “OFF” to turn off the
system.
2Temperature Control Dial:Turn the dial clockwise to increase the temperature or
counterclockwise to decrease the temperature. The temperature will appear on the
screen. You can adjust separate temperature settings for the driver’s side and
passenger’s side.
When using “Full Auto” mode, the fan speed, airflow distribution, air-inlet control and air
conditioning compressor are controlled automatically. In “Auto” mode the system allows
you to choose the fan speed and airflow distribution while it controls the output
temperature. To activate “FULL AUTO” mode:
• Press the “AUTO” button. The “FULL AUTO” indicator light illuminates on the climate
control display.
• Set the preferred temperature using the temperature control dial.
If you operate any of the buttons other than “OFF”, rear window defogger, DUAL or the
temperature control dial, the “FULL” indicator light will turn off. The “AUTO” light will
remain illuminated. You can then manually control the system as desired. Press the
“AUTO” button to change back to “FULL AUTO” mode.
Operation in Manual Mode
3Recirculated/Outside Air Button:Press this to prevent outside air from entering
your Subaru. Press the button again to allow outside air into your Subaru. NOTE: To
prevent windshield fogging, do not remain in the recirculated mode for an extended
period of time.
GETTING COMFORTABLE
14

4Fan Speed Control Dial:Turn the fan speed control dial to increase or decrease fan
speed.
5Airflow Mode Selection Button:
Press the button to select the desired airflow mode.
The selected mode – ventilation, bi-level, feet or feet-defrost – is shown on the display.
ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
6Dual Button:Press the button to activate or deactivate the dual mode. Dual mode
makes it possible to have separate temperature settings for the driver’s side and
passenger’s side.
7Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
8Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
9Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before, then press
the button again to turn it off. The outside mirror defogger will also activate. You can
customize this function for continual operation through the Multi-Function Display
(MFD).
Heated Seats (if equipped)
The heated seat switches are located between the seats in front of
the center console. There is a separate switch for the driver and
passenger. Press the “HI” button for the high temperature setting or
press the “LO” button for the low temperature setting. Lightly press
the opposite button to turn the heated seat off.
GETTING COMFORTABLE
15

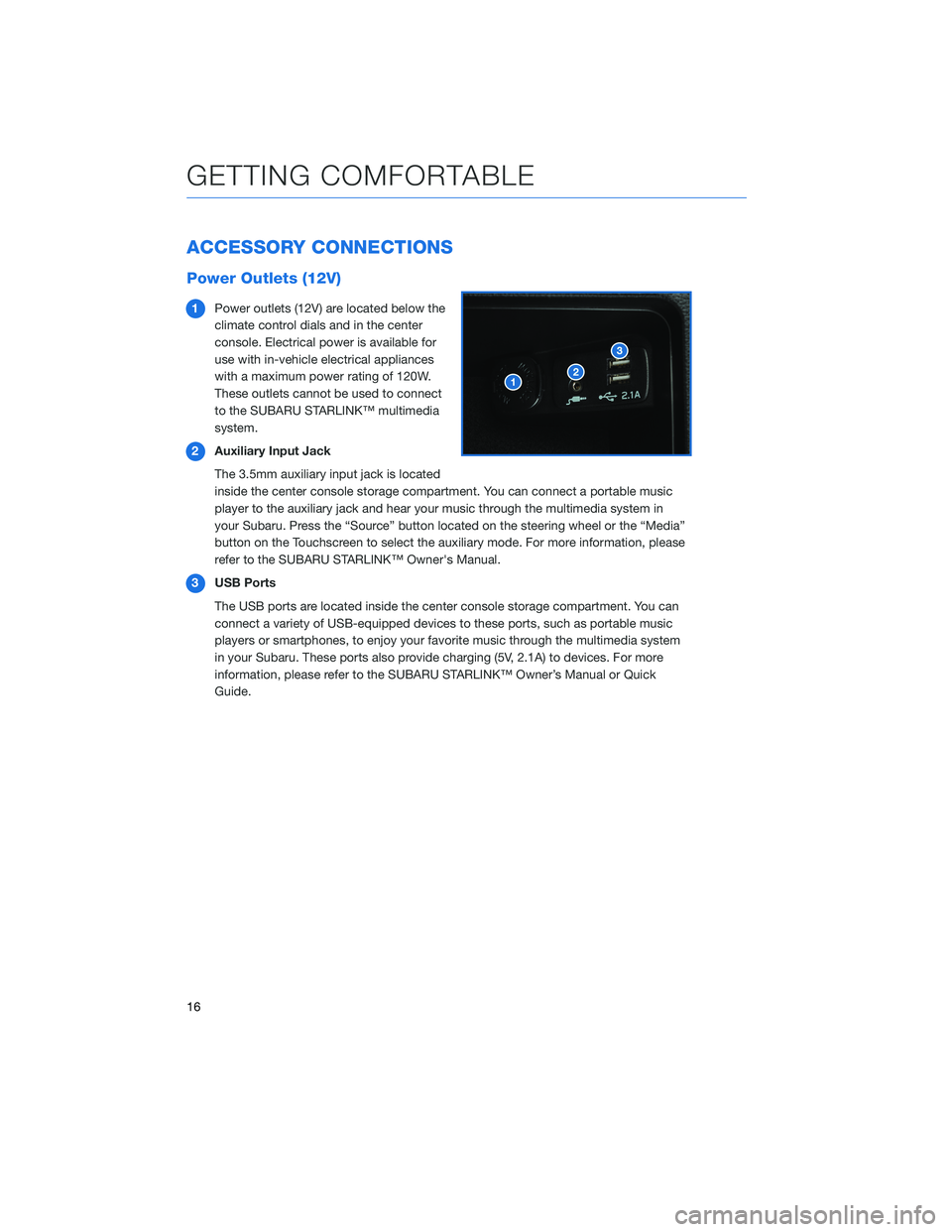

ACCESSORY CONNECTIONS
Power Outlets (12V)
1Power outlets (12V) are located below the
climate control dials and in the center
console. Electrical power is available for
use with in-vehicle electrical appliances
with a maximum power rating of 120W.
These outlets cannot be used to connect
to the SUBARU STARLINK™ multimedia
system.
2Auxiliary Input Jack
The 3.5mm auxiliary input jack is located
inside the center console storage compartment. You can connect a portable music
player to the auxiliary jack and hear your music through the multimedia system in
your Subaru. Press the “Source” button located on the steering wheel or the “Media”
button on the Touchscreen to select the auxiliary mode. For more information, please
refer to the SUBARU STARLINK™ Owner's Manual.
3USB Ports
The USB ports are located inside the center console storage compartment. You can
connect a variety of USB-equipped devices to these ports, such as portable music
players or smartphones, to enjoy your favorite music through the multimedia system
in your Subaru. These ports also provide charging (5V, 2.1A) to devices. For more
information, please refer to the SUBARU STARLINK™ Owner’s Manual or Quick
Guide.
GETTING COMFORTABLE
16

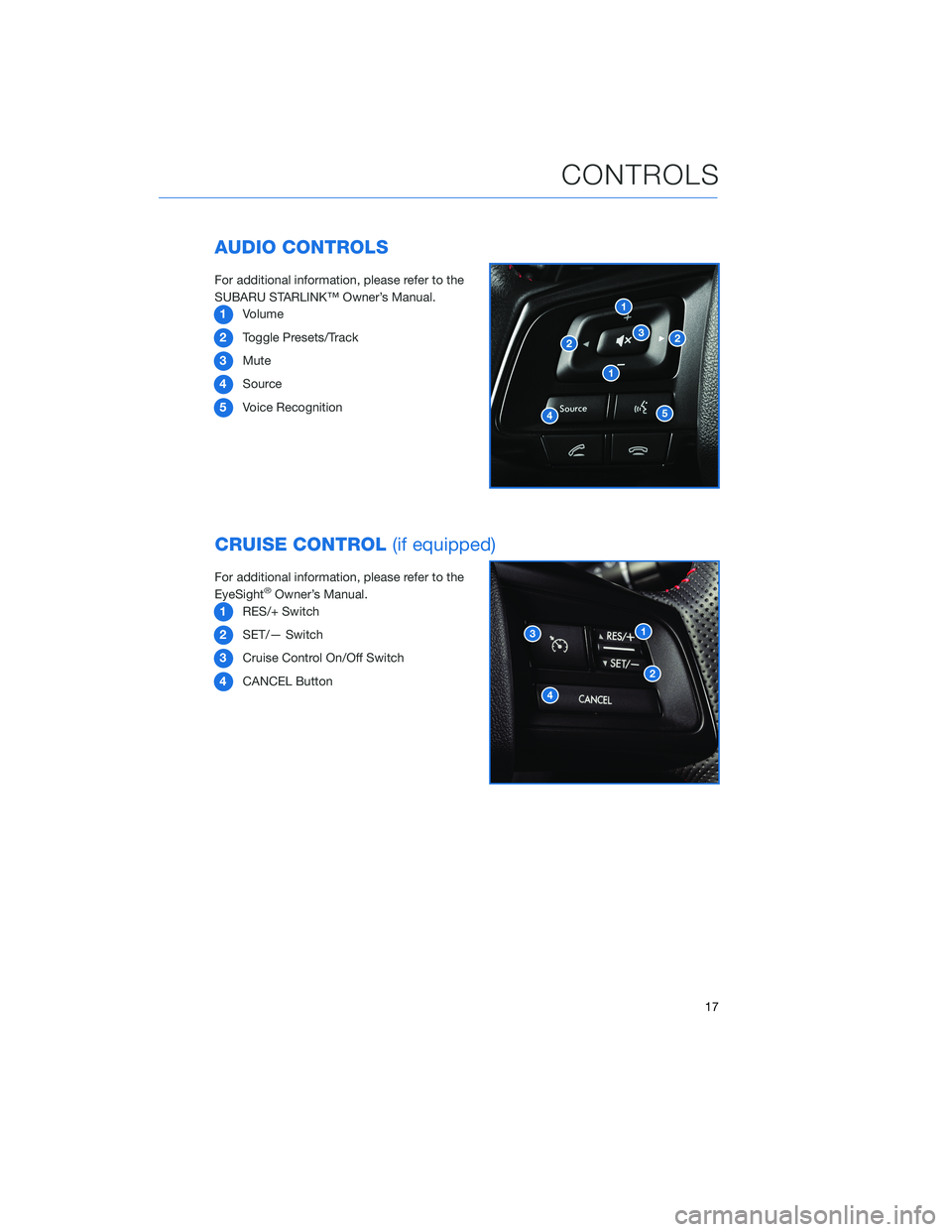

AUDIO CONTROLS
For additional information, please refer to the
SUBARU STARLINK™ Owner’s Manual.
1Volume
2Toggle Presets/Track
3Mute
4Source
5Voice Recognition
CRUISE CONTROL(if equipped)
For additional information, please refer to the
EyeSight®Owner’s Manual.
1RES/+ Switch
2SET/— Switch
3Cruise Control On/Off Switch
4CANCEL Button
CONTROLS
17

ADAPTIVE CRUISE CONTROL(if equipped)
For additional information, please refer to the
EyeSight®Owner’s Manual.
1RES/+ Switch
2SET/— Switch
3Lane Departure
4Distance Control
5Cruise Control On/Off Switch
I/SET SWITCH
Use the controls to display and change
selected items in the Combination Meter
Display (CMD). Pull and hold this switch to
access the settings menu. Pull the arrows to
move up or down the menu.
LIGHT CONTROLS
1AUTO:If equipped, rotate the end of the
lever to automatically turn your headlights
on or off, depending on the level of
outside light.
2Daytime Running Lights:Rotate the end
of the lever to turn on the instrument
panel lights, parking lights, side marker
lights, tail lights, and license plate lights.
3Headlights:Rotate the end of the lever to
turn on the headlights, instrument panel lights, parking lights, side marker lights, tail
lights, and license plate lights.
CONTROLS
18
