Page 11 of 139

1159K,76G,844-74E
Annexure-A
List of parts covered under Emission Warranty
1. Fuel injection Assembly, Pressure Regulator, Throttle Body Assembly.
2. Electronic Control Module (ECM).
3. Intake Manifold.
4. EGR valve.
5. Distributor and internal parts.
6. Ignitions coil.
7. Canister Assembly.
8. Vapour Liquid Separator.
9. Fuel Tank and Filler Cap.
10. PCV (Positive Crankcase Ventilation) Valve.
11. Oil Filler Cap.
12. Catalytic Convertor.
13. Exhaust manifold.
14. All fuel injection System related SENSORS.
15. Maniverter
EMISSION WARRANTY2-5
Page 56 of 139

5776G-74E

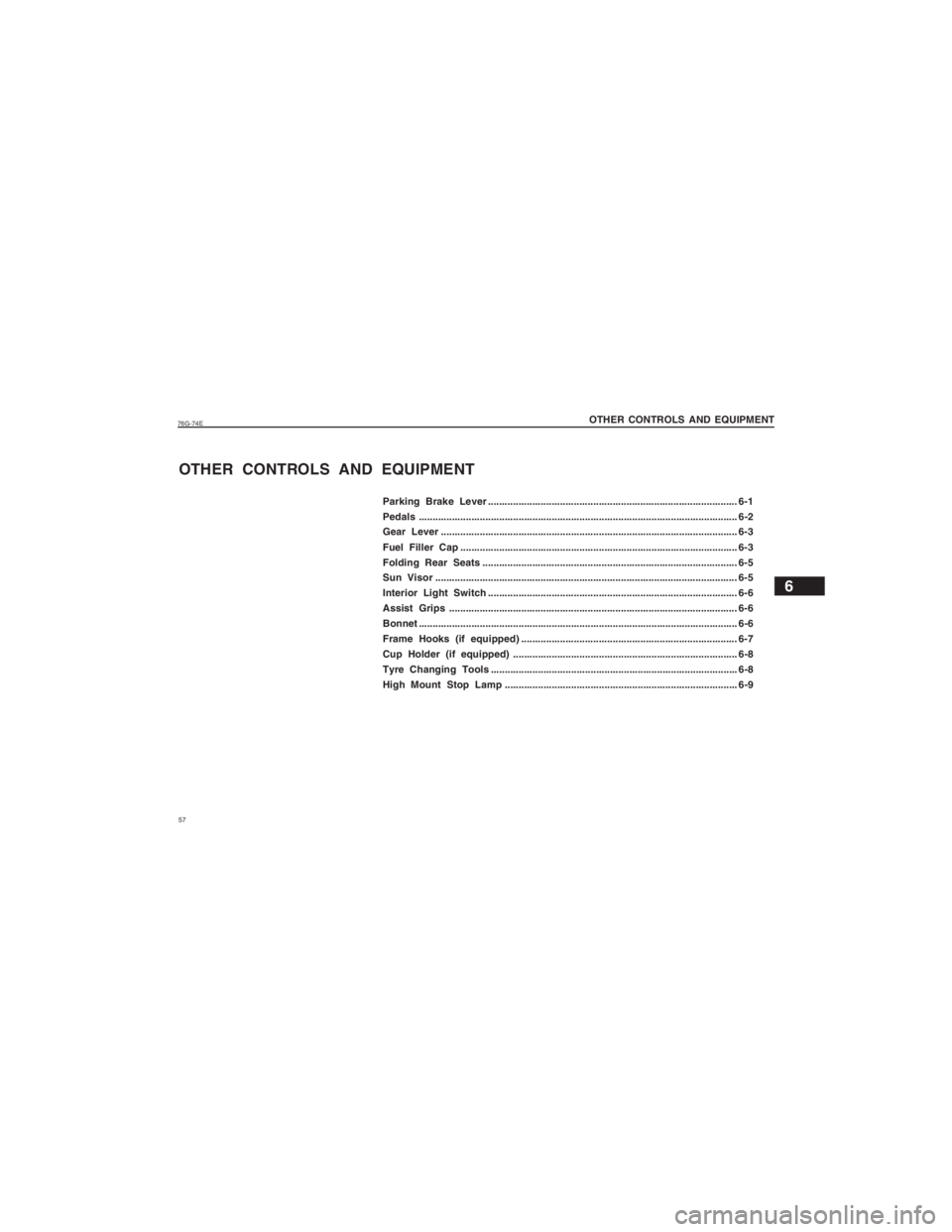

OTHER CONTROLS AND EQUIPMENT
6
OTHER CONTROLS AND EQUIPMENT
Parking Brake Lever
........................................................................\
.................. 6-1
Pedals ........................................................................\
........................................... 6-2
Gear Lever ........................................................................\
................................... 6-3
Fuel Filler Cap ........................................................................\
............................ 6-3
Folding Rear Seats ........................................................................\
.................... 6-5
Sun Visor ........................................................................\
..................................... 6-5
Interior Light Switch........................................................................\
.................. 6-6
Assist Grips ........................................................................\
................................ 6-6
Bonnet ........................................................................\
........................................... 6-6
Frame Hooks (if equipped) ........................................................................\
...... 6-7
Cup Holder (if equipped) ........................................................................\
......... 6-8
Tyre Changing Tools ........................................................................\
................. 6-8
High Mount Stop Lamp ........................................................................\
............ 6-9
Page 59 of 139

60
76G-74E
FUEL FILLER CAP
6-3

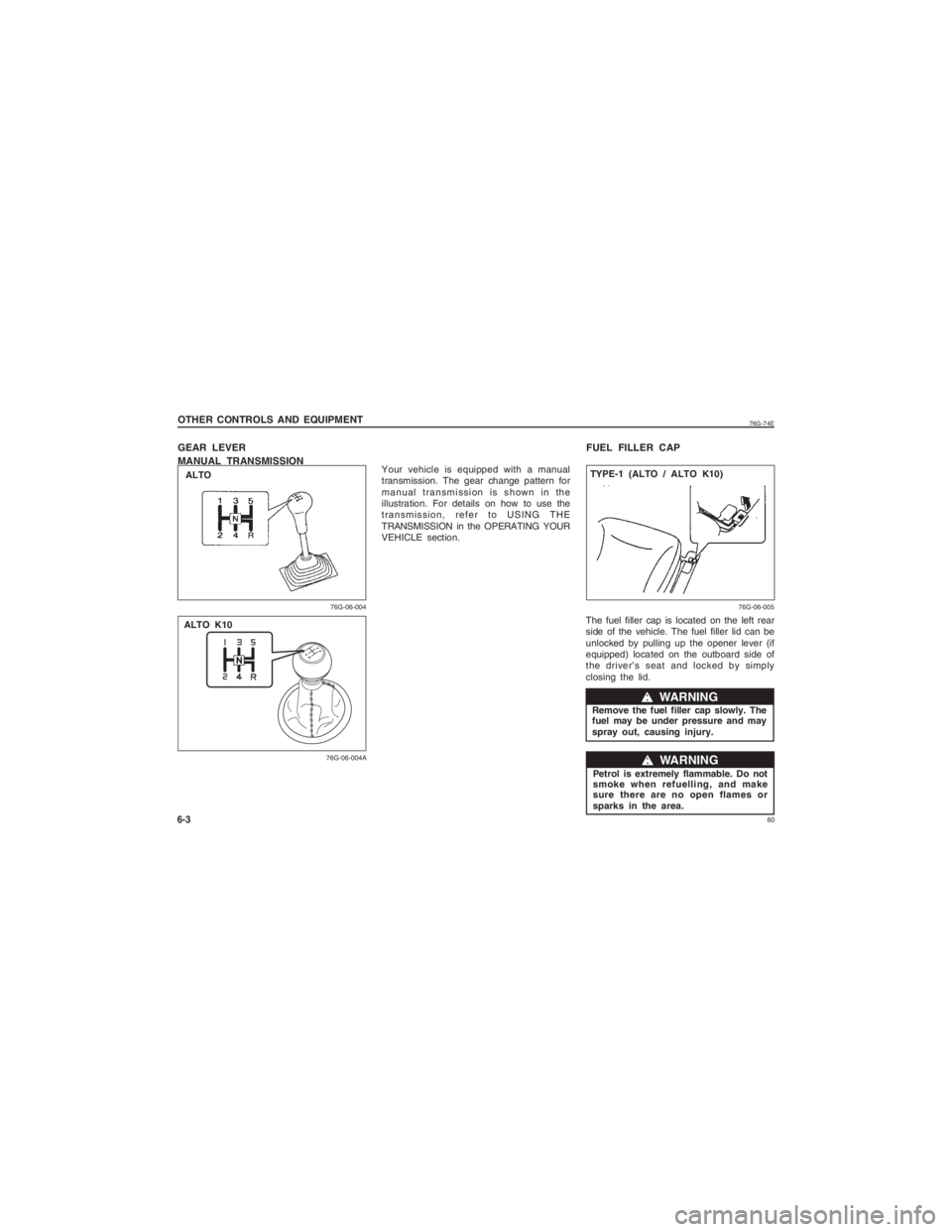

The fuel filler cap is located on the left rear
side of the vehicle. The fuel filler lid can be
unlocked by pulling up the opener lever (if
equipped) located on the outboard side of
the driver’s seat and locked by simply
closing the lid.
ww ww
w WARNING
OTHER CONTROLS AND EQUIPMENT
ww
ww
w WARNING
GEAR LEVER
Your vehicle is equipped with a manual
transmission. The gear change pattern for
manual transmission is shown in the
illustration. For details on how to use the
transmission, refer to USING THE
TRANSMISSION in the OPERATING YOUR
VEHICLE section.
76G-06-004 76G-06-005
MANUAL TRANSMISSIONALTO
76G-06-004A
ALTO K10TYPE-1 (ALTO / ALTO K10)
Remove the fuel filler cap slowly. The
fuel may be under pressure and may
spray out, causing injury.Petrol is extremely flammable. Do not
smoke when refuelling, and make
sure there are no open flames or
sparks in the area.
Page 60 of 139

6176G-74E
6-4
OTHER CONTROLS AND EQUIPMENTIf you need to replace the fuel cap,
use only a cap specified for your
model. Using an improper fuel cap
can cause a serious malfunction of
the fuel system. You can get the
correct replacement cap from your
MARUTI SUZUKI dealer.

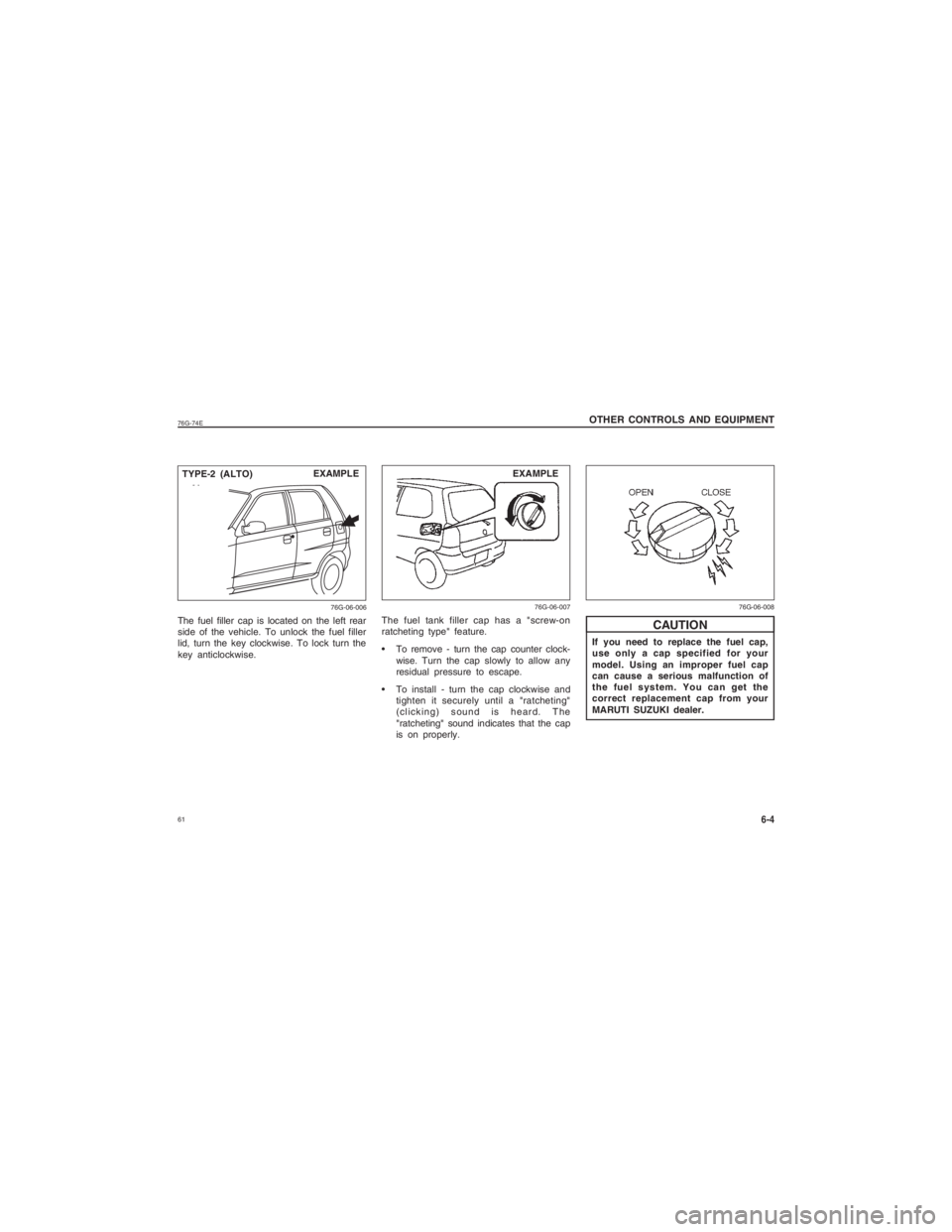

The fuel tank filler cap has a "screw-on
ratcheting type" feature.
To remove - turn the cap counter clock-
wise. Turn the cap slowly to allow any
residual pressure to escape.
To install - turn the cap clockwise and tighten it securely until a "ratcheting"
(clicking) sound is heard. The
"ratcheting" sound indicates that the cap
is on properly.
CAUTION
76G-06-007 76G-06-008
The fuel filler cap is located on the left rear
side of the vehicle. To unlock the fuel filler
lid, turn the key clockwise. To lock turn the
key anticlockwise.
76G-06-006
TYPE-2 (ALTO)EXAMPLE EXAMPLE
Page 85 of 139

86
76G-74E
INSPECTION AND MAINTENANCE9-3Interval: This interval should be judged
FREE INSPECTIONS
PERIODIC MAINTENANCE SERVICE AT COST
by odometer reading or months, km (x 1,000) 1 5 10 20 30 40 50 60 70 80
whichever comes first. months 1 6 12 24 36 48 60 72 84 96
FUEL
1. Air cleaner Paved-roadClean every 5,000 km. Replace every 40,000 km.
Dusty condition Clean every 2,500 km or as required. Replace every 40,000 km. More frequ\
ent replacement if dust condition is severe.
2. Accelerator cable and Throttle shafts – I&L I&L I&L I&L I&L I&L I&L I&L I&L
3. Fuel tank cap, fuel lines & connections(leakage,damage) – I – – – I – – – I
4. Fuel filter (leakage) I I I I I R I I I R
CLUTCH AND TRANSMISSION
1. Clutch pedal (play) I I I I I I I I I I
2. Clutch slipping (dragging or excessive damage) I I I I I I I I I I
3. Manual Transmission/Transfer and Differential oil (level, leakage) I I I R I R I R I R
DRIVE SHAFTS
1. Drive shafts boots (bent of boots damage) – I I I I I I I I I
BRAKE
1. Brake fluid (level, leakage) I I I R I R I R I R
2. Brake pedal (pedal-to-wall clearance) I I I I I I I I I I
3. Parking brake lever and cable (play, damage) I I I I I I I I I I
4. a. Brake discs and pads, (wear) – I I I I I I I I I
b. Brake drums & shoes – – I I I I I I I I
5. Master cylinder and wheel cylinder or calliper (oil leakage, boot kit)\
I I I I I R I I I R
6. Brake hoses and pipes (leakage, damage) I I I I I I I I I I
Page 135 of 139

136
76G-74E
ITEM: ELECTRICALALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)
Standard spark plug NGK-DCPR7E, BOSCH-YR7DC NGK KR6A-10
Battery 34B20L (27AH/5HR) 38B20L (28AH/5HR)
Fuses See “INSPECTION AND MAINTENANCE” section
Headlight 12V 55/60W
Turn signal light 12V 21W
Side turn signal light 12V 5W
Clearance light 12V 5W
Tail/brake light 12V 21/5W
Registration plate light 12V 5W
Reversing light 12V 21W
High Mount Stop Lamp 12V W16W
ITEM: WHEEL AND SUSPENSION ALTO (STD / Lx / Lxi) ALTO K10 (Lxi / Vxi)
Tyre size, front and rear 145/80R12 155/65R13
Tyre pressures front/rear 2.1 kg/cm
2
2.2 kg/cm
2
Suspension type front Mac Pherson Strut
rear 3-link-rigid axle suspension
ITEM: STEERING
Toe-in front 0 ± 1 mm
ITEM: CAPACITIES ALTO (STD / Lx / Lxi)ALTO K10 (Lxi / Vxi)
Coolant (Including reservoir tank) 3.5 Ltrs4.3 Ltrs
Fuel tank 35.0 Ltrs35.0 Ltrs
Engine oil (with oil filter) 2.7 Ltrs2.9 Ltrs
Transmission oil 2.2 Ltrs2.2 LtrsSPECIFICATIONS13-2
