SUZUKI CELERIO 2015 Owner's Guide

2-9
BEFORE DRIVING
76MH1-74E
76MH1-74E
shock, all turn signal lights start to blink and the interior buzzer beeps intermit- tently. After 5 seconds, the siren willsound for about 27.5 seconds (full blast warning). The security system indicator continues to blink during this time.
NOTE:If you set the full blast warning sensitivityhigher than the pre-warning sensitivity inthe setting mode of the information display,or the vehicle feels such shock as to beable to trigger the full blast warning, the full blast warning will be triggered preferen- tially. In this case, the pre-warning will notbe triggered.
When disabled When the system is disabled, it stays dis- armed even if you perform any system arming operation.
How to switch the state of the security systemWhen the security system has beenalready disarmed, you can switch the sys-tem from the enabled state to the disabledstate, and vice versa, using the following method.
1) Sit in the driver

2-10
BEFORE DRIVING
76MH1-74E
76MH1-74E
4) Push the lock end (4) (forward end) ofthe central door locking switch (5), and then push the unlock end (6) (backwardend). Repeat this operation 3 times.
Every time you perform the series of theabove steps, the state of the security sys- tem changes from the currently selected one to the other. You can check whetherthe system is enabled or disabled by the number of interior buzzer beeps at the end of the procedure as follows.
If you cannot complete the operations instep 3) and 4) within 15 seconds cor- rectly, the state of the security systemwill not change and the interior buzzer does not beep. Perform the procedure again from the beginning.
NOTE: You can also switch the security systemfrom the enabled state to the disabled state, and vice versa, via the setting mode of the information display. For details onhow to use the information display, refer to“Information Display” in this section.
Windows
Manual Window Control
(if equipped)
60G010
Raise or lower the door windows by turning the handle located on the door panel.
Electric Window Controls
(if equipped)The electric windows can only be operated when the ignition switch is in the “ON” posi- tion.
Driver’s door
76MH0A022
The driver’s door has a switch (1) to oper- ate the driver’s window, and a switch (2) tooperate the front passenger’s window or there are switches (4), (3), to operate the rear left and right passenger windows,respectively.
Passenger’s door
76MH0A023
The passenger’s door has a switch (5) to operate that passenger’s window.
81A009
System state Number of beeps
DisabledOnce
Enabled 4 times
EXAMPLE
(1)(2)
(3)
(4)
EXAMPLE
(5)EXAMPLE
CLOSE
OPEN
21

2-11
BEFORE DRIVING
76MH1-74E
76MH1-74E
To open a window, push the top part of the switch and to close the window, lift up the top part of the switch.
The driver’s window has an “auto-down” featurefor added convenience (at toll booths or drive-through restaurants, for example). This means you can open the window without holding the window switch in the “Down” position. Press thedriver’s window switch completely down and release it. To stop the window before it reaches the bottom, pull the switch up briefly.
Lock switch
76MH0A024
The driver’s door also has a lock switch forthe passenger’s windows. When you pushin the lock switch, the passenger’s win- dows cannot be raised or lowered by oper- ating any of the switches (1), (2), (3) or (4).To restore normal operation, release the lock switch by pushing again.
NOTE:If you drive with one of the rear windows open, you may hear a loud sound causedby air vibration. To reduce the sound, open the driver’s or front passenger’s window, or narrow the rear window opening.
Mirrors
Inside Rearview MirrorYou can adjust the inside rearview mirrorby hand so as to see the rear of your vehi-cle in the mirror.
Ty p e 1
74LHT0235
Ty p e 2
68LMT0205
68LMT0206
(2) Day driving (3) Night driving
EXAMPLE
WA R N I N G
• You should always lock the pas-senger’s window operation whenthere are children in the vehicle. Children can be seriously injured if they get part of their body caughtby the window during operation.• To avoid injuring an occupant bywindow entrapment, be sure nopart of the occupant’s body such as hands or head is in the path of the electric windows when closingthem.• Always remove the ignition keywhen leaving the vehicle even ifonly for a short time. Also do not leave children alone in a parked vehicle. Unattended children coulduse the electric window switches and get trapped by the window.
(1)
(2)(3)
22

2-12
BEFORE DRIVING
76MH1-74E
76MH1-74E
To adjust the mirror, set the selector tab (1) to the day position, then move the mirror up, down or sideways by hand to obtain thebest view.
When driving at night, you can move the selector tab to the night position to reduce glare from the headlights of vehicles behind you.
Outside Rearview MirrorsAdjust the outside rearview mirrors so you can just see the side of your vehicle in themirrors.
Ty p e 1
76MH0A025
Ty p e 2
68KH009
You can adjust the outside rear view mir-rors by hand with the knob (1) located on the driver’s or front passenger’s doorpanel.
Electric Mirrors (if equipped)
76MH0A026
The switch to control the electric mirrors islocated on the driver’s door panel. You can adjust the mirrors when the ignition switch is in the “ACC” or “ON” position. To adjustthe mirrors:
1) Move the selector switch to the left orright to select the mirror you wish to adjust.2) Press the outer part of the switch thatcorresponds to the direction in whichyou wish to move the mirror.3) Return the selector switch to the centerposition to help prevent unintendedadjustment.
WA R N I N G
Be careful when judging the size or distance of a vehicle or other objectseen in the side convex mirror. Be aware that objects look smaller and appear farther away than when seenin a flat mirror.
EXAMPLE
(1)EXAMPLE
(2)
(4)
(3)
(1)
(1)
(3)(2)
(4)
EXAMPLE
23

2-13
BEFORE DRIVING
76MH1-74E
76MH1-74E
Front Seats
Seat Adjustment
76MH0A027
Seat position adjustment lever (1) Pull the lever up and slide the seat.
Seatback angle adjustment lever (2) Pull the lever up and move the seatback.
Seat height adjustment lever (3) (if equipped) Pull the lever up to raise the seat. Push the lever down to lower the seat.
After adjustment, try to move the seat and seatback forward and rearward to ensurethat it is securely latched.
Rear Seats
Folding Rear SeatsThe rear seat(s) of your vehicle can befolded forward to provide additional cargospace.
To fold the rear seats forward:
76MH0A028
1) Insert the latch plate of the outboardlap-shoulder belts into the slit (1).
WA R N I N G
Never attempt to adjust the driver’s seat or seatback while driving. The seat or seatback could move unex- pectedly, causing loss of control.Make sure that the driver’s seat and seatback are properly adjusted before you start driving.
WA R N I N G
To avoid excessive seat belt slack,which reduces the effectiveness of the seat belts as a safety device, make sure that the seats are adjustedbefore the seat belts are fastened.
WA R N I N G
All seatbacks should always be in an upright position when driving, or seat belt effectiveness may be reduced.Seat belts are designed to offer maxi- mum protection when seatbacks are in the upright position.
(2)(3)(1)
EXAMPLE
NOTICE
• When you move a seatback, makesure the latch plate is inserted intothe slit securely so the seat beltsare not caught by the seatback, seat hinge, or seat latch. This helps prevent damage to the belt system.• Make sure the belt webbing is nottwisted.
(1)
EXAMPLE
24

2-14
BEFORE DRIVING
76MH1-74E
76MH1-74E
76MH0A029
2) Pull up the release straps on the top ofthe seat(s), and fold the seatback for- ward.
To return the seat to the normal position, follow the procedure below.
76MH0A030
Raise the seatback until it locks into place.
After returning the seat, try moving theseatback to make sure they are securely latched.
NOTICE
After folding the rear seatback for-ward, do not allow any foreign mate-rial to enter the lock opening. This may cause damage to the inside of the lock and prevent the seatbackfrom being locked securely.
WA R N I N G
If you need to carry cargo in the pas- senger compartment with the rear seat back folded forward, be sure tosecure the cargo or it may be thrown about, causing injury. Never pile cargo higher than the seatback.
EXAMPLE
WA R N I N G
When returning the rear seatback to the normal position, make sure that there is nothing around the striker.Any foreign materials prevent theseatback from being locked securely.
CAUTION
When returning the rear seatback tothe normal position, be careful thatyour finger is not caught between the lock and the striker.
EXAMPLE
CAUTION
Do not put your hand into the rear seatback lock opening, or your fingermay get caught and be injured.
NOTICE
• When returning the rear seatbackto the normal position, do not allowany foreign material to enter thelock opening. This may prevent the seatback from being locked securely.• When returning the rear seatbackto the normal position, be sure tohandle it carefully by hand to avoidany damage to the lock itself. Do not push it by using some material or by applying excessive force.• As the lock is designed exclusivelyfor securing the rear seatback, donot use it for any other purpose.Incorrect use of it may cause dam- age to the inside of the lock and prevent the seatback from beinglocked securely.
25

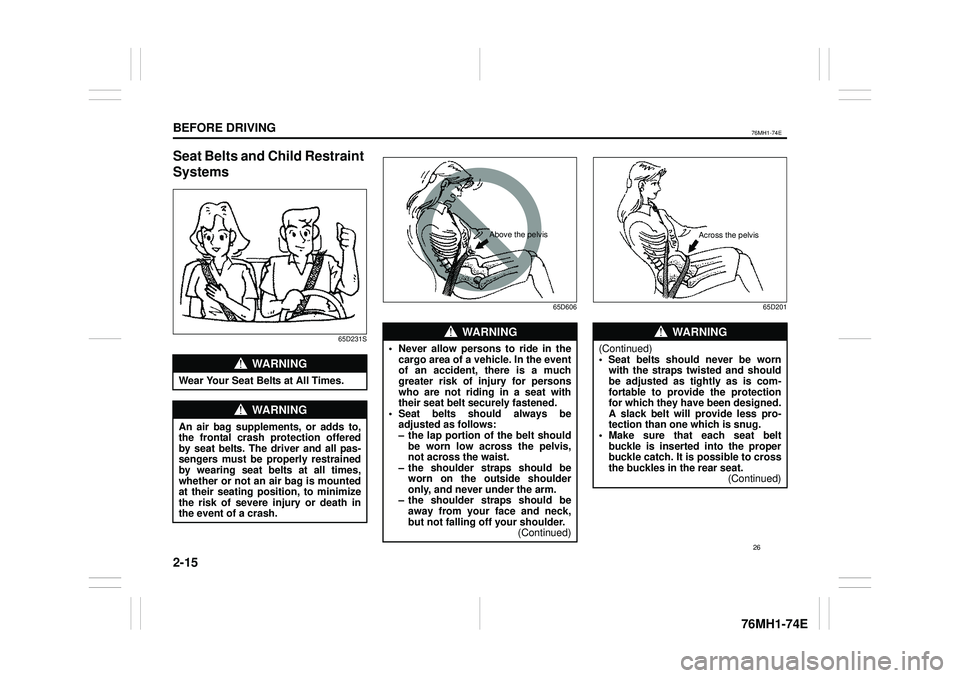

2-15
BEFORE DRIVING
76MH1-74E
76MH1-74E
Seat Belts and Child Restraint
Systems
65D231S
65D606 65D201
WA R N I N G
Wear Your Seat Belts at All Times.
WA R N I N G
An air bag supplements, or adds to, the frontal crash protection offered by seat belts. The driver and all pas-sengers must be properly restrained by wearing seat belts at all times, whether or not an air bag is mountedat their seating position, to minimizethe risk of severe injury or death inthe event of a crash.
WA R N I N G
• Never allow persons to ride in thecargo area of a vehicle. In the eventof an accident, there is a much greater risk of injury for persons who are not riding in a seat withtheir seat belt securely fastened.• Seat belts should always beadjusted as follows:– the lap portion of the belt shouldbe worn low across the pelvis,not across the waist.– the shoulder straps should beworn on the outside shoulderonly, and never under the arm.– the shoulder straps should beaway from your face and neck,but not falling off your shoulder.(Continued)
Above the pelvis
WA R N I N G
(Continued)• Seat belts should never be wornwith the straps twisted and should be adjusted as tightly as is com- fortable to provide the protectionfor which they have been designed. A slack belt will provide less pro- tection than one which is snug.• Make sure that each seat beltbuckle is inserted into the properbuckle catch. It is possible to crossthe buckles in the rear seat.(Continued)
Across the pelvis
26

2-16
BEFORE DRIVING
76MH1-74E
76MH1-74E
65D199
Lap-Shoulder Belt
Emergency Locking Retractor (ELR) The seat belt has an emergency locking retractor (ELR), which is designed to lock the seat belt only during a sudden stop orimpact. It also may lock if you pull the belt across your body very quickly. If this hap- pens, let the belt go back to unlock it, thenpull the belt across your body more slowly.
WA R N I N G
(Continued)• Pregnant women should use seatbelts, although specific recommen- dations about driving should be made by the woman’s medical advi-sor. Remember that the lap portion of the belt should be worn as low as possible across the hips, asshown in the diagram.• Do not wear your seat belt overhard or breakable objects in yourpockets or on your clothing. If an accident occurs, objects such as glasses, pens, etc. under the seatbelt can cause injury.(Continued)
as low as possible across the hips
WA R N I N G
(Continued)• Never use the same seat belt onmore than one occupant and never attach a seat belt over an infant orchild being held on an occupant’s lap. Such seat belt use could cause serious injury in the event of anaccident.• Periodically inspect seat beltassemblies for excessive wear anddamage. Seat belts should be replaced if webbing becomes frayed, contaminated, or damagedin any way. It is essential to replace the entire seat belt assembly after it has been worn in a severe impact,even if damage to the assembly is not obvious.• Children age 12 and under shouldride properly restrained in the rearseat.• Infants and small children shouldnever be transported unless theyare properly restrained. Restraint systems for infants and small chil-dren can be purchased locally andshould be used. Make sure that the system you purchase meets appli- cable safety standards. Read andfollow all the directions provided by the manufacturer.• For children, if the shoulder belt irri-tates the neck or face, move thechild closer to the center of the vehicle.(Continued)
WA R N I N G
(Continued) • Avoid contamination of seat beltwebbing by polishes, oils, chemi-cals, and particularly battery acid.Cleaning may safely be carried out using mild soap and water.• Do not insert any items such ascoins, clips, etc. into the seat beltbuckles, and be careful not to spill liquids into these parts. If foreignmaterials get into a seat belt buckle, the seat belt may not work properly.• All seatbacks should always be inan upright position when driving,or seat belt effectiveness may bereduced. Seat belts are designed to offer maximum protection whenseatbacks are in the upright posi- tion.
27

2-17
BEFORE DRIVING
76MH1-74E
76MH1-74E
Safety reminder
60A038
60A040
To reduce the risk of sliding under the belt during a collision, position the lap portion of the belt across your lap as low on yourhips as possible and adjust it to a snug fit by pulling the shoulder portion of the belt upward through the latch plate. The length
of the diagonal shoulder strap adjusts itself to allow freedom of movement.
All Seat Belts Except Rear CenterAll seat belts except rear center are the lap-shoulder belt.
60A036
To fasten the seat belt, sit up straight andwell back in the seat, pull the latch plateattached to the seat belt across your body and press it straight into the buckle until you hear a “click”.
60A039
To unfasten the seat belt, push the button on the buckle and retract the belt slowly while attaching a hand to the belt or/andthe latch plate.
Rear Center Seat Belt
Rear center seat belt is the lap belt.To fasten the belt, pull the latch plate attached to the seat belt across your hips and press it straight into the buckle untilyou hear a “click”. To reduce the risk of sliding under the belt during a collision, position the belt across your lap as low onyour hips as possible and adjust it to a snug fit.
80JS028
To tighten the belt, pull the free end of the belt across alongside the lap strap.
Sit up straight and fully back
Low on hips
Low on hipsTO TIGHTEN
Low on hips
28

2-18
BEFORE DRIVING
76MH1-74E
76MH1-74E
80JS029
To lengthen, release the latch plate from the buckle, pull the latch plate (adjuster) in the direction of the arrow, at right angles tothe belt. The latch plate should then be refitted into the buckle and the belt tight- ened as previously described.
To unfasten the belt, press the release but- ton on the buckle catch.
80JS031
NOTE: To identify the center seat belt buckle and latch plate in the rear seat, “CENTER” ismarked on the buckle and latch plate of the center lap belt. The buckles are designed so a latch plate cannot be inserted into thewrong buckle.
Driver’s Seat Belt Reminder
(if equipped)
With tachometer
76MH028
Without tachometer
76MS013
When the driver doesn’t buckle his or her seat belt with the ignition switch in the “ON” position, the driver’s seat belt reminderlight in the instrument cluster will blink until the driver’s seat belt is buckled.
TO LOOSEN
Right angleEXAMPLE
WA R N I N G
It is absolutely essential that thedriver and passengers wear their seat belts at all times. Persons who arenot wearing seat belts have a much greater risk of injury if an accident occurs. Make a regular habit of buck-ling your seat belt before putting the key in the ignition.
EXAMPLE
29
