63J101

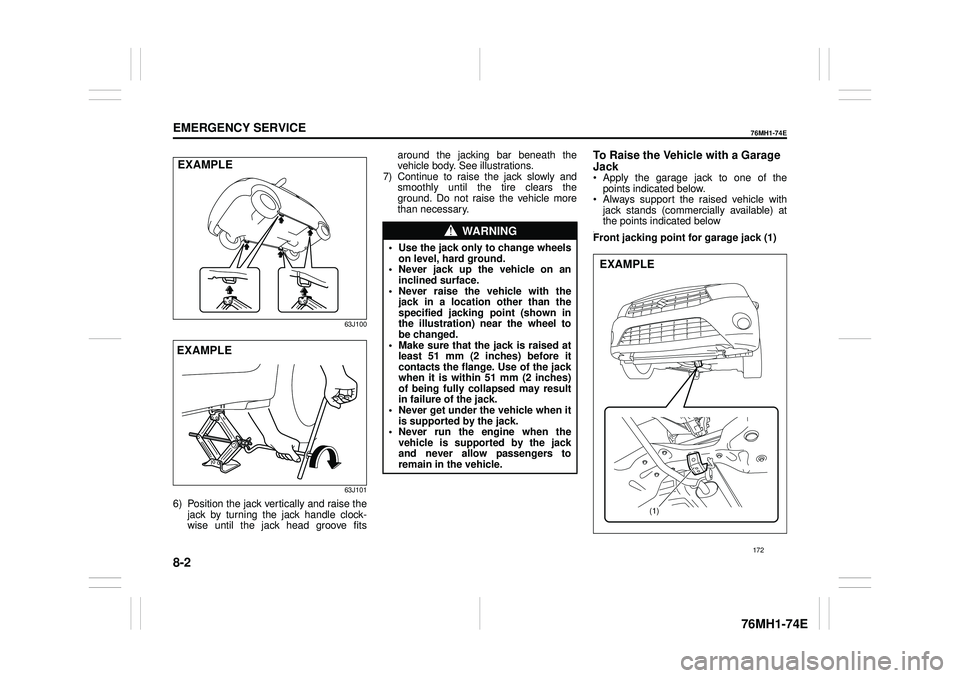

6) Position the jack vertically and raise the jack by turning the jack handle clock- wise until the jack head groove fits
around the jacking bar beneath the vehicle body. See illustrations. 7) Continue to raise the jack slowly andsmoothly until the tire clears the ground. Do not raise the vehicle more than necessary.
To Raise the Vehicle with a Garage
Jack Apply the garage jack to one of the points indicated below. Always support the raised vehicle with jack stands (commercially available) at the points indicated below.Front jacking point for garage jack (1)
EXAMPLE
EXAMPLE
WA R N I N G
• Use the jack only to change wheelson level, hard ground.• Never jack up the vehicle on an inclined surface. • Never raise the vehicle with thejack in a location other than the specified jacking point (shown in the illustration) near the wheel tobe changed. • Make sure that the jack is raised at least 51 mm (2 inches) before itcontacts the flange. Use of the jack when it is within 51 mm (2 inches) of being fully collapsed may resultin failure of the jack. • Never get under the vehicle when it is supported by the jack.• Never run the engine when the vehicle is supported by the jack and never allow passengers toremain in the vehicle.
(1)
EXAMPLE
