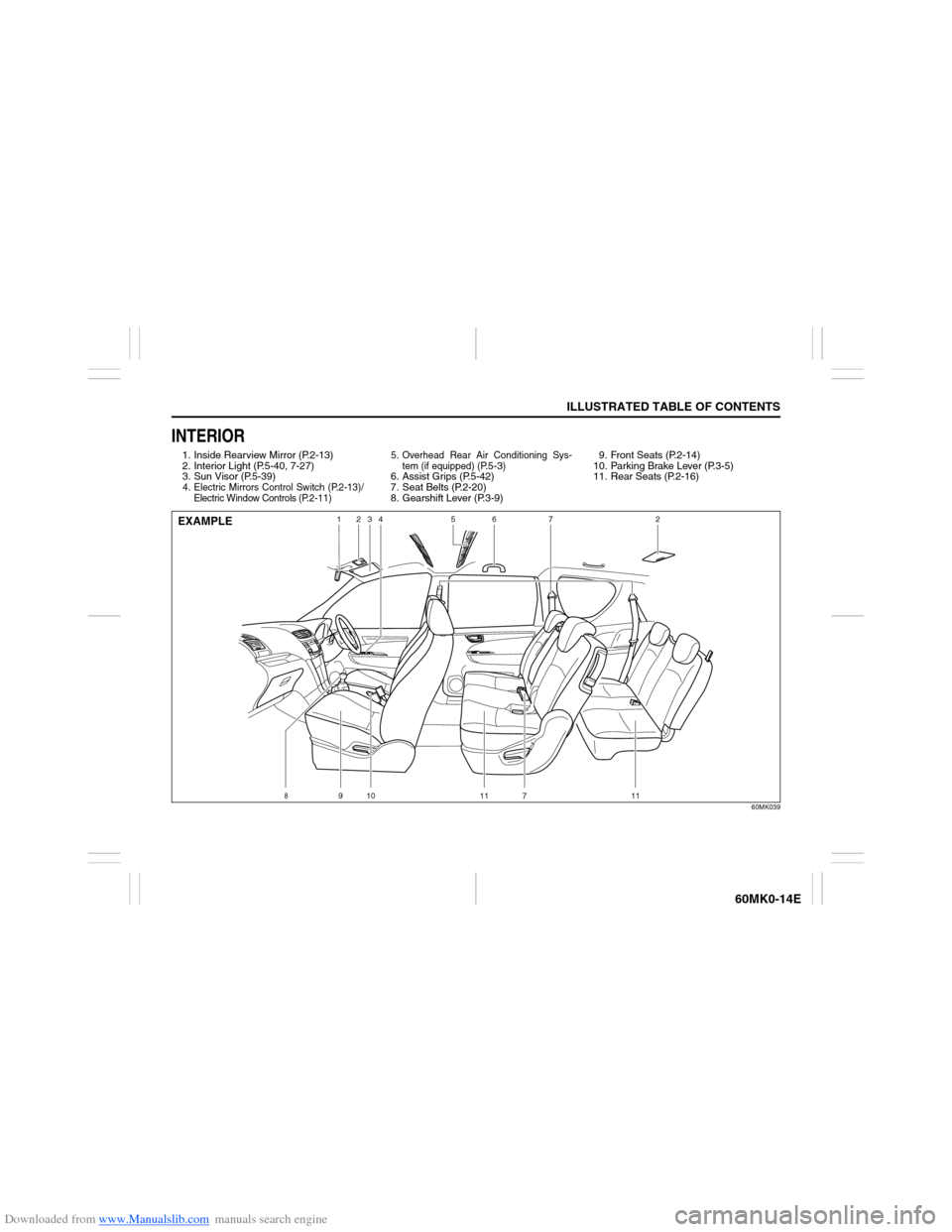

INTERIOR1. Inside Rearview Mirror (P.2-13)
2. Interior Light (P.5-40, 7-27)
3. Sun Visor (P.5-39)4. Electric Mirrors Control Switch (P.2-13)/
Electric Window Controls (P.2-11)5. Overhead Rear Air Conditioning Sys-
tem (if equipped) (P.
5-3
)
6. Assist Grips (P.5-42)
7. Seat Belts (P.2-20)
8. Gearshift Lever (P.3-9)9. Front Seats (P.2-14)
10. Parking Brake Lever (P.3-5)
11. Rear Seats (P.2-16)
60MK039
13
4
2
2
6
7
8
9
11
11
10
7
5
EXAMPLE
Page 12 of 207
Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E

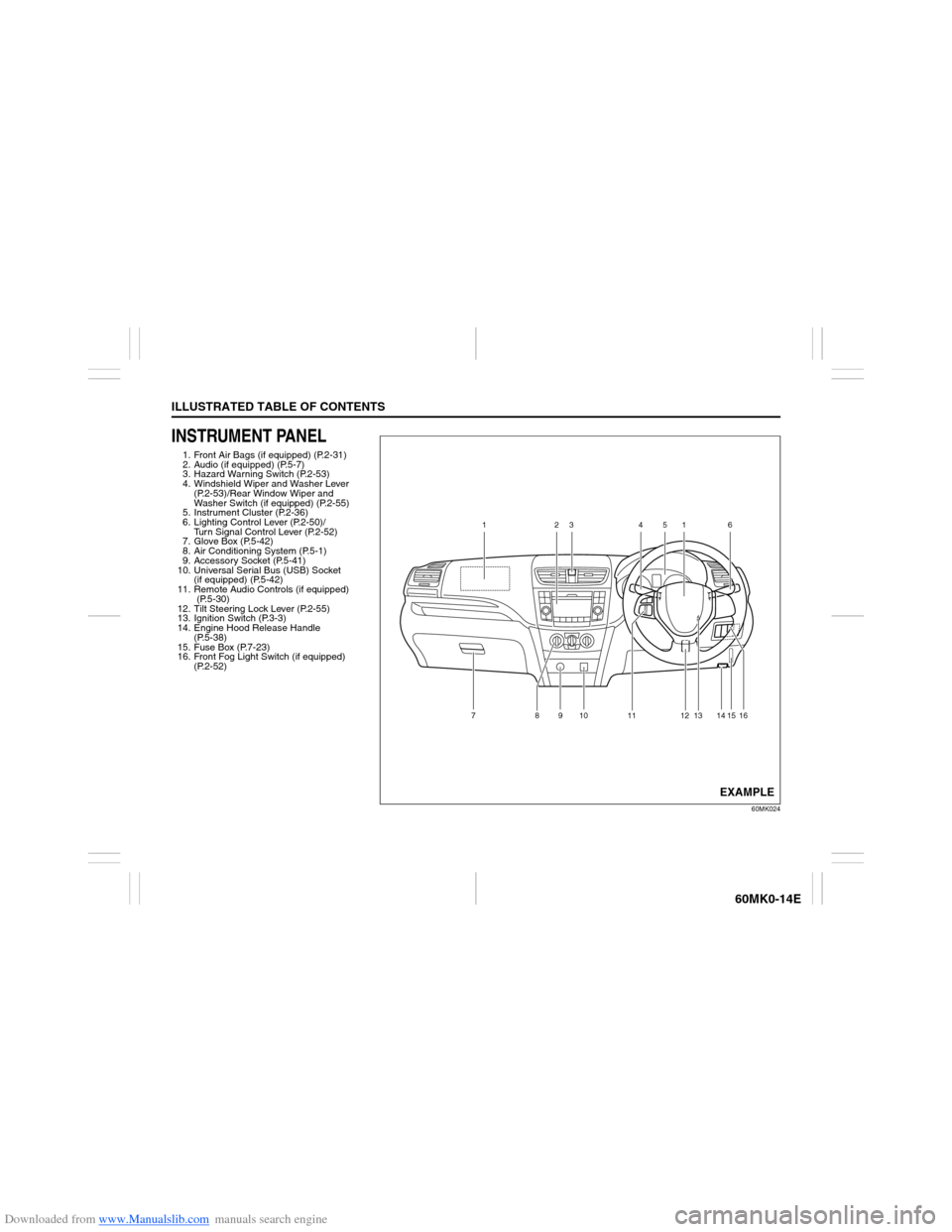

INSTRUMENT PANEL1. Front Air Bags (if equipped) (P.2-31)
2. Audio (if equipped) (P.5-7)
3. Hazard Warning Switch (P.2-53)
4. Windshield Wiper and Washer Lever
(P.2-53)/Rear Window Wiper and
Washer Switch (if equipped) (P.2-55)
5. Instrument Cluster (P.2-36)
6. Lighting Control Lever (P.2-50)/
Turn Signal Control Lever (P.2-52)
7. Glove Box (P.5-42)
8. Air Conditioning System (P.5-1)
9. Accessory Socket (P.5-41)
10. Universal Serial Bus (USB) Socket
(if equipped) (P.5-42)
11. Remote Audio Controls (if equipped)
(P.5-30)
12. Tilt Steering Lock Lever (P.2-55)
13. Ignition Switch (P.3-3)
14. Engine Hood Release Handle
(P.5-38)
15. Fuse Box (P.7-23)
16. Front Fog Light Switch (if equipped)
(P.2-52)
60MK024
1234516
789
10 12 13 14 15 16
11
EXAMPLE
Page 13 of 207
Downloaded from www.Manualslib.com manuals search engine FUEL RECOMMENDATION
1
60MK0-14E
65D394

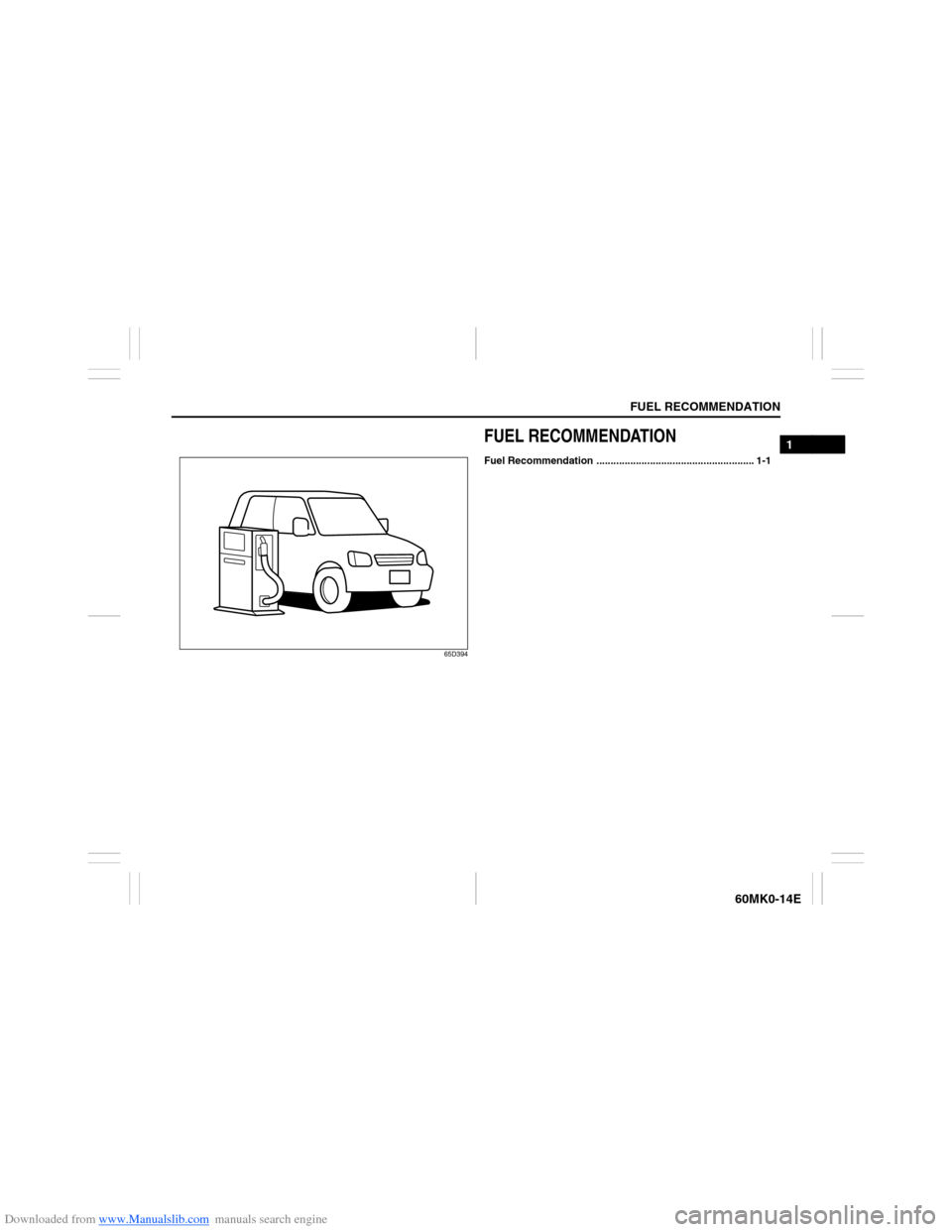

FUEL RECOMMENDATIONFuel Recommendation ........................................................ 1-1
Page 14 of 207
Downloaded from www.Manualslib.com manuals search engine 1-1FUEL RECOMMENDATION
60MK0-14E

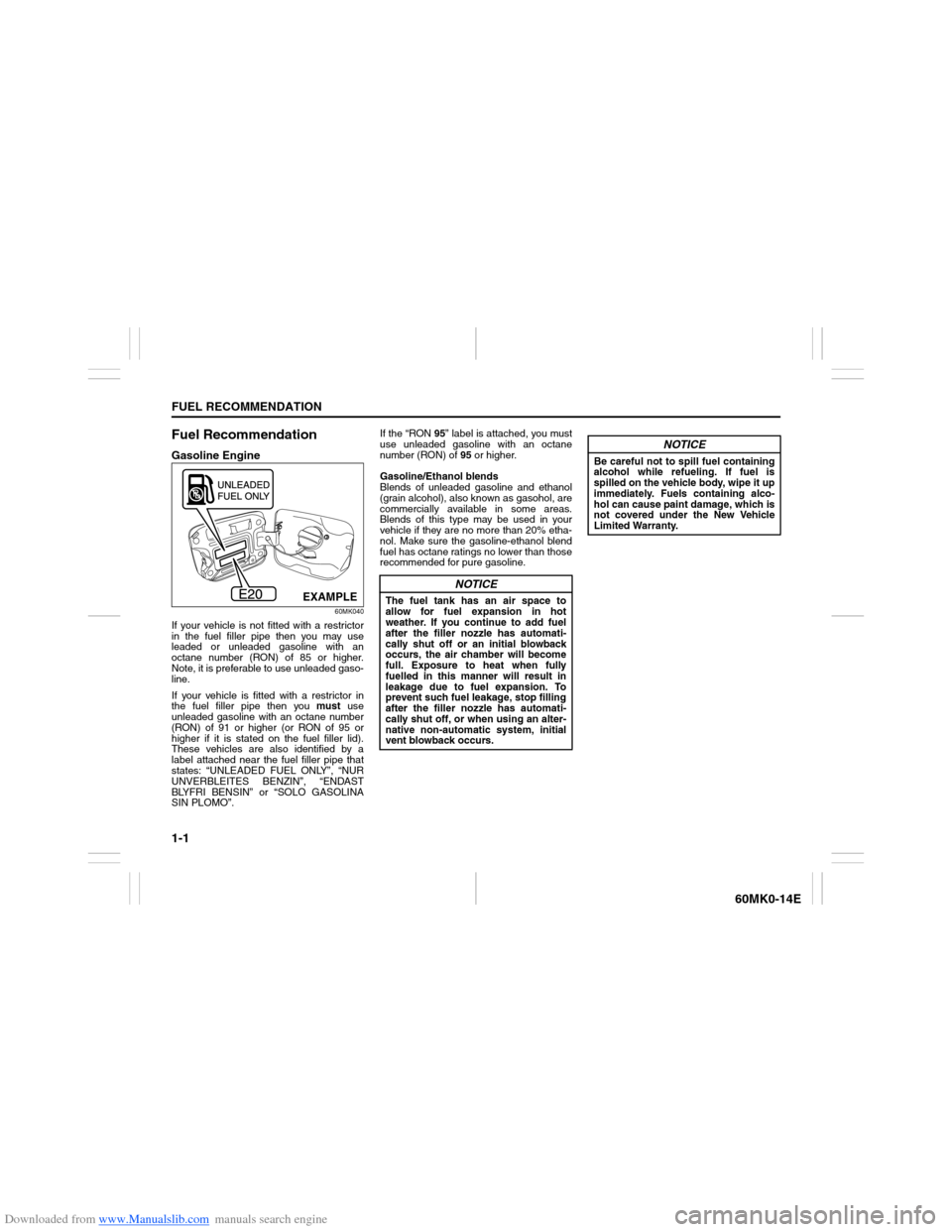

Fuel RecommendationGasoline Engine
60MK040
If your vehicle is not fitted with a restrictor
in the fuel filler pipe then you may use
leaded or unleaded gasoline with an
octane number (RON) of 85 or higher.
Note, it is preferable to use unleaded gaso-
line.
If your vehicle is fitted with a restrictor in
the fuel filler pipe then you must use
unleaded gasoline with an octane number
(RON) of 91 or higher (or RON of 95 or
higher if it is stated on the fuel filler lid).
These vehicles are also identified by a
label attached near the fuel filler pipe that
states: “UNLEADED FUEL ONLY”, “NUR
UNVERBLEITES BENZIN”, “ENDAST
BLYFRI BENSIN” or “SOLO GASOLINA
SIN PLOMO”.If the “RON 95” label is attached, you must
use unleaded gasoline with an octane
number (RON) of 95 or higher.
Gasoline/Ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol, are
commercially available in some areas.
Blends of this type may be used in your
vehicle if they are no more than 20% etha-
nol. Make sure the gasoline-ethanol blend
fuel has octane ratings no lower than those
recommended for pure gasoline.
EXAMPLE
NOTICE
The fuel tank has an air space to
allow for fuel expansion in hot
weather. If you continue to add fuel
after the filler nozzle has automati-
cally shut off or an initial blowback
occurs, the air chamber will become
full. Exposure to heat when fully
fuelled in this manner will result in
leakage due to fuel expansion. To
prevent such fuel leakage, stop filling
after the filler nozzle has automati-
cally shut off, or when using an alter-
native non-automatic system, initial
vent blowback occurs.
NOTICE
Be careful not to spill fuel containing
alcohol while refueling. If fuel is
spilled on the vehicle body, wipe it up
immediately. Fuels containing alco-
hol can cause paint damage, which is
not covered under the New Vehicle
Limited Warranty.
Page 15 of 207
Downloaded from www.Manualslib.com manuals search engine BEFORE DRIVING
2
60MK0-14E
60G404

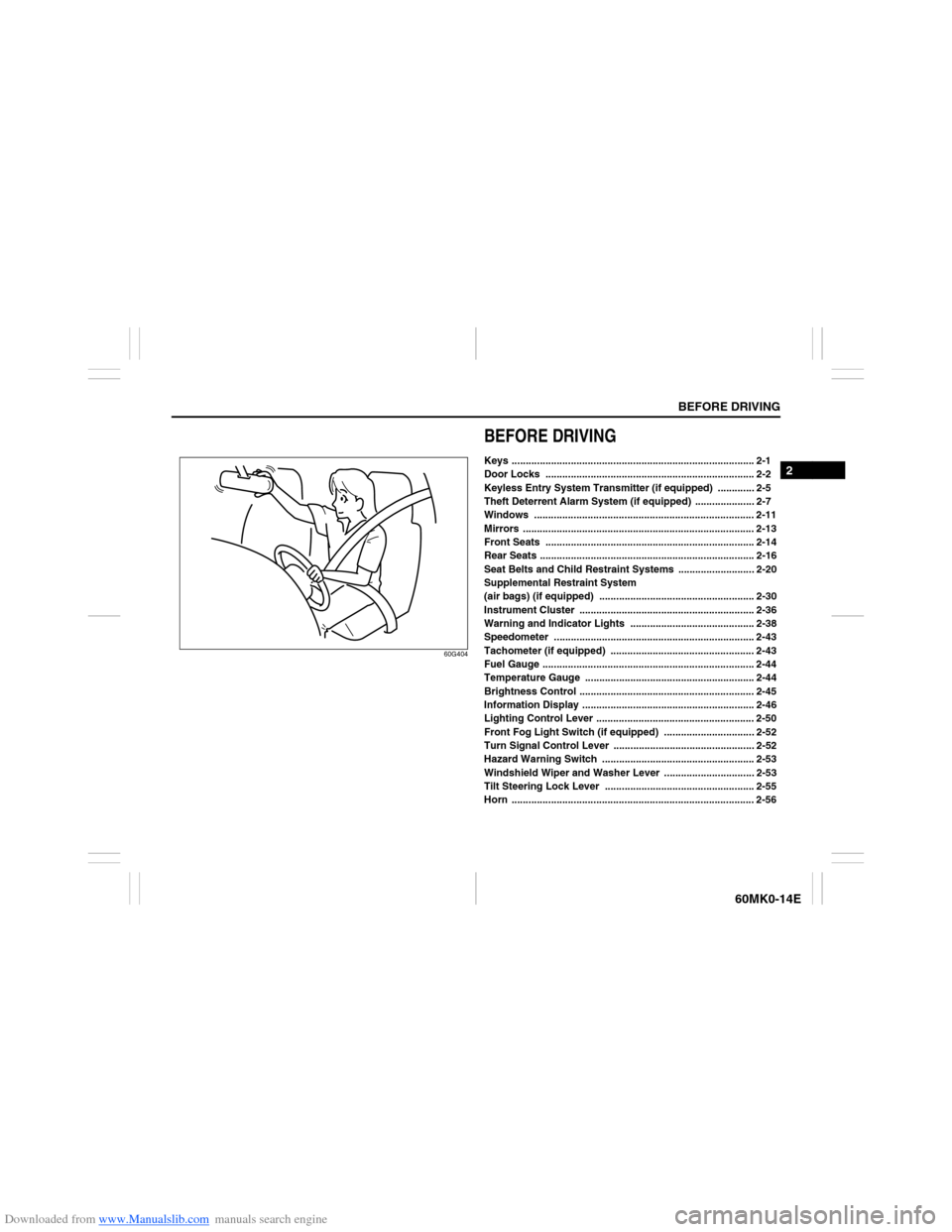

BEFORE DRIVINGKeys ...................................................................................... 2-1
Door Locks .......................................................................... 2-2
Keyless Entry System Transmitter (if equipped) ............. 2-5
Theft Deterrent Alarm System (if equipped) ..................... 2-7
Windows .............................................................................. 2-11
Mirrors .................................................................................. 2-13
Front Seats .......................................................................... 2-14
Rear Seats ............................................................................ 2-16
Seat Belts and Child Restraint Systems ........................... 2-20
Supplemental Restraint System
(air bags) (if equipped) ....................................................... 2-30
Instrument Cluster .............................................................. 2-36
Warning and Indicator Lights ............................................ 2-38
Speedometer ....................................................................... 2-43
Tachometer (if equipped) ................................................... 2-43
Fuel Gauge ........................................................................... 2-44
Temperature Gauge ............................................................ 2-44
Brightness Control .............................................................. 2-45
Information Display ............................................................. 2-46
Lighting Control Lever ........................................................ 2-50
Front Fog Light Switch (if equipped) ................................ 2-52
Turn Signal Control Lever .................................................. 2-52
Hazard Warning Switch ...................................................... 2-53
Windshield Wiper and Washer Lever ................................ 2-53
Tilt Steering Lock Lever ..................................................... 2-55
Horn ...................................................................................... 2-56
Page 16 of 207
Downloaded from www.Manualslib.com manuals search engine 2-1BEFORE DRIVING
60MK0-14E

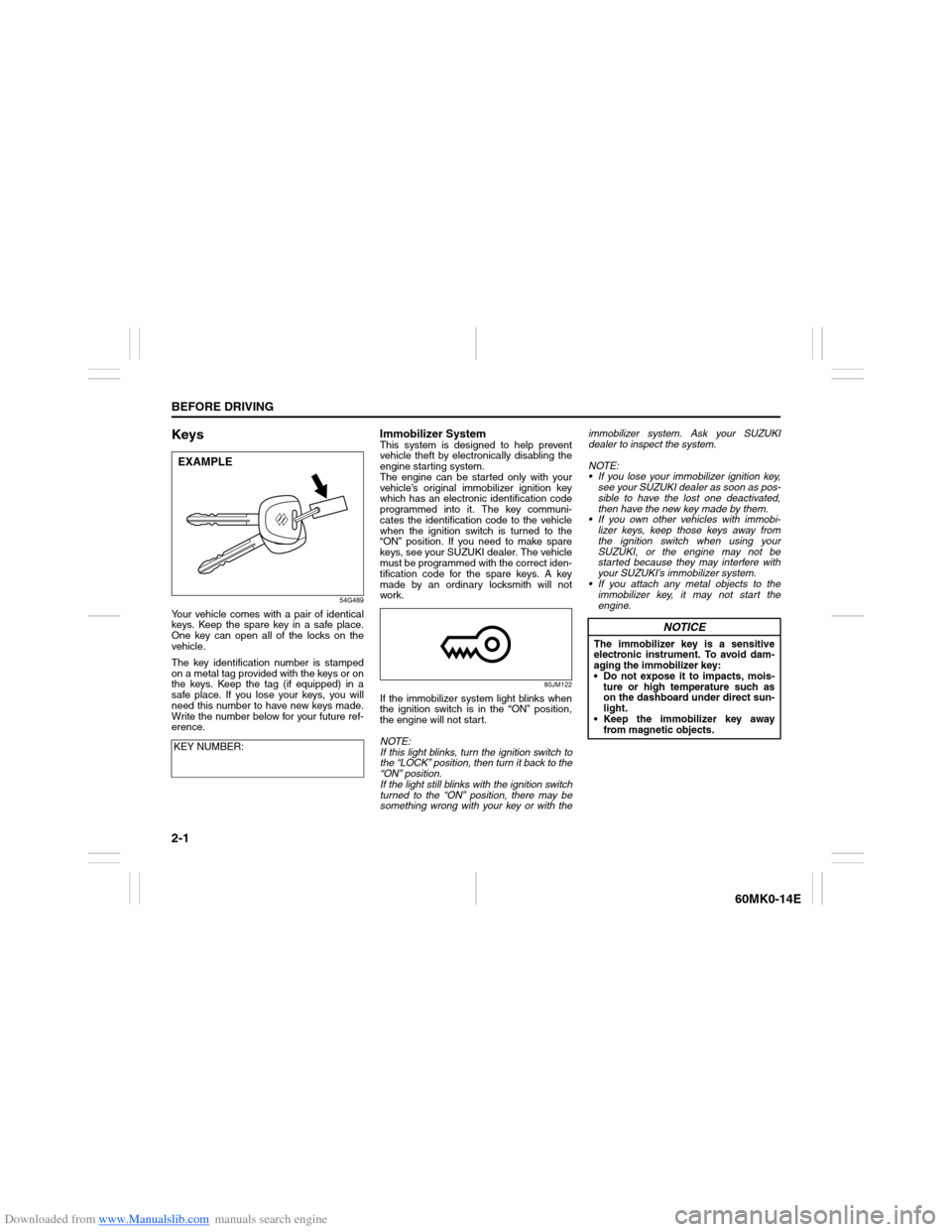

Keys
54G489
Your vehicle comes with a pair of identical
keys. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer System This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
which has an electronic identification code
programmed into it. The key communi-
cates the identification code to the vehicle
when the ignition switch is turned to the
“ON” position. If you need to make spare
keys, see your SUZUKI dealer. The vehicle
must be programmed with the correct iden-
tification code for the spare keys. A key
made by an ordinary locksmith will not
work.
80JM122
If the immobilizer system light blinks when
the ignition switch is in the “ON” position,
the engine will not start.
NOTE:
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to the
“ON” position.
If the light still blinks with the ignition switch
turned to the “ON” position, there may be
something wrong with your key or with theimmobilizer system. Ask your SUZUKI
dealer to inspect the system.
NOTE:
If you lose your immobilizer ignition key,
see your SUZUKI dealer as soon as pos-
sible to have the lost one deactivated,
then have the new key made by them.
If you own other vehicles with immobi-
lizer keys, keep those keys away from
the ignition switch when using your
SUZUKI, or the engine may not be
started because they may interfere with
your SUZUKI’s immobilizer system.
If you attach any metal objects to the
immobilizer key, it may not start the
engine.
KEY NUMBER:
EXAMPLE
NOTICE
The immobilizer key is a sensitive
electronic instrument. To avoid dam-
aging the immobilizer key:
Do not expose it to impacts, mois-
ture or high temperature such as
on the dashboard under direct sun-
light.
Keep the immobilizer key away
from magnetic objects.
Page 17 of 207
Downloaded from www.Manualslib.com manuals search engine 2-2
BEFORE DRIVING
60MK0-14E

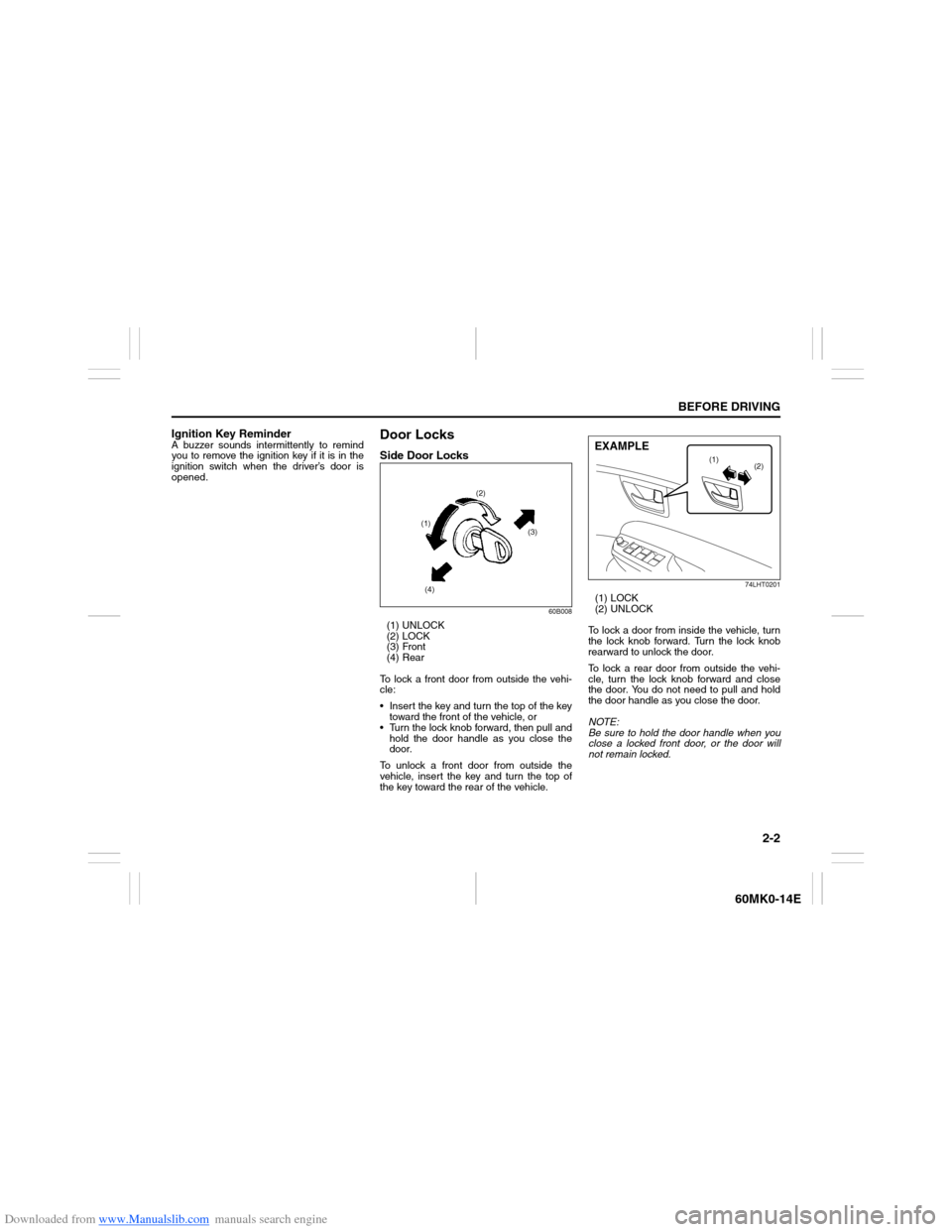

Ignition Key ReminderA buzzer sounds intermittently to remind
you to remove the ignition key if it is in the
ignition switch when the driver’s door is
opened.
Door LocksSide Door Locks
60B008
(1) UNLOCK
(2) LOCK
(3) Front
(4) Rear
To lock a front door from outside the vehi-
cle:
Insert the key and turn the top of the key
toward the front of the vehicle, or
Turn the lock knob forward, then pull and
hold the door handle as you close the
door.
To unlock a front door from outside the
vehicle, insert the key and turn the top of
the key toward the rear of the vehicle.
74LHT0201
(1) LOCK
(2) UNLOCK
To lock a door from inside the vehicle, turn
the lock knob forward. Turn the lock knob
rearward to unlock the door.
To lock a rear door from outside the vehi-
cle, turn the lock knob forward and close
the door. You do not need to pull and hold
the door handle as you close the door.
NOTE:
Be sure to hold the door handle when you
close a locked front door, or the door will
not remain locked.
(2)
(1)
(3)
(4)
(2) (1)
EXAMPLE
Page 18 of 207
Downloaded from www.Manualslib.com manuals search engine 2-3BEFORE DRIVING
60MK0-14E

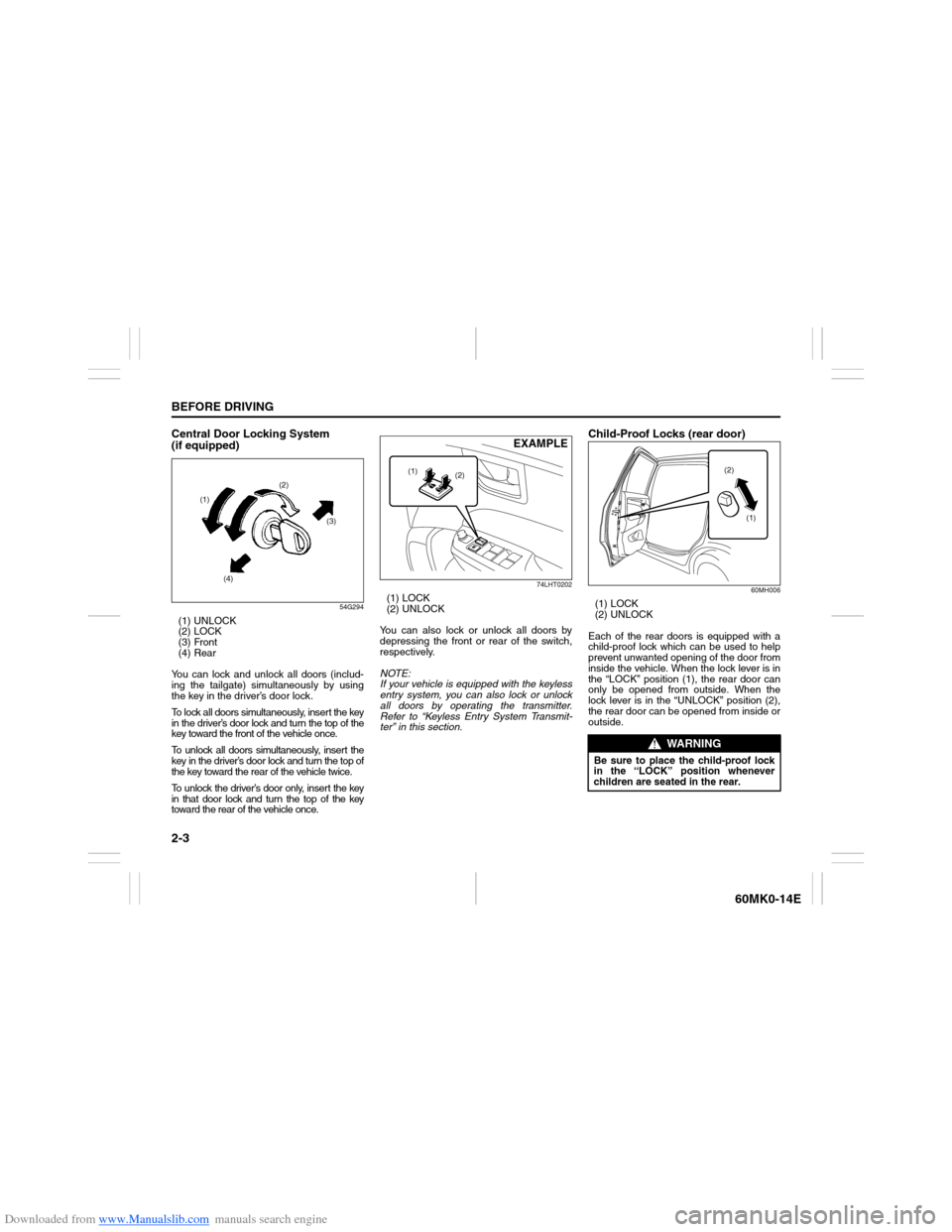

Central Door Locking System
(if equipped)
54G294
(1) UNLOCK
(2) LOCK
(3) Front
(4) Rear
You can lock and unlock all doors (includ-
ing the tailgate) simultaneously by using
the key in the driver’s door lock.
To lock all doors simultaneously, insert the key
in the driver’s door lock and turn the top of the
key toward the front of the vehicle once.
To unlock all doors simultaneously, insert the
key in the driver’s door lock and turn the top of
the key toward the rear of the vehicle twice.
To unlock the driver’s door only, insert the key
in that door lock and turn the top of the key
toward the rear of the vehicle once.
74LHT0202
(1) LOCK
(2) UNLOCK
You can also lock or unlock all doors by
depressing the front or rear of the switch,
respectively.
NOTE:
If your vehicle is equipped with the keyless
entry system, you can also lock or unlock
all doors by operating the transmitter.
Refer to “Keyless Entry System Transmit-
ter” in this section.
Child-Proof Locks (rear door)
60MH006
(1) LOCK
(2) UNLOCK
Each of the rear doors is equipped with a
child-proof lock which can be used to help
prevent unwanted opening of the door from
inside the vehicle. When the lock lever is in
the “LOCK” position (1), the rear door can
only be opened from outside. When the
lock lever is in the “UNLOCK” position (2),
the rear door can be opened from inside or
outside.
(1)(2)
(3)
(4)
EXAMPLE
(2) (1)
WARNING
Be sure to place the child-proof lock
in the “LOCK” position whenever
children are seated in the rear.
(2)
(1)
Page 19 of 207
Downloaded from www.Manualslib.com manuals search engine 2-4
BEFORE DRIVING
60MK0-14E

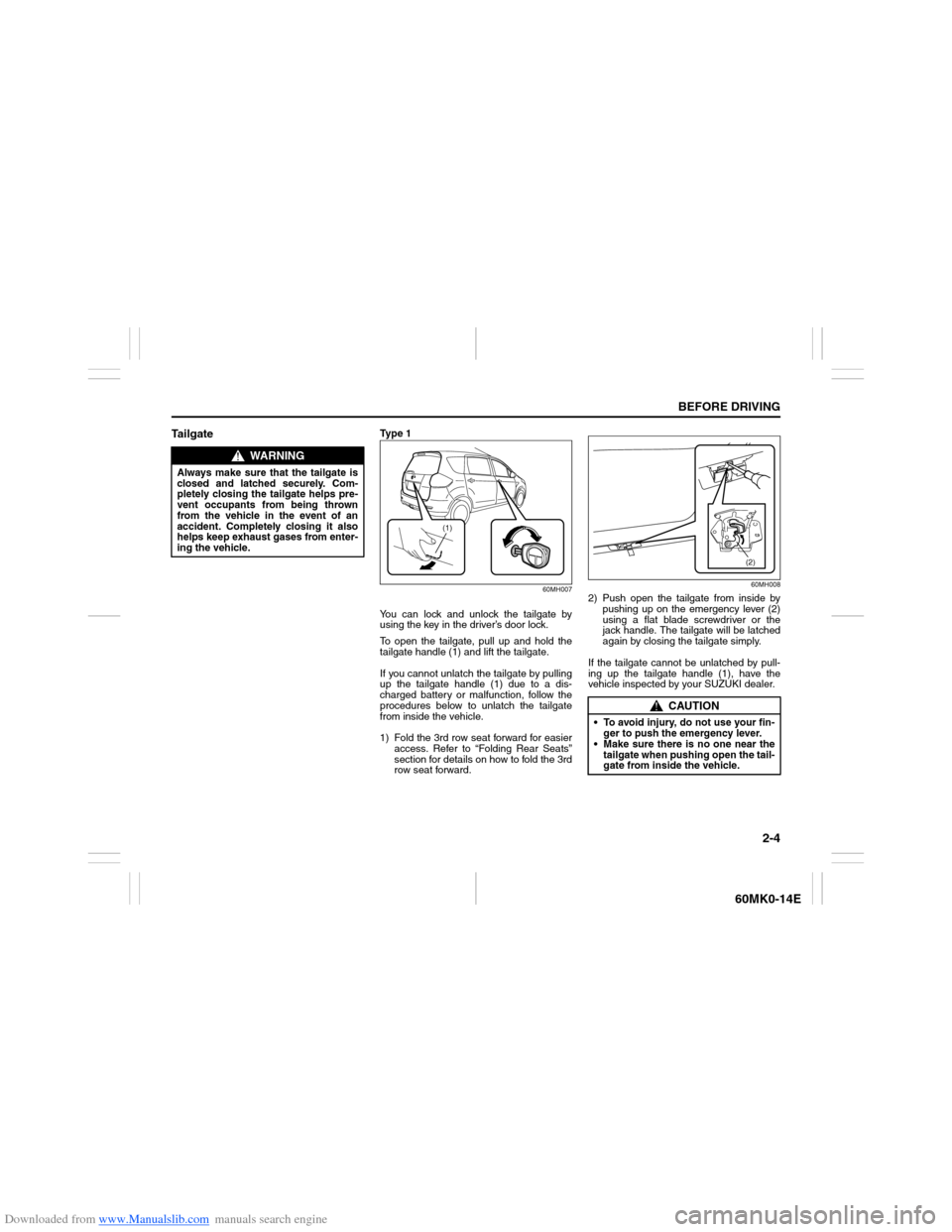

Ta i l g a t e
Ty p e 1
60MH007
You can lock and unlock the tailgate by
using the key in the driver’s door lock.
To open the tailgate, pull up and hold the
tailgate handle (1) and lift the tailgate.
If you cannot unlatch the tailgate by pulling
up the tailgate handle (1) due to a dis-
charged battery or malfunction, follow the
procedures below to unlatch the tailgate
from inside the vehicle.
1) Fold the 3rd row seat forward for easier
access. Refer to “Folding Rear Seats”
section for details on how to fold the 3rd
row seat forward.
60MH008
2) Push open the tailgate from inside by
pushing up on the emergency lever (2)
using a flat blade screwdriver or the
jack handle. The tailgate will be latched
again by closing the tailgate simply.
If the tailgate cannot be unlatched by pull-
ing up the tailgate handle (1), have the
vehicle inspected by your SUZUKI dealer.
WARNING
Always make sure that the tailgate is
closed and latched securely. Com-
pletely closing the tailgate helps pre-
vent occupants from being thrown
from the vehicle in the event of an
accident. Completely closing it also
helps keep exhaust gases from enter-
ing the vehicle.
(1)
CAUTION
To avoid injury, do not use your fin-
ger to push the emergency lever.
Make sure there is no one near the
tailgate when pushing open the tail-
gate from inside the vehicle.
(2)
Page 20 of 207
Downloaded from www.Manualslib.com manuals search engine 2-5BEFORE DRIVING
60MK0-14E
Ty p e 2
60MH009

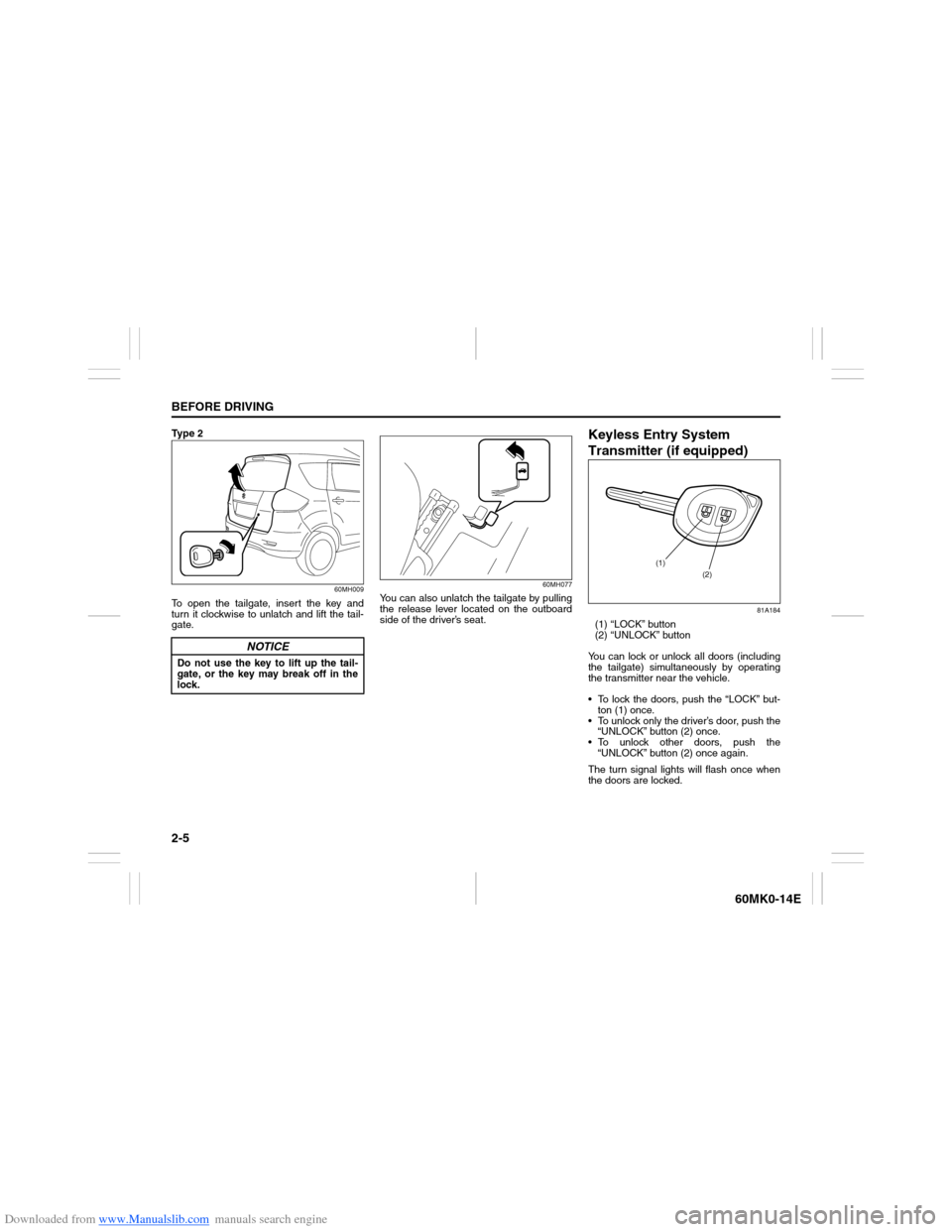

To open the tailgate, insert the key and
turn it clockwise to unlatch and lift the tail-
gate.
60MH077
You can also unlatch the tailgate by pulling
the release lever located on the outboard
side of the driver’s seat.
Keyless Entry System
Transmitter (if equipped)
81A184
(1) “LOCK” button
(2) “UNLOCK” button
You can lock or unlock all doors (including
the tailgate) simultaneously by operating
the transmitter near the vehicle.
To lock the doors, push the “LOCK” but-
ton (1) once.
To unlock only the driver’s door, push the
“UNLOCK” button (2) once.
To unlock other doors, push the
“UNLOCK” button (2) once again.
The turn signal lights will flash once when
the doors are locked.
NOTICE
Do not use the key to lift up the tail-
gate, or the key may break off in the
lock.
(1)
(2)
