Page 191 of 225

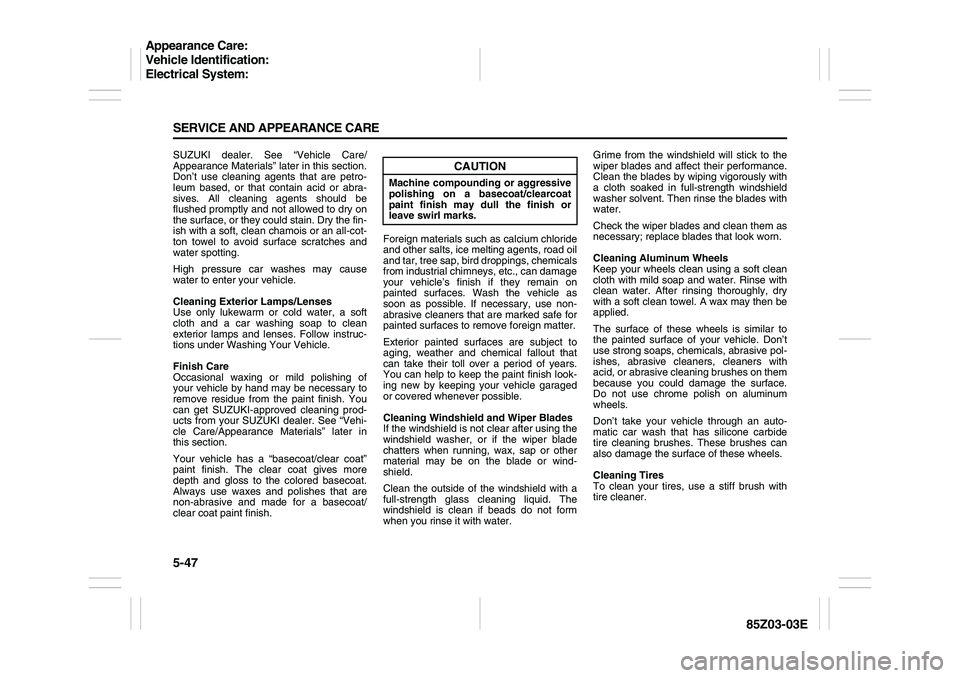

SUZUKI FORENZA 2007  Owners Manual 5-47 SERVICE AND APPEARANCE CARE
85Z03-03E
SUZUKI dealer. See “Vehicle Care/
Appearance Materials” later in this section.
Don’t use cleaning agents that are petro-
leum based, or that contain ac

Page 192 of 225

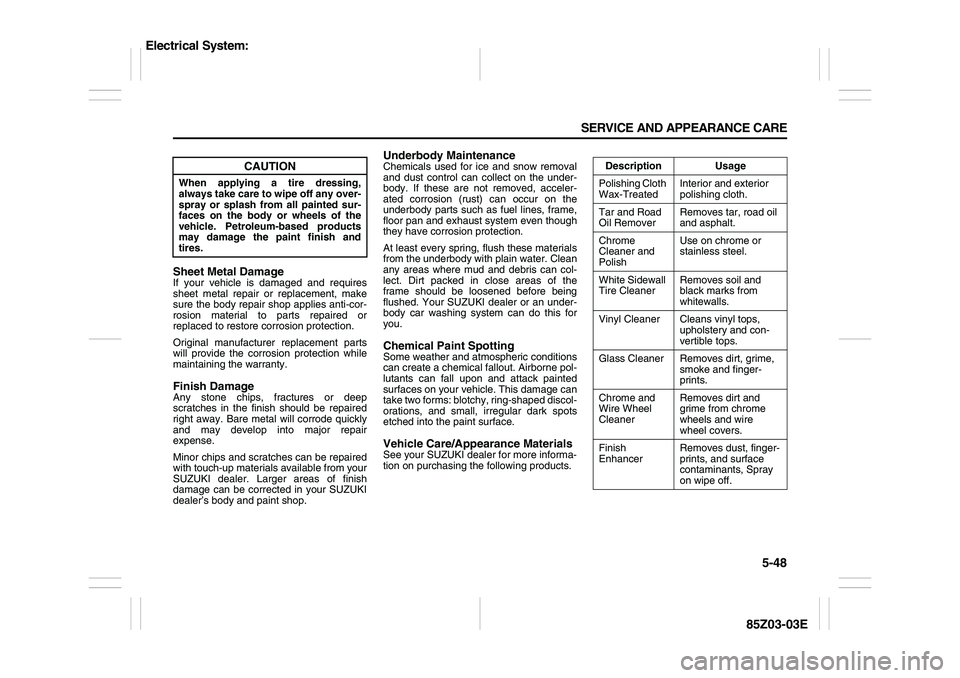

SUZUKI FORENZA 2007  Owners Manual 5-48 SERVICE AND APPEARANCE CARE
85Z03-03E
Sheet Metal DamageIf your vehicle is damaged and requires
sheet metal repair or replacement, make
sure the body repair shop applies anti-cor-
rosion material

Page 193 of 225

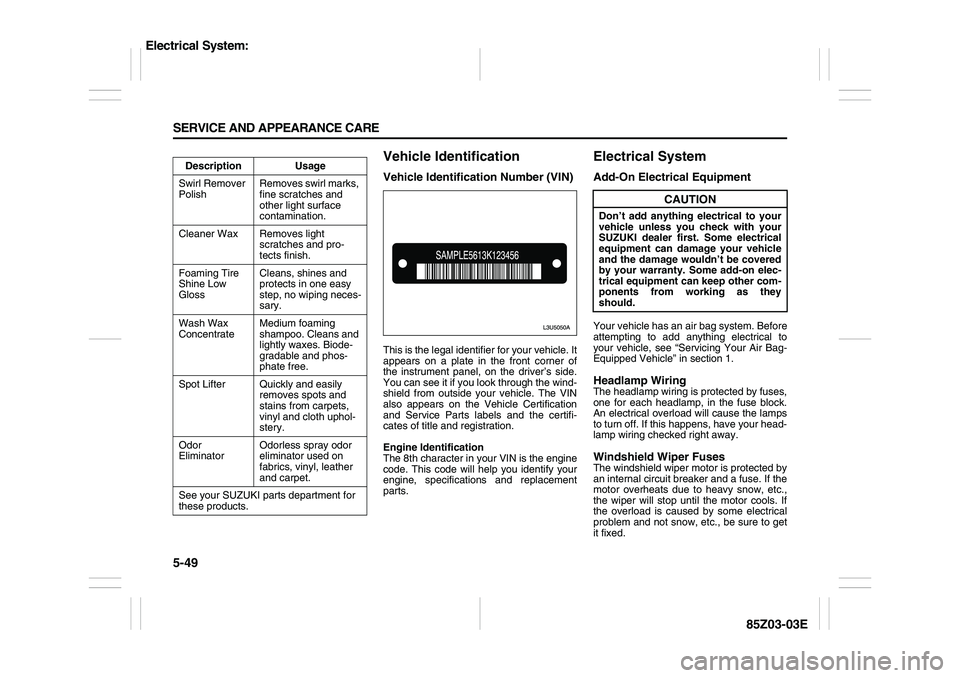

SUZUKI FORENZA 2007  Owners Manual 5-49 SERVICE AND APPEARANCE CARE
85Z03-03E
Vehicle IdentificationVehicle Identification Number (VIN)This is the legal identifier for your vehicle. It
appears on a plate in the front corner of
the inst

Page 194 of 225

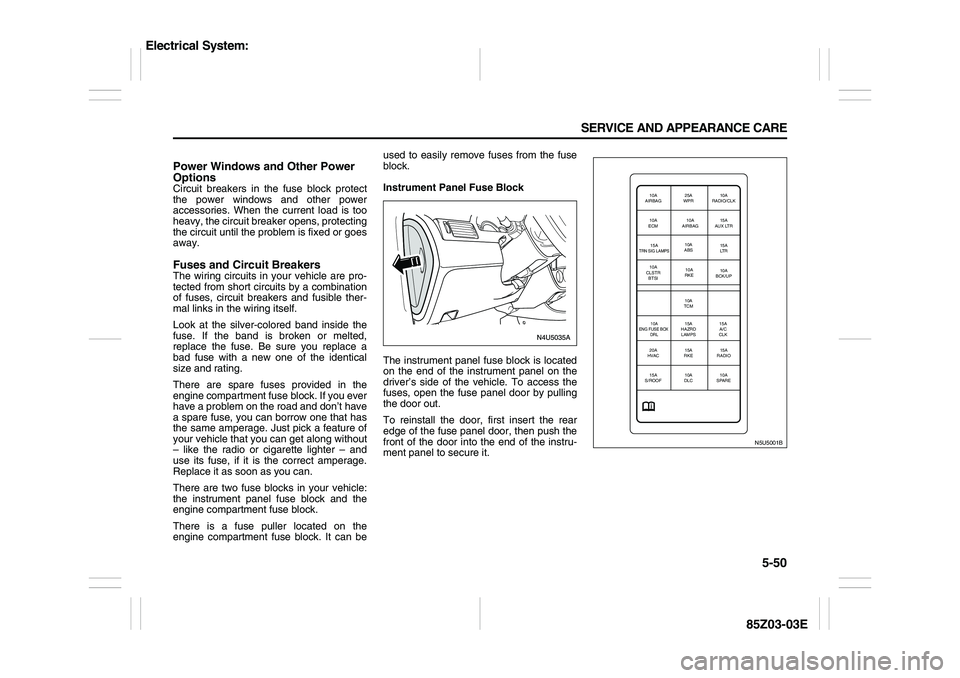

SUZUKI FORENZA 2007  Owners Manual 5-50 SERVICE AND APPEARANCE CARE
85Z03-03E
Power Windows and Other Power
OptionsCircuit breakers in the fuse block protect
the power windows and other power
accessories. When the current load is too

Page 195 of 225

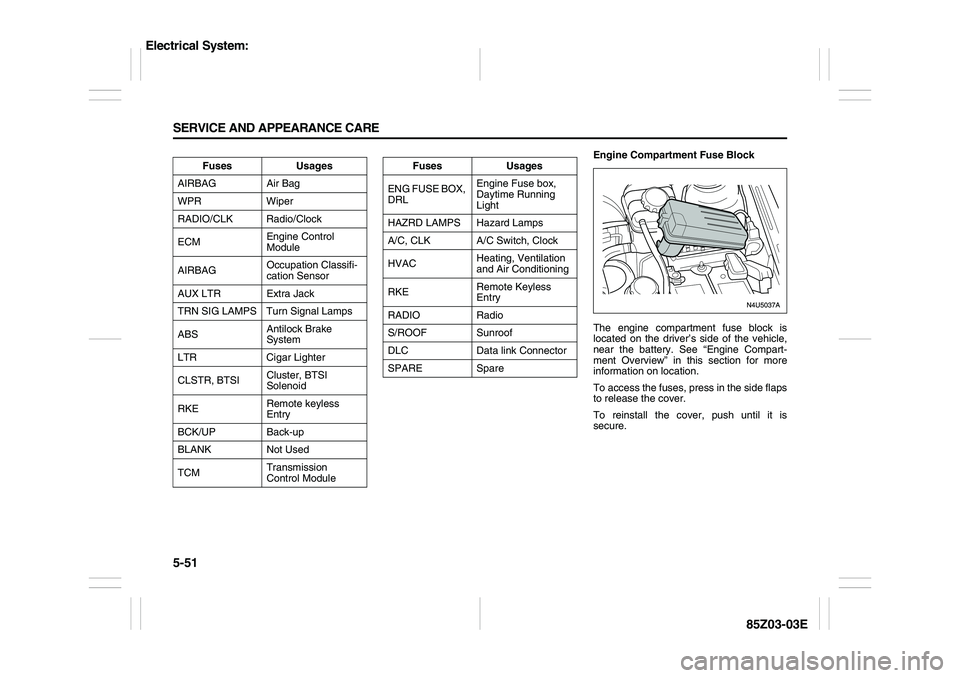

SUZUKI FORENZA 2007  Owners Manual 5-51 SERVICE AND APPEARANCE CARE
85Z03-03E
Engine Compartment Fuse Block
The engine compartment fuse block is
located on the driver’s side of the vehicle,
near the battery. See “Engine Compart-
me

Page 196 of 225

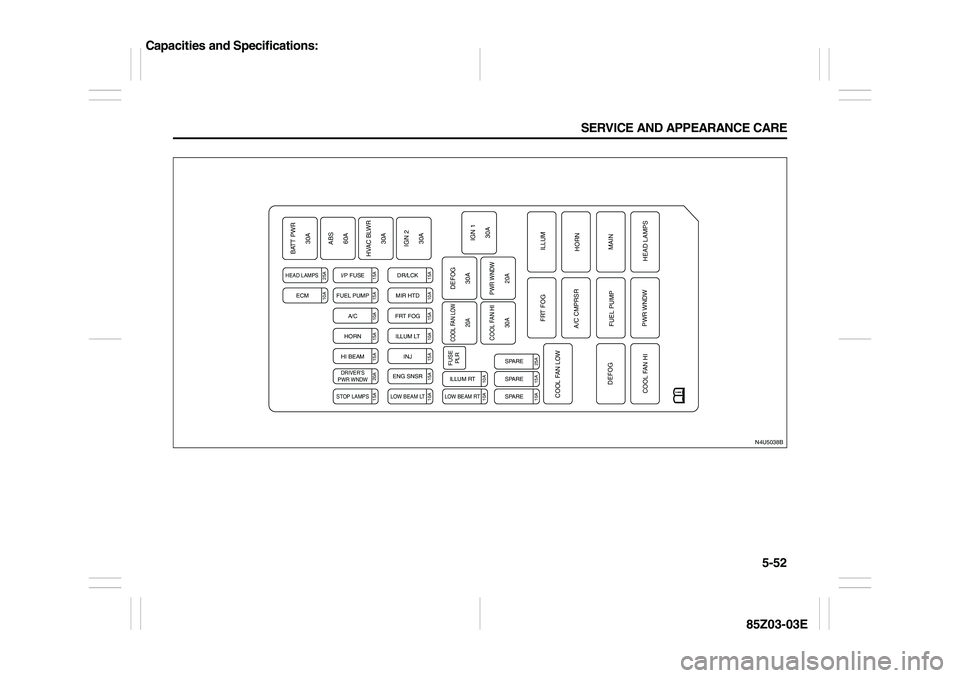

SUZUKI FORENZA 2007  Owners Manual 5-52 SERVICE AND APPEARANCE CARE
85Z03-03EN4U5038B
HEAD LAMPSBATT PWR
30A
ABS
60A
HVAC BLWR
30A
IGN 2
30A
IGN 1
30A
ILLUM
HORN
MAIN
HEAD LAMPS FRT FOG
A/C CMPRSR
FUEL PUMP
PWR WNDW COOL FAN LOW
DEFOG

Page 197 of 225

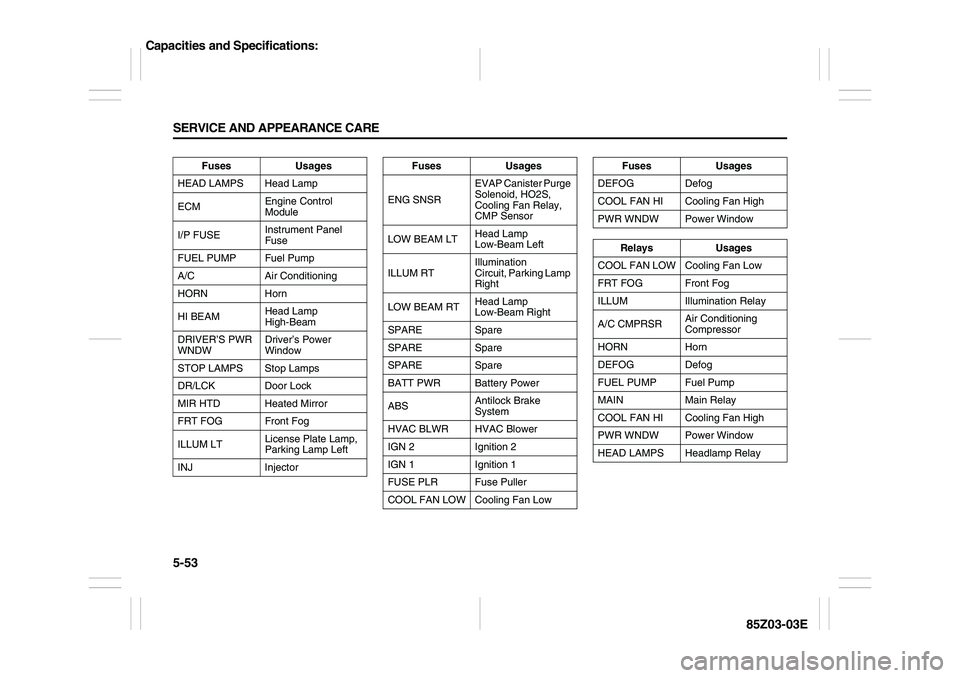

SUZUKI FORENZA 2007  Owners Manual 5-53 SERVICE AND APPEARANCE CARE
85Z03-03E
Fuses Usages
HEAD LAMPS Head Lamp
ECMEngine Control
Module
I/P FUSEInstrument Panel
Fuse
FUEL PUMP Fuel Pump
A/C Air Conditioning
HORN Horn
HI BEAMHead Lam

Page 198 of 225

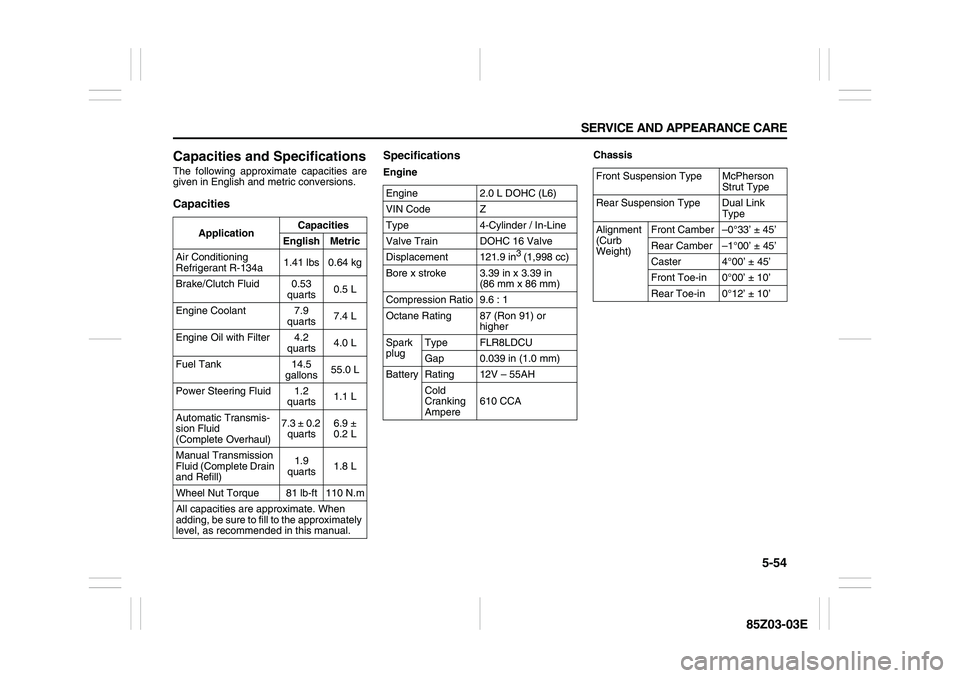

SUZUKI FORENZA 2007  Owners Manual 5-54 SERVICE AND APPEARANCE CARE
85Z03-03E
Capacities and SpecificationsThe following approximate capacities are
given in English and metric conversions. CapacitiesSpecifications
EngineChassis
Applica

Page 199 of 225

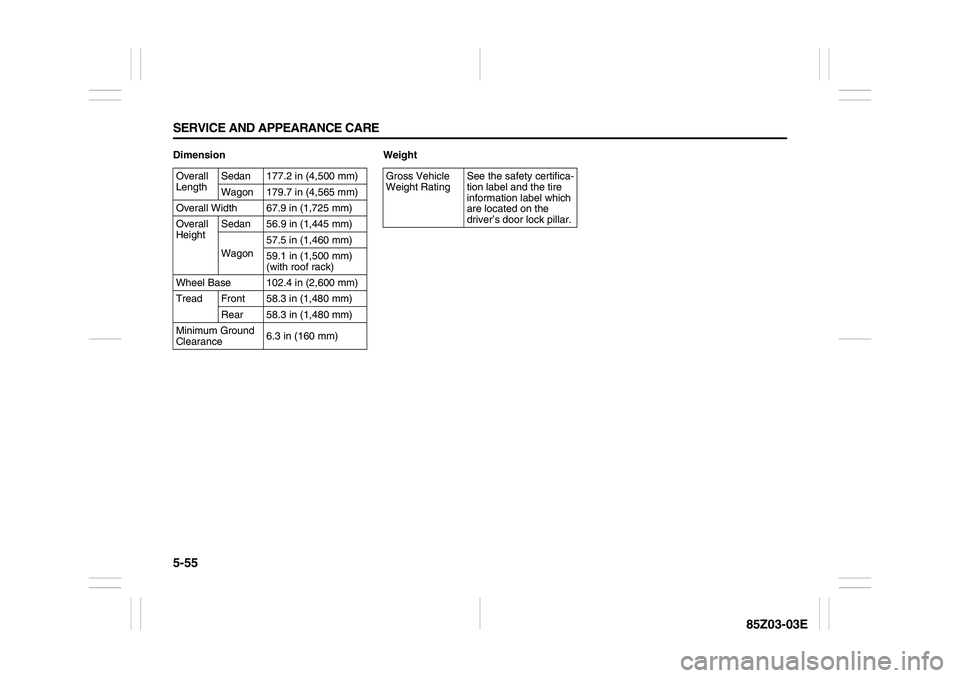

SUZUKI FORENZA 2007  Owners Manual 5-55 SERVICE AND APPEARANCE CARE
85Z03-03E
Dimension Weight
Overall
LengthSedan 177.2 in (4,500 mm)
Wagon 179.7 in (4,565 mm)
Overall Width 67.9 in (1,725 mm)
Overall
HeightSedan 56.9 in (1,445 mm)

Page 200 of 225

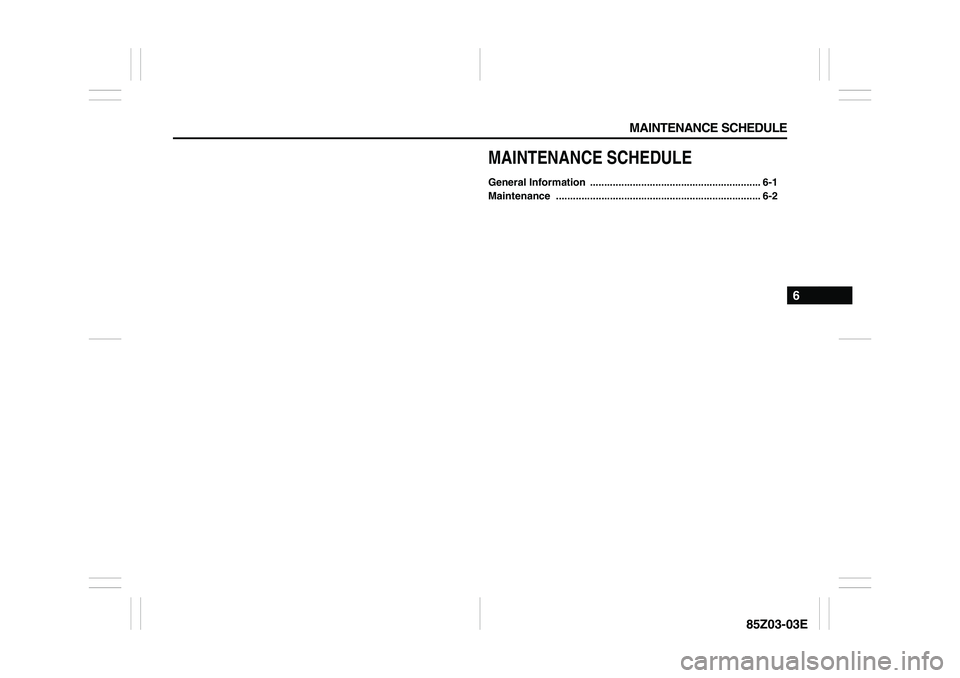

SUZUKI FORENZA 2007  Owners Manual MAINTENANCE SCHEDULE
6
85Z03-03E
MAINTENANCE SCHEDULEGeneral Information  ............................................................ 6-1
Maintenance .................................................
