Page 81 of 656

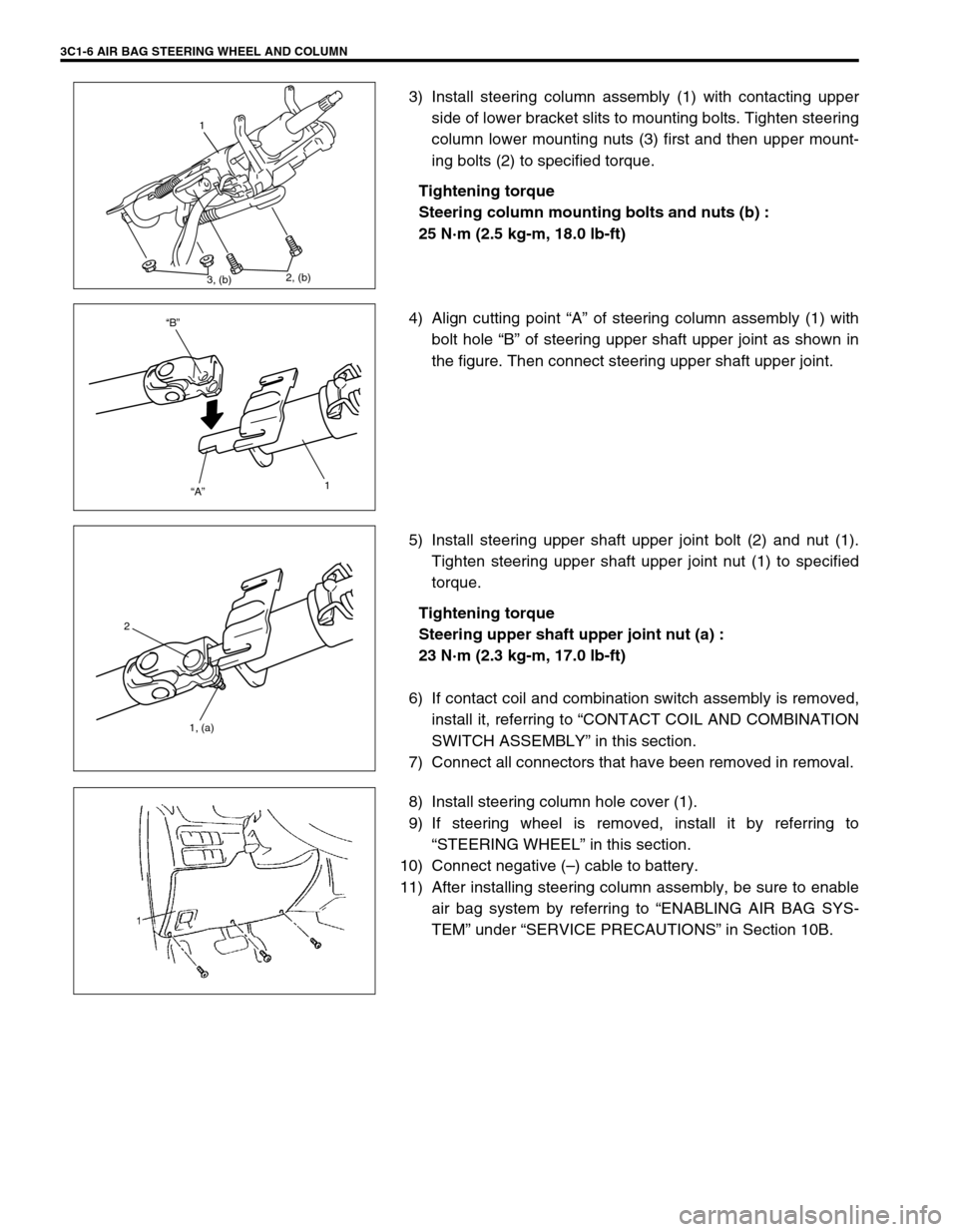

3C1-6 AIR BAG STEERING WHEEL AND COLUMN
3) Install steering column assembly (1) with contacting upper
side of lower bracket slits to mounting bolts. Tighten steering
column lower mounting nuts (3) first and then upper mount-
ing bolts (2) to specified torque.
Tightening torque
Steering column mounting bolts and nuts (b) :
25 N·m (2.5 kg-m, 18.0 lb-ft)
4) Align cutting point “A” of steering column assembly (1) with
bolt hole “B” of steering upper shaft upper joint as shown in
the figure. Then connect steering upper shaft upper joint.
5) Install steering upper shaft upper joint bolt (2) and nut (1).
Tighten steering upper shaft upper joint nut (1) to specified
torque.
Tightening torque
Steering upper shaft upper joint nut (a) :
23 N·m (2.3 kg-m, 17.0 lb-ft)
6) If contact coil and combination switch assembly is removed,
install it, referring to “CONTACT COIL AND COMBINATION
SWITCH ASSEMBLY” in this section.
7) Connect all connectors that have been removed in removal.
8) Install steering column hole cover (1).
9) If steering wheel is removed, install it by referring to
“STEERING WHEEL” in this section.
10) Connect negative (–) cable to battery.
11) After installing steering column assembly, be sure to enable
air bag system by referring to “ENABLING AIR BAG SYS-
TEM” under “SERVICE PRECAUTIONS” in Section 10B.
1
3, (b)2, (b)
“B”
“A”
1
2
1, (a)
Page 82 of 656

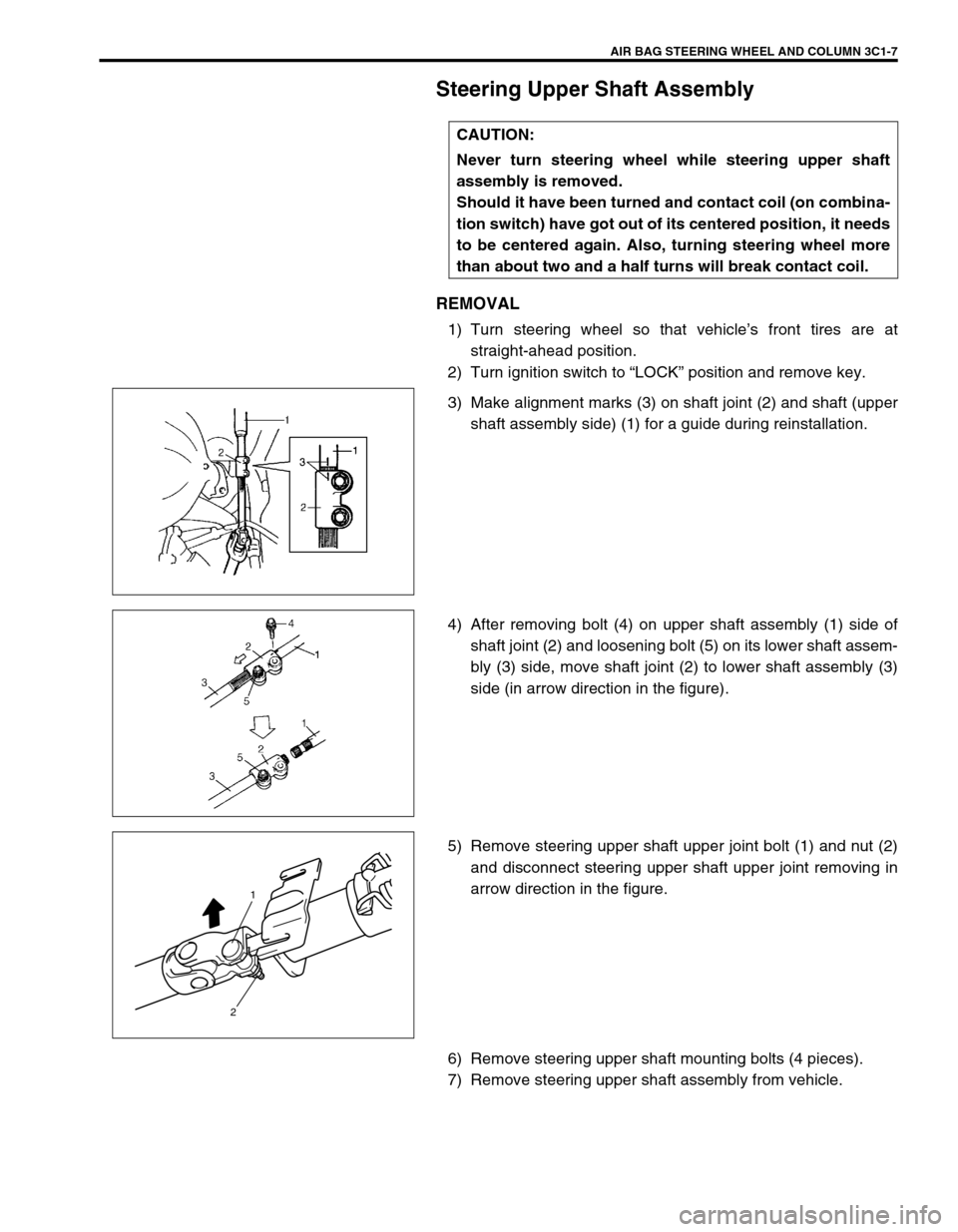

AIR BAG STEERING WHEEL AND COLUMN 3C1-7
Steering Upper Shaft Assembly
REMOVAL
1) Turn steering wheel so that vehicle’s front tires are at
straight-ahead position.
2) Turn ignition switch to “LOCK” position and remove key.
3) Make alignment marks (3) on shaft joint (2) and shaft (upper
shaft assembly side) (1) for a guide during reinstallation.
4) After removing bolt (4) on upper shaft assembly (1) side of
shaft joint (2) and loosening bolt (5) on its lower shaft assem-
bly (3) side, move shaft joint (2) to lower shaft assembly (3)
side (in arrow direction in the figure).
5) Remove steering upper shaft upper joint bolt (1) and nut (2)
and disconnect steering upper shaft upper joint removing in
arrow direction in the figure.
6) Remove steering upper shaft mounting bolts (4 pieces).
7) Remove steering upper shaft assembly from vehicle.CAUTION:
Never turn steering wheel while steering upper shaft
assembly is removed.
Should it have been turned and contact coil (on combina-
tion switch) have got out of its centered position, it needs
to be centered again. Also, turning steering wheel more
than about two and a half turns will break contact coil.
1
2
Page 83 of 656

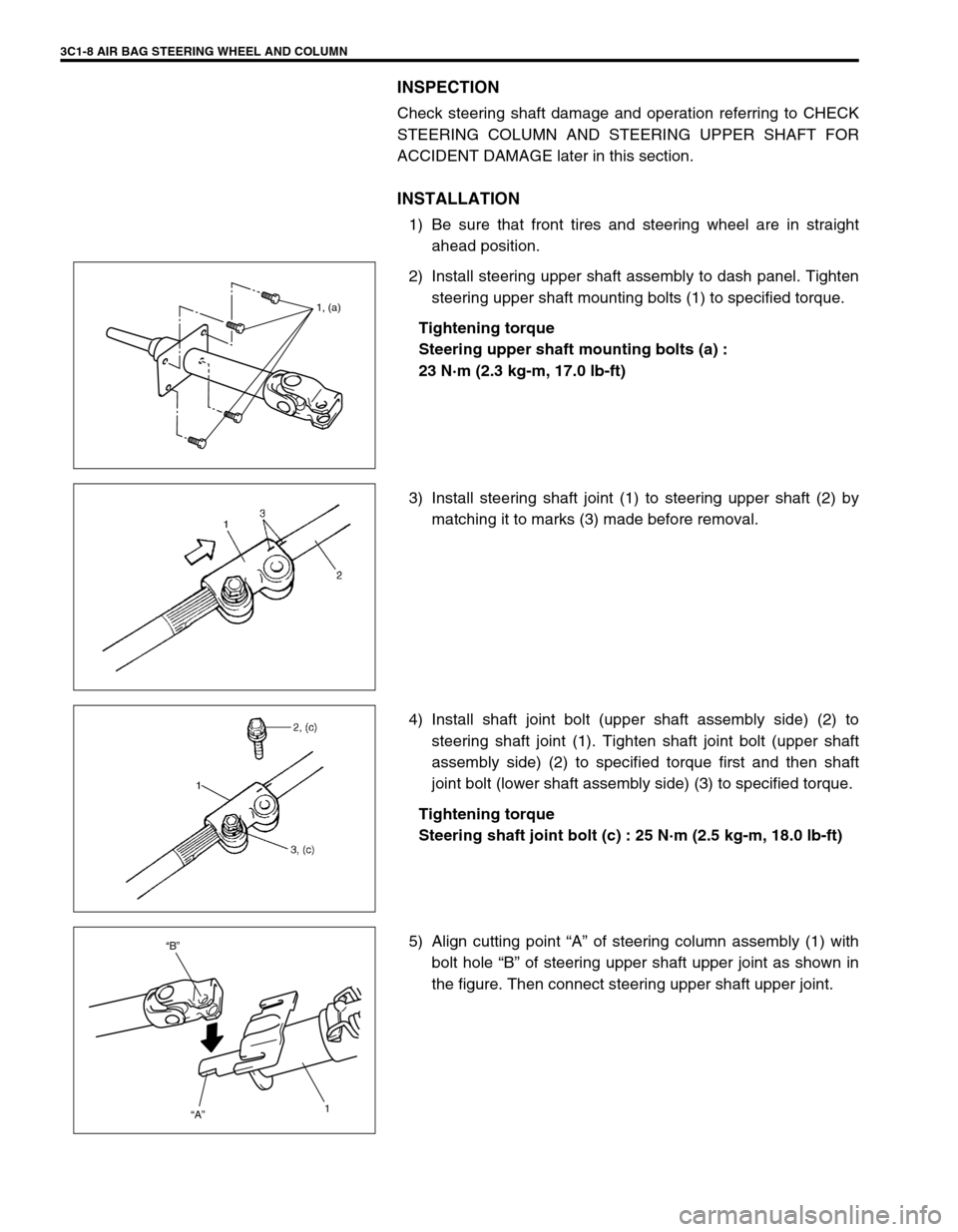

3C1-8 AIR BAG STEERING WHEEL AND COLUMN
INSPECTION
Check steering shaft damage and operation referring to CHECK
STEERING COLUMN AND STEERING UPPER SHAFT FOR
ACCIDENT DAMAGE later in this section.
INSTALLATION
1) Be sure that front tires and steering wheel are in straight
ahead position.
2) Install steering upper shaft assembly to dash panel. Tighten
steering upper shaft mounting bolts (1) to specified torque.
Tightening torque
Steering upper shaft mounting bolts (a) :
23 N·m (2.3 kg-m, 17.0 lb-ft)
3) Install steering shaft joint (1) to steering upper shaft (2) by
matching it to marks (3) made before removal.
4) Install shaft joint bolt (upper shaft assembly side) (2) to
steering shaft joint (1). Tighten shaft joint bolt (upper shaft
assembly side) (2) to specified torque first and then shaft
joint bolt (lower shaft assembly side) (3) to specified torque.
Tightening torque
Steering shaft joint bolt (c) : 25 N·m (2.5 kg-m, 18.0 lb-ft)
5) Align cutting point “A” of steering column assembly (1) with
bolt hole “B” of steering upper shaft upper joint as shown in
the figure. Then connect steering upper shaft upper joint.
1, (a)
“B”
“A”
1
Page 84 of 656

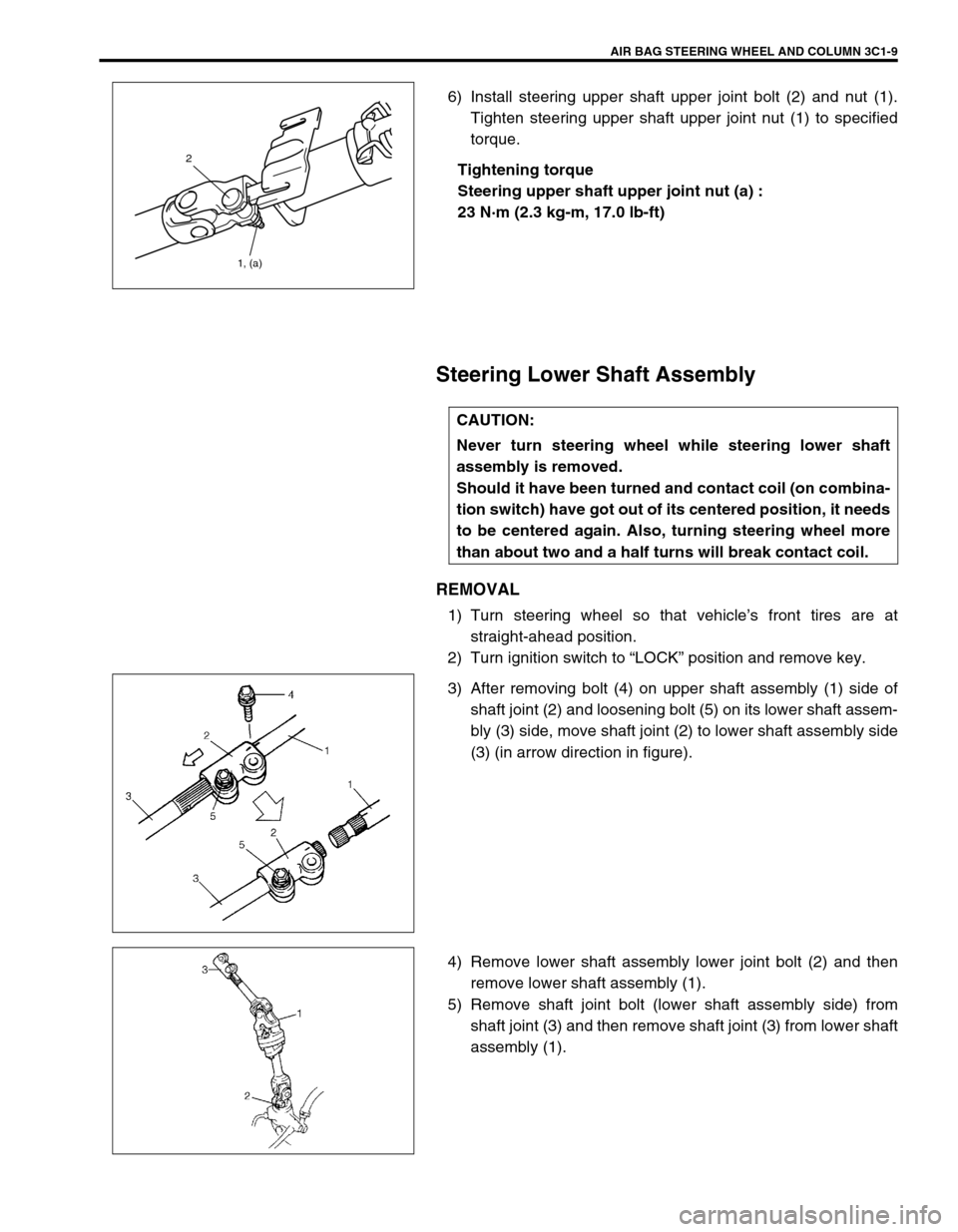

AIR BAG STEERING WHEEL AND COLUMN 3C1-9
6) Install steering upper shaft upper joint bolt (2) and nut (1).
Tighten steering upper shaft upper joint nut (1) to specified
torque.
Tightening torque
Steering upper shaft upper joint nut (a) :
23 N·m (2.3 kg-m, 17.0 lb-ft)
Steering Lower Shaft Assembly
REMOVAL
1) Turn steering wheel so that vehicle’s front tires are at
straight-ahead position.
2) Turn ignition switch to “LOCK” position and remove key.
3) After removing bolt (4) on upper shaft assembly (1) side of
shaft joint (2) and loosening bolt (5) on its lower shaft assem-
bly (3) side, move shaft joint (2) to lower shaft assembly side
(3) (in arrow direction in figure).
4) Remove lower shaft assembly lower joint bolt (2) and then
remove lower shaft assembly (1).
5) Remove shaft joint bolt (lower shaft assembly side) from
shaft joint (3) and then remove shaft joint (3) from lower shaft
assembly (1).
1, (a) 2
CAUTION:
Never turn steering wheel while steering lower shaft
assembly is removed.
Should it have been turned and contact coil (on combina-
tion switch) have got out of its centered position, it needs
to be centered again. Also, turning steering wheel more
than about two and a half turns will break contact coil.
Page 85 of 656

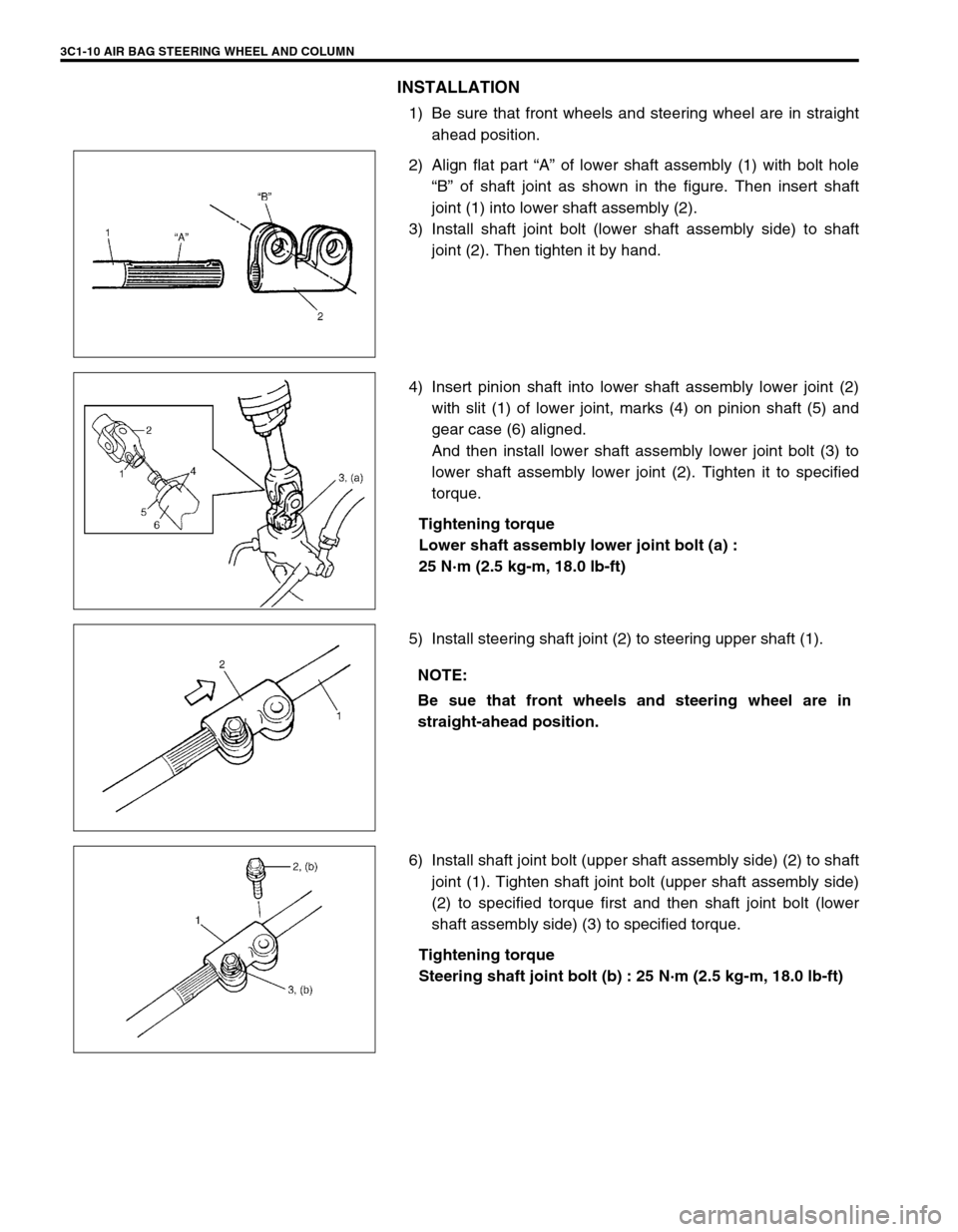

3C1-10 AIR BAG STEERING WHEEL AND COLUMN
INSTALLATION
1) Be sure that front wheels and steering wheel are in straight
ahead position.
2) Align flat part “A” of lower shaft assembly (1) with bolt hole
“B” of shaft joint as shown in the figure. Then insert shaft
joint (1) into lower shaft assembly (2).
3) Install shaft joint bolt (lower shaft assembly side) to shaft
joint (2). Then tighten it by hand.
4) Insert pinion shaft into lower shaft assembly lower joint (2)
with slit (1) of lower joint, marks (4) on pinion shaft (5) and
gear case (6) aligned.
And then install lower shaft assembly lower joint bolt (3) to
lower shaft assembly lower joint (2). Tighten it to specified
torque.
Tightening torque
Lower shaft assembly lower joint bolt (a) :
25 N·m (2.5 kg-m, 18.0 lb-ft)
5) Install steering shaft joint (2) to steering upper shaft (1).
6) Install shaft joint bolt (upper shaft assembly side) (2) to shaft
joint (1). Tighten shaft joint bolt (upper shaft assembly side)
(2) to specified torque first and then shaft joint bolt (lower
shaft assembly side) (3) to specified torque.
Tightening torque
Steering shaft joint bolt (b) : 25 N·m (2.5 kg-m, 18.0 lb-ft)
NOTE:
Be sue that front wheels and steering wheel are in
straight-ahead position.
Page 86 of 656
AIR BAG STEERING WHEEL AND COLUMN 3C1-11
Checking Steering Column and Steering
Upper Shaft for Accident Damage
Check that 2 capsules are attached to steering column
bracket securely. Check clearance between capsules and
steering column bracket. Clearance should be 0 mm (0 in.)
on both sides. If found loose or clearance, replace steering
column assembly.
Take measurement “a” as shown in the figure. If it is shorter
than specified length, replace column assembly with new
one.
Steering column assembly length “a” :
490.3 ± 1.0 mm (19.30 ± 0.04 in.)
Check steering shaft for smooth rotation.
If found defective, replace as column assembly.
Check steering shaft and column for bend, cracks or defor-
mation.
If found defective, replace as column assembly.
Check steering upper shaft lower seal (1) for breakage or
deformation.
If found defective, replace.
Check steering shaft joints and shaft for any damages such
as crack, breakage, malfunction or excessive play.
If anything is found faulty, replace steering upper shaft
assembly, steering lower shaft assembly or steering column
assembly. NOTE:
Vehicles involved in accidents resulting in body damage,
where steering column has been impacted or air bag
deployed, may have a damaged or misaligned steering
column.
1. Capsule
2. Steering column bracket
1
2
“a”
Page 87 of 656
3C1-12 AIR BAG STEERING WHEEL AND COLUMN
Take measurement “b” as shown in the figure. If it is shorter
than specified length, replace steering upper shaft assembly
with new one.
Steering upper shaft assembly length “b” :
419.0 ± 1.0 mm (16.50 ± 0.04 in.)
Tightening Torque Specification
“b”
Fastening partTightening torque
Nm kg-m lb-ft
Driver air bag (inflator) module bolt 9 0.9 6.5
Steering shaft nut 33 3.3 23.5
Steering column mounting bolt and nut 25 2.5 18.0
Steering shaft joint bolt 25 2.5 18.0
Steering lower shaft assembly lower joint bolt 25 2.5 18.0
Shift (key) interlock cable screw 2.2 0.22 1.6
Steering upper shaft mounting bolt 23 2.3 17.0
Steering upper shaft upper joint nut 23 2.3 17.0
Page 88 of 656

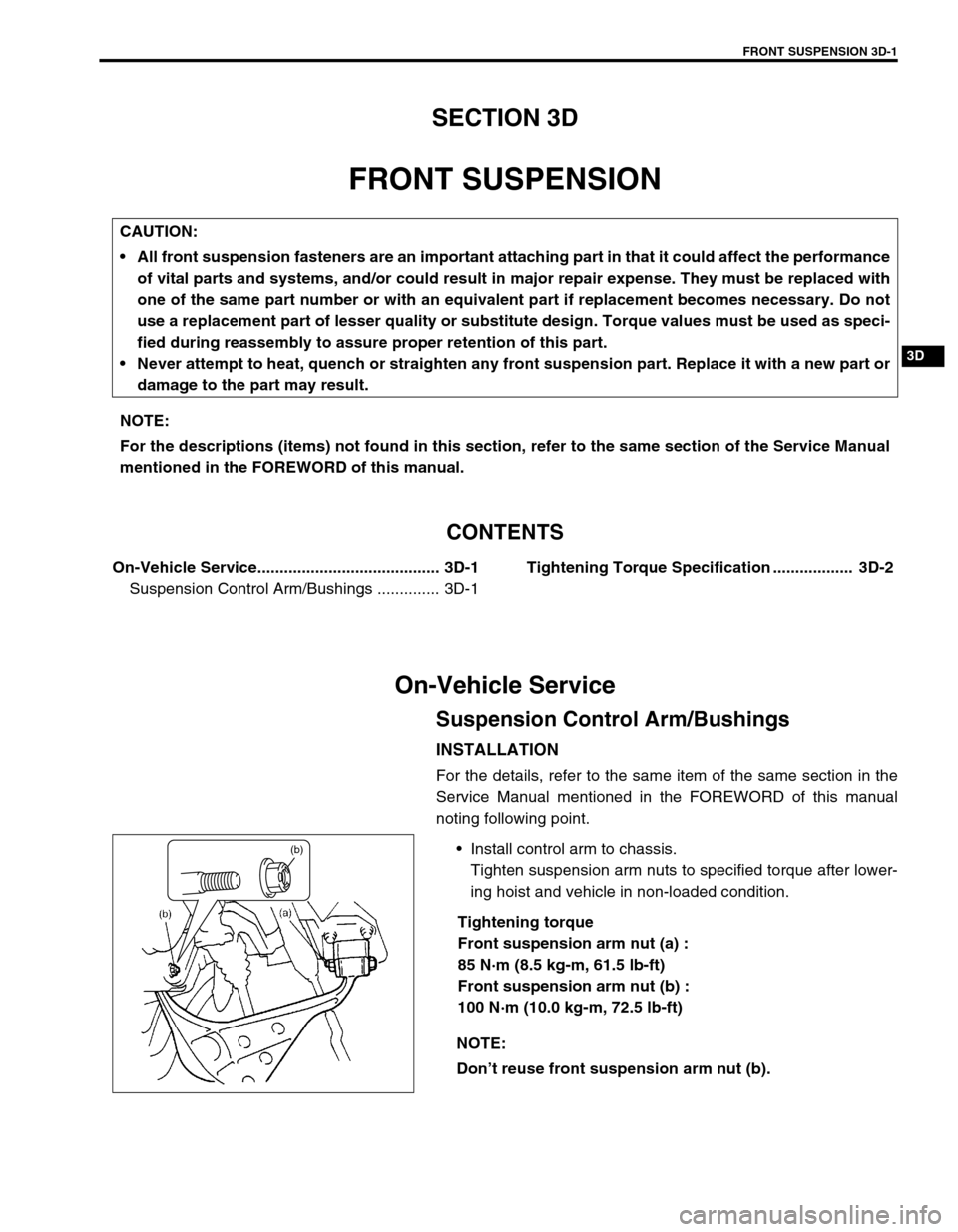

FRONT SUSPENSION 3D-1
3D
SECTION 3D
FRONT SUSPENSION
CONTENTS
On-Vehicle Service......................................... 3D-1
Suspension Control Arm/Bushings .............. 3D-1Tightening Torque Specification .................. 3D-2
On-Vehicle Service
Suspension Control Arm/Bushings
INSTALLATION
For the details, refer to the same item of the same section in the
Service Manual mentioned in the FOREWORD of this manual
noting following point.
Install control arm to chassis.
Tighten suspension arm nuts to specified torque after lower-
ing hoist and vehicle in non-loaded condition.
Tightening torque
Front suspension arm nut (a) :
85 N·m (8.5 kg-m, 61.5 lb-ft)
Front suspension arm nut (b) :
100 N·m (10.0 kg-m, 72.5 lb-ft) CAUTION:
All front suspension fasteners are an important attaching part in that it could affect the performance
of vital parts and systems, and/or could result in major repair expense. They must be replaced with
one of the same part number or with an equivalent part if replacement becomes necessary. Do not
use a replacement part of lesser quality or substitute design. Torque values must be used as speci-
fied during reassembly to assure proper retention of this part.
Never attempt to heat, quench or straighten any front suspension part. Replace it with a new part or
damage to the part may result.
NOTE:
For the descriptions (items) not found in this section, refer to the same section of the Service Manual
mentioned in the FOREWORD of this manual.
NOTE:
Don’t reuse front suspension arm nut (b).
(b)
Page 89 of 656
3D-2 FRONT SUSPENSION

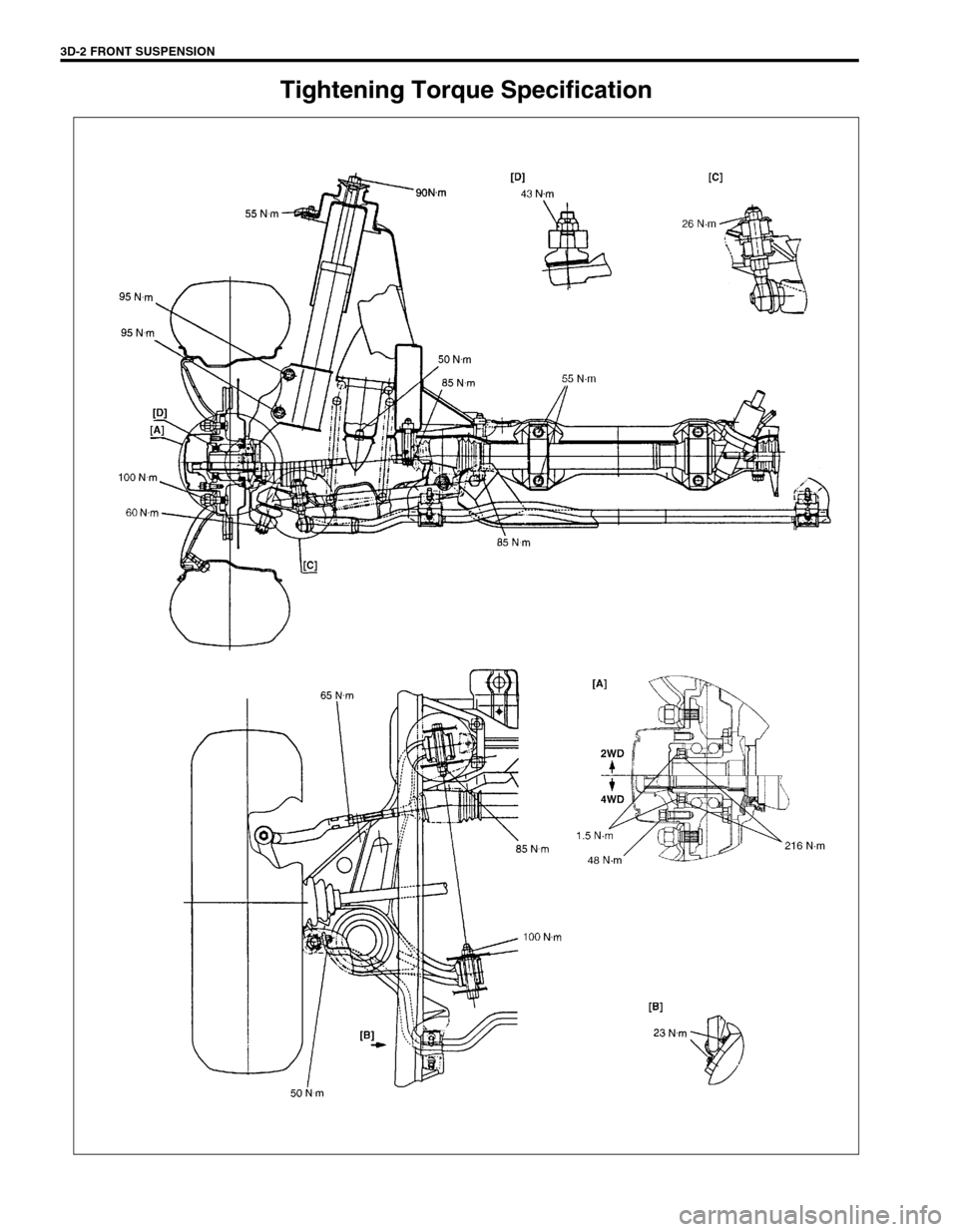

Tightening Torque Specification
Page 90 of 656

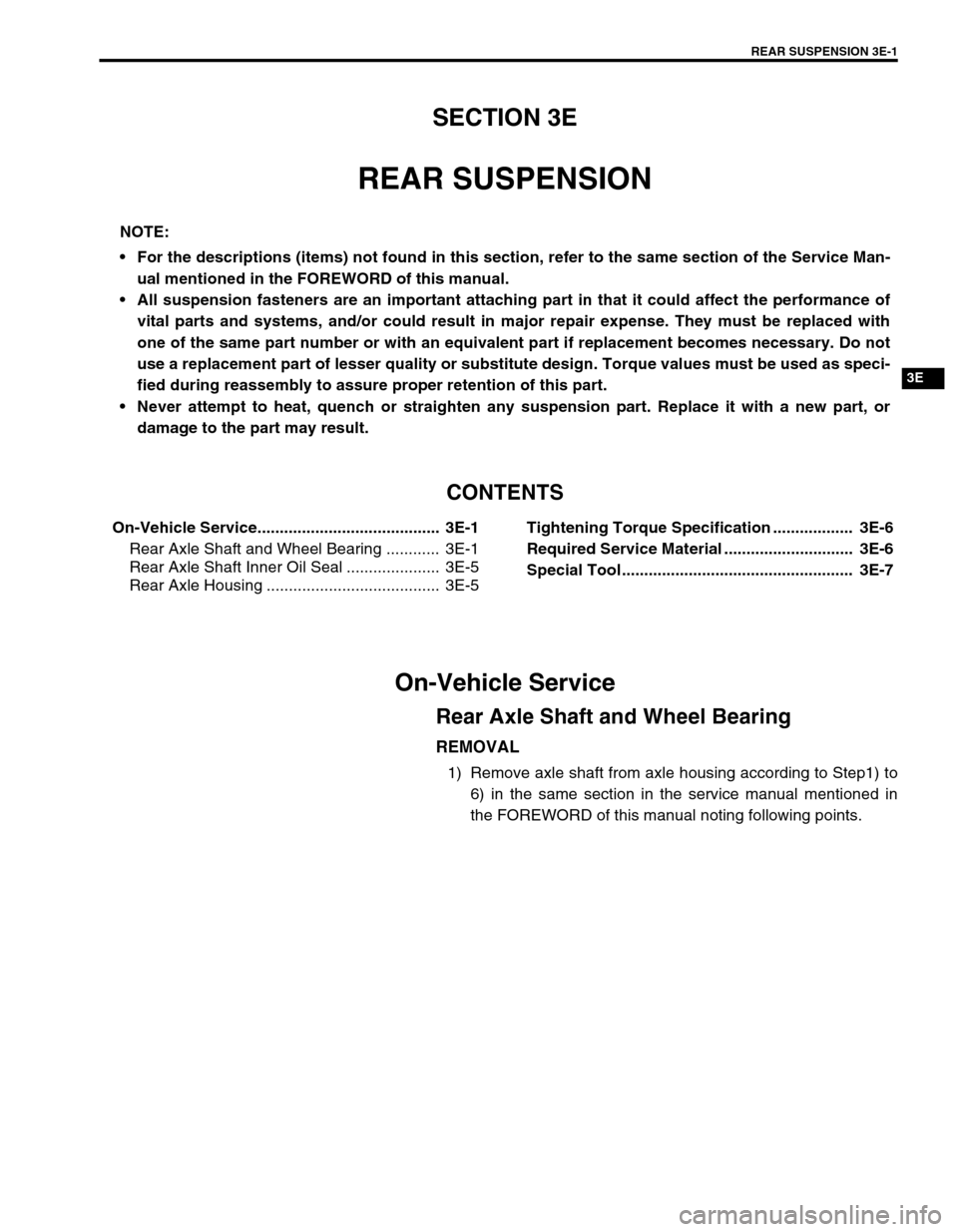

REAR SUSPENSION 3E-1
3E
SECTION 3E
REAR SUSPENSION
CONTENTS
On-Vehicle Service......................................... 3E-1
Rear Axle Shaft and Wheel Bearing ............ 3E-1
Rear Axle Shaft Inner Oil Seal ..................... 3E-5
Rear Axle Housing ....................................... 3E-5Tightening Torque Specification .................. 3E-6
Required Service Material ............................. 3E-6
Special Tool .................................................... 3E-7
On-Vehicle Service
Rear Axle Shaft and Wheel Bearing
REMOVAL
1) Remove axle shaft from axle housing according to Step1) to
6) in the same section in the service manual mentioned in
the FOREWORD of this manual noting following points. NOTE:
For the descriptions (items) not found in this section, refer to the same section of the Service Man-
ual mentioned in the FOREWORD of this manual.
All suspension fasteners are an important attaching part in that it could affect the performance of
vital parts and systems, and/or could result in major repair expense. They must be replaced with
one of the same part number or with an equivalent part if replacement becomes necessary. Do not
use a replacement part of lesser quality or substitute design. Torque values must be used as speci-
fied during reassembly to assure proper retention of this part.
Never attempt to heat, quench or straighten any suspension part. Replace it with a new part, or
damage to the part may result.
