SUZUKI GRAND VITARA 2010 3.G Owners Manual

5-68
OTHER CONTROLS AND EQUIPMENT
79K21-03E

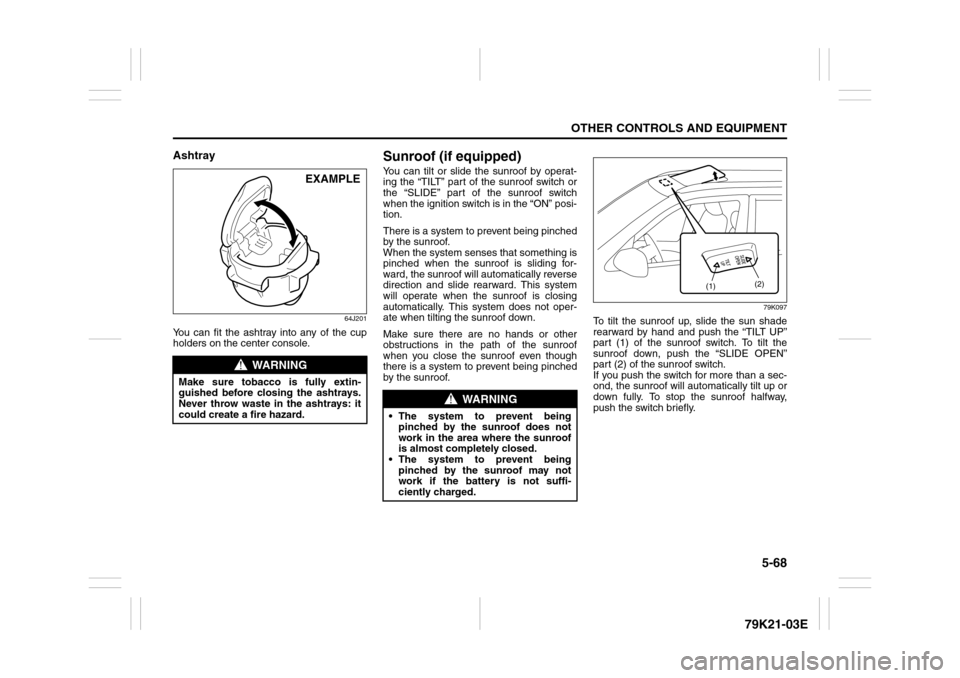

Ashtray
64J201
You can fit the ashtray into any of the cup
holders on the center console.
Sunroof (if equipped)You can tilt or slide the sunroof by operat-
ing the “TILT” part of the sunroof switch or
the “SLIDE” part of the sunroof switch
when the ignition switch is in the “ON” posi-
tion.
There is a system to prevent being pinched
by the sunroof.
When the system senses that something is
pinched when the sunroof is sliding for-
ward, the sunroof will automatically reverse
direction and slide rearward. This system
will operate when the sunroof is closing
automatically. This system does not oper-
ate when tilting the sunroof down.
Make sure there are no hands or other
obstructions in the path of the sunroof
when you close the sunroof even though
there is a system to prevent being pinched
by the sunroof.
79K097
To tilt the sunroof up, slide the sun shade
rearward by hand and push the “TILT UP”
part (1) of the sunroof switch. To tilt the
sunroof down, push the “SLIDE OPEN”
part (2) of the sunroof switch.
If you push the switch for more than a sec-
ond, the sunroof will automatically tilt up or
down fully. To stop the sunroof halfway,
push the switch briefly.
WARNING
Make sure tobacco is fully extin-
guished before closing the ashtrays.
Never throw waste in the ashtrays: it
could create a fire hazard.
EXAMPLE
WARNING
 The system to prevent being
pinched by the sunroof does not
work in the area where the sunroof
is almost completely closed.
 The system to prevent being
pinched by the sunroof may not
work if the battery is not suffi-
ciently charged.
(1)(2)

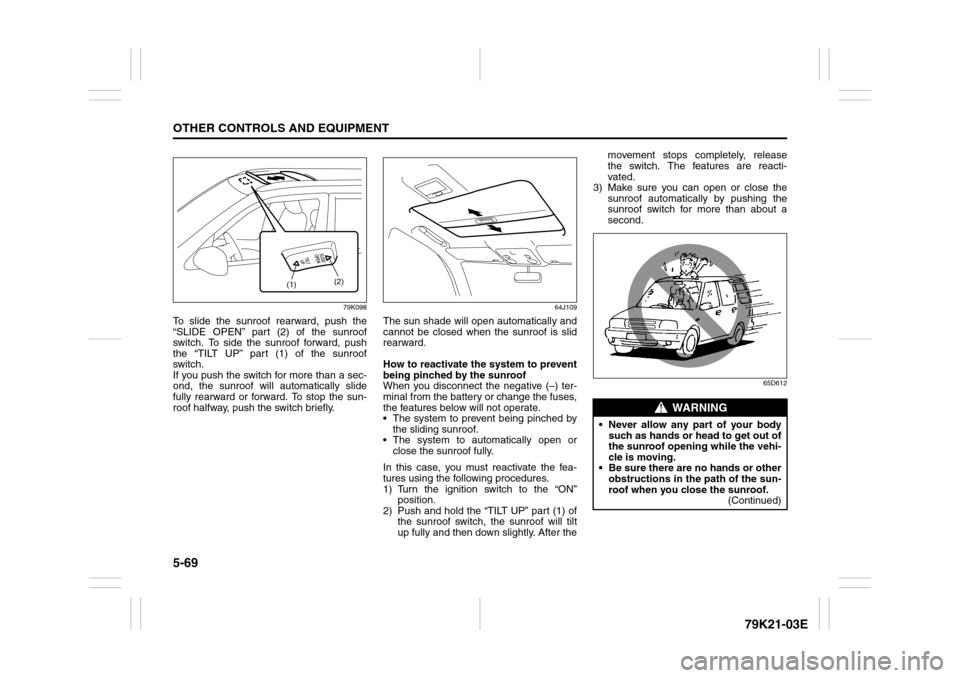

5-69OTHER CONTROLS AND EQUIPMENT
79K21-03E
79K098
To slide the sunroof rearward, push the
“SLIDE OPEN” part (2) of the sunroof
switch. To side the sunroof forward, push
the “TILT UP” part (1) of the sunroof
switch.
If you push the switch for more than a sec-
ond, the sunroof will automatically slide
fully rearward or forward. To stop the sun-
roof halfway, push the switch briefly.
64J109
The sun shade will open automatically and
cannot be closed when the sunroof is slid
rearward.
How to reactivate the system to prevent
being pinched by the sunroof
When you disconnect the negative (–) ter-
minal from the battery or change the fuses,
the features below will not operate.
 The system to prevent being pinched by
the sliding sunroof.
 The system to automatically open or
close the sunroof fully.
In this case, you must reactivate the fea-
tures using the following procedures.
1) Turn the ignition switch to the “ON”
position.
2) Push and hold the “TILT UP” part (1) of
the sunroof switch, the sunroof will tilt
up fully and then down slightly. After themovement stops completely, release
the switch. The features are reacti-
vated.
3) Make sure you can open or close the
sunroof automatically by pushing the
sunroof switch for more than about a
second.
65D612
(1)(2)
WARNING
 Never allow any part of your body
such as hands or head to get out of
the sunroof opening while the vehi-
cle is moving.
 Be sure there are no hands or other
obstructions in the path of the sun-
roof when you close the sunroof.
(Continued)

5-70
OTHER CONTROLS AND EQUIPMENT
79K21-03E
 Be sure to close the sunroof when you
leave the vehicle unattended.
 Periodically inspect the guide rail for dirt
and clean it if any dirt has accumulated.

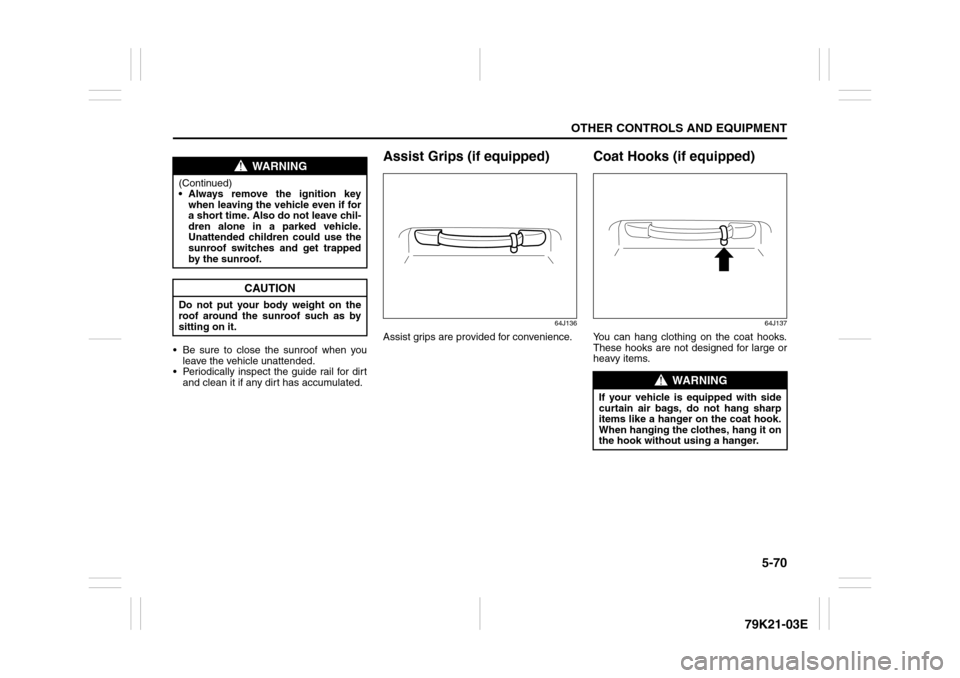

Assist Grips (if equipped)
64J136
Assist grips are provided for convenience.
Coat Hooks (if equipped)
64J137
You can hang clothing on the coat hooks.
These hooks are not designed for large or
heavy items.
WARNING
(Continued)
 Always remove the ignition key
when leaving the vehicle even if for
a short time. Also do not leave chil-
dren alone in a parked vehicle.
Unattended children could use the
sunroof switches and get trapped
by the sunroof.
CAUTION
Do not put your body weight on the
roof around the sunroof such as by
sitting on it.
WARNING
If your vehicle is equipped with side
curtain air bags, do not hang sharp
items like a hanger on the coat hook.
When hanging the clothes, hang it on
the hook without using a hanger.

5-71OTHER CONTROLS AND EQUIPMENT
79K21-03E

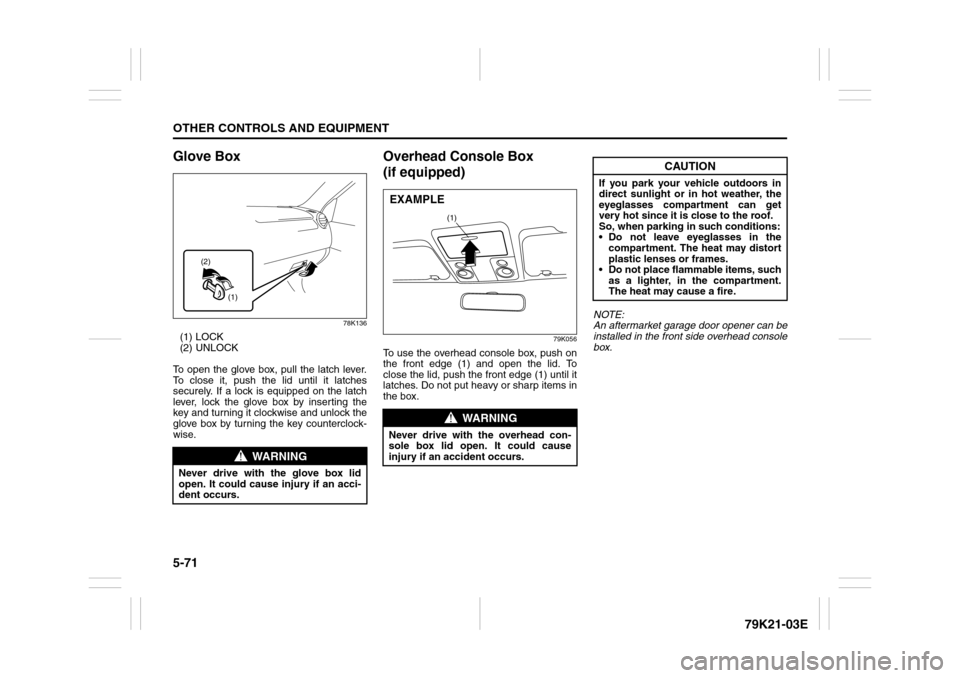

Glove Box
78K136
(1) LOCK
(2) UNLOCK
To open the glove box, pull the latch lever.
To close it, push the lid until it latches
securely. If a lock is equipped on the latch
lever, lock the glove box by inserting the
key and turning it clockwise and unlock the
glove box by turning the key counterclock-
wise.
Overhead Console Box
(if equipped)
79K056
To use the overhead console box, push on
the front edge (1) and open the lid. To
close the lid, push the front edge (1) until it
latches. Do not put heavy or sharp items in
the box.NOTE:
An aftermarket garage door opener can be
installed in the front side overhead console
box.
WARNING
Never drive with the glove box lid
open. It could cause injury if an acci-
dent occurs.
(1) (2)
WARNING
Never drive with the overhead con-
sole box lid open. It could cause
injury if an accident occurs.
(1)
EXAMPLE
CAUTION
If you park your vehicle outdoors in
direct sunlight or in hot weather, the
eyeglasses compartment can get
very hot since it is close to the roof.
So, when parking in such conditions:
 Do not leave eyeglasses in the
compartment. The heat may distort
plastic lenses or frames.
 Do not place flammable items, such
as a lighter, in the compartment.
The heat may cause a fire.

5-72
OTHER CONTROLS AND EQUIPMENT
79K21-03E

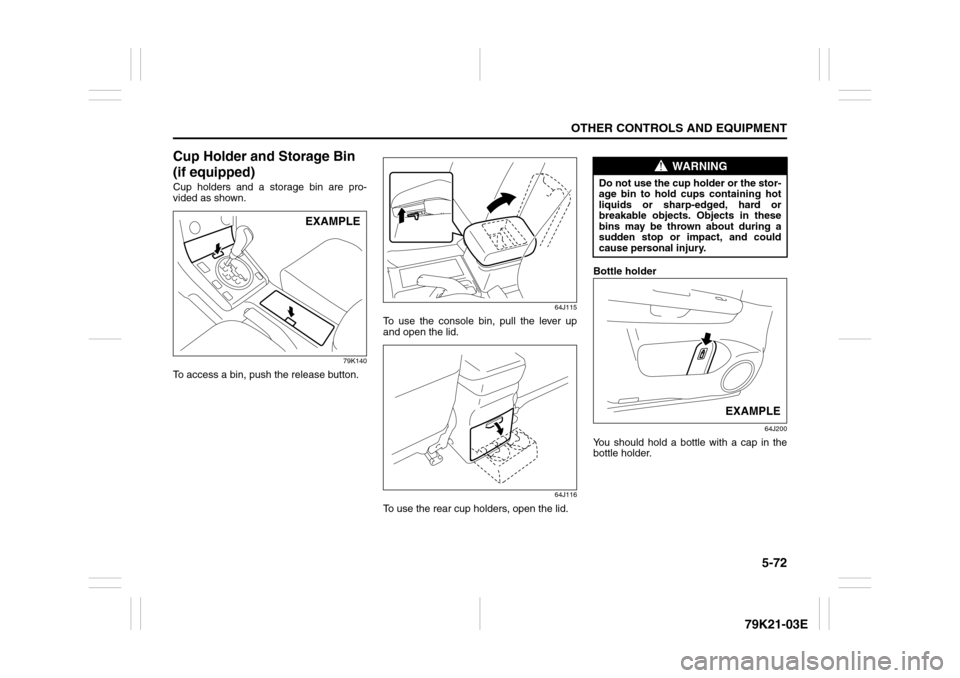

Cup Holder and Storage Bin
(if equipped)Cup holders and a storage bin are pro-
vided as shown.
79K140
To access a bin, push the release button.
64J115
To use the console bin, pull the lever up
and open the lid.
64J116
To use the rear cup holders, open the lid.Bottle holder
64J200
You should hold a bottle with a cap in the
bottle holder.
EXAMPLE
WARNING
Do not use the cup holder or the stor-
age bin to hold cups containing hot
liquids or sharp-edged, hard or
breakable objects. Objects in these
bins may be thrown about during a
sudden stop or impact, and could
cause personal injury.
EXAMPLE

5-73OTHER CONTROLS AND EQUIPMENT
79K21-03E

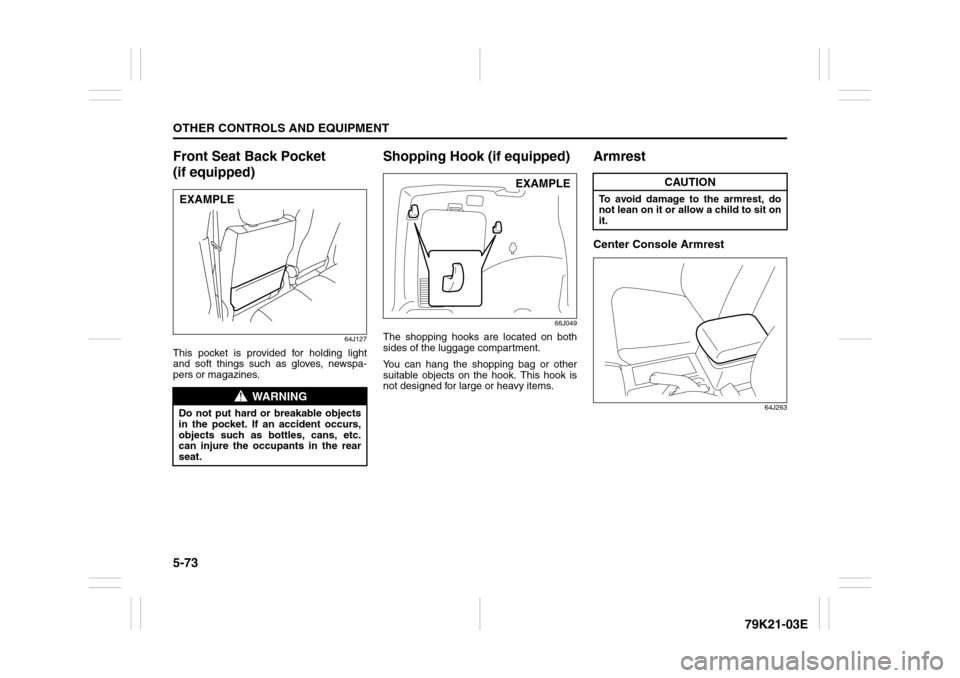

Front Seat Back Pocket
(if equipped)
64J127
This pocket is provided for holding light
and soft things such as gloves, newspa-
pers or magazines.
Shopping Hook (if equipped)
66J049
The shopping hooks are located on both
sides of the luggage compartment.
You can hang the shopping bag or other
suitable objects on the hook. This hook is
not designed for large or heavy items.
ArmrestCenter Console Armrest
64J263
WARNING
Do not put hard or breakable objects
in the pocket. If an accident occurs,
objects such as bottles, cans, etc.
can injure the occupants in the rear
seat.EXAMPLE
EXAMPLE
CAUTION
To avoid damage to the armrest, do
not lean on it or allow a child to sit on
it.

5-74
OTHER CONTROLS AND EQUIPMENT
79K21-03E

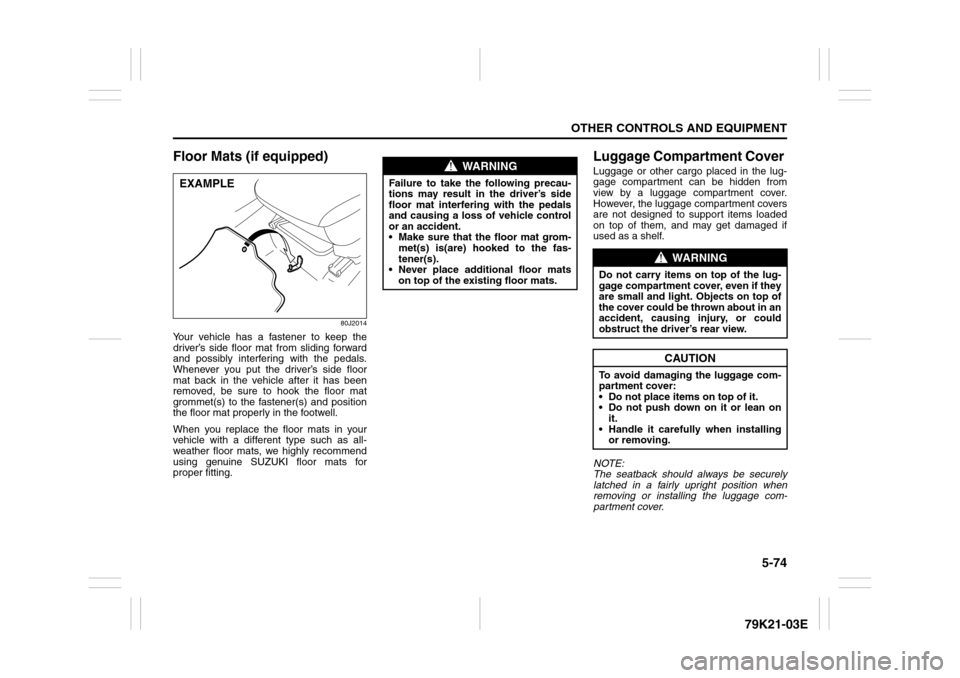

Floor Mats (if equipped)
80J2014
Your vehicle has a fastener to keep the
driver’s side floor mat from sliding forward
and possibly interfering with the pedals.
Whenever you put the driver’s side floor
mat back in the vehicle after it has been
removed, be sure to hook the floor mat
grommet(s) to the fastener(s) and position
the floor mat properly in the footwell.
When you replace the floor mats in your
vehicle with a different type such as all-
weather floor mats, we highly recommend
using genuine SUZUKI floor mats for
proper fitting.
Luggage Compartment Cover Luggage or other cargo placed in the lug-
gage compartment can be hidden from
view by a luggage compartment cover.
However, the luggage compartment covers
are not designed to support items loaded
on top of them, and may get damaged if
used as a shelf.
NOTE:
The seatback should always be securely
latched in a fairly upright position when
removing or installing the luggage com-
partment cover.
EXAMPLE
WARNING
Failure to take the following precau-
tions may result in the driver’s side
floor mat interfering with the pedals
and causing a loss of vehicle control
or an accident.
 Make sure that the floor mat grom-
met(s) is(are) hooked to the fas-
tener(s).
 Never place additional floor mats
on top of the existing floor mats.
WARNING
Do not carry items on top of the lug-
gage compartment cover, even if they
are small and light. Objects on top of
the cover could be thrown about in an
accident, causing injury, or could
obstruct the driver’s rear view.
CAUTION
To avoid damaging the luggage com-
partment cover:
 Do not place items on top of it.
 Do not push down on it or lean on
it.
 Handle it carefully when installing
or removing.

5-75OTHER CONTROLS AND EQUIPMENT
79K21-03E

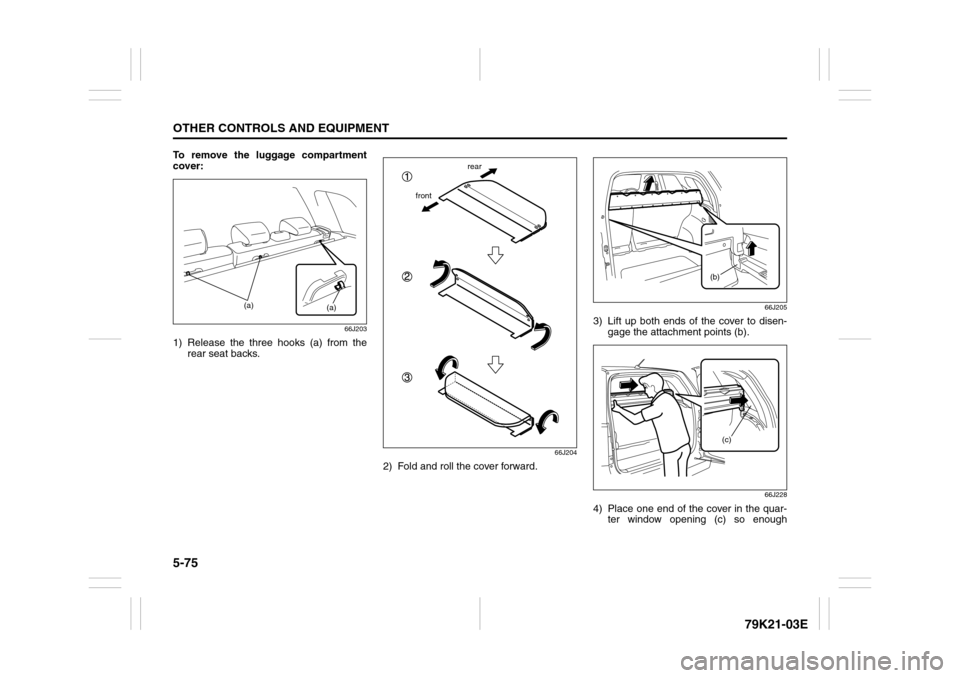

To remove the luggage compartment
cover:
66J203
1) Release the three hooks (a) from the
rear seat backs.
66J204
2) Fold and roll the cover forward.
66J205
3) Lift up both ends of the cover to disen-
gage the attachment points (b).
66J228
4) Place one end of the cover in the quar-
ter window opening (c) so enough
(a)
(a)
frontrear
(b)
(c)

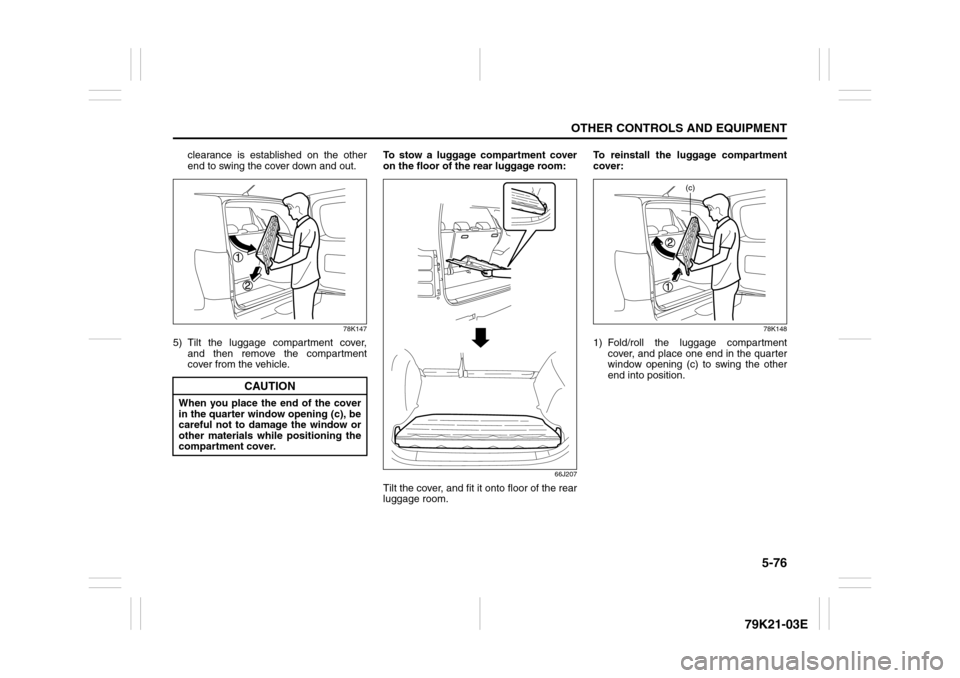

5-76
OTHER CONTROLS AND EQUIPMENT
79K21-03E
clearance is established on the other
end to swing the cover down and out.
78K147
5) Tilt the luggage compartment cover,
and then remove the compartment
cover from the vehicle.To stow a luggage compartment cover
on the floor of the rear luggage room:
66J207
Tilt the cover, and fit it onto floor of the rear
luggage room.To reinstall the luggage compartment
cover:
78K148
1) Fold/roll the luggage compartment
cover, and place one end in the quarter
window opening (c) to swing the other
end into position.
CAUTION
When you place the end of the cover
in the quarter window opening (c), be
careful not to damage the window or
other materials while positioning the
compartment cover.
(c)

5-77OTHER CONTROLS AND EQUIPMENT
79K21-03E
66J209

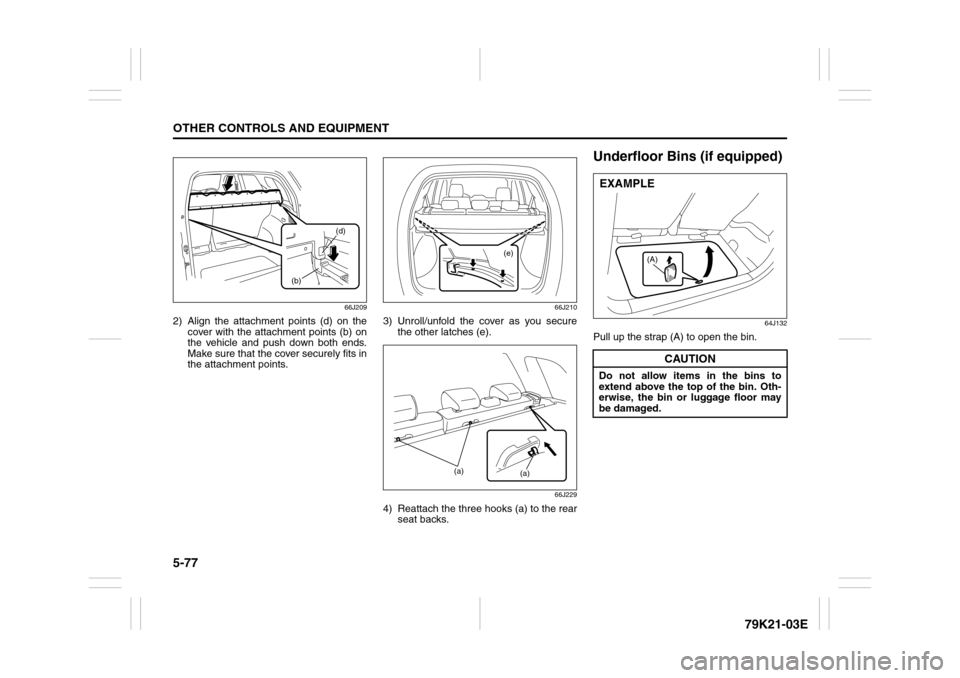

2) Align the attachment points (d) on the
cover with the attachment points (b) on
the vehicle and push down both ends.
Make sure that the cover securely fits in
the attachment points.
66J210
3) Unroll/unfold the cover as you secure
the other latches (e).
66J229
4) Reattach the three hooks (a) to the rear
seat backs.
Underfloor Bins (if equipped)
64J132
Pull up the strap (A) to open the bin.
(b)(d)
(e)
(a)
(a)
CAUTION
Do not allow items in the bins to
extend above the top of the bin. Oth-
erwise, the bin or luggage floor may
be damaged.
(A)
EXAMPLE
