mirror SUZUKI GRAND VITARA 2022 Owners Manual

ILLUSTRATED TABLE OF CONTENTS
54P00-01E
EXTERIOR, FRONT
1. Engine hood (P.5-2)
2. Windshield wiper (P.2-110)
3. Sunroof (if equipped) (P.5-9)
4. Roof rails (if equipped) (P.5-19)
5. Front fog light (if equipped)
(P.2-107, 7-47)/
Daytime running light (if equipped)
(P.2-107, 7-48)
6. Frame hook (P.5-20)
7. Parking sensor (if equipped) (P.3-64)
8. Radar sensor (if equipped)
(P.3-58)
9. Daytime running light (if equipped)
(P.2-107, 7-48)
10. Headlight (P.2-102, 7-45)
11. Outside rearview mirror (P.2-20)
12. Door locks (P.2-2)
54P000003
1
6758 9 10 11 1223 4
EXAMPLE

ILLUSTRATED TABLE OF CONTENTS
54P00-01E

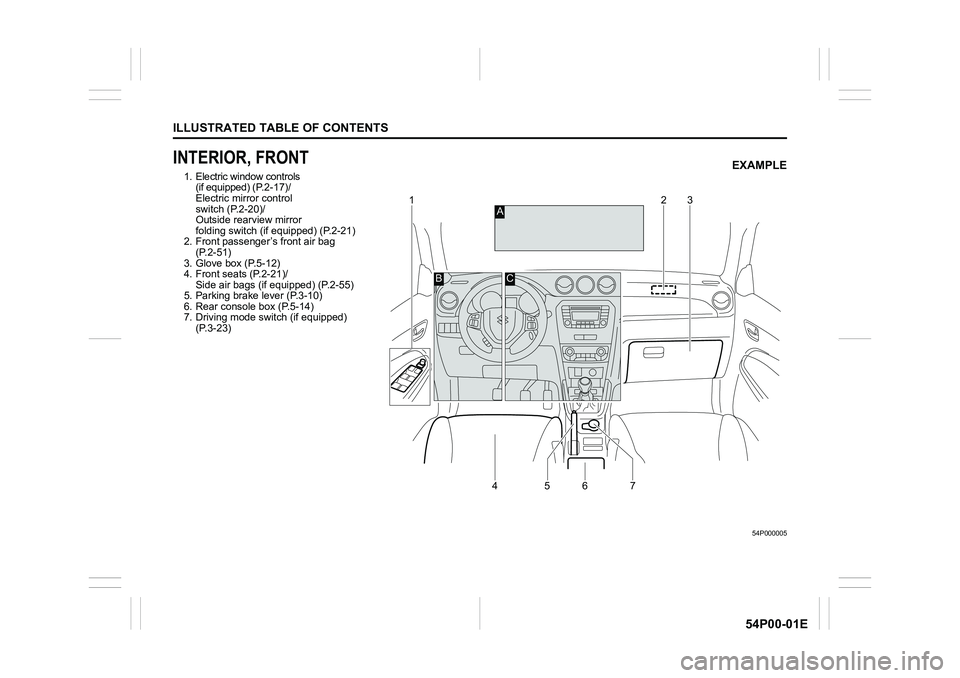

INTERIOR, FRONT
1. Electric window controls
(if equipped) (P.2-17)/
Electric mirror control
switch (P.2-20)/
Outside rearview mirror
folding switch (if equipped) (P.2-21)
2. Front passenger’s front air bag
(P.2-51)
3. Glove box (P.5-12)
4. Front seats (P.2-21)/
Side air bags (if equipped) (P.2-55)
5. Parking brake lever (P.3-10)
6. Rear console box (P.5-14)
7. Driving mode switch (if equipped)
(P.3-23)
54P000005
BC
A 1
456723
EXAMPLE

ILLUSTRATED TABLE OF CONTENTS
54P00-01E
1. Sun visor (P.5-4)
2. Front interior light (P.5-5, 7-54)
3. Inside rearview mirror (P.2-20)
4. Overhead console (if equipped)
(P.5-12)
5. Sunroof switch (if equipped) (P.5-9)
6. Hands-free microphone (if equipped)
(P.5-70)
54P000006
12
3456
EXAMPLEVIEW A

ILLUSTRATED TABLE OF CONTENTS
54P00-01E
1. Adaptive cruise control switch
(if equipped) (P.3-35)/
Cruise control switches
(if equipped) (P.3-42)/
Speed limiter switches
(if equipped) (P.3-45)
2. Instrument cluster (P.2-63)/
Information display (P.2-66)
3. Windshield wiper and washer lever
(P.2-110)/
Rear window wiper/
washer switch (P.2-113)
4. Audio (if equipped) (P.5-40)
5. Hazard warning switch (P.2-110)
6.
Front passenger air bag deactivation
system indicator (if equipped) (P.2-60)/
Theft deterrent alarm system
(if equipped) (P.12-5)/Theft deterrent
light (if equipped) (P.2-16)
7. Fuses (P.7-43)
8. Ignition switch (vehicle without
keyless push start system) (P.3-3)
9. Engine switch (vehicle with keyless
push start system) (P.3-5)
10. Gearshift lever (P.3-19)
11. Front seat heater switch
(if equipped) (P.2-23)
12. USB socket (if equipped) (P.5-9)
13. Accessory socket (P.5-8)
14. Heating and air conditioning
system (P.5-23)/
Heated rear window switch / heated
outside rearview mirrors switch
(if equipped) (P.2-115)
15. Clock (if equipped) (P.5-15)
54P000008
16
75
89
10 11 12 13 1415 234EXAMPLEVIEW C

BEFORE DRIVING
2
54P00-01E
60G404
BEFORE DRIVING
Keys ...................................................................................... 2-1
Door locks ............................................................................ 2-2
Keyless push start system remote controller /
Keyless entry system transmitter ...................................... 2-6
Theft deterrent light (if equipped) ...................................... 2-16
Windows .............................................................................. 2-16
Mirrors .................................................................................. 2-20
Front seats ........................................................................... 2-21
Rear seats ............................................................................ 2-24
Seat belts and child restraint systems .............................. 2-28
Child restraint system ........................................................ 2-40
Supplemental restraint system (air bags) ......................... 2-50
Instrument cluster ............................................................... 2-63
Speedometer ....................................................................... 2-64
Tachometer .......................................................................... 2-64
Fuel gauge ........................................................................... 2-64
Temperature gauge ............................................................. 2-65
Brightness control .............................................................. 2-65
Information display ............................................................. 2-66
Warning and indicator lights .............................................. 2-88
Lighting control lever ........................................................2-102
Front fog light switch (if equipped) ..................................2-107
Headlight leveling switch (if equipped) ............................2-108
Turn signal control lever ...................................................2-108
Hazard warning switch ......................................................2-110
Windshield wiper and washer lever .................................2-110
Tilt/telescoping steering lock lever ..................................2-114
Horn .....................................................................................2-115
Heated rear window switch / heated outside rearview
mirror switch (if equipped) ................................................2-115

2-20
BEFORE DRIVING
54P00-01E
Mirrors
Inside rearview mirror
68LMT0205
68LMT0206
(2) Day driving
(3) Night driving
You can adjust the inside rearview mirror
by hand to see the rear of your vehicle in
the mirror. To adjust the mirror, set the
selector tab (1) to the day position, and
then move the mirror up, down or sideways
by hand to obtain the best view.When driving at night, you can move the
selector tab to the night position to reduce
glare from the headlights of vehicles
behind you.
Outside rearview mirrors
Adjust the outside rearview mirrors so you
can just see the side of your vehicle in the
mirrors.
54P000215
The switch to control the electric mirrors is
located on the driver’s door panel. You can
adjust the mirrors when the ignition switch
is in “ACC” or “ON” position, or the ignition
mode is “ACC” or “ON”. To adjust the mir-
rors:
(1)
(2) (3)
WA R N I N G
• Always adjust the mirror with the
selector set to the day position.
• Only use the night position if it is
necessary to reduce glare from the
headlights of vehicles behind you.
Be aware that in this position you
may not be able to see some
objects that could be seen in the
day position.WA R N I N G
Be careful when judging the size or
distance of a vehicle or other object
seen in the side convex mirror. Be
aware that objects look smaller and
appear farther away than when seen
in a flat mirror.
(2)
(3) (1)
(1)
(3) (2)
(4) (4)
LR

2-21
BEFORE DRIVING
54P00-01E
1) Move the selector switch to the left or
right to select the mirror you wish to
adjust.
2) Press the outer part of the switch that
corresponds to the direction in which
you wish to move the mirror.
3) Return the selector switch to the center
position to help prevent unintended
adjustment.
NOTE:
If your vehicle is equipped with the heated
outside rearview mirrors, refer to “Heated
rear window switch / heated outside rear-
view mirror switch (if equipped)” in this
section.Outside rearview mirror folding switch (if equipped)
54P000216
You can fold the mirrors when you park the
vehicle in a narrow space. When the igni-
tion switch is in “ACC” or “ON” position, or
the ignition mode is “ACC” or “ON”, push
the folding switch (1) to fold and unfold the
mirrors. Check that the mirrors are com-
pletely unfolded before you start driving.
Front seats
Seat adjustment
CAUTION
Moving mirrors can pinch and injure
a hand. Do not allow anyone’s hand
to get near the mirrors when folding
and unfolding the mirrors.
(1)
EXAMPLE
WA R N I N G
Never attempt to adjust the driver’s
seat or seatback while driving. The
seat or seatback could move unex-
pectedly, causing loss of control.
Check that the driver’s seat and seat-
back are properly adjusted before
you start driving.
WA R N I N G
To avoid excessive seat belt slack,
which reduces the effectiveness of
the seat belts as a safety device,
check that the seats are adjusted
before the seat belts are fastened.
WA R N I N G
All seatbacks should always be in an
upright position when driving, or seat
belt effectiveness may be reduced.
Seat belts are designed to offer maxi-
mum protection when seatbacks are
in the upright position.

2-115
BEFORE DRIVING
54P00-01E
Horn
68LM240
Press the horn button of the steering wheel
to sound the horn. The horn will sound with
the ignition switch in any position or any
ignition mode.
Heated rear window switch /
heated outside rearview
mirror switch (if equipped)
Ty p e 1
54P000244
Ty p e 2
54P000245
When the rear window is misted, push this
switch (1) to clear the window.
54P000246
If the outside rearview mirror has the mark
(2), it is also equipped with the heated out-
side rearview mirrors. When you push the
EXAMPLE
(1)
EXAMPLE
(1)
EXAMPLE
(2)
EXAMPLE

2-116
BEFORE DRIVING
54P00-01E
switch (1), both the heated outside rear-
view mirrors and the heated rear window
will operate simultaneously.
An indicator light will be lit when the defog-
ger is on. The defogger will work only
when the engine is running. To turn off the
defogger, push the switch (1) again.
NOTE:
• The defogger will work only when the
engine is running.
• The defogger will automatically turn off
after the defogger remains on for 15 min-
utes to prevent discharging of the bat-
tery.
• If your vehicle is equipped with heated
outside rearview mirrors, only the
driver’s side outside rearview mirror has
the mark (2), but both outside rearview
mirrors work simultaneously.
NOTICE
The heated rear window and the
heated outside rearview mirrors (if
equipped) use a large amount of elec-
tricity. Turn off the switch after the
window and mirrors have become
clear.

3-1
OPERATING YOUR VEHICLE
54P00-01E
Exhaust gas warning
52D334
Daily inspection checklist
Before driving
60A187S
1) Check that windows, mirrors, lights and
reflectors are clean and unobstructed.
2) Visually check the tires for the following
points:
– the depth of the tread groove
– abnormal wear, cracks and damage
– loose wheel bolts
– existence of foreign material such as
nails, stones, etc.
Refer to “Tires” in “INSPECTION AND
MAINTENANCE” section for details.
3) Look for fluid and oil leakage.
WA R N I N G
Avoid breathing exhaust gases.
Exhaust gases contain carbon mon-
oxide, a potentially lethal gas that is
colorless and odorless. Since carbon
monoxide is difficult to detect by
itself, take the following precautions
to help prevent carbon monoxide
from entering your vehicle.
• Do not leave the engine running in
garages or other confined areas.
(Continued)
WA R N I N G
(Continued)
• Do not park with the engine run-
ning for a long period of time, even
in an open area. If it is necessary to
sit for a short time in a parked vehi-
cle with the engine running, check
that the air intake selector is set to
“FRESH AIR” and the blower is at
high speed.
• Avoid operating the vehicle with
the tailgate or trunk open. If it is
necessary to do so, check that the
sunroof (if equipped) and all win-
dows are closed, and the blower is
at high speed with the air intake
selector set to “FRESH AIR”.
• To allow proper operation of your
vehicle’s ventilation system, keep
the air inlet grill in front of the wind-
shield clear of snow, leaves or
other obstructions at all times.
• Keep the exhaust tailpipe area clear
of snow and other material to help
reduce the buildup of exhaust
gases under the vehicle. This is
particularly important when parked
in blizzard conditions.
• Have the exhaust system inspected
periodically for damage and leak-
age. Any damage or leakage
should be repaired immediately.
