FOREWORD
This manual should be considered a per-
manent part of the vehicle and should
remain with the vehicle when resold or oth-
erwise transferred to a new owner or oper-
ator. Please read this manual carefully
before operating your new SUZUKI vehicle
and review the manual from time to time. It
contains important information on safety,
operation and maintenance.All information in this manual is based
on the latest product information avail-
able at the time of publication. Due to
improvements or other changes, there
may be discrepancies between informa-
tion in this manual and your vehicle.
MAGYAR SUZUKI CORPORATION
reserves the right to make production
changes at any time, without notice and
without incurring any obligation to
make the same or similar changes to
vehicles previously built or sold.
This vehicle may not comply with stan-
dards or regulations of other countries.
Before attempting to register this vehi-
cle in any other country, check all appli-
cable regulations and make any
necessary modifications.
NOTE:
Please see the warning label named “Air
bag symbol meaning” in “BEFORE DRIV-
ING” section for information on front air
bag protection.
IMPORTANT
WARNING/CAUTION/NOTICE/
NOTE
Please read this manual and follow its
instructions carefully. To emphasize spe-
cial information, the symbol and the
words WARNING, CAUTION, NOTICE
and NOTE have special meanings. Pay
particular attention to messages high-
lighted by these signal words:
NOTE:
Indicates special information to make
maintenance easier or instructions clearer.
WA R N I N G
Indicates a potential hazard that
could result in death or serious
injury.
CAUTION
Indicates a potential hazard that
could result in minor or moderate
injury.
NOTICE
Indicates a potential hazard that
could result in vehicle damage.

ILLUSTRATED TABLE OF CONTENTS
54P00-01E
1. Adaptive cruise control switch
(if equipped) (P.3-35)/
Cruise control switches
(if equipped) (P.3-42)/
Speed limiter switches
(if equipped) (P.3-45)
2. Instrument cluster (P.2-63)/
Information display (P.2-66)
3. Windshield wiper and washer lever
(P.2-110)/
Rear window wiper/
washer switch (P.2-113)
4. Audio (if equipped) (P.5-40)
5. Hazard warning switch (P.2-110)
6.
Front passenger air bag deactivation
system indicator (if equipped) (P.2-60)/
Theft deterrent alarm system
(if equipped) (P.12-5)/Theft deterrent
light (if equipped) (P.2-16)
7. Fuses (P.7-43)
8. Ignition switch (vehicle without
keyless push start system) (P.3-3)
9. Engine switch (vehicle with keyless
push start system) (P.3-5)
10. Gearshift lever (P.3-19)
11. Front seat heater switch
(if equipped) (P.2-23)
12. USB socket (if equipped) (P.5-9)
13. Accessory socket (P.5-8)
14. Heating and air conditioning
system (P.5-23)/
Heated rear window switch / heated
outside rearview mirrors switch
(if equipped) (P.2-115)
15. Clock (if equipped) (P.5-15)
54P000008
16
75
89
10 11 12 13 1415 234EXAMPLEVIEW C

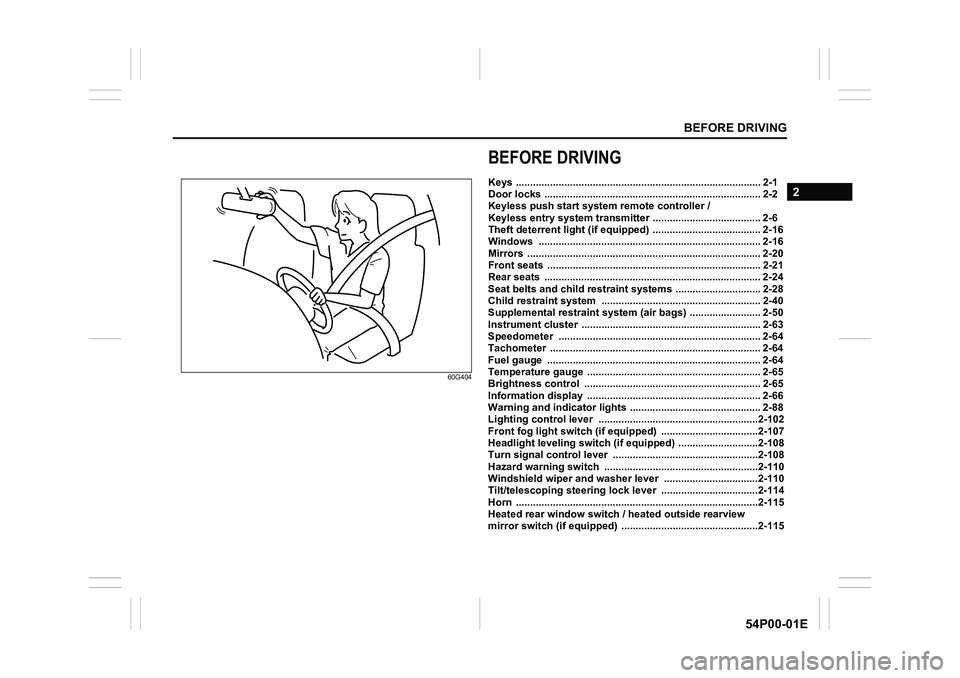

BEFORE DRIVING
2
54P00-01E
60G404
BEFORE DRIVING
Keys ...................................................................................... 2-1
Door locks ............................................................................ 2-2
Keyless push start system remote controller /
Keyless entry system transmitter ...................................... 2-6
Theft deterrent light (if equipped) ...................................... 2-16
Windows .............................................................................. 2-16
Mirrors .................................................................................. 2-20
Front seats ........................................................................... 2-21
Rear seats ............................................................................ 2-24
Seat belts and child restraint systems .............................. 2-28
Child restraint system ........................................................ 2-40
Supplemental restraint system (air bags) ......................... 2-50
Instrument cluster ............................................................... 2-63
Speedometer ....................................................................... 2-64
Tachometer .......................................................................... 2-64
Fuel gauge ........................................................................... 2-64
Temperature gauge ............................................................. 2-65
Brightness control .............................................................. 2-65
Information display ............................................................. 2-66
Warning and indicator lights .............................................. 2-88
Lighting control lever ........................................................2-102
Front fog light switch (if equipped) ..................................2-107
Headlight leveling switch (if equipped) ............................2-108
Turn signal control lever ...................................................2-108
Hazard warning switch ......................................................2-110
Windshield wiper and washer lever .................................2-110
Tilt/telescoping steering lock lever ..................................2-114
Horn .....................................................................................2-115
Heated rear window switch / heated outside rearview
mirror switch (if equipped) ................................................2-115

2-1
BEFORE DRIVING
54P00-01E
Keys
54G489
Your vehicle comes with a pair of identical
keys. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer system
This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
or keyless push start system remote con-
troller, which has an electronic identifica-
tion code programmed into it. The key or
remote controller communicates the identi-
fication code to the vehicle when the igni-
tion switch is turned to “ON” position or the
engine switch is pressed to change the
ignition mode to “ON”. If you need to make
spare keys or remote controllers, see your
SUZUKI dealer. The vehicle must be pro-
grammed with the correct identification
code for the spare. A key made by an ordi-
nary locksmith will not work.
80JM122
If the immobilizer/keyless push start sys-
tem warning light blinks when the ignition
switch is in “ON” position or the ignition
mode is “ON”, the engine will not start.NOTE:
If the immobilizer/keyless push start sys-
tem warning light blinks or comes on, a
message may be shown on the information
display.
For vehicles without a keyless push
start system
If this light blinks, turn the ignition switch to
“LOCK” position, and then turn it back to
“ON” position.
If the light still blinks after the ignition
switch is turned back to “ON” position,
there may be something wrong with your
key or with the immobilizer system. Ask
your SUZUKI dealer to have the system
inspected.
For vehicles with a keyless push start
system
If this light blinks, change the ignition mode
to “LOCK” (OFF), and then change it back
to “ON”. Also refer to “If the master warn-
ing indicator light blinks and the engine
cannot be started” in “Starting engine
(vehicle with keyless push start system)” in
“OPERATING YOUR VEHICLE” section.
If the light still blinks after the ignition mode
is changed back to “ON”, there may be
something wrong with your key or with the
immobilizer system. Ask your SUZUKI
dealer to have the system inspected. KEY NUMBER:
EXAMPLE

2-2
BEFORE DRIVING
54P00-01E
The immobilizer/keyless push start system
warning light may also blinks if the remote
controller is not in the vehicle when you
close the door or attempt to start the
engine.
NOTE:
• If you lose your immobilizer ignition key
or remote controller, ask your SUZUKI
dealer as soon as possible to deactivate
the lost one, and to make a new key or
remote controller.
• If you own other vehicles with immobi-
lizer keys, keep those keys away from
the ignition switch or the engine switch
when using your SUZUKI vehicle. Other-
wise, or the engine may not be started
because they may interfere with your
SUZUKI vehicle’s immobilizer system.
• If you attach any metal objects to the
immobilizer key or remote controller, it
may not start the engine.This immobilizer system, model I54P0 for
keyless entry model and 37290-54P0 for
keyless engine start model are in compli-
ance with the essential requirements and
other provisions of Directive 1999/5/EC.
Ignition key reminder (if equipped)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in the
ignition switch when the driver’s door is
opened.
Door locks
Side door locks
60B008
(1) LOCK
(2) UNLOCK
(3) Rear
(4) Front
To lock a driver’s door from the outside of
the vehicle:
• Insert a key and turn the top of the key
toward the front of the vehicle, or
• Turn the lock knob forward, then pull and
hold the door handle as you close the
door.
NOTICE
The immobilizer key and remote con-
troller are sensitive electronic instru-
ments. To avoid damaging them:
• Do not expose them to impacts,
moisture or high temperature such
as on the dashboard under direct
sunlight.
• Keep them away from magnetic
objects.
(2)
(1)
(3)
(4)
EXAMPLE

2-10
BEFORE DRIVING
54P00-01E
NOTE:
The keyless push start system may not
function correctly in certain environments
or under certain operating conditions such
as the following:
• When there are strong signals coming
from a television, power station or a cel-
lular phone.
• When the remote controller is in contact
with or covered by a metal object.
• When a radio wave type remote keyless
entry is used nearby.
• When the remote controller is placed
near an electronic device such as per-
sonal computer.
Some additional precautions you should
take and information you should be aware
of are:
• Check that the key is stowed in the
remote controller. If the remote controller
becomes unreliable, you will not be able
to lock or unlock the doors.• Check that the driver always carries the
remote controller.
• If you lose one of the remote controllers,
ask your SUZUKI dealer as soon as pos-
sible for a replacement. Have your
dealer program the new remote control-
ler code in your vehicle’s memory so that
the old code is erased.
• You can use up to four remote control-
lers and the keys for your vehicle. Ask
your SUZUKI dealer for details.
• The battery life of the remote controller
is about two years, but it can vary
depending on usage conditions.
57L21016
To stow the key into the remote controller,
push the key in the remote controller until
you hear a click.
54P000263
To remove the key from the remote control-
ler, push the button (A) in arrow direction
and pull the key out from the remote con-
troller.
Request switch warning buzzer
This exterior buzzer beeps for about 2 sec-
onds in the following conditions to warn
you that the request switch is not working:
• The request switch is pressed after all
doors are closed with the ignition mode
changed to “ACC” or “ON” by pressing
the engine switch.
• The request switch is pressed in any of
the following conditions after changing
the ignition mode to “LOCK” (OFF) by
pressing the engine switch.
– The remote controller is left inside the
vehicle.
– Any door (including the tailgate) is
open.
NOTICE
The remote controller is a sensitive
electronic instrument. To avoid dam-
aging the remote controller:
• Do not expose it to impacts, mois-
ture or high temperature such as
by leaving it on the dashboard
under direct sunlight.
• Keep the remote controller away
from magnetic objects such as a
television.(A)

2-11
BEFORE DRIVING
54P00-01E
Press the request switch again after doing
the following:
With the ignition mode changed to “LOCK”
(OFF) by pressing the engine switch, bring
out the remote controller if it is inside the
vehicle and check that all doors are com-
pletely closed.
Reminder function
54P000207
If the remote controller is not in the vehicle
under the following conditions, the buzzer
sounds intermittently for about 2 seconds
and the immobilizer/keyless push start sys-
tem warning light on the instrument cluster
blinks:
When one or more doors are opened and
all of the doors are later closed with the
ignition in any other mode than “LOCK”.The indicator light will turn off within sev-
eral seconds after the remote controller is
returned to an area of the vehicle other
than the rear luggage area.
If the remote controller is left in the vehicle
and you lock the driver’s door or front pas-
senger’s door as described below, the door
will be automatically unlocked.
• If you open the driver’s door and lock the
door by turning the lock knob forward or
pushing the power door locking switch,
the driver’s door will be automatically
unlocked.
• If you open the front passenger’s door
and lock the door by turning the lock
knob forward or pushing the power door
locking switch, the front passenger’s
door will be automatically unlocked.
NOTE:
• The reminder will not operate when the
remote controller is on the instrument
panel, in the glove box, in a storage
compartment, in the sun visor or on the
floor, etc.
• Check that the driver always carries the
remote controller.
• Do not leave the remote controller in the
vehicle when leaving the vehicle.Battery replacement
If the remote controller becomes unreli-
able, replace the battery.
To replace the battery of the remote con-
troller:
71LMT0201
1) Pull the key out from the remote con-
troller.
2) Insert a flat-bladed screwdriver covered
with a soft cloth in the slot of the remote
controller and pry it open.EXAMPLE

2-63
BEFORE DRIVING
54P00-01E
Instrument cluster
1. Speedometer
2. Tachometer
3. Fuel gauge
4. Temperature gauge
5. Information display
6. Warning and indicator lights
54P000230
21 6
64 5 36EXAMPLE

2-64
BEFORE DRIVING
54P00-01E
Speedometer
The speedometer indicates vehicle speed.
Tachometer
The tachometer indicates engine speed in
revolutions per minute.
Fuel gauge
61MM0A154
When the ignition switch is in “ON” position
or the ignition mode is “ON”, this gauge
gives an approximate indication of the
amount of fuel in the fuel tank. “F” stands
for full and “E” stands for empty.
If the indicator approaches a low level
(near “E”) on fuel gauge, refill the tank as
soon as possible.
NOTE:
The indicator moves a little depending on
road conditions (for example, slope or
curve) and driving conditions because of
fuel moving in the tank.
If the low fuel warning light (1) comes on,
fill the fuel tank immediately.Refer to “Low fuel warning light” in “Warn-
ing and indicator lights” in this section for
details.
The mark (2) indicates that the fuel filler
door is located on the left side of the vehi-
cle.
NOTICE
Never drive the vehicle with the
engine revving in the red zone or
severe engine damage can result.
Keep the engine speed below the red
zone even when downshifting to a
lower gear position.
Refer to “Downshifting maximum
allowable speeds” in “OPERATING
YOUR VEHICLE” section.(2)
(1)EXAMPLE

2-69
BEFORE DRIVING
54P00-01E
Instantaneous fuel consumption
The display shows instantaneous fuel con-
sumption with a bar graph only when the
vehicle is moving.
NOTE:
• The display does not show the bar graph
unless the vehicle is moving.
• Depending on the vehicle’s specification,
the fuel consumption units of initial set-
ting are indicated as L/100km, km/L or
MPG.
• For L/100km or km/L setting, the indi-
cated maximum value of instantaneous
fuel consumption is 30. No more than 30
will be indicated on the display even if
the actual instantaneous fuel consump-
tion is higher.
• For MPG setting, the indicated maxi-
mum value of instantaneous fuel con-
sumption is 80. No more than 80 will be
indicated on the display even if the
actual instantaneous fuel consumption is
higher.
• The indication on the display may be
delayed if fuel consumption is greatly
affected by driving conditions.
• The display shows estimated values.
Indications may not be the same as
actual values.
Average fuel consumption
If you selected average fuel consumption
the last time you drove the vehicle, the dis-
play shows the last value of average fuel
consumption from previous driving whenthe ignition switch is turned to “ON” posi-
tion or the engine switch is pressed to
change the ignition mode to “ON”. Unless
you reset the value of average fuel con-
sumption, the display indicates the value of
average fuel consumption based on the
average fuel consumption during previous
driving.
NOTE:
When you reconnect the negative (–) ter-
minal to the battery, the value of average
fuel consumption will be shown after driv-
ing for a period of time.
You can select when the value of average
fuel consumption is reset from among the
following three methods;
• Reset after refuel: the value of average
fuel consumption will be reset automati-
cally by refueling.
• Reset with trip meter A: the value of
average fuel consumption will be reset
automatically by resetting trip meter A.
• Reset manually: the value of average
fuel consumption will be reset by push-
ing and holding the indicator selector
knob (2) when the display indicates the
average fuel consumption.
To change when the value of average fuel
consumption is reset, refer to “Setting
mode” in this section. NOTE:
If you add only a small amount of fuel
when you select “Reset after refuel”, the
average fuel consumption value may not
be reset.
Driving range
If you selected driving range the last time
you drove the vehicle, the display indicates
“---” for a few seconds and then indicates
the current driving range when the ignition
switch is turned to “ON” position or the
engine switch is pressed to change the
ignition mode to “ON”.
The driving range shown in the display is
the approximate distance you can drive
until the fuel gauge indicates “E”, based on
current driving conditions.
When the low fuel warning light comes on,
the display “---” will appear.
If the low fuel warning light comes on, fill
the fuel tank immediately regardless of the
value of driving range shown in the display.
As the driving range after refueling is cal-
culated based on the most recent driving
condition, the value is different each time
you refuel.
NOTE:
• If you refuel when the ignition switch is in
“ON” position or the ignition mode is
“ON”, the driving range may not indicate
the correct value.
