10-1GENERAL INFORMATION
75RM4-01E

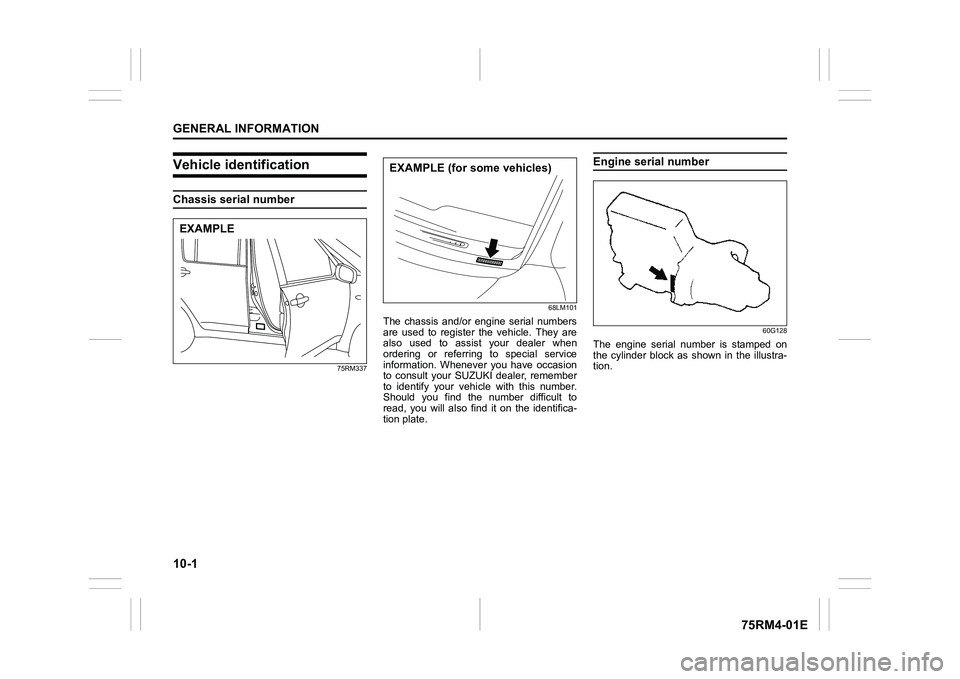

Vehicle identificationChassis serial number
75RM33768LM101
The chassis and/or engine serial numbers
are used to register the vehicle. They are
also used to assist your dealer when
ordering or referring to special service
information. Whenever you have occasion
to consult your SUZUKI dealer, remember
to identify your vehicle with this number.
Should you find the number difficult to
read, you will also find it on the identifica-
tion plate.
Engine serial number
60G128
The engine serial number is stamped on
the cylinder block as shown in the illustra-
tion.
EXAMPLE
EXAMPLE (for some vehicles)

11-1
SPECIFICATIONS
75RM4-01E
11
SPECIFICATIONSNOTE:
Specifications are subject to change without notice.
M/T: Manual transaxle
CVT: Continuously variable transaxle 2WD: 2-wheel drive
4WD: 4-wheel drive
ITEM: Dimensions UNIT: mm (in.)
Overall length 3700 (145.7)
Overall width without wheel arch extensions 1660 (65.4)
with
wheel arch extensions 1690 (66.5)
Overall height 1595 (62.8)
Wheelbase 2435 (95.9)
Track Front 1460 (57.5)
Rear2WD 1470 (57.9)
4WD 1460 (57.5)
Ground clearance 180 (7.1)
ITEM: Mass (weight) UNIT: kg (lbs) K12C engine model K12M engine m odel
Curb mass (weight) M/T2WD 810 – 870 (1786 – 1918)
815 – 845 (1797 – 1863)
4WD 870 – 920 (1918 – 2028) –
CVT 2WD 865 – 895 ( 1907 – 1973) 860 – 880 (1896 – 1940)
Auto Gear Shift 2WD 8 30 – 865 (1830 – 1907) –
Gross vehicle mass (wei ght) rating 1330 (2932)
Permissible maximum axle weight Front 690 (1521) Rear 750 (1653)

11-2SPECIFICATIONS
75RM4-01E
*1 For about replacing or disposing of the lithium-ion battery, consult your SUZUKI dealer.
ITEM: Engine
Type K12C K12M (DOHC)
Number of cylinders 4

Bore 73.0 mm (2.87 in.) 73.0 mm (2.87 in.)
Stroke 74.2 mm (2.92 in .) 71.5 mm (2.81 in.)
Piston displacement 1242 cm
3 (1242 cc, 75.8 cu.in) 1197 cm
3 (1197 cc, 73.0 cu.in)
Compression ratio 12.5 : 1 11.0 : 1
ITEM: Electrical
Standard spark plug K12C engine models NGK ILZKR6F11 K12M engine models NGK LKR6F-10
Battery without ENG A-STOP system 12V 20HR 45Ah CCA 295A 46B24 (JIS)
with ENG A-STOP system Lead-acid battery 12V 20HR
55Ah CCA 450A LN1 (EN)
Lithium-ion battery Maintenance free
*1
Fuses See “INSPECTION AND MAINTENANCE” section.

11-5
SPECIFICATIONS
75RM4-01E

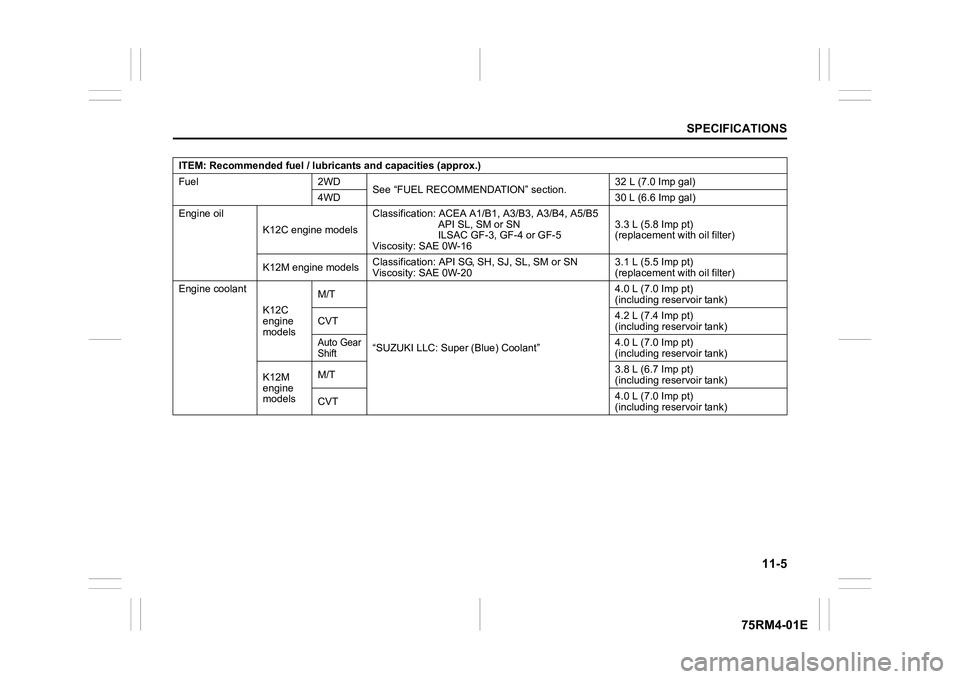

ITEM: Recommended fuel / lubricants and capacities (approx.)
Fuel 2WD See “FUEL RECOMMENDATION” section. 32 L (7.0 Imp gal)
4WD 30 L (6.6 Imp gal)
Engine oil
K12C engine models Classification: ACEA A1/B
1, A3/B3, A3/B4, A5/B5
API SL, SM or SN
ILSAC GF-3, GF-4 or GF-5
Viscosity: SAE 0W-16 3.3 L (5.8 Imp pt)
(replacement with oil filter)
K12M engine models Classification: API SG,
SH, SJ, SL, SM or SN
Viscosity: SAE 0W-20 3.1 L (5.5 Imp pt)
(replacement with oil filter)
Engine coolant
K12C
engine
modelsM/T
“SUZUKI LLC: Super (Blue) Coolant” 4.0 L (7.0 Imp pt)
(including reservoir tank)
CVT 4.2 L (7.4 Imp pt)
(including reservoir tank)
Auto Gear
Shift
4.0 L (7.0 Imp pt)
(including reservoir tank)
K12M
engine
models M/T
3.8 L (6.7 Imp pt)
(including reservoir tank)
CVT 4.0 L (7.0 Imp pt)
(including reservoir tank)

12-5SUPPLEMENT
75RM4-01E
For Chile and PanamaFuel recommendation
75RM172
K12M engine models
To avoid damaging the catalytic converter,
you must use unleaded gasoline with an
octane number (RON) of 91 or higher.
These vehicles are also identified by a
label attached near the fuel filler pipe that
states: “UNLEADED FUEL ONLY”, “NUR
UNVERBLEITES BENZIN”, “ENDAST
BLYFRI BENSIN” or “SOLO GASOLINA
SIN PLOMO”. Gasoline-ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol, are
commercially available in certain areas.
Blends of this type may be used in your
vehicle if they are no more than 10% etha-
nol.
Check that this gasoline-ethanol blend has
octane ratings no lower than those recom-
mended for the gasoline.
NOTE:
If you are not satisfied with the driveability
or fuel economy of your vehicle when you
use a gasoline-alcohol blend, you should
switch back to unleaded gasoline contain-
ing no alcohol.
EXAMPLE
NOTICE
The fuel tank has an air space to
allow for fuel expansion in hot
weather. If you continue to add fuel
after the filler nozzle has automati-
cally shut off or an initial blowback
occurs, the air chamber will become
full. Exposure to heat when fully
fuelled in this manner will result in
leakage due to fuel expansion. To
prevent such fuel leakage, stop filling
after the filler nozzle has automati-
cally shut off, or when initial vent
blowback occurs, if using an alterna-
tive non-automatic system.
NOTICE
Be careful not to spill fuel containing
alcohol while refueling. If fuel is
spilled on the vehicle body, wipe it up
immediately. Fuels containing alco-
hol can cause paint damage, which is
not covered under the New Vehicle
Limited Warranty.

12-8
SUPPLEMENT
75RM4-01E
Refer to the “Seat belts and child restraint
systems”, “Installation with lap-shoulder
seat belts” and “Front passenger air bag
deactivation system” in the “BEFORE
DRIVING” section for details on securing
your child.
For ArgentinaFuel recommendation
75RM304
K12M engine models
To avoid damaging the catalytic converter,
you must use unleaded gasoline with an
octane number (RON) of 91 or higher (or
95 or higher if it is stated on the fuel filler
lid).
These vehicles are also identified by a
label attached near the fuel filler pipe that
states: “UNLEADED FUEL ONLY”, “NUR
UNVERBLEITES BENZIN”, “ENDAST
BLYFRI BENSIN” or “SOLO GASOLINA
SIN PLOMO”.
If a “RON 95” label is attached, you must
use unleaded gasoline with an octane
number (RON) of 95 or higher. Gasoline-ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol, are
commercially available in certain areas.
Blends of this type may be used in your
vehicle if they are no more than 12% etha-
nol.
Check that this gasoline-ethanol blend has
octane ratings no lower than those recom-
mended for the gasoline.
NOTE:
If you are not satisfied with the driveability
or fuel economy of your vehicle when you
use a gasoline-alcohol blend, you should
switch back to unleaded gasoline contain-
ing no alcohol.
WA R N I N G
When using child restraint system on
the front passenger’s seat, the front
passenger’s air bag must be deacti-
vated; otherwise deployment of the
front passenger’s air bag could result
in the death or serious injury of the
child.
WA R N I N G
Make sure the front passenger’s air
bag is activated and the “PASSEN-
GER AIR BAG ON” indicator is on
whenever there is no child restraint
installed on the front passenger’s
seat.
or
EXAMPLE
NOTICE
The fuel tank has an air space to
allow for fuel expansion in hot
weather. If you continue to add fuel
after the filler nozzle has automati-
cally shut off or an initial blowback
occurs, the air chamber will become
full. Exposure to heat when fully
fuelled in this manner will result in
leakage due to fuel expansion. To
prevent such fuel leakage, stop filling
after the filler nozzle has automati-
cally shut off, or when initial vent
blowback occurs, if using an alterna-
tive non-autom
atic system.

13-1
INDEX
13
75RM4-01E
INDEXSymbols“SET” indicator light ......................................................... 2-115AAccelerator pedal................................................................. 3-12
Accessory socket ............. .................................. ................... 5-6
Adding coolant................................................. .................... 7-28
Adjusting headlight pattern .................................... .......... 2-120
AIR BAG light .................................................. .......... 2-55, 2-106
Air cleaner .................................................... ........................ 7-29
Air conditioner filter replacement ............................. ......... 7-59
Air conditioning system ...... ................................................ 7-58
AM/FM CD player ................................................ ................. 5-33
AM/FM/DAB CD player ........... ............................................. 5-33
Anti-lock brake system (ABS) ................................... 3-76, 3-78
Anti-lock brake system (ABS) warning light ................... 2- 104
Anti-theft feature ............................................. ..................... 5-79
Assist grips ................................................... ......................... 5-7
Audio system ................................................... .................... 5-33
Auto Gear Shift ................................................ .................... 3-25
Auto Gear Shift oil ............................................ ................... 7-34
Automatic headlight leveling system warning light ....... 2-111
Automatic heating and air conditioning system
(climate control) .............................................. ..................... 5-26
Auto-on headlight system...... ........................................... 2-117
AUX function ................................................... ..................... 5-63
AUX/USB socket ................................................. ................... 5-7
Average fuel consumption....................................... .. 2-74, 2-94
Average speed .................................................. ................... 2-74
BBattery ................................................................................... 7-42
Battery replacement........... .........................................2-12, 2-15
Bluetooth
® audio......................................................... ......... 5-74
Bluetooth® hands-free .................................................... ..... 5-65
Brake assist system............................................ ................. 3-76
Brake discs and brake drums .................................... ......... 7-38
Brake fluid.................................................... ......................... 7-36
Brake pedal .................................................... ..............3-12, 7-37
Brake system warning light ..................................... ......... 2-103
Brakes ......................................................... .......................... 7-36
Braking ........................................................ .......................... 3-75
Brightness control ............................................. .................. 2-70
Built date ..................................................... .......................... 12-1
Bulb replacement ............................................... .................. 7-49
CCable control clutch........................................... .................. 7-36
Catalytic converter ........ ......................................................... 4-1
Center console tray......... ....................................................... 5-9
Central door locking system .................................... ............. 2-3
Changing engine oil and filter................................. ............ 7-25
Changing wheels................................................ .................... 8-4
Charging light ................................................. .................... 2-106
Chassis serial number ....... .................................................. 10-1
Child restraint ................................................ ....................... 12-1
Child restraint system f or countries applied for
UN Regulation No.16............................................ ................ 2-43
Child restraint systems ........................................ ............... 2-40
Child-proof locks (rear door) .................................. .............. 2-5
Clock .......................................................... ..................2-74, 2-98
Clutch pedal................................................... ..............3-12, 7-36

13-2INDEX
75RM4-01E
Compact spare tire .............................................................. 7-41
Continuously variable transaxle (CVT) .......................... .... 3-19
Continuously variable transaxle (CVT) fluid .................... .7-32
Coolant level check ............................................ ................. 7-28
Coolant replacement ............................................ ............... 7-29
Corrosion prevention .......... .................................................. 9-1
Cruise control ................................................. ..................... 3-48
Cruise indicator light ......................................... ................ 2-115
Cup holder and storage area . ............................................... 5-8DDaily inspection checklist ..................................... ................ 3-1
Daytime running light .......................................... ................ 7-51
Daytime running light (D.R.L.) system.......................... ... 2-118
Dead lock system ............................................... ................... 2-4
Deceleration energy regeneratin g indicator light ........... 2-114
Depress brake pedal indicator .................................. ....... 2-115
Door locks ..................................................... ......................... 2-2
Drive belt ..................................................... ......................... 7-23
Drive mode indicator ........................................... ................ 2-78
Driver’s seat belt reminder light /
Front passenger’s seat belt remi nder light .....................2-106
Driving on hills ............................................... ........................ 4-3
Driving on slippery roads ...................................... ............... 4-4
Driving range.................................................. ............. 2-74, 2-94
Driving time ................................................... ....................... 2-74
Dual camera brake support ...................................... .......... 3-53
Dual camera brake support indicator light...................... 2-110
Dual camera brake support OFF indicator light ............. 2-110
Dual camera brake support OFF switch ........................... .3-61
Dual camera brake support warn ing light ....................... 2-116
EEco-Cool ....................................................... ........................ 3-48
Eco-driving display ............................................ .................. 2-79
Electric mirrors............................................... ...................... 2-24
Electric power steering ligh t ............................................. 2-109
Electric window controls ... .................................................. 2-20
Electronic stabi lity program (ESP
®) ................................... 3-78
Emergency locking retractor ( ELR) .................................... 2-35
Emergency stop signal (ESS) . ............................................ 3-71
Energy flow indicator.......................................... ........2-74, 3-46
ENG A-STOP indicator light ..................................... ......... 2-114
ENG A-STOP OFF light ........................................... ........... 2-114
ENG A-STOP OFF switch .......................................... .......... 3-45
ENG A-STOP system (e ngine auto stop start system) ..... 3-35
Engine coolant ................................................. .................... 7-28
Engine hood .................................................... ....................... 5-2
Engine oil and filter .......................................... .................... 7-23
Engine oil consumption ......................................... ............... 3-2
Engine serial number........................................... ................ 10-1
Engine switch .................................................. ....................... 3-5
Engine switch illumination ..................................... ............... 3-7
Engine trouble: Flooded engine ................................. ........ 8-13
Engine trouble: Overheating .................................... ........... 8-13
Engine trouble: Starter does not operate ....................... ... 8-13
ESP
® OFF indicator light ..........................................2 -105, 3-79
ESP® OFF switch .................................................... ............. 3-80
ESP® warning light ................................................. ..2-104, 3-79
Exhaust gas warning ............................................ ................. 3-1
FFlat tire repair kit .................................................................... 8-5
Floor mats ..................................................... ........................ 5-10

13-3
INDEX75RM4-01E
Fluid level check .................................................................. 7-32
Folding rear seats ............................................. ................... 2-31
Footrest ....................................................... ......................... 5-10
For Argentina .................................................. ..................... 12-8
For Australia.................................................. ....................... 12-1
For Chile and Panama ........................................... .............. 12-5
For GCC countries .............................................. ................. 12-3
For Mexico ..................................................... ....................... 12-6
For Taiwan ..................................................... ....................... 12-7
Frame hooks .................................................... .................... 5-12
Front air bags ................................................. ...................... 2-55
Front bottle holder ............................................ ..................... 5-9
Front cup holders .............................................. .................... 5-9
Front fog light ................................................ ...................... 7-51
Front fog light indicator light................................ ............ 2-111
Front fog light switch ......................................... ............... 2-119
Front passenger air bag deactivation system .................. 2- 65
Front position light ........................................... ................... 7-53
Front seat back pocket......................................... ................. 5-9
Front seat heater.............................................. .................... 2-28
Front seats .................................................... ....................... 2-27
Front turn signal light........................................ .................. 7-53
Fuel consumption ............................................... ........ 2-74, 2-94
Fuel filler cap................................................ .......................... 5-1
Fuel gauge ..................................................... ..... 2-70, 2-78 , 2-93
Fuel pump labeling ............................................. ................. 12-6
Fuel recommendation ................................1-1 , 12-5 , 12-6 , 12-8
Full wheel cover ............................................... ...................... 8-5
Fuses .......................................................... .......................... 7-45
Fuses in engine compartment .................................... ........ 7-45
Fuses under dashboard .......................................... ............ 7-47
GGasoline containing MTBE....................................... ............. 1-1
Gasoline engine ................................................ ..................... 1-1
Gasoline/Ethanol blends ........................................ ............. 12-6
Gasoline-ethanol blends ........................................ ............... 1-1
Gear oil ....................................................... ........................... 7-34
Gear oil change ................................................ .................... 7-35
Gear oil level check........................................... ................... 7-34
Gear position .................................................. ...................... 2-77
Gearshift indicator ............................................ 2-77, 2-93 , 3-33
Glove box ...................................................... .......................... 5-7
Grip control switch ............................................ .................. 3-83
Grip control system ............................................ ................. 3-83
Guide me light ................................................. ................... 2-118HHalogen headlights ............................................. ................. 7-49
Hazard warning switch .......................................... ............ 2-125
Head restraints ................................................ ............2-28, 2-30
Headlight aiming ............................................... ................... 7-48
Headlight leveling switch ...................................... ............ 2-123
Heated rear window switch /
heated outside rearview mirror switch .......................... .. 2-129
Heating and air conditioning system ............................ ..... 5-15
Heating system................................................. .................... 5-17
High engine coolant temp erature warning light
(red color) .................................................... ....................... 2-109
Highway driving ................................................ ..................... 4-3
Hill descent control indicator light ..........................2 -105, 3-82
Hill descent control switch.................................... .............. 3-81
Hill descent control system .................................... ............ 3-80
Hill hold control system ....................................... ............... 3-84

13-4INDEX
75RM4-01E
Horn .................................................................................... 2-128
How ABS works .................................................. ................. 3-77II/S AC Settings ..................................................................... 3-48
Idling stop time ............................................... ..................... 2-78
If you cannot shift CVT gearshift lever
out of “P” (PARK) .............................................. .................. 3-23
Ignition key reminder .......................................... .................. 2-2
Ignition switch................................................ ........................ 3-3
Illumination indicator light ................................... ............. 2-112
Immobilizer system ............................................. .................. 2-1
Immobilizer/keyless push start system warning light.... 2-108
Improving fuel economy ......................................... .............. 4-2
Information display
(instrument cluster with tachometer) ........................... ..... 2-72
Information display
(instrument cluster without tachometer) ........................ ... 2-93
Inside rearview mirror ...... ................................................... 2-23
Installation of child restraint with top tether ................ ..... 2-51
Installation of radio frequenc y transmitters...................... 5-32
Installation with ISOFIX type anchorages ....................... .. 2-49
Installation with lap-shoulder seat belts ........................... 2-48
Instantaneous fuel consumption .............................. 2-7 4, 2-94
Instrument cluster ............................................. .................. 2-68
Interior light ................................................. .................. 5-5, 7-49
Interior workable area for engi ne starting ........................... 3-9JJacking instructions ........................................... ................... 8-1
Jump-starting instructions ..................................... ............ 8-10
KKeyless entry system transmitter............................... .2-7, 2-13
Keyless push start system ... ................................................. 3-6
Keyless push start system rem ote controller.....................2-7
Keys........................................................... .............................. 2-1LLane departure warning indicator light......................... ... 2-110
Lane departure warning OFF indicator light ................... 2- 111
Lane departure warning OFF switch .............................. .... 3-62
Lap-shoulder belt .............................................. ................... 2-35
Lead-acid battery .............................................. ................... 7-42
LED headlight warning light.................................... .......... 2-112
LED headlights ................................................. .................... 7-49
License plate light ............................................ .................... 7-54
Light reminder buzzer.......................................... .............. 2-118
Lighting control lever ......................................... ............... 2-116
Lighting operation............................................. ................. 2-116
Listening to a CD.............................................. .................... 5-50
Listening to an iPod
®........................................................... 5-60
Listening to an MP3/WMA/AAC disc ............................... ... 5-53
Listening to files stored in a USB device...................... ..... 5-57
Listening to the radio......................................... .........5-43, 5-45
Lithium-ion battery............................................ ................... 7-45
Low engine coolant temperature l ight (blue color)......... 2-113
Low fuel warning light ......................................... .............. 2-108
Low tire pressure warning light ...............................2 -101, 3-85
Luggage compartment cover ...................................... ........ 5-11
MMain beam (high beam) indicator light ............................ 2-112
Maintenance recommended under severe driving
conditions (except for EU countries and Israel) ................ .7-8
