SECTION 7A
MANUAL TRANSMISSION
CONTENTS

GENERAL DESCRIPTION .............................. 7A-2
CONSTRUCTION AND SERVICING ........... 7A-2
TRANSMISSION FOR 2WD MODEL....... 7A-3
TRANSMISSION FOR 4WD MODEL....... 7A-4
DIAGNOSIS ..................................................... 7A-5
ON-VEHICLE SERVICE .................................. 7A-5
OIL CHANGE ............................................... 7A-6
DIFFERENTIAL SIDE OIL SEAL ................. 7A-6
GEAR SHIFT CONTROL LEVER AND
CABLE ......................................................... 7A-8
VEHICLE SPEED SENSOR (VSS) ............ 7A-10
UNIT REPAIR OVERHAUL ........................... 7A-11
TRANSMISSION UNIT............................... 7A-11
TRASMISSION CASE ................................ 7A-12
INPUT & COUNTER SHAFT...................... 7A-13
GEAR SHIFTER & DIFFERENTIAL ........... 7A-14
TRANSMISSION UNIT............................... 7A-16
UNIT DISASSEMBLY ................................ 7A-17
FIFTH GEARS........................................ 7A-17GEAR SHIFTER, INPUT SHAFT AND
COUNTER SHAFT................................. 7A-19
RIGHT CASE ......................................... 7A-20
SUB ASSEMBLY SERVICE ...................... 7A-21
RIGHT CASE ......................................... 7A-21
LEFT CASE............................................ 7A-21
INPUT SHAFT ASSEMBLY ................... 7A-22
COUNTER SHAFT ASSEMBLY ............ 7A-25
GEAR SHIFTER..................................... 7A-29
DIFFERENTIAL ASSEMBLY ................. 7A-30
UNIT ASSEMBLY ...................................... 7A-33
DIFFERENTIAL TO LEFT CASE ........... 7A-33
FIFTH GEARS ....................................... 7A-35
GEAR SHIFT AND SELECT SHAFT
ASSEMBLY ............................................ 7A-38
TIGHTENING TORQUE SPECIFICATION.... 7A-39
REQUIRED SERVICE MATERIAL................ 7A-40
SPECIAL TOOL ............................................ 7A-40

WARNING:
For vehicles equipped with Supplemental Restraint (Air Bag) System :
• Service on and around the air bag system components or wiring must be performed only by an
authorized SUZUKI dealer. Refer to “Air Bag System Components and Wiring Location View” under
“General Description” in air bag system section in order to confirm whether you are performing ser-
vice on or near the air bag system components or wiring. Please observe all WARNINGS and “Ser-
vice Precautions” under “On-Vehicle Service” in air bag system section before performing service
on or around the air bag system components or wiring. Failure to follow WARNINGS could result in
unintentional activation of the system or could render the system inoperative. Either of these two
conditions may result in severe injury.
 Technical service work must be started at least 90 seconds after the ignition switch is turned to the
“LOCK” position and the negative cable is disconnected from the battery. Otherwise, the system
may be activated by reserve energy in the Sensing and Diagnostic Module (SDM).

MANUAL TRANSMISSION 7A-5
DIAGNOSIS
ON-VEHICLE SERVICE
Condition Possible Cause Correction
Gears slipping out of
meshMaladjusted gear shift/select control cables Adjust.
Worn shift fork shaft Replace.
Worn shift fork or synchronizer sleeve Replace.
Weak or damaged locating springs Replace.
Worn bearings on input shaft or counter shaft Replace.
Worn chamfered tooth on sleeve and gear Replace sleeve and gear.
Hard shifting
Maladjusted gear shift/select control cables Adjust.
Inadequate or insufficient lubricant Replenish.
Improper clutch pedal free travel Adjust.
Distorted or broken clutch disc Replace.
Damaged clutch pressure plate Replace clutch cover.
Worn synchronizer ring Replace.
Worn chamfered tooth on sleeve or gear Replace sleeve or gear.
Worn gear shift/select control cables joint Replace.
Distorted shift shaft Replace.
Noise
Inadequate or insufficient lubricant Replenish.
Damaged or worn bearing(s) Replace.
Damaged or worn gear(s) Replace.
Damaged or worn synchronizer parts Replace.
CAUTION:
Do not reuse circlip, spring pin, E-ring, oil seal, gasket,
self locking nut and specified parts. Reuse of it can result
in trouble.

7A-6 MANUAL TRANSMISSION
OIL CHANGE
1) Before changing or inspecting oil, be sure to stop engine and
lift vehicle horizontally.
2) With vehicle lifted up, check oil level and leakage.
If leakage exists, correct it.
3) Drain old oil and fill new specified oil by specified amount (up
to level hole).
4) Apply sealant to thread of drain plug (2) and level/filler plug
(3) and torque them as specified below.
“A” : Sealant 99000-31110
Tightening torque
Transmission oil level/filler and drain plugs
(a) : 21 N·m (2.1 kg-m, 15.5 lb-ft)
Transmission oil
: API GL-4
For SAE classification, refer to viscosity chart in the fig-
ure.
Transmission oil capacity
: 2.2 liters (4.6/3.9 US/lmp. pt)
DIFFERENTIAL SIDE OIL SEAL
REPLACEMENT
1) Lift up vehicle and drain transmission oil.
2) Remove wheel, and then remove tie-rod end (1) split pin (4)
and castle nut (3).
3) Disconnect tie-rod end from knuckle (2) by using special tool.
Special tool
(A) : 09913-65210
4) Remove two stabilizer mount brackets from vehicle body.
5) Remove ball stud bolt and then separate suspension arm
from knuckle.
6) Separate transfer from transmission assembly. (for 4WD
vehicle)
For detail, refer to Section 7D. NOTE:
 It is highly recommended to use API GL-4 75W-90 gear
oil.
 Whenever vehicle is hoisted for any other service work
than oil change, also be sure to check for oil leakage.
1. Drive shaft (LH)

MANUAL TRANSMISSION 7A-7
7) By using large size screwdrivers (2), pull out drive shaft joint
(1) so as to release snap ring fitting of joint spline at differen-
tial side.Pushing knuckle portion outward, detach drive shaft
at differential side.
8) Remove oil seal (1) and install a new one until it becomes
flush with case surface by using special tool and hammer.
Special tool
(A) : 09913-75510 (2WD and LH of 4WD)
(A) : 09951-46010 (RH of 4WD)
9) Apply grease to oil seal lip and at the same time check drive
shaft where oil seal contacts and make sure of its smooth-
ness.
“A” : Grease 99000-25010
10) Insert drive shaft joint to differential gear.
11) Connect ball stud with knuckle and fasten with bolt to specifi-
cation referring to Section 3D.
12) Connect tie-rod end with knuckle and fasten new nut to spec-
ified torque referring to Section 3D.
13) Install stabilizer mount brackets, fasten bolts to specified
torque referring to Section 3D.
14) Fill transmission oil as specified and make sure that oil has
been sealed with oil seal.
NOTE:
When installing oil seal, face its spring side inward.
CAUTION:
 Be careful not to scratch oil seal lip with drive shaft
joint while inserting.
 Make sure to insert drive shaft joint fully and seat its
snap ring as it was.
 Do not hit joint boot with hammer or the like. Nothing
but hands is allowed to use when inserting joint.

7A-12 MANUAL TRANSMISSION
TRASMISSION CASE
1. Transmission right case 9. Oil level/filler plug
: Apply sealant 99000-31110 to all around thread part of plug.
2. Transmission left case
: Apply sealant 99000-31110 to mating surface of left case
and right case.10. Oil drain plug
: Apply sealant 99000-31110 to all around thread part of plug.
3. Gear shifter assembly 11. VSS
4. Transmission left case plate 12. Oil gutter bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
5. Transmission side cover
: Apply sealant 99000-31110 to mating surface of side
cover and left case.13. Left case plate screw
6. Backup lamp switch Tightening torque
7. O-ring
: Apply SUZUKI SUPER GREASE A
99000-25010 to O-ring.Do not reuse.
8. Differential assembly

MANUAL TRANSMISSION 7A-13
INPUT & COUNTER SHAFT
1. Input shaft 13. Input shaft 5th gear 26. Countershaft
2. Oil seal
: Apply grease 99000-25010 to oil seal lip14. 5th gear spacer 27. Countershaft 1st gear
3. Input shaft right bearing 15. 5th gear needle bearing
(separated steel cage type)28. 1st gear synchronizer ring
4. Input shaft 3rd gear 16. 5th speed synchronizer ring 29. Low speed synchronizer spring
5. Needle bearing (resin cage type) 17. 5th synchronizer spring 30. Low speed sleeve & hub
5-1. Needle bearing (resin cage type) 18. 5th speed sleeve & hub 31. Low speed synchronizer key
6. High speed synchronizer ring 19. 5th synchronizer key 32. Circlip
7. High speed synchronizer spring 20. 5th synchronizer hub plate 33. 2nd gear synchronizer outer ring
8. High speed sleeve & hub 21. Circlip 34. Needle bearing
(separated steel cage type)
9. High speed synchronizer key 22. Reverse gear shaft 34-1. Needle bearing (steel cage type)
10. Circlip 23. Reverse idler gear 35. Countershaft 2nd gear
11. Input shaft 4th gear 24. Reverse shaft washer 36. Countershaft 3rd gear
12. Input shaft left bearing 25. Countershaft right bearing 37. 3rd & 4th gear spacer

7A-14 MANUAL TRANSMISSION

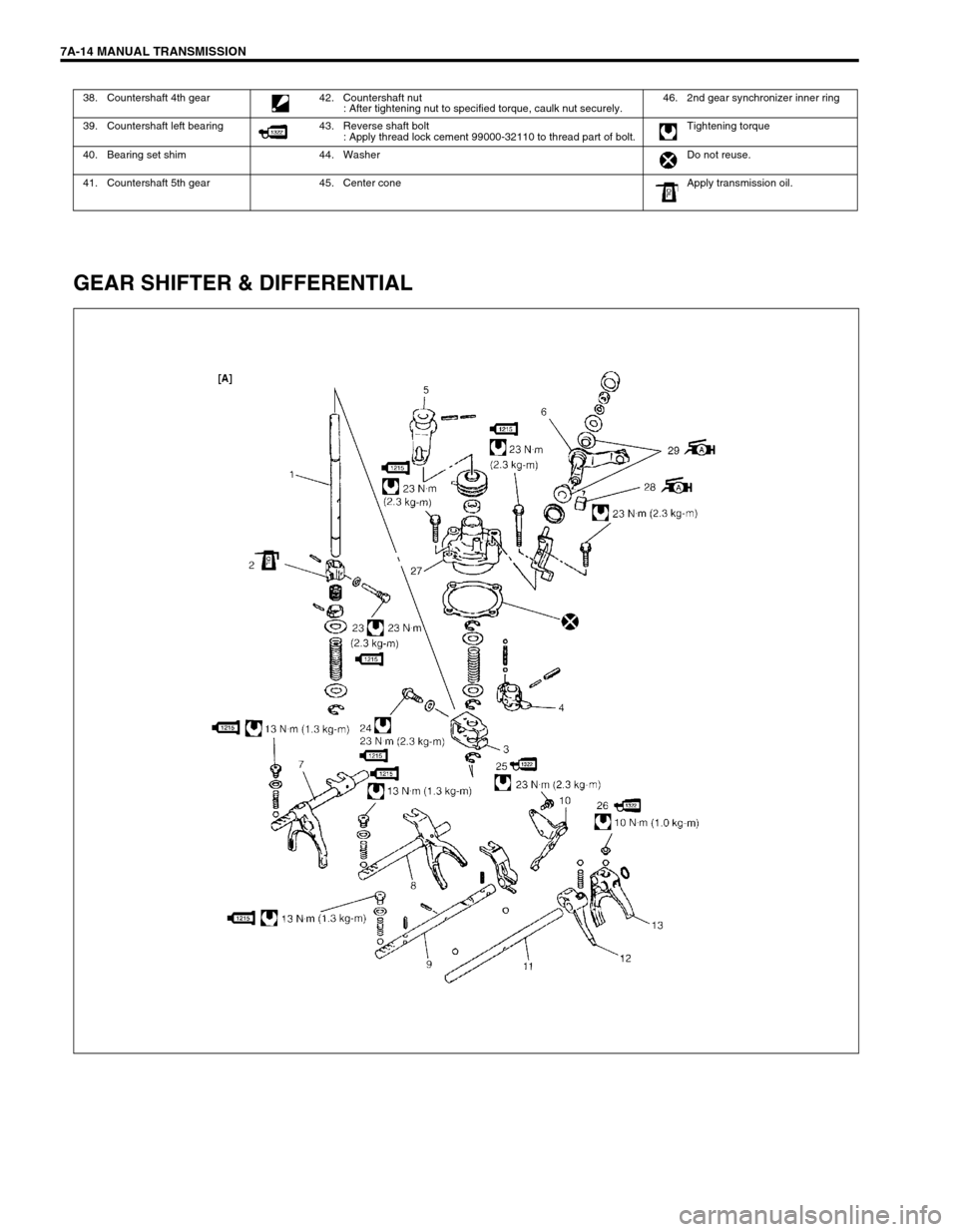

GEAR SHIFTER & DIFFERENTIAL
38. Countershaft 4th gear 42. Countershaft nut
: After tightening nut to specified torque, caulk nut securely.46. 2nd gear synchronizer inner ring
39. Countershaft left bearing 43. Reverse shaft bolt
: Apply thread lock cement 99000-32110 to thread part of bolt.Tightening torque
40. Bearing set shim 44. Washer Do not reuse.
41. Countershaft 5th gear 45. Center cone Apply transmission oil.

MANUAL TRANSMISSION 7A-15
[A] : GEAR SHIFTER 12. Reverse gear shift arm 25. Reverse gear shift lever bolt
: Apply thread lock 99000-32110 to all around
thread part of bolt.
[B] : DIFFERENTIAL 13. 5th gear shift fork 26. 5th gear shift fork plug
: Apply thread lock 99000-32110 to all around
thread part of plug.
1. Gear shift & select shaft 14. Side gear washer 27. Guide case
2. 5th & reverse gear shift cam 15. Differential side pinion gear 28. Select lever shaft bush
: Apply grease 99000-25010 to whole area of
bush.
3. Gear shift interlock plate 16. Differential side gear 29. Select lever boss
: Apply grease 99000-25010 to internal and exter-
nal diameter
4. Gear shift & select lever 17. Side gear washer 30. Final gear bolt
: Apply thread lock 99000-32110 to all around
thread part of bolt
5. Shift cable lever 18. Differential side oil seal
: Apply grease 99000- 25010 to oil
seal lip.31. Differential pinion shaft
6. Select cable lever 19. Differential side bearing 32. Differential pinion shaft pin
7. Low speed gear shift shaft 20. Speed sensor ring Tightening torque
8. High speed gear shift shaft 21. Differential case Do not reuse.
9. 5th & reverse gear shift shaft 22. Final gear Apply transmission oil.
10. Reverse gear shift lever 23. 5th to reverse interlock guide bolt
: Apply sealant 99000-31110 to bolt
thread.
11. 5th & reverse gear shift guide
shaft24. Gear shift interlock bolt
: Apply sealant 99000-31110 to bolt
thread.

7A-16 MANUAL TRANSMISSION
TRANSMISSION UNIT
DISMOUNTING
Under Hood
1) Disconnect negative cable at battery.
2) Undo wiring harness clamps, disconnect backup lamp switch
coupler, VSS coupler and ground cable.
3) Disconnect clutch cable from clutch release lever and
bracket.
4) Disconnect gear shift and select control cables.
5) Remove water pipe bracket bolts from transmission.
6) Remove transmission bolts (1).
7) Remove starting motor taking out its bolts.
8) Support engine by using lifting device.
On Lift
9) Drain transmission oil referring to “OIL CHANGE” in this sec-
tion.
10) Remove left and right drive shaft referring to Section 4A.
11) Remove left side of engine under cover.
12) Remove engine rear mounting bracket stiffener (1).
13) Remove clutch housing lower plate.
14) Remove engine rear mounting No.1 bracket (2) with No.2
bracket (3).
15) Remove transfer referring to Section 7D (if equipped).
16) Remove transmission to engine bolt and nut.
17) Lower vehicle and support transmission with transmission
jack.

MANUAL TRANSMISSION 7A-17
18) Remove engine left mounting (1) with bracket (2).
19) Remove other attached parts from transmission, if any.
20) Pull transmission out so as to disconnect input shaft from
clutch disc and then lower it.
REMOUNTING
Remount transmission in reverse order of dismounting procedure
noting the following.
 Refer to Section 7D for installing transfer (if equipped).
 Refer to the first figure of “UNIT REPAIR OVERHAUL” for
fastener specified torque.
 Push in drive shaft joints (right & left) fully so as to snap ring
of shaft engages with differential gear.
 Set each clamp for wiring securely.
 After connecting clutch cable, be sure to adjust its play prop-
erly.
Refer to Section 7C.
 Fill transmission with oil as specified.
 Connect battery and check function of engine, clutch and
transmission.
UNIT DISASSEMBLY
FIFTH GEARS
1) Remove side cover bolts and take off transmission side
cover.
CAUTION:
Care should be taken not to scratch oil seal lip with drive
shaft while raising transmission.
Do not hit drive shaft joint with hammer when installing it
into differential gear.
CAUTION:
Care should be taken not to distort side cover when it is
removed from left case.
