SUZUKI SX4 2006 1.G Service Workshop Manual

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-52
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

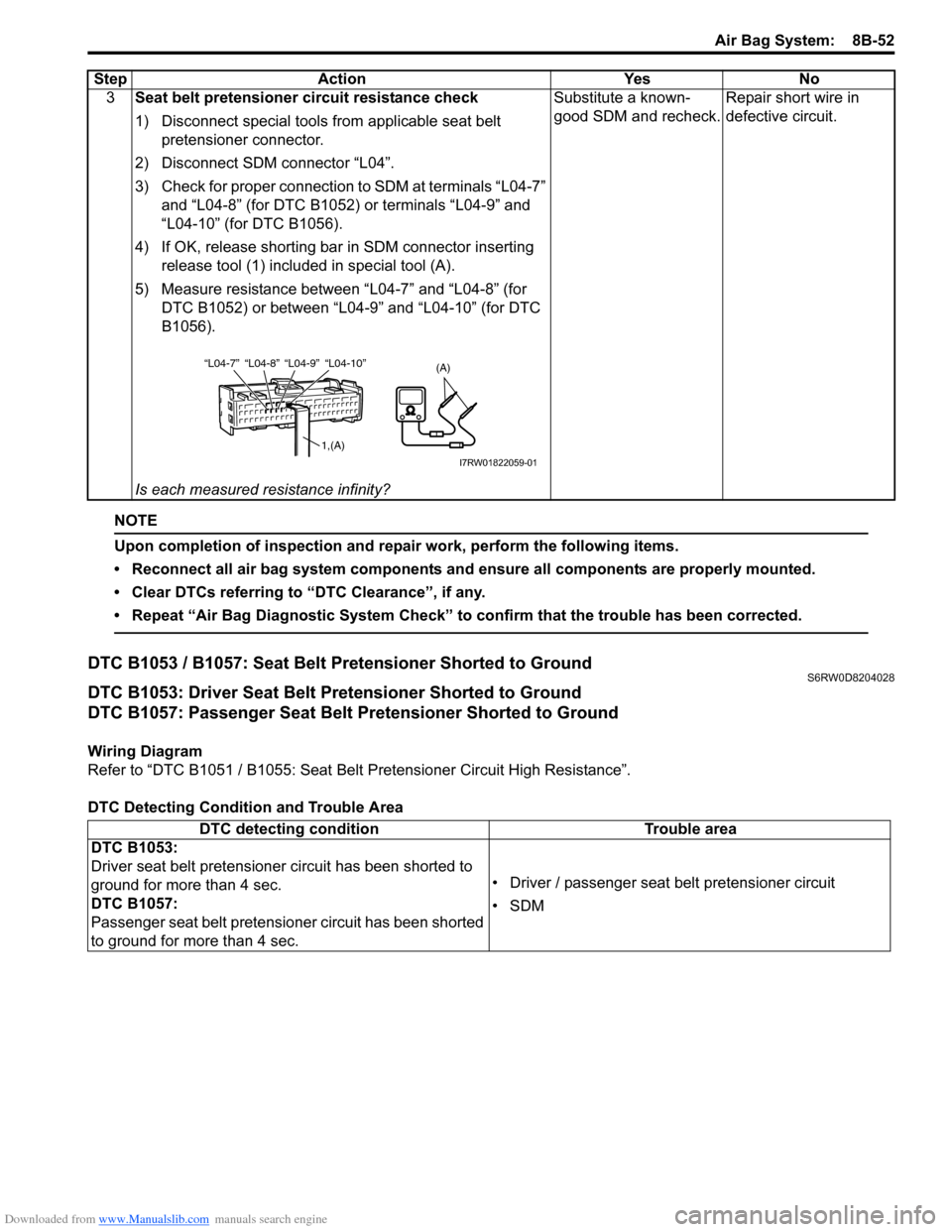

DTC B1053 / B1057: Seat Belt Pretensioner Shorted to GroundS6RW0D8204028
DTC B1053: Driver Seat Belt Pretensioner Shorted to Ground
DTC B1057: Passenger Seat Belt Pretensioner Shorted to Ground
Wiring Diagram
Refer to “DTC B1051 / B1055: Seat Belt Pretensioner Circuit High Resistance”.
DTC Detecting Condition and Trouble Area3Seat belt pretensioner circuit resistance check
1) Disconnect special tools from applicable seat belt
pretensioner connector.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM at terminals “L04-7”
and “L04-8” (for DTC B1052) or terminals “L04-9” and
“L04-10” (for DTC B1056).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
5) Measure resistance between “L04-7” and “L04-8” (for
DTC B1052) or between “L04-9” and “L04-10” (for DTC
B1056).
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Repair short wire in
defective circuit. Step Action Yes No
“L04-8” “L04-9” “L04-10” “L04-7”(A)
1,(A)
I7RW01822059-01
DTC detecting condition Trouble area
DTC B1053:
Driver seat belt pretensioner circuit has been shorted to
ground for more than 4 sec.
DTC B1057:
Passenger seat belt pretensioner circuit has been shorted
to ground for more than 4 sec.• Driver / passenger seat belt pretensioner circuit
•SDM

Downloaded from www.Manualslib.com manuals search engine 8B-53 Air Bag System:

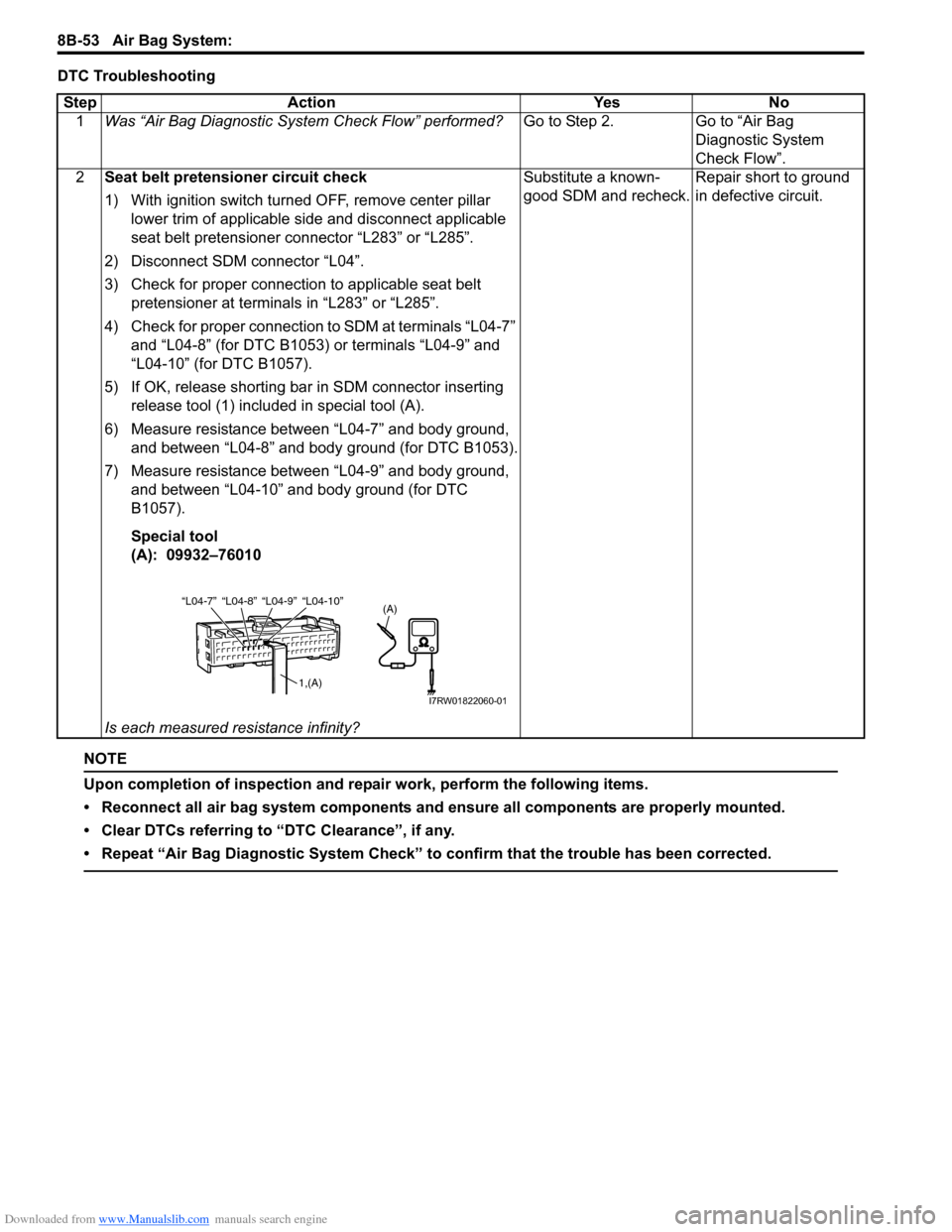

DTC Troubleshooting
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Seat belt pretensioner circuit check
1) With ignition switch turned OFF, remove center pillar
lower trim of applicable side and disconnect applicable
seat belt pretensioner connector “L283” or “L285”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to applicable seat belt
pretensioner at terminals in “L283” or “L285”.
4) Check for proper connection to SDM at terminals “L04-7”
and “L04-8” (for DTC B1053) or terminals “L04-9” and
“L04-10” (for DTC B1057).
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
6) Measure resistance between “L04-7” and body ground,
and between “L04-8” and body ground (for DTC B1053).
7) Measure resistance between “L04-9” and body ground,
and between “L04-10” and body ground (for DTC
B1057).
Special tool
(A): 09932–76010
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Repair short to ground
in defective circuit.
“L04-8” “L04-9” “L04-10” “L04-7”
1,(A)
(A)
I7RW01822060-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-54
DTC B1054 / B1058: Seat Belt Pretensioner Circuit Shorted to Power SupplyS6RW0D8204029
DTC B1054: Driver Seat Belt Pretensioner Circuit Shorted to Power Supply
DTC B1058: Passenger Seat Belt Pretensioner Circuit Shorted to Power Supply
Wiring Diagram
Refer to “DTC B1051 / B1055: Seat Belt Pretensioner Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC detecting condition Trouble area
DTC B1054:
Driver seat belt pretensioner circuit has been shorted to
power supply for more than 4 sec.
DTC B1058:
Passenger seat belt pretensioner circuit has been shorted
to power supply for more than 4 sec.• Driver / passenger seat belt pretensioner circuit
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Seat belt pretensioner circuit check
1) With ignition switch turned OFF, remove center pillar
lower trim of applicable side and disconnect applicable
seat belt pretensioner connector “L283” or “L285”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to applicable seat belt
pretensioner at terminals in “L283” or “L285”.
4) Check for proper connection to SDM at terminals “L04-7”
and “L04-8” (for DTC B1054) or terminals “L04-9” and
“L04-10” (for DTC B1058).
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
6) With ignition switch turned ON, measure voltage
between “L04-7” and body ground, and between “L04-8”
and body ground (for DTC B1054).
7) Measure voltage between “L04-9” and body ground and
between “L04-10” and body ground (for DTC B1058).
Special tool
(A): 09932–76010
Is each measured voltage 0 V?Substitute a known-
good SDM and recheck.Repair short to power
supply in defective
circuit.
“L04-8” “L04-9” “L04-10” “L04-7”
1,(A)
(A)
I7RW01822063-01

Downloaded from www.Manualslib.com manuals search engine 8B-55 Air Bag System:
DTC B1061 / B1065: Side-Air Bag Circuit High ResistanceS6RW0D8204053
DTC B1061: Driver Side-Air Bag Circuit High Resistance
DTC B1065: Passenger Side-Air Bag Circuit High Resistance
Wiring Diagram
DTC Detecting Condition and Trouble Area
“L04”[A]
BLK
L04-28
6 8
7
RED
GRN“L313”L04-27
910
13
12V5V30V
14
1
2 BLKWHT3
4
5
“L04”
GRY/RED
GRYBLU
BLK
BLU
BLK L04-12
L04-11
11 “Q134” “Q105” “L385”
BRN/WHT
BRN L04-13
L04-14
12
“Q104” “Q133” “L384”
I6RW0C820011-01
[A]: Shorting bar 5. Individual circuit fuse box No.1 10. SDM
1. Battery 6. Ignition switch 11. Driver side-air bag (inflator) model
2. Fuse 7. “A/B” fuse 12. Passenger side-air bag (inflator) module
3. Main fuse box 8. Junction block assembly 13. DC / DC converter
4. “IGN” fuse 9. Ground for air bag system 14. Back up capacitor
DTC detecting condition Trouble area
DTC B1061:
Driver side-air bag circuit is more than 3.7 Ω for more than
4 sec.
DTC B1065:
Passenger side-air bag circuit is more than 3.7 Ω for more
than 4 sec.• Driver / passenger side-air bag circuit
• Driver / passenger side-air bag module
•SDM

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-56
DTC Troubleshooting
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Side-air bag circuit check
1) Remove applicable driver / passenger side-air bag
(inflator) module from seat back referring to “Side-Air
Bag (Inflator) Module Removal and Installation”.
2) Check for proper connection to applicable side-air bag
(inflator) module at terminal in connector “Q104” or
“Q105”.
3) If OK, then connect special tools (A), (B) and (C) to
applicable side-air bag (inflator) connector “Q104” or
“Q105”.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM for DTC.
With ignition switch turned ON, is DTC B1061 or B1065 still
indicated?Go to Step 3. Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
“Q104”, “Q105”
STEERING WHEEL(B) (C)
(A)
I7RW01822077-01

Downloaded from www.Manualslib.com manuals search engine 8B-57 Air Bag System:
3Side-air bag circuit check
1) With ignition switch turned OFF, disconnect special tools
from applicable side-air bag (inflator) connector “Q104”
or “Q105”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1061) or
terminal “L04-13” and “L04-14” (for DTC B1065).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
5) Measure resistance between “L04-12” and “Q105-1”
terminals, between “L04-11” and “Q105-2” terminals (for
DTC B1061).
6) Measure resistance between “L04-13” and “Q104-1”
terminals, between “L04-14” and “Q104-2” terminals (for
DTC B1065).
Is each measured resistance 1
Ω or less?Substitute a known-
good SDM and recheck.Go to Step 4. Step Action Yes No
(A)
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
“Q104-1”, “Q105-1”
“Q104-2”, “Q105-2”
“Q104”, “Q105”
I7RW01822078-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-58
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

4Floor harness circuit check
1) Disconnect applicable “L384” or “L385” connector under
front cushion.
2) Check for proper connection to floor harness connector
at terminal “L385-1” and “L385-2” (for DTC B1061) or
terminal “L384-1” and “L384-2” (for DTC B1065).
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-12” and “L385-1”
terminals, between “L04-11” and “L385-2” terminals (for
DTC B1061).
5) Measure resistance between “L04-13” and “L384-1”
terminals, between “L04-14” and “L384-2” terminals (for
DTC B1065).
Is each measured resistance 1
Ω or less?DTC B1061: Repair
high resistance or open
wire in “BLU” or “BLK”
circuit at driver side-air
bag harness.
DTC B1065: Repair
high resistance or open
wire in “BLU” or “BLK”
circuit at passenger
side-air bag harness.DTC B1061: Repair
high resistance or open
wire in “GRY/RED” or
“GRY” circuit at floor
harness.
DTC B1065: Repair
high resistance or open
wire in “BRN/WHT” or
“BRN” circuit at floor
harness. Step Action Yes No
“L384”, “L385”
(A)“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
“L384-1”, “L385-1” “L384-2”, “L385-2”I7RW01822079-01

Downloaded from www.Manualslib.com manuals search engine 8B-59 Air Bag System:
DTC B1062 / B1066: Side-Air Bag Circuit Low ResistanceS6RW0D8204054
DTC B1062: Driver Side-Air Bag Circuit Low Resistance
DTC B1066: Passenger Side-Air Bag Circuit Low Resistance
Wiring Diagram
Refer to “DTC B1061 / B1065: Side-Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC TroubleshootingDTC detecting condition Trouble area
DTC B1062:
Driver side-air bag circuit is less than 1.0 Ω for more than
4 sec.
DTC B1066:
Passenger side-air bag circuit is less than 1.0 Ω for more
than 4 sec.• Driver / passenger side-air bag circuit
• Driver / passenger side-air bag module
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Side-air bag circuit check
1) Remove applicable driver / passenger side-air bag
(inflator) module from seat back referring to “Side-Air
Bag (Inflator) Module Removal and Installation”.
2) Check for proper connection to applicable side-air bag
(inflator) module at terminal in connector “Q104” or
“Q105”.
3) If OK, then connect special tools (A), (B) and (C) to
applicable side-air bag (inflator) connector “Q104” or
“Q105”.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM for DTC.
With ignition switch turned ON, is DTC B1062 or B1066 still
indicated?Go to Step 3. Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
“Q104”, “Q105”
STEERING WHEEL(B) (C)
(A)
I7RW01822077-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-60
3Side-air bag circuit check
1) With ignition switch turned OFF, disconnect special tools
from applicable side-air bag (inflator) connector “Q104”
or “Q105”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1062) or
terminal “L04-13” and “L04-14” (for DTC B1066).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
5) Measure resistance between “L04-11” and “L04-12”
terminals (for DTC B1062) or between “L04-13” and
“L04-14” terminals (for DTC B1066).
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Go to Step 4.
4Floor harness circuit check
1) Disconnect applicable “L384” or “L385” connector under
front cushion.
2) Check for proper connection to applicable floor harness
connector at terminal in connector “L384” or “L385”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-11” and “L04-12”
terminals (for DTC B1062) or between “L04-13” and
“L04-14” terminals (for DTC B1066).
Is each measured resistance infinity?DTC B1062: Repair
“BLU” circuit for short to
“BLK” circuit at driver
side-air bag harness.
DTC B1066: Repair
“BLU” circuit for short to
“BLK” circuit at
passenger side-air bag
harness.DTC B1062: Repair
“GRY/RED” circuit for
short to “GRY” circuit at
floor harness.
DTC B1066: Repair
“BRN/WHT” circuit for
short to “BRN” circuit at
floor harness. Step Action Yes No
(A)“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
I7RW01822080-01
“L384”, “L385”
(A)
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
I7RW01822081-01

Downloaded from www.Manualslib.com manuals search engine 8B-61 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1063 / B1067: Side-Air Bag Circuit Shorted to GroundS6RW0D8204057
DTC B1063: Driver Side-Air Bag Circuit Shorted to Ground
DTC B1067: Passenger Side-Air Bag Circuit Shorted to Ground
Wiring Diagram
Refer to “DTC B1061 / B1065: Side-Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC detecting condition Trouble area
DTC B1063:
Driver side-air bag circuit has been shorted to ground for
more than 4 sec.
DTC B1067:
Passenger side-air bag circuit has been shorted to ground
for more than 4 sec.• Driver / passenger side-air bag circuit
•SDM
